Canon PIXMA G7000 Series Manuale utente

Guía de inicio

Lea primero Información de seguridad

e información importante (apéndice).

Conguración en línea

Hay vídeos e instrucciones detalladas en

el sitio web de Canon.

Congurar un ordenador

Congurar un teléfono inteligente

Getting Started

Read Safety and Important Information

(addendum) rst.

Online Setup

Detailed instructions and videos are

available on the Canon website.

Setup a Computer

Setup a Smartphone

Instalación de la impresora ...............................................................................................página 1

Conexión con un ordenador, teléfono inteligente o tableta.......................página 4

Vídeos instructivos

Cómo sujetar la impresora

Installing the Printer...................................................................................................................page 1

Connecting to a Computer, Smartphone or Tablet...............................................page 4

Holding the Printer

Instructional Videos

ENGLISH

Setting Up the Printer Online Setup

1. Box Contents

•

Print heads •

Ink bottles

•

Power cord

•

Modular cable

•

Setup CD-ROM for Windows

•

Safety and Important Information

•

Getting Started (this manual)

2. Removing Packing Materials

1 Remove and dispose of any packing materials

and orange tape.

2 Open the scanning unit / cover, remove and

dispose of the orange tape and protective

material inside.

3. Installing the Print Heads

1 Open the print head locking cover.

2 Take out each print head from the package and

remove the label.

3 Remove the protective tape.

4 Insert the C (color) print head on the left and the

B (black) print head on the right.

5 Close the print head locking cover and press

down until it clicks.

6 Press down both joint buttons completely until

they click.

Check!

Setting Up the Printer

4. Pouring Ink

Important

This product requires careful handling of ink. Ink may splatter

when the ink tanks are lled with ink. If ink gets on your clothes or

belongings, it may not come o.

1 Open the ink tank cover and tank cap on the left

of the printer.

2 Hold the ink bottle upright and gently twist the

bottle cap to remove.

Check!

PGBK

3 Align the nozzle of the ink bottle with the inlet.

4 Slowly stand the ink bottle upside down and

push down to pour the ink.

• If the ink does not pour, gently remove the ink bottle

and try again.

5 Gently remove the ink bottle from the inlet.

• Be careful not to spill the ink.

6 Replace the tank cap securely, and then close

the ink tank cover.

7 Repeat steps 1 through 6 to pour all ink into the

corresponding ink tanks on the right.

Check!

CMY

8 Close the scanning unit / cover.

Caution

Watch your ngers.

5. Turning on the Printer

1 Connect the power cord.

Back

Important

At this time, do not connect any other cables.

2 Open the operation panel and press the ON

button.

ENGLISH

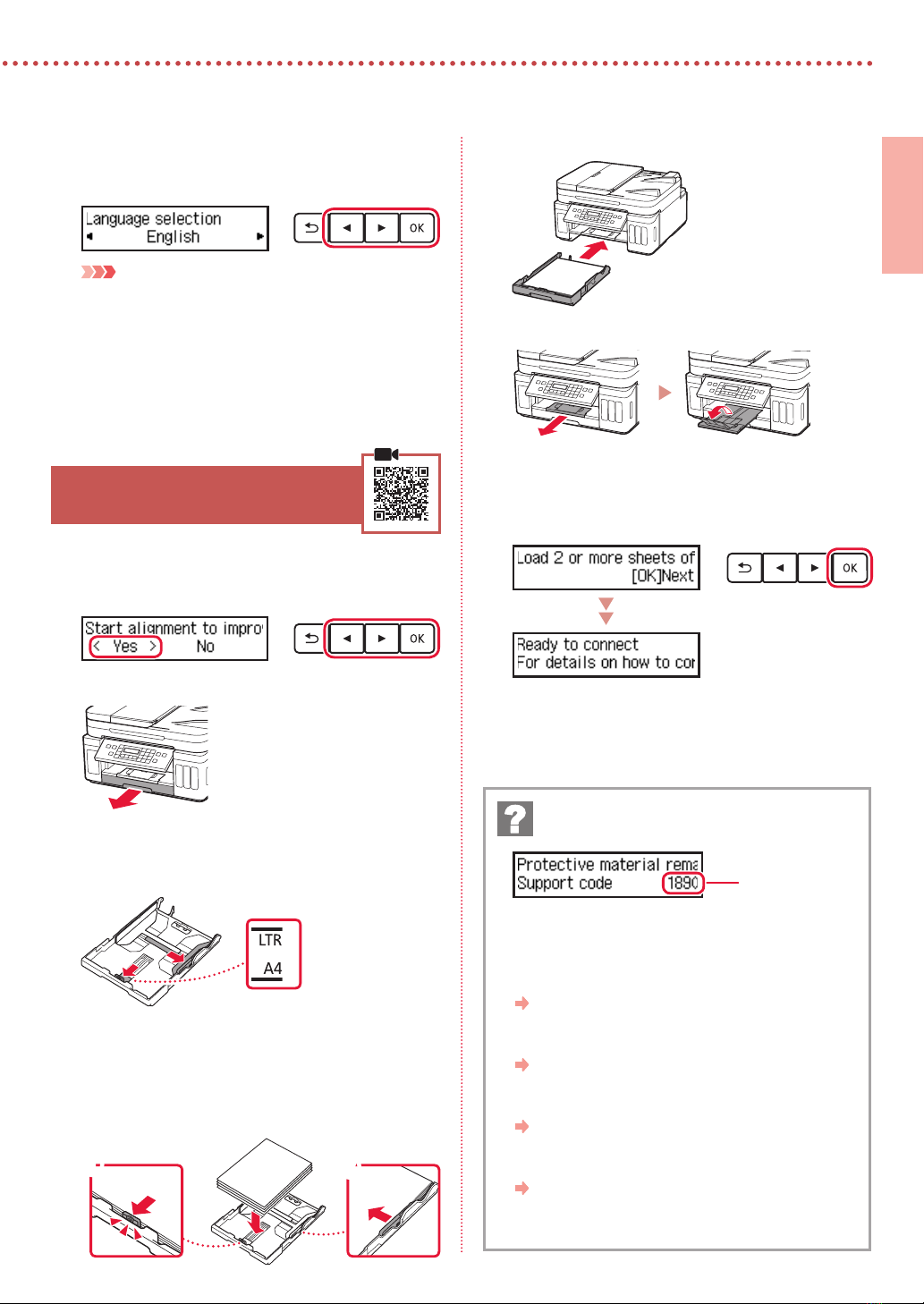

3 When the following screen appears, use the [

and ]buttons to select a language, and then

press the OK button.

Important

If an error appears on the screen, see "If an error message

(support code) appears on the screen" on page 3 and

follow the instructions.

4 If the country or region selection screen

appears, use the [and ]buttons to select

your country or region, and then press the OK

button.

6. Loading Paper

1 When the following screen appears, use the [

and ]buttons to select Yes , and then press the

OK button.

2 Remove the cassette from the printer.

3 Slide apart the paper guides.

• Slide the right paper guide to the right edge. Align

the front paper guide with the Letter or A4 mark.

4 Load paper.

• Load 2 or more sheets of Letter or A4 sized plain

paper with the print side facing down.

• Place the paper against the front paper guide, and

align the right paper guide to the width of the paper.

5 Replace the cassette.

6 Pull out the paper output tray.

7 Follow the on-screen instructions, and then

press the OK button.

• Check that Ready to connect appears on the

printer's screen.

Check the support code, and then follow the

instructions if the displayed code is written below.

• 1890

The protective materials are not removed.

"2. Removing Packing Materials" on page 1

• 1470

The print heads are not installed correctly.

"3. Installing the Print Heads" on page 1

• 1471

No print heads are installed.

"3. Installing the Print Heads" on page 1

• 1642

There may be insucient ink.

"4. Pouring Ink" on page 2

For all other cases, refer to the Online Manual.

If an error message (support code) appears on

the screen

Support code

Setting Up the Printer

7-a

Computer Smartphone

Computer and

smartphone

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from a

computer.

2 Select Set Up.

3 Enter your printer's model name and

click Go.

4 Click Start.

5 Click If you have already prepared

your printer, go to Connect.

Note

The following steps are for Windows (except

Windows 10 in S mode) and macOS users. For other

operating systems, continue setup by following the

on-screen instructions instead.

6 Click Download.

7 Run the downloaded le.

8 Click Start Setup.

9 Follow the on-screen instructions.

• These operations may take some time.

• To connect to a smartphone as well, see "7-b.

Connecting to a Smartphone" on page 5.

Using the Setup CD-ROM for Windows

Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an

internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install

the printer driver.

What device are you connecting?

7-a.Connecting to a Computer

Not connecting to any other devices 7-c
