Canon PIXMA MX420 Series Istruzioni utente

Setting Up Your MX420 In

Default Mode (Tel Priority Mode)

With An Answering Machine

Connecting The Phone Lines

NextPrevious

Connecting Your Phone/Answering Machine

NextPrevious

YES

Click Here or Go To Page 12

Click the Next Button

Is your answering machine built into your phone?

Fax to Phone Line Connection

NextPrevious 4

Before

After

(Phone Cord included with Canon printer)

Wall Jack

(Existing Phone Cord)

Answering

Machine Hand Set

(Phone)

(Existing Phone Cord)

Wall Jack

Answering

Machine

Hand Set

(Phone)

(Existing Phone Cord)

Fax to Phone Line Connection

NextPrevious 5

(Phone Cord included with Canon printer)

Wall Jack

(Existing Phone Cord)

Answering

Machine Hand Set

(Phone)

(Existing Phone Cord)

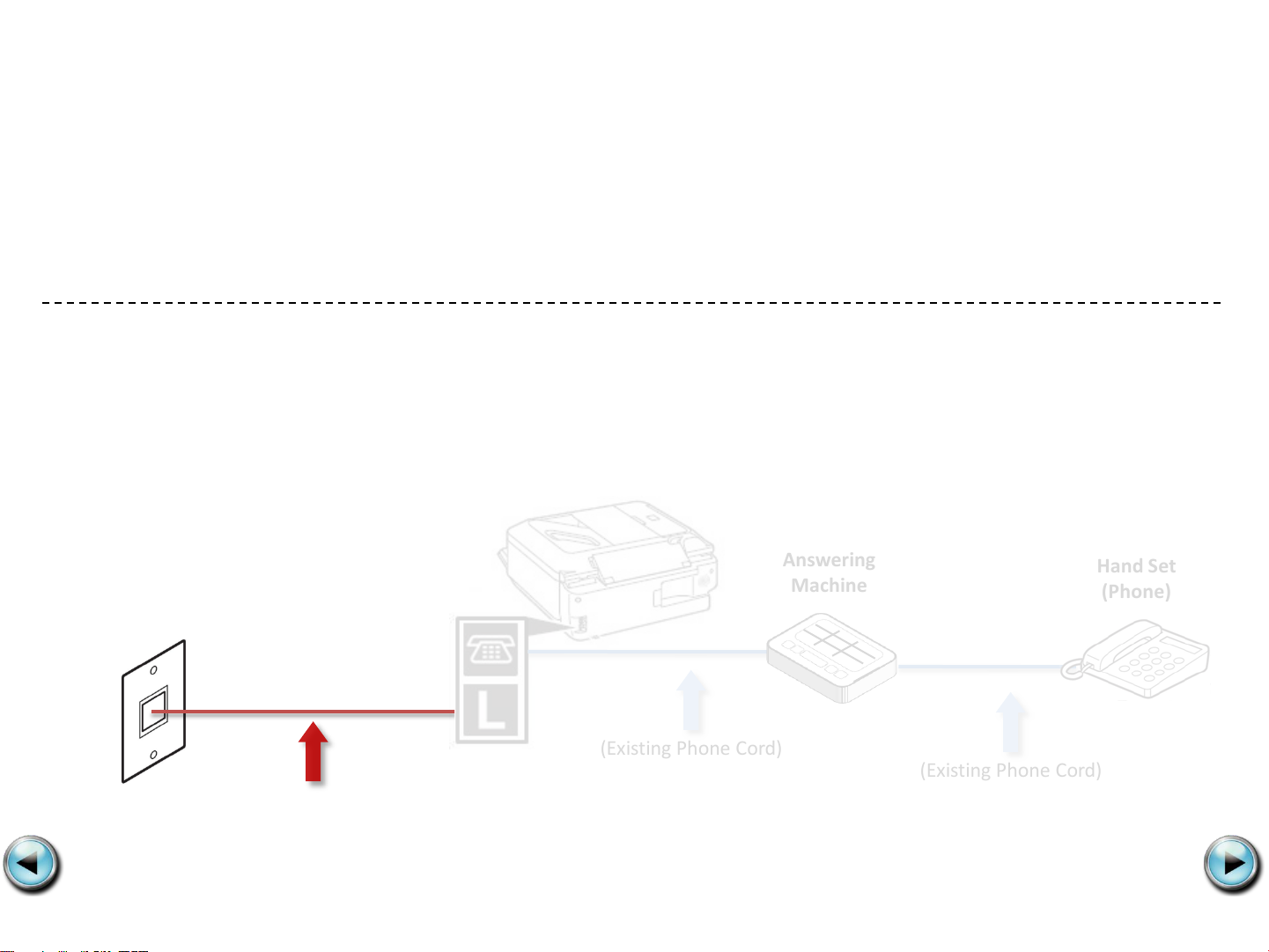

•Plug the provided phone cord into the wall jack

Fax to Phone Line Connection

NextPrevious 6

(Phone Cord included with Canon printer)

Wall Jack

(Existing Phone Cord)

Answering

Machine Hand Set

(Phone)

(Existing Phone Cord)

•Plug the provided phone cord into the “L” jack located on the rear of

the multifunction

Fax to Phone Line Connection

NextPrevious 7

(Phone Cord included with Canon printer)

Wall Jack

(Existing Phone Cord)

Answering

Machine Hand Set

(Phone)

(Existing Phone Cord)

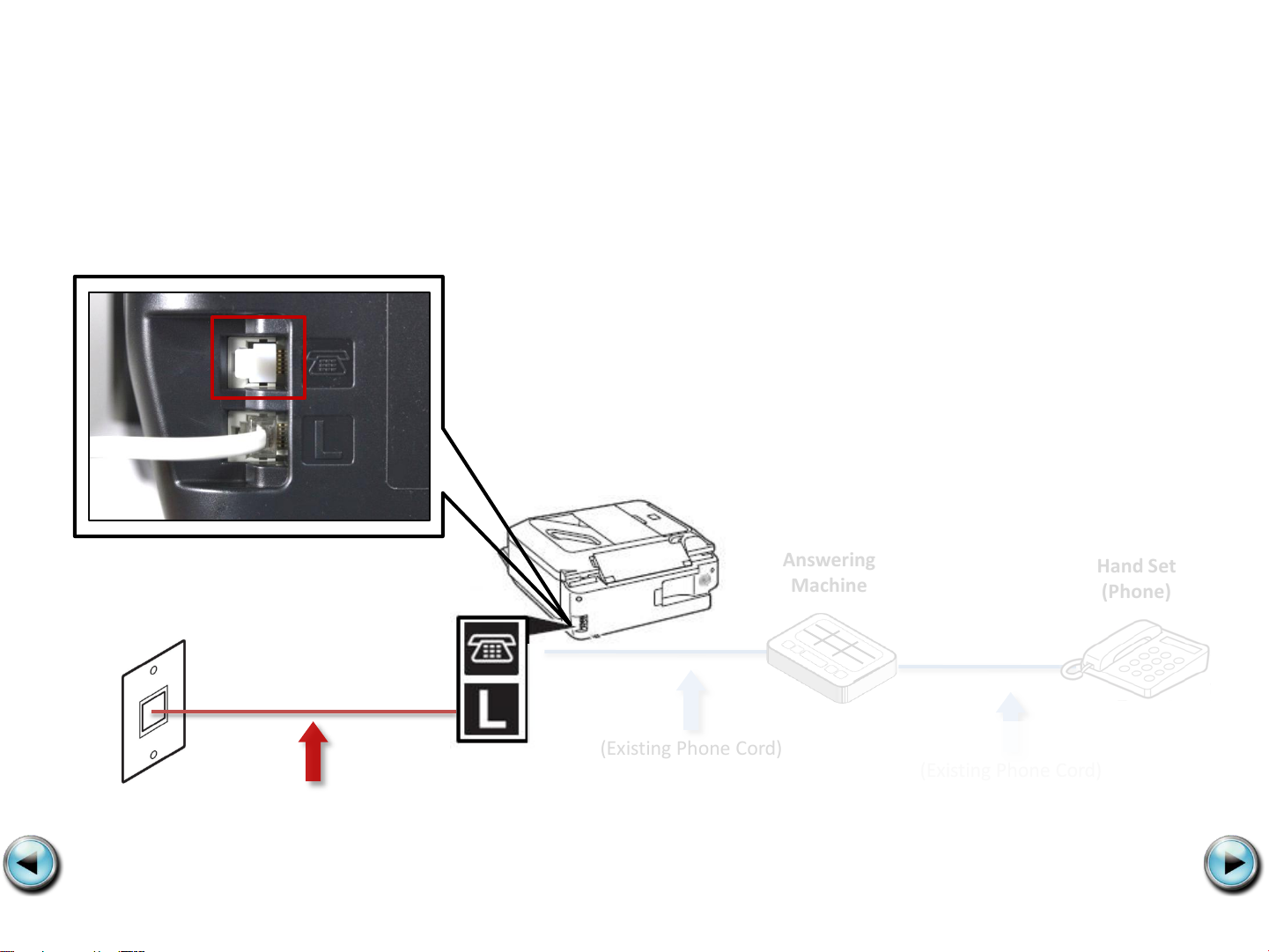

•Remove the white plug (D) from the upper jack

Fax to Phone Line Connection

NextPrevious 8

(Phone Cord included with Canon printer)

Wall Jack

(Existing Phone Cord)

Answering

Machine Hand Set

(Phone)

(Existing Phone Cord)

•Plug the second phone cord into “telephone” jack located on

the rear of the multifunction

Fax to Phone Line Connection

NextPrevious 9

(Phone Cord included with Canon printer)

Wall Jack

(Existing Phone Cord)

Answering

Machine Hand Set

(Phone)

(Existing Phone Cord)

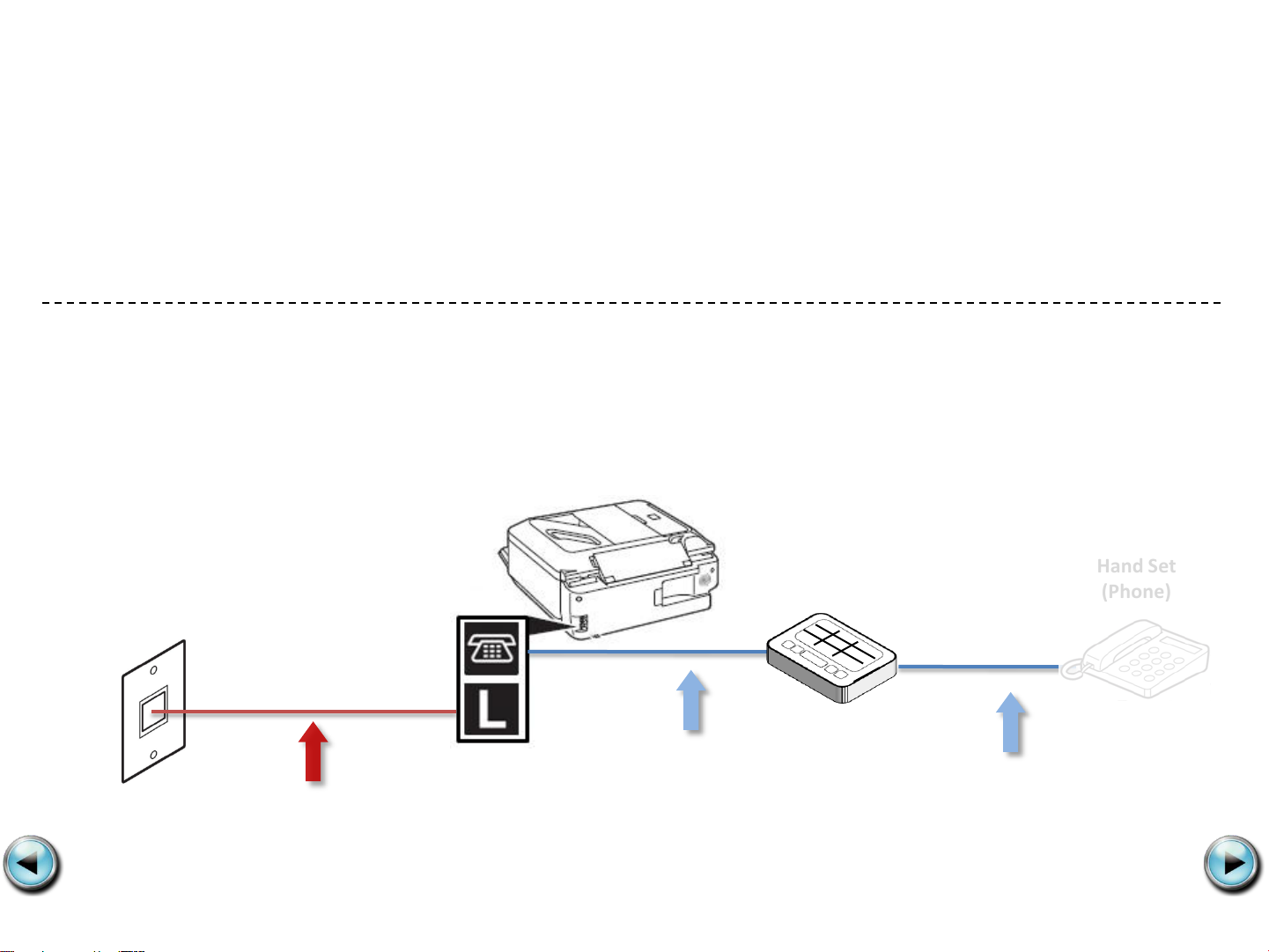

•Plug the second phone cord into the answering machine

Fax to Phone Line Connection

NextPrevious 10

(Phone Cord included with Canon printer)

Wall Jack

(Existing Phone Cord)

Answering

Machine Hand Set

(Phone)

(Existing Phone Cord)

•Plug the third phone cord into the answering machine
