Canon TR7620 Manuale utente

Démarrage

Commencez par lire Sécurité et informations

importantes (addendum).

Conguration en ligne

Des instructions détaillées et des vidéos

sont disponibles sur le site Web de Canon.

Congurer un ordinateur

Congurer un smartphone

Getting Started

Read Safety and Important Information

(addendum) rst.

Online Setup

Detailed instructions and videos are

available on the Canon website.

Setup a Computer

Setup a Smartphone

Accéder

Installation de l'imprimante..................................................................................................page 1

Connexion à un ordinateur, un smartphone ou une tablette.........................page 6

Instructions vidéo

Manipulation de l'imprimante

Installing the Printer...................................................................................................................page 1

Connecting to a Computer, Smartphone or Tablet...............................................page 6

Instructional Videos

Holding the Printer

ENGLISH

Setting Up the Printer

1. Box Contents

•

Ink Tanks for setup

•

Power Cord

•

Phone Cable

•

Setup CD-ROM

•

Safety and Important Information

•

Getting Started (this manual)

2. Removing Packing Materials

1 Remove and dispose of any protective lm and

orange tape.

• Using the printer with orange tape or protective lm

still attached, may cause the printer to malfunction.

2 Open the scanning unit / cover and remove the

orange tape.

3 Close the scanning unit / cover.

Caution

Watch your ngers.

3. Turning on the Printer

1 Connect the power cord.

• The plug is set at an angle.

Back

2 Open the operation panel and press the ON

button.

Online Setup

Setting Up the Printer

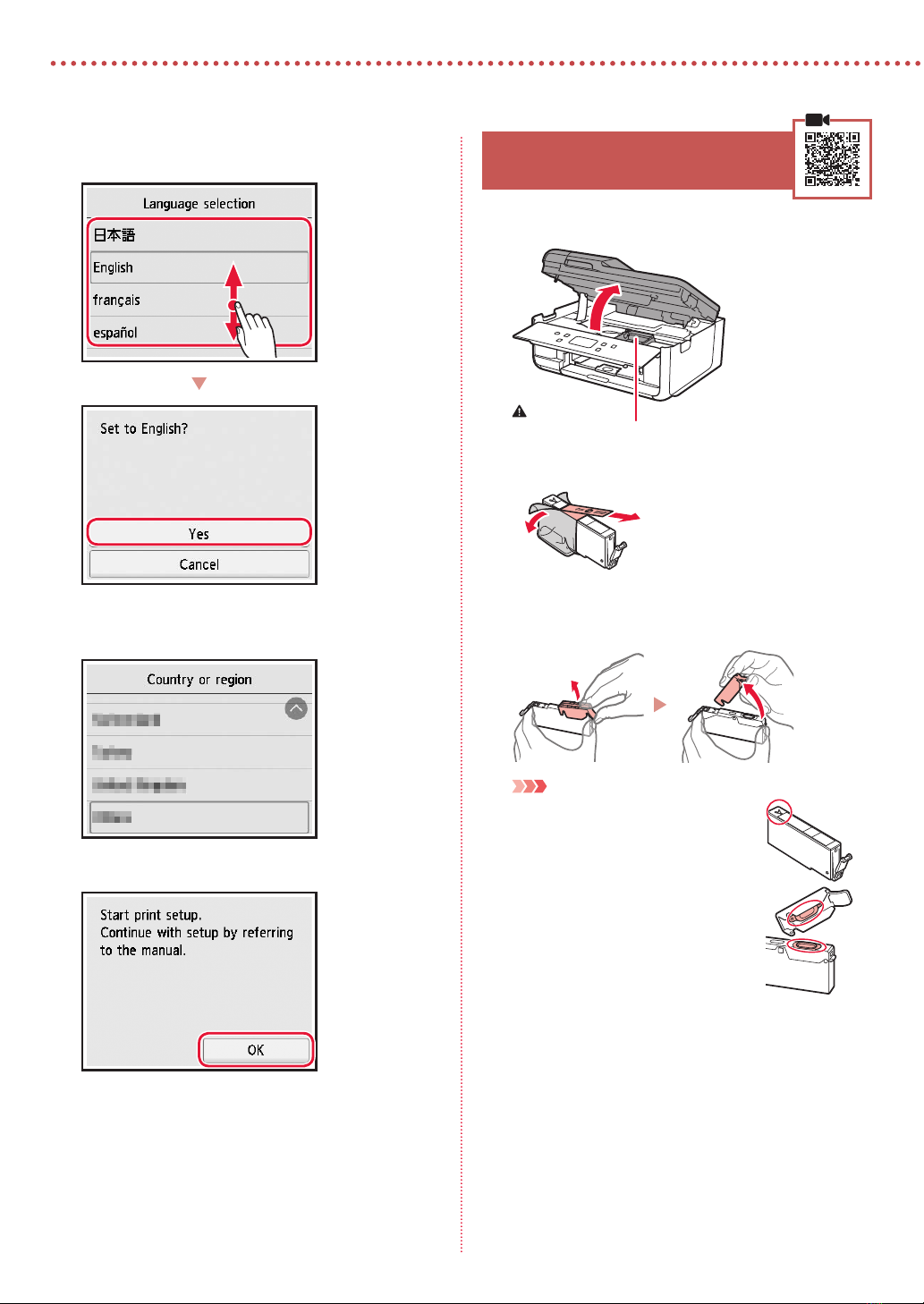

3 Scroll and tap to select your language, and then

tap Yes .

4 If the following screen appears, tap your country

or region to select.

5 Tap OK.

4. Installing the Ink Tanks

1 Open the scanning unit / cover.

Caution

Do not touch the print head holder until it stops moving.

2 Remove the tape and lm on the ink tank.

• Check that no tape or lm is left.

3 Slowly remove the orange cap.

Important

• Do not squeeze the ink tank with the

Y-shaped air hole blocked.

• Do not touch the areas shown in red.

ENGLISH

4 Install the ink tank.

• Insert the ink tank into the print head and press down

until it clicks.

5 Check that the color of the ink tank you installed

appears on the screen.

Important

If the color is not displayed on the screen even though you

have installed the ink tank, the color of the ink tank may be

wrong or you may have installed an ink tank, such as one

with a dierent model number, that is not supported by this

printer. Either install an ink tank for the correct color or use the

provided ink tank for setup.

6 Repeat steps 2 through 5 to install all the ink

tanks.

• Check that all the colors appear.

7 Close the scanning unit / cover.

• The printer will start initializing.

Caution

Watch your ngers.

5. Loading Paper

1 Tap OK.

2 Remove the cassette from the printer.

3 Remove the cassette cover.

Cassette cover

4 Slide apart the paper guides.

• Slide the right paper guide to the right edge. Align

the front paper guide with the Letter mark.

Setting Up the Printer

5 Load Letter sized plain paper.

• Place the paper against the front paper guide, and

align the right paper guide to the width of the paper.

a b

6 Attach the cassette cover and replace the

cassette.

7 Pull out the paper output tray.

6. Aligning Print Head

1 Tap OK.

• The Print Head Alignment pattern starts printing.

2 Check that the pattern is printed.

Printed Print Head Alignment

pattern

3 Place the pattern on the platen.

• Open the document cover and place the print side

facing down.

Align the arrow mark on

the device and the on

the pattern

4 Close the document cover and tap OK.

ENGLISH

Select the connection method that best matches how you

will use the printer.

• To use the printer without connecting to any other

devices

Setup is now complete.

To set up a fax, see "Using Fax Function" on page 8.

• To use the printer connecting to a computer or

smartphone

Proceed to the next page.

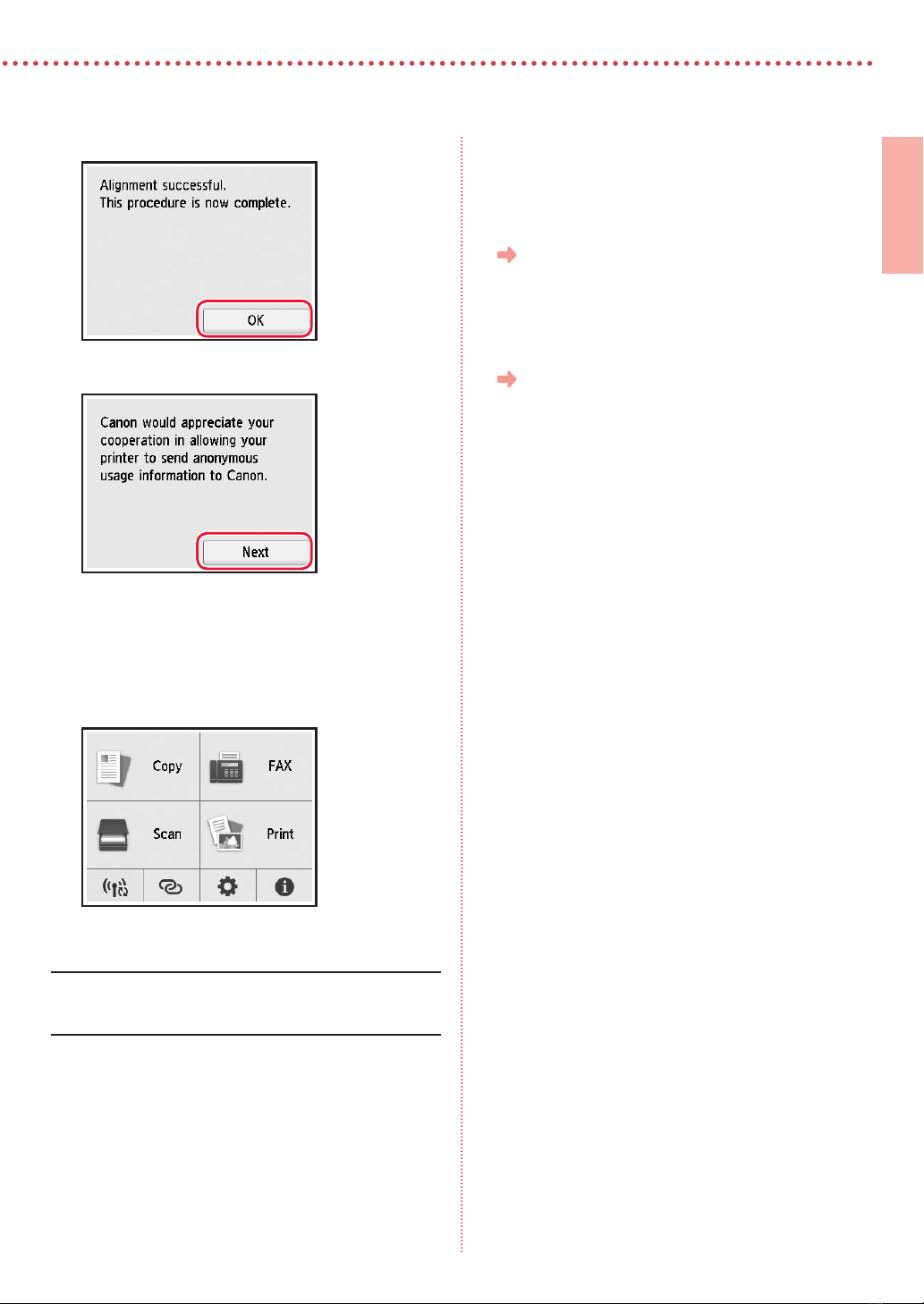

5 When the following screen appears, tap OK.

6 Tap Next.

• Follow the on-screen instructions to continue setup.

This includes making selections related to sending

information.

Refer to "Sending Information To Canon" in Safety

and Important Information.

7 Check that the following screen appears.

If you will use the printer without connecting any other

devices, setup is now complete.

7-a

Setting Up the Printer

Computer Smartphone

Computer and

smartphone

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from your

computer.

2 Select Set Up.

3 Enter your printer's model name and

click Go.

4 Click Start.

5 Click (B) Connecting to a Computer/

Smartphone.

• The following steps are for Windows users.

6 Click Download.

7 Run the downloaded le.

8 Click Start Setup.

9 Follow the on-screen instructions.

• These operations may take some time.

• To connect to a smartphone as well, see

"7-b. Connecting to a Smartphone" on page

• To set up a fax, see "Using Fax Function" on

page 8.

What device are you connecting?

7-a.Connecting to a Computer

Using the Setup CD-ROM

Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an

internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install

the printer driver.

7-b

ENGLISH

7-b. Connecting to a Smartphone

1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.

• Search for "Canon PRINT" in App Store, or Google Play.

• Access the Canon website to download the app.

2 Open the installed app, and follow the on-screen instructions in the app to add your

printer.

• Once you have added your printer, you can print from your smartphone. To print photos, see

"Loading Photo Paper" on page 8.

• To set up a fax, see "Using Fax Function" on page 8.

Connecting to a Smartphone

If you are using multiple smartphones, perform these steps on each smartphone.

1 Open the rear tray cover and extend the paper

support.

2 Open the feed slot cover and slide the right-

hand side paper guide to the far right.

3 Load several sheets of photo paper with the

print side facing up and slide the side paper

guide against the edge of the paper stack.

4 Close the feed slot cover.

• Follow the on-screen instructions to set information

for the loaded paper.

Using Fax Function

Photo paper can only be loaded in the rear tray.

Loading Photo Paper

The fax function of your printer requires setup. Refer to FAX Setup Guide.

■Access the FAX Setup Guide

1 Access the Canon website.

2 Click See Recommended Functions.

3 Click Functions/Services.

4 Click Setting Up the FAX.
