Caple TSCH600 Manuale
TSCH600
Ca
p
le
Telesco
p
ic
hood
Caple Telescopic hood
Technical information
Item Part Code Description Qty
1B35-2906-019-0 Aluminum filter 2
2B30-2906-001-0 decorative trim cover kit 2
3B19-2906-009-Q decorative trim 1
4B20-2906-011-P 2
5B11-2906-034-2 Decorative trim connection board 1
6B21-2906-013-2 2
7B60-2906-024-0 Lamp rocker button 1
8B30-2906-005-0 Left switch fixation board 1
9B30-2906-007-0 Left switch fixation back cover 1
10 B23-2906-020-0 Telescope kit 2
11 B21-2906-060-2 1
12 B62-2906-022-0 Switch cable 2
13 B60-2906-025-0 Motor rocker button cable 1
TSCH600
- Caple Telescopic hood
14 B21-2906-058-2 2
15 B21-2906-017-2 1
16 B30-2301-138-0 E14 Wire box cover 1
17 B62-2301-071-0 2
18 B62-2903-020-0 Plug with cable 1
19 B30-2201-021-0 Wire fixation kit2 1
20 B30-2201-020-0 Wire fixation kit1 1
21 B65-2201-081-0 2
22 B30-2301-137-0 E14 Wire box bottom 1
23 B21-2906-059-2 1
24 B30-2906-006-0 Right switch fixation board 1
25 B30-2906-004-0 Right switch fixation back cover 1
26 B30-2906-002-0 micro switch box bottom 1
27 B60-2906-025-0 Motor rocker button 1
28 B60-2906-023-0 Micro switch 1
29 B30-2906-003-0 Micro switch box cove
r
1
30 B35-2201-100-0 Round carbon filte
r
2
31 B76-4201-003-B Motor assembly 1
32 B71-4906-001-B Lamp board assembly 1
33 B63-2401-107-0 1
34 B64-2201-084-0 Motor capacitor(1.5μF）1
1B30-2201-065-0 Motor housing(left) 1
2B30-2201-067-0 Blowe
r
1
3B30-2201-022-0 One-way Valve Flap(Air Outlet) 2
4B61-2201-064-0 Motor (#350) 1
23 2201 069
1

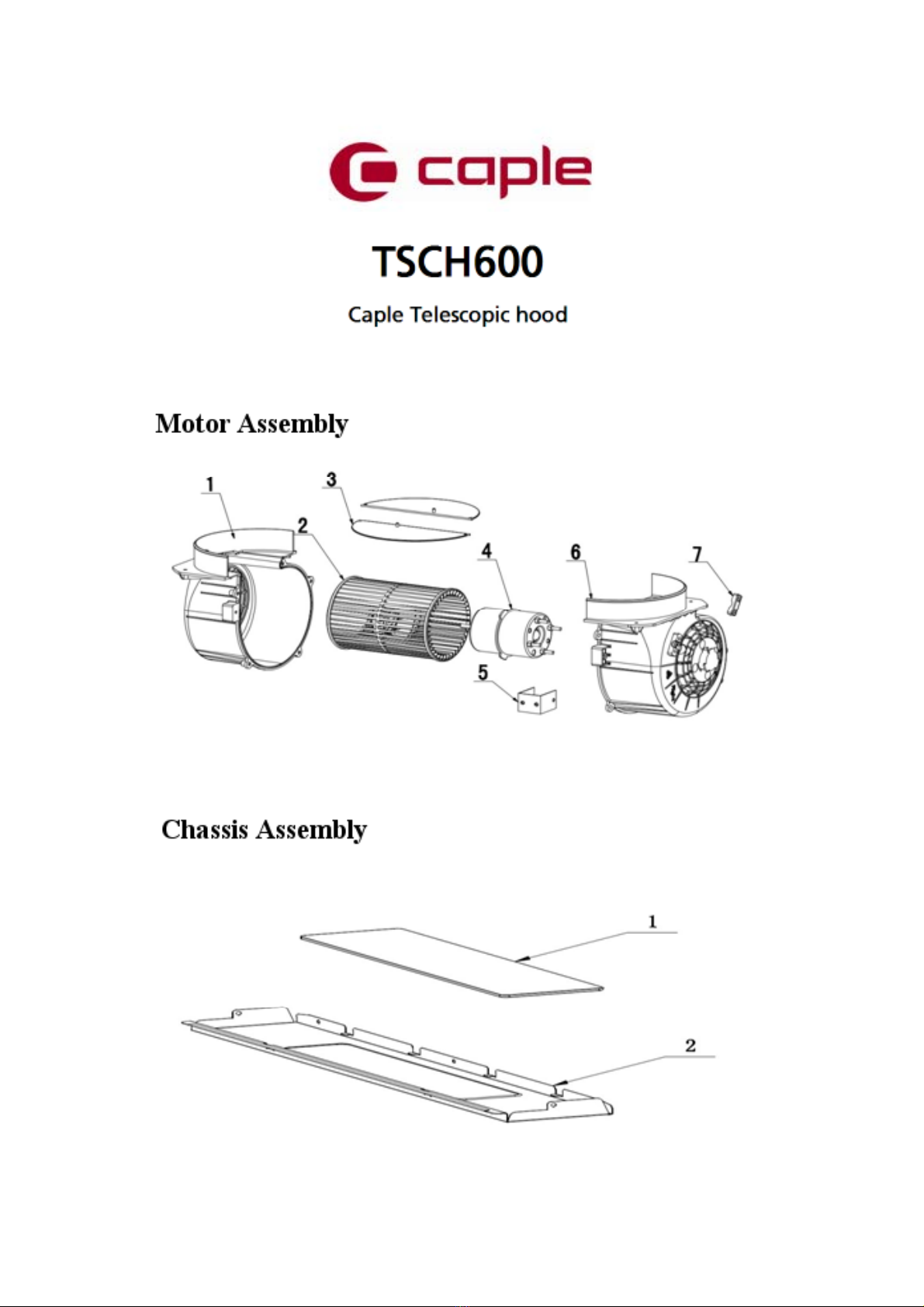

For motor accessory(B76-4201-003-B)
5B23-2201-069-P Motor housing holde
r
1
6B30-2201-066-0 Motor housing(right) 1
7B30-2201-068-0 Motor Holder 1
Item Part Code Description Qty
TSCH600
- Caple Telescopic hood
1B33-2201-061-0 Glass 1
2B21-2906-018-2 Lamp board 1
For Chassis assembly(B71-4906-001-B)
