Car Solutions BM-APIX-PAS Manuale utente

User Manual

Video Interface BM-APIX-PAS for BMW

[email protected]

car-solutions.com

Specifications

Diagram

[email protected]

car-solutions.com

Specifications

Components

OSD Board 1 EA

LVDS Cable 1 EA

Power Cable 1 EA

(optional)

RGB Navi Cable (7 pin) 1 EA

[email protected]

car-solutions.com

*POWER Connect

①②③④⑤⑥

①ACC (Yellow)

②

REAR-POWER (Red)

③

CAN-HIGH (Orange)

④CAN-LOW (Green)

⑤

REAR-DET(Brown)

⑥GND (Black)

*NAVI Connect

①② ③ ④ ⑤ ⑥ ⑦

①R DATA (Red)

②G DATA (Green)

③B DATA (Blue)

④SYNC (White)

⑤GND (Black)

⑥DMB IR (Green）

⑦DVD IR (Orange)

Specifications

Exterior

125mm

22mm

92mm

[email protected]

car-solutions.com

Settings

DIP Switch

* ON: DOWN, OFF: UP

NO.

Function

Selection

NAVI

ON : Skip

OFF : Display

DVB-T

ON : Skip

OFF : Display

DVD

ON : Skip

OFF : Display

MHL

ON : Skip

OFF : Display

Car model

Refer to the pictures below

* Example

F20 6.5”

X3,X4 8.8”

(Made in Hungary)

F20 8.8”

F15 10.2”

F30 6.5”

MINI 6.5”

F30 8.8”

MINI 8.8”

[email protected]

car-solutions.com

OEM

NAVI

DTVB-T(AV1)

OEM

NAVI

DVD(AV2)

Settings

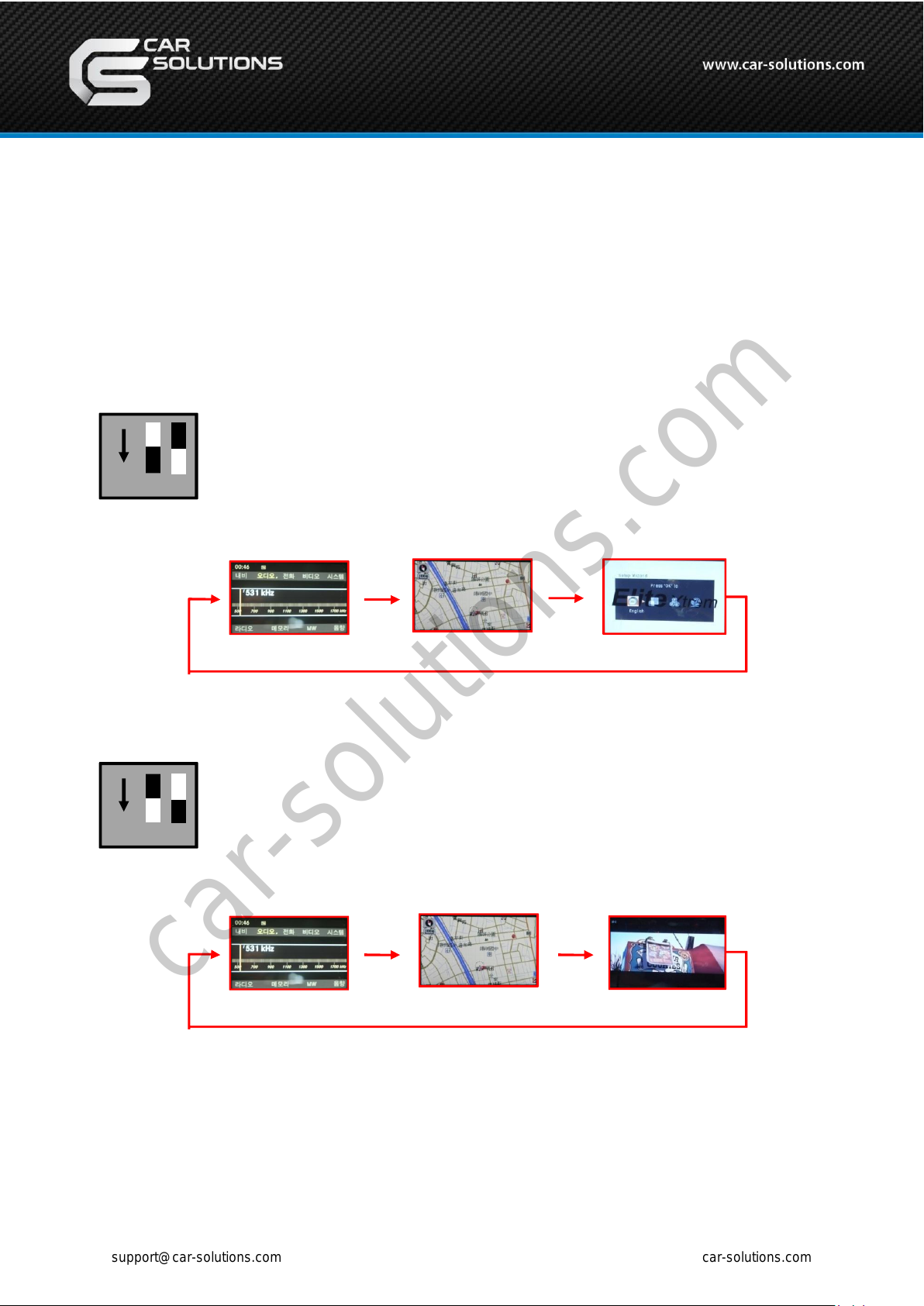

1. Dip Switch- DVB-T, DVD Setting

The “Front input” can be used for DVD or DTV input (AV1: DTV, AV2: DVD –Possible to

install only one of them)

- AV1 Setting –For DTV

No.2: Off / No.3: On

DVB-T UI On/Off (Refer to P15)

(Dip no.3 should be ON (Skip) Otherwise AV2 screen will appear)

- AV2 Setting –For DVD

No.2: On / No.3: Off

DVD UI On/Off (Refer to P15)

(Dip no.2 should be ON (Skip) Otherwise AV1 screen will appear)

ON 2

[email protected]

car-solutions.com

①

②

Settings

2. OEM button –Switching, PIP function

DTV Channel

Up / Down

6.5”

-Switching

MINI Normal

①Press long -> Switching mode

Press short-> Switching to OEM directly

- PIP function

②Press long to activate PIP function

①

②

8.8”

[email protected]

car-solutions.com

Settings

2. OEM button –Direction for Controlling DVB-T, DVD

②③

①

④PUSH ⑤

⑥

②

①

⑤

③

⑦

[6.5” I-DRV]

①PUSH : Selection

Activating DVD/DTV menu

②Moving toward the left

③Moving toward the right

④Moving up

⑤Moving down

[8.8” I-DRV]

①PUSH: Selection

Activating DVD/DTV menu

②Moving toward the left

③Moving toward the right

④Moving toward the left

⑤Moving toward the right

⑥Moving up

⑦Moving down

[email protected]

car-solutions.com

Settings

2. OEM button - DVB-T, DVD Menu

*Control the menu below by OEM button

•DTV (Select the type of I-con)

•DVD

[Type -1] [Type -2]

[Play/Pause]

[stop]

[Audio]

[FR]

[FF]

[POWER]

[DISC UP]

[DISC DOWN]

[Play next

chapter]

[Play previous

chapter]

To use this function, It is necessary to offer the remote IR code to manufacturer or setting OSD IR –Ctrl（P. 19）

[POEWER][MENU]

[Ch+]

[Left]

[Right]

[USB] [RETURN]

[Ch-]

[POWER][SCAN] [Ch+] [Ch-]

[email protected]

car-solutions.com

⑥

②

④

①

⑤③

⑦

Settings

2. OEM button –OSD Menu

OPTION : Press long (6sec) - Activating OSD menu

Press short - Exit

①PUSH : Selection

②Moving up, Increasing value

③Moving down, Decreasing value

④Moving from third menu to first menu in order

⑤Moving from first menu to third menu in order

⑥Moving up, Increasing value

⑦Moving down, Decreasing value

Mode state

②③

①

④PUSH

⑤

First menu Second menu Third menu

6.5”

8.8”

[email protected]

car-solutions.com
