Caraudio-Systems DvbLOGiC DVB-E65-TV Manuale utente

Version 13.02.2013 DVB-E65-TV

dvbLOGiC DVB-T Tuner

DVB-E65-TV

Compatible with BMW E65 Professional

navigation systems

with 8.8” monitor

Vehicles with factory TV-tuner port

(Factory TV-tuner must be uninstalled)

Product features

• Full plug and play vehicle-specific dual DVB-T Tuner

• with two active DVB-T glass-mount antennas

• integrated into and controllable by vehicle infotainment

• AV-input with IR-control channel (optionally USB-AV-port DVBU-XXX instead AV-input)

• control of after-market devices, e.g. DVD-player, DVD-changer, USB/iPod devices, …

• after-market rear-view camera input

• automatic switching to rear-view camera input (only from dvbLOGiC mode)

• rear-view camera power (max 0.5A)

• rear-seat-entertainment AV-output for AV-sources connected to the dvbLOGiC

• optional remote control for full DVB-tuner functions/rear-seat-entertainment

• power on remote out trigger signal (+12V) to switch on connected devices

Version 13.02.2013 DVB-E65-TV

Page1

• video-in-motion

Contents

1. Prior to Installation

1.1. Delivery contents

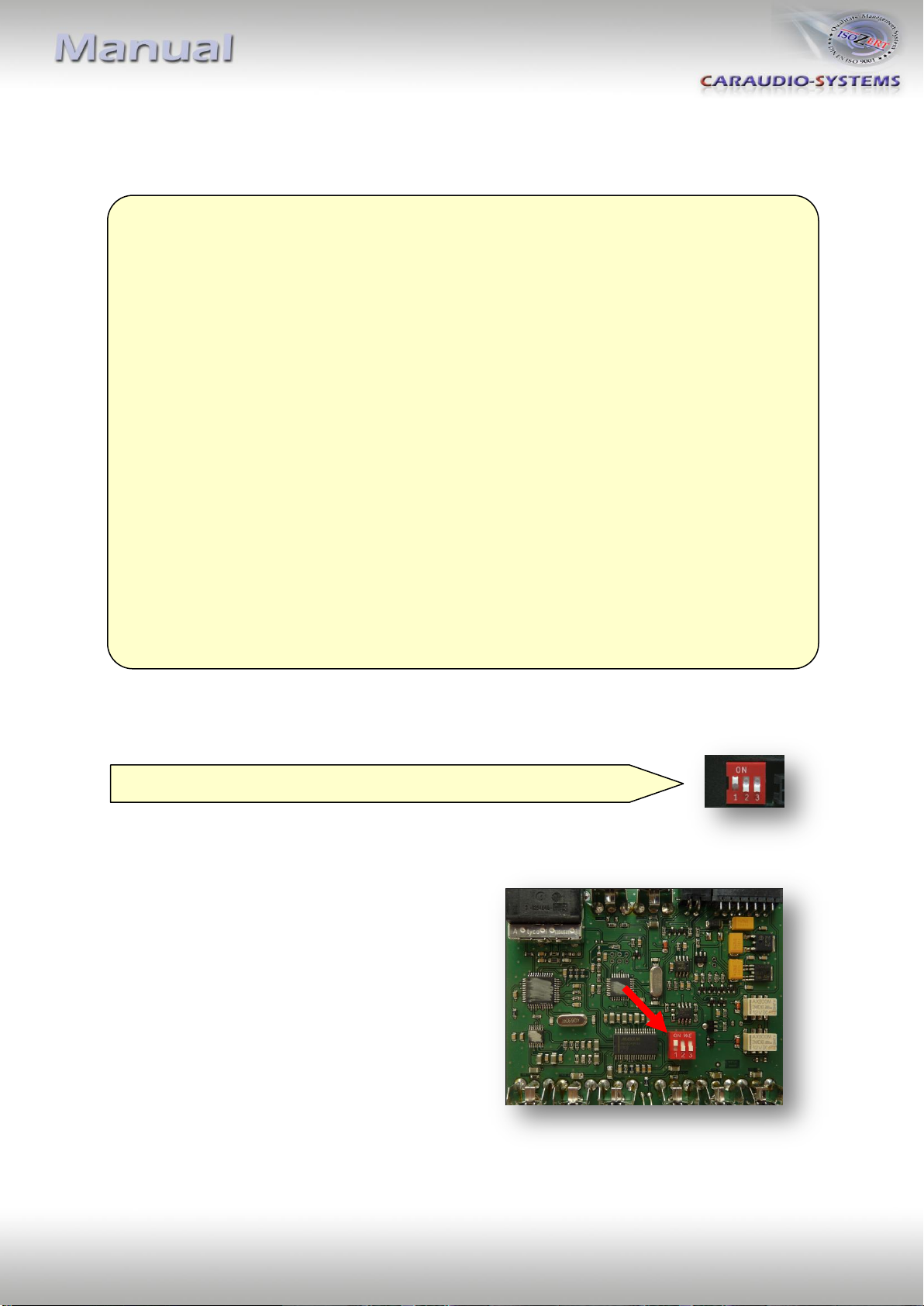

1.2. Check compatibility of vehicle and accessories

1.3. Setting the dip switches of the CAN-box TV-436

1.4. Setting the dip switches of the tuner-box DVBC-M436

1.4.1. Automatic switching to rear-view camera

1.4.2. Deactivating dvbLOGiC AV input

2. Installation

2.1. Installation of CAN-box TV-436

2.2. Installation of tuner-box DVBC-M436

2.3. Antennas and optional IR-remote control set

2.4. Connecting peripheral devices

2.4.1. AV-source

2.4.2. Installing AV-source’s IR-sensor additionally

2.4.3. After-market rear-view camera

2.4.4. After-market rear-seat-entertainment

2.4.5. Factory nightvision, factory DVD-changer, factory rear-view camera

3. Operation

3.1. Activation of the video-in-motion function

3.2. Selecting the dvbLOGiC as current AV-source

3.3. Assigning device control for connected AV-source

3.4. Switching to internal DVB-T, AV-source or after-market rear-view camera

3.5. Button assignment table iDrive

4. Specifications

5. Technical support

Appendix A –Device control table

Appendix B –DVB-T function manual

Appendix C –Antenna positioning

Appendix D –DVBU optional USB-AV-port

Version 13.02.2013 DVB-E65-TV

Page2

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

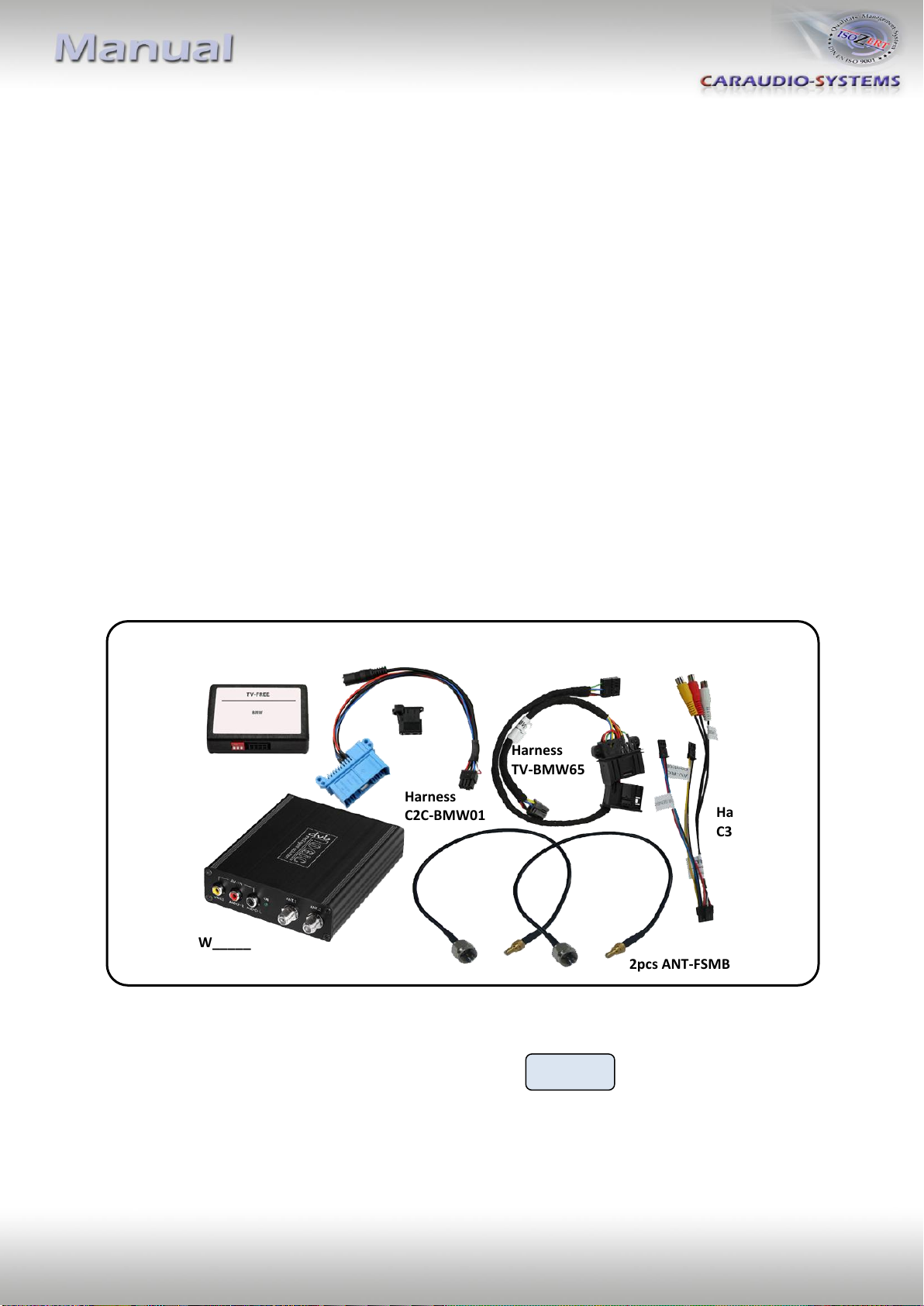

1.1. Delivery contents

If remote function for a peripheral device shall be used, additional an IR-

Remote cable and Y-adapter are needed, see chapter AV-source.

CAN-box

TV-436

HW_____

SW _____

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

Tuner-box

DVBC-M436

HW_____ SW_____

Harness

C2C-BMW01

Harness

C3C-AVIR

2pcs ANT-FSMB-P

Harness

TV-BMW65

Version 13.02.2013 DVB-E65-TV

Page3

1.2. Check compatibility of vehicle and accessories

1.3. Setting the dip switches of the CAN-box TV-436

1.4. Setting the dip switches of the tuner-box

The default dip switch settings of the tuner-box

need to be changed ONLY if a rear-view camera is

or shall be connected or if the AV of the dvbLOGiC

shall be deactivated. The dip switches are located

inside the tuner-box. For changes it is necessary

to open the box. Default settings are:

dip1 = ON, dip2 = OFF, dip3 = OFF

Requirements

Vehicle 7series (E65/E66)

Navigation Navigation system Professional E65 (older 1/2-button iDrive

or CIC (newer 8-button iDrive) with 8.8” monitor

Limitations

factory-TV-tuner Must NOT be installed.

factory DVD-changer After-market rear-view camera cannot be connected to

or factory nightvision the dvbLOGiC interface.

Teletext Teletext of the dvbLOGiC can only be used with the

optionally available DVB-IRSET remote control set.

factory Additional interface VL-RGB02-R is necessary

rear-seat-entertainment

After-market rear-view cam Only works from dvbLOGiC mode, not from OEM.

Factory PDC If an after-market rear-view camera should be connected by the

dvbLOGiC the visual PDC display must be deactivated

occasionally or permanently for camera picture.

All vehicles dip 1 ON, dip 2 OFF, dip 3 OFF

Version 13.02.2013 DVB-E65-TV

Page4

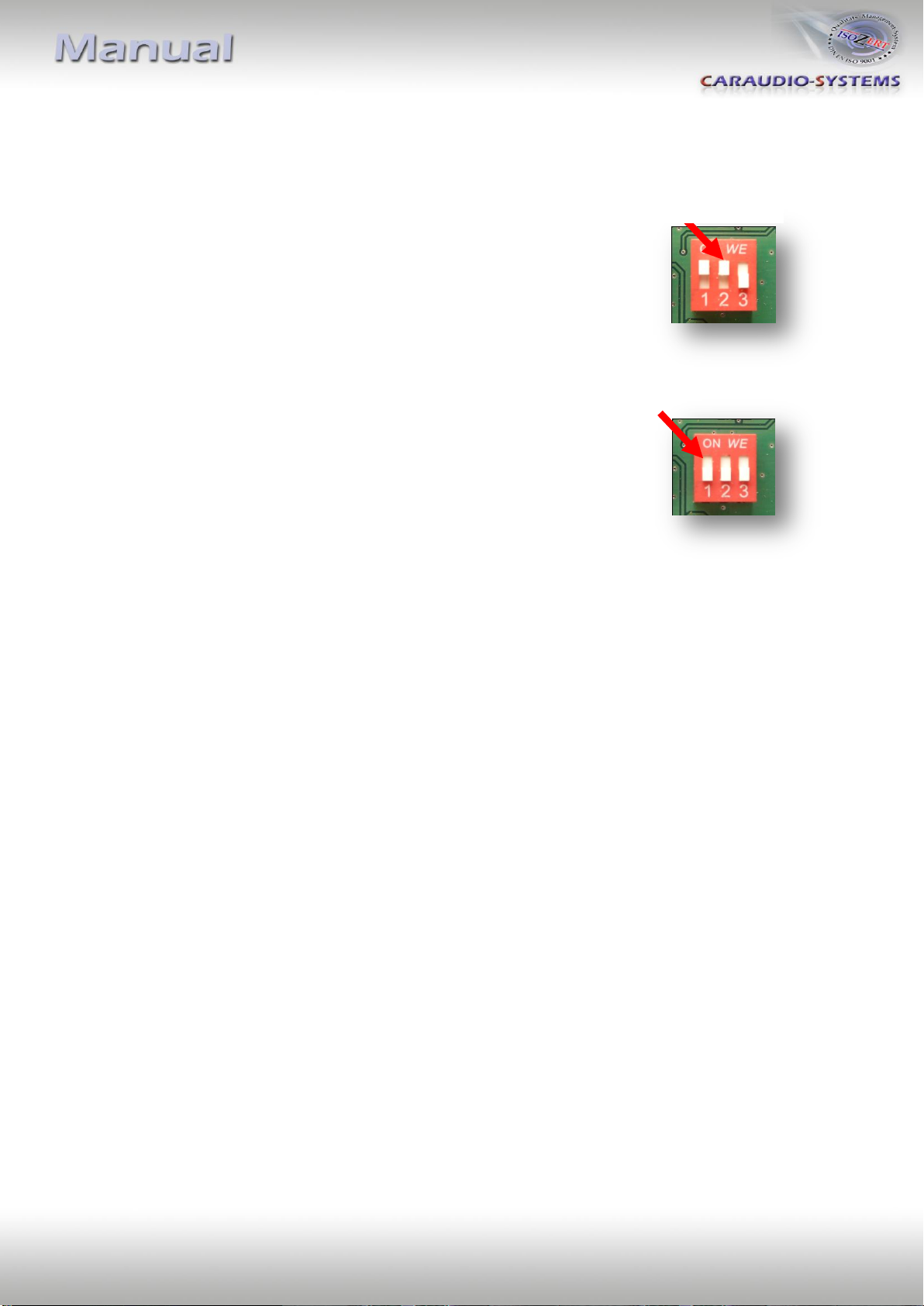

1.4.1. Automatic switching to rear-view camera

If an after-market rear-view camera shall be connected or a factory

rear-view camera is connected, in order for the dvbLOGiC to

automatically switch to its camera input, when reverse is engaged

set dip2 = ON (up).

Note: Automatic switching works only from dvbLOGiC mode.

1.4.2. Deactivating dvbLOGiC AV input

If no peripheral AV-source shall be connected to the dvbLOGiC, we

recommend to disable the AV-input, to avoid customers switching by

mistake to black/no picture of the AV-input. In order to disable the

AV-input of the dvbLOGiC,

set dip1 = OFF (down).

2. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

Complete and correct function of the interface is possible only when CAN and MOST®

(tuner) connections are made properly. On vehicles without TV-icon, it will be coded

automatically after installation.

Place of installation is at the rear of the navigation screen and at the rear of the navigation

computer.

Note: The loose white and green cable of harness TV-BMW65 are not required and must be

isolated.

Dip switches

of tuner-box

Version 13.02.2013 DVB-E65-TV

Page5

2.1. Installation of CAN-box TV-436

The CAN interface is connected to

the backside of the OEM screen.

Remove 3 TORX screws at the OEM screen.

Remove cover grill (only plugged). Place soft

towel beneath the navigation monitor

to avoid scratches

Flip down the board monitor. NOTE: The OEM

screen gets stuck with its connector at the upper

side of the cockpit. Insert a hard plastic sheet like

a credit card to prevent cockpit from

taking damage.

Remove the black connector at the backside of

the screen as shown below.

Version 13.02.2013 DVB-E65-TV

Page6

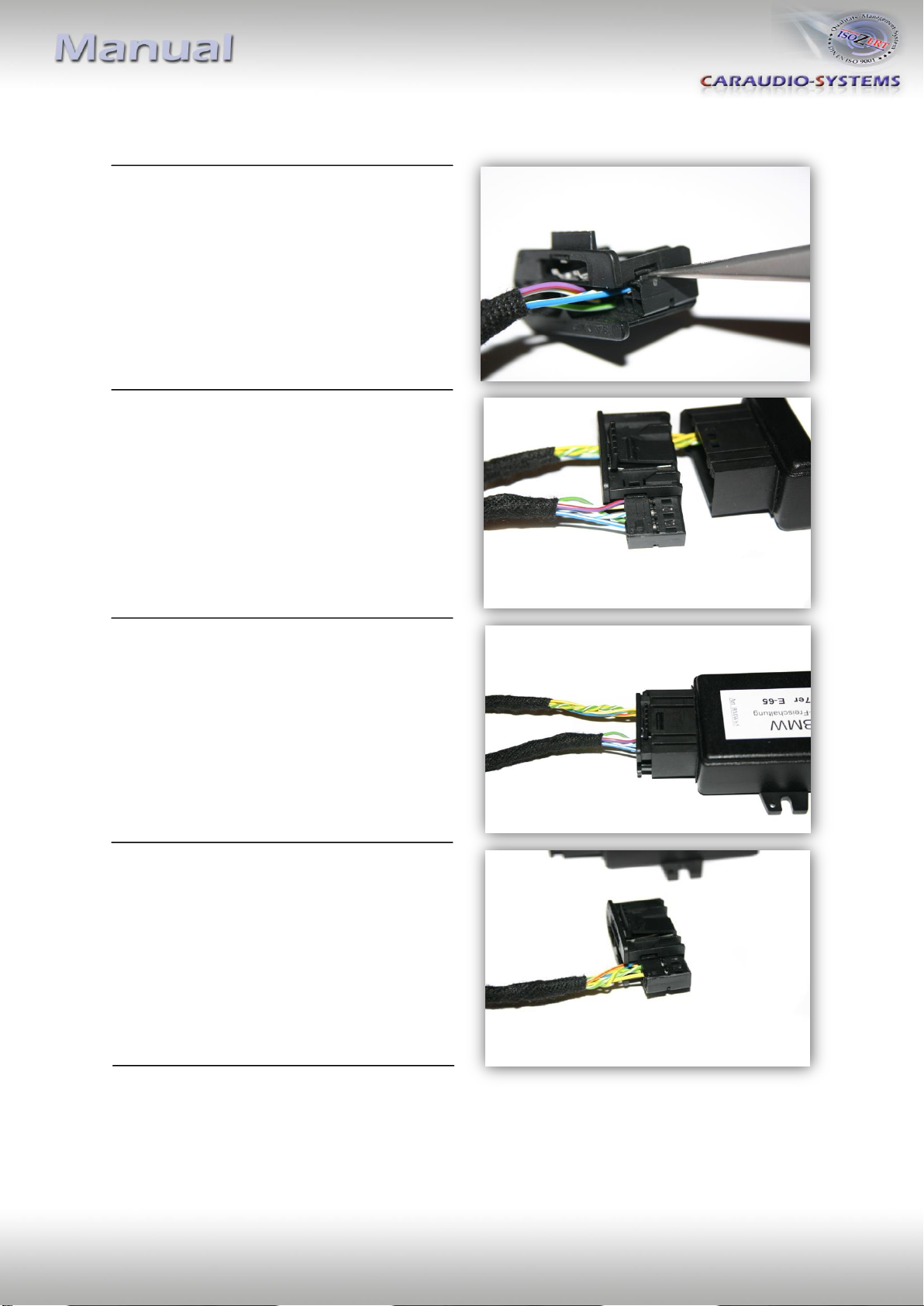

Remove 12-pin insert from black vehicle

harness connector.

Insert 12-pin insert into black connector

of the CAN interface harness TV-BMW65.

Insert the completed black connector into

CAN interface harness TV-BMW65.

Connect 12-pin insert from CAN interface

harness TV-BMW65 into black connector from

vehicle harness.

Insert completed connector into the plug on the backside of the navigation monitor.

Connect 8pin Molex connector of TV-BMW65 to CAN-box TV-436.

NOTE: Pictures do NOT show the fibre optics connected in car!

Version 13.02.2013 DVB-E65-TV

Page7

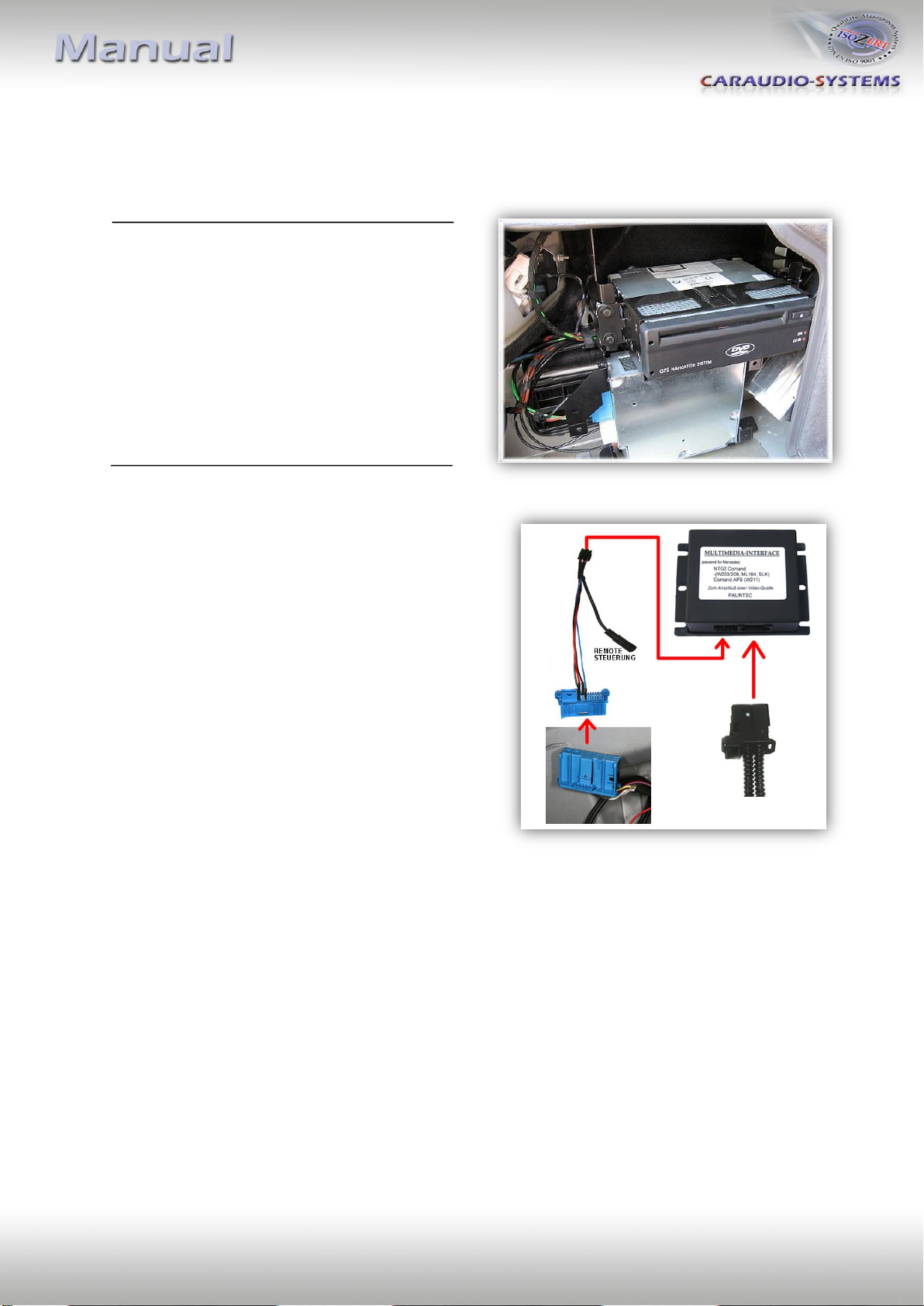

2.2. Installation of tuner-box DVBC-M436

The fibre optical interface installation is

made at the navigation computer, which

is located at the left side in the trunk

behind a cover and has to be removed.

The factory TV-tuner must be uninstalled.

Remove the factory optical leads of the factory

TV-tuner port (blue female connector) and connect

it to the black male MOST®-connector enclosed to

harness C2C-BMW01. Pay attention to the

directional arrow on the optical lead connectors.

Connect the black male MOST®-connector to the

female MOST®-connector on the rear of the

tuner-box DVBC-M436 (OPTICAL).

Connect the blue male connector of harness

C2C-BMW01 to the factory TV-tuner port

(blue female connector).

Picture exemplary

Version 13.02.2013 DVB-E65-TV

Page8

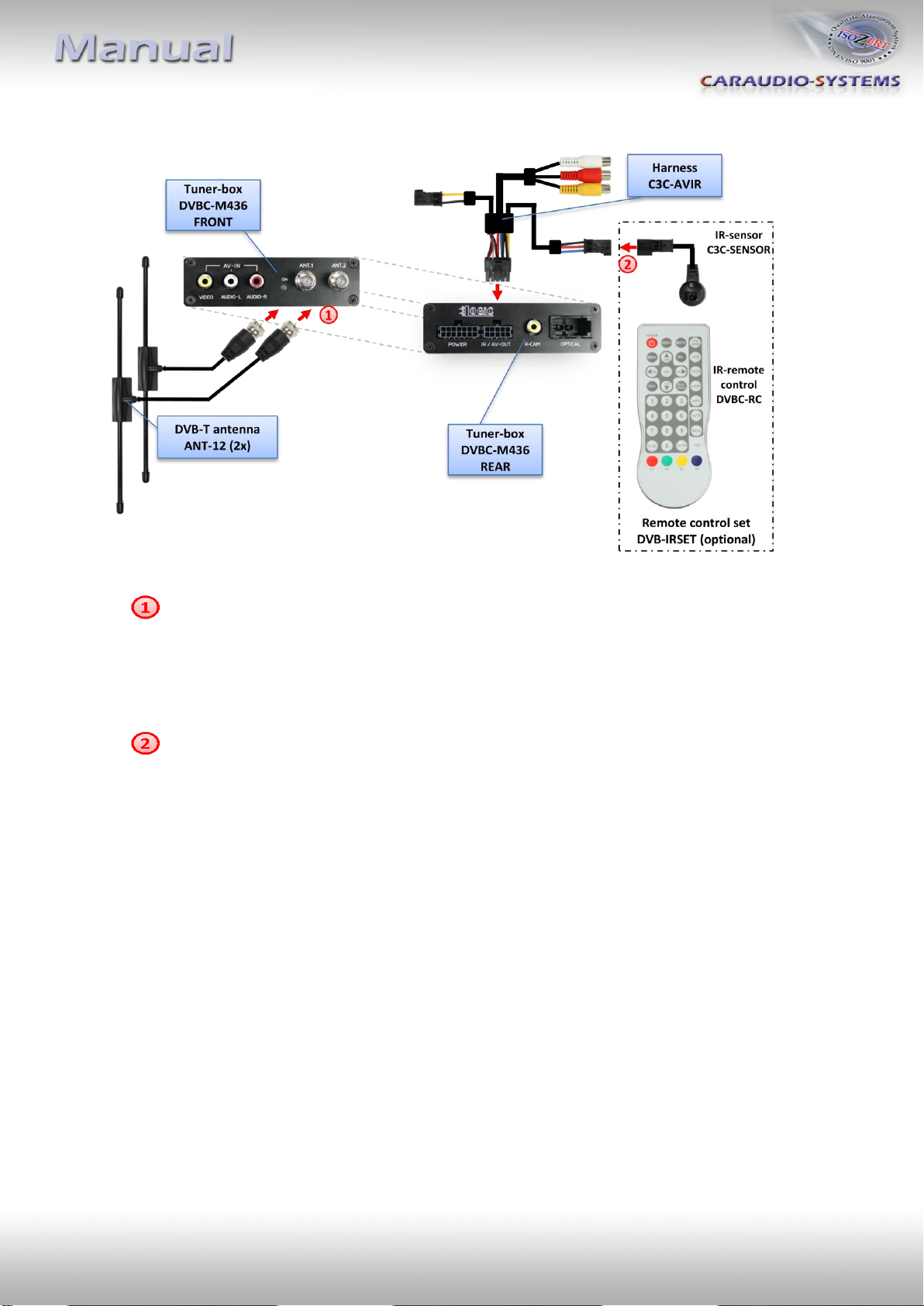

2.3. Antennas and optional IR-remote control set

Mount antennas ANT-12 and connect them to the female f-plug connectors on front

of tuner-box DVBC-M436.

We strongly recommend to first test the reception quality of the chosen mounting

position of the antennas before final installation! See “Appendix C –Antenna

positioning”for additional information.

The DVB-IRSET consists of the external C3C-SENSOR IR-sensor and the DVBC-RC

IR-remote control and can be used to control the dvbLOGiC’s internal DVB-T tuner

functions additionally to the control through the navigations buttons. Connect the

C3C-SENSOR to the female black/red/blue 3pin AMP connector of harness

C3C-AVIR and locate the sensor in an accessible place.

Note: To use the teletext function of the dvbLOGiC’s internal DVB-T tuner, the DVB-

IRSET is necessary to enter the page numbers.

2.4. Connecting peripheral devices

It is possible to connect an after-market AV-source, after-market rear-view camera and rear-

seat-entertainment to the dvbLOGiC Tuner. Also factory nightvision, factory DVD-changer or

factory rear-view camera must be connected to the dvbLOGiC-Tuner.

Before final installation of the peripheral devices, we recommend to test-run the

dvbLOGiC functions to detect incompatibility of vehicle, navigation, factory accessories or

peripheral devices as soon as possible.

Version 13.02.2013 DVB-E65-TV

Page9

2.4.1. AV-source

The dvbLOGiC has the possibility to connect and remotely control by navigation buttons a

pre-programmed device. The device list in the device control table shows the pre-

programmed remote channels and the related IR-remote cables STA-xxx which must be

ordered separately for the control of the device.

Using the respective STA-xxx IR-control cable, interconnect the yellow female 3pin

AMP connector of harness C3C-AVIR and the IR-port of the AV-source.

Using an RCA-cable, interconnect the female RCA-port AV1 of the tuner-box

DVBC-M436 with the AV-output of the AV-source.

The pink ACC-output wire (+12V max 1A) of harness C2C-BMW02 can be connected

to the ACC-input wires of the connected device to switch it on. It carries +12V when

the navigation computer is running.

2.4.2. Installing AV-source’s IR-sensor additionally

Additionally to the control via OEM navigation, it is possible to install the original IR-sensor

of a connected device. By using the respective Y-adapter (e.g. STA-Y35MM or STA-RJ12) for

the IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be

connected and used simultaneously. Installation of the IR-sensor is recommended as the

controls via navigation are limited, and not all functions may be covered.

Indice

Altri manuali Caraudio-Systems Accessori per automobili

Caraudio-Systems

Caraudio-Systems OBD-ASK-CDC Series Manuale utente

Caraudio-Systems

Caraudio-Systems r.LiNK RL-FD79-TF Manuale utente

Caraudio-Systems

Caraudio-Systems VL2-MBN2 Manuale utente

Caraudio-Systems

Caraudio-Systems r.LiNK RL-PCM3-TF Manuale utente

Caraudio-Systems

Caraudio-Systems c.LOGiC C1-PHAETON Manuale utente

Caraudio-Systems

Caraudio-Systems RL-LR12-TF Manuale utente

Caraudio-Systems

Caraudio-Systems TV-Free TF-NTG5 Manuale utente

Caraudio-Systems

Caraudio-Systems MD-VW01 Manuale utente

Caraudio-Systems

Caraudio-Systems TF-U501 Manuale utente

Caraudio-Systems

Caraudio-Systems usbLOGiC Manuale utente

Caraudio-Systems

Caraudio-Systems V5-CIC-E Manuale utente

Caraudio-Systems

Caraudio-Systems c.LOGiC C4-LR12-NC Manuale utente

Caraudio-Systems

Caraudio-Systems r.LiNK-Interface Manuale utente

Caraudio-Systems

Caraudio-Systems USB-C25 Manuale utente

Caraudio-Systems

Caraudio-Systems c.LOGiC lite C1-C25 Manuale utente

Caraudio-Systems

Caraudio-Systems z.LiNK ZL-MFD2 Manuale utente

Caraudio-Systems

Caraudio-Systems r.LiNK RL-PCM3-2-TF Manuale utente

Caraudio-Systems

Caraudio-Systems MD-VW03 Manuale utente

Caraudio-Systems

Caraudio-Systems RL-LR17-TF Manuale utente

Caraudio-Systems

Caraudio-Systems TF-LR17 Manuale utente

Caraudio-Systems

Caraudio-Systems RL-MZ72D Manuale utente

Caraudio-Systems

Caraudio-Systems OBD-CIC-CDC Series Manuale utente

Caraudio-Systems

Caraudio-Systems v.LOGiC Intelligent Solution V5-NTG46 Manuale utente

Caraudio-Systems

Caraudio-Systems CXR-CAN Manuale utente

Manuali Accessori per automobili popolari di altre marche

James Baroud

James Baroud Odyssey Manuale utente

Motorola

Motorola i50sx Manuale utente

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuale utente

Feniex

Feniex T3 Manuale utente

Renault

Renault 77 11 423 180 Manuale utente

Kia

Kia E8300-4D000 Manuale utente

Brink

Brink 756843 Manuale utente

Whispbar

Whispbar K085W Manuale utente

v.link

v.link CI-VL2-PC-HSD Manuale utente

Viking

Viking Stack-Rack Guida rapida alla configurazione

Aries

Aries 203015 Manuale utente

Choetech

Choetech AT0005 Manuale utente

ZZ2

ZZ2 ZZAIR-PRO Manuale utente

Holman

Holman 4A80L Manuale utente

Thule

Thule 2075 Manuale utente

Motorola

Motorola T325 Manuale utente

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guida all'installazione

DV8

DV8 FBJL-02 Manuale utente

Caraudio-Systems dvbLOGiC DVB-E65-TV Manuale utente

Manuali Accessori per automobili popolari di altre marche
