PROPER USE OF YOUR CATERAIDE
1. Wash unit with hot water and a mild detergent, then rinse
thoroughly prior to use.
2. Pre-heating interior with hot water will improve heat retention.
Fill unit with boiling water and close. After 5 minutes, drain
unit completely through spigot and fill.
3. Pre-chilling unit with ice water in the same manner will improve
cold retention.
4. Load container to its maximum capacity with preheated or
prechilled beverage. Make sure gasket is in place. Replace lid
and lock into position by rotating a quarter turn clockwise until
it stops.
5. If you intend to use the security feature, you must make certain
the tag slot on the lid aligns with the tag slot on body (Refer to
picture to the right).
DISASSEMBLY
Drain unit completely before dismantling.
FAUCET AND SPIGOT
1. With spigot facing you, remove spigot by holding it in place while
turning front wing nut clockwise.
3. Remove exposed “C” ring by carefully pushing it out diagonally
from retaining groove. You can now remove the wing nut by
sliding it toward you off of the shank.
4. Next, remove the back wing hex nut from the shank by turning
counter clockwise. Also, remove the rubber rubber washer from
behind hex nut (Diagram 1).
5. Push shank backwards towards inside of unit to remove.
Remove rubber washer from large end of shank.
LID
1. Remove vent cap by unscrewing. Pull out washer from
underside of vent cap (Diagram 2).
2. Unscrew lid nut. Separate lid from plug assembly.
3. Remove gasket.
CLEANING THE CONTAINER
1. Clean after every use with hot water and a mild detergent.
De-staining compounds approved for food or beverage contact
may be used. Ask your detergent supplier for the proper
compound.
2. The body, lid, and plug are all dishwasher safe. When running
through a dishwasher, always make sure the gasket is
removed from the plug. Gaskets are NOT dishwasher safe.
3. Clean plug vent thoroughly with Carlisle Brush #40157.
INSTRUCTIONS FOR USE AND CARE OF
CATERAIDE™XB BEVERAGE SERVERS
P.O. Box 53006
Oklahoma City, Oklahoma 73152-3006
(405) 475-5600 •FAX (405) 475-5607
1-800-654-8210
#104803360
European Distribution Center:
Edisonstraat 84, P.O. Box 110
6900 AC Zevenaar, The Netherlands
Tel +31/(0)316-596550 •Telex 45642
FAX +31/(0)316-340168
DIAGRAM 1
DIAGRAM 2
BACK WING
HEX NUT
RUBBER
WASHER
FRONT WING
HEX NUT
"C" RING
VENT CAP
LID NUT
PLUG
GASKET
CLEANING THE FAUCET, SHANK, AND SMALL PARTS
Clean faucet, shank, and all small parts from the lid periodically
with Carlisle faucet brush #40166.
1. Remove entire upper assembly by unscrewing and pulling the
bonnet off of the spigot.
2. Pull seat cup off of spigot. This is a good time to replace the
seat cup if necessary. Clean all small parts including the gasket
and the vent cap assembly from the lid in a solution of hot water
and urn cleaner (refer to Step 1 of "Cleaning the Container").
3. Rinse all parts thoroughly with hot running water.
4. Depress handle in 'lock open' position. Clean top of bonnet
thoroughly. Snap seat cup on to stem end by applying direct
pressure against the bottom of the seat cup.
5. Screw bonnet back on to spigot.
ASSEMBLY
FAUCET AND SHANK
1. Replace rubber washer on shank.
2. Insert shank through faucet opening from the inside of the unit.
3. Screw on back wing hex nut (nut must be placed with the back
ring facing unit as shown in diagram 1). Tighten to secure
shank to unit.
4. Place front wing nut over shank with threads facing out.
Replace metal 'C' ring on to retaining groove.
5. Attach faucet assembly by carefully placing over exposed end of
shank with spigot facing straight down (see diagram 4).
6. Secure in position by turning front wing nut counter clockwise
over threads on faucet. Tighten.
LID
1. Roll gasket back into groove on plug.
2. Reinsert plug vent through lid (see diagram 4).
3. Secure plug to lid by screwing lid nut over plug vent and
tightening (see diagram 4).
4. Replace washer on underside of vent cap. Screw vent cap on to
exposed end of plug vent.
INSTRUCTIONS FOR USE AND CARE OF
CATERAIDE™XB BEVERAGE SERVERS
P.O. Box 53006
Oklahoma City, Oklahoma 73152-3006
(405) 475-5600 •FAX (405) 475-5607
1-800-654-8210
#104803360
European Distribution Center:
Edisonstraat 84, P.O. Box 110
6900 AC Zevenaar, The Netherlands
Tel +31/(0)316-596550 •Telex 45642
FAX +31/(0)316-340168

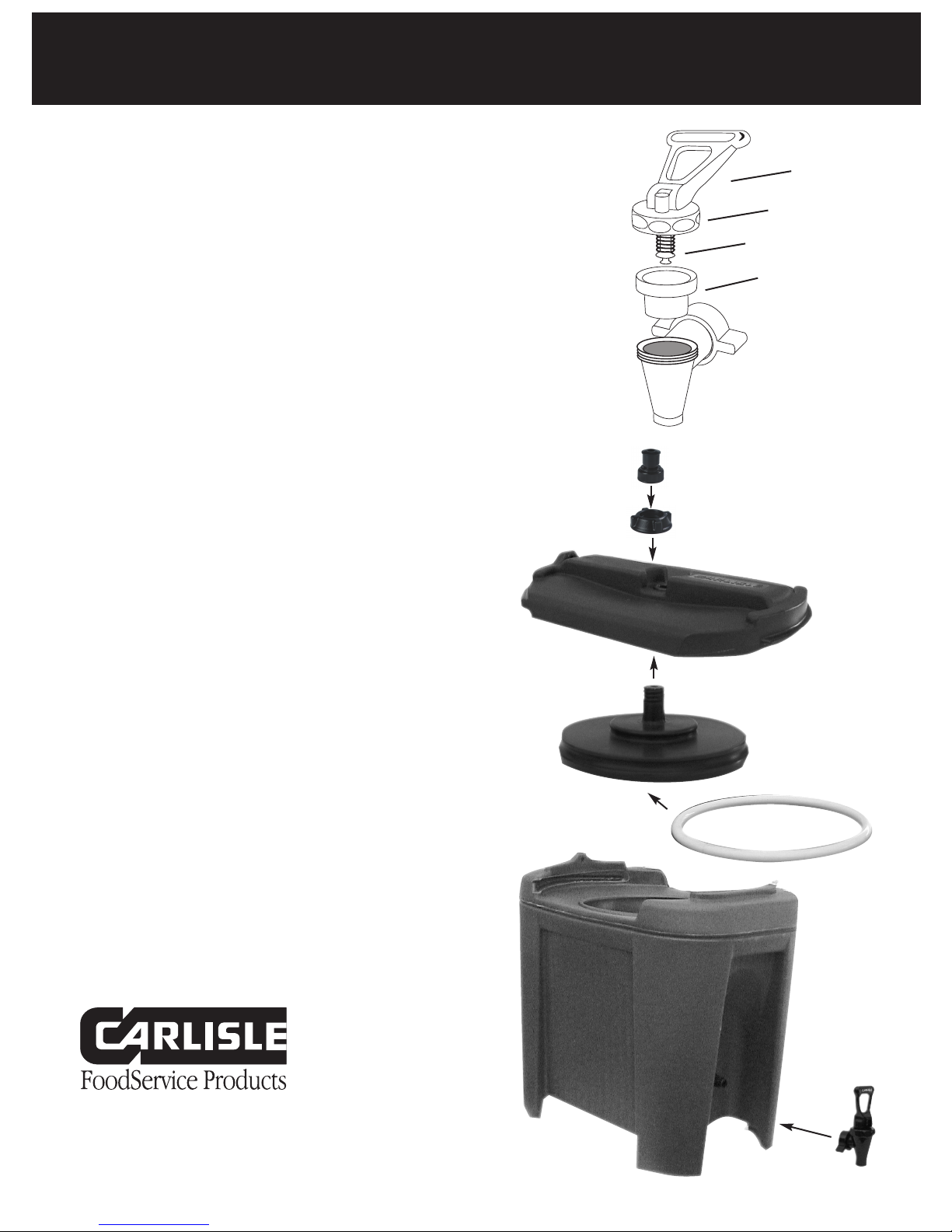

SEAT CUP
STEM END
BONNET
HANDLE
DIAGRAM 3
DIAGRAM 4
