Carrier 33CSIRRCVR-01 Manuale utente

P/NP/N

33CSIRRCVR-0133CSIRRCVR-01

Carrier Corporation - 01/06 - Patents Pending

OWNER’S

MANUAL

OWNER’S

MANUAL

Thermostat

Remote Control

& Receiver

Thermostat

Remote Control

& Receiver

Allows remote control

operation of basic

thermostat functions

Unique ‘Warmer & Cooler’

commands

Compatible with thermostat models:

33CS450-01, 33CS420-01 &

33CS400-01

for a complete list contact Carrier

Complete Control from

Overview

Page 2

This accessory allows for the remote operation of

the most basic thermostat functions.

There are five buttons on the remote control. One

for Off, two for Fan control, one for Warmer and one

for Cooler.

The communication from the remote control to the

receiver is uni-directional, without feedback to the

user. It is because of this uni-directional control, we

have created a unique control algorithm for this

remote system.

The Warmer and Cooler buttons use a ‘fuzzy logic’

algorithm to decide whether to turn the heat or cool

on or off.

The Warmer or Cooler operational control

sequence varies depending on whether the

thermostat is set to be a MANUAL or an AUTO

changeover thermostat.

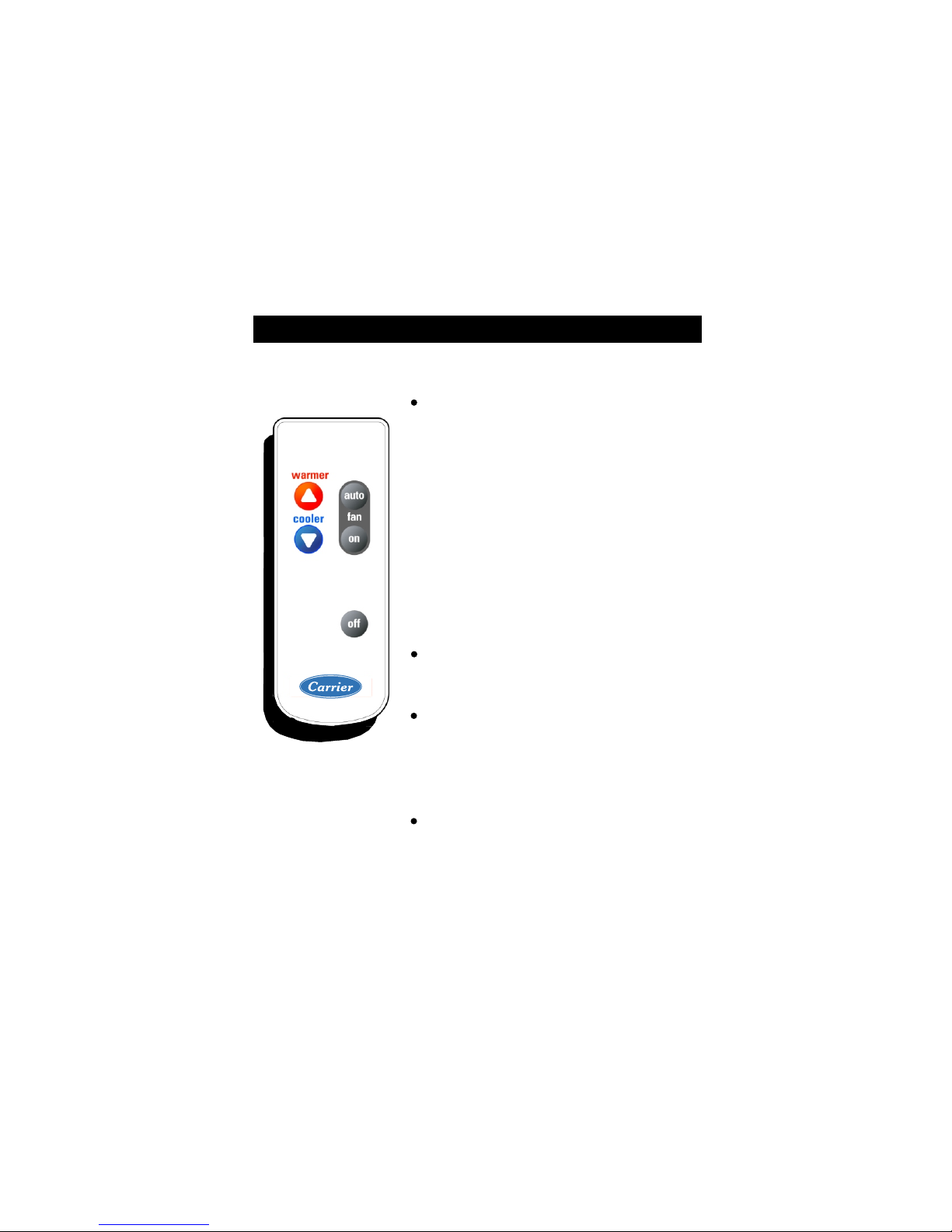

Operation

Page 3

Press the Warmer or Cooler

buttons and the heating -

cooling system will operate as

outlined in pages 4 through 8.

If the thermostat was off prior to

a Warmer or Cooler button

press, the system will turn on in

the last mode (Auto or Manual

changeover) of operation prior

to pressing Off.

Press the Fan On button for

continuous fan operation.

Pressing Fan Auto will allow the

Fan to turn on the fan only

when there is a heat or cool

demand.

Press the Off button to turn the

thermostat off.

OWarmer & Cooler Commands in Manual Changeover

Page 4

If the thermostat is configured for Manual

Heat/Cool changeover:

WARMER button press while in Heat or Off

mode:

When the thermostat receives a Warmer command

(button press) through the remote control and the

heater is not running, the set point will be raised

above the room temperature to start the heater

operation. This occurs even if the thermostat was

Off.

When the thermostat receives a Warmer command

and the heater is running, the set point will be

raised 2 degrees above the present set point.

WARMER button press while in Cool mode:

When the thermostat receives a Warmer command

(button press) through the remote control in Cool

mode, and the air conditioner is running, the set

point will be raised to the present room

temperature, which will turn off the air conditioner.

If the Warmer button is pressed and the air

conditioner is not running, the set point will be

raised 2 degrees.

Page 5

If the thermostat is configured for Manual

Heat/Cool changeover:

COOLER button press while in Cool or Off

mode:

When the thermostat receives a Cooler command

(button press) through the remote control and the

air conditioner is not running, the set point will be

lowered below the room temperature to start the

cooling operation. This occurs even if the

thermostat was Off.

When the thermostat receives a Cooler command

and the air conditioning is running, the set point will

be lowered 2 degrees below the present set point.

Cooler button press while in Heat mode:

When the thermostat receives a Cooler command

(button press) through the remote control, and the

heater is running, the set point will be lowered to

the present room temperature which will turn off the

heater.

If the Cooler button is pressed and the heater is not

running, the set point will be lowered 2 degrees.

Warmer & Cooler Commands in Manual Changeover

Page 6

OWarmer & Cooler Commands in Auto Changeover

If the thermostat is configured to Auto

Heat/Cool changeover:

WARMER button press while in Auto or Off

mode:

When the thermostat receives a warmer command

(button press) through the remote control, and the

heater is not running, the set points will be raised

to start the heater operation. If the heater is

running upon a Warmer button press, the set points

will be raised 2 degrees.

The remote control receiver will allow up to 3

successive Warmer button presses. After the 3rd

successive Warmer button press, the IR receiver

will not accept an additional Warmer button press

for 1 minute.

When the thermostat receives a Warmer command

(button press) and the air conditioner is running, the

set points will be raised so that the Cool set point is

the same as the present room temperature which

will then turn off the air conditioner. The thermostat

will not accept another Warmer button press for 10

seconds.

Page 7

If the thermostat is configured to Auto

Heat/Cool changeover:

COOLER button press while in Auto or Off

mode:

When the thermostat receives a Cooler command

(button press) through the remote control and the

air conditioner is not running, the set points will be

lowered to start the air conditioning operation. If

the air conditioner is running upon a Cooler button

press, the set points will be lowered 2 degrees.

The remote control receiver will allow up to 3

successive Cooler button presses. After the 3rd

successive Cooler button press, the IR receiver will

not accept an additional Cooler button press for 1

minute.

When the thermostat receives a Cooler command

(button press) and the heater is running, the set

points will be lowered so that the Heat set point is

the same as the present room temperature which

will then turn off the heater. The thermostat will not

accept another Cooler button press for 10 seconds.

Warmer & Cooler Commands in Auto Changeover

Page 8

Example #1

!The thermostat was turned off the prior day while

in Auto changeover mode.

!The following will occur if the Warmer button is

pressed while the thermostat is off:

!The thermostat changes from Off to Auto.

!The set point is raised to start heater

operation.

Example #2

!The thermostat was turned off the prior day while

in Manual, ‘standalone’ Heat mode.

!The following will occur if the Warmer button is

pressed while the thermostat is off:

!The thermostat changes from Off to Heat.

!The set point is raised to start heater

operation.

Example #3

!The thermostat was turned off the prior day while

in Manual, ‘standalone’ Cool mode.

!The following will occur if the Warmer button is

pressed while the thermostat is off:

!The thermostat changes from Off to Heat.

!The set point is raised to start heater

operation.

Examples of Typical Operation

The following 3 examples illustrate operation

when the thermostat is Off.

Connection

Page 9

Accessory jack located

on thermostat bottom

Accessory release button

To connect the IR Receiver to

the thermostat; insert the IR

receiver plug into the accessory

Jack of the thermostat. The

receiver will ‘lock’ into the

ventilation slots of the thermostat.

To remove the IR receiver from

the thermostat; press and hold

the accessory release button

while removing the IR receiver

from the thermostat’s accessory

jack.

Remote Control Battery Replacement

Page 10

Replace battery with CR 2025 or equivalent.

Battery Door

Front View Rear View
