Carrier 33CS400-01 Manuale utente

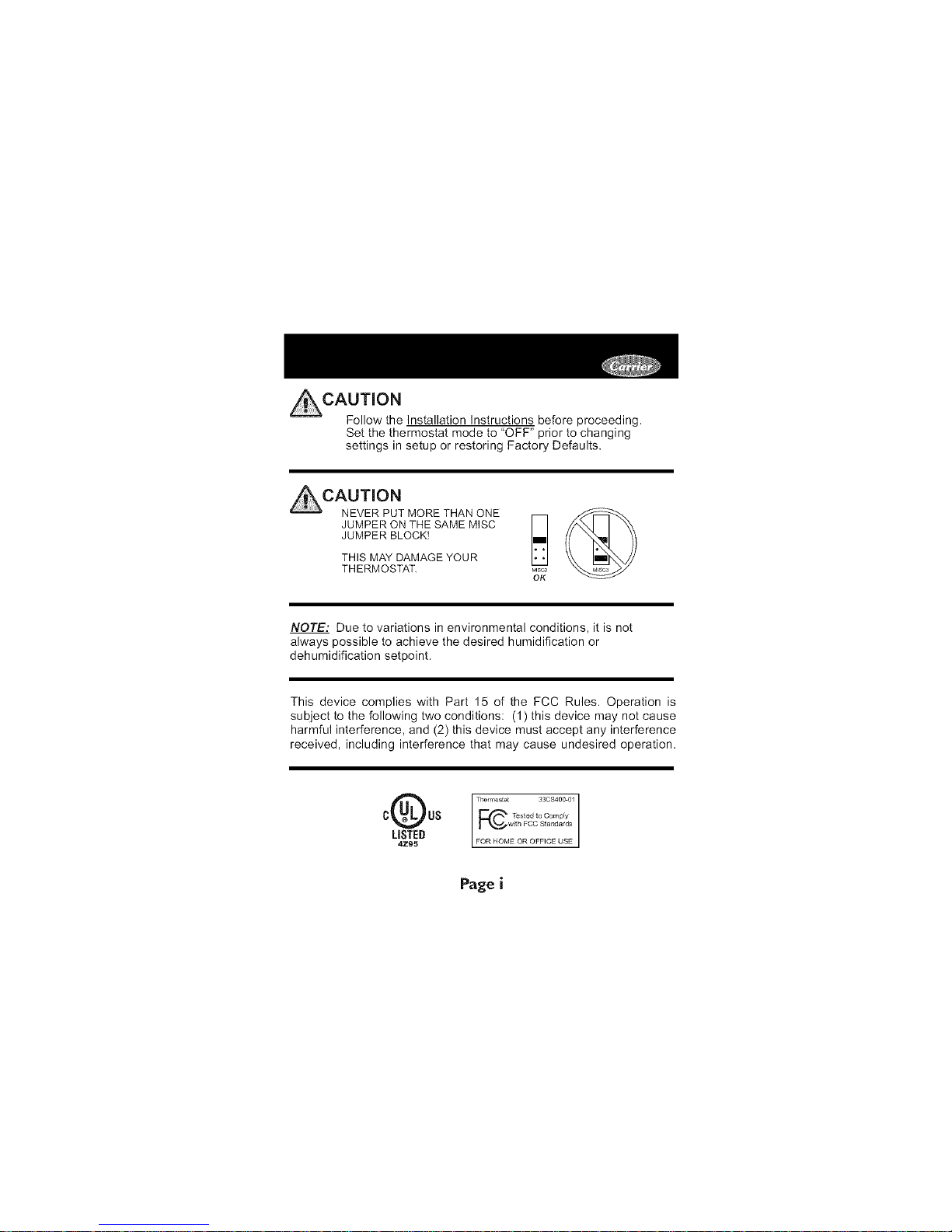

CAUTION

Follow the Installation Instructions before proceeding.

Set the thermostat mode to "OFF" prior to changing

settings in setup or restoring Factory Defaults.

CAUTION

NEVER PUTMORE THAN ONE

JUMPER ON THE SAME M]SC

JUMPER BLOCK!

THIS MAY DAMAGE YOUR

THERMOSTAT. Mis¢_

NOTE: Due to variations in environmental conditions, it is not

always possible to achieve the desired humidification or

dehumidification setpoint.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

O Thermostat 3368400 01

CUS F_ Tested to Complywith FCC Standards

LISTED FORHOMEOROmCEUSE

4Z95

Pagei

The Table of ContenL_ divides the thermostat features into sections

making it easier to quickly find information.

The first page of each section contains a more detailed list of the

contents within that section, such as the example page shown below.

Header shows section #

Section 14 Contents: and title of section

mAdjusting the Heat!Cool

Differential ............................. 14.2

=Adjusting the Cycles ............

Per Hour. ................................. 14.3 .........J;_'"Section contents

mAdjusting the Deadband .......... 14.4 _JJ_......

mAdjusting the Minutes of

Run-Time Before the

Next Stage ............................... 14.6 _

=Selecting 2nd Stage Turn Visible section tab

Off Temperature ..................... 14.7 on the side of the

page

,_"'J" " ,,,,_Section and page #

Page 14.1

In addition, this manual also has an Index to help you find any information

regarding this thermostat quickly.

Page ii

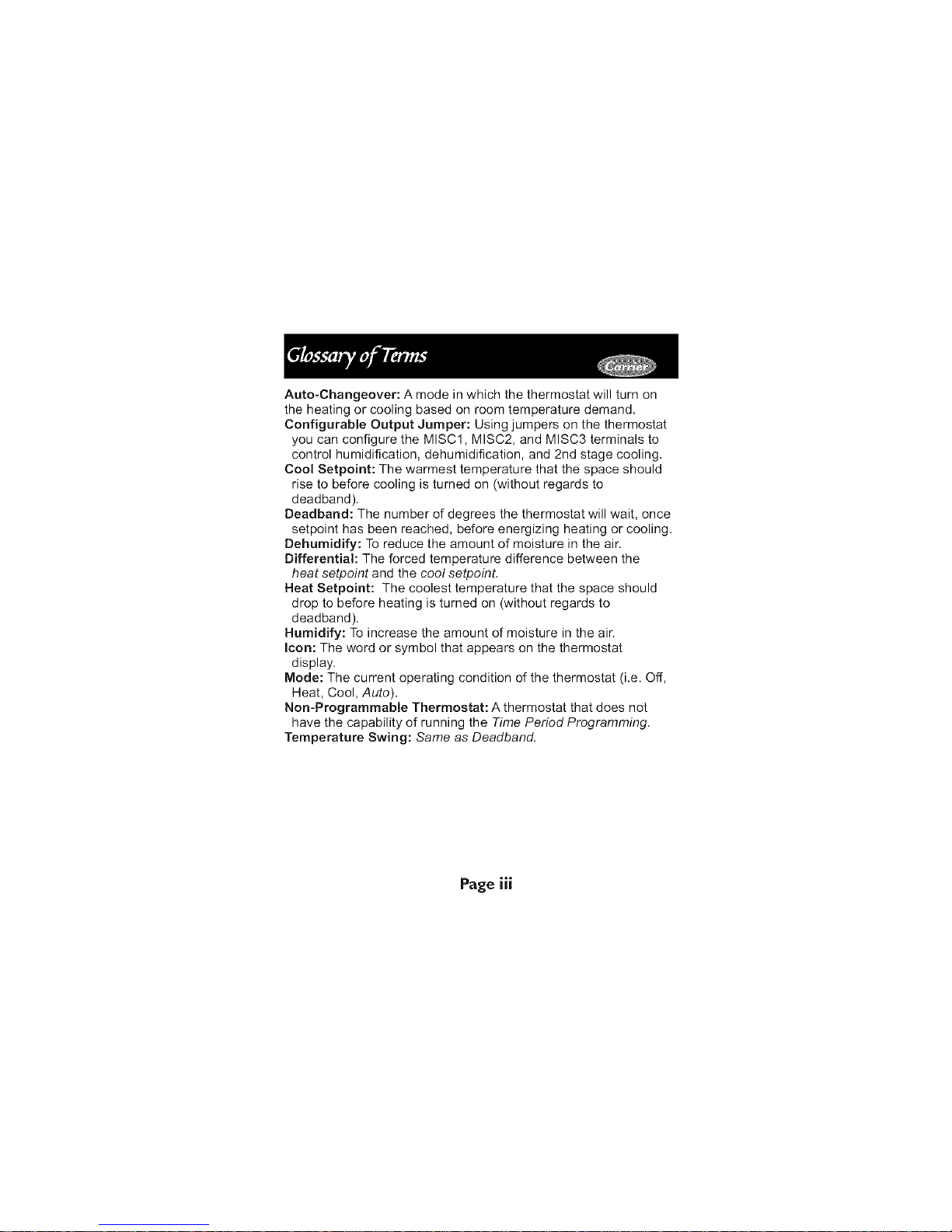

Auto-Changeover: A mode in which the thermostat will turn on

the heating or cooling based on room temperature demand.

Configurable Output Jumper: Using jumpers on the thermostat

you can configure the MISC1, MISC2, and MISC3 terminals to

control humidification, dehumidification, and 2nd stage cooling.

Cool Setpoint: The warmest temperature that the space should

rise to before cooling is turned on (without regards to

deadband).

Deadband: The number of degrees the thermostat will wait, once

setpoint has been reached, before energizing heating or cooling.

Dehumidify: To reduce the amount of moisture in the air.

Differential: The forced temperature difference between the

heat setpoint and the cool setpoint.

Heat Setpoint: The coolest temperature that the space should

drop to before heating is turned on (without regards to

deadband).

Humidify: To increase the amount of moisture in the air.

Icon: The word or symbol that appears on the thermostat

display.

Mode: The current operating condition of the thermostat (i.e. Off,

Heat, Cool, Auto).

Non-Programmable Thermostat: A thermostat that does not

have the capability of running the Time Period Programming.

Temperature Swing: Same as Deadband.

Page iii

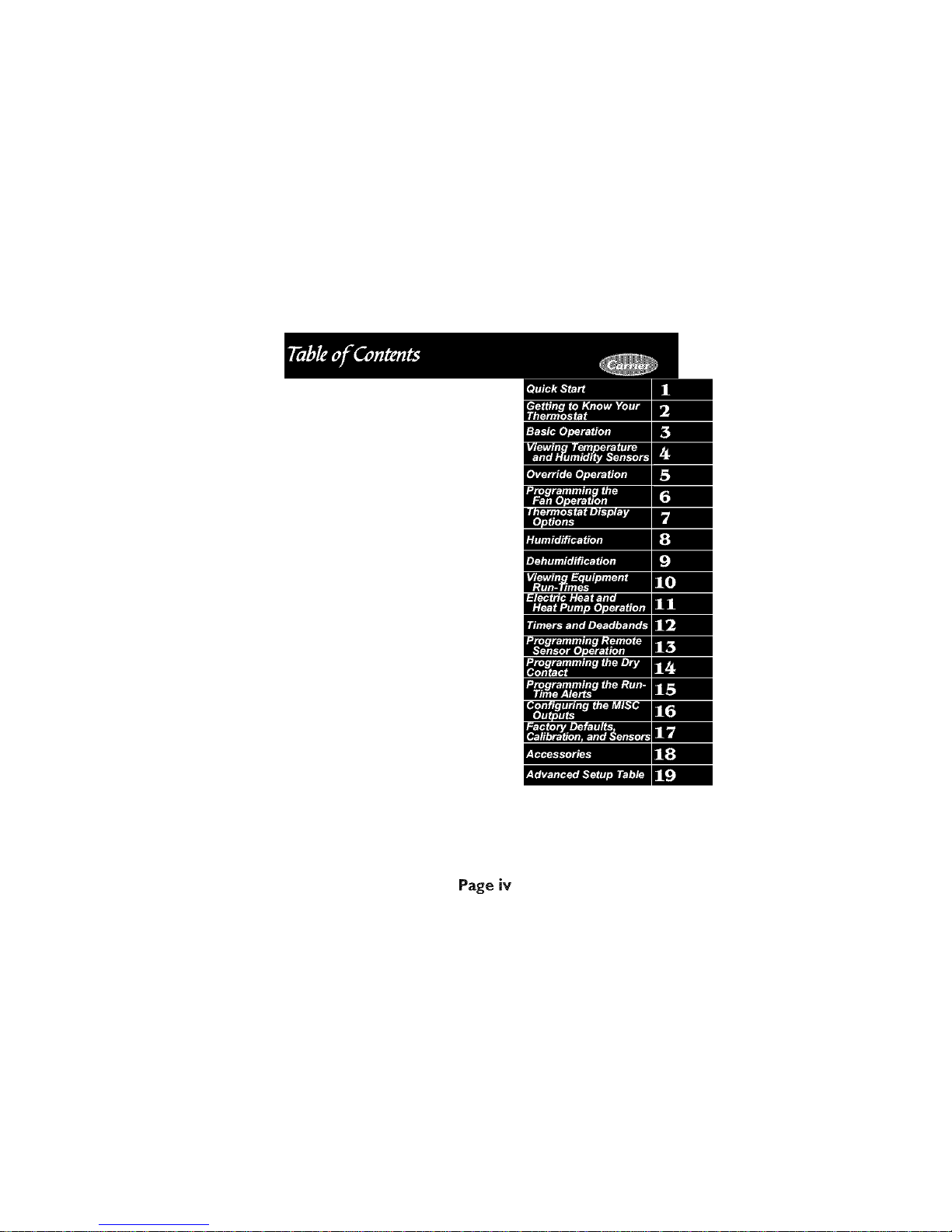

Page iv

Section 1 Contents:

=Selecting the Heat or Cool

Mode ............................................ 1.2

aSelecting Your Desired

Temperature ................................ 1.3

mUsing the Fan Button ................... 1.3

Note: Following the instructions in this section will allow you to

operate your thermostat using the factory default settings. These

settings are depicted in the illustrations throughout this manual.

P_el.i

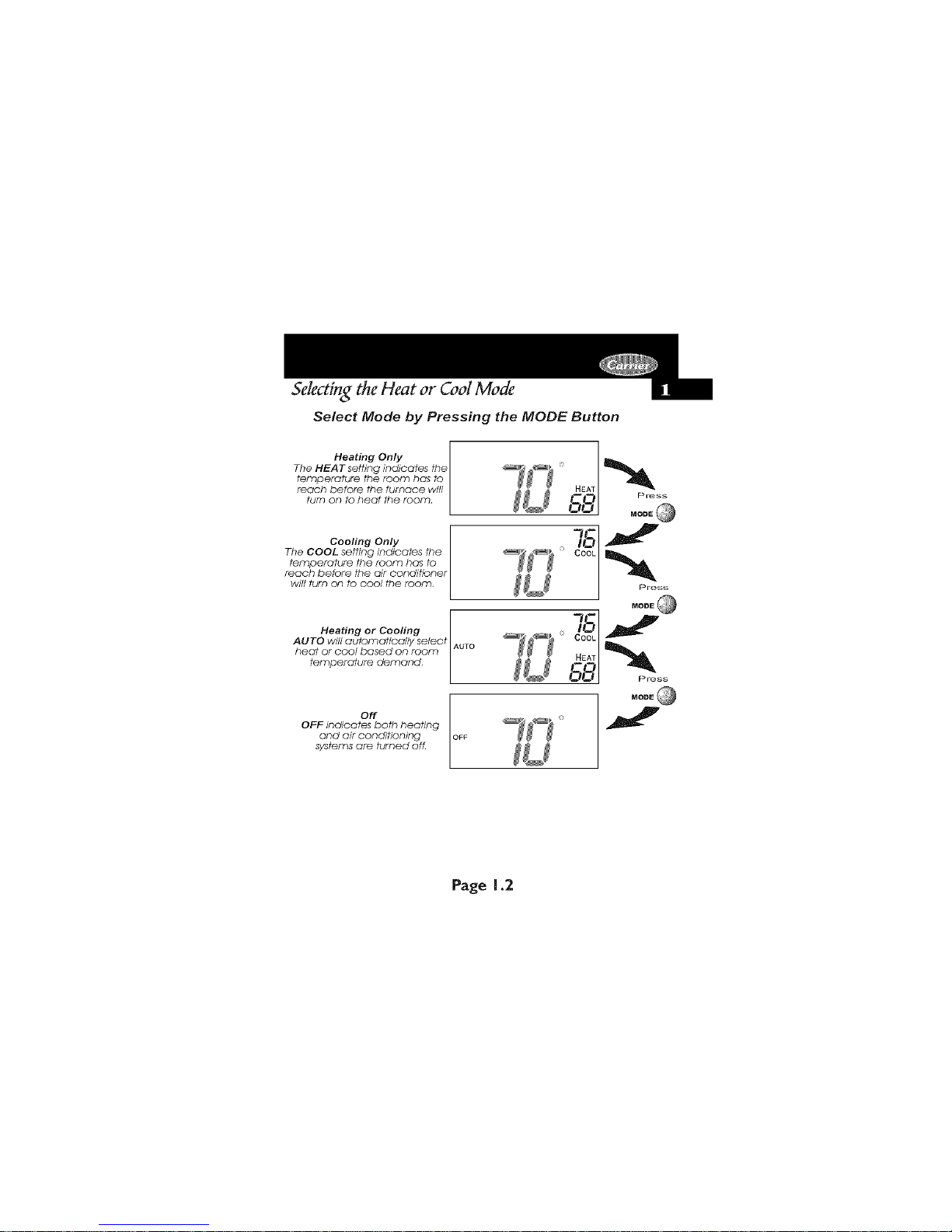

Sdecting the Heat or Cool Mode

Select Mode by Pressing the MODE Button

Heating Only

The HEATsetting indicates the

temperature the room has to

reach before the furnace will

turn on to heat the room.

Cooling Only

The COOL setting indicates the

temperature the room has to

reach before the air conditioner

will turn on to cool the room,

Heating or Cooling

AUTO will automatically select

heat or cool based on room

temperature demand,

Off

OFF indicates both heating

and air conditioning

systems are turned off.

,"-_iS

COOL

"Tl_-

'COOL

AUTO

HEAT

Press

<Press

Press

Page 1.2

Selecting Your Desired 7_mperature

(adjusts- thes_oints)

AUTO MODE

Pressing the UP or DOWN buttons in Auto mode

will adjust both the heat and cool set temperatures

simultaneously. Adjust the desired

_'[C.] set temperature with the

I#=l I

: COOL

HEAT

BSj

buttons.

HEAT OR COOL MODE

Pressing the UP or DOWN buttons in Heat or Cool mode will

adjust only the heat or cool set temperature.

Adjust the desired

set temperature with the

buttons.

Press

Using the Fan Button F_ 0

_ Fan On indicates constant fan operation.

_1_1 If Fan On is selected the fan will run

coo continuously at all times, except in Off,

A o C °_ and will only run if there is a heating or

II_A cooling demand in Unoccupied periods.

FanOn _'_C_ Pressing the FAN button toggles this

feature on or off.

Page 1.3

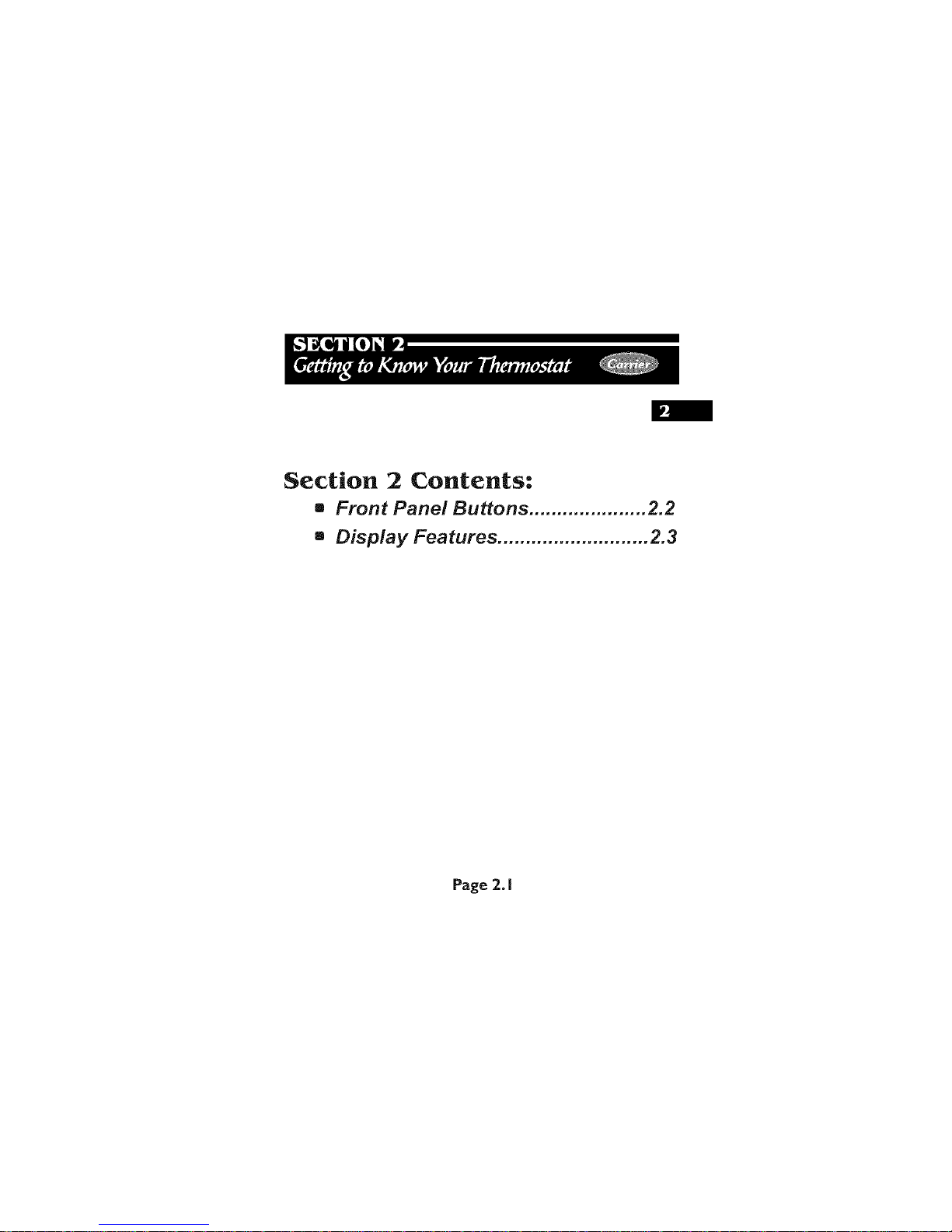

Section 2 Contents:

=Front Panel Buttons ..................... 2.2

mDisplay Features ........................... 2.3

Page 2. I

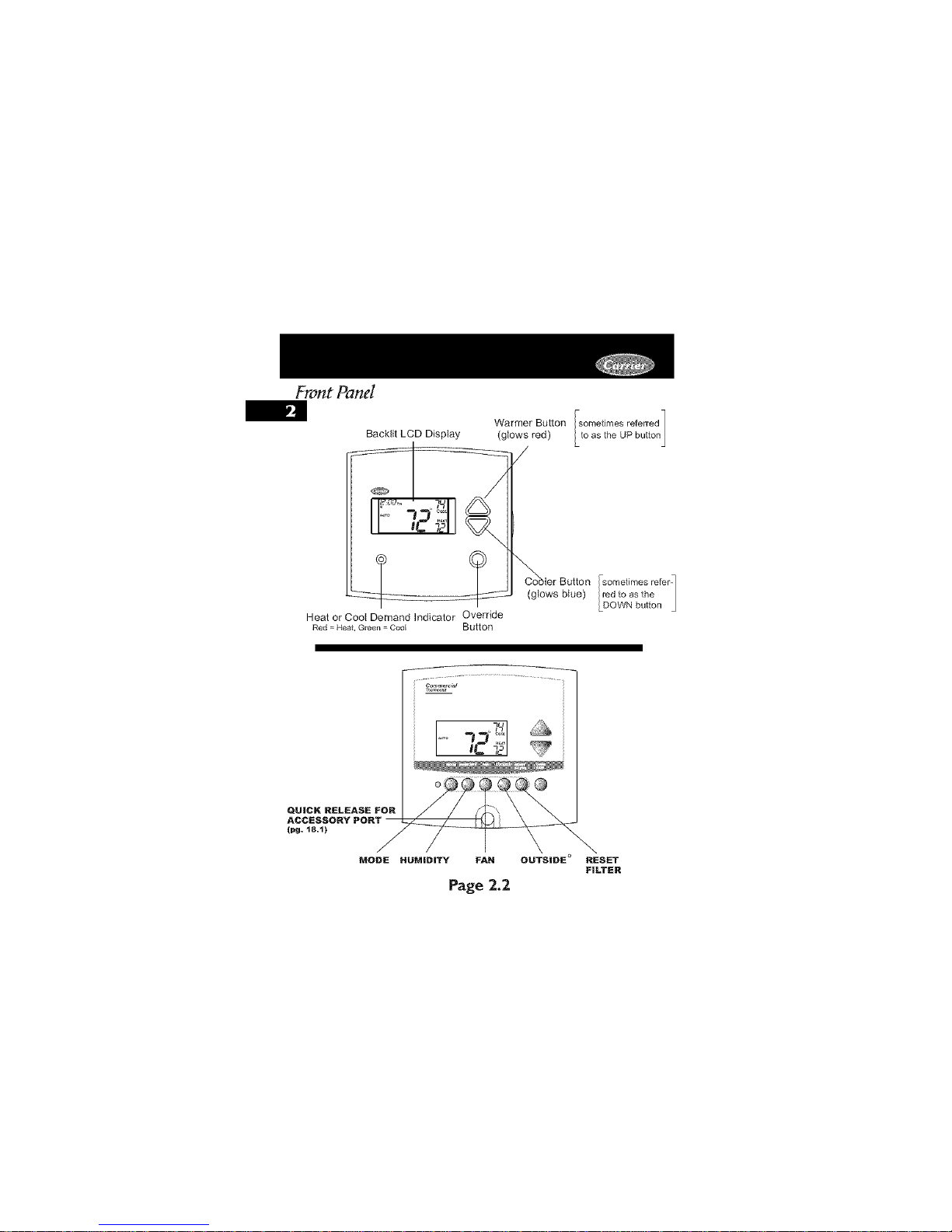

Fwnt Panel

Backlit LCD Disptay (gIows red) to as the UP button

Heat or COOl Demand indicator Override

Red = Heat, Green = Cool Button

nE ,L/

QUICK RELEASE FOR

ACCESSORY PORT

(pg. ta.t}

MODE HUMIDITY FAN

Page 2.2

OUTSIDE °RESET

FILTER
