Turn to the Expert_"

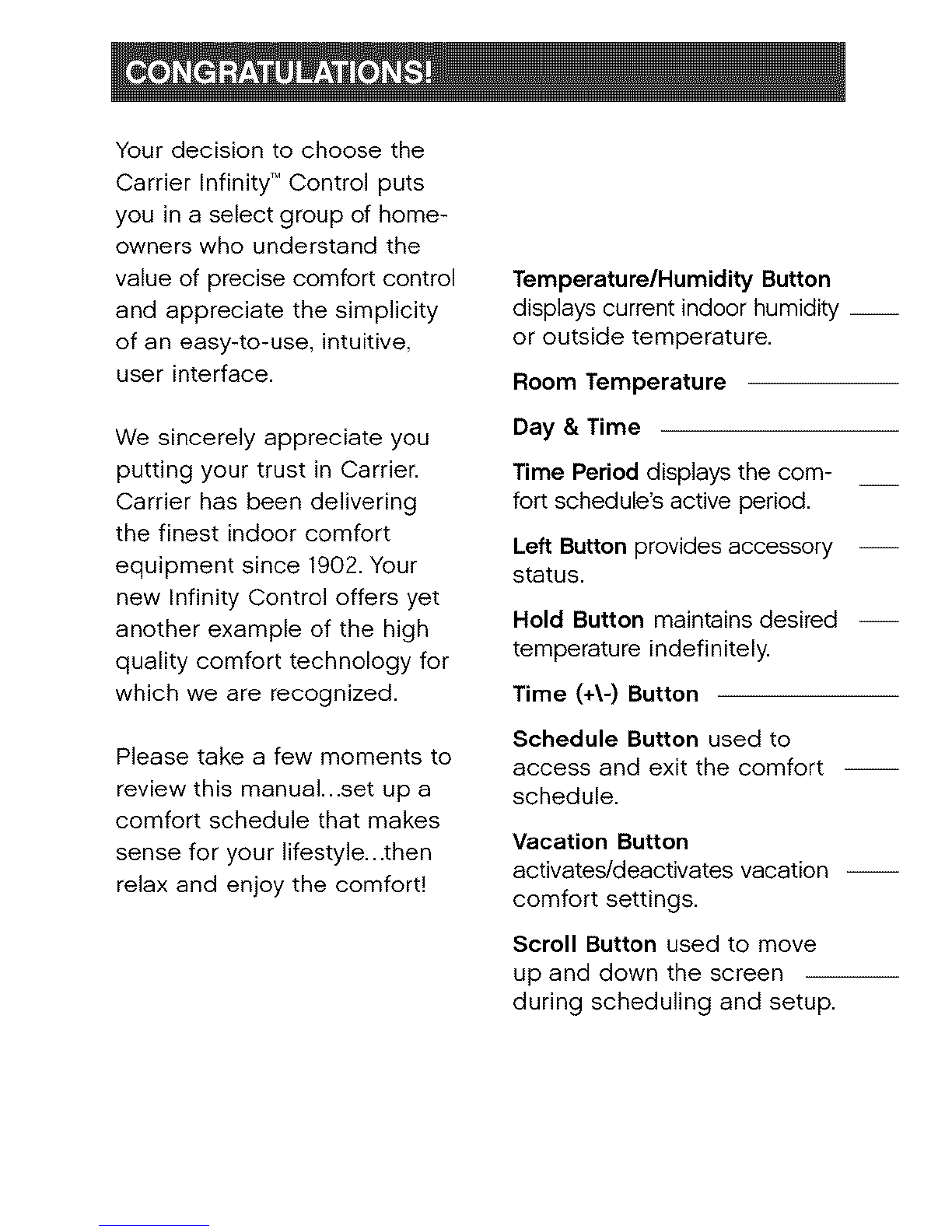

Your decision to choose the

Carrier Infinity TM Control puts

you in a select group of home-

owners who understand the

value of precise comfort control

and appreciate the simplicity

of an easy-to-use, intuitive,

user interface.

We sincerely appreciate you

putting your trust in Carrier.

Carrier has been delivering

the finest indoor comfort

equipment since 1902. Your

new Infinity Control offers yet

another example of the high

quality comfort technology for

which we are recognized.

Please take a few moments to

review this manual...set up a

comfort schedule that makes

sense for your lifestyle...then

relax and enjoy the comfort!

Temperature/Humidity Button

displays current indoor humidity __

or outside temperature.

Room Temperature

Day & Time

Time Period displays the com-

fort schedule's active period.

Left Button provides accessory

status.

Hold Button maintains desired --

temperature indefinitely.

Time (+\-) Button

Schedule Button used to

access and exit the comfort

schedule.

Vacation Button

activates/deactivates vacation --

comfort settings.

Scroll Button used to move

up and down the screen

during scheduling and setup.

_iiii ¸ ! ii

Fan Setting

Fan Button chooses "high,"

"medium," "low," or "auto"

fan mode.

.___.j"

Desired HeatinglCooling

Temperature

_- Temp (+\-) Button

Right Button provides

system status.

Heat Button selects heating

operation.

Cool Button selects cooling

operation.

Heat/Cool LEDs indicate

heating or cooling operation.

\\, -- Off Button turns the system

on and off.

\Advanced Setup Button

provides access to

customizable features.

Basic Setup Button provides

access to current day, time

and desired humidity level.

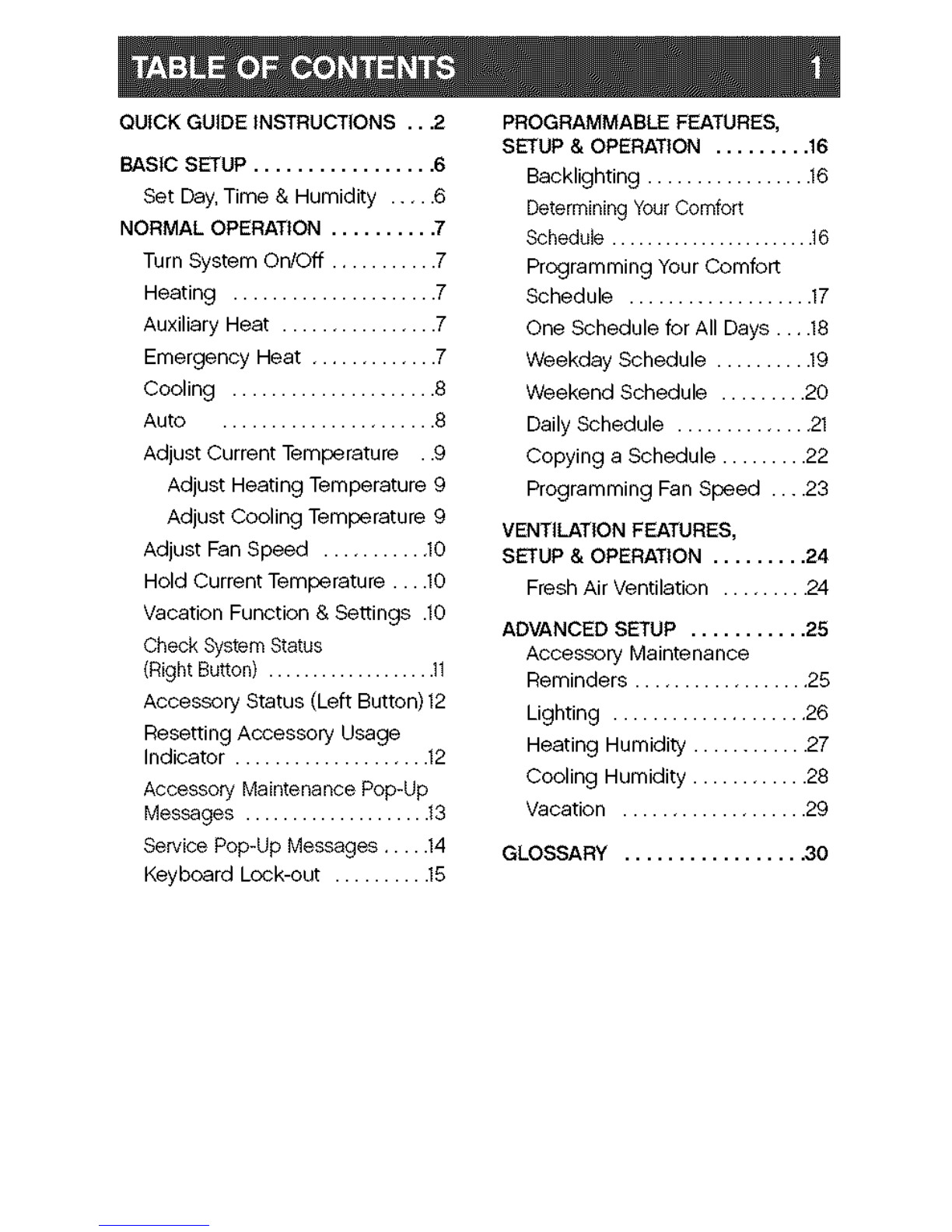

QUICK GUIDE INSTRUCTIONS ...2

BASIC SETUP ................. 6

Set Day. Time & Humidity ..... 6

NORMAL OPERATION .......... 7

Turn System On/Off ........... 7

Heating ..................... 7

Auxiliary Heat ................ 7

Emergency Heat ............. 7

Cooling ..................... 8

Auto ...................... S

Adjust Current Temperature ..9

Adjust Heating Temperature 9

Adjust Cooling Temperature 9

Adjust Fan Speed ........... 10

Hold Current Temperature....10

Vacation Function & Se_tings .10

Check System Status

(Right Button) ................... 11

Accessory Status (Left Button) 12

Resetting Accessory Usage

Indicator .................... 12

Accessory Maintenance Pop-Up

Messages .................... 13

Service Pop-Up Messages ..... 14

Keyboard Lock-out .......... 15

PROGRAMMABLE FEATURES,

SETUP & OPERATION ......... 16

Backlightiog ................. 16

Determining Your Comfort

Schedule ....................... 16

Programming Your Comfort

Schedule ................... 17

One Schedule for All Days....18

Weekday Schedule .......... 19

Weekend Schedule ......... 20

Daily Schedule .............. 21

Copying a Schedule ......... 22

Programming Fan Speed ....23

VENTILATION FEATURES,

SETUP & OPERATION ......... 24

Fresh Air Ventilation ......... 24

ADVANCED SETUP ........... 25

Accessory Maintenance

Reminders .................. 25

Lighting .................... 26

Heating Humidity ............ 27

Cooling Humidity ............ 28

Vacation ................... 29

GLOSSARY ................ .30

This guide provides the bos_c operations [or setting up and

operotlng your tnflntty Control

Set Day, Time & Desired Humidity

1 Flip down the door at the base of the ,:L,._r_, Ir'FC ,

Infmlty" Control

2 Press the BASIC button

3 Adjust the highlighted HOUR setting

using the TIME (+\-) button

4 Press SCROLL to highlight MINUTE

5 Adjust the MINUTE setting using the TIME (+\-) button

6 Press SCROLL to highlight DAY

7 Adjust the current DAY setting using the TIME (+\-) button

until the correct day is displayed

8 Press SCROLL to highlight HUMIDITY

9 Press the red HEAT button to set the heating humidity

10 Adjust the desired heating humidity using either (+\-)

button

11 Press the blue COOL button to set the cooling humidity

12 Adjust the desired cooling humidity using either (+\-)

button

13 Press BASIC or close the door to exit

Adjust Heating Temperature

1Press the red HEAT button Heating _s confirmed when the

red LED adlacent to the red HEAT button _s ht

2UsetheTEMP(+\-)buttontoselectyourdesiredtemperature

whichwillbedisplayedonthelowerright.Anoverridetimewill

bedisplayedonthelowerleftPleasenoteanoverridetime

willnotappearif programming has been turned off

3 You can change the override time in 15-minute increments by

pressing the TIME (+\-) button until the desired override time is

selected

-OR- q J

the HOLD button to override the _" 1

Press I|

schedule indefinitely

Adjust Cooling Temperature

1Press the blue COOL button Cooling is confirmed when

the blue LED adlacent to the blue CL button _sht

2 Use the TEMP (+\-) button to select your desired tempera-

ture which will be displayed on the lower right An override

time will be displayed on the lower left Please note an

override time will not appear if programming has been

turned off

3 You can change the overnde t_me to ]5-mmute Increments

by pressing the TIME (+\-) button until the desired override

t_me _s selected

- OR -

Press the HOLD button to override the schedule indefinitely

Quick Programming Instructions

These instructions will gutde you rhrough creating one comfort

schedule thor will repeat every day For more details on pro-

grammlngor [o create cus[omlzed schedules for [he week

weekend, or each day, refer to PROGRAMMABLE FEATURES

SETUP & OPERATION on pages 16 -23 of this manual

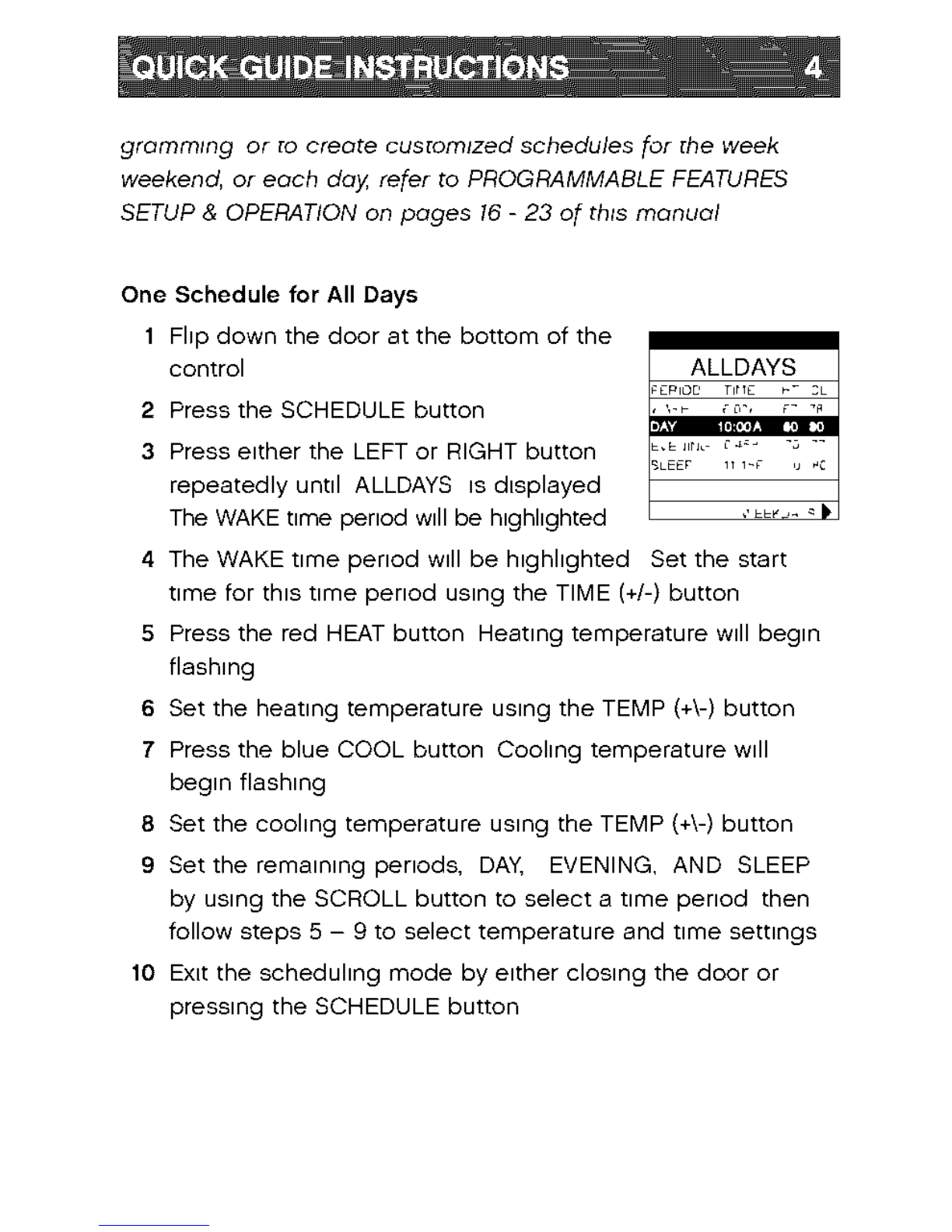

One Schedule for All Days

1 Fhp down the door at the bottom of the

control ALLDAYS

2 Press the SCHEDULE button

3 Press etther the LEFT or RIGHT button

repeatedly until ALLDAYS is displayed

The WAKE time period will be highlighted

4 The WAKE time period will be highlighted Set the start

time for this time period using the TIME (+/-) button

5 Press the red HEAT button Heattng temperature will begin

flashing

6 Set the heating temperature using the TEMP (+\-) button

7 Press the blue COOL button Cooling temperature will

begin flashing

8 Set the cooling temperature using the TEMP (+\-) button

9 Set the remaining periods, DAY, EVENING, AND SLEEP

by using the SCROLL button to select a time period then

follow steps 5 - 9 to select temperature and ttme setttngs

10 Exit the scheduhng mode by etther clostng the door or

presstng the SCHEDULE button

Pop-upMessages

YourInftnlty" Control provides important and useful maintenance

and service reminders via pop-up messages on the display

Accessory Maintenance Reminders: An accessory reminder lets

you know when its time for maintenance of your air filter humidifier

pad, UV lamp or ventilator When an accessory reminder pop-up

message appears perform the accessory maintenance yourself

OR contact your dealer!contractor

Service Reminders: When a service reminder pop-up message

appears contact your dealer/contractor

See ACCESSORY MAINTENANCE OR SERVICE POP-UP MESSAGES

on page 13 - 14 in this manual for additional information on service

and maintenance reminders

SetDay,Time&DesiredHumidity

1FlipdownthedooratthebaseoftheInfinity TM Control.

2 Press the BASIC button.

3 Adjust the highlighted HOUR setting CURnENTTm_E_DA¥

MINUTE 30

DAY MONDAY

l!_iTii'i_iBBBD

jL .p_4ESS_ASlO _O EXl

using the TIME (+_-) button.

4 Press SCROLL to highlight MINUTE.

5 Adjust the MINUTE setting using the TIME

(+\-) button.

6 Press SCROLL to highlight DAY.

7 Adjust the current DAY setting, using the TIME (+\-) button,

until the correct day is displayed.

8 Press SCROLL to highlight HUMIDITY.

9 Press the red HEAT button to set the heating humidity.

10 Adjust the desired heating humidity using either (+/-) button.

11 Press the blue COOL button to set the cooling humidity.

12 Adjust the desired cooling humidity using either (+/-) button.

13 If a ventilator has been installed, press scroll to highlight

FRESH AIR.

14 Adjust your desired FRESH AIR setting using the TEMP (+/-)

button. For a description of fresh air settings, see FRESH AIR

VENTILATION on page 24 in this manual.

15 Press the BASIC button to exit.

-OR -

If you need to readjust one of your settings, use the SCROLL

button to highlight the desired setting, then make your changes.

16 Close the door.

NOTE: You con exit at any time. When exiting, you will be

prompted to save changes if you hove mode any. Select"YES"

to save your changes, "NO" to revert back to previous settings.

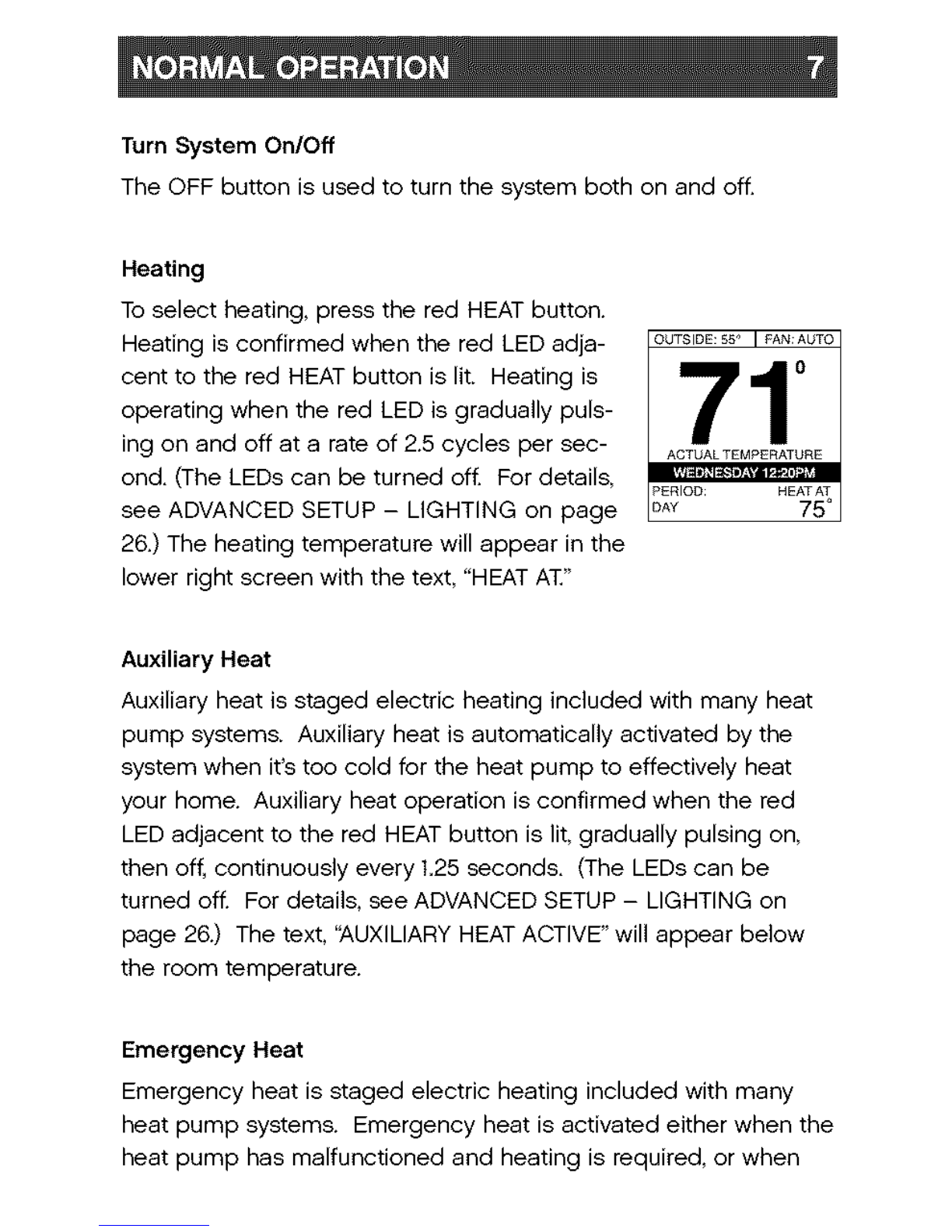

Turn System On/Off

The OFF button is used to turn the system both on and off.

Heating

To select heating, press the red HEAT button.

Heating is confirmed when the red LED adja-

cent to the red HEAT button is lit. Heating is

operating when the red LED is gradually puls-

ing on and off at a rate of 2.5 cycles per sec-

ond. (The LEDa can be turned off. For details,

see ADVANCED SETUP - LIGHTING on page

26.) The heating temperature will appear in the

lower right screen with the text, "HEAT AT"

Auxiliary Heat

Auxiliary heat is staged electric heating included with many heat

pump systems. Auxiliary heat is automatically activated by the

system when it's too cold for the heat pump to effectively heat

your home. Auxiliary heat operation is confirmed when the red

LED adjacent to the red HEAT button is lit, gradually pulsing on,

then off, continuously every t.25 seconds. (The LEDs can be

turned off. For details, see ADVANCED SETUP - LIGHTING on

page 26.) The text, 'AUXILIARY HEAT ACTIVE" will appear below

the room temperature.

Emergency Heat

Emergency heat is staged electric heating included with many

heat pump systems. Emergency heat is activated either when the

heat pump has malfunctioned and heating is required, or when

Altri manuali per Infinity Control Home

Indice

Altri manuali Carrier Termostato

Carrier

Carrier EDGE PRO 33CS2PPRH-01 Manuale utente

Carrier

Carrier 33CSSP3-FC Manuale utente

Carrier

Carrier 49004DP21 Manuale elenco delle parti

Carrier

Carrier TSTTCCPB101 Manuale utente

Carrier

Carrier TP-WEM01 Manuale utente

Carrier

Carrier 53DFST2-NP Manuale utente

Carrier

Carrier AQUAZONE 50QE900-250FS Manuale utente

Carrier

Carrier 33CS Manuale utente

Carrier

Carrier TB-NAC Manuale utente

Carrier

Carrier Thermostat Istruzioni per il montaggio

Carrier

Carrier debonair 33cssn2-wc Manuale utente

Carrier

Carrier TC-PBO01-BLK Manuale utente

Carrier

Carrier Connect 33CONNECTSTAT43FX Manuale utente

Carrier

Carrier User interface Comfort Module Series Manuale operativo

Carrier

Carrier AQUAZONE 50QE900 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Carrier

Carrier ComfortVu TB-24-HM Istruzioni operative

Carrier

Carrier Comfort Touch-n-Go Manuale utente

Carrier

Carrier ComfortVu Plus TBPL-H Istruzioni operative

Carrier

Carrier Infinity SYSTXCCITW01 Manuale utente

Carrier

Carrier CONNECT 33CONNECTSTAT Manuale utente

Carrier

Carrier ComfortVu TB-24-HM Istruzioni operative

Carrier

Carrier 52M Performance Series Manuale utente

Carrier

Carrier 33CS450-01 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente

Honeywell

Honeywell T6811 Manuale utente
