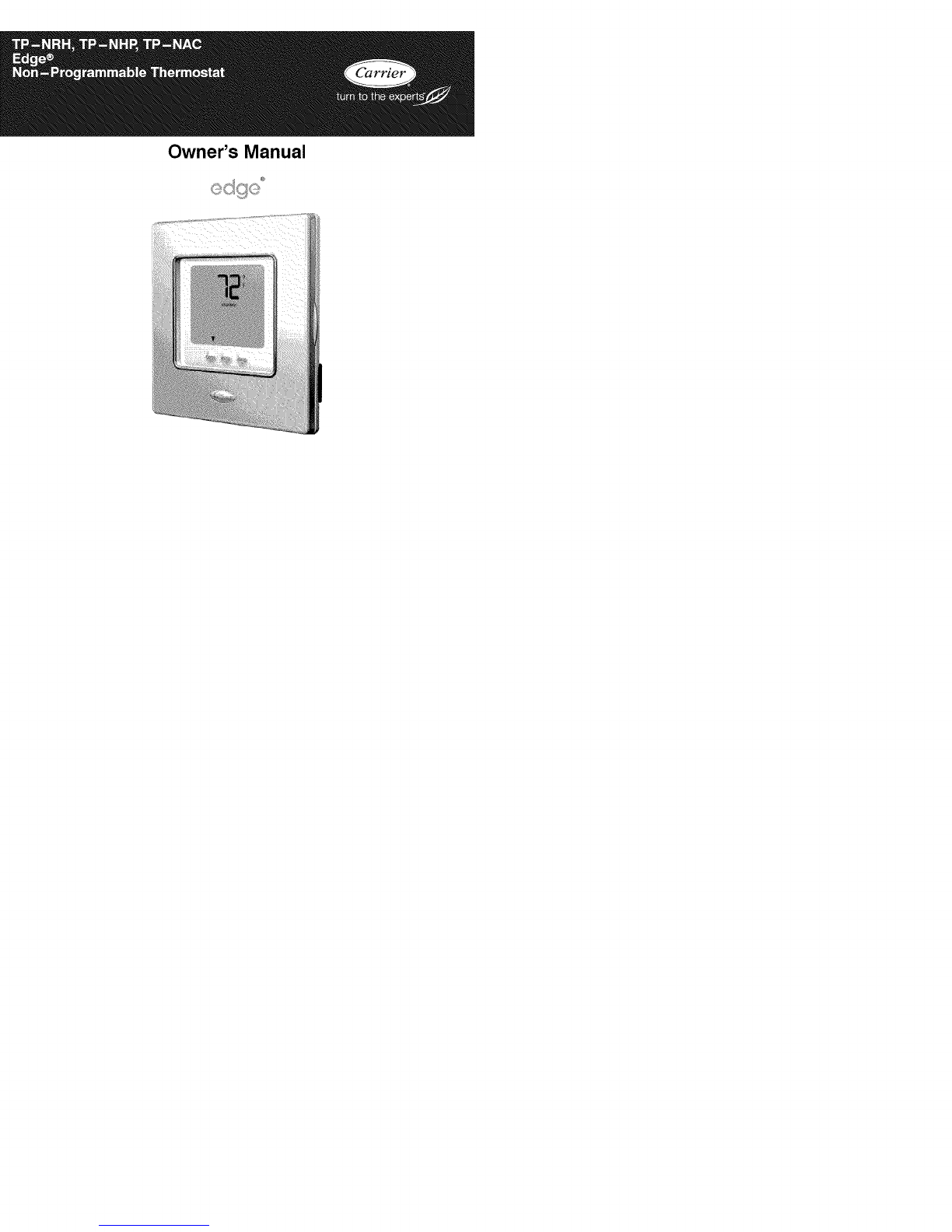

Owner's Manual
YOU WILL LOVE THIS THERMOSTAT.
You have the Edge _) thermostat. This unique device's state-of-the-art technology
makes it easier than ever for you to keep your home comfortable. And with an
ultra-thin profile and a selection of attractive faceplates, it is easily the most
decorator-friendly thermostat available. Designed to be as smart - and
smart-looking - as any of the other electronics in your home, your new Edge
thermostat offers three different "Touch 'N' Go" comfort settings to fit your
lifestyle - not anybody else's. Let this manual show you how easy it is to enjoy the
newest experience in home comfort.
Designed and Assembled
in the USA.
TABLE OF CONTENTS
BUTFON IDENTIFICATION ....................................... 6
ON-SCREEN INDICATORS ......................................... 8
QUICK START
Setting or changing the temperatures for heating and cooling .............. 10
Understanding Touch 'N' Go ...................................... 11
OPERATING THE THERMOSTAT
Using the Touch 'N' Go feature .................................... 12
Setting the home temperature ...................................... 14
Setting the away temperature ...................................... 16
Setting the sleep temperature ..................................... 18
Using the fan .................................................. 20
Changing the humidity level ...................................... 21
TABLE OF CONTENTS
Using normal humidify .......................................... 21
Using auto humidify ............................................. 22
How to turn off the humidify or dehumidify feature .................... 24
Using emergency heat (heat pump systems only) ...................... 25
Using the thermostat to turn the heating and cooling system off ........... 26
ADVANCED OPTIONS
Advanced options display codes chart ............................... 27
Clearing the reset reminders ....................................... 28
Changing from Fahrenheit to Celsius ................................ 30
Adjusting or turning off the continuous backlighting ................... 31
Keypad lockout ................................................ 32
Unlocking the keypad ........................................... 33
TABLE OF CONTENTS
SPECIAL FEATURES
Hybrid Heat (heat pump systems only) ............................... 34
Service reminders .............................................. 34
Outdoor temperature display ....................................... 35
Auto changeover ............................................... 35
WHAT IF...
"Aux heat on" is displayed (heat pump systems only) .................. 36
"Em heat" is displayed (heat pump systems only) ...................... 36
There is a power outage .......................................... 36
You get a service reminder message ................................. 37
You get a system error message .................................... 37
TABLE OF CONTENTS
COMMON TERMS AND WHERE TO FIND THEM
Auto changeover ................................................ 38
Auxiliary heat (heat pump systems only) ............................ 38
Backlighting ................................................... 38
Dehumidify .................................................... 38
Emergency heat (heat pump systems only) ........................... 39
Hybrid heat .................................................... 39
Humidify ...................................................... 39
Mode ......................................................... 40
Service reminders ............................................... 40
WARRANTY .................................................... 41
BUTTON IDENTIFICATION
÷--© mode
fan
off m
Em00_
heat 00_
oux,_,__0_,_0m_Joo_oo,
heat J_j_j outsidetemp] O0 om
on2 dehumidify setat
fan checkUVlight checkfiker
auto checkhumpad
fan
on _' T T
,, ?\
BUTTON IDENTIFICATION
a. FAN Selects whether the fan operates continuously (on) or only when
needed for heating or cooling (auto)
b. MODE Selects whether thermostat is set for heating, cooling, emergency
heat. auto (heat and cool as needed), or off
c. UP Increases the temperature or adjusts the screen selection up when
setting advanced features
d. DOWN Decreases the temperature or adjusts the screen selection down
when setting advanced programming features
e. SLEEP Activates heating and cooling settings for the sleep program
period
f. DONE Saves settings
g. AWAY Activates heating and cooling settings for the away program
period
h, FEATURES Provides access to advanced options
i. HOME Activates heating and cooling settings for the home program
period
ON-SCREEN INDICATORS
© ©
features done
ON-SCREEN INDICATORS
1. Programming option: indicates which settings are being adjusted
2. Fan mode - on or auto
3. Filter, UV lamp, humidifier pad reminders
4. Indicates whether setting humidify or dehumidify preferences
5. System is in auxiliary (supplemental) mode
6. Heating set point
7. Current system mode - heating, cooling, emergency heat, heat/cool (auto),
off
8. Current temperature
9. Indicates humidify or dehumidify settings
10. Fahrenheit or Celsius
11. Keypad is locked (no padlock means unlocked)
12. Selected cooling set point: cooling on
13. Outdoor temperature: also displays other information during programming
