Carrier TC-PHP01-BLK Manuale utente
TC-PHP01-BLK
CarrierProgrammable Thermostat
Air Conditioner and Heat Pump
Applications
Installation Guide
A07051
1
INTRODUCTION
Welcome and from all of us at Carrier®, thank you for purchasing your new
Carrier programmable thermostat. This thermostat is designed to be simple to
install but it’s best to review all of the instructions in this manual before you
start to help ensure there are no surprises during installation.
If any questions arise during your installation, we’re here to help:
SVisit www.carrier.com/homecomfort for how-to videos and answers to
frequently asked questions.
STechnical support is also available by phone or email at:
d1.800.CARRIER or 1.800.227.7437
dcontact.carrier@carrier.utc.com
SThe thermostat is also supported by the world's greatest network of
professional contractors. Find an Expert Carrier Contractor at
www.carrier.com/dealers
Let’s get started!
2
COMPATIBLE HEATING AND COOLING SYSTEMS
This thermostat works with many centralized residential heating and cooling
systems.
SConventional Heating and Cooling (AC): up to one stage of heating and
two stages of cooling
SHeat Pump (HP): up to three stages of heating and two stages of cooling
dHeat pumps work to provide cooling in the summer but in the winter,
they do it in reverse, drawing their heat energy from the outside air.
SSystemswithaCommon(C)wire
dRecommended to whenever possible
SSystems without a Common (C) wire
dTwo alkaline AA batteries required
!This thermostat is not compatible with Duel Fuel or Geothermal
Systems. Review all documentation to ensure that you have
selected the appropriate model thermostat for your system.
3

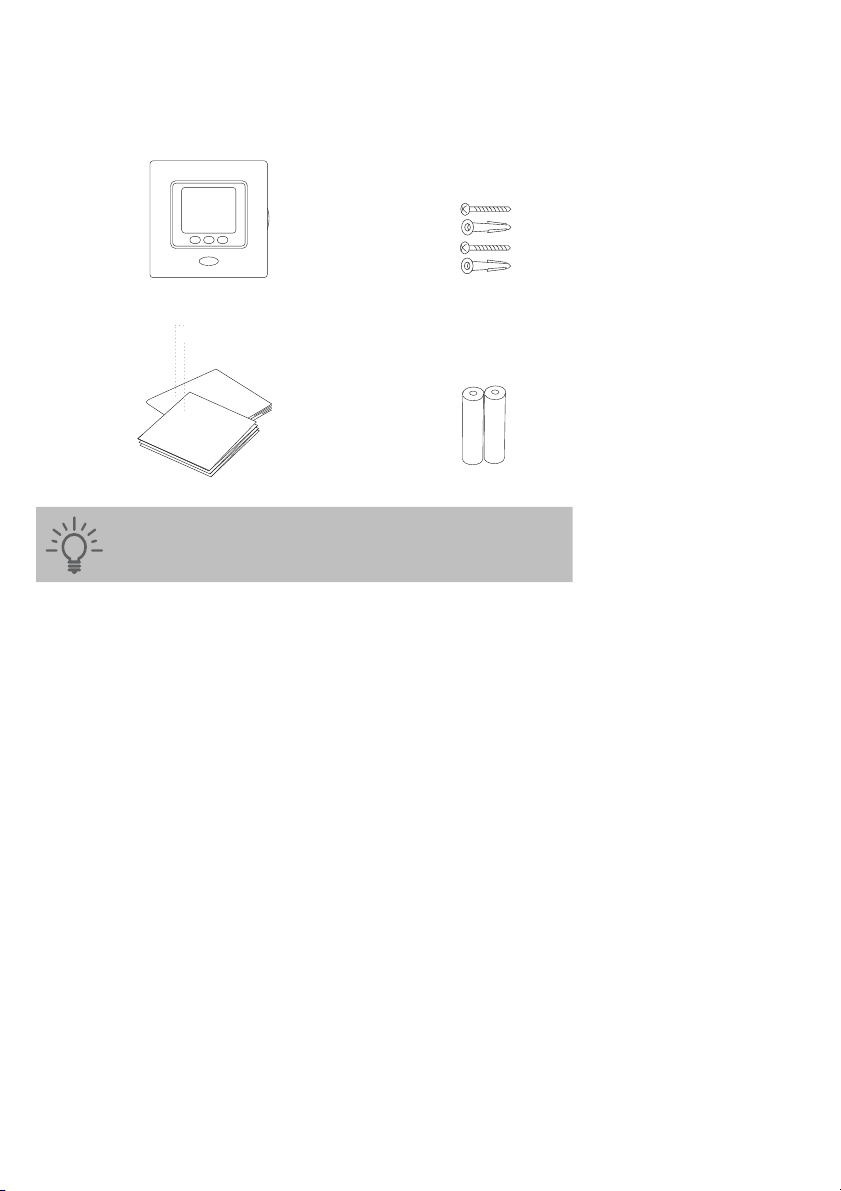

ITEMS INCLUDED IN THE BOX
A. The Carrier®Programmable Thermostat
B. Mounting screws and drywall plugs
C. Installation Guide and Owner’s Manual
D. Batteries
Installation Guide
Owner’s Manual
A. B.
C. D.
A150216
Tip: Write down your thermostat serial number and save it for
future reference. It is located on the thermostat circuit board next
to the model number TP-PHP.
4

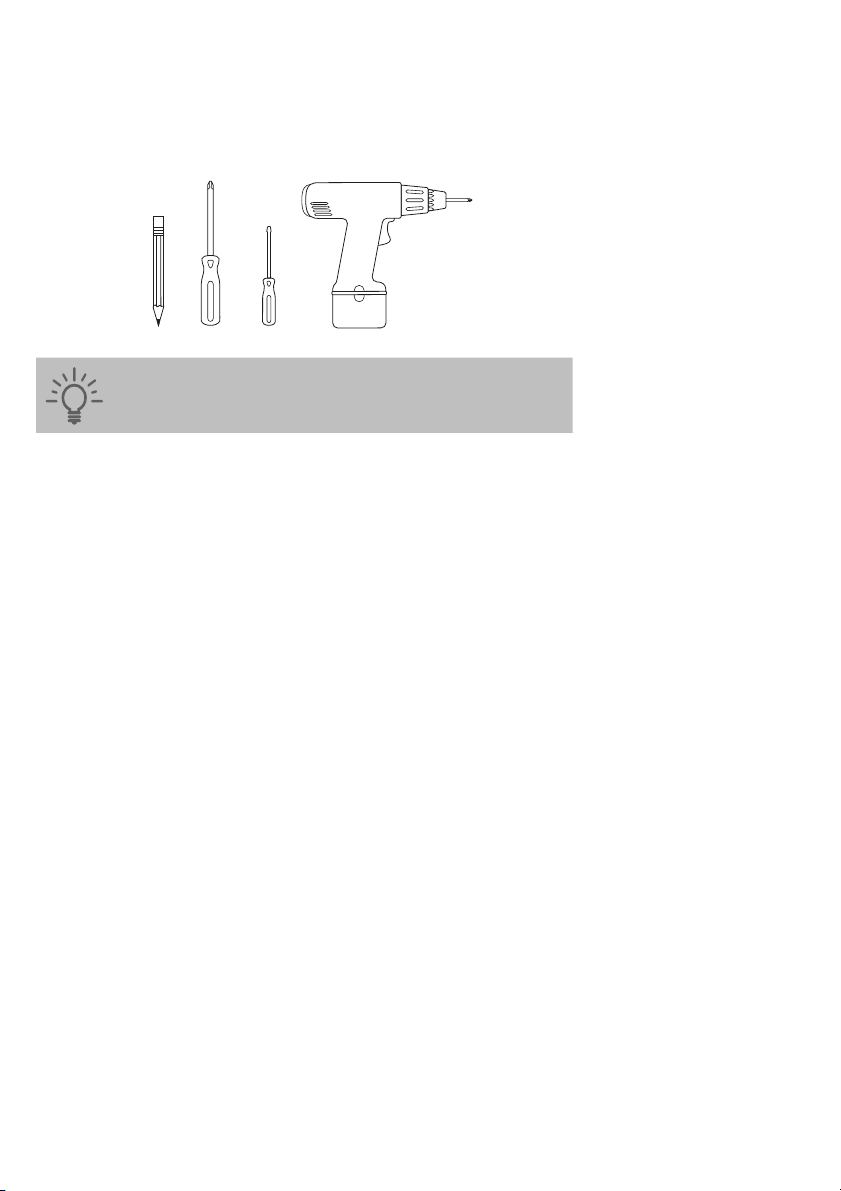

ITEMS YOU’LL NEED FOR INSTALLATION
A. Pencil
B. Phillips screwdriver
C. Small flathead screwdriver
D. Drill with a 3/16” drill bit
A. C. D.
B.
A150218
Tip: Review all the instructions before you start to help
ensure that there are no surprises during installation
5
STEP 1. REMOVE THE COVER FROM
YOUR OLD THERMOSTAT
1. Most covers snap off easily but some are attached by screws.
2. Note if either of the following apply to your old thermostat:
a. If you do not have a wire connected to C, two alkaline AA batter-
ies are required.
b. If you have wires connected to Rh and Rc and C, you’ll use two
breakers or switches to disconnect power in Step 2.
3. If you find that you have additional wires labeled anything other than
those shown in the diagram below – STOP and review to see if this
model thermostat is compatible with your system
O/B - reversing valve
Y1 - Cooling
Low Stage
Rc - 24 VAC, from cooling equipment
Rh - 24 VAC, from heating equipment
W - Heating
C - Common 24 VAC
G - Fan
Y/Y2 - Cooling High or Single Stage
A09271
4. Reattach the cover of your old thermostat. You’ll use it in Step 2 to
confirm the power is disconnected.
6
B.
110/120V
HC
HC
A.
A150045
!

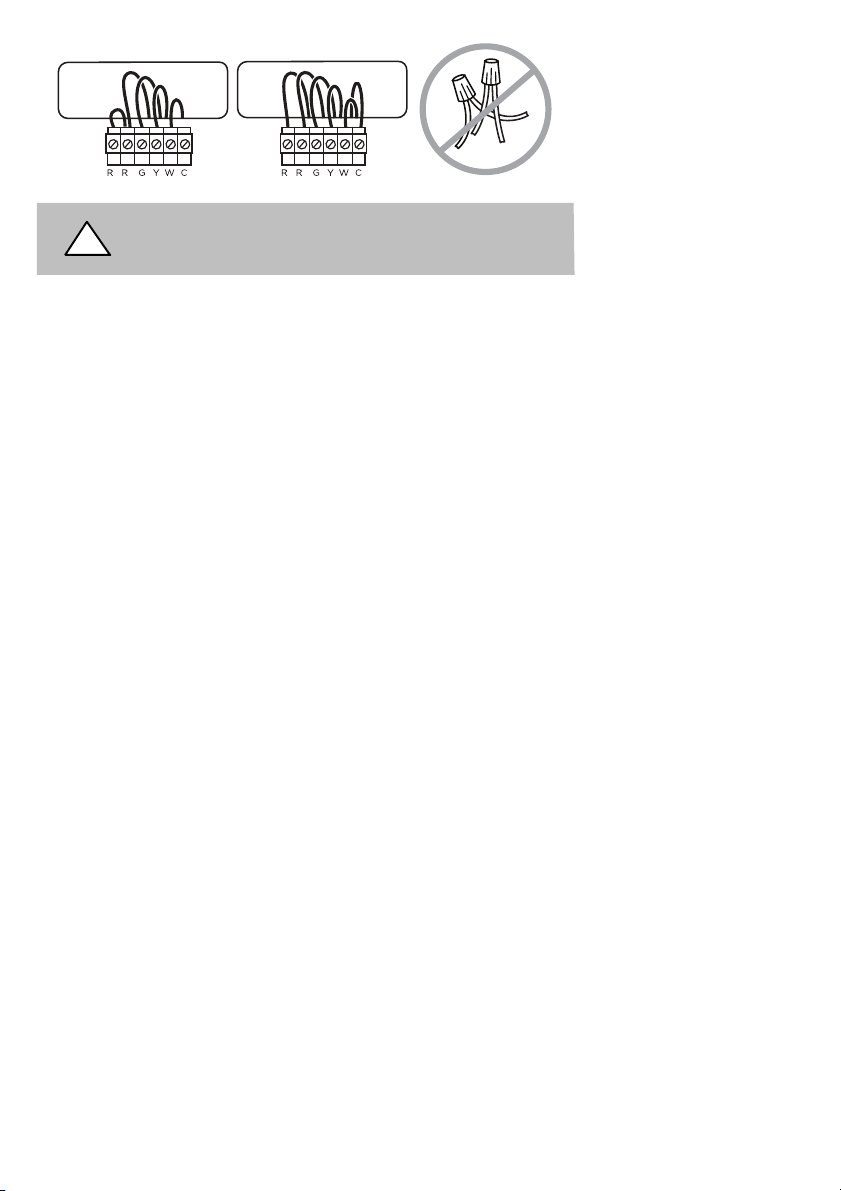

Warning! If your old thermostat is labeled 110V or
120V, or is connected by thick wires and wire nuts,
it is a high voltage system and is not compatible
STEP 2. POWER OFF YOUR HEATING AND COOLING SYSTEM
1. Turn off the power to your heating and cooling system.
a. You can do this either at your circuit breaker box or a switch at
your indoor furnace or fan coil.
b. Most systems have one switch, but some systems or systems
with Rh and Rc and C wires noted in Step 1 will have two switch-
es.
2. Make sure your system is without power by using your old thermostat
to adjust the temperature. Your system should not turn on.
7
or
A150046
!Warning! Electrical operation hazard. Failure to
follow this warning could result in injury, death, or
equipment damage
STEP 3. REMOVE YOUR OLD THERMOSTAT
1. Remove the cover of your old thermostat.
2. Using your old thermostat as a guide, record wire color and corre-
sponding letter where it is connected on the thermostat terminal block.
Don’t worry about any non-connected wires.
3. Also note if there is a jumper wire or bracket between Rh, Rc, or R. If
yes, you will need to jumper these terminals on your new thermostat
as well.
8
A150219
Wire Color Connected to Terminal Letter
Green G
There is a jumper wire or bracket between Rh, Rc, or R?
Yes No

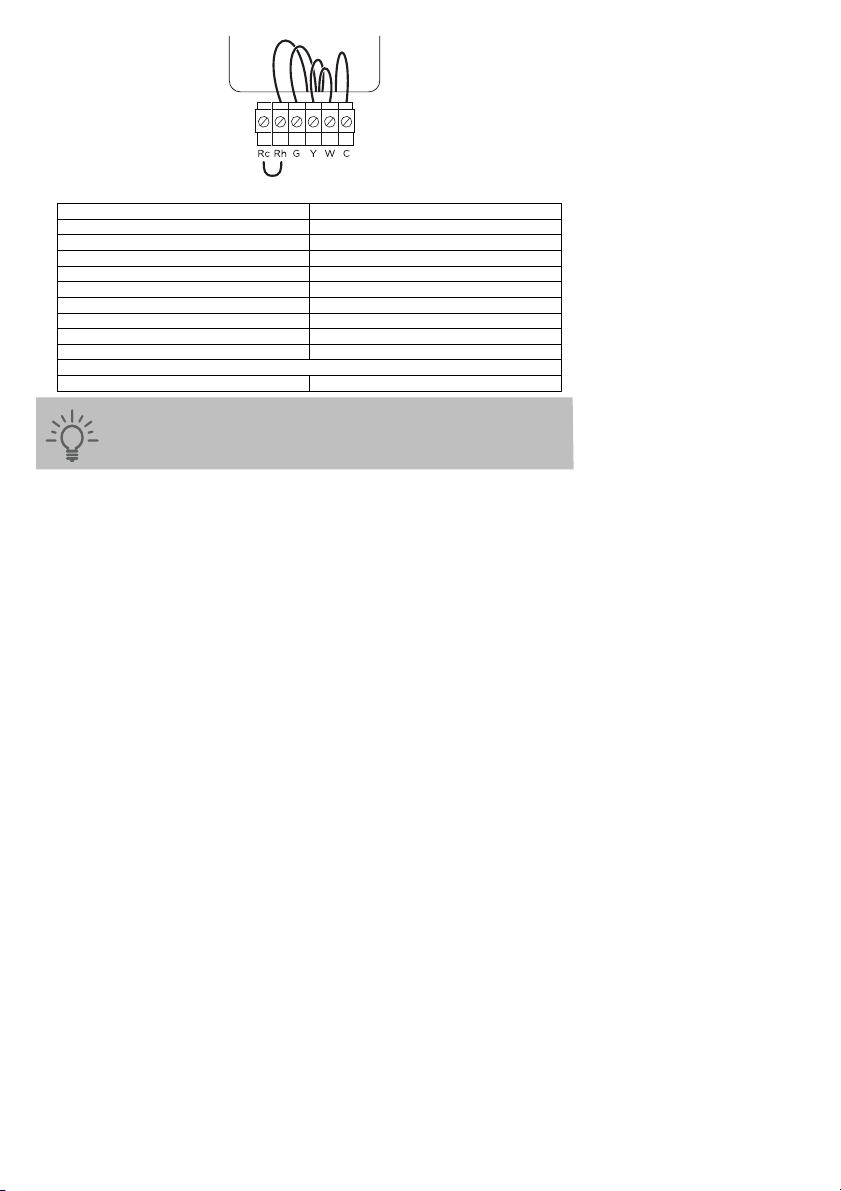

Tip: Take a photo of your old thermostat wiring with
your smartphone for reference later
4. Disconnect each wire. Most thermostat wires are connected using
screws; simply loosen each screw with a small screwdriver. Be careful
not to let any wires fall back into the wall.
5. Remove your old thermostat base by unscrewing it from the wall.
