Carrier Infinity SYSTXCCITW01 Manuale utente

Owner's Manual

NOTE: Read the entire instruction manual before starting the installation.

US Patents: Carrier (°_U.S. Pat No. 7.243.004. Carrier @ U.S. Pat No. 7.775.452.

pointSET TM U.S. Pat No. 7.415.102

TABLE OF CONTENTS

PAGE

Introduction ..................................................... 1

Home Screen .................................................... 1

Information Displayed ........................................... 1

Information Buttons ............................................. 2

Main Screen .................................................... 2

System Mode .................................................. 2

Set Day and Time .............................................. 3

Adjust Temperature (Temporary Hold) .............................. 3

Adjusting Comfort Activities (See Comfort Profiles on Page 7) ........... 3

Adjusting Heating .............................................. 4

Adjusting Cooling .............................................. 4

Adjust Temperature (Permanent Hold) .............................. 5

Adjusting Comfort Activities (See Comfort Profiles on Page 7) ........... 5

Adjusting Heating .............................................. 5

Adjusting Cooling .............................................. 6

Features ........................................................ 6

Adjust Fan Speed ............................................... 6

View Current Humidity Level ..................................... 6

Menu Screen .................................................... 7

Comfort Profiles ............................................... 7

Home Humidity Control ......................................... 8

Home Fresh Air Control ......................................... 9

TABLE OF CONTENTS (cont.)

PAGE

Away Humidity Control .......................................... 9

Away Fresh Air Control ......................................... 10

Programming the Infinity (_Touch Control ........................... 11

Schedule Yourself ............................................. 11

Guide Me through Scheduling .................................... 12

Upload My Schedule ........................................... 14

Set Time and Date ............................................. 14

Operating Status .............................................. 15

Accessories Status ............................................. 16

Zone Status (if applicable) ....................................... 16

Vacation Settings .............................................. 17

Energy Tracking .............................................. 18

Wireless Set-up (if applicable) ................................... 19

Screen Lock .................................................. 24

Weather Forecast .............................................. 25

Service ...................................................... 26

Photo Upload ................................................. 26

Accessory Reminders .......................................... 27

Display ..................................................... 28

Heat Source (if applicable) ...................................... 29

Zone Names (If Applicable) ..................................... 29

INTRODUCTION

CONGRATULATIONS! Your decision to choose the Infinity(n) Touch Control puts

you in a select group of homeowners who understand the value of precise comfort

control and appreciate the simplicity of an easy-to-use, intuitive, control.

Your new Infinity Touch Control offers high quality" comfort technology. Please

take a few moments to carefully read through this manual. Next set up a comfort

profile and schedule that makes sense for your lifestyle: then relax and enjoy the

new comfort of your home!

HOME SCREEN

Information Displayed

The information displayed on the home screen will appear when there has been no

interaction with the Infinity Touch Control for at least one minute. The basic

information displayed on the Home Screen consists of the current date and time, the

room temperature (zone temperature if applicable), the outdoor temperature, and

current weather condition.

If you have uploaded a photo to the control (see page 26), it will act as your home

screen until an interaction has occurred.

A12102

Information Buttons

On the bottom of some screens will be an information icon. By pressing the

information icon, a text box will display to show what interactions are available on

that particular screen. To close the text box, press the information icon again.

A12103

MAIN SCREEN

The main screen is where most interactions will take place. Touch anywhere on the

screen to arrive at the main screen.

System Mode

• Once in the main screen,

• To access your system mode touch the MODE label located in the upper

right of the control.

• The drop-down menu will allow you to choose between AUTO, HEAT,

COOL, FAN ONLY and OFE

• If OFF is selected that means your heating and cooling systems are not

operational.

• If AUTO is selected, the Infinity" Touch Control automatically switches

between heating and cooling to maintain your comfort during transition-

al seasons.

• IfHEATisselectedthentheInfinityTouchControloperatesonlythe

heatingsystem.

• IfCOOLisselectedthentheInfinityTouchControloperatesonlythe

coolingsystem.

• IfFANONLYisselected,thentheInfinityTouchControloperatesthe

indoorfan.

SetDay and Time

• To set the day and time for your home screen enter the main screen by

touching anywhere on the control.

• Touch the DAY and TIME label located at the top middle of the screen

or access by going through the menu screen (see page 14).

• To set the HOUR, MINUTE, MONTH, DAY, or YEAR touch the fea-

ture you wish to change.

• Use the Up (hi) and Down (V) buttons to make the appropriate

changes.

• When you have completed all of the settings, touch SAVE.

• If you make a mistake you may touch CANCEL and begin again.

Adjust Temperature (Temporary Hold)

The Infinity" Touch Control allows you to temporarily override your programmed

schedule by adjusting the indoor temperature at any time to meet your needs.

Adjusting Comfort Profiles (See Comfort Profiles on Page 7)

• To adjust the comfort activity, enter the main screen by touching any-

where on the control.

• Touch the activity under the Touch N Go " feature on the left side of the

screen: then select the desired activity of HOME, AWAY, SLEEP, or

WAKE.

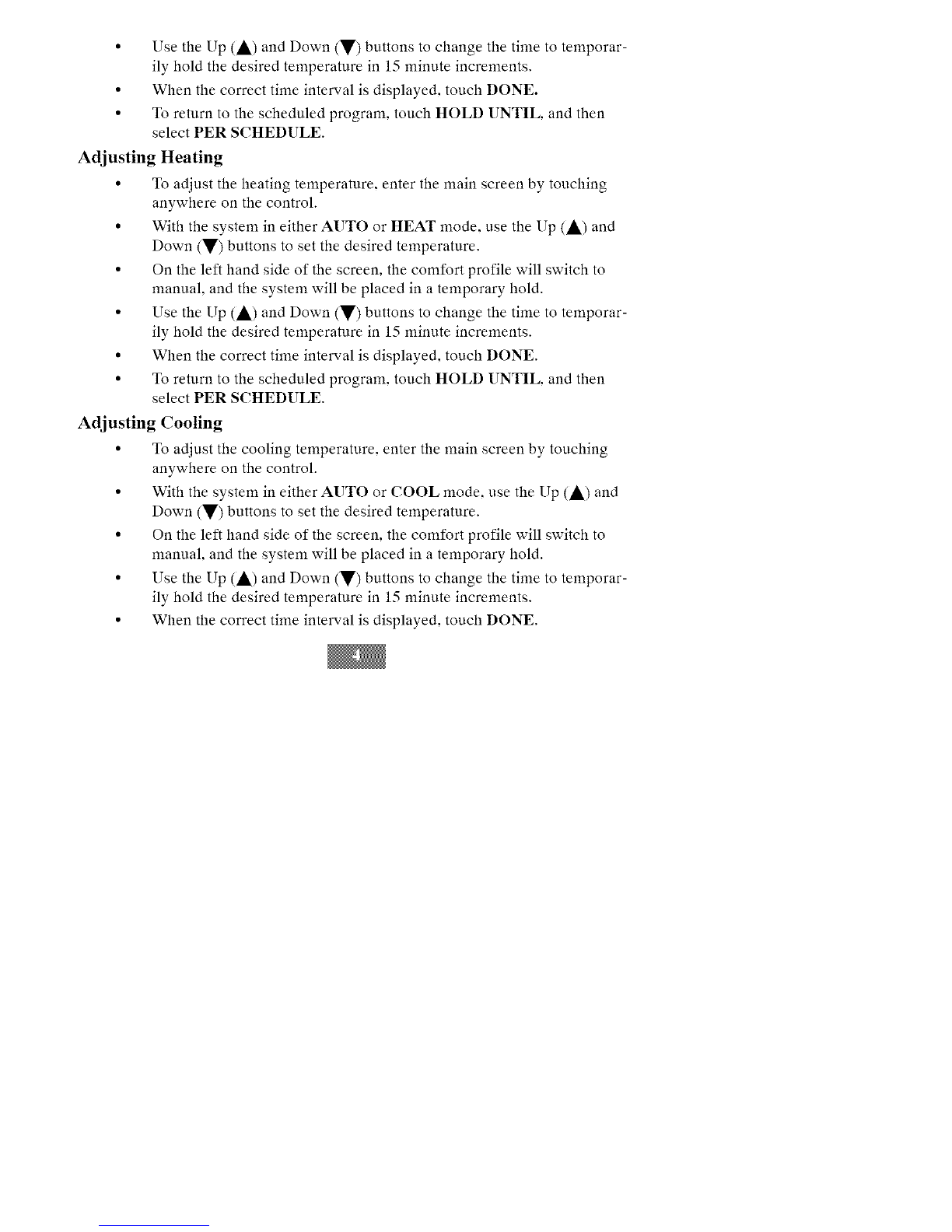

• Use the Up (A) and Down (V) buttons to change the time to temporar-

ily hold the desired temperature in 15 minute increments.

• When the correct time interval is displayed, touch DONE.

• To return to the scheduled program, touch HOLD UNTIL and then

select PER SCHEDULE.

Adjusting Heating

• To adjust the heating temperature, enter the main screen by touching

anywhere on the control.

• With the system in either AUTO or HEAT mode, use the Up (A) and

Down (V) buttons to set the desired temperature.

• On the left hand side of the screen, the comfort profile will switch to

manual, and the system will be placed in a temporary hold.

• Use the Up (_) and Down (_) buttons to change the time to temporar-

ily hold the desired temperature in 15 minute increments.

• When the correct time interval is displayed, touch DONE.

• To return to the scheduled program, touch HOLD UNTIL and then

select PER SCHEDULE.

Adjusting Cooling

• To adjust the cooling temperature, enter the main screen by touching

anywhere on the control.

• With the system in either AUTO or COOL mode, use the Up (_) and

Down (V) buttons to set the desired temperature.

• On the left hand side of the screen, the comfort profile will switch to

manual, and the system will be placed in a temporary hold.

• Use the Up (_) and Down (_) buttons to change the time to temporar-

ily hold the desired temperature in 15 minute increments.

•When the correct time interval is displayed, touch DONE.

* To return to the scheduled program, touch HOLD UNTIL and then

select PER SCHEDULE.

Adjust Temperature (Permanent Hold)

The Infinity" Touch Control allows you to permanently override your programmed

schedule by adjusting the indoor temperature at any time to meet your needs.

Adjusting Comfort Profiles (See Comfort Profiles on Page 7)

* To adjust the comfort activity, enter the main screen by touching any-

where on the control.

, Touch the activity under the Touch N Go " feature on the left side of the

screen: then select the desired activity of HOME, AWAY, SLEEP, or

WAKE.

, Touch the HOLD UNTIL button, then touch HOLD.

, To return to the scheduled program touch HOLD. and then touch PER

SCHEDULE.

Adjusting Heating

, To adjust the heating temperature, enter the main screen by touching

anywhere on the control.

, With the system in either AUTO or HEAT mode. use the Up (A) and

Down (V) buttons to set the desired temperature.

* On the left hand side of the screen, the comfort profile will switch to

MANUAL

* Touch the HOLD UNTIL button, then touch HOLD.

, To return to the scheduled program, touch HOLD. and then touch PER

SCHEDULE.

Adjusting Cooling

• To adjust the cooling temperature, enter the main screen by touching

anywhere on the control.

• With the system in either AUTO or COOL mode, use the Up (A) and

Down (V) buttons to set the desired temperature.

• On the left hand side of the screen, the comfort profile will switch to

MANUAL

•Touch the HOLD UNTIL button, then touch HOLD.

• To return to the scheduled program, touch HOLD, and then touch PER

SCHEDULE.

FEATURES

Adjust Fan Speed

The Features function of Infinity Touch Control allows you to adjust the fan speed

during continuous fan operation.

• To adjust the fan speed, enter the main screen by touching anywhere on

the control.

• Touch FEATURES on the top left of the screen.

• A drop down menu will appear. Touch FAN selection.

• Use the Up (&) and Down (_r) buttons to set the fan to OFF, LOW,

MEDIUM or HIGH, then touch DONE.

View Current Humidity Level

The Features function of Infinity" Touch Control allows you to view the current

humidity level within the conditioned space.

• Enter the main screen by touching anywhere on the control.

• Touch FEATURES on the top left of the screen.

• Inthedropdownmenuyouwillseeyourmeasuredhumiditylevels

withintheconditionedspace.

MENU SCREEN

Your menu screen offers more features and control for your Infinity Touch Control.

Touch the menu button at the bottom right of the main screen.

Comfort Profiles

You will need to set the comfort profiles before you attempt to program your new

Infinity Touch Control.

• The COMFORT PROFILES button allows you to set comfort settings

for temperature and humidity for your entire home or for various rooms

if you have Infinity(n_ Zoning.

A12104

Set your desired heating and cooling temperatures and your fan setting

using the TEMPERATURE AND FAN PROFILES for each activity.

c; For example to change your HOME comfort profile, touch the

HOME icon.

c; Use the Up (A) and Down (V) buttons to change the fan settings,

heating and cooling temperatures. When you are done, press the

SAVE button on the bottom right.

Altri manuali per Infinity SYSTXCCITW01

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Carrier Termostato

Carrier

Carrier TSTATCCPS101 Manuale utente

Carrier

Carrier 33CS450-01 Manuale utente

Carrier

Carrier TSTTCCPB101 Manuale utente

Carrier

Carrier Infinity Control Home Istruzioni per il montaggio

Carrier

Carrier Cor Manuale utente

Carrier

Carrier TSTATCCPS701 Manuale utente

Carrier

Carrier Performance Edger Thermidistat Control... Manuale utente

Carrier

Carrier Performance Non-Programmable ADGE Manuale utente

Carrier

Carrier 50QE900-511WS Manuale utente

Carrier

Carrier 33CS420-01 Manuale utente

Carrier

Carrier TSTATCCNTT01-B Manuale utente

Carrier

Carrier 33CS Manuale utente

Carrier

Carrier 52M Performance Series Manuale utente

Carrier

Carrier Infinity SYSTXCCITW01 Manuale utente

Carrier

Carrier O3TS-TA32 Guide Istruzioni per il montaggio

Carrier

Carrier ComfortVu TB-24-HM Istruzioni operative

Carrier

Carrier Thermidistat Manuale utente

Carrier

Carrier edge TP-NHP01-A Manuale utente

Carrier

Carrier 49004DP21 Manuale elenco delle parti

Carrier

Carrier TSTATCCNAC01-C Manuale utente

Carrier

Carrier Debonair 33CS220-FS Manuale utente

Carrier

Carrier A94134 Istruzioni e ricette

Carrier

Carrier Connect 33CONNECTSTAT43 Manuale utente

Carrier

Carrier Performance TP-PAC Manuale operativo

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente

Honeywell

Honeywell T6811 Manuale utente
