CAS SW-2 Manuale utente
CONTENTS
PRECAUTIONS 4
PREFACE 6
NAMES AND FUNCTIONS 6
OPERATIONS 7
1. General Weighing 7
2. Weighing with Tare 8
3. How to Convert the Unit of Weight 8
4. How to Set Auto Power Off 9
BATTERY SYSTEM 9
ERROR MESSAGE 10
SPECIFICATIONS 10
4

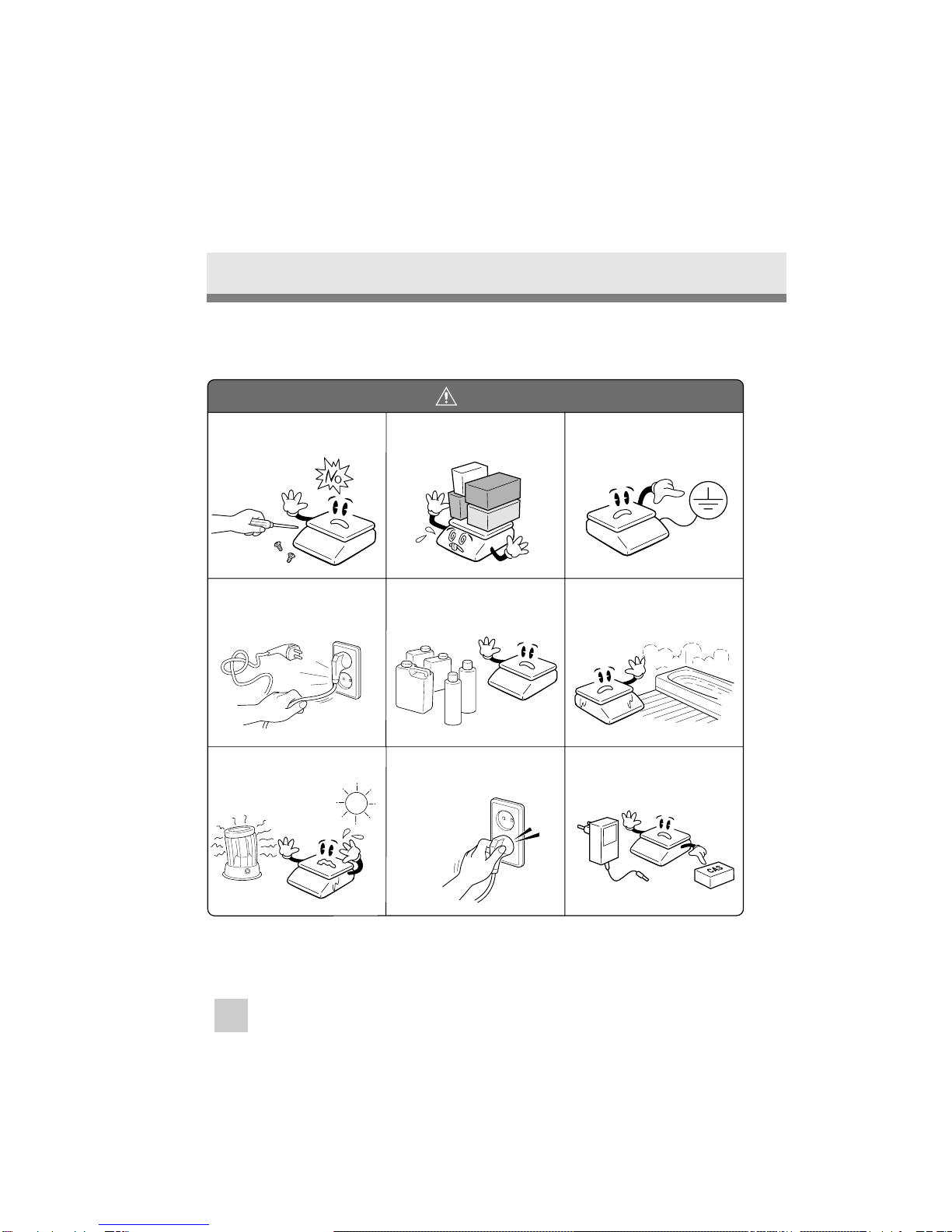

Do not disassemble the scale.
When any damage or defect occurs,
contact your CAS
authorized dealer
immediately for
proper repair.
Do not overload beyond the maximum
weight limit.
Do not pull the plug by its cord when
unplugging. Damaged cord could cause
electric shock or fire.
To prevent from fire occurring, Do not
place or use the scale near flammable or
corrosive gas.
Avoid placing the scale near heater
or in direct sunlight.
Scale must be grounded to minimize
electricity static. This will minimize
defect or electric shock.
Use proper Adapter. Incorrect adapter
could damage the scale.
Insert plug firmly to wall outlet to
prevent electric shock.
To reduce electric shock or incorrect
reading, Do not spill water on the scale
or place it in humid condition.
Warning
PRECAUTIONS
Precautions when installing the scale. To ensure that you get the most from
yourscale,pleasefollowtheseinstruction.
5

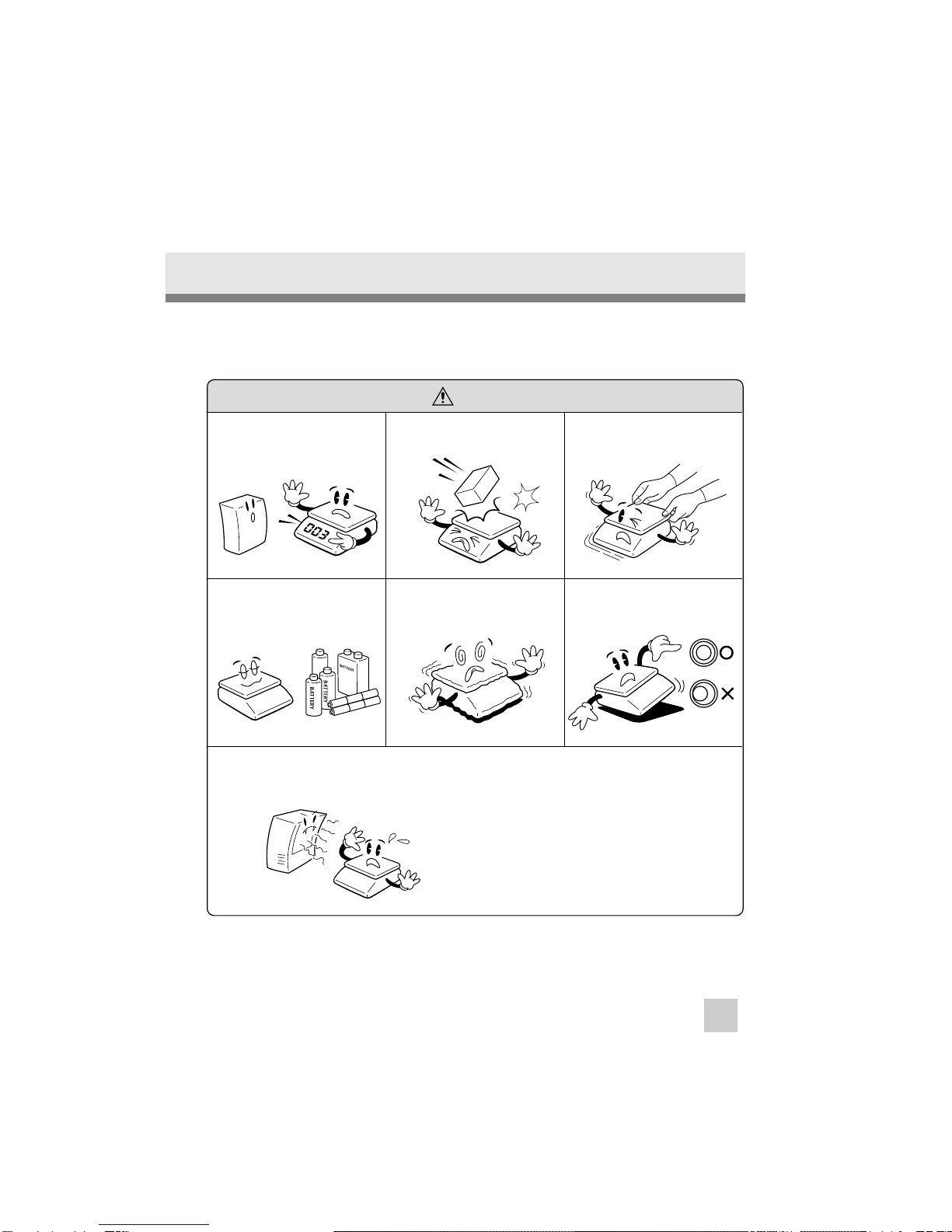

For consistent and accurate reading,
maintain periodical check by your
CAS authorized dealer.
Avoid sudden shock to the scale.
Internal mechanism could be damaged.
Take the battery out when scale is not in
use for long time. Leakage from the
batteries is hazardous.
Place the scale on firm and temperature
consistent environment.
Keep the scale away from other
electromagnetic generating devices.
This may interfere with accurate
reading.
Grab on the bottom of the scale when
moving. Do not hold by the platter.
By adjusting 4 corners of the scale, set
the scale even using the built in scale
leveling indicator.
Attention
Make sure to plug your scale into the proper power outlet. For maximum
performance,plugintoapoweroutlet30minutesbeforetheusageforwarmup.
6
PREFACE
NAMES AND FUNCTIONS
Thank you for purchasing our CAS SW Series.
This scale has been designed with CAS reliability, under rigid quality control and
with outstanding performance. Your specialty departments can enjoy these high
quality reliable CAS products.
We believe that your needs will be satisfied and you will have excellent reliability.
This manual will help you with proper operation and care of the SW Series.
Please keep it handy for future reference.

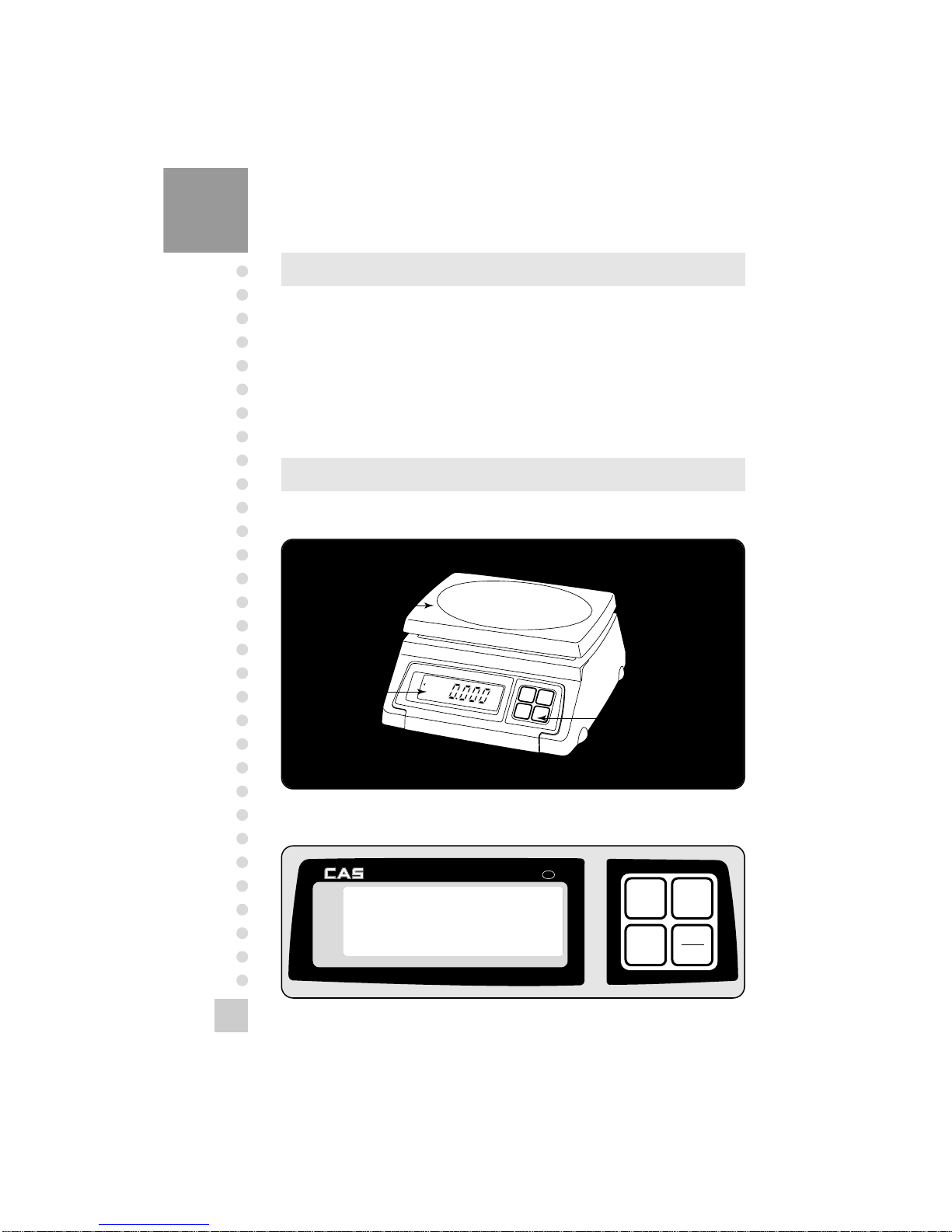

OVERALL VIEW
PLATTER
DISPLAY ADJUSTING
BOLT
KEYBOARD
DISPLAY & KEYBOARD
MODEL: SW-1
ZERO
STABLE
NET
CAPACITY: 2000X1g, 2 X0.001kg, 5X0.002lb, 80X0.05oz
ZERO
UNIT ON
OFF
TARE
lll
7
FUNCTION
ON
OFF
TARE
UNIT
ZERO
Used to set the zero point.
Used to enter a tare weight and used to cancel a tare weight.
Used to convert the unit of weight.
Turn on and off the display.
KEYS FUNCTIONS
OPERATIONS

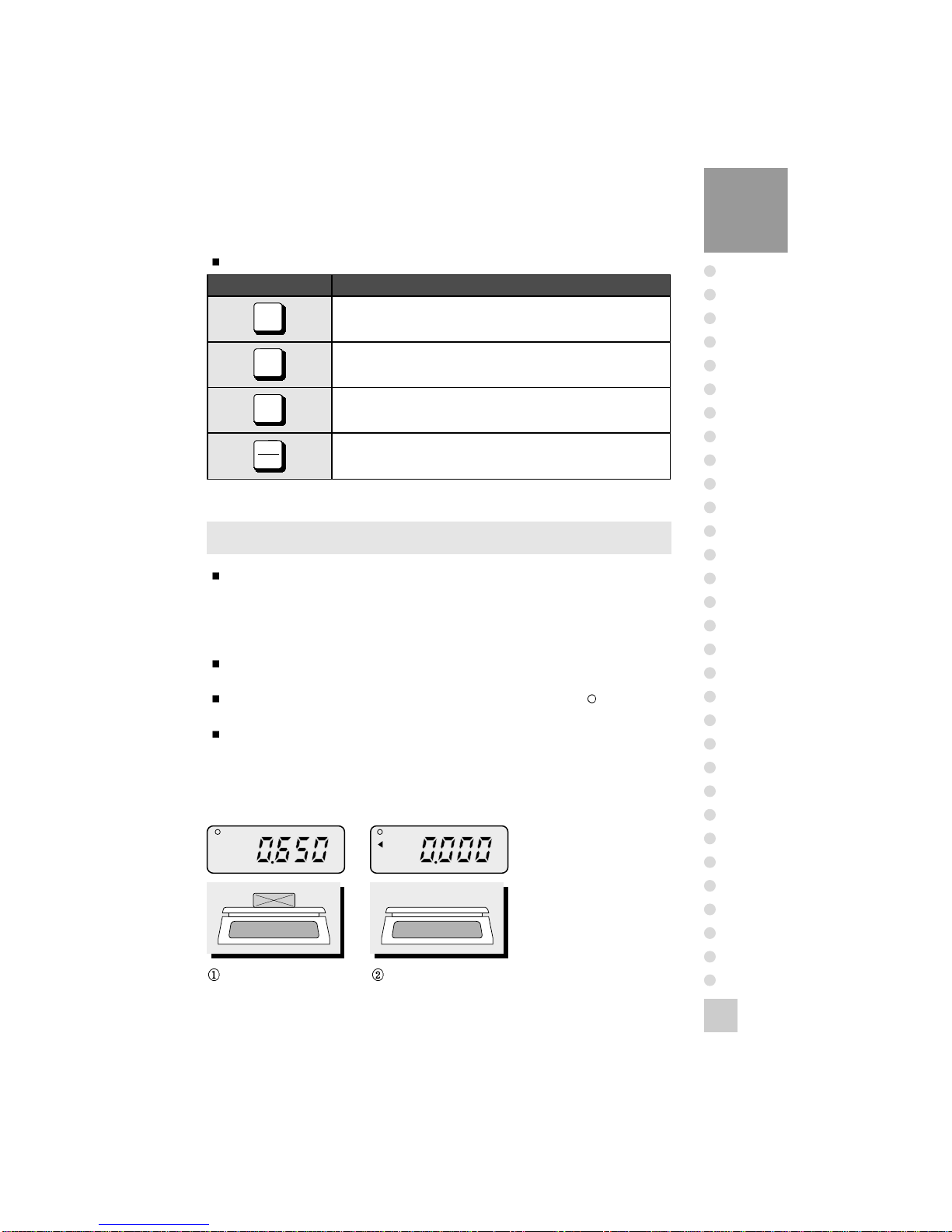

Turn on the display by pressing ON/OFF key.
Then the display will show all the segments and count up "0" to "9".
(If you want to stop it, press the ZERO key.)
When you turn on the display, make sure that platter is empty.
Otherwise, display will show the "Err 1". (Refer to ERROR MESSAGE)
The display indicates if the scale is at ZERO or if there is a TARE Entered
into the scale by way of a ZERO and NET lamps.
When the weight of commodity is stable, display will show the (STABLE)
lamp.
When the display is not zero though there is nothing on the platter, press
the ZERO key.
1. General Weighing
Place a commodity on
the platter. Remove the commodity
from the platter.
lb lb
8

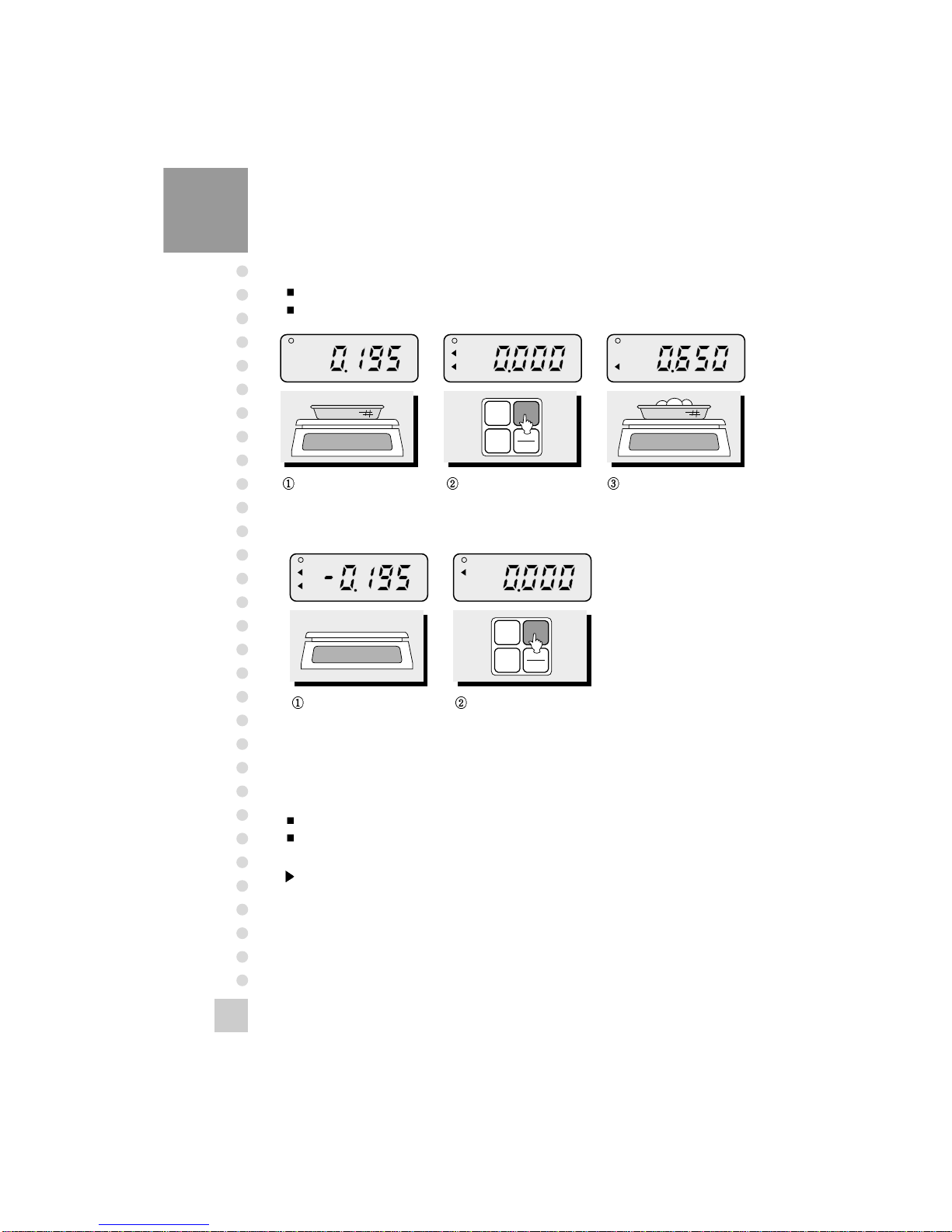

2. Weighing with Tare
Tare is the weight of container being used for a commodity.
The TARE key subtracts the weight of the container.
Place a container on
the platter. Press the TARE key. Place a commodity in the
container, then the display will
show only the weight of
the commodity.
lb
ZERO
UNIT ON
OFF
TARE
lb lb
3. How to Convert the Unit of Weight
Press the UNIT key, then the display will show the "UnIt" for a second.
Press the UNIT key until the display shows the unit that you wish to take.
NOTE: Unit of measure is g, kg, lb, and oz selectable by pressing UNIT key.
Remove the container and
commodity, then the display
will show the weight of
the container with "-" sign.
Press the TARE key, then
display will show the "0.000".
lb
ZERO
ON
OFF
TARE
lb
UNIT
9
4. How to Set Auto Power Off
Auto-Power off makes the battery's life longer.
When you don't operate the scale, this function makes the power OFF
automatically.
Before setting the Auto Power Off, make sure that the power is OFF.

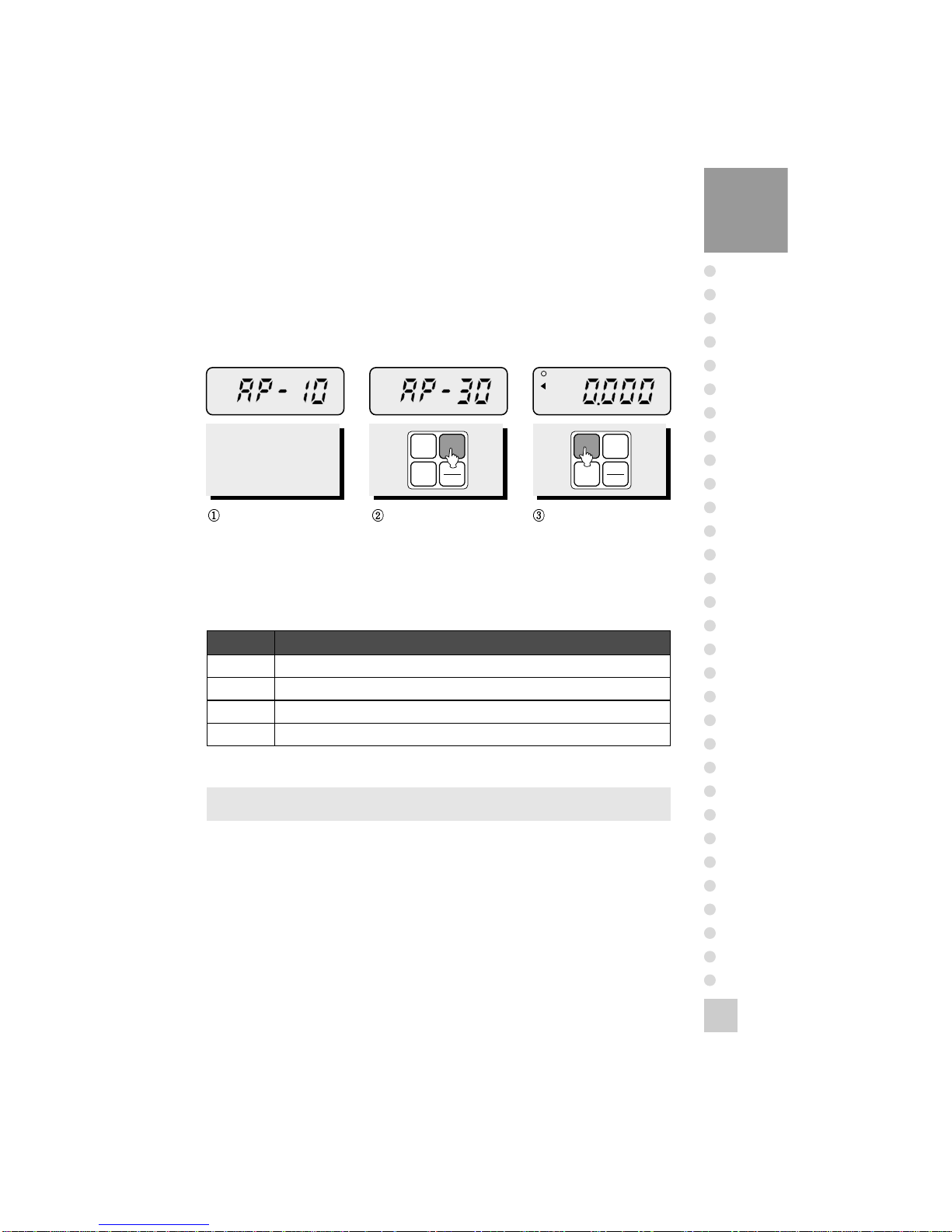

While you press the ZERO
key, press the ON/OFF key,
then you will see the AP-10.
(If you have set this before,
display will show previous
value.)
Press the TARE key, until
the display shows the "AP-x0"
that you wish to take.
(Refer to TABLE 1.)
Press the ZERO key, then
the scale saves what you
programmed and shows all the
segments and count up "0" to "9".
ZERO
ON
OFF
TARE ZERO
ON
OFF
TARE
lb
UNIT UNIT
DISPLAY FUNCTION
AP-00 This function will keep scale on continuously.
AP-10 If you don't operate the scale for 10 minutes, this function will turn the power OFF.
AP-20 If you don't operate the scale for 20 minutes, this function will turn the power OFF.
AP-30 If you don't operate the scale for 30 minutes, this function will turn the power OFF.
TABLE 1.
BATTERY SYSTEM
LOW BATTERY
When the battery is low, display will show the "BAT" indication.
A new battery is required. Battery compartment is located on the bottom of the
scale.
If you use the scale without replacing the battery, display will show "LObAt" and
then scale will shut OFF.
10
ERROR MESSAGE
An error of the initial zero range
An overload
Set the platter empty
Refer to specifications
ERROR REASONS SOLUTIONS
Err 1
O-L
SPECIFICATIONS
MODEL
CAPACITY
DISPLAY
TEMPERATURE RANGE
POWER SUPPLY
POWER CONSUMPTION
BATTERY OPERATING
TIME
PLATTER SIZE(inch/mm)
PRODUCT SIZE(inch/mm)
PRODUCT WEIGHT
OPTION
SW-2 SW-5 SW-10 SW-20
50.002lb 10 0.005lb 20 0.01lb 50 0.02lb
20.001kg 5 0.002kg 10 0.005kg 20 0.01kg
80 0.05oz 160 0.1oz 400 0.2oz 800 0.5oz
LCD (5 DIGIT)
10°C 40°C (14°F 104°F)
1.5V 6 (D size Battery)
APPROX. 0.25W
500hours (Manganese battery),
1000hours (Alkaline battery)
9.1(W) 7.5(D) / 230(W) 190(D)
10.2(W) 11.3(D) 5.4(H) / 260(W) 287(D) 137(H)
6.2lb / 2.8kg
9V Adapter 300mA, Rear display
Notice: Specifications are subject to change for improvement
without notice.
