Casall EB100 Manuale utente

Casall EB100

Bike

91033

Important: Please locate your serial number and record in the box below for service support

purposes.

Serial number here:

Serial number

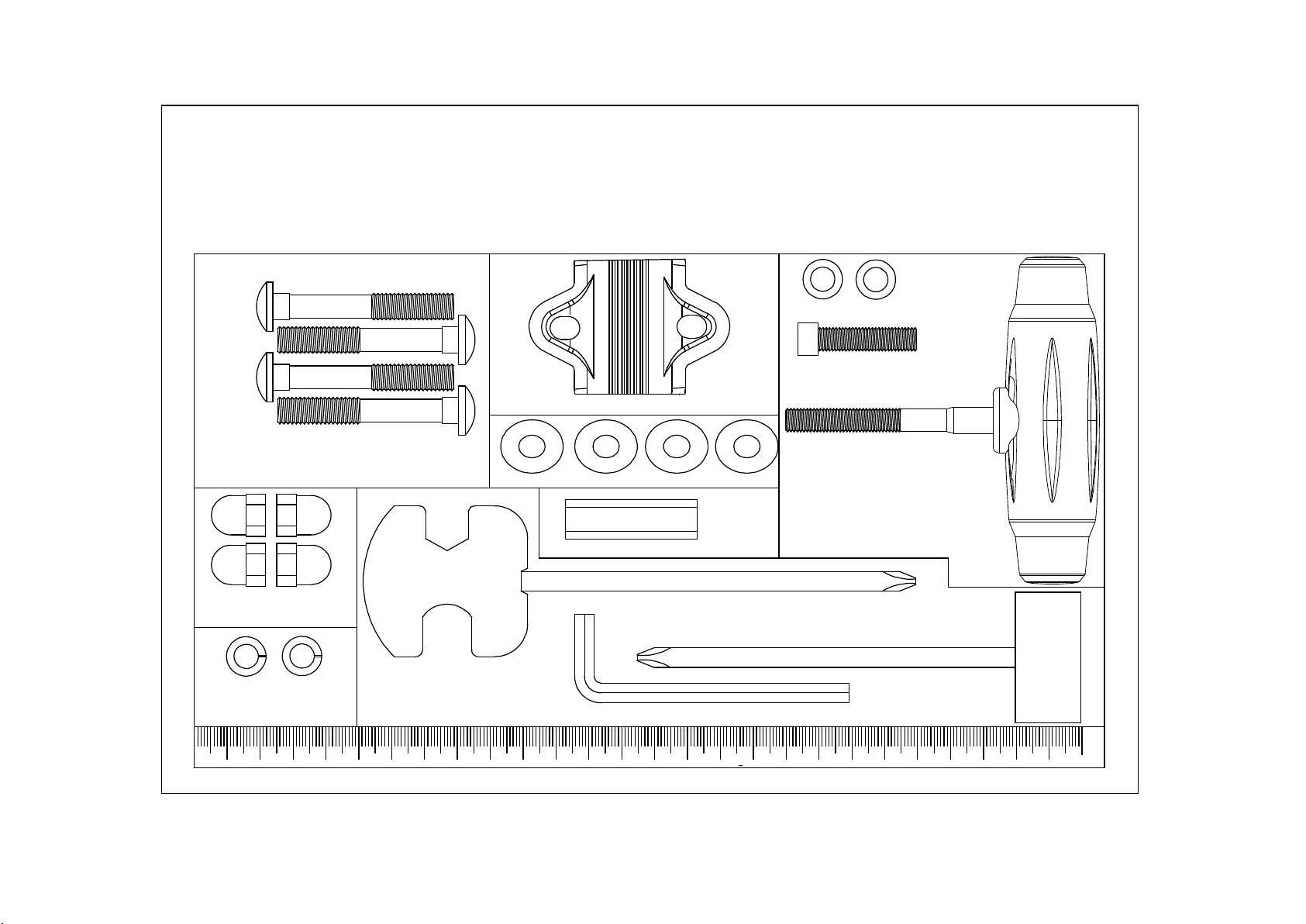

I-5 Flat washer Ø7(2)

I-2 Flat washer Ø8xØ19x2t (4)

I-1 Acorn nut (4)

I-3 Carriage bolt M8xP1.25x55mm (4)

(MM)

I-9 T-shape knob M7x65L(1)

I-10 Allen bolt

M7xP1.0x30mm (1)

I-6 Spring

Washer Ø7(2)

Screwdriver (1) Box spanner (1)

I-8 Bushing Ø12x40mm (1)

I-4 Metal cover (1)

Allen Key(1)

91033 (EB100)

EXPLODED DIAGRAM

PARTS LIST

No.

Description

Q'TY

A, A-1

Console & screw

SET

A-1

Screw

PCS

Handlebar

PCS

B-1

Foam grip

PCS

B-2

Cap for handlebar

PCS

B-3

Wire for hand pulse

PCS

B-4

Hand pulse

PCS

B-5

Screw M4x20L

PCS

C-1

Handlebar post

SET

C-2

Upper sensor wire

PCS

C-3

Tension control

PCS

C-4

Semicircle washer φ8xφ19x2t

PCS

C-5

Allen bolt M8xP1.25x16L

PCS

C-6

Bottle holder

PCS

C-7

Screw M5x20L

PCS

Main frame

PCS

D-1

Adjustment knob

PCS

D-2

Sensor box (Lower sensor wire)

PCS

D-3

Lower tension control wire

PCS

D-4

Wave washer φ17.5xφ25x0.3t

PCS

D-5

Flat washer φ17.5xφ25x0.3t

PCS

D-6

C-Type φ17

PCS

D-7

Belts

PCS

D-8

Bearing

PCS

D-10

Cover for hand post

PCS

D-11

Belt pulley

PCS

D-12

Shaft

PCS

D-13

Hex screw M8xP1.25x12Lx5t

PCS

D-14L

Left chain cover

PCS

D-14R

Right chain cover

PCS

D-15L

Left crank

PCS

D-15R

Right crank

PCS

D-16L/R

Pedal

SET

D-17

Nylon screw M8xP1.0x20L

PCS

D-18

Screw M4x50L

PCS

D-19

Screw M5x16L

PCS

D-20

DC stopper

PCS

D-21

Sensor holder

PCS

D-22

Screw M4x10L

PCS

D-23

Bushing

PCS

E-1~E-12

Flywheel assemble

SET

Idle lever

PCS

F-1

Wave washer φ10.5xφ15x0.3t

PCS

F-2

Idler wheel

PCS

F-3

Flat washer φ8xφ16x1t

PCS

F-4

Bushing

PCS

F-5

Hex screw M8xP1.25x18L

PCS

F-6

Flat washer φ8.5xφ25x1t

PCS

F-7

Nylon nut M8

PCS

F-8

Spring for idler

PCS

G-1

Front stabilizer

PCS

G-2

Left end cap for front stabilizer

PCS

G-3

Right end cap for front stabilizer

PCS

G-4

Screw 3/16"

PCS

H-1

Rear stabilizer

PCS

H-2

End cap for rear stabilizer

PCS

H-3

Adjustment pad

PCS

I-1~I-10

Hardware pack

SET

Seat post

PCS

J-1

Plastic bushing

PCS

J-2

Knob for seat slider

PCS

J-3

Flat washer φ12.5xφ20x2t

PCS

J-4

Fixing screw seat for seat slider

PCS

J-5

Cap for seat slider

PCS

J-6

Seat slider

SET

J-7

Seat

SET

K-1~K-4

Magnetic set

SET

Step 1

1. Attach the front stabilizer (G) to the main frame (D) using two carriage bolts (I-3), flat

washers (I-2) and acorn nuts (I-1).

2. Attach the rear stabilizer (H) to the main frame (D) using two carriage bolts (I-3), flat washers

(I-2) and acorn nuts (I-1).

Step 2

1. Assemble the straps onto the pedals according to the below picture. Adjust the ideal length

of the straps according to your foot size.

2. Assemble the two pedals (D-16L/R) onto the crank (D-15L/R) with a screw driver.

Remarks: Screw the left pedal’s spindle counter-clockwise and the right pedal’s spindle

clockwise. Use a wrench (or screwdriver) to screw the two spindles completely.

M8xP1.25x55mm M8

4x 1x

Ø8xØ19x2t

Step 3

1. Assemble the seat (J-7) to the slider. The slider can be adjusted in different angles. Tighten

the two nuts under the seat using a screwdriver. In addition, the slider can be adjusted at a

horizontal level by loosening the knob.

2. Insert the seat post (J) into the main frame, then choose the desired position and tighten the

knob. Be sure the adjustment knob (D-1) is always securely fastened.

Remarks: When you have chosen a desired position, tighten the seat post knob until

you hear a “click”.

Step 4

1. Please 28Tremove the28T Allen bolt 28T(C-5)28T 28Tand28T semicircle washers (C-4) 28Tfrom28T 28Tthe28T main 28Tframe (D)28T.

2. Pull the upper tension control (C-3) of the handlebar post (C-1) and ensure the tension knob

is at the lightest position (minimum position).

3. Connect the upper tension control (C-3) to the lower tension cable (D-3), 39Tthen 28T39Tconnect28T the

upper sensor wire (C-2) with the lower sensor wire (D-2).

4. Slide the handlebar post (C-1) into the main frame (D) then fix it with four sets of Allen bolts28T

(28TC-528T)28T and semi-circle washers (C-4).

Remarks: Do not screw one set of the M8*16L Allen bolt and semicircle washers too

firmly at a time. It is better to fix the four sets firmly at the same time because it helps

you to change angles and make adjustments more easily.

M8x16L Ø8x2T

Step 5

1. Pass the hand-pulse wire (B-3) through the hole.

2. Attach the handlebar (B) to the handlebar post (C-1) using the metal clamp (I-4). Fix it firmly

with one flat washer (I-5), one spring washer (I-6) and one fixing bolt (I-10).

3. Attach the cover (I-7) to the metal clamp (I-4). Tighten all parts together with a T-Knob (I-

9), spring washer (I-6) and a flat washer (I-5). Please ensure it is secured very well.

4. The console (A) can use two AA batteries (not included); alkaline batteries are

recommended.

Do not use old and new batteries together or alkaline, standard, and rechargeable

batteries.

IMPORTANT: If the console has been exposed to cold temperatures, allow

it to warm to room temperature before you insert batteries. Otherwise you may damage

the console displays or other electronic components.

5. Please 28Tremove the28T screws 28T(A-1)28T 28Tfrom28T 28Tthe28T console (A).

6. Connect the upper sensor wire (C-2) to the hand pulse wire (B-3) through the console (A),

then attach the console (A) to the console bracket with the enclosed screws.

7. Remove the pre-installed screws (C-7) on the handlebar post first and then assemble the

bottle holder (C-6) using a screw (C-7).

M7x30L

Ø12x40L M7x55L

4x M5x10L 1x Metal cover

Ø7x2T

Ø7x1T

PULSE SENSOR
