Cascade Sciences CS-BB20 Manuale utente

Installation - Operation Manual

CS-BB20

Bead Bath

100 – 120 Voltage

2 | Page

cascadesciences.com |Tel. 503 847-9047

These bead baths require the use of Lab Armor beads to function.The units are not watertight

and cannot be used as water or oil baths.

Warning:This product contains chemicals, including triglycidyl isocyanurate, known to the State of

California to cause cancer as well as birth defects or other reproductive harm. For more information,

go to www.P65Warnings.ca.gov.

¡Advertencia!Este producto contiene sustancias químicas, incluido el triglicidil isocianurato, que el

Estado de California sabe que causa cáncer, así como defectos de nacimiento u otros daños

reproductivos. Para obtener más información, visite www.P65Warnings.ca.gov.

Avertissement!Ce produit peut vous exposer à des produits chimiques, dont l'isocyanurate de

triglycidyle, reconnu par l'État de Californie pour provoquer le cancer, des anomalies congénitales

ou d'autres problèmes de reproduction. Pour plus d'informations, visitez le site

www.P65Warnings.ca.gov.

3| Page

cascadesciences.com |Tel. 503 847-9047

CS-BB20 Bead Bath

100 – 120 Voltage

Installation and Operation Manual

Part Number (Manual): 4861834

Revision: October 23, 2019

4 | Page

cascadesciences.com |Tel. 503 847-9047

TABLE OF CONTENTS

CERTIFICATIONS ...................................................................................................................................................... 5

UNIT SPECIFICATIONS .............................................................................................................................................7

Temperature Performance .................................................................................................................................................. 7

Power.........................................................................................................................................................................................7

Weight........................................................................................................................................................................................8

Dimensions...............................................................................................................................................................................8

Capacity ....................................................................................................................................................................................8

INTRODUCTION ........................................................................................................................................................ 9

Read this Manual....................................................................................................................................................................9

Contacting Assistance ..........................................................................................................................................................9

Engineering Improvements..................................................................................................................................................9

Lab Armor Beads Required............................................................................................................................................... 10

RECEIVING YOUR UNIT ...........................................................................................................................................11

Inspect the Shipment............................................................................................................................................................ 11

Orientation Images .............................................................................................................................................................. 12

Recording Data Plate Information................................................................................................................................... 14

INSTALLATION .........................................................................................................................................................15

Installation Procedure Checklist ...................................................................................................................................... 15

Required Ambient Conditions........................................................................................................................................... 16

Required Clearances........................................................................................................................................................... 16

Power Source Requirements .............................................................................................................................................17

General Power Safety ......................................................................................................................................................... 18

Lifting and Handling ............................................................................................................................................................ 18

Leveling................................................................................................................................................................................... 19

Install the Bead Bath ........................................................................................................................................................... 19

Deionized and Distilled Water......................................................................................................................................... 20

Installation Cleaning and Disinfecting .......................................................................................................................... 20

Assemble the Bead Bath Cover....................................................................................................................................... 21

GRAPHIC SYMBOLS ............................................................................................................................................... 23

CONTROL OVERVIEW ............................................................................................................................................25

OPERATION.............................................................................................................................................................. 27

Theory of Operation ............................................................................................................................................................27

Put the Bead Bath into Operation .................................................................................................................................. 28

Fill With Lab Armor Beads ................................................................................................................................................ 29

Set the Temperature Setpoint ......................................................................................................................................... 30

Set the Over Temperature Protection (OTP) ................................................................................................................ 31

Load Product ........................................................................................................................................................................ 32

Validating Application Protocols..................................................................................................................................... 33

USER MAINTENANCE............................................................................................................................................. 35

Cleaning and Disinfecting................................................................................................................................................. 35

Cleaning and Disinfecting Lab Armor Beads.............................................................................................................. 36

Minimizing Contamination Exposure ..............................................................................................................................37

Electrical Components........................................................................................................................................................37

Calibrate the Temperature Display................................................................................................................................ 38

PARTS LIST............................................................................................................................................................... 43

5| Page

cascadesciences.com |Tel. 503 847-9047

CERTIFICATIONS

This certificate satisfies NRTL safety requirements

TÜV SÜD CUE

Certificate Number: U8 14 01 64872 030

These units are CUE listed by TÜV SÜD as bead baths for appropriate professional, industrial, or

educational use. TÜV SÜD America Inc. is an OSHA recognized NRTL and a Standards Council of

Canada accredited certification body.

The units have been tested to the following requirements:

CAN/CSA C22.2 No. 61010-1:2012

CAN/CSA C22.2 No. 61010-2-010 / R:2009

UL 61010-1:2012

UL 61010A-2-010:2002

EN 61010-1:2010

EN 61010-2-010:2003

This unit CUE certified under the model name 74300-720

6 | Page

cascadesciences.com |Tel. 503 847-9047

CERTIFICATIONS

7| Page

cascadesciences.com |Tel. 503 847-9047

UNIT SPECIFICATIONS

These bead baths are 100 – 120 volt units. Please refer to the unit data plate for individual electrical

specifications.

Technical data specified applies to units with standard equipment at an ambient temperature of 25°C

and at nominal voltage. The temperatures specified are determined in accordance with factory

standard following DIN 12880 respecting the recommended wall clearances of 10% of the height,

width, and depth of the inner chamber. All indications are average values, typical for units produced

in the series. We reserve the right to alter technical specifications at all times.

TEMPERATURE PERFORMANCE

Range Uniformity Stability

Ambient +5°C to 80°C ±1.0°C @ 37°C ±0.1°C @ 37°C

Heat Up Times from Ambient (25°C)

To 80°C

169 Minutes

POWER

AC Voltage Amperage Frequency Phase

100 – 120

6.0

50/60 Hz

8 | Page

cascadesciences.com |Tel. 503 847-9047

UNIT SPECIFICATIONS

WEIGHT

Shipping Unit Weight Empty Unit Weight with Beads

104 lb / 47 kg* 22.0 lb / 10.0 kg 88.0 lb / 39.9 kg

*Shipping weight includes 15 liters of beads.

DIMENSIONS

By Inches

Exterior W × D × H Interior W × D × H

15.9 x 23.4 x 8.5 in 12.0 x 17.1 x 6.0 in

By Millimeters

Exterior W × D × H Interior W × D × H

404 x 594 x 216 mm 305 x 434 x 152 mm

CAPACITY

Volume

Cubic Feet Liters

0.71

20.0

*See page 10 for recommended volume of beads.

9| Page

cascadesciences.com |Tel. 503 847-9047

INTRODUCTION

READ THIS MANUAL

Failure to follow the guidelines and instructions in this user manual may create a protection

impairment by disabling or interfering with the unit safety features. This can result in injury or death.

Before using the unit, read the manual in its entirety to understand how to install, operate, and

maintain the unit in a safe manner. Ensure all operators are given appropriate training before the unit

begins service.

Keep this manual available for use by all operators.

Intended Applications and Locations

CS-BB20 bead baths are engineered for constant temperature, general purpose warming

applications in professional, industrial, and educational environments. The baths are not intended for

use at hazardous or household locations.

CONTACTING ASSISTANCE

Please have the following information ready when calling or emailing Technical Support: the model

number and serial number (see page 14).

Phone: 503 847-9047

Cascade Sciences

6725 NE Evergreen Pkwy

Ste 106

Hillsboro OR, 97124

ENGINEERING IMPROVEMENTS

Cascade Sciences continually improves all of its products. As a result, engineering changes and

improvements are made from time to time. Therefore, some changes, modifications, and

improvements may not be covered in this manual. If your unit’s operating characteristics or

appearance differs from those described in this manual, please contact your Cascade Sciences

dealer or customer service representative for assistance.

10 | Page

cascadesciences.com |Tel. 503 847-9047

INTRODUCTION

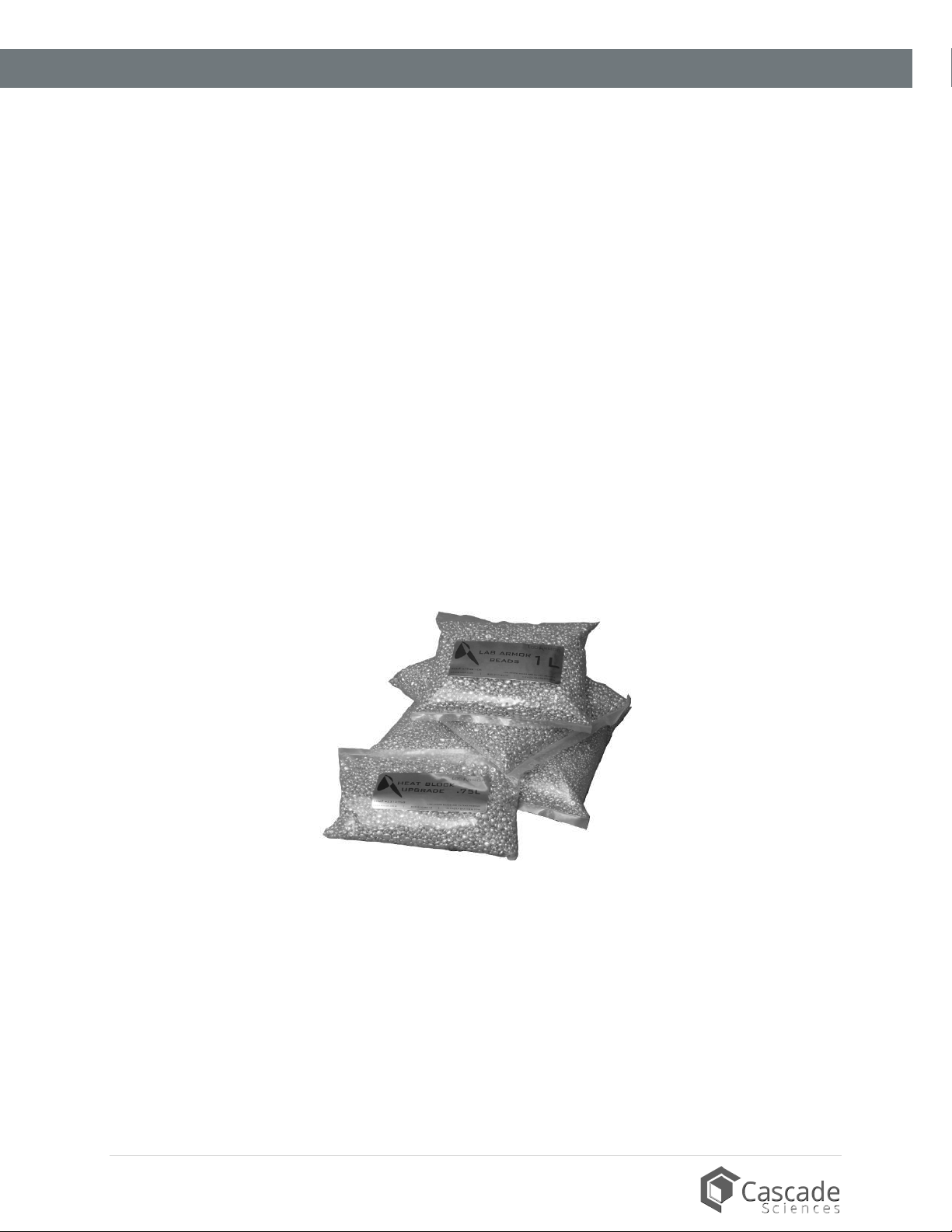

LAB ARMOR BEADS REQUIRED

CS-BB20 bead baths come packaged with 15 liters of aluminum-coated thermal beads. The

manufacturer recommends using this full volume of beads to fill the tank to 1” (25 mm)below the top

of the bath. This level helps hold product containers in place.

Never fill the unit with water or oil. The bath tank is not watertight and filling the tank with liquid will

damage the heating elements and other electrical components, and voids the manufacturing defect

warranty

The beads are designed to maximize thermal conductivity while still allowing ease of placement for

product. When operating at your setpoint, the beads are highly resistant to temperature fluctuations,

providing optimal temperature stability and uniformity.

Bead baths and traditional water baths have slight operational differences. See page 33 for a more

detailed explanation.
