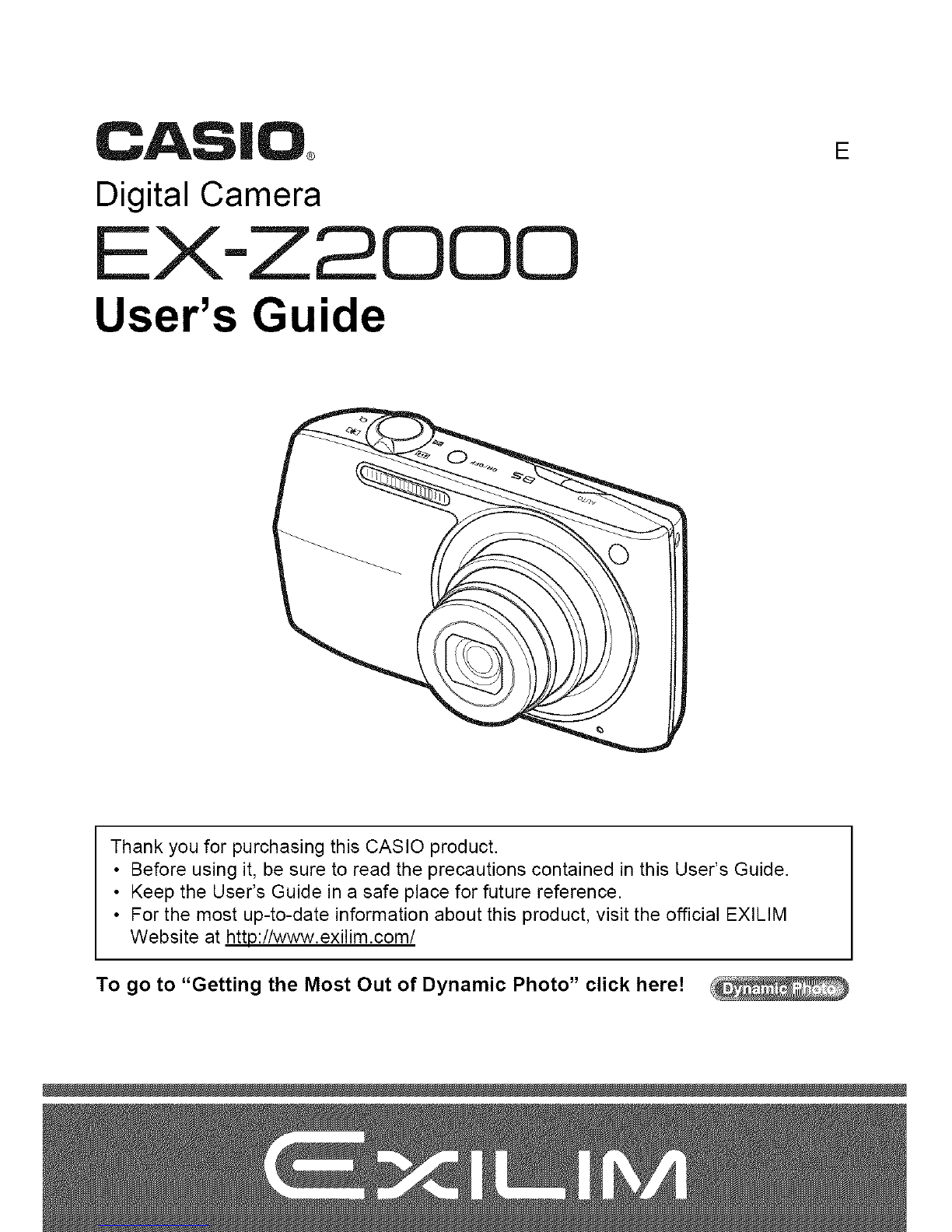

Casio EX-Z2000 - EXILIM Digital Camera Manuale utente

CAS|O

Digital Camera

EX-Z2000

User's Guide

Thank you for purchasing this CASIO product.

• Before using it, be sure to read the precautions contained in this User's Guide.

• Keep the User's Guide in a safe place for future reference.

• For the most up-to-date information about this product, visit the official EXILIM

Website at http://www.exilim.com/

To go to "Getting the Most Out of Dynamic Photo" click here!

This section explains menu items that you can use to configure settings and perform

other playback operations.

[i-_-I] (PLAY) ---_ [MENU] ---_ PLAY Tab ---_ Slideshow

Starts the slideshow.

Specifies the type of images to be included in the slideshow

All images: Snapshots, movies, and audio recordings

[] Only: Snapshots and audio snapshots only

[] Only: Movies only

One Image: One single selected image (selected using [,] and [1_])

Time from the start to the end of the slideshow

1 to 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes

Amount of time each image remains displayed

Use [,] and [1_] to select a value from 1 to 30 seconds, or "MAX".

If you specify a value from 1 to 30 seconds, images change at the specified

interval, but the audio portion of movies and audio snapshots will continue to

play until the end.

When the slideshow reaches a movie file while "MAX" is selected, only the first

frame of the movie will displayed. Voice Recording files are not played back

when "MAX" is selected.

91 Other Playback Functions (PLAY)

Select the effect you want.

Pattern 1 to 5: Plays background music and applies an image change effect.

• Patterns 1 through 4 have different background music, but they all use the

same image change effect.

• Pattern 5 can be used for playback of snapshots only, and the "Interval"

setting is ignored.

• The currently selected image change effect setting is disabled automatically

in following cases.

- When playing a slideshow for which "C'61Only" or "One Image" is selected

for the "Images" setting

- When the interval setting is "MAX", 1 second or 2 seconds.

- Before and after playback of a movie or Voice Recording file

Off: No image change effect or background music

• To stop the slideshow, press [SET]. Pressing [MENU] instead of [SET] stops the

slideshow and returns to the menu screen.

• Adjust audio volume by pressing [V] and then press [A] or [V] during playback.

• All button operations are disabled while the slideshow is transitioning from one

image to another.

• The time required for transition from one image to another may be longer in the

case of an image that was not recorded with this camera.

You can replace the built-in slideshow background music with other music from your

computer.

Supported File Types:

• PCM format (16-bit, monaural) WAV files

• Sampling Frequencies: 11.025 kHz/22.05 kHz/44.1 kHz

Number of Files: 9

File names: SSBGM001.WAV to SSBGM009.WAV

• Create the music files on your computer using the above names.

• Regardless of which effect pattern you select, the BGM files you store in camera

memory are played back in name sequence.

92 Other Playback Functions (PLAY)

1. Connect the camera to your computer (pages 122, 131).

If you plan to save the music files to the camera's memory card, make sure the

card is loaded in the camera.

.Perform one of the following operations to open the memory card or

built-in memory.

This will cause the camera to be recognized by your computer as a Removable

Disk (Drive).

• Windows

OWindows 7 /Windows Vista: Start ---_ Computer

Windows XP: Start ---_ My Computer

Windows 2000: Double-click "My Computer".

_)Double-click "Removable Disk".

• Macintosh

ODouble-click the camera's drive icon.

3. Create afolder named "SSBGM".

4. Double-click the "SSBGM" folder you created and copy the

background music file to it.

• See the user documentation that comes with your computer for information

about moving, copying, and deleting files.

• If there are background music files both in built-in memory and on the memory

card loaded in the camera, the files on the memory card take priority.

• See page 138 for information about camera folders.

5. Disconnect the camera from the computer (pages 124, 133).

93 Other Playback Functions (PLAY)

[r_]] (PLAY) --_ Spnapshot Screen --_ [MENU] --_ PLAY Tab ---_

Layout Print

You can use the following

procedure to insert existing

snapshots into the frames of a

layout and produce a new image

that contains multiple snapshots.

1. Use [,] and [P.] to select

the layout pattern you want

and then press [SET]. Layout Pattern Layout Pattern

(2 images) (3 images)

2. Use [,] and [P.] to select the background color and then press [SET].

3. Use [_] and [_.] to select the images you want to include in the layout

then press [SET].

4. Press [SET] and repeat step 3 for the remaining frames in the layout.

The final layout image will be saved after you insert the final snapshot into it.

_NOTE

• You will not be able to save the new image unless there is a snapshot in all of the

layout frames.

• 3:2 and 16:9 images cannot be included in a Layout Print image.

• The recording date of the resulting Layout Print image is the recording date of the

image you place into the final frame, not the date you create the Layout Print

image.

• The Layout Print image is saved as 7M (3072×2304 pixels) size.

94 Other Playback Functions (PLAY)

[r_-I] (PLAY) --_ Movie Screen to be Used ---_ [MENU] ---_ PLAY Tab ---_

MOTION PRINT

.Use [,] and [,] to scroll

through the movie frames

and display the one you

want to use as the image

of the MOTION PRINT

image.

Holdingdown [,] or [1_]

scrolls at high speed.

9 frames 1 frame

Use [A] and [V] to select either "9 frames" or "1 frame" and then

press [SET].

• When "9 frames" is selected, the frame you select in step 1 will be in the center

of the MOTION PRINT image.

• Only the frames of movies recorded on this camera can be used in a MOTION

PRINT image.

95 Other Playback Functions (PLAY)

[r_-i] (PLAY) --* Movie Screen of Movie to be Edited ---* [MENU] ---*

PLAY Tab ---* Movie Editing

The Movie Editing feature lets you use one of the following procedures to edit out a

specific part of a movie.

Cuts everything from the beginning of the movie up to the

t) _:i_ current location.

Outs everything between two points.

Cuts everything from the current location to the end of the

_Oi_iC_)" movie.

Use [A] and [V] to select the editing method you want to use and then

press [SET].

Use [,] and [,] to scroll through the movie and

search for the frame (point) from which or to

which you want to cut the movie (the cut point).

• You also can search for the cut location by playing

back the movie and pressing [SET] to pause. During

playback, you can press [,] or [1_] to perform fast

reverse or fast forward. Cut range (red)

96 Other Playback Functions (PLAY)

3. When the frame where you want the cut point to be is displayed, press

[V]. Whiletheframeyouwantthecuttobeuptois

.... d,sp.ayed,pressE"1.

OWhile the frame you want the first (From) cut to be is

displayed, press [V].

(_)While the frame you want the second (To) cut to be

is displayed, press [V].

While the frame you want the cut to be from is

displayed, press [V].

4. Use [A] and [V] to select "Yes" and then press [SET].

The selected cut operation will take considerable time to complete. Don't try to

perform any camera operation until the "Busy... Please wait..." message

disappears from the monitor screen. Note that a cut operation can take a long

time if the movie being edited is long.

• When you edit a movie, only the result is saved. The original movie is not retained.

An editing operation cannot be undone.

_NOTE

• A movie that is shorter than five seconds cannot be edited.

• Editing of movies recorded with a different type of camera is not supported.

• You will not be able to edit a movie if the amount of remaining memory capacity is

less than the size of the movie file you want to edit. If there is not enough memory

available, delete files you no longer need to free up more.

• Splitting of a movie into two movies and splicing of two different movies into a

single movie are not supported.

• You also can start a movie editing operation while the movie you want to edit is

playing back. Press [SET] to pause playback, and then press [V] to display the

menu of editing options. Perform editing using the same procedures as described

above.

97 Other Playback Functions (PLAY)

[i-_-I] (PLAY) ---_ Snapshot Screen ---_ [MENU] ---_ PLAY Tab ---_ Lighting

You can use this setting to optimize the balance between bright areas and dark areas

in existing images.

Performs a higher level of brightness correction than the "+1" setting.

Performs brightness correction.

Does not perform brightness correction.

_NOTE

• Correcting the lighting when shooting produces better results (page 82).

• Altering the lighting of an image causes the original image and the new (altered)

version to be stored as separate files.

• When you display an altered image on the camera's monitor screen, the date and

time indicates when the image was originally recorded, not when the image was

altered.

[i-_-I] (PLAY) ---_ Snapshot Screen ---_ [MENU] ---_ PLAY Tab ---_ Red Eye

Using the flash to shoot at night or in a dimly lit room can cause red spots inside the

eyes of people who are in the image. This is caused when the light from the flash

reflects off of the retina of the eye. Red eye correction corrects the eye colors of

subjects to their normal colors when red eye occurs while using the flash.

Turns on red eye correction.

Turns off red eye correction.

_NOTE

• The original snapshot is retained in memory and not deleted.

• Red eye correction may not be possible in the case of small faces or profiles.

• Red eye correction may not produce the desired effect under certain conditions.

98 Other Playback Functions (PLAY)

[i-_-I] (PLAY) ---_ Snapshot Screen ---_ [MENU] ---_ PLAY Tab ---_

White Balance

You can use the white balance setting to select a light source type for a recorded

image, which will affect the colors of the image.

Outdoors, fair weather

Outdoors, cloudy to rain, in tree shade, etc.

Very high temperature light, such as building shade, etc.

White or daywhite fluorescent lighting, without suppressing

co cast

Daylight fluorescent lighting, while suppressing color cast

Suppressing of the appearance of light bulb lighting

No white balance adjustment

_NOTE

• You also can adjust the white balance when recording images (page 80).

• The original snapshot is retained in memory and not deleted.

• When you display an altered image on the camera's monitor screen, the date and

time indicates when the image was originally recorded, not when the image was

altered.

99 Other Playback Functions (PLAY)

Altri manuali per EX-Z2000 - EXILIM Digital Camera

Indice

Altri manuali Casio Macchina fotografica digitale

Casio

Casio EX-Z3 - Exilim 3.2MP Digital Camera Manuale utente

Casio

Casio QV-R40 Guida alla risoluzione dei problemi

Casio

Casio EX-ZR5100 Manuale utente

Casio

Casio EX-Z3 - 2 Manuale utente

Casio

Casio Exilim EX-TR750 Manuale utente

Casio

Casio EX-M20 - 3 Manuale utente

Casio

Casio YC-400 - 2 Manuale utente

Casio

Casio QV-700 Manuale utente

Casio

Casio EX-V8 - EXILIM Hi-Zoom Digital Camera Manuale utente

Casio

Casio QV-300 (B) Guida alla risoluzione dei problemi

Casio

Casio QV-R40 Manuale utente

Casio

Casio EX-Z550 - EXILIM Digital Camera Manuale utente

Casio

Casio Exilim EX-S770D Manuale utente

Casio

Casio EXILIM Exilim EX Z 2 Manuale utente

Casio

Casio K823PCM1DMX Manuale utente

Casio

Casio EX Z77 - EXILIM ZOOM Digital Camera Manuale utente

Casio

Casio EX-V8 - EXILIM Hi-Zoom Digital Camera Manuale utente

Casio

Casio D'Z IMAGE DERMOCAMERA DZ-D100 Manuale utente

Casio

Casio QV-R3 Manuale utente

Casio

Casio QV-30 Guida alla risoluzione dei problemi

Casio

Casio EXILIM EX-Z37 Manuale utente

Casio

Casio QV-7000SX Manuale utente

Casio

Casio EXILIM EX-H20G Manuale utente

Casio

Casio Exilim EX-S600 Guida alla risoluzione dei problemi

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
