Casio DT-X5 Series Manuale utente

DT-X5 Series

Hardware Manual

(Version 1.04)

CASIO Computer Co., Ltd.

September 2006

Table of Contents

Editorial Record 4

Preface 5

Chapter 1 Overview 6

1.1 Features 6

1.2 Available Models and Options 7

1.2.1 Options and Interfaces 9

1.3 General Guide 10

1.3.1 HA-A34AT Car Mounted Battery Charger 12

1.3.2 HA-A61IO, HA-60IO Cradles 13

1.3.3 DT-5022CHG Dual Battery Charger 15

1.3.4 HA-A20BAT, DT-5025LBAT Battery Packs 16

Chapter 2 Hardware Specifications 17

2.1 DT-X5 17

2.1.1 Reference for Laser Scanner Performance 22

2.1.2 Reference for C-MOS Imager Performance 24

2.2 HA-A61IO, HA-A61IO 26

2.3 HA-A34AT 28

2.4 HA-A30CHG 29

2.5 DIP Switch Setting for HA-A61IO 30

2.6 Status Indication with LEDs 31

2.7 DT-5022CHG 32

2.8 HA-A20BAT, DT-5025LBAT 34

Chapter 3 Product Identification and Reference Numbers 35

Chapter 4 Quality References 36

4.1 Environment Performances 36

4.1.1 DT-X5 36

4.1.2 HA-A61IO, HA-A30CHG 37

4.1.3 HA-A34AT 38

4.1.4 DT-5022CHG 38

4.1.5 HA-A20BAT, DT-5025LBAT 38

4.2 Electric Performances 39

4.2.1 DT-X5 39

4.2.2 HA-A61IO, HA-A30CHG 39

4.2.3 HA-A34AT 39

4.2.4 DT-5022CHG 40

4.2.5 HA-A20BAT, DT-5025LBAT 40

4.3 Mechanical Performances 41

4.3.1 DT-X5 41

4.3.2 HA-A61IO, HA-A30CHG 41

4.3.3 DT-5022CHG 41

4.3.4 HA-A20BAT, DT-5025LBAT 42

4.4 Reliability 43

4.4.1 DT-X5 43

4.4.2 HA-A61IO, HA-A30CHG 43

4.4.3 DT-5022CHG 43

4.5 Compliance 44

4.5.1 DT-X5 44

4.5.2 HA-A61IO, HA-A30CHG 44

4.5.3 AD-S42120AE 44

Chapter 5 Cable Specifications 45

5.1 For Chain Connection and Short Length 45

5.2 For Chain Connection and Long Length 46

Chapter 6 Precautions 47

6.1 Handling Precautions 47

6.2 Safety 48

6.2.1 Battery Pack 48

6.2.2 General 49

CASIO is a registered trademark of CASIO Computer Co., Ltd. in Japan.

Other product names or company names in this reference manual are either trademarks or registered trademarks of

their respective owners.

No part of this document may be produced or transmitted in any form or by any means, electronic or mechanical,

for any purpose, without the express written permission of CASIO Computer Co., Ltd. in Tokyo Japan.

Information in this document is subject to change without advance notice. CASIO Computer Co., Ltd. makes no

representations or warranties with respect to the contents or use of this manual and specifically disclaims any

express or implied warranties of merchantability or fitness for any particular purpose.

Editorial Record

Manual

Version

no.

Date edited Page Content

0.90 March 2004 Tentative version

1.00 August 2004 Original version

1.01 September 2004 36 The content in Table 4.11 of Chapter 4 has been updated.

1.02 February 2005 all The description about C-MOS imager has been added.

7 The content in Table 1.2 of Chapter 1.2 is updated.

9 The content in Fig. 1.2 of Chapter 1.2.1 is corrected.

1.03 August 2006

32 The content in Table 2.14 of Chapter 2.7 is updated.

1.04 September 2006 7 The description about the phased out AC adaptors, MPC-577ADPE

and MPC-577ADPG, are added in Table 1.2 of Chapter 1.2.

Preface

A new industrial handheld terminal has been developed. CASIO introduces the DT-X5 series of handheld terminal

with built-in SH-3 (32-bit RISC type) Processor, high speed laser scanner and diverse wireless LAN

communications via Bluetooth as standard and IEEE802.11b WLAN (model dependent). Running under

Microsoft Windows CE .NET4.1 operating system, the rugged DT-X5 is designed specifically for industrial

applications.

This reference manual will explain about the hardware specifications and the details for the Laser integrated

models (DT-X5M10E, DT-X5M10R) and the C-MOS imager integrated models (DT-X5M30E, DT-X5M30R,

DT-X5M30U) and the dedicated options only.

For software and library related references, refer to the respective reference manuals released on the CASIO WEB

site at http://www.casio.co.jp/English/system/.

1. Overview

1.1 Features

Incorporates .NET technology

•Uses WindowsCE .NET 4.1 operating system.

•Makes effective use of .NET resources developed by other parties.

•Employment of Embedded OS makes it possible to build a flexible WindowsCE system.

Enhanced communicating functions

•Built in Bluetooth Ver 1.1 module.

•The transfer rate of the Wireless LAN (model dependent) is 5 Mbps, which is the maximum rate of

communication for peer-to-peer connection with PC over IEEE802.11b.

•The following protocol stacks are available for Bluetooth interface:

GAP (Generic Access Profile), SDP (Service Discovery Profile), SPS (Serial Port), Dialup Network, File

Transfer.

•Security function (WEP 128 bits)

Superb reading capability

•With the installed high speed laser scanner (DT-X5M10E, DT-X5M10R) it is possible to read any industrial

1D bar code symbologies.

•Multi-step read function.

•With the installed C-MOS imager (DT-X5M30E, DT-X5M30R, DT-X5M30U) it is possible to read the

most widely used 2D symbologies as well as the industrial standard1D symbologies.

Support of outstanding development environment

Ample Microsoft development tools provided for easy application development and an advanced debug

environment.

1.2 Available Models and Options

Table 1.1 Models of DT-X5 series

Wireless LAN Scan Engine

Model IEEE802.11b Bluetooth Laser C-MOS Operating battery

DT-X5M10E No Yes Yes No Lithium-ion/ Alkaline

DT-X5M10R ETSI Yes Yes No Lithium-ion

DT-X5M30E No Yes No Yes Lithium-ion/ Alkaline

DT-X5M30R ETSI Yes No Yes Lithium-ion

DT-X5M30U No Yes No Yes Lithium-ion/ Alkaline

IEEE802.11b : WLAN module (compliant with IEEE802.11b) is integrated as standard.

Bluetooth : Bluetooth Version 1.1 module is integrated as standard

C-MOS : Capable to scan 1D/2D symbologies and to capture images.

Laser : Capable to scan 1D symbologies.

Lithium-ion : Lithium-ion battery pack (HA-A20BAT or DT-5025LBAT only)

Alkaline : AA-size alkaline battery (x 2 pcs)

Table 1.2 Options

Model Product Remark

HA-A61IO Bridge Satellite Cradle

HA-A60IO Bridge Basic Cradle

HA-A34AT Battery Charger Car Mount Unit

HA-A30CHG Cradle-type Battery Charger

DT-5022CHG Dual Battery Charger

HA-A20BAT Battery Pack 1,700 mAH, 3.7V

DT-5025LBAT Large-capacity Battery Pack 3,400 mAH, 3.7V

AD-S42120AE AC Adaptor Input range; 100 to 240 VAC

AD-S45150AU AC Adaptor Input range; 100 to 230VAC. With US

power cord. For DT-5022CHG.

AD-S45150AE AC Adaptor Input range; 100 to 230VAC, With

European and US power cords. For

DT-5022CHG.

MPC-577ADPE

MPC-577ADPG

AC Adaptor See note.

DT-827CAC Car Power Cable

DT-891WH Wall Mount Unit

DT-887AXA RS-232C cross cable Cable length; 1.5 m, 9-pin male

DT-882RSC RS-232C cross cable 25-pin male

DT-883RSC RS-232C cross cable 25-pin female

DT-888RSC RS-422 modular cable Cable length; 1.0 m

DT-380USB USB cable Cable length; 2.0 m

Note:

MPC-577ADPE and MPC-577ADPG are phased out as of August 2006. The successor models are

AD-S45150AE and AD-S45150AG..

The accessories in the table below are accompanied as accessory in each individual carton box of DT-X5.

Table 1.3 Accessory

Product Q’ty Remark

AA size Alkaline battery 2 For DT-X5M10E, M30E and M30U only

Alkaline battery holder 1 For DT-X5M10E, M30E and M30U only

Wrist strap 1

Large-capacity battery pack cover 1 For DT-5025LBAT

Battery pack cover 1 For DT-X5M10E, M30E and M30U only

User’s guide 1 in English and Chinese

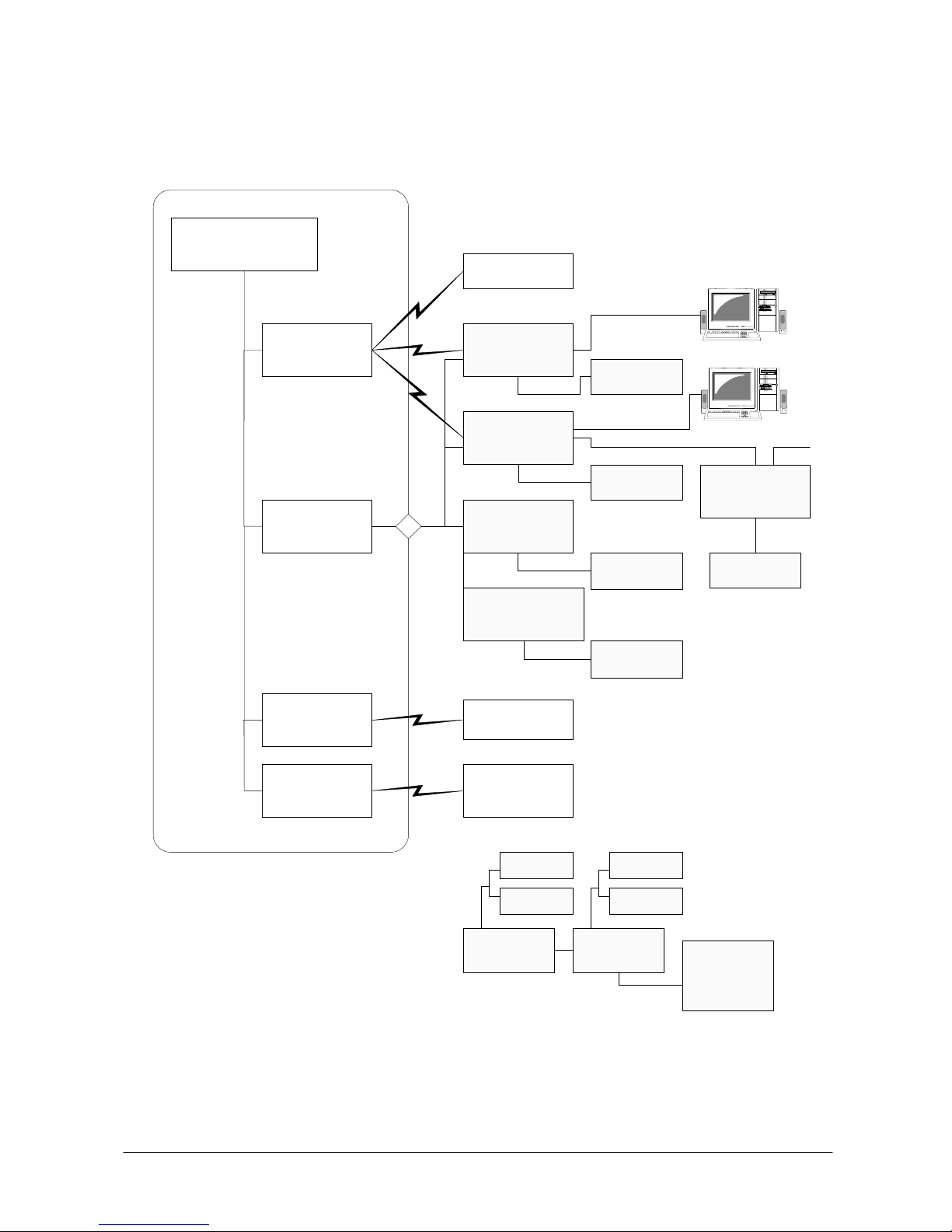

1.2.1 Options And Interfaces

IrDA Ver. 1.1

Bridge Satellite

Cradle

HA-A61IO

Power Supply

Terminals

( Built-in Battery

Charge Circuit)

Battery Charger Car

Mount Unit

HA-A34AT

Dual Battery

Charger

DT-5022CHG

USB

RS-232C

Battery Pack

HA-A20BAT

Large-capacity

Battery Pack

DT-5025LBAT

Access-Point

(Recommended

Option)

IrDA Printer

( Recommended

Option)

Bluetooth Module

(Ver. 1.1 Class2)

Bluetooth Equipment

(Recommended

Option)

DT-X5

AC Adaptor

AD-S42120AE

Car Power Cable

DT-827CAC

Cradle-type Battery

Charger

HA-A30CHG

AC Adaptor

AD-S42120AE

Dual Battery

Charger

DT-5022CHG AC Adaptor

AD-S45150AU

AD-S45150AE

Battery Pack

HA-A20BAT

Large-capacity

Battery Pack

DT-5025LBAT

Bridge Satellite

Cradle

HA-A61IO

RS-422

AC Adaptor

AD-S42120AE

SS? ?

???

WLAN

( IEEE802.11b)

AC Adaptor

AD-S42120AE

USB

Bridge Basic Cradle

HA-A60IO

RS-422

Fig. 1.2

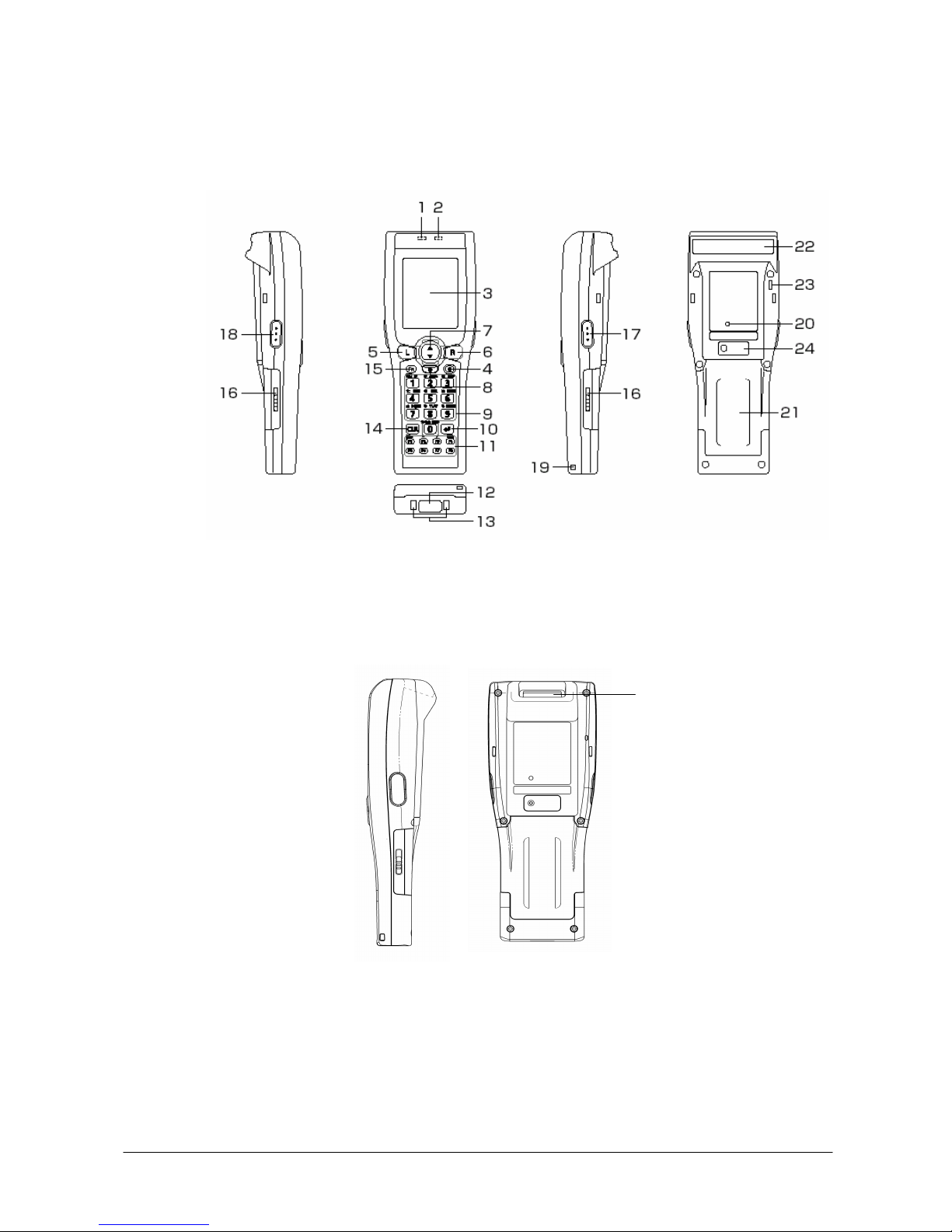

1.3 General Guide

Views for DT-X5M10E, DT-X5M10R

Note:

The front view in Fig. 1.3 is for all the models of DT-X5 series.

Views for side and back of DT-X5M30E, DT-X5M30U and DT-X5M30R

Refer to Table 1.4 “Names of parts” in the following page for each part and its description.

Fig. 1.3

Fig. 1.4
