Cateye CC-PA100W Manuale utente
2
3
4
1
Appendix
SET
CATEYE
PADRONE
CYCLOCOMPUTER
CC-PA100W
1
• This instruction manual is subject to change
without notice. See our website for the latest
instruction manual (PDF).
• Please visit our website, where a detailed
Quick Start manual containing videos can be
downloaded.
http://www.cateye.com/products/detail/CC-PA100W/manual/
Setting up the
computer
Mounting the
computer
Starting
measurement
Changing settings
Warning/Caution
Product Warranty, etc.
2
3
4
Appendix
SET
1
2

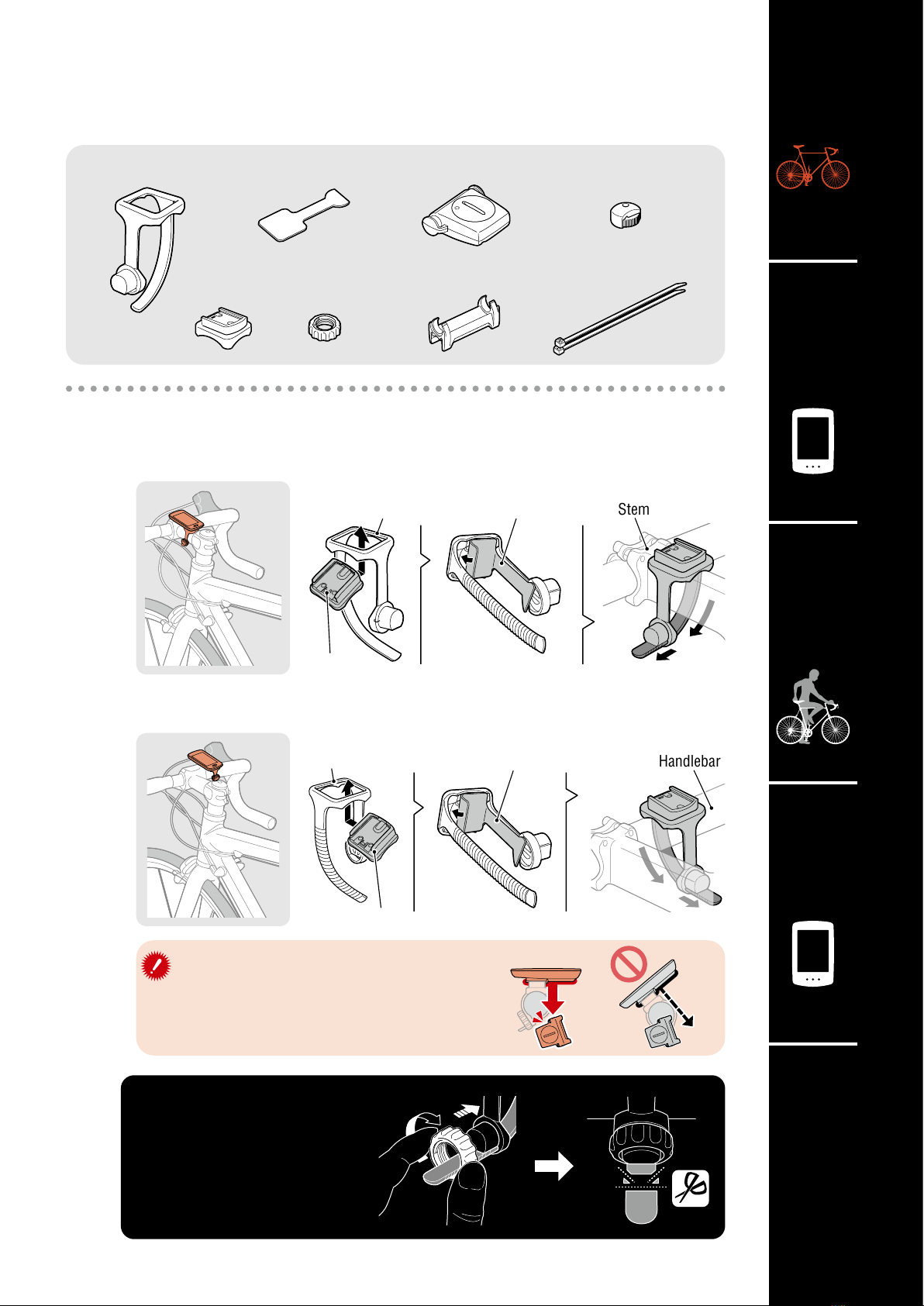

Mounting the computer
1 Mount the bracket
• When mounting on stem
• When mounting on handlebar
When mounting the bracket on a handle-
bar, adjust the angle of the bracket so that
the back of the computer faces the speed
sensor when the computer is attached.
Stem
Handlebar
Bracket band
Bracket band
Bracket
Bracket
Correct Wrong
Bracket rubber pad
Bracket rubber pad
Cut
Bracket band
Bracket Dial
Bracket rubber pad Speed sensor
Sensor rubber pad Nylon tie
(x2)
Magnet
Cutting band after mounting
CAUTION:
Cut the bracket band so
that cut end will not cause
injury.
Dial
2
3
4
Appendix
SET
1
3
SENSOR ZONE
SENSOR ZONE
Max.
70 cm
(27”)
Mounting the computer

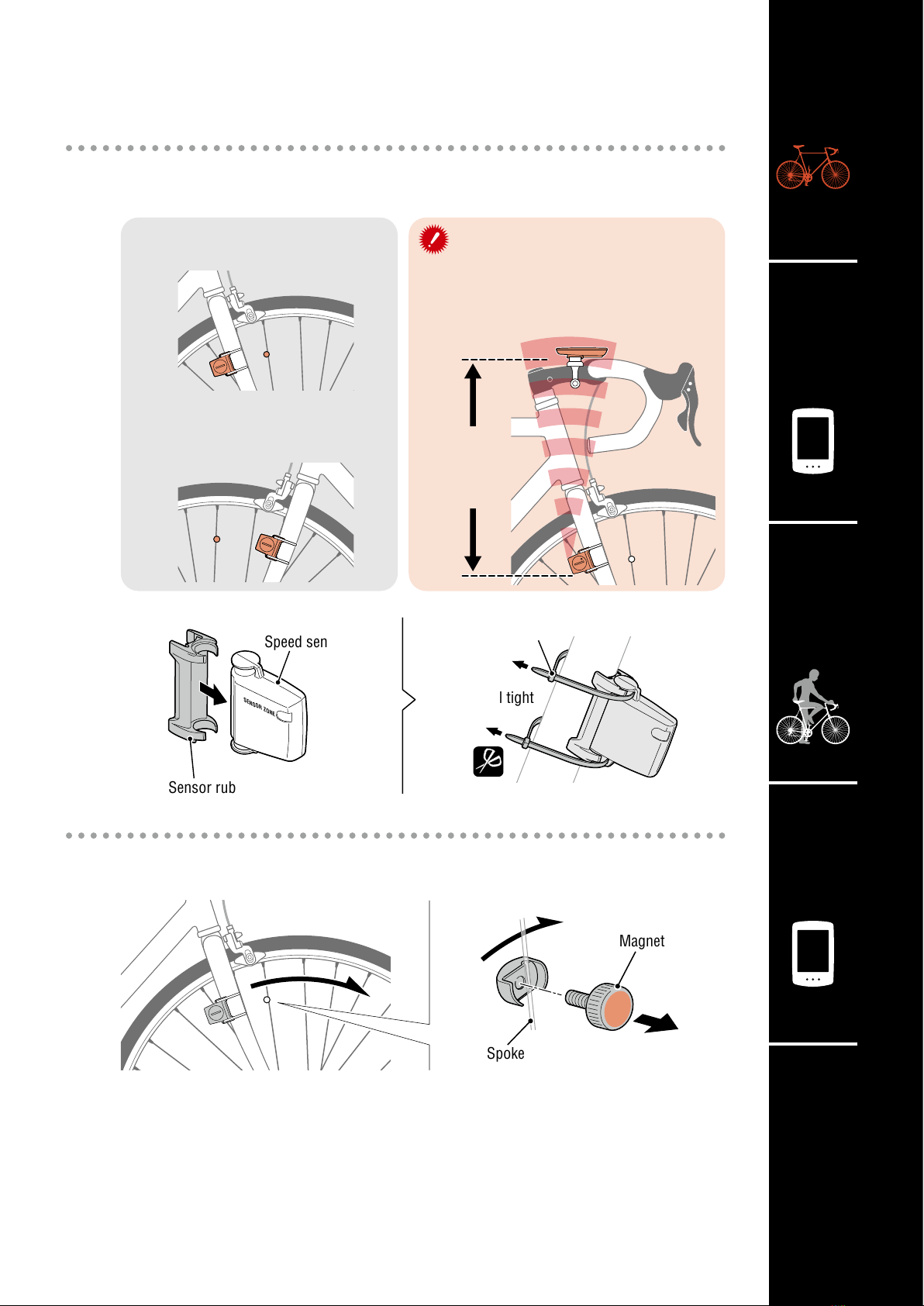

2 Mount the speed sensor
Mount the speed sensor in a posi-
tion where the distance from the
computer to the speed sensor is
within the signal range.
3 Mount the magnet
Speed sensor
Cut
Sensor rubber pad
Pull tight
• Mounting on left front fork
• Mounting on right front fork
To sensor zoneSpoke
Magnet
Nylon tie
2
3
4
Appendix
SET
1
4
SENSOR ZONE
SENSOR ZONE
5 mm
(3/16”)
Mounting the computer

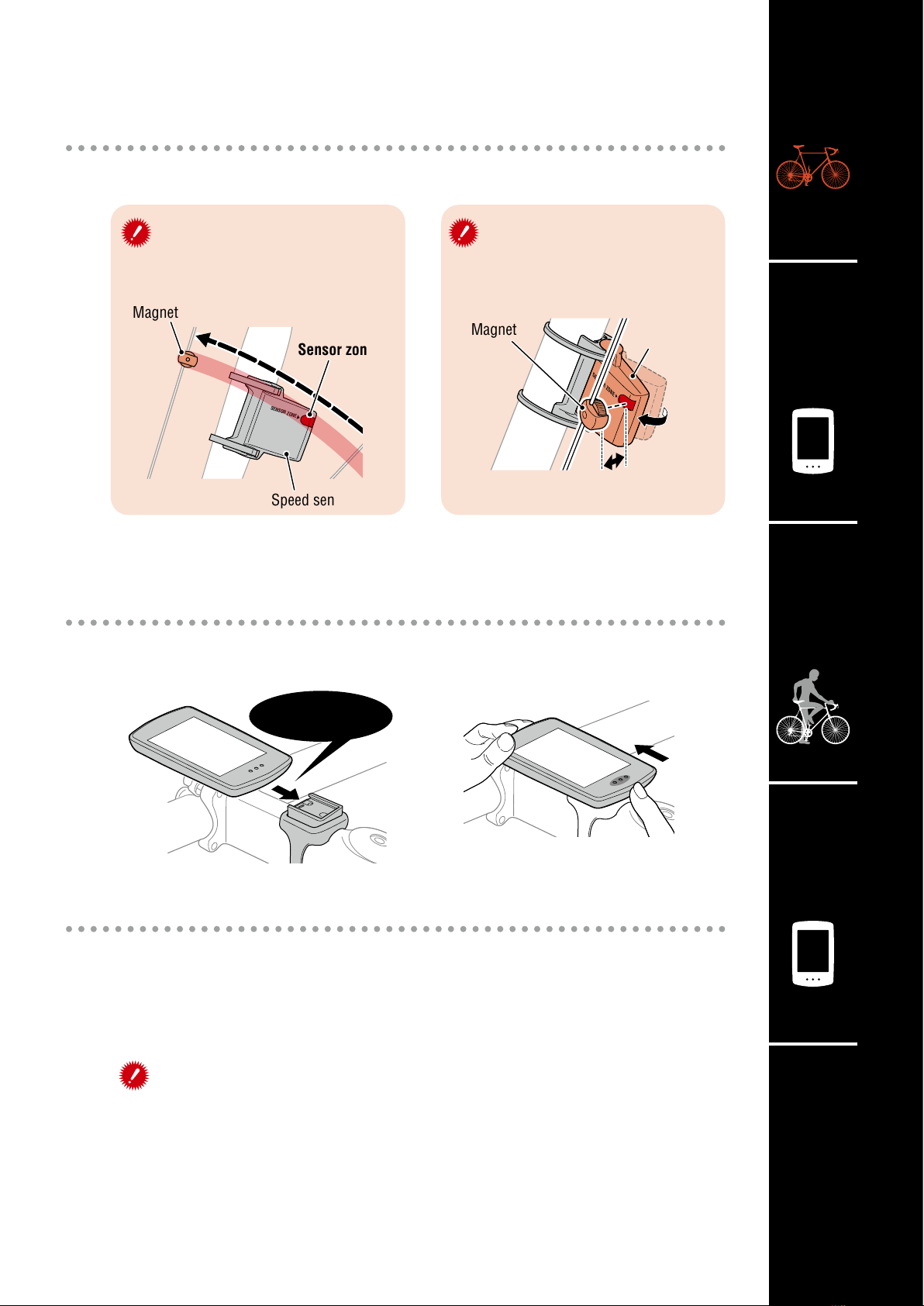

5 Attach/detach computer
6 Test operation
After attaching the computer, rotate the front wheel gently to check that current
speed is displayed on the computer.
If the speed is not displayed, refer to the attachment conditions in steps 1, 2, and 4
again.
4 Adjust the speed sensor and the magnet
The magnet passes through
the speed sensor zone.
The clearance between the
speed sensor and the magnet
is within 5 mm (3/16”).
* The magnet may be mounted at any position on spoke as long as attachment
conditions are satisfied.
Hold computer.
Push out so that front lifts up.
Click
Magnet
Sensor zone
Speed sensor
Speed sensor
Magnet
3
4
1
Appendix
SET
2
When using the
computer for the
first time, configure
the initial settings.
5
MODE
MODE
AC
MODE
MENU
AC
Battery case
cover
Dot section
Short press
Long press
(2 sec.)
1 Clear all data.
Press the AC button on the back of the computer.
* All data is deleted and the computer is reset
to its factory default settings.
2 Select the measurement unit.
Select “km/h” or “mph”.
3 Set tire circumference.
Enter the tire circumference of the front wheel
in mm.
* Refer to “Tire circumference” (page 6).
4 Set the clock.
Each time MODE is pressed and held, settings
switch from time display mode, to hours, to
minutes.
5 Press MENU to complete setup.
Setup is completed and the computer switches to the mea-
surement screen. For instructions on how to start mea-
surement, refer to “Starting measurement” (page 7).
MODE
MODE
MENU
MENU
MENU
MODE
MODE
MODE
Setting up the computer
km/h ↔mph
Confirm
Increase
numbers
Move to
next digit
(Press and
hold)
Confirm
Setup complete
Switch item
or increase
numbers
Switch screen
or move to
next digit
(Press and
hold)
Time display mode
MinutesHours
3
4
1
Appendix
SET
2
6
ETRTO Tire size
L (mm)
47-203 12x1.75 935
54-203 12x1.95 940
40-254 14x1.50 1020
47-254 14x1.75 1055
40-305 16x1.50 1185
47-305 16x1.75 1195
54-305 16x2.00 1245
28-349 16x1-1/8 1290
37-349 16x1-3/8 1300
32-369 17x1-1/4 (369) 1340
40-355 18x1.50 1340
47-355 18x1.75 1350
32-406 20x1.25 1450
35-406 20x1.35 1460
40-406 20x1.50 1490
47-406 20x1.75 1515
50-406 20x1.95 1565
28-451 20x1-1/8 1545
37-451 20x1-3/8 1615
37-501 22x1-3/8 1770
40-501 22x1-1/2 1785
47-507 24x1.75 1890
50-507 24x2.00 1925
54-507 24x2.125 1965
25-520 24x1(520) 1753
24x3/4 Tubular 1785
28-540 24x1-1/8 1795
32-540 24x1-1/4 1905
25-559 26x1(559) 1913
32-559 26x1.25 1950
37-559 26x1.40 2005
40-559 26x1.50 2010
47-559 26x1.75 2023
50-559 26x1.95 2050
54-559 26x2.10 2068
57-559 26x2.125 2070
58-559 26x2.35 2083
ETRTO Tire size
L (mm)
75-559 26x3.00 2170
28-590 26x1-1/8 1970
37-590 26x1-3/8 2068
37-584 26x1-1/2 2100
650C Tubular 26x7/8
1920
20-571 650x20C 1938
23-571 650x23C 1944
25-571 650x25C 26x1(571) 1952
40-590 650x38A 2125
40-584 650x38B 2105
25-630 27x1(630) 2145
28-630 27x1-1/8 2155
32-630 27x1-1/4 2161
37-630 27x1-3/8 2169
40-584 27.5x1.50 2079
50-584 27.5x1.95 2090
54-584 27.5x2.1 2148
57-584 27.5x2.25 2182
18-622 700x18C 2070
19-622 700x19C 2080
20-622 700x20C 2086
23-622 700x23C 2096
25-622 700x25C 2105
28-622 700x28C 2136
30-622 700x30C 2146
32-622 700x32C 2155
700C Tubular 2130
35-622 700x35C 2168
38-622 700x38C 2180
40-622 700x40C 2200
42-622 700x42C 2224
44-622 700x44C 2235
45-622 700x45C 2242
47-622 700x47C 2268
54-622 29x2.1 2288
56-622 29x2.2 2298
60-622 29x2.3 2326
Setting up the computer
Tire circumference
Tire circumference can be determined by either of the following two methods:
• Measure the actual tire circumference (L)
After ensuring that the tire pressure is appropriate, sit on your
bike, roll it forward so that the tire makes one full revolution (use
the valve or other marking as a reference), and measure the dis-
tance traveled on the road.
• Tire size chart
* The tire size or ETRTO code is indicated on the side of the tire.
L mm
2
4
1
Appendix
SET
3
7
MODE
MODE
MODE
MODE
MODE
MODE
* Av displays .E instead of the measurement value when Tm exceeds approximately
100 hours or Dst exceeds 9999.99 km. Reset the computer.

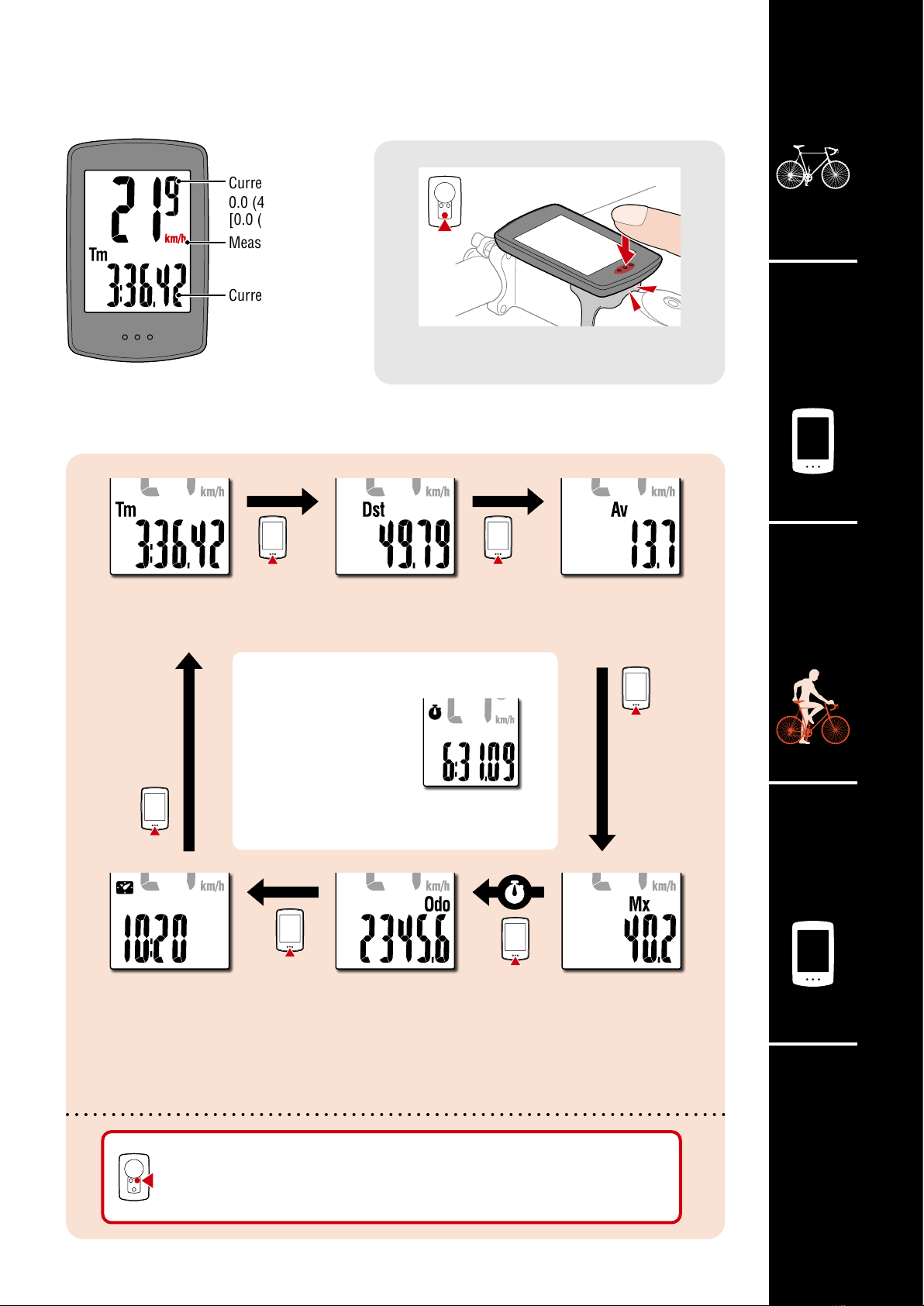

Switching current function
Pressing MODE switches the current function displayed at the bottom of the screen.
Starting measurement
On the measurement screen, press MENU to go to the menu
screen. Various settings can be changed on the menu screen.
[Measurement screen]
MODE
MODE operation when mounted on bracket
When the computer is mounted on the bracket,
pressing the dot section on the computer
depresses the MODE button.
Current speed
0.0 (4.0) – 99.9 km/h
[0.0 (3.0) – 62.0 mph]
Measurement unit
Current function
Average Speed
0.0 – 99.9 km/h
[0.0 – 62.0 mph]
Maximum Speed
0.0 (4.0) – 99.9 km/h
[0.0 (3.0) – 62.0 mph]
Moving Time
0:00’00” – 99:59’59”
Trip Distance
0.00 – 9999.99 km [miles]
Total distance
0.0 – 99999.9 km [miles]
Clock
0:00 – 23:59 or
1:00 – 12:59
MENU
Stopwatch
Turning ON the
stopwatch setting
on the menu screen
adds a stopwatch
to the current func-
tion display.
0:00’00” – 99:59’59”
2
4
1
Appendix
SET
3
8
(2 seconds)
MODE
MODE

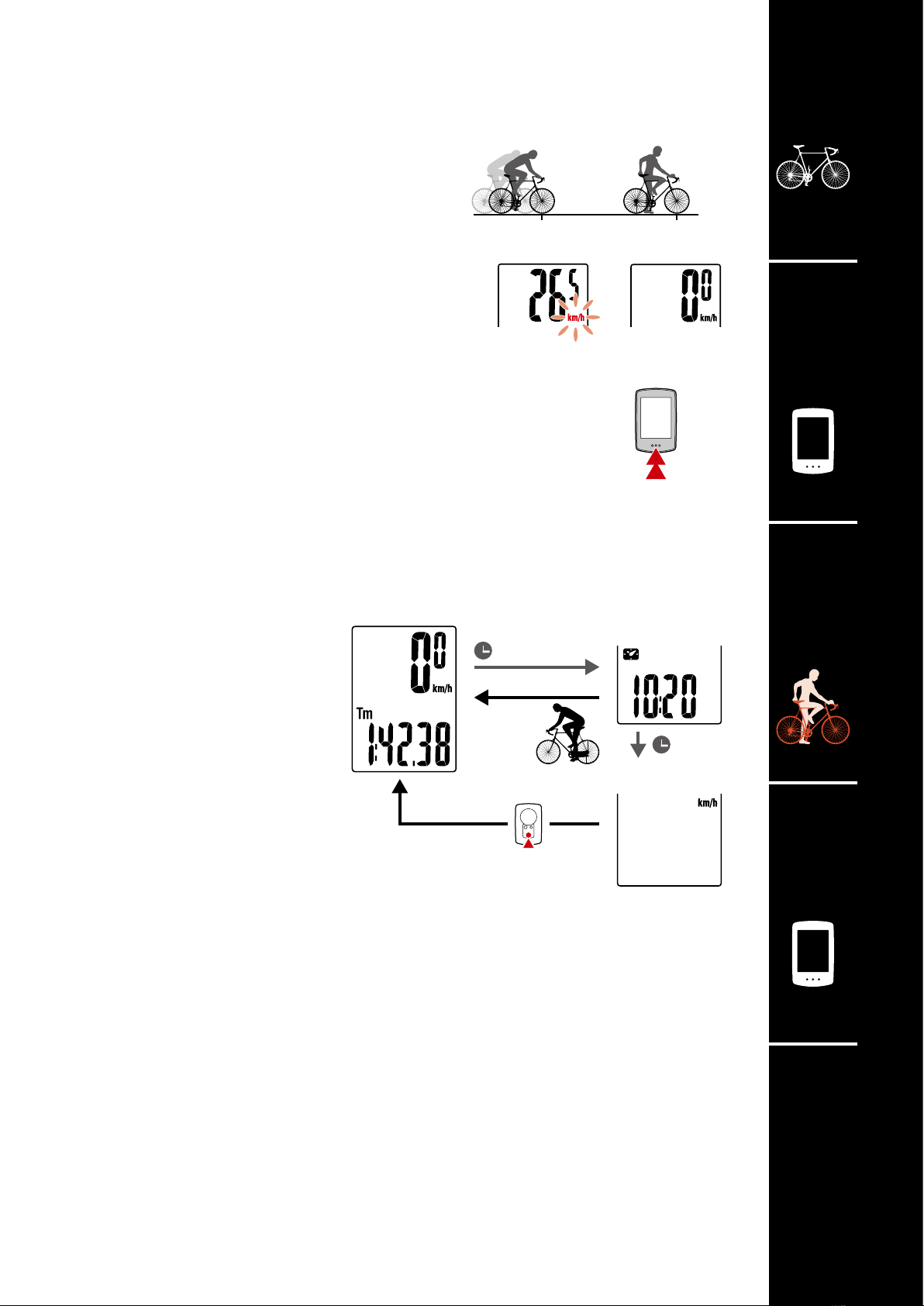

Starting/stopping measurement
Measurement starts automatically when the bicycle
moves.
During measurement the measurement unit (km/h or
mph) flashes.
Resetting data
Pressing MODE for 2 seconds when on the measurement screen
resets all measurement data to 0 (excluding Odo).
Power-saving function
Starting measurement
If the computer does not receive
any signal for 10 minutes, the pow-
er-saving screen is activated and
only the clock is displayed.
If MODE is pressed or a sensor
signal is received while the power-
saving screen is activated, the com-
puter returns to the measurement
screen.
* When the computer is left on
the power-saving screen for 1
hour, the display only shows the
measurement unit. When the
computer is in this state, you can
return to the measurement screen
by pressing MODE.
[Measurement screen]
1 hour
10 minutes
Sleep
Power-saving
screen
Measurement
stops
Measurement
starts
2
4
1
Appendix
SET
3
9
Starting measurement [Measurement screen]

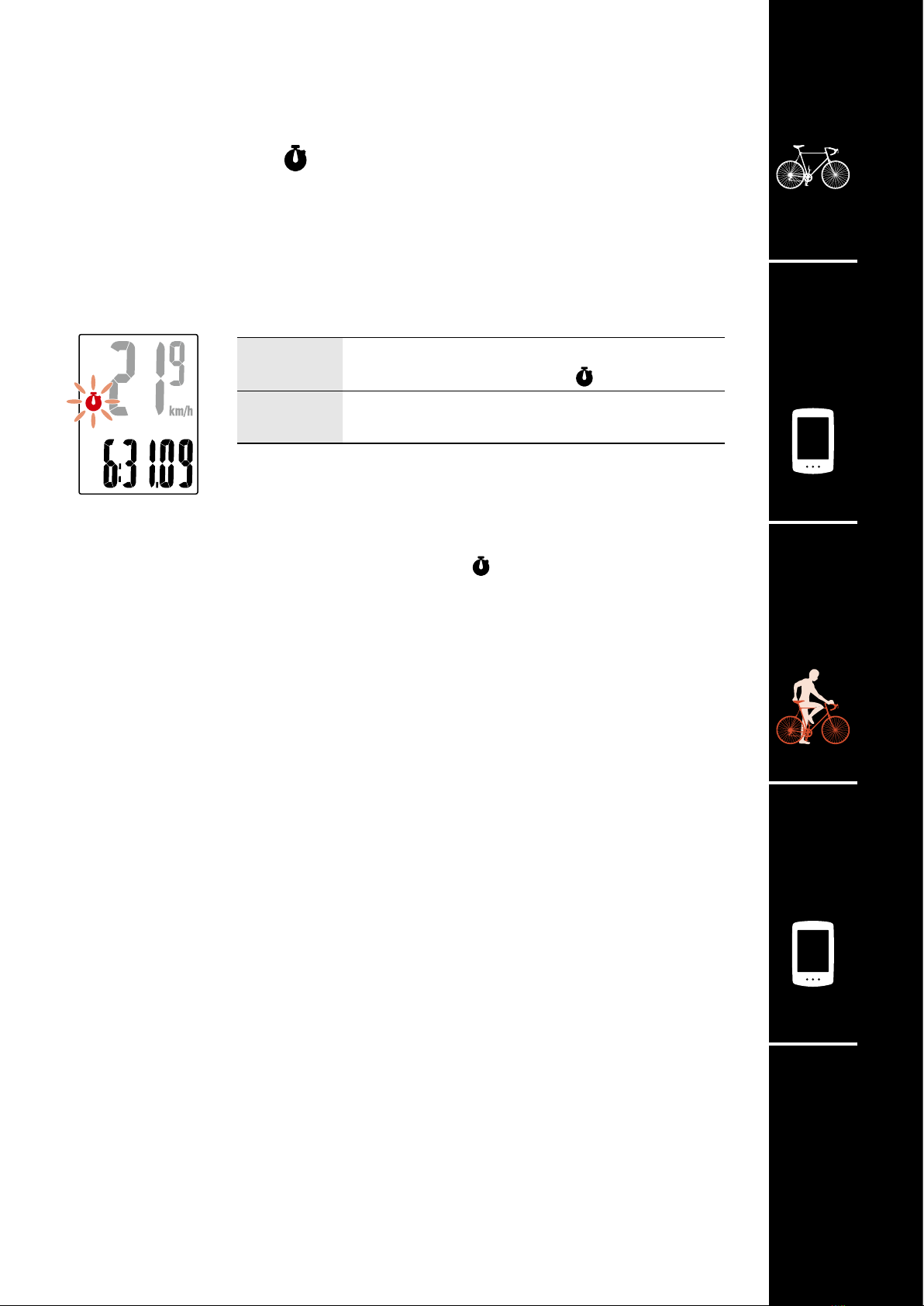

Using the stopwatch ( )
You can display a stopwatch that lets you count time regardless of whether measurement
is started or stopped.
To use the stopwatch, set the stopwatch setting on the menu screen to ON.
For instructions on how to set the stopwatch, refer to “Stopwatch” (page 12).
Stopwatch operation
Start/stop Press MODE for 1 second when the stopwatch is
displayed. During counting the icon flashes.
Reset Press MODE for 4 seconds when the stopwatch is
displayed.
* Start, stop, and reset operations of the stopwatch are performed
separately to measurement, and do not affect other measure-
ments.
* The stopwatch continues counting regardless of the power-sav-
ing state. During counting the icon flashes on every screen
except for the menu screen.
Stopwatch
2
3
1
Appendix
4
SET
10

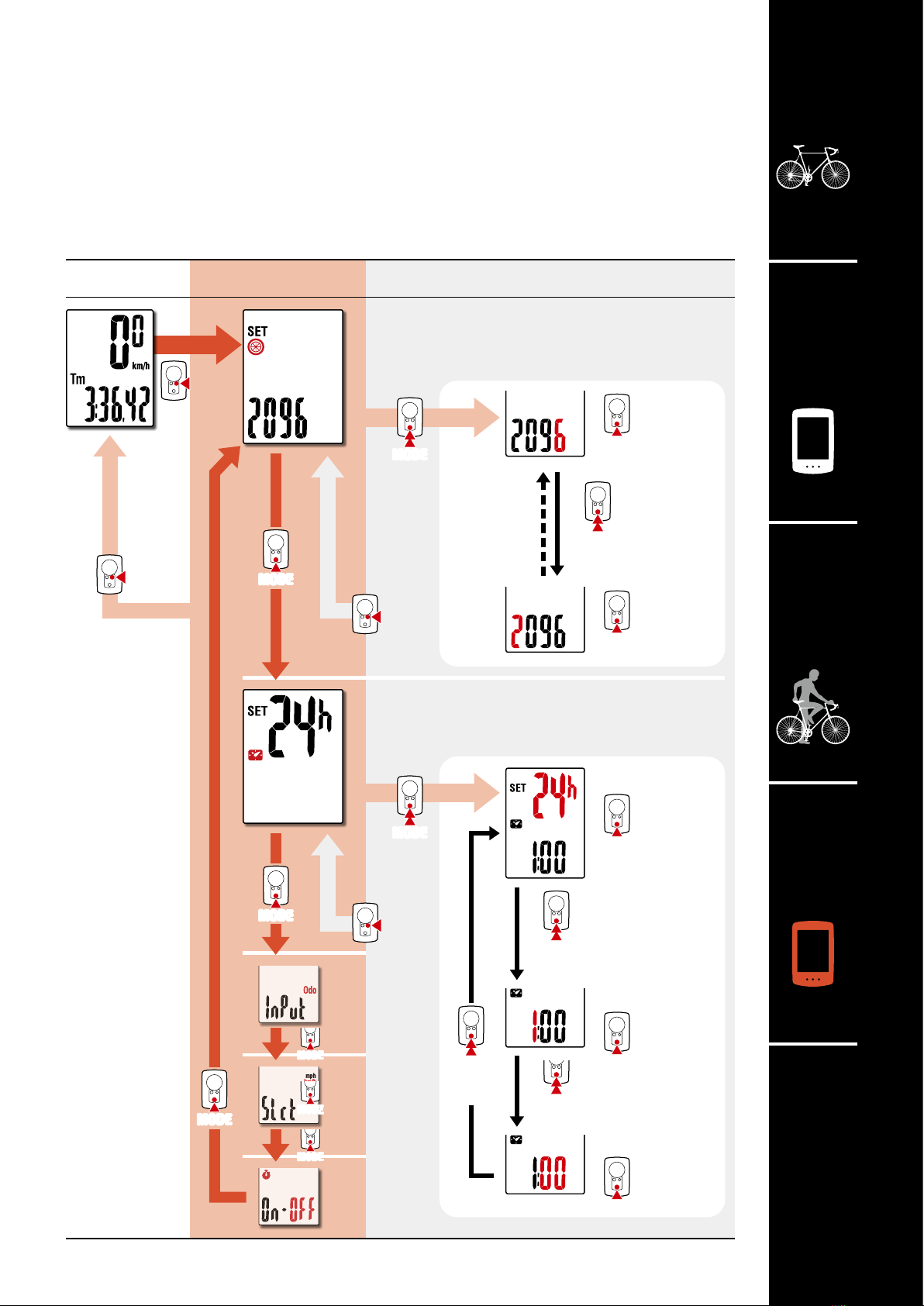

Changing settings
Tire circumference
Lets you set the tire circumference.
Clock
Lets you set the clock.
Manual
distance
input
Select
measure-
ment unit
Stopwatch
MODE
Increase
numbers
MODE
Increase
numbers
Measurement
screen Menu screen Description
On the measurement screen, press MENU to go to the menu screen.
Various settings can be changed on the menu screen.
* After changing settings, always press MENU to confirm changes.
* When the menu screen is left on for 1 minute, the computer returns to the measurement screen.
[Menu screen]
Move to
next digit
MODE
(Press and hold)
MODE
(Press and hold)
MODE
MODE
(Press and hold)
(Press
and hold)
MODE
12h ↔ 24h
Select display
MODE
Increase
numbers
Set “hours”
MODE
Increase
numbers
Set “minutes”
MENU
MENU
MODE
MODE
(Press and hold)
Change setting
MODE
(Press and hold)
Change setting
MENU
Confirm
MENU
Confirm
MODE
MODE
MODE
MODE
MODE
Altri manuali per CC-PA100W
2
Indice
Altri manuali Cateye Accessori per biciclette
Cateye
Cateye PADRONE SMART Manuale utente
Cateye
Cateye Padrone Smart + CC-SC100B Guida
Cateye
Cateye Single Shot Plus HL-EL610RC Manuale utente
Cateye
Cateye OS 1.0 Manuale utente
Cateye
Cateye Micro CC-6000 Manuale utente
Cateye
Cateye TWIN HL-NC250 Manuale utente
Cateye
Cateye Solar CC-2000 Istruzioni operative e di manutenzione
Cateye
Cateye Strada Digital Wireless CC-RD420DW Manuale utente
Cateye
Cateye TL-LD170-W Manuale utente
Cateye
Cateye CC - VT100W Manuale utente
Cateye
Cateye CC-MC100W Manuale utente
Cateye
Cateye RAPIDmicro G Manuale utente
Cateye
Cateye CC-PA110W Manuale utente
Cateye
Cateye STRADA CADENCE CC-RD200 Manuale utente
Cateye
Cateye Loop2 Manuale utente
Cateye
Cateye HL-330 Manuale utente
Cateye
Cateye CC-RD400DW Manuale operativo
Cateye
Cateye OS 1.1 Manuale utente
Cateye
Cateye CC-TR200DW (V2c) Manuale utente
Cateye
Cateye VELO5 Manuale utente
