Quick User Guide ZN-DT Series Network Camera



1

Warning before installation

-Power off the Network camera if it is found to be smoking or smells unusual.

-Keep the Network camera away from water. If the Network camera gets wet, power

off immediately.

-Do not place the Network camera near heat sources, such as a television or oven.

-Refer to your instruction manual for the operating temperature.

-Keep the Network camera away from direct sunlight.

-Do not place the Network camera in high humidity environments.

-Do not place the Network camera on unsteady surfaces.

-Do not touch the Network camera when there is lightning present.

-Do not disassemble the Network camera.

-Do not drop the Network camera.

-Do not insert any object into the Network camera, such as a screwdriver.

For other safety and regulation information, please refer to “User’s manual”.

1. Check Contents

No.

Item

Description

1

Network Camera

ZN-DT Series (ZN-DT2MA/ ZN-DT1MA / ZN-DT1A)

2

Software CD

User’s Manual, Utility software

3

Quick User Guide

This document

4

Accessories

Bottom Cushion Plate

Both-sided Tape

Silica-Gel

Anchor : 4pcs

Oring : 8pcs

Tapping Screw 4x30 : 4pcs

Screw M5x5 : 4pcs

Hexalobular L-key Wrench

Alarm I/O extension cable

2. Physical Description

Alarm In / Out conne

ctor

1. Network (RJ-45 PoE supported)

2. Video Out

3. Audio In (Line in)

4. Audio Out (Line Out)

5. Alarm In / Out connector (Dry contact / Relay out [2A:AC120V/DC60V])

Quick User Guide ZN-DT Series Network Camera



2

6. Power (DC12V / AC24V)

7. Micro SD card (SDHC supported)

8. Reset Button

9. Status LED

10. Video output for service monitor

3. Making Connection

1. If you have external devices such

as sensor or alarms, make connection

from connectors

2. Connect Ethernet cable to make connection

to the network hub.

3. Connect power cable to the camera.

When you use PoE function, you don’t

need to connect power.

Quick User Guide ZN-DT Series Network Camera



3

4. Assign IP address

The default setting of the camera is set to “DHCP”and “UPnP”function is

set to ON. If you have a DHCP server on your network and UPnP functionis

enabled on your PC you can find the network camera in “My network”.

If a DHCP server is not available on your network, please assign IP address

by the following process.

1) Execute PixelPro_Discovery_Tool.exe and click “Search”button.

2) After the camera is listed in camera list, select the camera.

3) Type in the all network information.

4) Click “Apply”button, the setting will be showed in the list.

5) Click “Save”Button to set network information to the camera.

Then double click the camera in the list, Internet explorer will open

automatically.

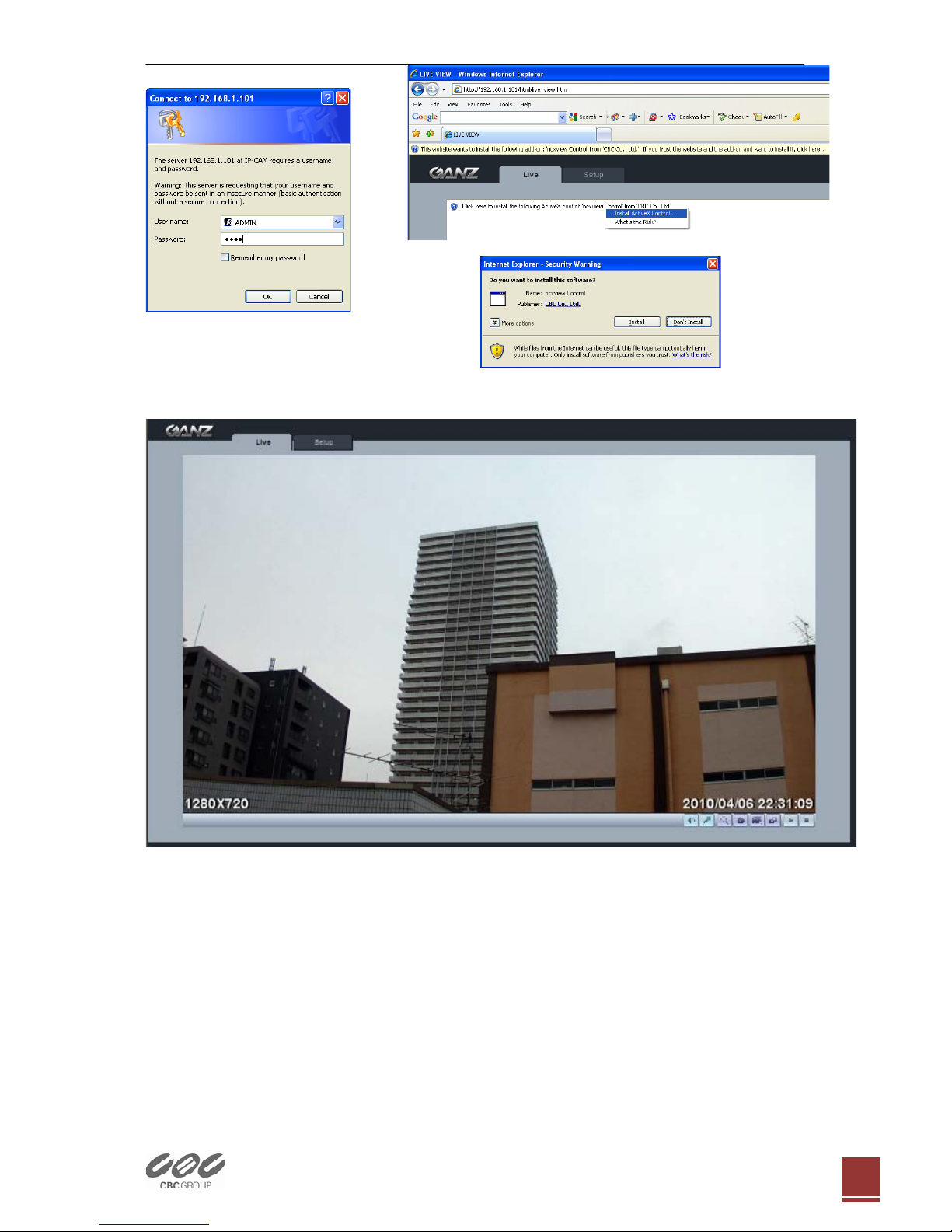

5. Web browser connection

Note : The Network camera supportsInternet Explorer 7 or above.

Please check version of your browser and update it if necessary.

When you first access the camera you need to download and install an

Active X control from the camera to display a Live image.

Default User and Password are set to “ADMIN”and “1234”. Please type in

the user ID and password to connect the network camera.

Quick User Guide ZN-DT Series Network Camera



4

Note: By Default the cameras come with “Installation Mode” set to “ON” to

enable Analog output. You must turn installation mode off to use 720p

or 1080p streaming.

For further information for setup, please refer to User’s manual

in software CD.
