Central Pneumatic 94355 Manuale utente

OILLESS AIR COMPRESSOR

8 GALLON CAPACITY

Model 94355

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

Due to continuing improvements,

actual product may differ slightly

from the product described herein.

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 2

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep

your invoice with this manual. Write the invoice number on the inside of the front cover.

Keep this manual and invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES AND PRECAUTIONS

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

Electrical Requirements 120 V / 60 Hz / 13 Amp / 2 HP Rated, 3 HP Peak

Power Cord Type: 16 Gauge x 3 C x 6’ Long

Power Plug Type: 3-Prong, Grounded

Fuse Size: 15 AMP Buss Fuse

Switch Type: Rotary On/Off Switch

Operating Air Pressure Pressure On: 85 PSI / Pressure Off: 125 PSI

Air Flow 6.0 CFM @ 40 PSI / 4 CFM @ 90 PSI

Air Tank Capacity 8 Gallons

Outlet Thread 1/4" – 18 NPT

Pressure Gauge Measures 0 ~ 230 PSI in 20 PSI Increments / 0 ~ 16 KG/CM² in 2 BAR Increments

Additional Features Thermal Overload Protection / Steel Tube Handle

Rubber Wheels / Brass Valve Tank Drain / Single Cylinder Pump

Unit Weight 51 Pounds

235309

SAFE OPERATION

1. RISK OF FIRE OR EXPLOSION:

Do not spray flammable liquid in a confined area or towards a hot surface.

Spray area must be well ventilated.

Do not smoke while spraying or spray where spark or flame is present.

REV 11/06

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 3

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create

sparks which may ignite the dust or fumes.

WORK AREA

2. ARCING PARTS:

Keep compressor at least 20 feet away from explosive vapors, such as when

spraying with a spray gun.

3. IF CONNECTED TO A CIRCUIT PROTECTED BY FUSES:

Use time delay (Marked D) fuses with this item.

Connect to a dedicated power sources (see serial plate for proper voltage).

Check oil level in the compressor before each use and fill accordingly.

4. RISK OF BURSTING:

Do not adjust the regulator to result in output pressure greater than marked

maximum pressure of attachment (air tools, etc).

5. RISK OF INJURY:

Do not direct air stream at anyone’s body.

Do not use compressed air for breathing.

Unplug the power cord and drain all air pressure from the tank before servicing

and after each use.

Always wear ANSI-approved eye protection.

Do not operate with supplied guards removed or damaged.

6. RISK OF ELECTRIC SHOCK:

Do not expose to rain, store this item indoors in a dry location.

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 4

PERSONAL SAFETY

1. Stay alert. Watch what you are doing, and use common sense when

operating a power tool. Do not use a power tool while tired or under the

influence of drugs, alcohol, or medication. A moment of inattention while

operating power tools may result in serious personal injury.

2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

3. Avoid accidental starting. Be sure the Pressure Switch (57) is in its “OFF”

position before moving the Compressor

and

before performing any service,

maintenance, or cleaning procedures on the unit.

4. Remove adjusting keys or wrenches before turning the Compressor on. A

wrench or a key that is left attached to a rotating part of the machine may result

in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

6. Use safety equipment. Always wear eye protection. Always wear

ANSI-approved safety impact goggles when using this product. ANSI-

approved hearing protection must also be used.

TOOL USE AND CARE

1. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

2. Do not use the Compressor if the Pressure Switch (57) does not turn it on

or off. Any tool that cannot be controlled with its pressure switch is dangerous

and must be replaced.

3. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

4. Maintain tools with care. Properly maintained tools with a sharp cutting edge

are less likely to bind and are easier to control. Do not use a damaged tool. Tag

damaged tools “Do not use” until repaired.

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 5

6. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SERVICE

1. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

2. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

SPECIFIC SAFETY RULES AND PRECAUTIONS

1. Maintain labels and nameplates on the Air Compressor. These carry

important information. If unreadable or missing, contact Harbor Freight Tools for a

replacement.

2. DANGER! This Air Compressor is NOT equipped with and should not be

used “as is” to supply breathing quality air. For any application of air for human

consumption, you must fit the Air Compressor with suitable inline safety and

alarm equipment (not included). This additional equipment is necessary to

properly filter and purify the air to meet minimal specifications for Grade D

breathing as described in Compressed Gas Association Commodity Specification

G 7.1-1966, OSHA 29 CFR 1910. 134, and/or Canadian Standards Associations

(CSA).In the event the Air Compressor is used for the purpose of breathing air

application and proper inline safety and alarm equipment is not simultaneously

used, existing warranties are void, and Harbor Freight Tools disclaims any liability

whatsoever for any loss, personal injury, or damage.

5. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly

maintained tools.

3. Make sure all tools and equipment used with the Air Compressor are rated

to the appropriate capacity. Do not use any tool or equipment that does not

operate from 85 PSI to 125 PSI.

4. Drain the Air Compressor every day. Do not allow excessive moisture to build

up inside the Air Compressor. Do not open the water Drain Valve (4) with more

than 10 PSI of air pressure in the Compressor.

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 6

5. Avoid injury. Never direct compressed air at people or animals.

6. Make sure the Air Compressor is located on a flat, level, sturdy surface

capable of supporting the weight of the Compressor and any additional

tools and equipment.

7. Industrial applications must follow OSHA guidelines.

8. Never stand on the Air Compressor. Serious injury could result if the

Compressor is tipped.

9. Never leave the Air Compressor unattended when it is plugged in and

running. Turn off the Compressor, and unplug the unit before leaving.

10. Do not allow children and other unauthorized people to handle or play with

the Air Compressor.

11. Do not move or transport the Compressor if the unit is under pressure.

12. Do not force the Compressor. This tool will do the work better and safer at

the speed and capacity for which it was designed.

13. This Compressor will automatically shut off on overload or under excessive

heat. Should this occur, turn the Pressure Switch (57) to its “OFF” position. Wait

until the Compressor cools. Then, turn the Pressure Switch to its “ON” position

to resume work.

14. WARNING! This product contains brass, which is a chemical known to the

State of California to cause cancer and birth defects and other reproductive

harm.

(California Health & Safety Code 25249.5, et seq.)

15. WARNING! People with pacemakers should consult their physician(s)

before using this product. Operation of electrical equipment in close proximity to

a heart pacemaker could cause interference to or failure of the pacemaker.

16. WARNING! The warnings and precautions discussed in this manual cannot

cover all possible conditions and situations that may occur. It must be under

stood by the operator that common sense and caution are factors which cannot

be built into this product, but must be supplied by the operator.

SAVE THESE INSTRUCTIONS

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 7

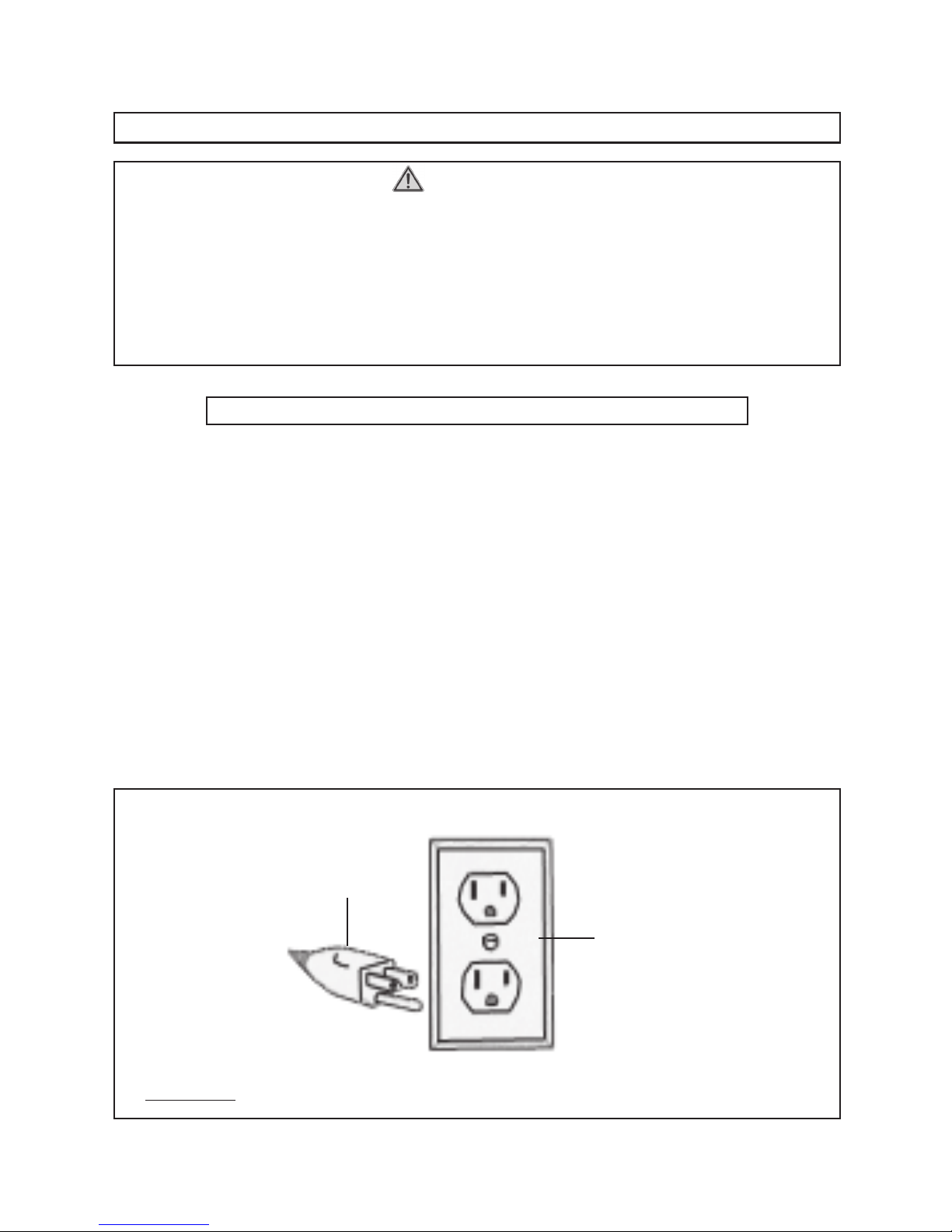

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of electric

shock. (See Figure A.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached

to an electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and

grounded in accordance with all codes and ordinances. The plug and outlet

should look like those in the following illustration. (See Figure A.)

GROUNDING

WARNING!

THIS PRODUCT

USES A

3-PRONG PLUG

120VOLT, GROUNDED,

ELECTRICAL OUTLET

FIGURE A

Improperly connecting the grounding wire can result in the risk of electric shock.

Check with a qualified electrician if you are in doubt as to whether the outlet is

properly grounded. Do not modify the power cord plug provided with the tool.

Never remove the grounding prong from the plug. Do not use the tool if the power

cord or plug is damaged. If damaged, have it repaired by a service facility before

use. If the plug will not fit the outlet, have a proper outlet installed by a qualified

electrician.

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 8

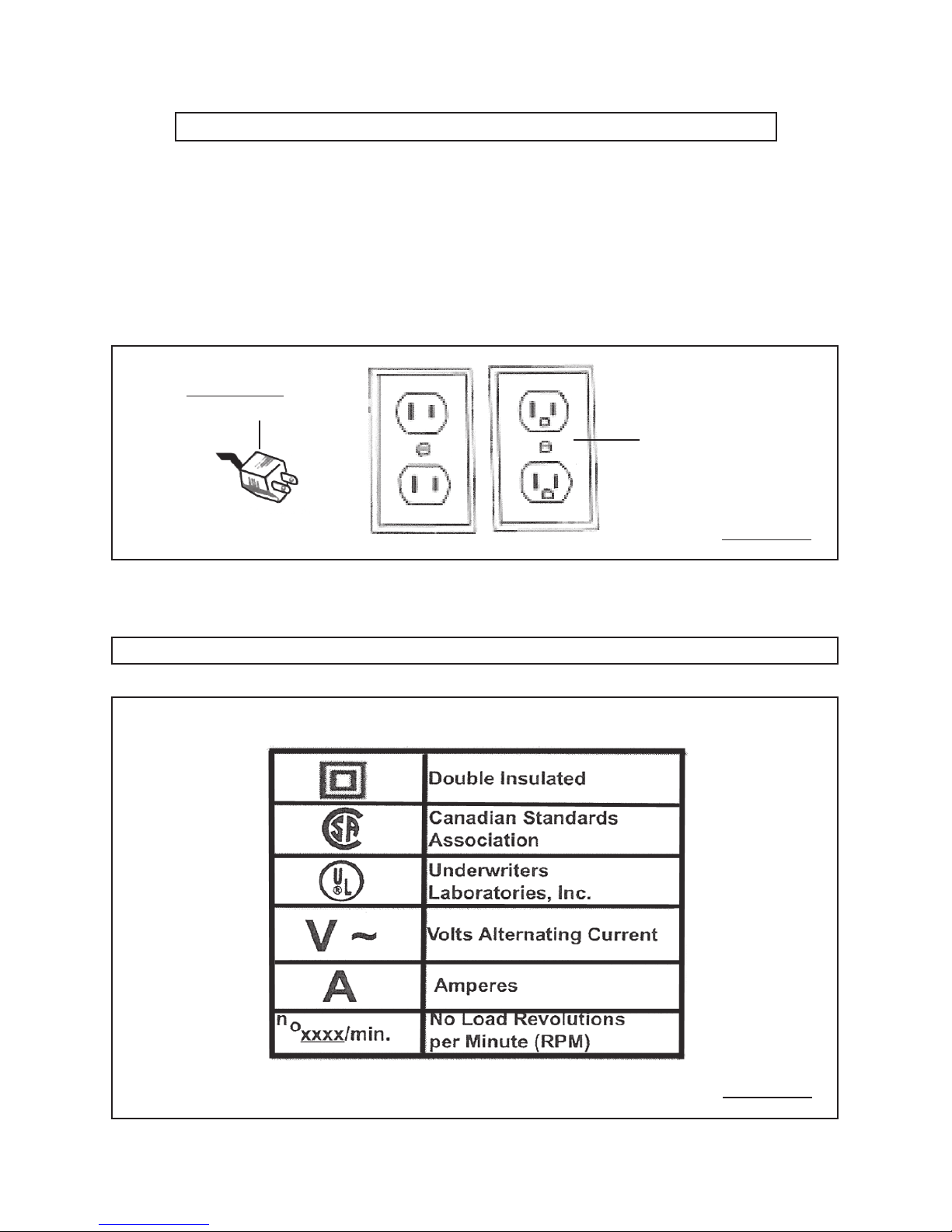

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian

Standard Association, and the National Electrical Code. (See Figure B.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

THIS PRODUCT

DOES NOT USE A

2-PRONG PLUG

120VOLT, GROUNDED,

ELECTRICAL OUTLETS

FIGURE B

SYMBOLOGY

FIGURE C

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 9

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List on page 14

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

ASSEMBLY INSTRUCTIONS

1. CAUTION! Always make sure the Pressure Switch (57) of the Air

Compressor is in its “OFF” position and the unit is unplugged from its electrical

outlet prior to performing any assembly on this unit.

2. To attach the Handle (9) to the Air Compressor, align the four mounting holes in

the Handle with the four

threaded

mounting holes located at the rear of the unit.

Then secure the Handle in place with four Screws (7). (See Page 16)

3. Slide the Quick Coupler (11) towards the compressor body and insert the Air

Hose (71) to the Quick Coupler (11). (See Page 16)

AIR COMPRESSOR CONTROLS

1. Pressure Switch (57): The Pressure Switch turns the Air Compressor on and

off. When in the “ON” position, the Pressure Switch allows the Compressor to

automatically adjust to its “run” stage when the air pressure inside the Air Tank

(3) falls below 85 PSI. The Pressure Switch also automatically turns the Com

pressor to its “idle” stage when the air pressure inside the Air Tank reaches 125

PSI. Always keep the Pressure Switch in its “OFF” position when the unit is not

in use. (See Figure D, next page.)

2. Safety Valve (10): If the Pressure Switch (57) does not shut down the Motor of

the Air Compressor when the pressure reaches 125 PSI, the Safety Valve will

automatically pop open to prevent over-pressurization. To operate manually, pull

the ring on the Safety Valve to relieve air pressure in the Air Tank (3).

(See Figure D, next page.)

3. Tank Pressure Gauge (13): The Tank Pressure Gauge measures the pressure

level of the air stored in the Air Tank (3), and is not adjustable by the operator.

(See Figure D.)

SKU 94355 For technical questions, please call 1-800-444-3353 PAGE 10

4. Pressure Regulator Knob (14): The Pressure Regulator Knob enables the

operator to adjust output pressure to the pneumatic tool being used. To increase

the amount of air pressure to the tool, turn the Pressure Regulator Knob clock

wise. To decrease the amount of air pressure to the tool, turn the Pressure

Regulator Knob counterclockwise. (See Figure D.)

5. Tool Pressure Gauge (13): The Tool Pressure Gauge measures the pressure

level of air flowing to the pneumatic tool being used, and is adjustable using the

Pressure Regulator Knob (14). (See Figure D.)

6. Quick Coupler (11): The Quick Coupler connects to the air output hose which,

in turn, connects to the pneumatic tool being used. To connect an air hose, push

in on the Quick Coupler. To disconnect the air hose, pull back on the Quick

Coupler collar. (See Figure D.)

OPERATING INSTRUCTIONS

1. CAUTION! Always make sure the Pressure Switch (57) of the Air

Compressor is in its “OFF” position and the unit is unplugged from its electrical

outlet prior to performing any service, maintenance, or changing accessories on

the Compressor.

SAFETY VALVE

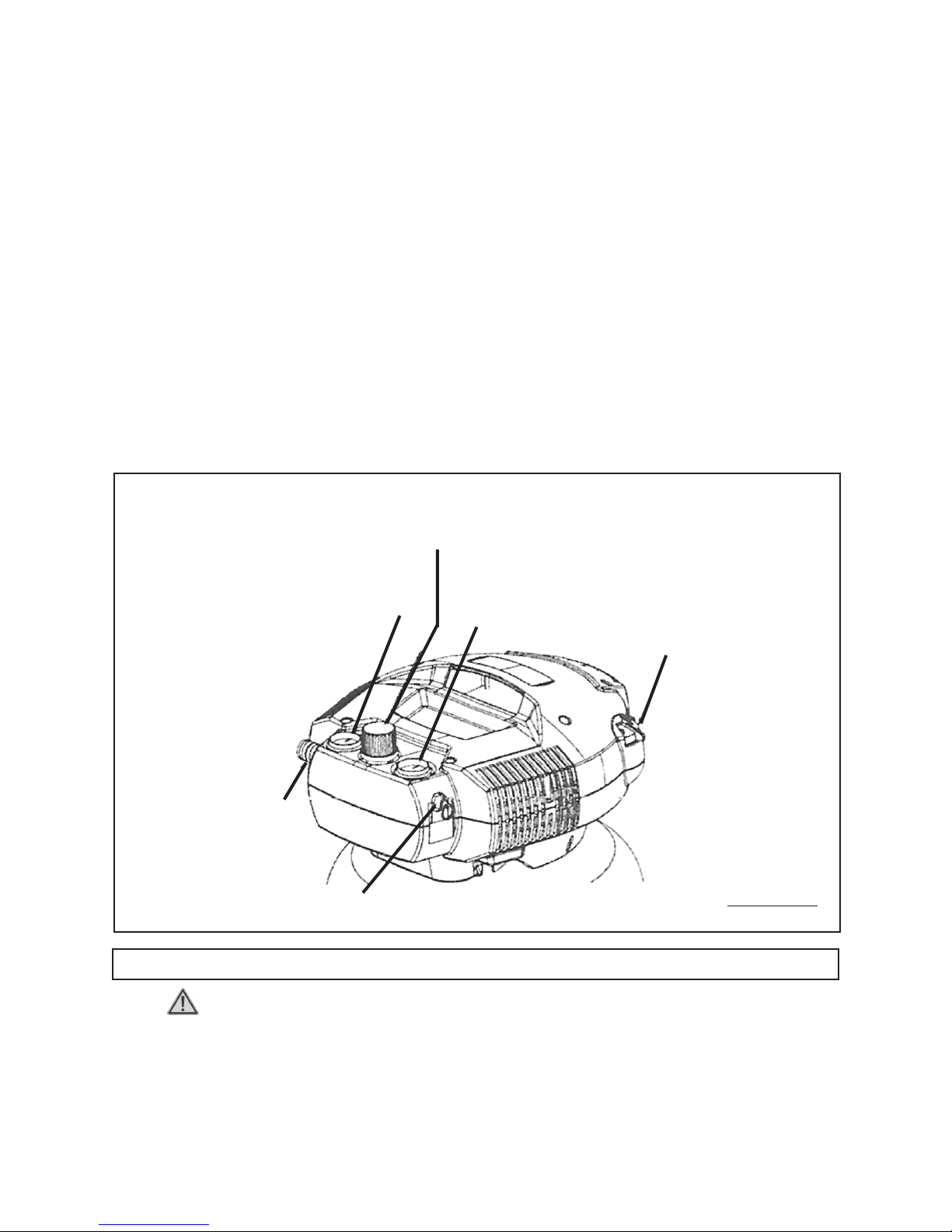

(10) FIGURE D

QUICK COUPLER

(11)

TOOL

PRESSURE

GAUGE

(13)

TANK

PRESSURE

GAUGE

(13)

PRESSURE

REGULATOR

KNOB

(14)

PRESSURE SWITCH

(57)

Indice

Altri manuali Central Pneumatic compressore d'aria

Central Pneumatic

Central Pneumatic 93271 Manuale utente

Central Pneumatic

Central Pneumatic 95386 Manuale di installazione

Central Pneumatic

Central Pneumatic 40131 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic CentralPneumatic 68064 Manuale di installazione

Central Pneumatic

Central Pneumatic 98635 Manuale di installazione

Central Pneumatic

Central Pneumatic 42321 Manuale utente

Central Pneumatic

Central Pneumatic 94724 Manuale utente

Central Pneumatic

Central Pneumatic 97080 Manuale di installazione

Central Pneumatic

Central Pneumatic 61454 Manuale utente

Central Pneumatic

Central Pneumatic 67696 Manuale di installazione

Central Pneumatic

Central Pneumatic Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air... Manuale utente

Central Pneumatic

Central Pneumatic 67847 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 92403 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 21 Manuale utente

Central Pneumatic

Central Pneumatic 62913 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 60637 Guida utente

Central Pneumatic

Central Pneumatic 94734 Manuale di installazione

Central Pneumatic

Central Pneumatic 67708 Manuale di installazione

Central Pneumatic

Central Pneumatic 61615 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 34844 Manuale utente

Central Pneumatic

Central Pneumatic 95275 Manuale di installazione

Central Pneumatic

Central Pneumatic 99659 Manuale di installazione

Central Pneumatic

Central Pneumatic 97080 Manuale utente

Central Pneumatic

Central Pneumatic 92097 Manuale utente

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
