ASSEMBLY AND OPERATING INSTRUCTIONS

3491 MISSION OAKS BLVD., CAMARILLO, CA 93011

VISIT OURWEB SITE AT HTTP://WWW.HARBORFREIGHT.COM

manual or any artwork contained herein may be reproduced in any shape or

form without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts,please call 1-800-444-3353

90385

SKU 90385 For technical questions, please call 1-800-444-3353. Page 2

4 STL

REV 12/03;07/04;11/04

SPECIFICATIONS

Item Description

Power Consumption 120 VAC, 60 Hz

Motor 2.5 HP (rated), 3400 RPM; 2 capacitor motor

Pump Single stage, oil lubrication

Tank 8 gallon capacity; Cut-in pressure: 90 PSI, Cut-

out pressure: 120 PSI

Air Outlet Size 1/4 Inch - 18 NPT

Pressure Gauge 0 ~ 200 PSI (CSA approved)

SCFM 4.5 SCFM @ 115 PSI, 5.6 SCFM @ 90 PSI, 6.2

SCFM @70 PSI, and 7.25 SCFM @ 40 PSI

Features Overload protection

Clear view oil window

Weight 65 lbs.

THIS COMPRESSOR MUST BE OPERATED ON A MINIMUM 15 AMP CIRCUIT.

SAVE THIS MANUAL

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice with this

manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instruc-

tionslistedbelowmayresultinelectricshock,fire,and/orseriousinjury.

SAVETHESE INSTRUCTIONS

Work Area

1. Keep your work area clean and well lit. Cluttered benches and dark areas invite

accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence

of flammable liquids, gases, or dust. Power tools create sparks which may ignite

the dust or fumes.

3. Keep bystanders, children, animals and visitors away while operating a power

tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

SKU 90385 For technical questions, please call 1-800-444-3353. Page 3

Electrical Safety

4. Avoid body contact with grounded surfaces such as pipes, radiators, ranges,

and refrigerators. There is an increased risk of electric shock if your body is

grounded.

5. Do not expose power tools to rain or wet conditions. Water entering a power tool

will increase the risk of electric shock.

6. Grounded tools must be plugged into an outlet properly installed and grounded

in accordance with all codes and ordinances. Never remove the grounding

prong or modify the plug in any way. Do not use any adapter plugs. Check with

a qualified electrician if you are in doubt as to whether the outlet is properly

grounded. If the tools should electrically malfunction or break down, grounding

provides a low resistance path to carry electricity away from the user.

7. Double insulated tools are equipped with a polarized plug (one blade is wider

than the other). This plug will fit in a polarized outlet only one way. If the plug

does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a

qualified electrician to install a polarized outlet. Do not change the plug in any

way. Double insulation eliminates the need for the three wire grounded power

cord and grounded power supply system.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools or

pull the Plug from an outlet. Keep the Power Cord away from heat, oil, sharp

edges, or moving parts. Replace damaged Power Cords immediately. Damaged

Power Cords increase the risk of electric shock.

Personal Safety

9. Stay alert. Watch what you are doing, and use common sense when operating a

power tool. Do not use a power tool while tired or under the influence of drugs,

alcohol, or medication. A moment of inattention while operating power tools may

result in serious personal injury.

10. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep

your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or

long hair can be caught in moving parts.

11. Avoid accidental starting. Be sure the Power Switch is off before plugging in.

Carrying power tools with your finger on the Power Switch, or plugging in power tools

with the Power Switch on, invites accidents.

12. Remove adjusting keys or wrenches before turning the power tool on. A wrench

or a key that is left attached to a rotating part of the power tool may result in personal

injury.

13. Do not overreach. Keep proper footing and balance at all times. Proper footing

and balance enables better control of the power tool in unexpected situations.

SKU 90385 For technical questions, please call 1-800-444-3353. Page 4

14. Use safety equipment. Always wear eye protection. Dust mask, nonskid safety

shoes, hard hat, or hearing protection must be used for appropriate conditions.

Tool Use and Care

15. Use clamps (not included) or other practical ways to secure and support the

workpiece to a stable platform. Holding the work by hand or against your body is

unstable and may lead to loss of control.

16. Do not force the tool. Use the correct tool for your application. The correct tool

will do the job better and safer at the rate for which it is designed.

17. Do not use the power tool if the Power Switch does not turn it on or off. Any tool

that cannot be controlled with the Power Switch is dangerous and must be replaced.

18. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive safety

measures reduce the risk of starting the tool accidentally.

19. Store idle tools out of reach of children and other untrained persons. Tools are

dangerous in the hands of untrained users.

20. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with a sharp cutting edge are less likely to bind and are easier to

control. Do not use a damaged tool. Tag damaged tools “Do not use” until repaired.

21. Check for misalignment or binding of moving parts, breakage of parts, and any

other condition that may affect the tool’s operation. If damaged, have the tool

serviced before using. Many accidents are caused by poorly maintained tools.

22. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous when

used on another tool.

Service

23. Tool service must be performed only by qualified repair personnel. Service or

maintenance performed by unqualified personnel could result in a risk of injury.

24. When servicing a tool, use only identical replacement parts. Follow instructions

in the

“Inspection, Maintenance, And Cleaning”

section of this manual. Use of

unauthorized parts or failure to follow maintenance instructions may create a risk of

electric shock or injury.

SKU 90385 For technical questions, please call 1-800-444-3353. Page 5

(1)

SPECIFIC SAFETY RULES FORTHIS PRODUCT

1. Maintain labels and nameplates on the Air Compressor. These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a replacement.

2. Maintain a safe working environment. Keep the work area well lit. Make sure there

is adequate surrounding workspace. Always keep the work area free of obstructions,

grease, oil, trash, and other debris. Do not use a power tool in areas near flammable

chemicals, dusts, and vapors. Do not use this product in a damp or wet location.

3. Avoid unintentional starting. Make sure you are prepared to begin work before

turning on the Air Compressor.

4. Do not force the Air Compressor. This tool will do the work better and safer at the

pressure and capacity for which it was designed.

5. Always unplug the Air Compressor from its electrical outlet before performing

and inspection, maintenance, or cleaning procedures.

6. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities, contain chemicals known (to the State of California) to

cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are: lead from lead-based paints, crystalline silica from bricks and cement

or other masonry products, arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of

work. To reduce your exposure to these chemicals: work in a well ventilated area, and

work with approved safety equipment, such as those dust masks that are specially

designed to filter out microscopic particles. (California Health & Safety Code §

25249.5,

et seq.)

7. WARNING! People with pacemakers should consult their physician(s) before

using this product. Operation of electrical equipment in close proximity to a heart

pacemaker could cause interference or failure of the pacemaker.

8. Never leave the air compressor unattended while running. Turn power off if you

have to leave the mixer.

9. Before each use, check all nuts, bolts, and screws for tightness. Vibration may

cause these to loosen.

10. Always connect the Line Cord to a Ground Fault Circuit Interrupter (GFCI)

protected electrical outlet. Always use a 115V electrical source (+/- 10%

maximum variation).

11. Drain compressor every day. Do not allow moisture to build up inside the

compressor. Do not allow compressor to sit pressurized for longer than one hour.

12. Make sure all equipment is rated to the appropriate capacity. Adjust the output air

pressure to the tool’s operating capacity.

13. Avoid body injury. Never direct the air outlet at persons or animals.

REV 11/04

SKU 90385 For technical questions, please call 1-800-444-3353. Page 6

Figure A Figure B

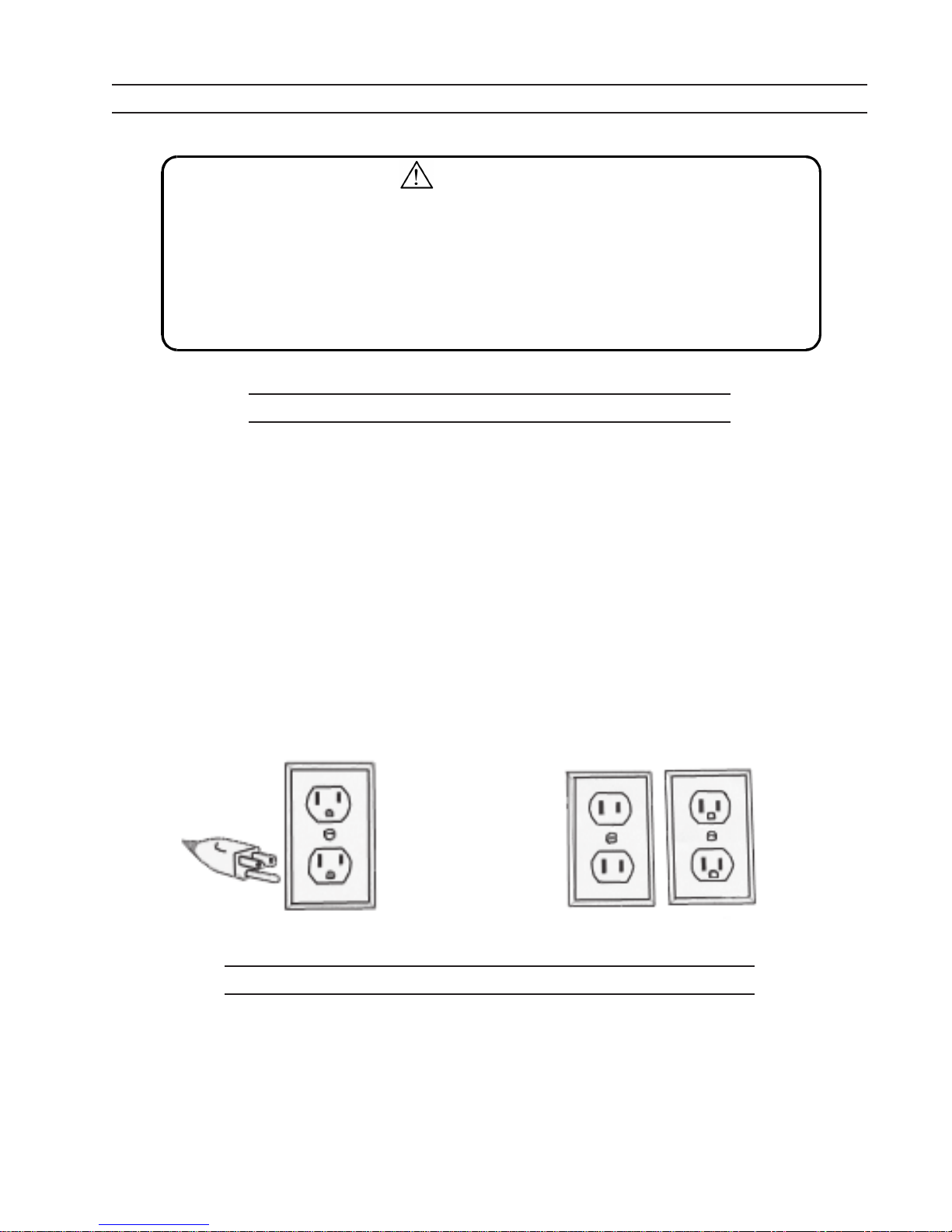

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualfified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool.Never remove the grounding prong from the plug. Do not use the tool if

the power cord or plug is damaged. If damaged, have it repaired by a service

facility before use. If the plug will not fit the outlet,have a properoutlet installed

byaqualifiedelectrician.

GroundedTools: Tools with Three Prong Plugs

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If the tool

should electrically malfunction or break down, grounding provides a low resistance

path to carry electricity away from the user, reducing the risk of electric shock. (See

Figure A.)

2. The grounding prong in the plug is connected through the green wire inside the cord

to the grounding system in the tool. The green wire in the cord must be the only wire

connected to the tool’s grounding system and must never be attached to an

electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and grounded

in accordance with all codes and ordinances. The plug and outlet should look like

those in the following illustration. (See Figure A.)

Double InsulatedTools:Tools withTwo Prong Plugs

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with the

applicable standards of Underwriters Laboratories, Inc., the Canadian Standard

Association, and the National Electrical Code. (See Figure B on page 6.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

preceding illustration. (See Figure B on page 6.)

SKU 90385 For technical questions, please call 1-800-444-3353. Page 7

UNPACKING

When unpacking, check to make sure that all the parts are included. Refer to the Assembly

section, and the Assembly Drawing and Parts List at the end of this manual.

If any parts are missing or broken, please call Harbor FreightTools at the number on the cover

of this manual as soon as possible.

In addition, this unit is packed with a rubber block to help prevent damage to the Motor Cover

(82) during shipment, shown below.

This block should be removed BEFORE use of this compressor, it can interfere with

proper operation. It may be set aside for additional shipping purposes, if desired.

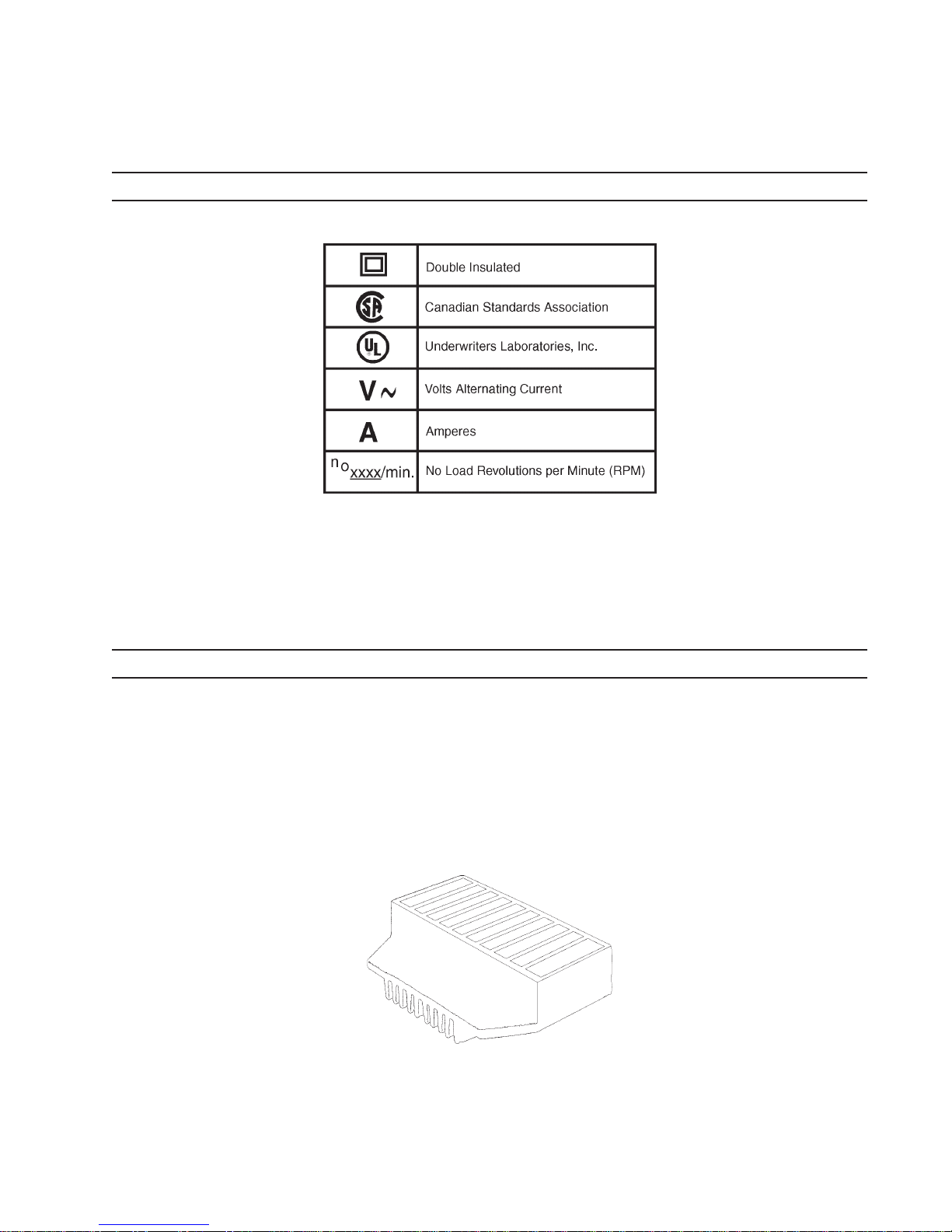

SYMBOLOGY

Table B

REV 05/05

SKU 90385 For technical questions, please call 1-800-444-3353. Page 8

Figure C

(79)

Figure D

REV 04/04

ASSEMBLY INSTRUCTIONS

Warning:Fill compressor with oil before using;running without oil,or with low oil voids

warranty. Do not plug in the Air Compressor until you are ready to use it, as set forth

below.

Adding Oil

1. Unscrew

(do not pull)

the Oil Plug (79). (See Figure C.)

2. Check the level of the oil by viewing the Oil Leveler

(72) window (below the Oil Plug).

Note: Fill the oil tank with approximately 25 ounces of oil.

3. Add 30-weight, non-detergent oil through the fill hole

as necessary, but do not overfill. Screw in the Oil Plug,

being careful not to strip the plastic threads.

Hose Connections

1. Close the Air Control Valve (69), right or left.

2. Connect the high pressure air hose to the air outlet.

The outlet is 1/4” NPT. For easy connection or removal, a quick coupler (not supplied)

should be installed on the end of the outlet.

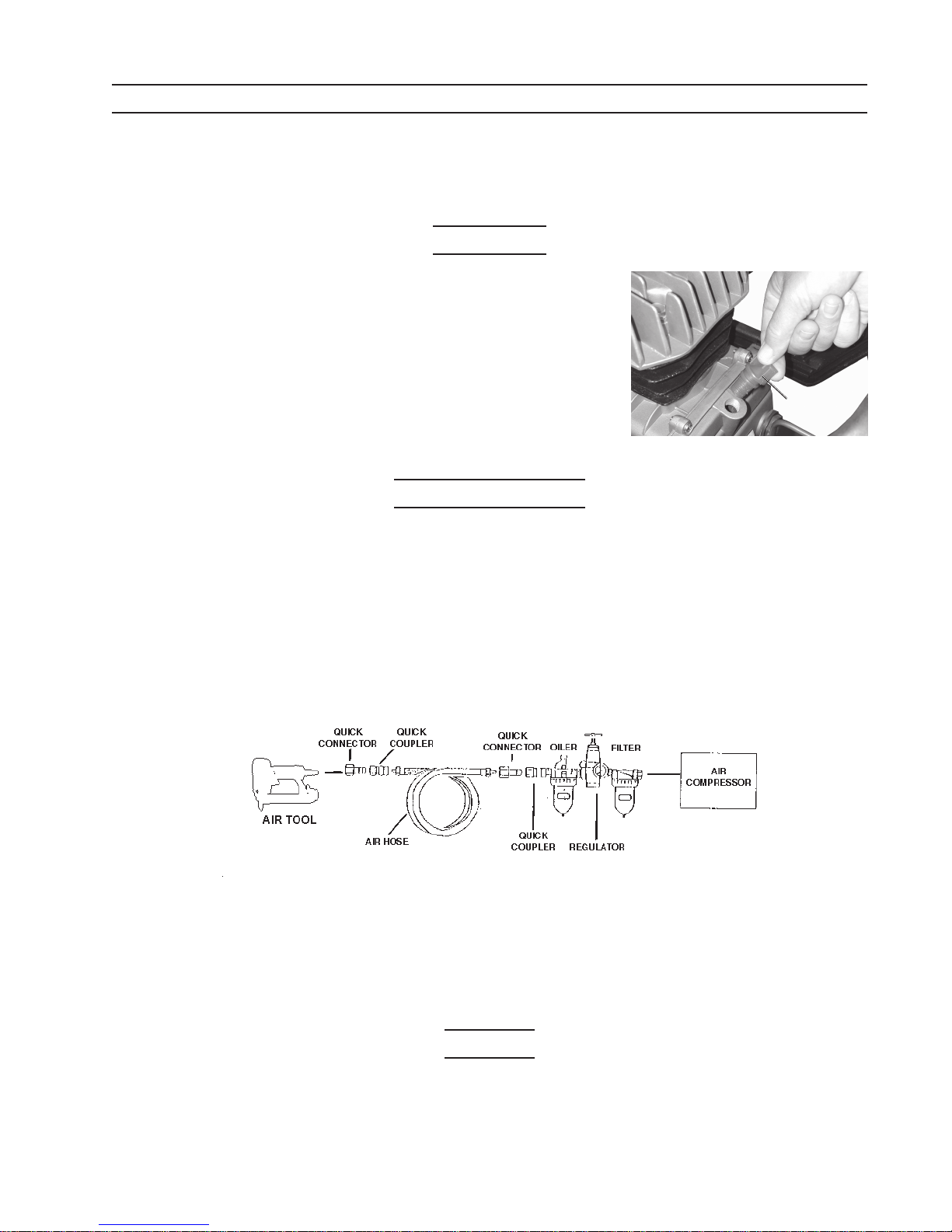

To extend the life of your air tools, it is recommended to install an oiler and water filter

in series with the air output line of the Air Compressor as shown below.

3. Connect the high pressure air hose to the air tool.

4. Turn the Air Control Valve to the middle position to allow the air to pass.

Warning: Do not remove the factory sealed Air Control Valve (69); removal voids war-

ranty.

Air Filter

If not already attached, mount the Air Filter (85) to the Cylinder Head (2) before using the

aircompressor.

SKU 90385 For technical questions, please call 1-800-444-3353. Page 9

OPERATING INSTRUCTIONS

Turning Compressor On

1. Plug the power cord into an electrical outlet with a grounding prong.

2. Pull up on the Auto/Off Pressure Switch (66) to turn on. Push down on the Switch to

shut off.

3. Allow theTank to fill to 80 PSI before using.

With the Air Compressor turned on, operation is automatic and under the control of

the internal pressure switch.

Adjusting Pressure Switch

Caution:The internal pressure switch is adjustable but changes to the pressure levels

are not recommended; any change to the automatic On/Off pressure levels will cause

additional stress on the motor which may result in shortened motor life.

Using the Pressure Relief Valve

The Pressure Relief Valve (Figure F) is used when decom-

pression is needed quickly and efficiently.

1. Press the Auto/Off Pressure Switch (66) down to turn

poweroff.

2. Pull on the Pressure Relief Valve (67) ring to release

pressure.

3. When all pressure is released, close the valve again.

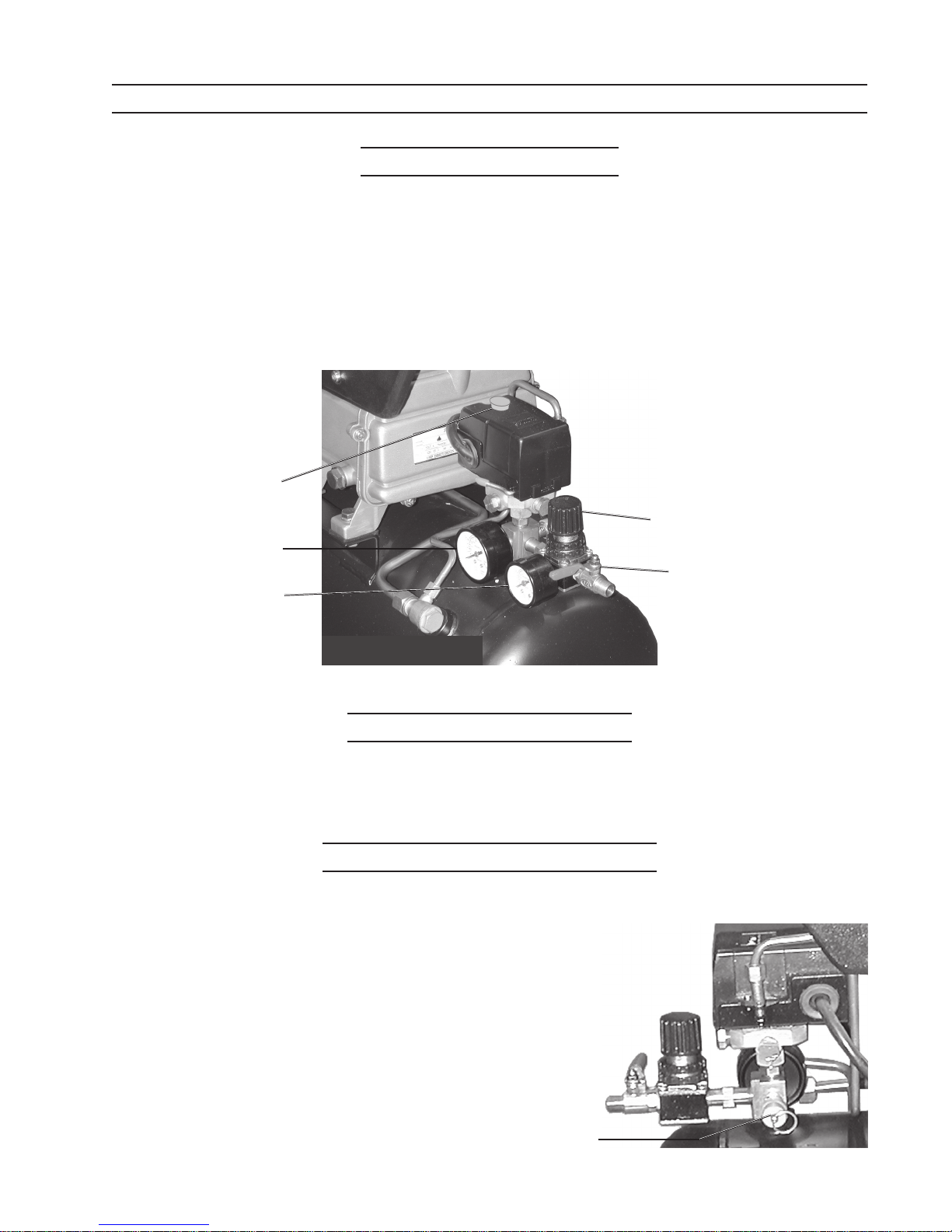

(1)

Auto / Off Switch

Output Pressure Adjuster

Air Control Valve

Tank Pressure Gauge

Output Pressure Gauge

Figure E

Pressure Relief

Valve

Figure F

NOTE:Actual productdesignmay

vary slightly from that shown.

REV 04/05

SKU 90385 For technical questions, please call 1-800-444-3353. Page 10

Empty Air and Condensation

The water SpillValve (59) is located underneath the AirTank. It must be used daily to re-

lease all trapped moisture through this valve. It will also get rid of any condensation that

may cause tank corrosion.

Warning: Do not open the water Spill Valve (59) so that more than four threads are

showing.

1. Push down on the Auto/Off Pressure Switch (66) to turn the compressor off.

2. Unscrew the water Spill Valve (59) two to three turns.

PLEASE READ THE FOLLOWING CAREFULLY

THEMANUFACTURER AND/OR DISTRIBUTORHAS PROVIDEDTHEPARTSDIAGRAMINTHIS

MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU-

TOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT

HE OR SHE IS QUALIFIEDTO MAKE ANY REPAIRS TOTHE PRODUCT ORTHAT HE OR SHE

IS QUALIFIEDTO REPLACE ANY PARTS OFTHE PRODUCT. IN FACT,THE MANUFACTURER

AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACE-

MENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS AND NOT

BY THE BUYER.THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR

HERREPAIRSTOTHEORIGINALPRODUCTORREPLACEMENT PARTSTHERETO, OR ARIS-

ING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

INSPECTION, MAINTENANCE, AND CLEANING

1. WARNING! Make sure the Power Switch of the Air Compressor is in its “OFF”

position and that the tool is unplugged from its electrical outlet before performing any

inspection, maintenance, or cleaning procedures.

2. Before each use, inspect the general condition of the Air Compressor. Check for

loose screws, misalignment or binding of moving parts, cracked or broken parts,

damaged electrical wiring, and any other condition that may affect its safe operation.

If abnormal noise or vibration occurs, have the problem corrected before further use.

Do not use damaged equipment.

3. Check compressor oil level daily. Fill if necessary with 30-weight, non-detergent oil.

4. Purge the Air Tank daily of all air and condensation to prevent corrosion.

5. Store the Air Compressor in a clean and dry location.

6. Check all air fittings for leaks before using.

Indice

Altri manuali Central Pneumatic compressore d'aria

Central Pneumatic

Central Pneumatic 60328 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 93785 Manuale utente

Central Pneumatic

Central Pneumatic FP202800 Manuale di servizio

Central Pneumatic

Central Pneumatic 90168 Manuale di installazione

Central Pneumatic

Central Pneumatic PROFESSIONAL 99901 Manuale utente

Central Pneumatic

Central Pneumatic 67696 Manuale di installazione

Central Pneumatic

Central Pneumatic 60638 Manuale utente

Central Pneumatic

Central Pneumatic 93351 Manuale utente

Central Pneumatic

Central Pneumatic 95275 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 67698 Manuale utente

Central Pneumatic

Central Pneumatic 99659 Manuale di installazione

Central Pneumatic

Central Pneumatic 92403 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 39750 Manuale utente

Central Pneumatic

Central Pneumatic CentralPneumatic 17 GAL Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 67708 Manuale di installazione

Central Pneumatic

Central Pneumatic 67847 Guida utente

Central Pneumatic

Central Pneumatic 67708 Manuale di installazione

Central Pneumatic

Central Pneumatic 61489 Guida utente

Central Pneumatic

Central Pneumatic 62380 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air... Manuale utente

Central Pneumatic

Central Pneumatic CentralPneumatic 69269 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 40400 Manuale utente

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 47407 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 95630 Manuale di installazione

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
