Central Pneumatic 94667 Manuale utente

21 GALLON

CAST IRON VERTICAL OIL-LUBRICATED

AIR COMPRESSOR

Model 94667

OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of

Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein. Tools required for

assembly and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Revised Manual 10d

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 2

SPECIFICATIONS TABLE

Maximum Air Pressure 115 PSI

Air Tank Capacity 21 Gallons

Air Flow Capacity 4.9 SCFM at 90 PSI

7 SCFM at 40 PSI

Motor 3 HP Working / 5 HP Peak

120 Volt / 60 Hz / 12 A / 1-Phase

Required Circuit Minimum 20 Amp *Dedicated

Pump Stage Single

Air Outlet Size 1/4” - 18 NPT

Accessories Air Intake Filter; Air Hose Coupler

*A dedicated circuit is used only for a single load, for this compressor. Other loads on the circuit must be

disconnected or turned off when the compressor is plugged in.

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

GENERAL SAFETY WARNINGS AND PRECAUTIONS

1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp, or wet work areas

invite injuries.

2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle

this product.

3. KEEP IDLE EQUIPMENT. When not in use, tools and equipment should be kept

in a dry location to inhibit rust. Always lock up tools and equipment, and keep out

of reach of children.

4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR

DRUGS. Read warning labels on prescriptions to determine if your judgement or

reexes are impaired while taking drugs. If there is any doubt, do not attempt to

use this product.

5. USE EYE AND HAND PROTECTION. Wear ANSI-approved safety impact

goggles and heavy-duty work gloves when using this product. ANSI-approved

safety impact eyeglasses and heavy-duty work gloves are available from Harbor

Freight Tools.

6. DRESS SAFELY. Do not wear loose clothing or jewelry, as they can become

caught in moving parts. Wear a protective hair covering to prevent long hair from

becoming caught in moving parts. If wearing a long-sleeve shirt, roll sleeves up

above elbows.

REV 06l; 07c; 09c, 10a

#233060

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 3

7. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent

tripping, falling, back injury, etcetera.

8. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENTS.

9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do

not use this product when you are tired or distracted from the job at hand.

10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that

it will operate properly and perform its intended function. Check for damaged

parts and any other conditions that may affect the operation of this product.

Replace or repair damaged or worn parts immediately.

11. REPLACEMENT PARTS AND ACCESSORIES: When servicing, use only

identical replacement parts. Only use accessories intended for use with this

product. Approved accessories are available from Harbor Freight Tools.

12. MAINTAIN THIS PRODUCT WITH CARE. Keep this product clean and dry for

better and safer performance.

13. MAINTENANCE: For your safety, service and maintenance should be performed

regularly by a qualied technician.

14. USE THE RIGHT TOOL FOR THE JOB. Do not attempt to force a small

tool or attachment to do the work of a larger industrial tool. There are certain

applications for which this tool was designed. It will do the job better and more

safely at the rate for which it was intended. Do not modify this tool, and do not

use this tool for a purpose for which it was not intended.

15. WARNING: The warnings, precautions, and instructions discussed in this manual

cannot cover all possible conditions and situations that may occur. The operator

must understand that common sense and caution are factors, which cannot be

built into this product, but must be supplied by the operator.

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 4

SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS

1. WARNING: Make sure to ll the Air Compressor with a premium quality,

30-weight, non-detergent compressor oil before each use. Running the Air

Compressor with no oil or low oil will cause damage to the equipment. Note: The

oil reservoir has an optimal capacity of 30 ounces of oil.

2. WHEN CHECKING THE OIL LEVEL: Make sure to unscrew (do not pull) the

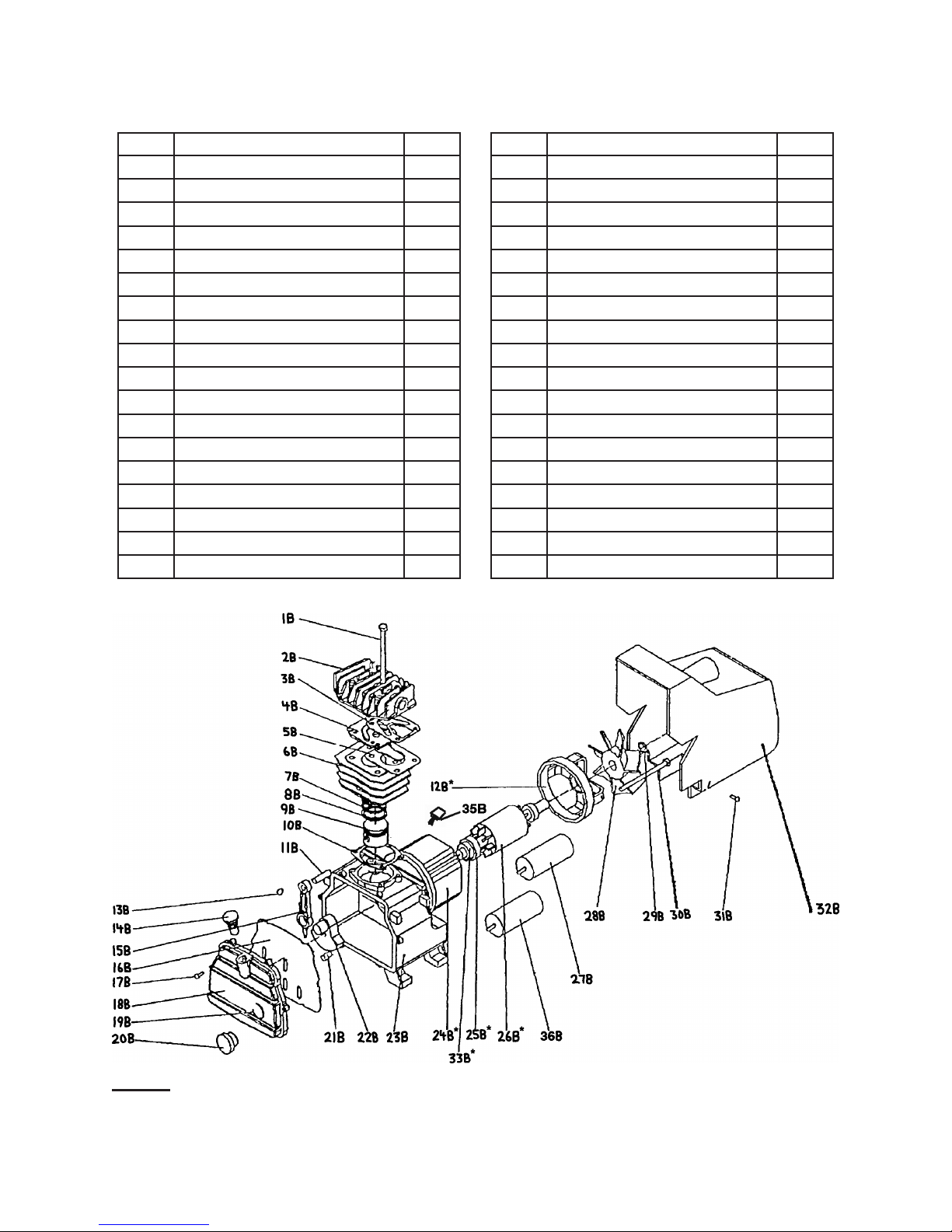

Breather Valve (14B) out. (See Figure C, and Assy. Diagram B.)

3. MAKE SURE ALL TOOLS AND EQUIPMENT USED WITH THE AIR

COMPRESSOR ARE RATED TO THE APPROPRIATE CAPACITY. Do not use

any tool or equipment that does not operate from 0 to 115 PSI.

4. DO NOT LEAVE COMPRESSOR UNATTENDED FOR AN EXTENDED PERIOD

WHILE PLUGGED IN. Unplug compressor after working.

5. KEEP COMPRESSOR WELL-VENTILATED. Do not cover compressor during

use.

6. DRAIN AIR COMPRESSOR EVERY DAY. Do not allow moisture to build

up inside the Air Compressor. (See “INSPECTION, MAINTENANCE, AND

CLEANING” section of this manual.)

7. MAINTAIN A SAFE WORKING ENVIRONMENT. Keep the work area well lit.

Make sure there is adequate surrounding workspace. Always keep the work

area free of obstructions, grease, oil, trash, and other debris. Do not use the Air

Compressor in areas near ammable chemicals, dusts, and vapors.

8. AVOID INJURY: Never direct the Air Flow Valve (6A) at people or animals. (See

Assy. Diagram A.)

9. DO NOT ALTER OR REMOVE THE FACTORY SEALED PRESSURE

RELEASE VALVE (5A). (See Assy. Diagram A.)

10. DO NOT OPEN THE WATER DRAIN VALVE (10A) SO THAT MORE THAN

FOUR THREADS ARE SHOWING. (See Assy. Diagram A.)

11. AN EXTENSION CORD MUST NEVER BE USED WITH THIS ITEM.

Connecting this item to an outlet through an extension cord MAY CAUSE

ELECTRICAL DAMAGE TO THE MOTOR and could present a FIRE HAZARD.

12. THIS COMPRESSOR MAY REQUIRE A DEDICATED ELECTRICAL CIRCUIT

AS THE AMPERAGE DRAW UNDER FULL LOAD COMBINED WITH USE OF

ANY OTHER ITEM MAY OVERLOAD YOUR CIRCUIT.

13. WARNING: This product contains or produces a chemical known to the State of

California to cause cancer and birth defects (or other reproductive harm).

(California Health & Safety Code § 25249.5, et seq.)REV10c

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 5

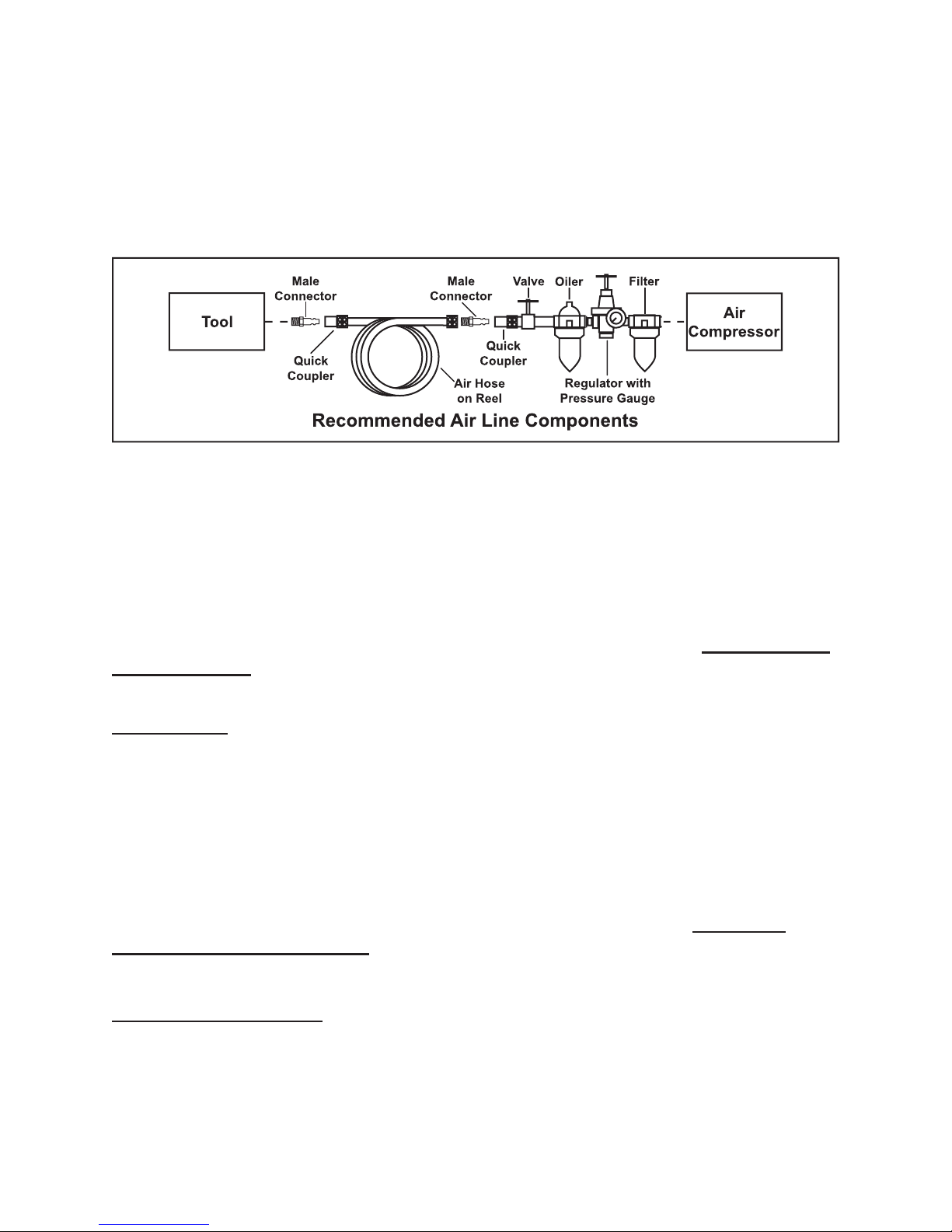

TO EXTEND THE LIFE OF YOUR AIR TOOLS AND EQUIPMENT, it is

recommended to install an oiler and water lter in series (available from Harbor

Freight Tools) with the Air Output Line of the Air Compressor.

OPERATING INSTRUCTIONS

NOTE: For additional references to the parts listed below, refer to the Assembly

Diagrams on pages 9, and 10.

To Check The Oil Level:

1. The Oil Window (20B) is used to determine if oil is needed. The oil level should

always be at the maximum level (red line on the Oil Window). (See Figure C,

and Assy. Diagram B.)

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts Lists on

pages 9, and 10 are included. If any parts are missing or broken, please call Harbor

Freight Tools at the number shown on the cover of this manual as soon as possible.

IMPORTANT! This compressor is shipped with the oil ll plug removed and without

oil. The oil ll plug is attached to the power cord as a reminder to add oil to the

crankcase. Add oil to the proper level as explained below and secure the oil ll

plug before use.

REV 07i

14. WARNING: People with pacemakers should consult their physician(s) before

using this product. Operation of electrical equipment in close proximity to a heart

pacemaker could cause interference to or failure of the pacemaker.

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 6

2. If necessary, add a premium quality, 30-weight, non-detergent compressor oil

into the Oil Fill Hole until the level of oil reaches the maximum level as indicated

on the Oil Window (20B). The optimal capacity of the oil reservoir is 30 ounces.

Do not overll. Then thread the Breather Valve back into the Oil Fill Hole, being

careful not to strip the plastic threads. (See Figure C, and Assy. Diagram B.)

To Turn The Air Compressor On:

1. Check to make sure the Water Drain Valve (10A) is fully closed.

2. Turn the Air Flow Valve (6A) to its “OFF” position.

3. Connect the air hose (not provided) to the Air Flow Valve (6A) of the Air

Compressor. Then, connect the other end of the air hose to the pneumatic tool

(not provided) that is to be used.

4. Note: Always plug the Power Cord of the Air Compressor into a 115 V~

electrical source (±10% maximum variation).

5. Rotate the “ON/OFF” Power Switch (1A) to the horizontal position to turn the Air

Compressor on. (Rotate the “ON/OFF” Power Switch (1A) to the vertical position

to turn the Air Compressor off.)

6. Allow sufcient time for the Tank Pressure Gauge (4A) to indicate 80 PSI before

using the Air Compressor.

7. Turn the Air Flow Valve (6A) to its “ON” position to allow air to the pneumatic tool.

FIGURE C

Breather Valve (14B)

Oil Window (20B)

Front Cover (18B)

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 7

8. NOTE: With the Air Compressor turned on, the operation is automatic and under

the control of the automatic switches inside the box under the Power Switch (1A).

NEVER open the power switch box or adjust the controls within.

To Adjust The Air Output To The Pneumatic Tool:

1. NOTE: When adjusting the air pressure being forwarded to the pneumatic tool,

you will need to compare the pressure readings of both the Tank Pressure Gauge

(3A) and the Tool Pressure Gauge (4A). The reading on the Tank Pressure Gauge

dictates the maximum/minimum air pressure at which the Tool Pressure Gauge may

also be set.

2. With the Air Compressor running, and the air hose and pneumatic tool hooked up

to the Air Compressor, pull up on the Tool Pressure Adjuster (2A). Turn the Tool

Pressure Adjuster clockwise to increase the air output to the tool, up to the working

air pressure (115 PSI) as indicated on the Tank Pressure Gauge (3A).

3. Turn the Tool Pressure Adjuster (2A) counterclockwise to decrease the air output

to the tool, down to the minimum rated pressure (0 PSI) as indicated on the Tank

Pressure Gauge (3A).

To Use The Tank Pressure Relief Valve:

1. The Tank Pressure Relief Valve Ring (5A) is used when decompression is needed

quickly and efciently.

2. To decompress the Air Tank (9A) pressure, rotate the “ON/OFF” Power Switch (1A)

up to the vertical position to turn off the Air Compressor.

3. Pull out on the Tank Pressure Relief Valve Ring (5A) to immediately release air

pressure in the Air Tank (9A).

To Empty Air And Condensation From The Tank:

1. The Water Drain Valve (10A) is located underneath the Air Tank (9A), and should

be used daily to release all trapped moisture through this valve. The Water Drain

Valve will also eliminate condensation that may cause Air Tank corrosion.

2. WARNING: Do not open the Water Drain Valve (10A) so that more than four

threads are showing.

3. Rotate the “ON/OFF” Power Switch (1A) up to the vertical position to turn off the Air

Compressor. Then, unplug the Air Compressor’s Power Cord from the electrical

outlet.

4. Slowly and carefully unscrew (no more than four threads) the Water Drain Valve

(10A) until the compressed air and condensation begins to be released from the Air

Tank (9A). Allow sufcient time for all of the air and condensation to escape from

the Air Tank. Then, rmly retighten the Water Drain Valve.

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 8

INSPECTION, MAINTENANCE, AND CLEANING

1. CAUTION: Always disconnect the Air Compressor from its electrical supply source

before performing any inspection, maintenance, or cleaning.

2. BEFORE EACH USE, inspect the general condition of the Air Compressor. Check

all air ttings for leaks. Check for loose screws, misalignment or binding of moving

parts, cracked or broken parts, damaged power cord and plug, and any other

condition that may affect the safe operation of this tool. If abnormal noise or vibration

occurs, immediately disconnect the Air Compressor from its electrical supply source

and have the problem corrected before further use.

Do not use damaged equipment.

3. DAILY: Check the Air Compressor oil level. If necessary, ll with a premium quality,

30-weight, non-detergent compressor oil. NOTE: When checking the oil level, make

sure to unscrew (do not pull) the Breather Valve (14B).

4. DAILY: Purge the Air Tank (9A) of all air and moisture to prevent corrosion. To do

so, slowly and carefully unscrew (no more than four threads) the Water Drain Valve

(10A) until the compressed air and condensation begins to be released from the Air

Tank. Allow sufcient time for all of the air and condensation to escape from the Air

Tank. Then, rmly retighten the Water Drain Valve.

5. EVERY 100 HOURS OF USE: Clean the Air Filter (7A) with a mild solvent. Then, dry

and reattach the Air Filter. NOTE: Replace the Air Filter if it is too dirty to properly

clean.

6. EVERY 500 HOURS OR 12 MONTHS: Replace the old oil with new, premium

quality, 30-weight, non-detergent compressor oil.

7. TO CLEAN: wipe with a damp cloth, using a mild detergent or mild solvent.

8. WHEN STORING: Keep the Air Compressor in a clean, dry location.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES

ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED

TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS

OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT

ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED

TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT

OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING

OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Reference: Overload Switch (35B)

The overload breaker will trip if an over-current condition is sensed, stopping the

motor. If this occurs, shut off the pressure switch and wait at least 5 minutes.

Release the air pressure in the tank to ease restarting. Then press the breaker

button to reset it, and turn on the pressure switch.

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 9

PARTS LIST A / ASSEMBLY DIAGRAM A

Part Description Qty.

1A ON/OFF Power Switch 1

2A Tool Pressure Adjuster 1

3A Tank Pressure Gauge 1

4A Tool Pressure Gauge 1

5A Pressure Release Valve 1

6A Air Flow Valve 1

7A Air Filter 1

8A Air Flow Lid 1

9A Air Tank 1

10A Water Drain Valve 1

Part Description Qty.

11A Quick Release Coupler 1

12A Rubber Wheel with Bolt 2

13A Washer 2

14A Nut 2

15A Fitting 1

16A Oil Drain Plug with Gasket 1

17A Foot 2

18A Unloader Valve 1

19A Polyurethane Unloader Tube 1

20A Copper Air Tube 1

REV 07b; 07f; 10d

10A

12A

13A 14A

15A

11A

16A

17A

18A 19A

20A

(Rear View with motor cover removed.)

12A

SKU 94667 For technical questions, please call 1-800-444-3353. PAGE 10

NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-

able individually as replacement parts.

PARTS LIST B / ASSEMBLY DIAGRAM B

Part Description Qty.

1B Bolt 4

2B Cylinder Case 1

3B Gasket 1

4B Valve Seat 1

5B Gasket 1

6B Cylinder 1

7B Compression Ring 2

8B Oil Scraping Ring 1

9B Piston 1

10B Gasket 1

11B Piston Pin 1

12B* End Cover 1

13B Crankshaft Retainer 2

14B Breather Valve 1

15B Connecting Rod 1

16B Gasket 1

17B Bolt 6

18B Front Cover 1

Part Description Qty.

19B Gasket 1

20B Oil Window 1

21B Crankshaft Bolt 1

22B Crankshaft 1

23B Crankshaft Case 1

24B* Stator 1

25B* Bearing 2

26B* Armature 1

27B Start Capacitor, 70 mF±5% bMK 1

28B Radiating Fan Wheel 1

29B Retainer Ring 1

30B Bolt 4

31B Screw 2

32B Radiating Cover 1

33B* Seal Washer 1

34B Motor Assembly 1

35B Overload Switch 1

36B Run Capacitor, 50 mF±5% bMK 1

*Not available individually. Must be ordered as entire Motor Assembly (See part #34B).

Indice

Altri manuali Central Pneumatic compressore d'aria

Central Pneumatic

Central Pneumatic 67708 Manuale di installazione

Central Pneumatic

Central Pneumatic Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air... Manuale utente

Central Pneumatic

Central Pneumatic 61489 Manuale utente

Central Pneumatic

Central Pneumatic 90168 Manuale di installazione

Central Pneumatic

Central Pneumatic CentralPneumatic 69269 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 93785 Manuale utente

Central Pneumatic

Central Pneumatic 95386 Manuale utente

Central Pneumatic

Central Pneumatic 67708 Manuale di installazione

Central Pneumatic

Central Pneumatic 90749 Manuale utente

Central Pneumatic

Central Pneumatic 67696 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 62913 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 60638 Manuale utente

Central Pneumatic

Central Pneumatic CentralPneumatic 17 GAL Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 94734 Manuale di installazione

Central Pneumatic

Central Pneumatic 98635 Manuale di installazione

Central Pneumatic

Central Pneumatic 62380 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 92097 Manuale utente

Central Pneumatic

Central Pneumatic 95275 Manuale di installazione

Central Pneumatic

Central Pneumatic 95630 Manuale di installazione

Central Pneumatic

Central Pneumatic 68149 Manuale di installazione

Central Pneumatic

Central Pneumatic 93351 Manuale utente

Central Pneumatic

Central Pneumatic 67847 Guida utente

Central Pneumatic

Central Pneumatic 93271 Manuale di installazione

Central Pneumatic

Central Pneumatic FP202800 Manuale di servizio

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
