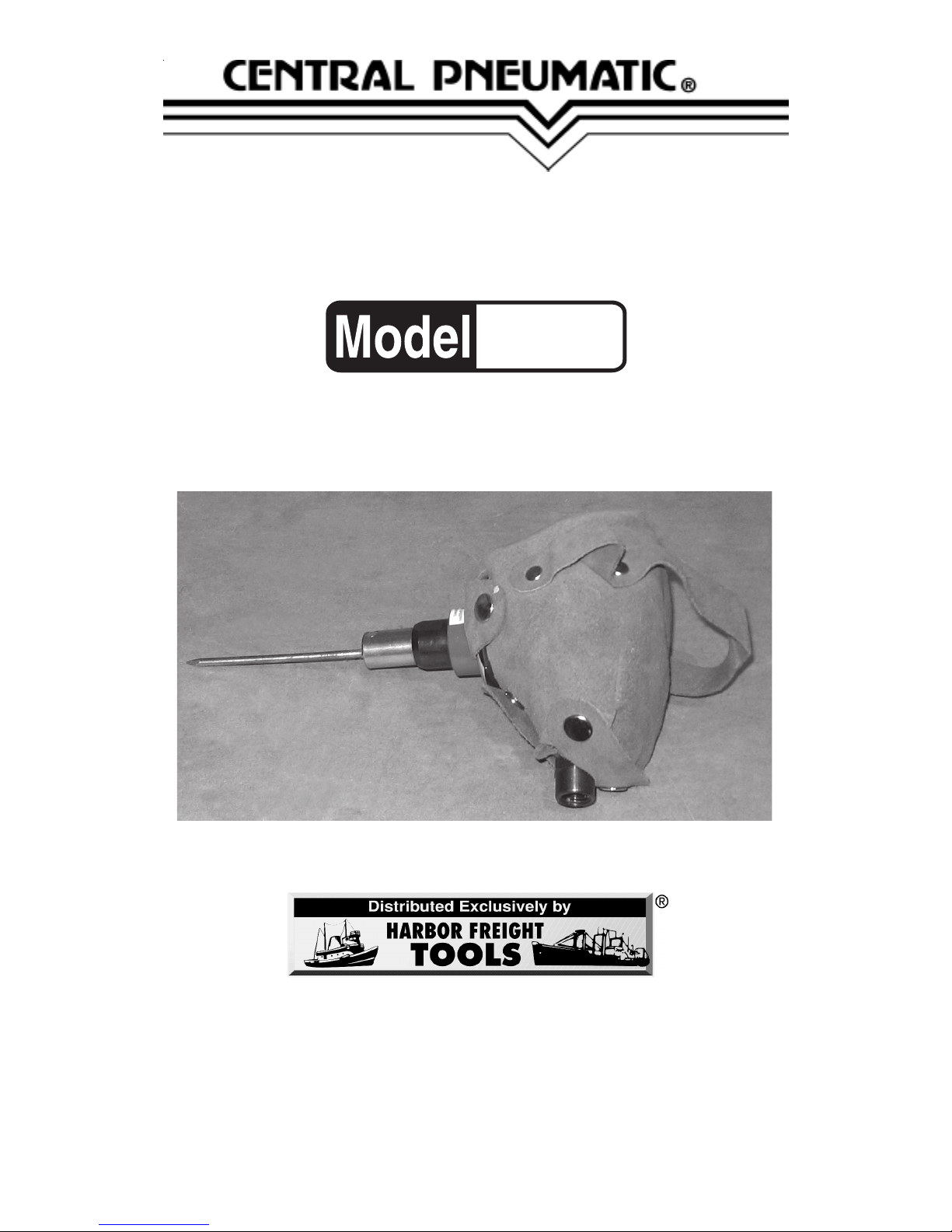

Central Pneumatic 93496 Manuale utente

Air Palm Nailer

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

93496

Due to continuing improvements, actual product may differ slightly from the product described herein.

SKU 93496

For technical questions please call 1-800-444-3353

Page 2

Specifications

Save This Manual

You will need the manual for the safety warnings and precautions, assembly

instructions, operating and maintenance procedures, parts list and diagram. Keep

your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep the manual and invoice in a safe and dry place for

future reference.

Safety Warnings and Precautions

WARNING:When using tool, basic safety precautions should al-

ways be followed to reduce the risk of personal injury and dam-

age to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools such

as air compressor in damp or wet locations. Do not expose to rain. Keep

work area well lit. Do not use electrically powered tools in the presence of

flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do

not let them handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry

location to inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or

attachment to do the work of a larger industrial tool. There are certain

applications for which this tool was designed. It will do the job better

and more safely at the rate for which it was intended. Do not modify this

tool and do not use this tool for a purpose for which it was not intended.

:noitcurtsnoC

,emarFmunimulAtsaC

citengaMdnatelnIriAleetS

.redloHliaNleetS

dnahtgneLliaN.xaM

:eguaG

eguag8x

L"½-3

)dedulcnitonslian(

:snoisnemiDtelnIriAtelnIelameFTPN81"¼ dnaekortSrevirD

:etuniMrepstcapmI

,ekorts"4/

etuniMrePswolB000,1

:noitpmusnoCriAmfc4-2:erusserPriAgnitarepO*isp521-07

:snoisnemiDllarevOH"¼-5xL"¾-4xW"¼

-3:thgieWteN.sbL56.2

REV 11/06

*The air pressure setting must not exceed job site regulations/restrictions.

The air pressure setting must not exceed 90 PSI when being used with work

pieces that have a thickness of less than 1-3/4”.

SKU 93496

For technical questions please call 1-800-444-3353

Page 3

6. Dress properly while working. Do not wear loose clothing or jewelry as they

can be caught in moving parts. Protective, electrically non-conductive work

clothes and non-skid footwear are recommended when working. Wear

restrictive hair covering to contain long hair. Always wear work boots and

work gloves.

7. Use eye and ear protection. Always wear ANSI approved impact

safety goggles. Wear a full face shield if you are producing metal

filings or wood chips. Wear an ANSI approved dust mask or

respirator when working around metal, wood, and chemical dusts and

mists.

8. Do not overreach. Keep proper footing and balance at all times.

Do not reach over or across running machines.

9. Maintain tools with care. Keep tools clean and in good condition for better

and safer performance. Follow instructions for lubricating and changing

accessories. Inspect tool fittings and hoses periodically and, if damaged,

have them repaired by an authorized technician.The handles must be kept

clean, dry, and free from oil and grease at all times.

10. Disconnect Air Hose and release any built-up air pressure. Never service

the Nailer, clear jams, or disassemble with the air hose attached. Always

release any built-up air even after disconnecting hose. Disconnect the Nailer

when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting

wrenches are removed from the tool or machine work surface before

connecting it.

12. Avoid unintentional starting. Be sure the switch is in the Off position when

not in use and before attaching to pressure source. Do not carry any tool with

your finger on the trigger, whether it is attached or not.

13. Stay alert. Watch what you are doing, use common sense. Do not operate

any tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

damaged should be carefully checked to determine that it will operate properly

and perform its intended function. Check for alignment and binding of moving

parts; any broken parts or mounting fixtures; and any other condition that may

affect proper operation. Any part that is damaged should be properly repaired

or replaced by a qualified technician. Do not use the tool if any switch does

not turn On and Off properly.

15. Guard against electric shock when working on electrical equipment.

Prevent body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerator enclosures.

SKU 93496

For technical questions please call 1-800-444-3353

Page 4

16. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only use

accessories intended for use with this tool. Approved accessories are

available from Harbor Freight Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read

warning labels on prescriptions to determine if your judgment or reflexes are

impaired while taking drugs. If there is any doubt, do not operate the tool.

18. Use proper size and type air pressure line and fittings. The recommended

air line for this tool is 3/8” delivering no more than 125 psi. Recommended air

inlet size is 1/4” - 18 npt.

19. Maintenance. For your safety, service and maintenance should be performed

regularly by a qualified technician.

20. Compressed air only. Never use combustible gas as a power source.

21. Do not put a nail into the Air Palm Nailer until you are ready

to work. Do not point the Air Nailer toward any person or animal.

Severe injury may result in case of accidental ejection of a nail.

22. Disconnect air supply when done working. Before storing or

making any adjustments to the Nailer make sure that the compressed air is

disconnected.

23. Fire fasteners into an appropriate work surface only. Do not attempt to fire

fasteners into surfaces too hard to penetrate. Do not drive fasteners on top of

other fasteners, or at too steep of an angle. Fasteners can ricochet causing

personal injury. Never fire the Nailer into the air, or point it toward yourself or

another person. Always wear ANSI approved safety goggles during use,

maintenance, and reloading.

24. Do not fire fasteners too close to the edge of a workpiece. They may split

the workpiece and fly free, causing personal injury.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities, contain chemicals known [to the State of

California] to cause cancer, birth defects or other reproductive harm. Some

examples of these chemicals are:

Lead from lead-based paints

Crystalline silica from bricks and cement or other masonry products

Arsenic and chromium from chemically treated lumber

(California Health & Safety Code 25249.5,

et seq.

)

WARNING: The Brass components of this product contain Lead, a chemical

known to the state of California to cause birth defects (or other reproductive

harm). (Calif. Health &Safety Code 25545.5 et.seq.)

REV 11/06

SKU 93496

For technical questions please call 1-800-444-3353

Page 5

Warning: The warnings, cautions, and instructions discussed in this instruc-

tion manual cannot cover all possible conditions and situations that may oc-

cur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by

the operator.

Air Pressure Supply

This tool is designed to operate with a maximum air pressure of 125 psi.You must

use an air regulator, set at 125 psi or below. Note: Performance of this tool may

vary depending on variations in local air pressure.

In use, this tool will use 2 - 4 Cubic Feet per Minute of compressed air at 125 psi.

For satisfactory performance, you must use an air compressor capable of deliver-

ing this volume of air at the stated pressure.

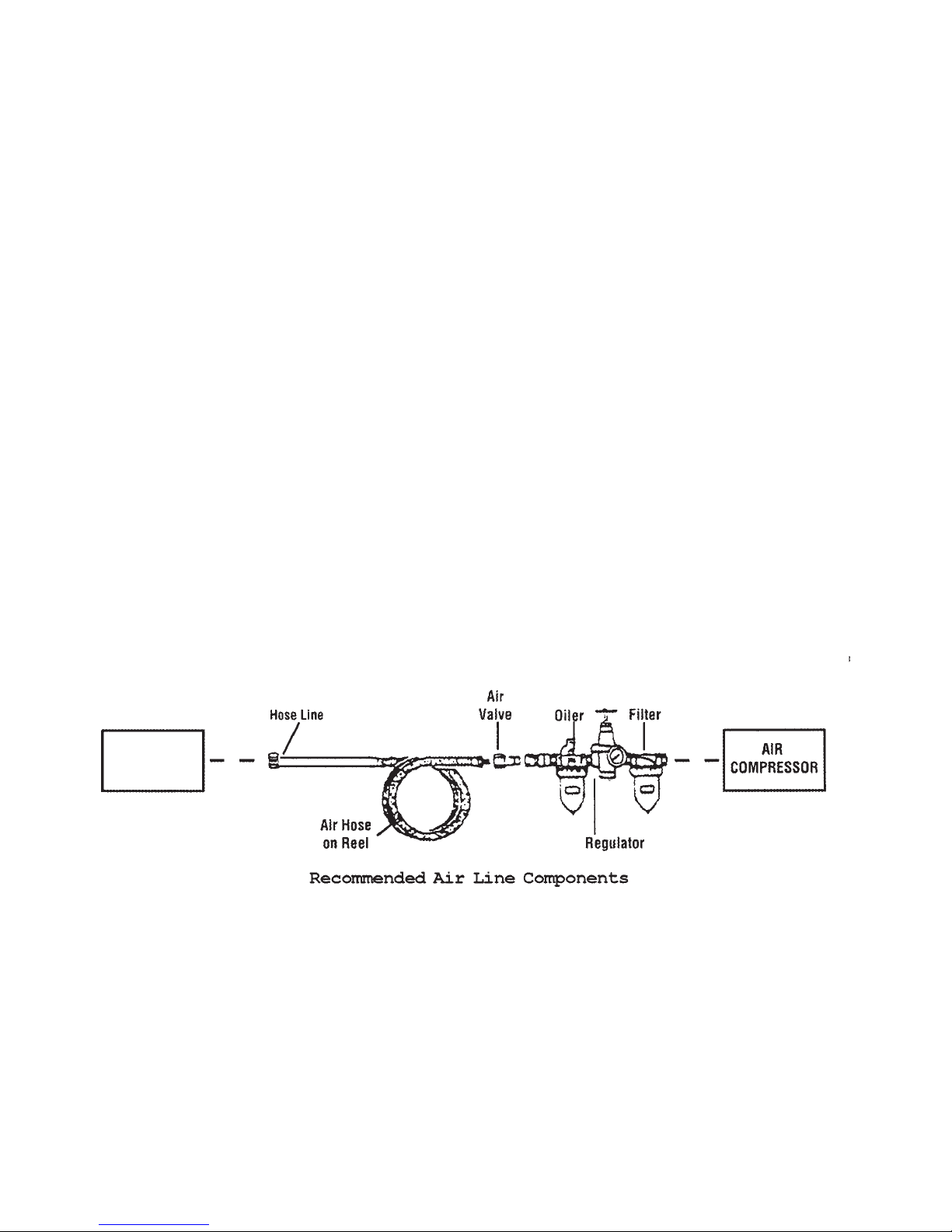

We recommend that you use both a filter and an in-line oiler in your air supply

system as illustrated in the diagram below. These components are not included

with this tool, but are available from Harbor Freight Tools.

If you do not use a filter and in-line oiler, put a few drops of water displacement oil

into the air line before each use. After each use, the Air Hand Nailer should be

carefully drained of collected moisture and sprayed with a water displacement oil.

We recommend that you install a quick-release nipple (not included) into the Air

Inlet (23). Quick release connectors at all points in an air pressure system make

your work easier.

Air Palm

Nailer

Unpacking

When unpacking, check to make sure the following parts are included.

Air Palm Nailer Tool

Leather Cover

(1) 4mm Hex Key

If any parts are missing or broken, please call Harbor Freight Tools at the number

on the cover of this manual.

REV 11/06

SKU 93496

For technical questions please call 1-800-444-3353

Page 6

Operation

NOTE: This tool is assembled when you receive it, and may be used immediately.

However, we recommend that you install a quick disconnect adapter (not included)

to the Air Inlet (23) before use.

WARNING: Do not put a nail into the Air Palm Nailer until you are ready to work.

WARNING: Do not point the Air Palm Nailer toward any person or animal. Severe

injury may result in case of accidental ejection of a nail.

1. Attach the air supply hose (not included) to the tool.

2. Grip the base of the tool in one hand. Note that there is a hand strap and

thumb strap on the Leather Cover (25) to facilitate holding the tool.

CAUTION: Whenever using this tool wear ANSI approved safety goggles.

3. When ready to work, hold a nail by the shaft, and place the flat head into the

Hammer Tip (3). The nail will be held in place by the magnetic tip.

4. Place the pointed end of the nail where desired on the workpiece. Keep your

free hand away from the tool and the nail.

5. Press the tool straight down. This will trigger the tool and cause it to hammer

the nail. Continue pressing down until the nail is driven all the way in.

6. You can adjust the force of the tool’s impact by adjusting the air pressure.

However, do not operate the tool at more than 125 psi.

CAUTION: Disconnect the tool from air pressure supply when not in use, and

before making any adjustments.

7. During operation, the Hammer Tip will hammer 1/4” up to 1,000 times per

minute. This tool is useful for driving nails in tight areas where a full sized air

nail gun may not reach.

8. When the nail is hammered all the way down, the tool will stop operating. To

stop the tool, release the downward pressure on the Hammer Tip.

REV 11/06

SKU 93496

For technical questions please call 1-800-444-3353

Page 7

NOTE: Some parts are listed and shown for illustration purposes only and are not

available individually as replacement parts.

Parts List

Maintenance

1. Place a few drops of light weight air tool oil (not included) into the Air Inlet (23)

each time before using the tool.

2. After each use, drain any accumulated moisture from the tool, and spray a

small amount of water displacing oil into and on the tool. Wipe clean.

3. Store tool in a safe location out of reach of children and unauthorized persons.

Troubleshooting

Tool will not operate.

1. Possible cause: Low or no air pressure.

Solution: Check air compressor to be sure it is operating properly. Check Air

Regulator. Check air lines for leaking or blockage.

2. Possible cause: Corroded Piston (8).

Solution: Spray light weight penetrating oil into the Air Inlet (23). If tool still

won’t operate, take it to a qualified service technician for repair.

3. Possible Cause: Damaged Seals or O rings.

Solution: Take it to a qualified service technician for repair.

#traPnoitpircseD.YTQ#traPnoitpircseD.YTQ

1ydoB141gniRrebbuR1

2xoBediuG151gniRO1

3piTremmaH161evlaV1

4rehsaWgnirpS171gniRO1

5gnirpS181re

voCraeR1

6repmaDrebbuR191gnikcaPevlaV1

7gniRO102gniRO1

8notsiP112teksaG1

9doRnotsiP122wercS4

01gniRO132telnIriA1

11gniRO142hcnerWxeH1

21redn

ilyC152)nwohston(revoCrehtaeL1

31revoCrednilyC1

Note: A hex wrench is included for removing hex bolts when removing the Rear

Cover (18).This work should only be done by a qualified service technician.

Hex Bolt

SKU 93496

For technical questions please call 1-800-444-3353

Page 8

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR

DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE

BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR

THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT,

THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS

AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK

AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT

OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION

OF REPLACEMENT PARTS THERETO.

Assembly Drawing

90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet

high quality and durability standards, and warrants to the original purchaser

that this product is free from defects in materials and workmanship for

the period of 90 days from the date of purchase. This warranty does not

apply to damage due directly or indirectly, to misuse, abuse, negligence or

accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no

event be liable for death, injuries to persons or property, or for incidental,

contingent, special or consequential damages arising from the use of our

product. Some states do not allow the exclusion or limitation of incidental

or consequential damages, so the above limitation of exclusion may not

apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES

OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned

to us with transportation charges prepaid. Proof of purchase date and an

explanation of the complaint must accompany the merchandise. If our

inspection veries the defect, we will either repair or replace the product at our

election or we may elect to refund the purchase price if we cannot readily and

quickly provide you with a replacement. We will return repaired products at

our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost

of returning the product.

This warranty gives you specic legal rights and you may also have other

rights which vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 •

(800) 444-3353

Altri manuali per 93496

Indice

Altri manuali Central Pneumatic Pistola sparachiodi

Central Pneumatic

Central Pneumatic 94446 Manuale utente

Central Pneumatic

Central Pneumatic Contractor 97526 Manuale utente

Central Pneumatic

Central Pneumatic 69927 Manuale utente

Central Pneumatic

Central Pneumatic 92917 Manuale di installazione

Central Pneumatic

Central Pneumatic 90193 Manuale utente

Central Pneumatic

Central Pneumatic 67450 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 68247 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 68021 Manuale di installazione

Central Pneumatic

Central Pneumatic Central Pneumatic Air Nailer/Stapler 2-in-1 Kit... Manuale utente

Central Pneumatic

Central Pneumatic 69450 Manuale utente

Central Pneumatic

Central Pneumatic 68023 Manuale di installazione

Central Pneumatic

Central Pneumatic 44923 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 97525 Manuale utente

Central Pneumatic

Central Pneumatic 68024 Manuale di installazione

Central Pneumatic

Central Pneumatic 98733 Manuale di installazione

Central Pneumatic

Central Pneumatic Contractor Series Manuale utente

Central Pneumatic

Central Pneumatic 42528 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 67100 Manuale di installazione

Central Pneumatic

Central Pneumatic Contractor 97520 Manuale utente

Central Pneumatic

Central Pneumatic 92917 Manuale di installazione

Central Pneumatic

Central Pneumatic 93680 Manuale utente

Central Pneumatic

Central Pneumatic 93257 Manuale utente

Central Pneumatic

Central Pneumatic Contractor 97524 Manuale utente

Central Pneumatic

Central Pneumatic 93760 Manuale utente

Manuali Pistola sparachiodi popolari di altre marche

Performance Tool

Performance Tool M643 Manuale utente

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manuale utente

Parkside

Parkside PET 25 B1 Manuale utente

Senco

Senco Fusion Technology F-35XP Manuale utente

Grizzly

Grizzly G1847 Manuale utente

Ryobi

Ryobi R18N18G Manuale utente

Black & Decker

Black & Decker 492848-00 Manuale utente

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manuale utente

Metabo HPT

Metabo HPT NR 3690DC Manuale di istruzioni

Surtek

Surtek CN650 Dimensioni e guida di installazione

Makita

Makita GF600 Manuale utente

Parkside

Parkside PET 25 B1 Manuale utente

Senco

Senco AirFree 25 Manuale utente

Freeman

Freeman P50LSLW Manuale utente

Aicon PRO

Aicon PRO DAC4507 Manuale utente

DAJ

DAJ XR150A Manuale utente

Makita

Makita AN923 Manuale utente

Grizzly

Grizzly T20644 Manuale utente
