AIR BRAD FINISH NAILER

16 GAUGE - 2”

97520

94481

ASSEMBLY AND OPERATING INSTRUCTIONS

Diagrams within this manual may not be drawn proportionally.

Due to continuing improvements, actual product may differ slightly from the product described herein.

Distributed exclusively by Harbor Freight Tools®.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

Model

REV 08g

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 2

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

SAFETY WARNINGS AND PRECAUTIONS

WARNING: When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp

or wet locations. Do not expose to rain. Keep work area well lit. Do not use

electrically powered tools in the presence of ammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not

let them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location

to inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attachment

to do the work of a larger industrial tool. There are certain applications for

which this tool was designed. It will do the job better and more safely at the rate

for which it was intended. Do not modify this tool, and do not use this tool for a

purpose for which it was not intended.

Fastener Size Capacity 3/4” ~ 2” Long / 16 Gauge

Magazine Capacity 100 Fasteners

Load Style Top Loading Magazine

Nose Piece Design Spring Actuated Quick Release

Maximum Air Pressure 120 PSI

Average Air Flow 5 ~ 6 SCFM @ 90 PSI

Air Inlet Size 1/4”-18 NPT

Trigger Mechanism Full Sequential

Accessories Pneumatic Tool Oil / Wrenches (Qty. 2)

Overall Dimensions 11-3/4” L x 2-3/4” W x 11-1/4” H

Unit Weight 3.9 Pounds

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 3

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically non-conductive clothes and non-skid foot-

wear are recommended when working. Wear restrictive hair covering to contain

long hair.

7. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines or air hoses.

8. Use eye and ear protection. Always wear ANSI approved impact safety

goggles and appropriate hearing protection. Wear a full face shield if you

are producing metal lings or wood chips. Wear a NIOSH approved dust

mask or respirator when working around metal, wood, and chemical dusts

and mists. Other people in the work area must also wear ANSI approved

impact safety goggles.

9. Maintain tools with care. Keep tools clean for better and safer performance.

Follow instructions for lubricating and changing accessories. Inspect tool cords

and air hoses periodically and, if damaged, have them repaired by a qualied

technician. The handle must be kept clean, dry, and free from oil and grease at

all times. Do not operate a tool if any portion of the tool’s operating controls are

inoperable, disconnected, altered, or not working properly.

10. Disconnect air hose and release any built-up air pressure. Never service the

Nailer, clear jams, or disassemble with the air hose attached. Always release

any built-up air even after disconnecting hose. Disconnect the Nailer when not

in use.

11. Remove adjusting wrenches. Check that adjusting wrenches are removed

from the tool or machine work surface before attaching to an air source.

12. Avoid unintentional starting. Be sure the trigger is in the OFF position when

not in use and before plugging in. Do not carry any tool with your nger on

the trigger, whether it is attached to an air source or not. Do not point the tool

towards yourself or anyone whether it contains brads or not.

13. Stay alert. Watch what you are doing. Use common sense. Do not operate any

tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

damaged should be carefully checked to determine that it will operate properly

and perform its intended function. Check for alignment and binding of moving

parts, any broken parts or mounting xtures, and any other condition that may

affect proper operation. Any part that is damaged should be properly repaired

or replaced by a qualied technician. Do not use the tool if the trigger does not

operate properly.

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 4

15. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. This product is to be repaired and

serviced only by a qualied technician. When this product is serviced, only

identical replacement parts should be used. Use of any other parts will void

the warranty. Only use accessories intended for use with this tool. Approved

accessories are available from Harbor Freight Tools.

17. Do not operate tool if under the inuence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reexes

are impaired while taking drugs. If there is any doubt, do not operate the tool.

18. Use proper size and type extension cord for an air compressor. If an

extension cord is required, it must be of the proper size and type to supply the

correct current to the compressor without heating up. Otherwise, the extension

cord could melt and catch re, or cause electrical damage to the compressor.

Check your air compressor’s manual for the appropriate size cord. It is also

possible that the use of an extension cord may cause your circuit breaker to trip

or your panel fuse to break. If this happens, either use the compressor without

an extension cord or nd a larger amperage circuit to use.

19. Maintenance. The maintenance outlined in the “Maintenance” section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualied technician.

20. Compressed air only. Use clean, dry, regulated, compressed air at between 70

and 120 PSI. Never use oxygen, carbon dioxide, combustible gases, or any

other bottled gases a power source for this tool.

21. Do not load brads with the trigger or safety depressed. Unintentional

ring may occur. Do not load brads when the air hose is connected to the

tool. Always assume the tool contains brads.

22. Disconnect air supply before loading the Nailer. Before reloading (or making

any adjustments to) the Nailer, make sure the compressed air is disconnected.

23. Fire brads into an appropriate work surface only. Do not attempt to re

brads into surfaces too hard to penetrate. Do not drive brads on top of other

brads, or at too steep an angle. Brads can ricochet, causing personal injury.

Never re the Nailer into the air, or point it toward yourself or another person.

Always wear ANSI approved impact safety goggles during use, maintenance, and

reloading.

24. Do not re brads too close to the edge of a workpiece. They may split the

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 5

25. Take caution, as some woods contain preservatives such as copper

chromium arsenate (CCA) which can be toxic. When nailing these materials

extra care should be taken to avoid inhalation and minimize skin contact.

WARNING: Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities contain chemicals known (to the State of

California) to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

* Lead from lead-based paints,

* Crystalline silica from bricks, cement, and other masonry products,

* Arsenic and chromium from chemically treated lumber.

(California Health & Safety Code 25249.5, et seq.)

26. Stay within air pressure capacity. Never operate the Nailer above 120 PSI.

27. Hold tool away from head and body. During operation the Nailer may kick

back, causing injury.

28. Transport Nailer safely. Always disconnect air supply when moving the tool in

the workplace. Carry the tool by the handle to avoid contact with the trigger.

29. Avoid working alone. If an accident happens, an assistant can bring help.

30. Note: Performance of the compressor (if powered by line voltage) may vary

depending on variations in local line voltage. Extension cord usage may also

affect the tool performance.

31. WARNING: The warnings, cautions, and instructions discussed in this

instruction manual cannot cover all possible conditions and situations that may

occur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by the

operator.

UNPACKING

When unpacking, check to make sure that the product is intact and undamaged.

If any parts are missing or broken, please call Harbor Freight Tools at the number

shown on the cover of this manual as soon as possible.

workpiece and y free, causing personal injury.

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 6

TESTING THE FULL SEQUENTIAL SAFETY TRIP MECHANISM

WARNING: Even though the Nailer should be empty during this procedure,

ALWAYS point the Nailer at a piece of scrap wood when testing.

1. Make sure the tool is disconnected from its air supply.

2. Completely empty the Magazine Assembly (70) of Brads.

3. The Nailer should not re if the Safety (50A) is not depressed against the

workpiece.

4. Make sure the Trigger (36) and Safety (50A) move freely, without sticking.

OPERATION

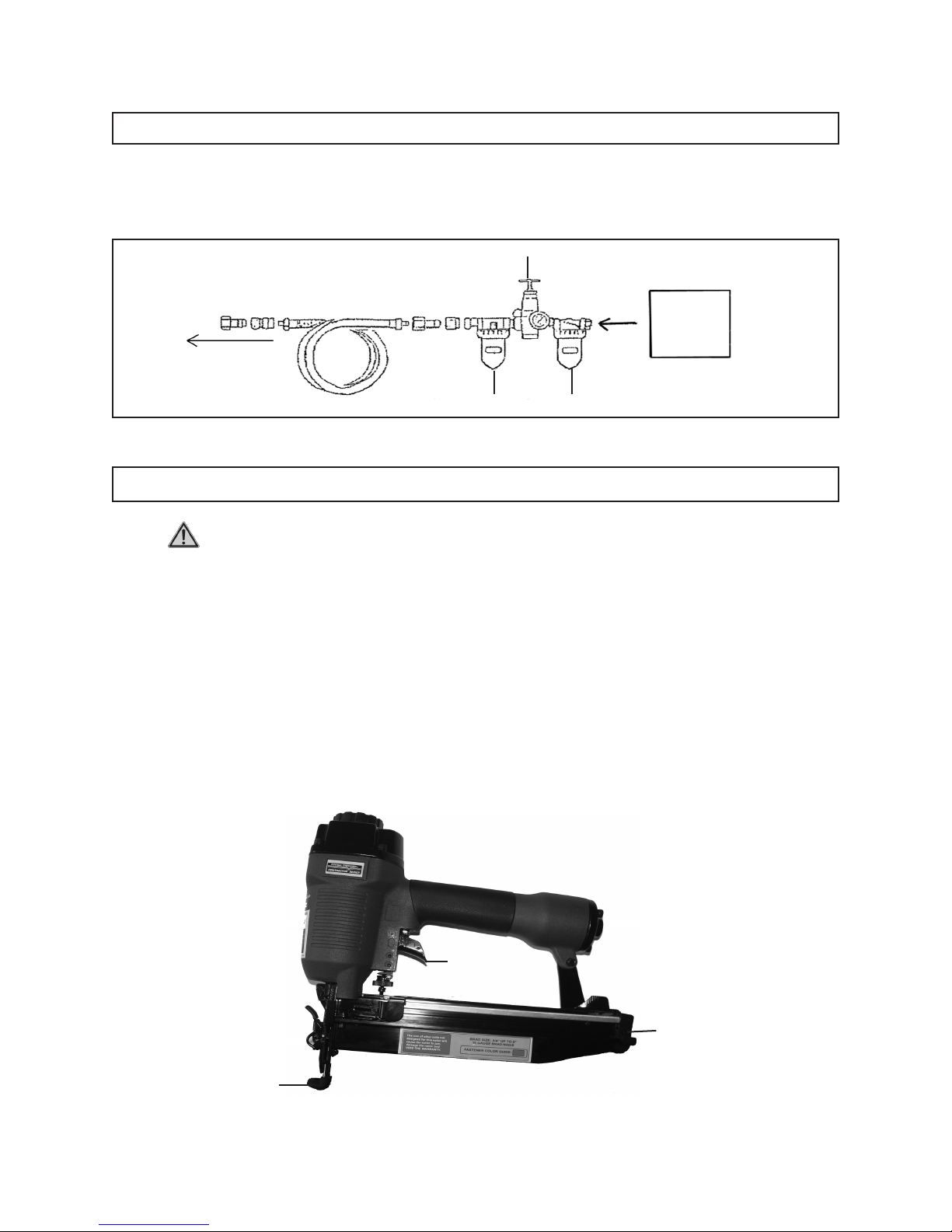

For best service, you should incorporate a regulator and an in-line lter and oiler

as shown in the diagram below. Hoses, couplers, regulators, lters, and oilers

are all available from Harbor Freight Tools.

AIR

COMPRESSOR

OILERFILTER

REGULATOR

AIR BRAD

FINISH

NAILER

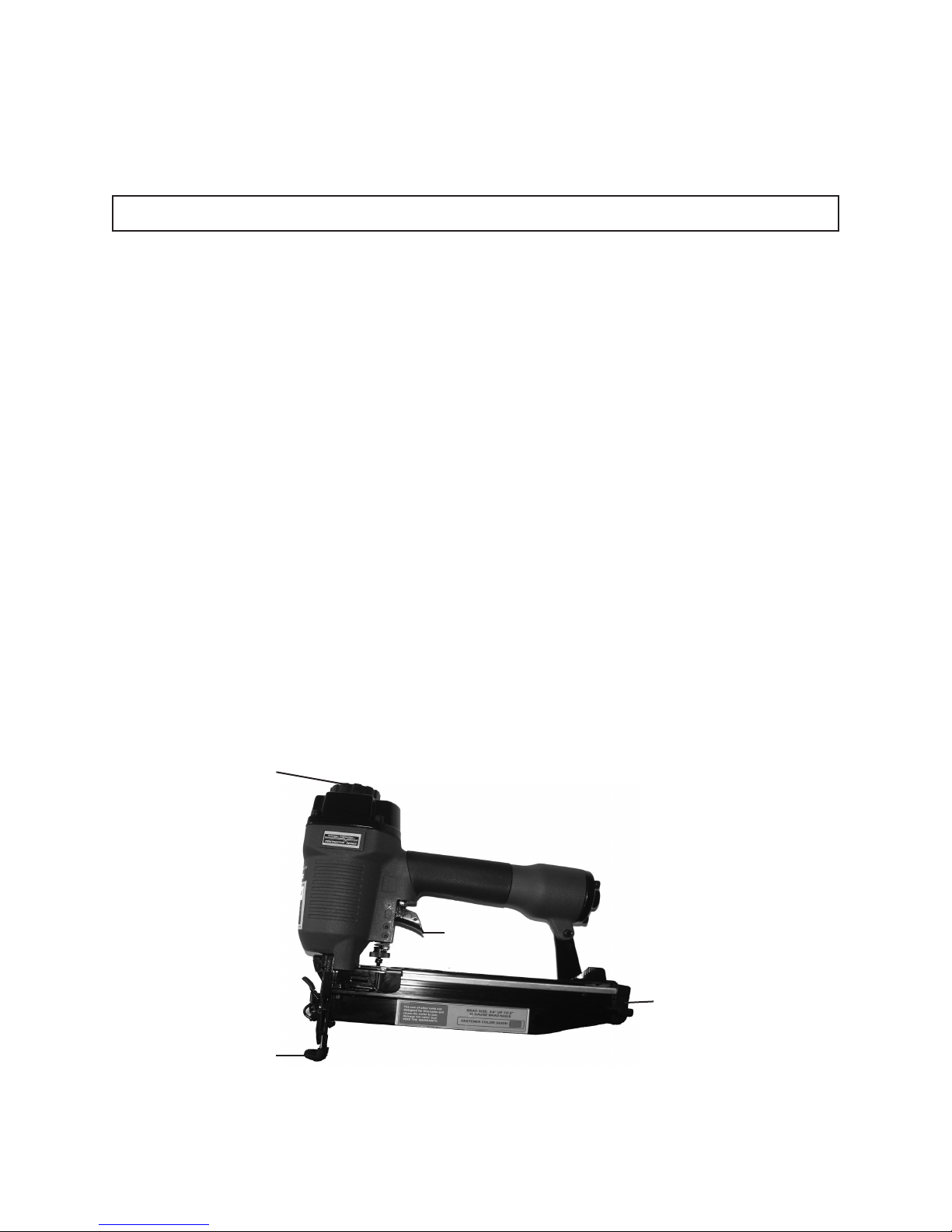

Trigger (36)

Magazine Assembly

(70)

Safety (50A)

REV 08g

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 7

5. Connect the air supply to the tool at the Quick Connector (83). Set the regulator

at the recommended 70 to 120 operating PSI. Do not exceed the maximum

120 PSI.

6. Test the tool by depressing the Safety (50A) against the workpiece without

pulling the Trigger (36). The tool must not cycle (re). If it cycles (res), stop

immediately and have it repaired by a qualied service technician.

7. Hold the tool away or off the workpiece. The Safety (50A) of the tool should

return to its original position. Squeeze the Trigger (36). The tool should not

cycle (re). If the tool cycles (res), stop immediately and have it repaired by a

qualied service technician.

8. Depress the Safety (50A) against the workpiece and squeeze the Trigger (36).

The tool must cycle (re) only once. Release the Trigger and squeeze it

again. The tool must not cycle (re). With the Trigger held, carefully lift

the Nailer and press it against the workpiece again. The tool must not cycle

(re). If it fails to perform in the manner explained in bold, have it repaired by a

qualied service technician.

LOADING BRADS

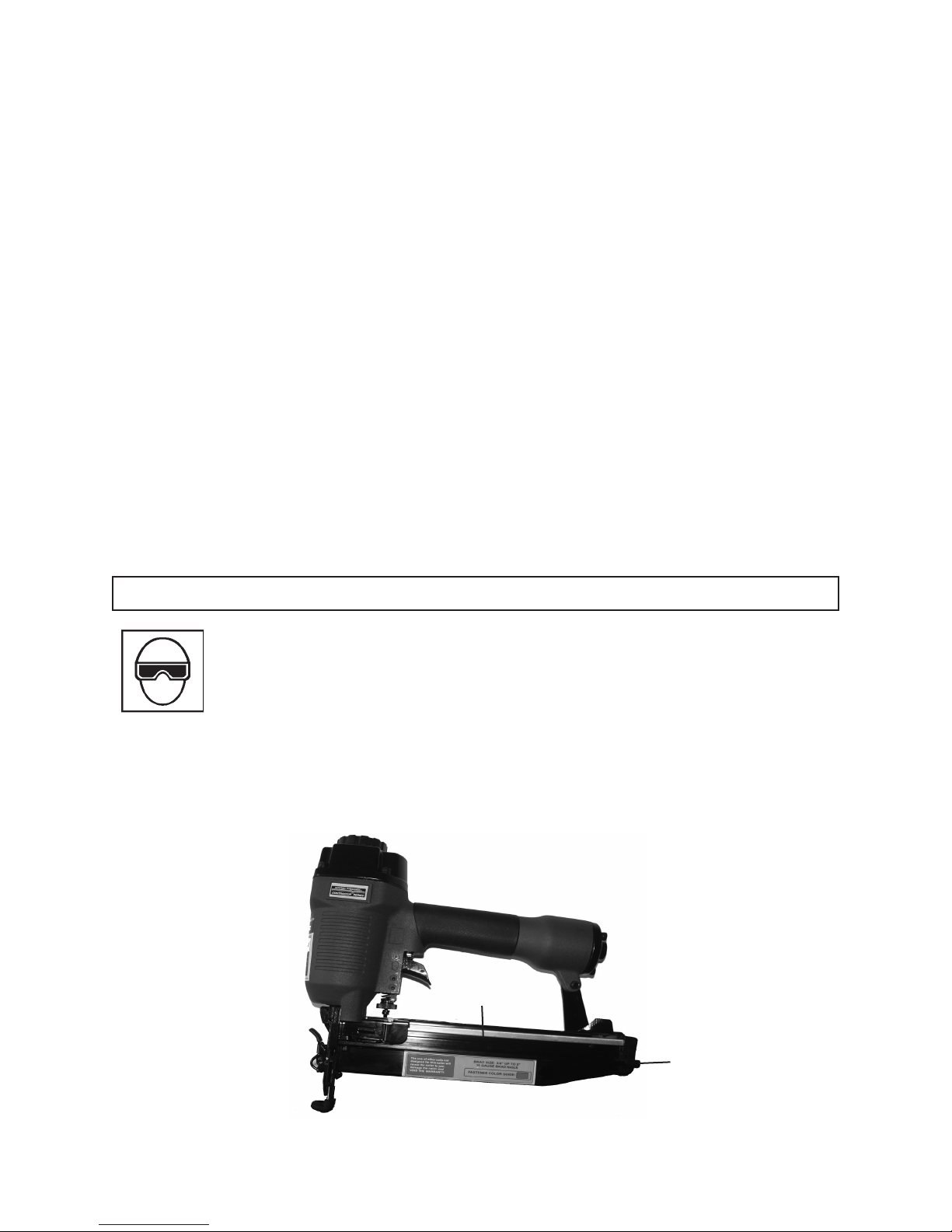

WARNING: Always wear ANSI approved impact safety goggles when

reloading or performing any other maintenance on this tool. Other

people in the work area must also wear ANSI approved impact safety

goggles.

1. Slide the Pusher (63) back until it locks in place.

2. Place a full clip of the desired size Brads (3/4” to 2”) in the Magazine Assembly

(70). Up to 100 Brads may be loaded in the Magazine.

Pusher (63)

Magazine

Assembly (70)

REV 08g

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 8

3. While holding the Pusher (63) in place, press the Release (74) and slide the

Pusher forward.

OPERATING THE NAILER

1. Attach the Nailer to the air supply at the Quick Coupler (83). Start your

compressor and check the pressure, making sure it is set at the recommended

70-120 PSI.

Do not exceed the maximum 120 PSI.

2. Rotate the Exhaust Cover (2) so that the exhaust air blast will be directed

away from the operator.

3. To re, place the Safety (50A) of the Nailer on the workpiece. The Nailer

should not re if the Safety is not depressed. Once depressed, gently and briey

squeeze the Trigger (36) once; one Brad will be red.

4. Do not press the Safety (50A) against the workpiece with extra force. Allow

the tool to do the work. Always allow the tool to recoil off the work surface.

5. When nished using the Nailer, always disconnect the tool from its air supply.

Empty the Magazine Assembly (70) completely of Brads. Attempt to re the

Nailer into a piece of scrap wood to ensure it is disconnected and is incapable of

ring any Brads.

6. Make sure to store the Nailer in a clean, dry, safe location out of reach of

children.

Trigger (36)

Magazine Assembly

(70)

Safety (50A)

Exhaust Cover

(2)

REV 08g

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 9

Anytime any maintenance or repairs are done (including clearing jams), FIRST:

1. Disconnect the Nailer from its air supply.

2. Empty the Magazine Assembly (70) completely.

3. Attempt to re the Nailer into a piece of scrap wood to ensure that it is

disconected and is incapable of ring any Brads.

CLEARING JAMS

Use eye and ear protection when clearing jams. Always wear ANSI

approved impact safety goggles and appropriate hearing protection.

1. Occasionally, a Brad may become jammed in the ring mechanism of the

Nailer, making the tool inoperable.

2. To remove a jammed Brad, disconnect the Nailer from its air supply.

3. Slide the Pusher (63) back until it locks in place. Then, lean the Nailer back.

4. Remove all Brads from the Magazine Assembly (70).

5. While holding the Pusher (63) in place, press the Release (74) and slide the

Pusher forward all the way.

6. Attempt to re the Nailer into a piece of scrap wood to ensure it is disconnected

and is incapable of ring any Brads.

7. With the Driver Guide Cover (52A) facing away from you, push the Locker Spring

(92) and remove Driver Guide Cover.

8. Remove the jammed Brad.

9. Close the Driver Guide Cover (52A), making sure it locks in place.

10. Reload the Nailer with Brads. Then, reconnect the air supply hose to the tool.

11. Press the Safety (50A) against a piece of scrap wood, and test re the Nailer

several times while checking for proper operation. If the Nailer is properly ring,

you may continue using the tool. If the tool fails to perform properly, immediately

discontinue use and have the tool repaired by a qualied service technician.

12. When nished working, disconnect the air supply. Remove the Brads. Then,

store the Nailer in a clean, dry, safe location out of reach of children.

SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 10

1. Inspect the air supply Screen that is located in the End Cap (81) before each

use, and clean or replace as necessary. Dirt and water in the air supply Screen

are major causes of pneumatic tool wear. Use a lter in the compressed air

system for better performance and longer tool life. The lter must have adequate

ow capacity for the specic application.

2. Clean the external parts of the Nailer with a clean cloth and mild detergent or

non-ammable solvent. Then, dry.

3. Store the tool in a clean, dry, safe location out of reach of children.

4. CAUTION: All maintenance, service, or repairs not listed in this manual

are only to be attempted by a qualied service technician.

INSPECTION, MAINTENANCE, AND CLEANING

TROUBLESHOOTING

Problem Possible Solutions

Air leak near top of tool. 1. Tighten all screws on the cylinder cap.

2. Have a qualied service technician install a head valve piston set.

Tool does not work. 1. Make sure compressor is set between 70 to 120 PSI.

2. Check all air connections for leaks.

3. Make sure to fully depress the safety sleeve on the workpiece when attempting to re

a fastener.

4. Check for fastener jams. Clear the jam if necessary.

5. Have a qualied service technician check out the tool.

Sluggish operation. 1. Make sure the compressor is set between 70 to 120 PSI.

2. Check all air connections for leaks.

3. Have a qualied service technician install a head valve piston set.

Air leak near bottom of tool. 1. Tighten all screws.

2. Have a qualied service technician replace the bumper or head valve piston set.

Poor return after ring the tool. Have a qualied service technician clean the interior of the tool and/or replace the bumper

or head valve piston set.

Weak driving force. 1. Make sure compressor is set between 70 to 120 PSI.

2. Check all air connections for leaks.

3. Have a qualied service technician clean the interior of the tool and/or replace the

bumper or head valve piston set.

Poor feed. Have a qualied service technician clean the interior of the tool and/or lubricate the

magazine and install a new magazine spring.

Tool jamming too often. Have a qualied service technician clean the interior of the tool and/or lubricate the

magazine and install a new magazine spring.

Anytime any maintenance or repairs are done, FIRST:

1. Disconnect the Nailer from its air supply.

2. Empty the Magazine Assembly (70) completely.

3. Attempt to re the Nailer into a piece of scrap wood to ensure that it is

disconnected and is incapable of ring any Brads.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Central Pneumatic Pistola sparachiodi

Central Pneumatic

Central Pneumatic Contractor 97526 Manuale utente

Central Pneumatic

Central Pneumatic 98917 Manuale di installazione

Central Pneumatic

Central Pneumatic 67100 Manuale di installazione

Central Pneumatic

Central Pneumatic 92359 Manuale utente

Central Pneumatic

Central Pneumatic 94446 Manuale utente

Central Pneumatic

Central Pneumatic 95218 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic Professional 97512 Manuale utente

Central Pneumatic

Central Pneumatic 92917 Manuale di installazione

Central Pneumatic

Central Pneumatic 68057 Manuale utente

Central Pneumatic

Central Pneumatic 66995 Manuale di installazione

Central Pneumatic

Central Pneumatic 96364 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 92917 Manuale di installazione

Central Pneumatic

Central Pneumatic 66902 Manuale di installazione

Central Pneumatic

Central Pneumatic 93909 Manuale di installazione

Central Pneumatic

Central Pneumatic 41209 Manuale utente

Central Pneumatic

Central Pneumatic 68021 Manuale di installazione

Central Pneumatic

Central Pneumatic Contractor 97524 Manuale utente

Central Pneumatic

Central Pneumatic 68021 Manuale di installazione

Central Pneumatic

Central Pneumatic 47612 Contractor Series Manuale di installazione

Central Pneumatic

Central Pneumatic 93680 Manuale utente

Central Pneumatic

Central Pneumatic 93496 Manuale utente

Central Pneumatic

Central Pneumatic 46309 Manuale utente

Central Pneumatic

Central Pneumatic 92359 Manuale di installazione

Central Pneumatic

Central Pneumatic 98733 Manuale di installazione

Manuali Pistola sparachiodi popolari di altre marche

Performance Tool

Performance Tool M643 Manuale utente

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manuale utente

Parkside

Parkside PET 25 B1 Manuale utente

Senco

Senco Fusion Technology F-35XP Manuale utente

Grizzly

Grizzly G1847 Manuale utente

Ryobi

Ryobi R18N18G Manuale utente

Black & Decker

Black & Decker 492848-00 Manuale utente

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manuale utente

Metabo HPT

Metabo HPT NR 3690DC Manuale di istruzioni

Surtek

Surtek CN650 Dimensioni e guida di installazione

Makita

Makita GF600 Manuale utente

Parkside

Parkside PET 25 B1 Manuale utente

Senco

Senco AirFree 25 Manuale utente

Freeman

Freeman P50LSLW Manuale utente

Aicon PRO

Aicon PRO DAC4507 Manuale utente

DAJ

DAJ XR150A Manuale utente

Makita

Makita AN923 Manuale utente

Grizzly

Grizzly T20644 Manuale utente
