Centro 120407 Manuale utente

Sink & Preparation Centre

Assembly Manual

85-1140-8 (A01201)

Limited 3-Year Warranty

Read and save manual for future reference.

Assemble your grill immediately.

Missing or damaged parts should be

claimed within 15 days of purchase.

Call the Centro Hotline at 1-877-707-5463.

Manual Revision #: 120407

Attention:

Garden hose NOT included.

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance

b. Extinguish any open ame

c. Open lid

d. If odor continues, keep away from

the appliance and immediately

call your gas supplier or your

re department

2. Do not store or use gasoline or other

ammable vapours and liquids in the

vicinity of this or any other appliance.

3. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

4. Requires two people to complete the

assembly process.

5. Beware of sharp edges.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous res,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

To ORDER non-warranty replacement parts or accessories,

or to register your warranty, please visit us on the web at

www.centrobbqs.com.

CAUTION

Read and follow all safety statements,

assembly instructions, and use and care

directions before attempting to assemble

and cook.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at

all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

ASSEMBLY INSTRUCTIONS

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

• Rubber Mallot

Before assembling the barbecue, read these

instructions carefully.

Assemble the barbecue on a at, clean surface.

Grill is heavy.

Notes: Do not fully tighten all the nuts during this

initial stage.

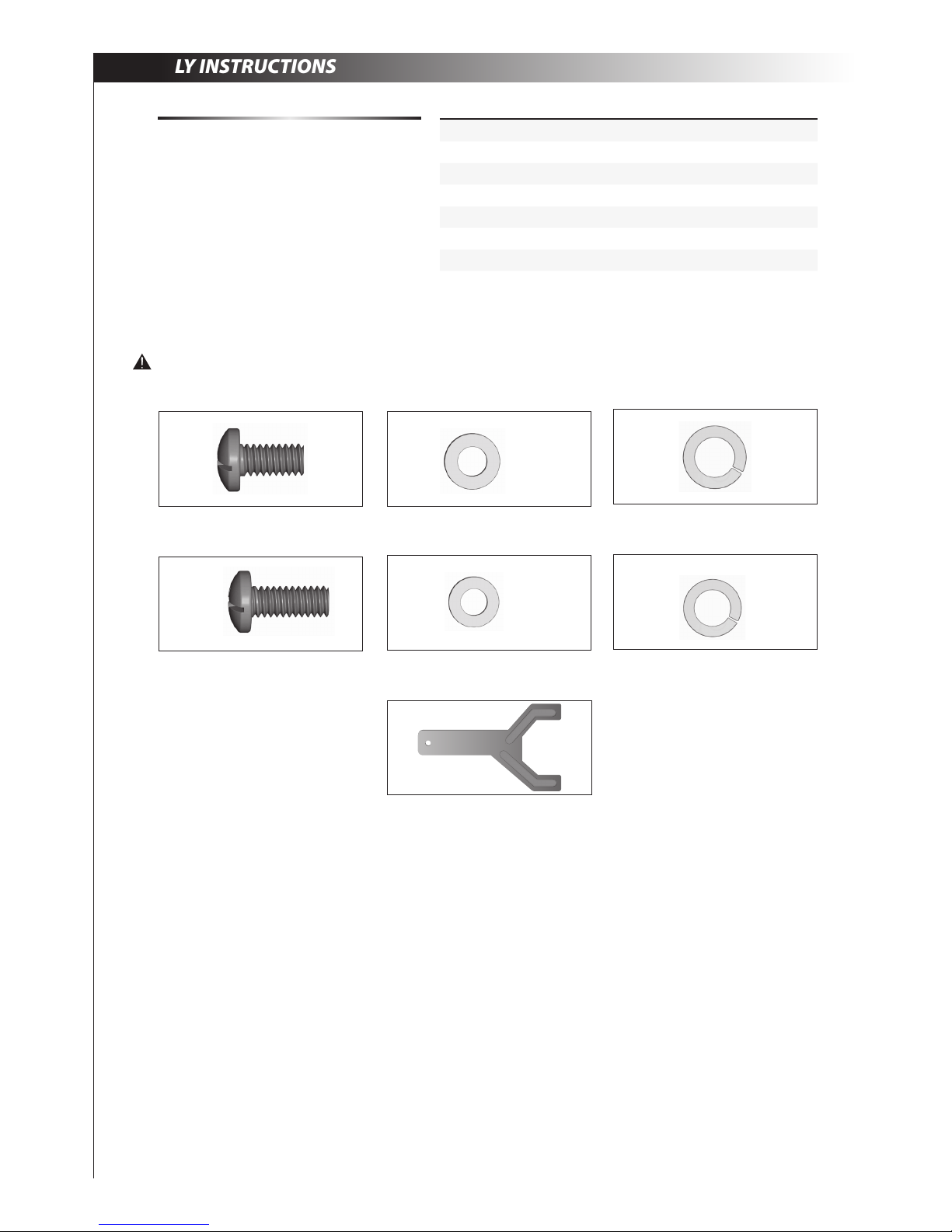

No. Description Part Number Quantity

11/4"-20UNC×13 Screw 20120-13013-250 10

2ø7 Flat Washer 41400-07000-250 10

3ø7 Lock Washer 40300-07000-250 10

4NO.10-24UNC x10 Screw 20124-10010-250 14

5ø5 Lock Washer 41400-05000-250 14

6ø5 Washer 40300-05000-250 14

7Wrench G413-0032-9082 1

#1. ¼” - 20UNC×13 Screw (x10)

#4. NO.10-24UNC x10 Screw (x14)

#10. Wrench (x1)

#2. ø7 Flat Washer (x10)

#5. ø5 Lock Washer (x14)

#3. ø7 Lock Washer (x10)

#6. ø5 Washer (x14)

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

PARTS LIST FOR 85-1140-8 (A01201)

Item Quantity Description Part No.

A1 1Main Cart Frame Assembly A012-0100-01

A2 1Sink Assembly A006-0900-01

A3 1Upper Back Panel A012-0008-01

B1Connector A006-0018-01

C 1 Faucet A006-0009-01

D 1 Cutting Board A012-0002-01

E1 1 Sink Strainer A006-0028-01

E2 1 Sink Hose A006-0022-01

F1 1 Condiment Holder A012-0005-01

F2 1 Cuisine Logo A012-0006-01

F3 1 Towel Bar G502-0016-01

G 1 Front Brace A012-0001-01

H1 1Handle for Trash Basket A012-0014-01

H2 1Trash Basket A012-0013-01

I 1 Back Panel A012-0007-01

J 1 Left Side Panel, Cart A012-0200-01

K 1 Right Side Panel, Cart A012-0300-01

L1 1 Pillar, Left A012-0600-01

L2 1 Pillar, Right A012-0700-01

L3 2 Magnet Assy G401-0052-01

M 1 Door Assy A012-3000-01

N 1 Bottom Shelf A012-0500-01

O 2 Caster Assy W/ Lock G401-0061-01

P2Caster Assy G606-0027-01

Q 1 Joint Hook A012-0016-01

1Hardware Pack A012-B001-01

1Assembly Manual A012-M001-01

1Safety & Care Manual G617-M001-02

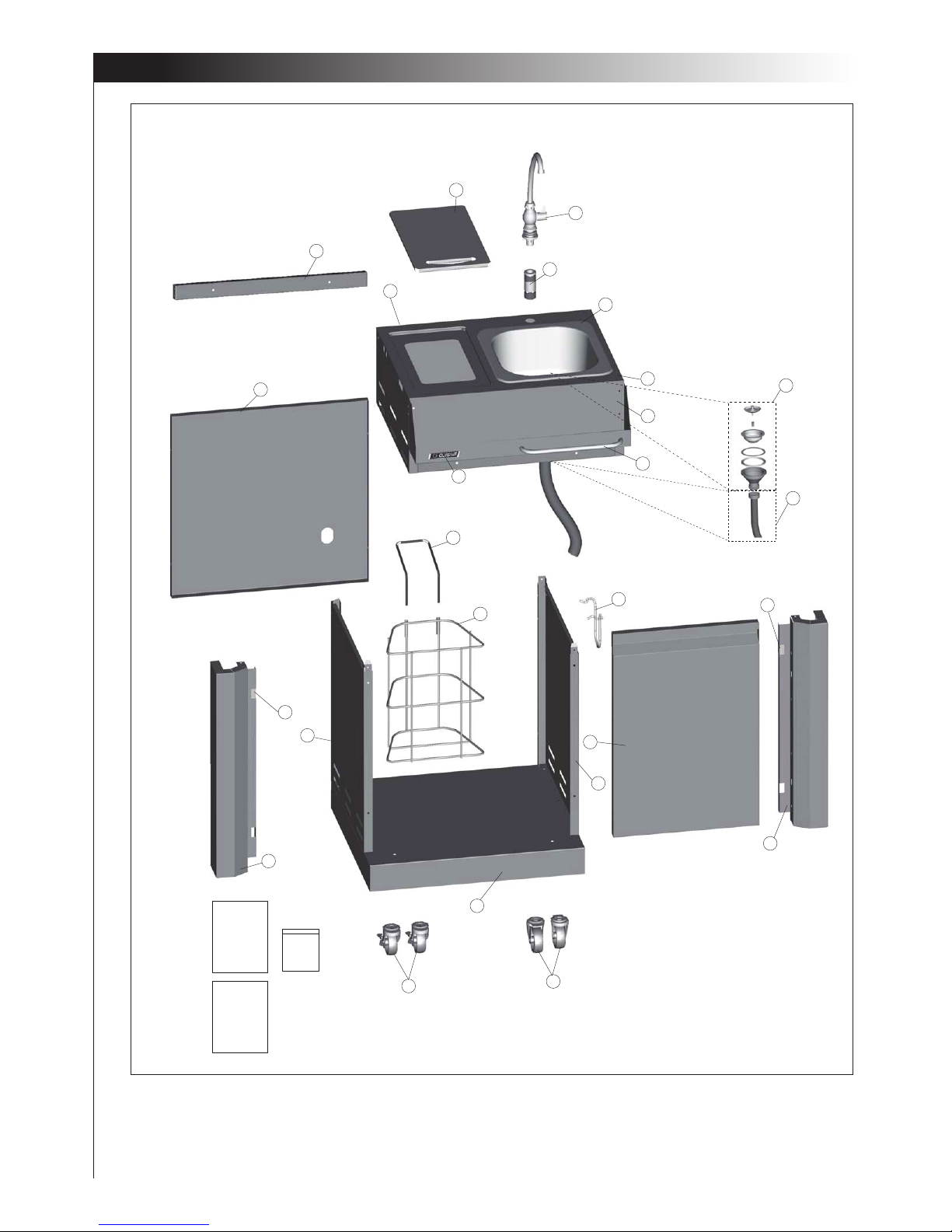

EXPLOADED DIAGRAM FOR 85-1140-8 (A01201)

A1 E1

Manual

Safety & Care

Manual

Hardware

Pack

ASSEMBLY INSTRUCTIONS

Front view

#3 ø7 Lock Washer(X6)

#1 1/4"-20UNCx13 Screw(X6)

#2 ø7 Flat Washer(X6)

Separate the 2 dierent types of wheels, 2 locking wheels

(O) and 2 regular wheels (P).

Attach the locking wheels (O) to the back of the bottom

shelf (N) and the regular wheels (P) to the front of the

bottom shelf (N).

To secure the 4 wheels, hand tighten rst. Then, tighten

further using the wrench provided in the hardware pack.

Ensure that the wheels are rmly locked in the “ON” position

before continuing.

Assemble the left side panel (J) and the right side panel (K)

to the bottom shelf (N).

ASSEMBLY INSTRUCTIONS

L2 L1

#3 ø7 Lock Washer(X4)

#1 1/4"-20UNCx13 Screw(X4)

#2 ø7 Flat Washer(X4)

#4 No.10-24UNC x10 Screw(X6)

#5 ø 5 Lock Washer(X6)

#6 ø 5 Washer(X6)

Front view

Back view

Attach the left pillar (L1) and the right pillar (L2) to the side

panels (J & K) and to the bottom shelf (N), as shown in Figure

A and B.

Attach the back panel (I) to the rear of the left and right cart

side panels (J & K).

ASSEMBLY INSTRUCTIONS

#4 No.10-24UNC x10 Screw(X6)

#5 ø 5 Lock Washer(X6)

#6 ø 5 Washer(X6)

Underside of the main cart frame.

Back view

From underneath the sink cart, attach the sink

hose (E2) to the sink assembly (A2).

THIS STEP REQUIRES 2 OR MORE PEOPLE.

DO NOT ATTEMPT ALONE. EXTREMELY HEAVY!

a. Position the main cart frame (A) onto the cart

assembly, as shown in Figure A.

b. Use the hardware to connect both parts, on the

left and right sides, at the four points indicated

in Figure B.

B. B.

ASSEMBLY INSTRUCTIONS

#4 No.10-24UNC x10 Screw(X2)

#5 ø 5 Lock Washer(X2)

#6 ø 5 Washer(X2)

L1 L2

Front view

Attach the front brace (G) to the left and right pillars

(L1 & L2).

TIP: One person should align the left side, while the

second person assembles the right side.

a. Locate the door anchor pins on both the left

and right pillars (L1 & L2).

b. Locate the holes on the bottom of the door (M).

Insert the door anchor pins into the door.

Tip: push in on the door anchor pin with

something solid so that the door can slide

into place.

ASSEMBLY INSTRUCTIONS

Insert the handle for the trash basket (H1) into the

back of the trash basket (H2).

Slide the trash basket (H2) down the rails that are

located behind the door (M) as shown.
