Cerio OW-400-A2 Manuale utente
V1.0a
CERIO Corporation
OW-400-A2
eXtreme Power AC1200 2.4GHz / 5GHz 2x2 +17dBi
+Heater Outdoor Bridge/AP ( 800mW )
Quick Start Guide
(QSG)
V1.0a
1. Product Appearance and size.................................................................................................. 3
2. Product bottom of description................................................................................................. 4
3. Product positive/back of description..................................................................................... 5
4. Product top of description........................................................................................................ 5
5. Product setup............................................................................................................................... 6
5.1 Setup waterproof connector for RJ-45...................................................................... 6
5.2 Multifunctional Bracket for Pole/Wall Mount Installation..................................... 6
6. Set windows OS network .......................................................................................................... 8
7. Login web management by OW-400-A2 .............................................................................. 11
V1.0a

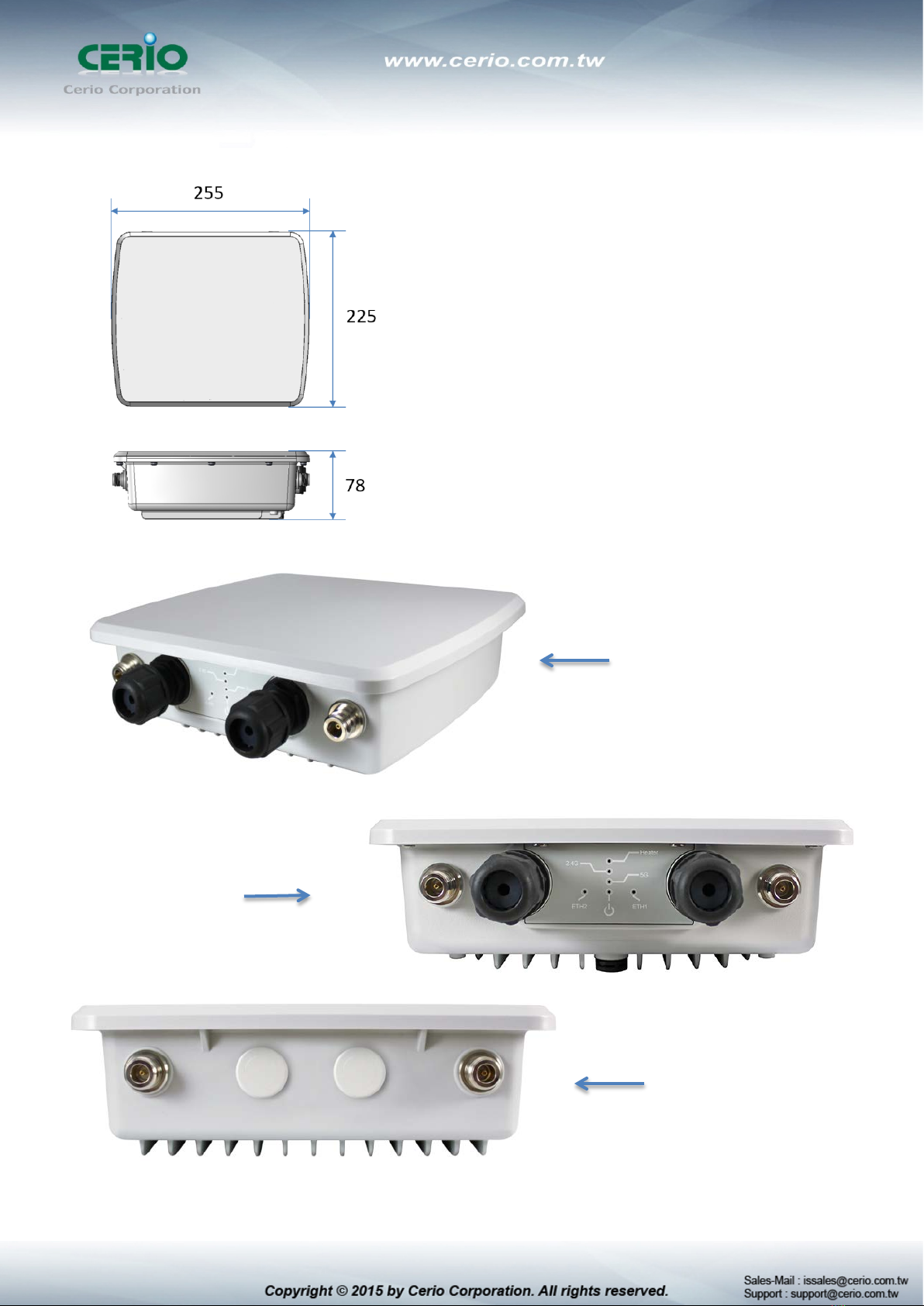

1.Product Appearance and size
Flank
Bottom
Top
V1.0a

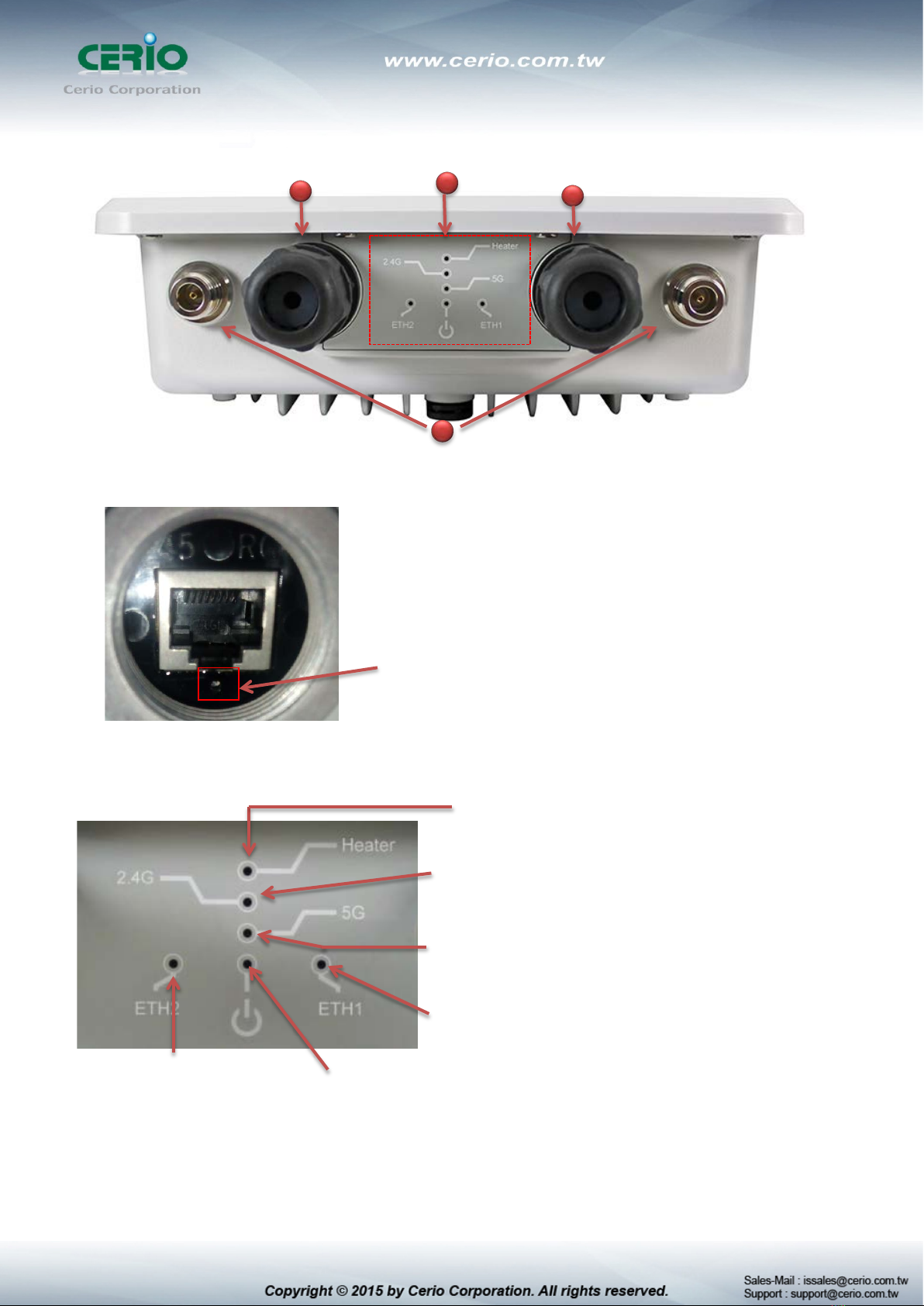

2.Product bottom of description
(1) Ethernet 1 (RJ-45) connect port, PoE in and reset button
(2) Ethernet 2 (RJ-45) connect port, Support PoE Bridge。
(3) LED information
(4) Waterproof external N-Type connect for 5G
1
2 3
4
Heater LED
2.4Gsignal LED
Ethernet 2 LED
Ethernet 1 LED
Power LED
Reset button
5G signal LED
V1.0a

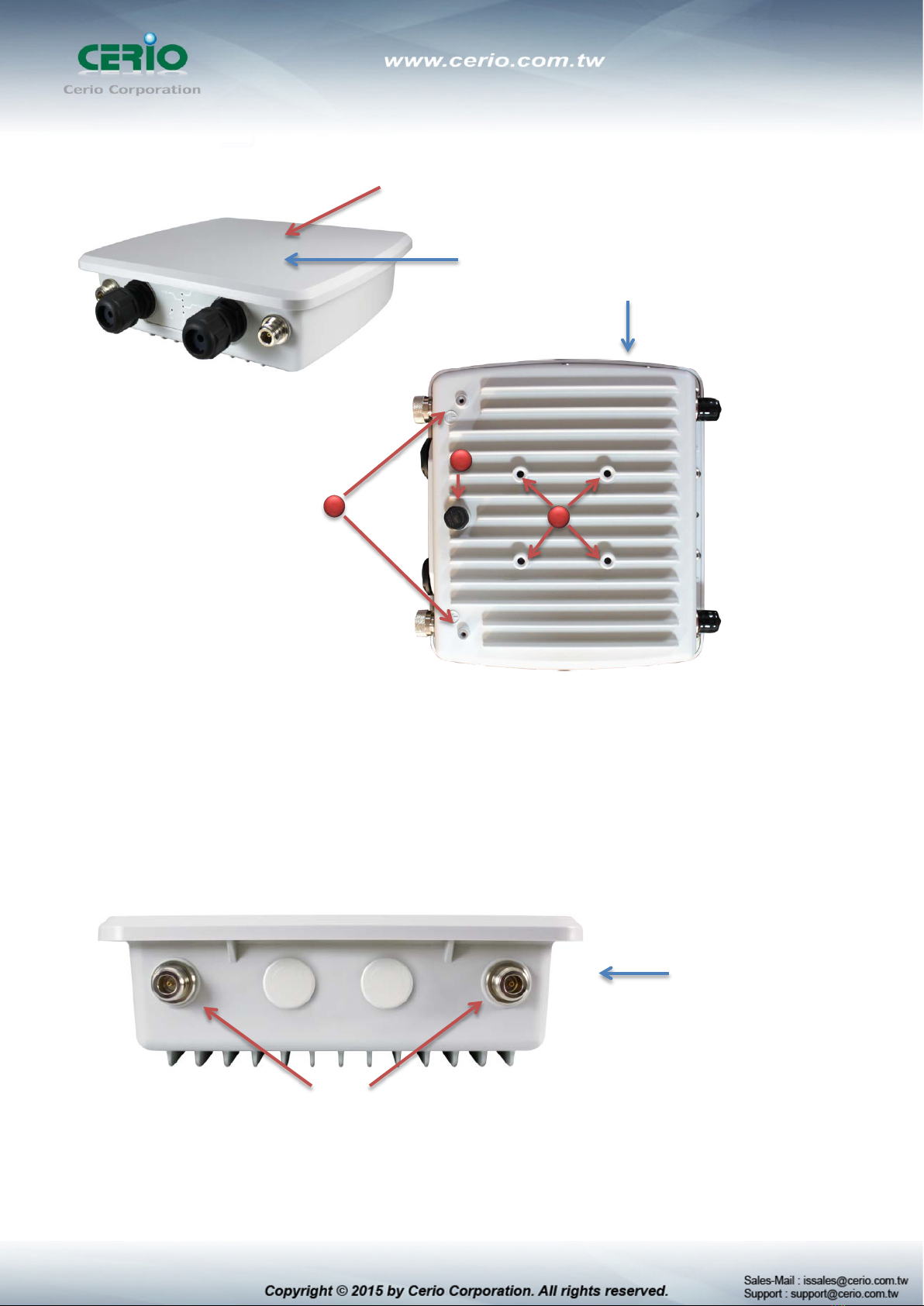

3.Product positive/back of description
* Vents keep the worst from happening. They allow enclosures and containers to breathe, equalizing
pressure and reducing condensation while filtering out liquids and other contaminants. The result:
greater product performance, increased durability, higher reliability and peace of mind.
4.Product top of description
Built-in 17dBi directional panel antenna
Front
Back
1 2
1. Ground connection
2. Wall/Pole Mounting
Bracket connect
3. Automatically adjustable
Vent design
3
Top
Waterproof external N-Type connect for 2.4G
V1.0a
5.Product setup

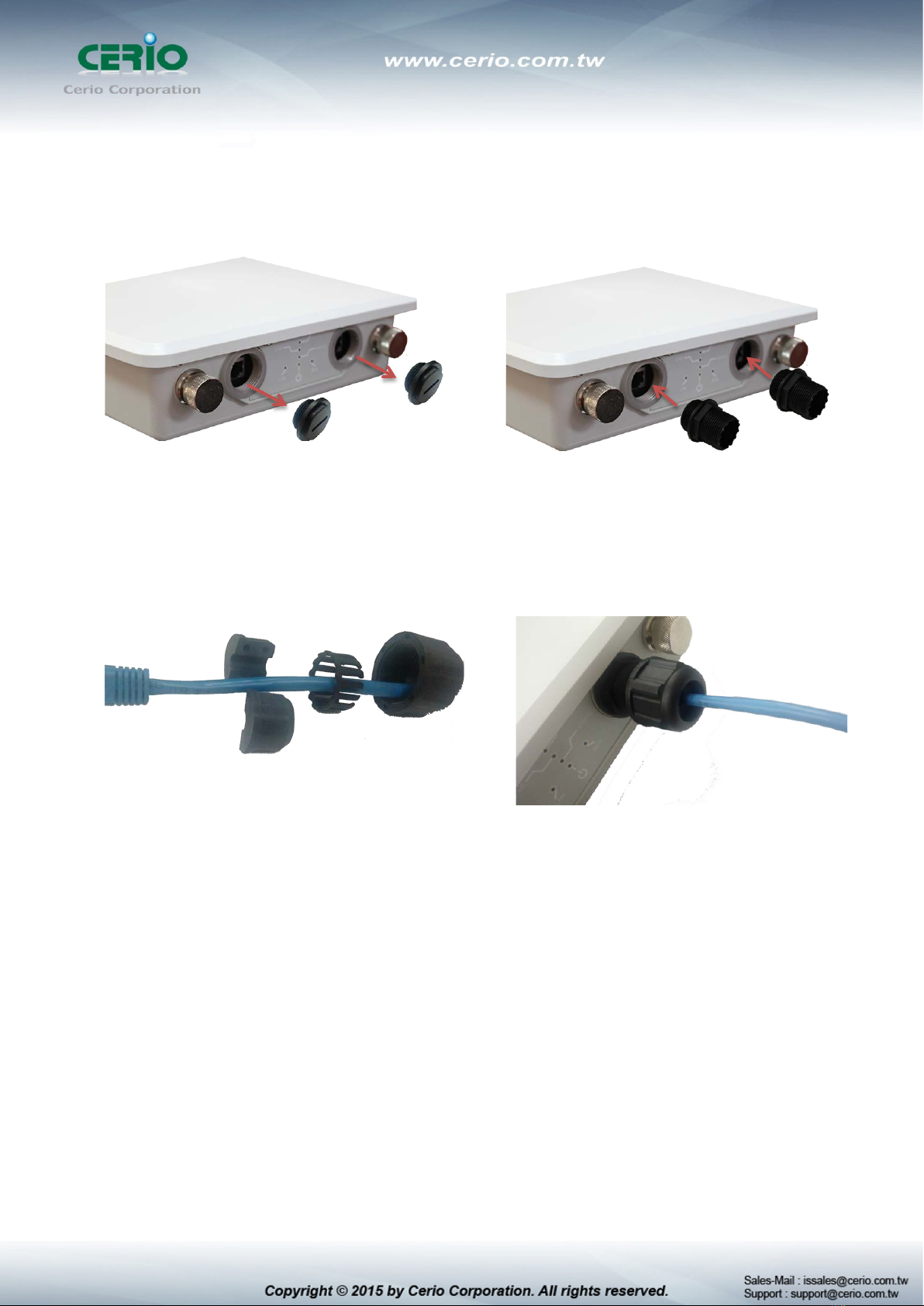

5.1 Setup waterproof connector for RJ-45
1) Open the Shuttered for Ethernet Port

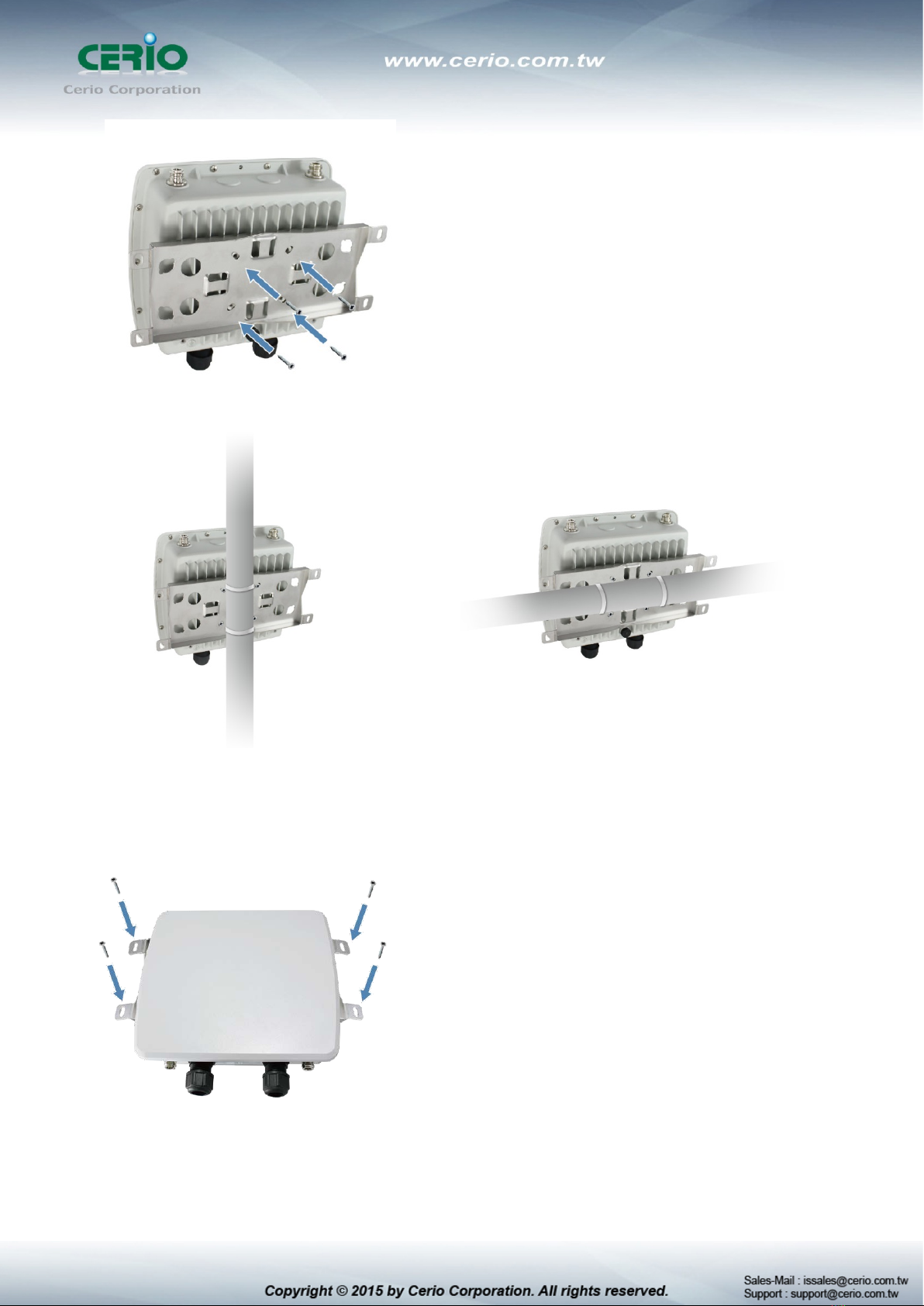

5.2 Multifunctional Bracket for Pole/Wall Mount Installation
CERIO’s OW-400-A2’s supports both Pole and Wall Mounting. Using the provided mounting
bracket, users can deploy OW-400-A2 in a wide range of outdoor environments.
2) Lock waterproof connect for Ethernet Port
3) Install waterproof cork of RJ-45 cable
dedicated 4) Will RJ-45 connection to Ethernet port
and locking waterproof cork
V1.0a
Instructions: Use the provided screws to
secure the mounting bracket on the back of
OW-400-A2. The bracket can be attached two
different ways.
Wall Mounting
Instructions: Use the provided screws and wall
anchors to wall mount OW-400-A2. Plastic wall anchors
are always recommended to safely support the device’s
weight.
Vertical Mounting Bracket Setup Horizontal Mounting Bracket Setup
V1.0a
6.Set windows OS network
Example of Segment: (Windows 7)
IP Segment Set-up for Administrator's PC/NB
Set the IP segment of the administrator's computer to be in the same range as OW-400-A2 for
accessing the system. Do not duplicate the IPAddress used here with IP Address of OW-400-A2 or
any other device within the network.

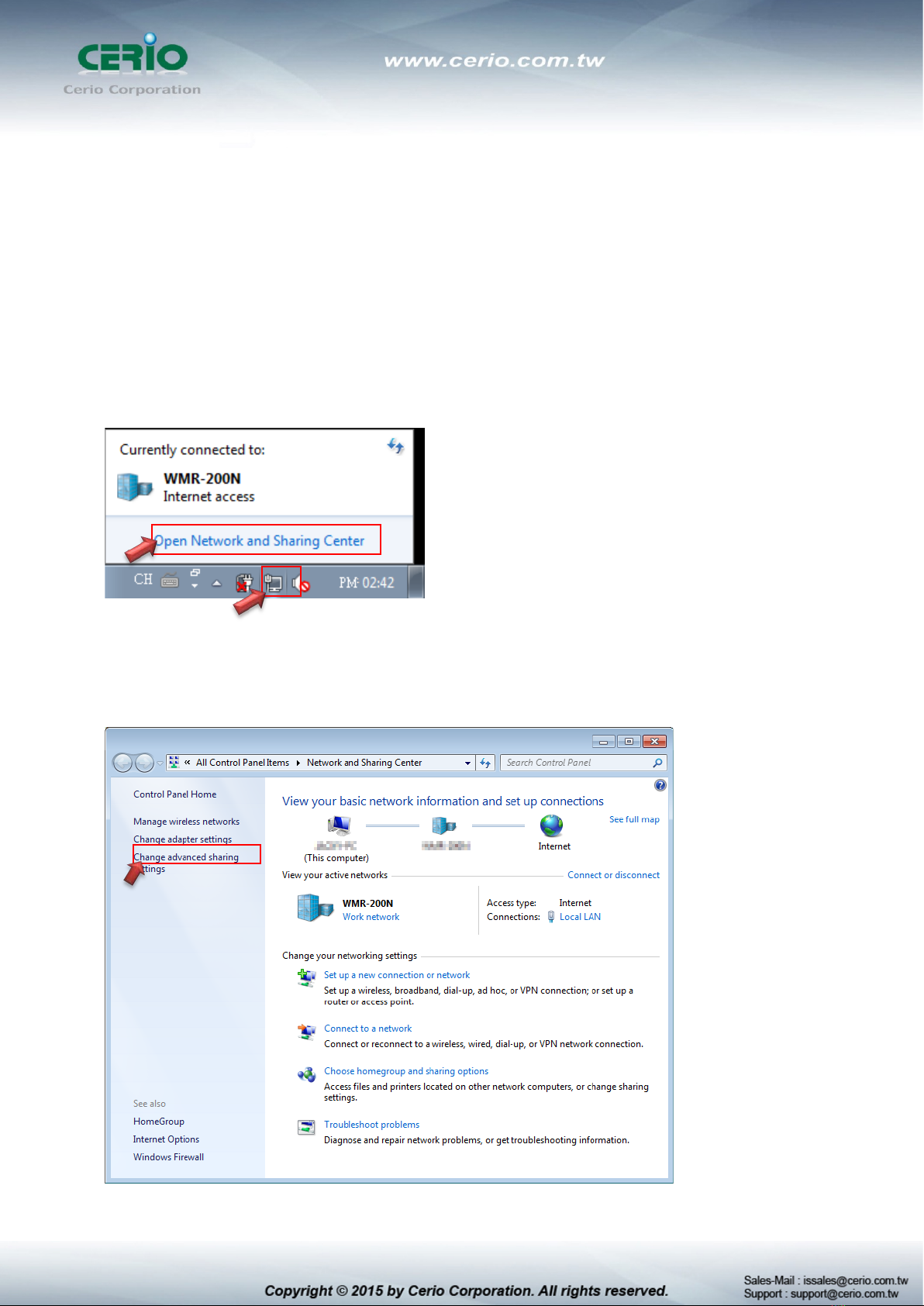

Step 1 :
Please click on the computer icon in the bottom right window, and click “Open Network and
Sharing Center”
Step 2 :
In the Network and Sharing Center page, Please click on the left side of “Change adapter setting”
button
V1.0a

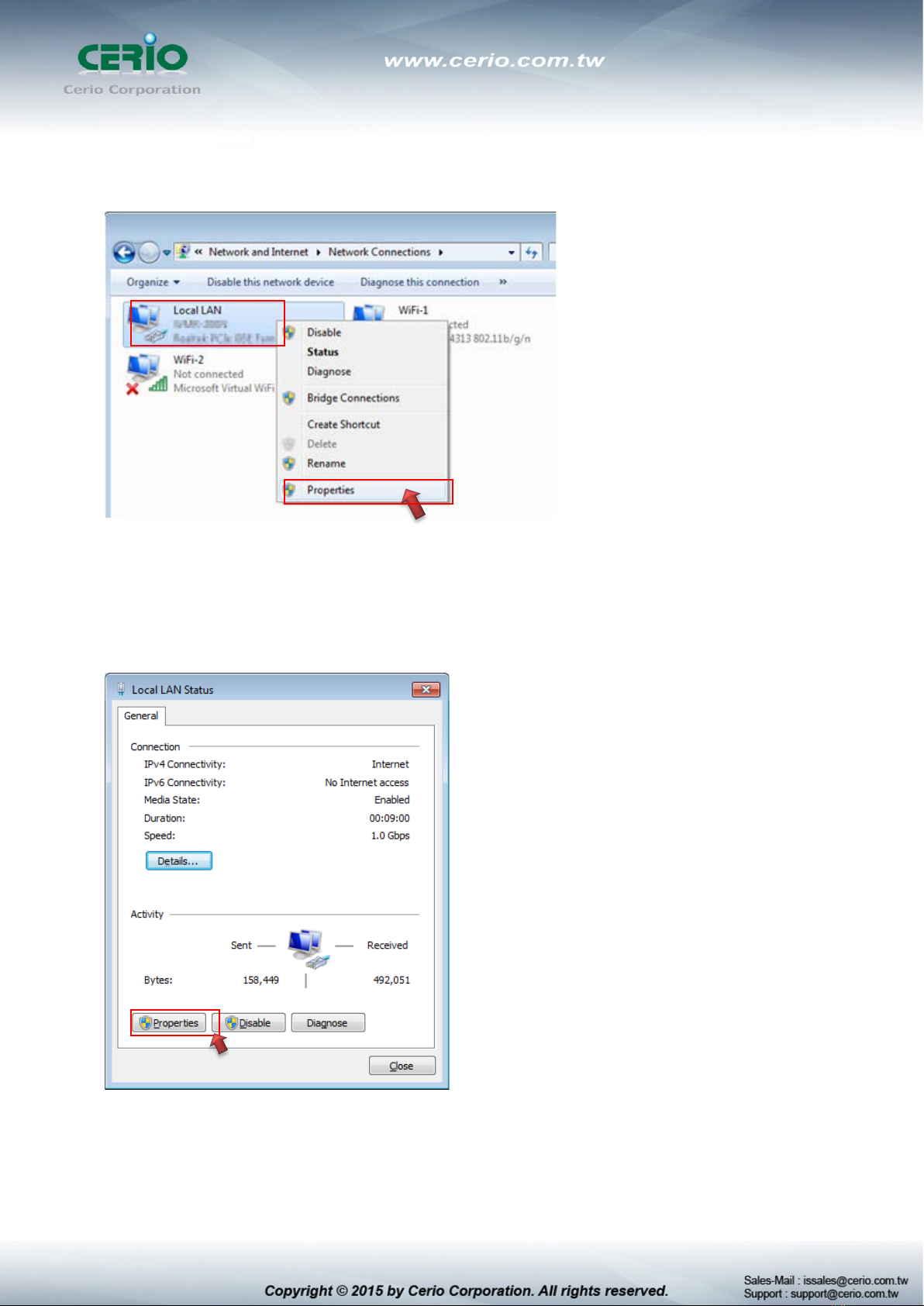

Step 3 :
In “Change adapter setting” Page. Please find Local LAN and Click the right button on the
mouse and Click “Properties”
Step 4 :
In “Properties” page, please Click “Properties” button to TCP/IP setting
V1.0a

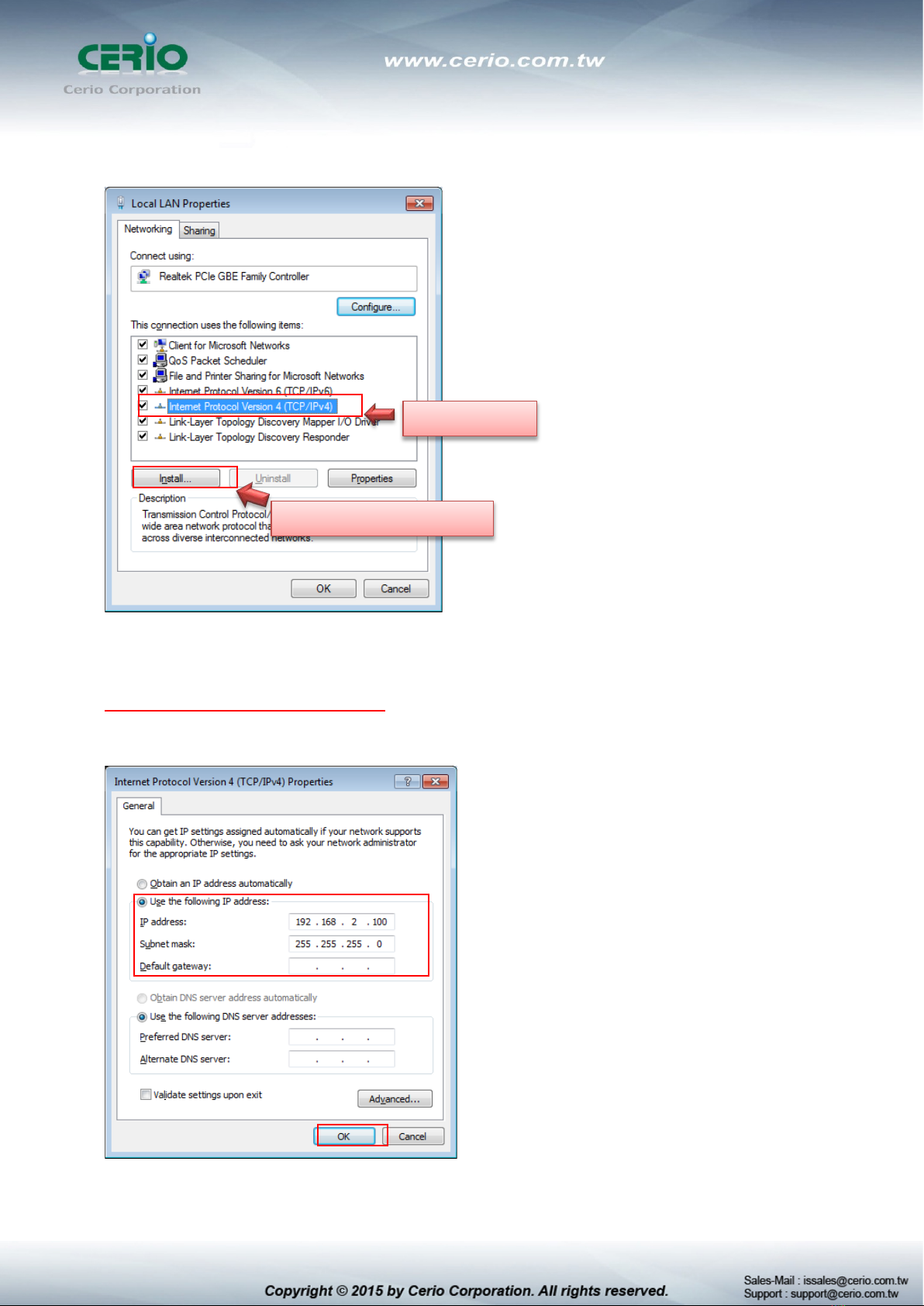

Step 5 :
In Properties page to setting IP address, please find “Internet Protocol Version 4 (TCP/IPv4)”
and double click or click “Install”button.
Step 6 :
Select “Use the following IP address”, and fix in IP Address : 192.168.2.#
ex. The # is any number by 1 to 253
Subnet mask : 255.255.255.0
And Click "OK" to complete the fixed computer IP setting
Double click
Or click Install button
