Chamberlain LiftMaster Security+ WKP5LM Manuale utente

2 3

789

*0#

Cancel

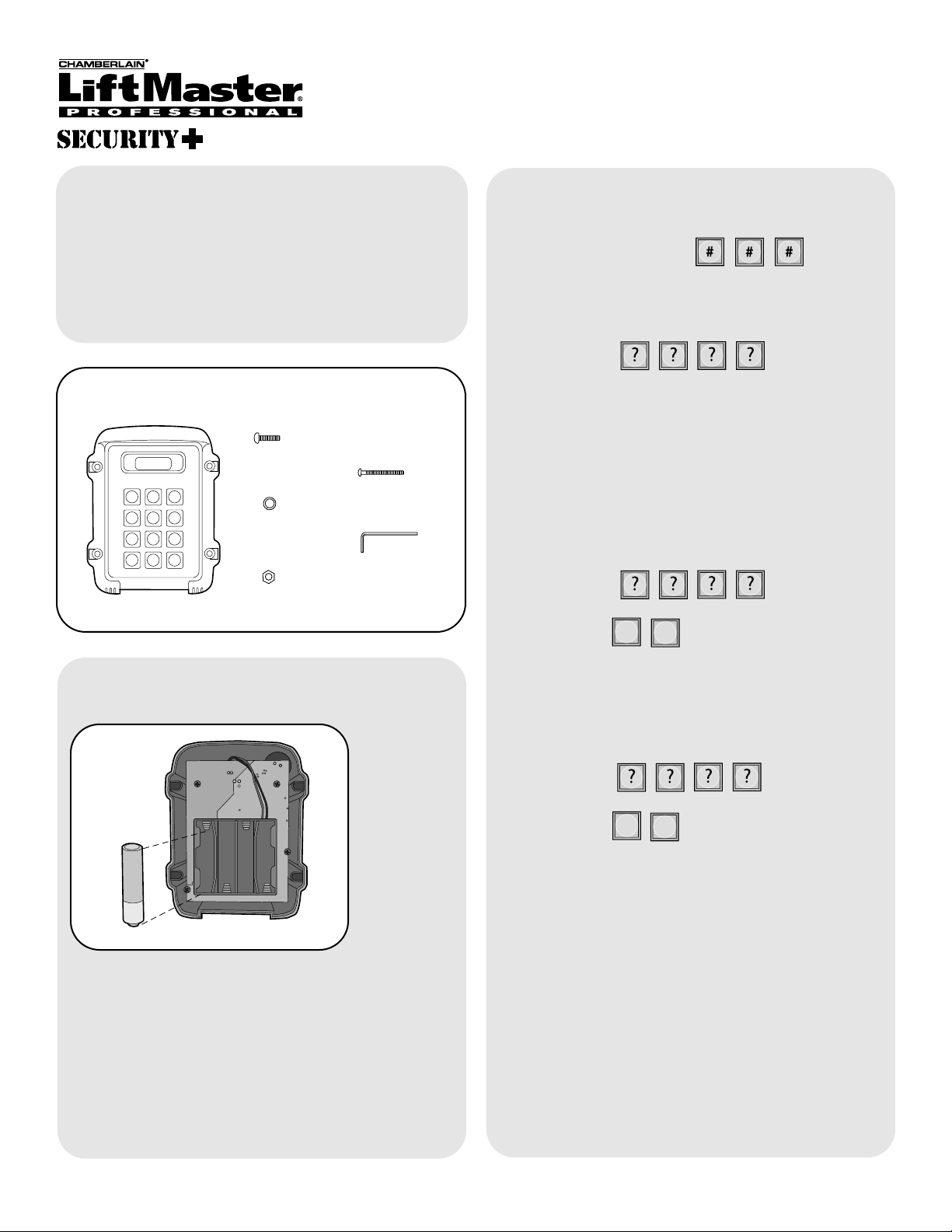

Carton Inventory

Overview

The Wireless Keypad uses a digitally secure intercom

link that allows it to control up to four access points.

The Wireless Keypad is compatible with various

Liftmaster Wireless Products.

Model WKP5LM can hold up to 5 PIN Numbers.

Model WKP250LM can hold up to 250 PIN Numbers.

Assembly

Install 4 AA Alkaline batteries (not provided). (Lithium

batteries recommended for colder environments.)

Keypad will beep.

Keypad will continuously beep indicating no Master

PIN Number has been programmed. Proceed to

Initial Setup.

Keypad

Models WKP5LM & WKP250LM

Wireless Keypad

Initial Setup

Step 1: On keypad press:

Step 2: Enter 4 digit Master PIN Number.

Example: 1234.

Multiple Keypads at Same Location

Step 1: On secondary Keypad enter Master PIN

Number:

Step 2: Then:

NOTE: To switch a secondary Keypad to a Main

Keypad, enter the Master PIN Number followed by

“57”.

Step 3: On Main Keypad enter Master PIN Number:

Step 4: Then:

NOTE: If a siren noise is heard the programming has

failed. Repeat process.

NOTE: This step applies only if more than one

Keypad is being used.

Bolt (4)

Washer (4)

Nut (4)

Screw (4)

Allen Wrench

NOTE: “ * “ is the cancel button that will cancel any

call or key sequence.

The Keypad can be used as a primary or secondary

device. Accessories should be programmed directly to

the primary device.

If programming to a GCU, see page 2.

If programming to an ULTRX900R, see page 3.

If programming to a GAPLM, see page 4.

If programming to existing receiver, see page 4.

Additional GCU’s

NOTE: This step applies only if more than one GCU

is being used.

Up to four GCUs can be used. Each GCU will have to

have a different Identity. Set the Identity of the GCU

by changing the Dipswitches as shown in the chart

below. The Default Identity is 1.

GCU ID Switch #1 Switch #2

1 OFF OFF

2 ON OFF

3 OFF ON

4ON ON

Step 1: Press and hold the Learn button on the GCU

until the LED lights.

Step 2: Within 20 seconds, enter the Master PIN

Number on the main Keypad:

Followed by GCU Identity:

OR OR

The Keypad will beep twice and GCU LED will blink

three times indicating programming is successful.

Repeat for additional GCU’s.

Mount GCU

Step 1: Replace GCU cover

and mount near gate operator

control box.

Step 2: Remove bottom panel

of GCU. Connect the Relay

Output of Receiver to the gate

or door. To connect to a Door

Strike or Magnetic Lock, see

diagrams below.

1234567

8910

Proceed to Mount Keypad.

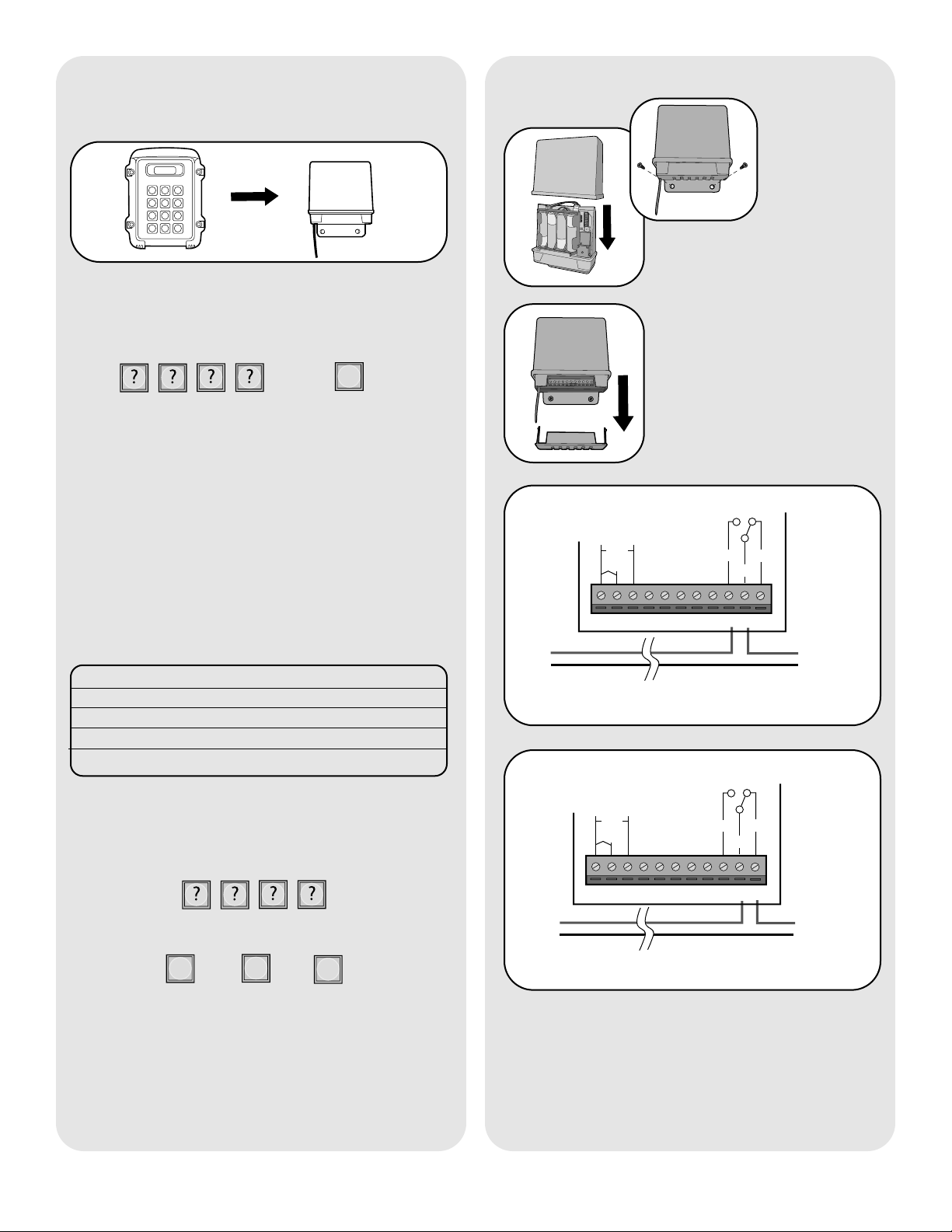

Set-Up with a Gate Control

Unit (GCU)

Step 1: Press and hold the Learn button on the GCU

until the LED lights.

Step 2: Within 20 seconds, enter the Master PIN

Number on the Main Keypad:

Then:

The Keypad will beep twice and GCU LED will blink

three times indicating programming is successful.

If an error tone is heard, the memory on the GCU will

need to be cleared by holding down the Learn button

until LED blinks a total of 8times.

2 3

789

*0#

Cancel

132 4567891011

COM

N/C

Door

Strike

Transformer/

Power Supply

Optional external power

input 10-24 Vac or DC

Door Strike- Normally Open (N/O) Connection

N/O

1324567891011

COM

N/C

Magnetic

Lock

Transformer/

Power Supply

Magnetic Lock- Normally Closed (N/C) Connection

Optional external power

input 10-24 Vac or DC

N/O

Mount Receiver

Additional UltraRX Receivers

NOTE: This step applies only if more than one

Receiver is being used.

Up to four Receivers can be used. Each Receiver will

need a different Identity. Set the Identity of the

Receivers by changing the Dipswitches as shown in

the chart below. The Default Identity is 1.

Receiver ID Switch #2 Switch #3

1 OFF OFF

2 ON OFF

3 OFF ON

4ON ON

Step 2: Connect power to Receiver (see

ULTRX900R manual).

Step 3: Within 15 seconds, enter the Master PIN

Number on the main Keypad:

The Keypad will beep twice and Receiver Relay will

buzz indicating programming is successful.

Repeat for additional Receivers.

Followed by Receiver Identity:

OR OR

Step 1: On the Receiver, place Dipswitch #1 to the

ON position.

Step 2: Connect power to Receiver (see

ULTRX900R manual).

Step 3: Within 15 seconds, enter the Master PIN

Number on the main Keypad:

Then:

The Keypad will beep twice and Receiver Relay will

buzz to indicate programming is successful.

If and error tone is heard, the memory on the

Receiver will need to be cleared by holding down the

Learn button until LED starts to flash.

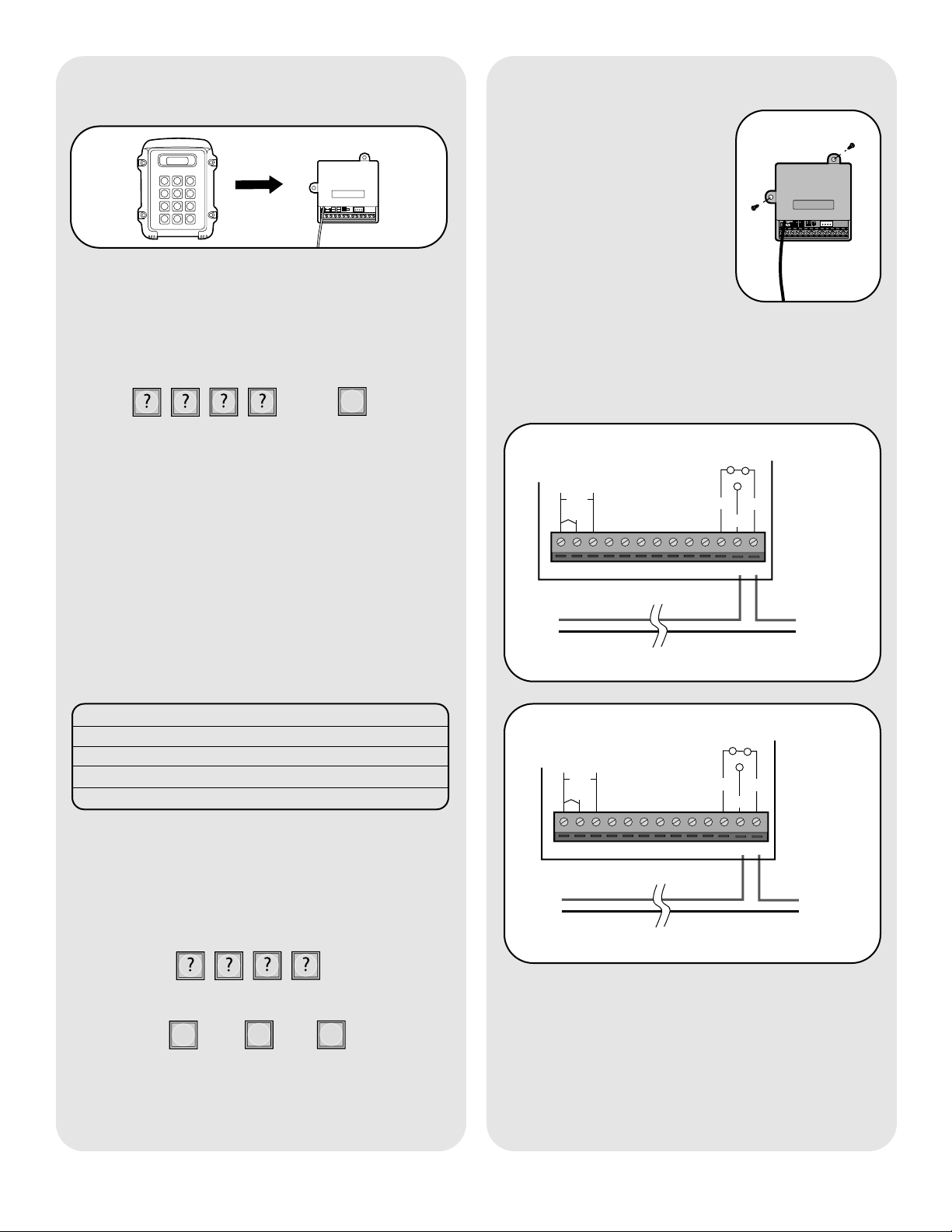

Set-Up with UltraRX Extreme

Range Receiver (ULTRX900R)

Step 1: Mount the Receiver

with the Terminal Block at the

bottom and the antenna

hanging straight down.

NOTE: Metal surfaces can

shorten the range of the

Receivers. If mounting on a

metal surface and long range is

required, use a non-metallic

spacer to move the Receiver

away from the metal surface.

Step 2: Connect the Relay Output of Receiver to the

gate or door. To connect to a Door Strike or Magnetic

Lock, see diagrams below.

1 2 3 4 5 6 7 8 9 10 11 12 13

132 4567891011

N/O

COM N/C

Door

Strike

Transformer/

Power Supply

Open/

12 13

Door Strike- Normally Open (N/O) Connection

Optional external power

input 10-24 Vac or DC

132 4 5 6 7 8 9 10 11

Magnetic

Lock

Transformer/

Power Supply

12 13

Magnetic Lock- Normally Closed (N/C) Connection

Optional external power

input 10-24 Vac or DC

N/O

COM N/C

Open/

Proceed to Mount Keypad.

2 3

789

*0#

Cancel

Step 1: On the Receiver, place Dipswitch #1 to the

ON position.

Set-Up with Existing Network

Gate Access Panel (GAPLM) as Primary

Access Control Unit

Enter Master PIN Number on Keypad:

Enter Master PIN Number on GAPLM:

Then:

“BEEP” “BEEP”

Door Access Intercom (DAILM) as

Primary Access Control Unit

Enter Master PIN Number on Keypad:

Press and release the Learn button on the DAILM.

Keypad will beep twice indicating programming is

successful.

Then:

Keypad as Primary Access Control Unit

Step 1: On Secondary Keypad enter Master PIN

Number:

Step 2: Then:

NOTE: To switch a Secondary Keypad to a Main

Keypad, enter the Master PIN Number followed by

“57”.

Step 3: On Main Keypad enter Master PIN Number:

Step 4: Then:

NOTE: If a siren noise is heard the programming has

failed. Repeat process.

ProgrammingSecondary Keypads to

additional Receivers (GCU or

ULTRX900R)

A Secondary Keypad defaults to activating

Receiver #2 when a PIN Number is entered on that

Keypad.

To activate Receiver #3:

Enter Master PIN Number on Keypad:

Then:

To activate Receiver #4:

Enter Master PIN Number on Keypad:

Then:

Pre-Installed Liftmaster

Receiver

Step 1: Pry open the front

panel of the receiver case

with a coin or a screwdriver.

Step 2: Press and release

the Learn button on the

receiver. The Indicator Light will

light for 30 seconds indicating that

receiver is in Learn Mode.

Step 3: Within 30 seconds enter Master PIN Number

on Keypad.

Step 4: Press “1”.

Repeat Steps 2-4 for each remote, or control device

that will be used to access the Liftmaster door or gate

operator.

Program

Erase All Control Codes

Press and hold the Learn button on the receiver until

the Indicator Light turns off indicating that the receiver

memory is clear (about 6 seconds).

12V

HIGH

NORM

Indicator Light

Learn Button

Operation

Enter existing Master PIN Number on Keypad:

Enter new Master PIN Number:

Change Master PIN Number

“BEEP”

A temporary PIN Number can be used only once

within a 24 hour period.

NOTE: The WKP5LM can hold up to 5 Temporary

PIN Numbers while the WKP250LM can hold 15.

Enter Master PIN Number on Keypad:

Enter temporary PIN Number:

If the temporary PIN Number applies only to a certain

Receiver, enter the PIN Number followed by the

Receiver Identity (1-4). The result will be a five digit

PIN Number (example: 12341).

Temporary PIN Numbers

“BEEP”

The WKP5LM can support up to 5 PIN Numbers

while the WKP250LM can support 250.

Enter Master PIN Number on Keypad:

Enter new PIN Number:

AddingPIN Numbers

“BEEP”

Enter Master PIN Number on Keypad:

Enter PIN number you want to remove:

A triple beep indicates a PIN Number has been

entered that does not exist. The Master PIN Number

cannot be deleted.

ErasingPIN Numbers

“BEEP”

“BEEP” “BEEP”

To use Keypad, enter any valid PIN Number. With

multiple Receivers, enter the PIN Number followed by

the Receiver Identity (1-4).

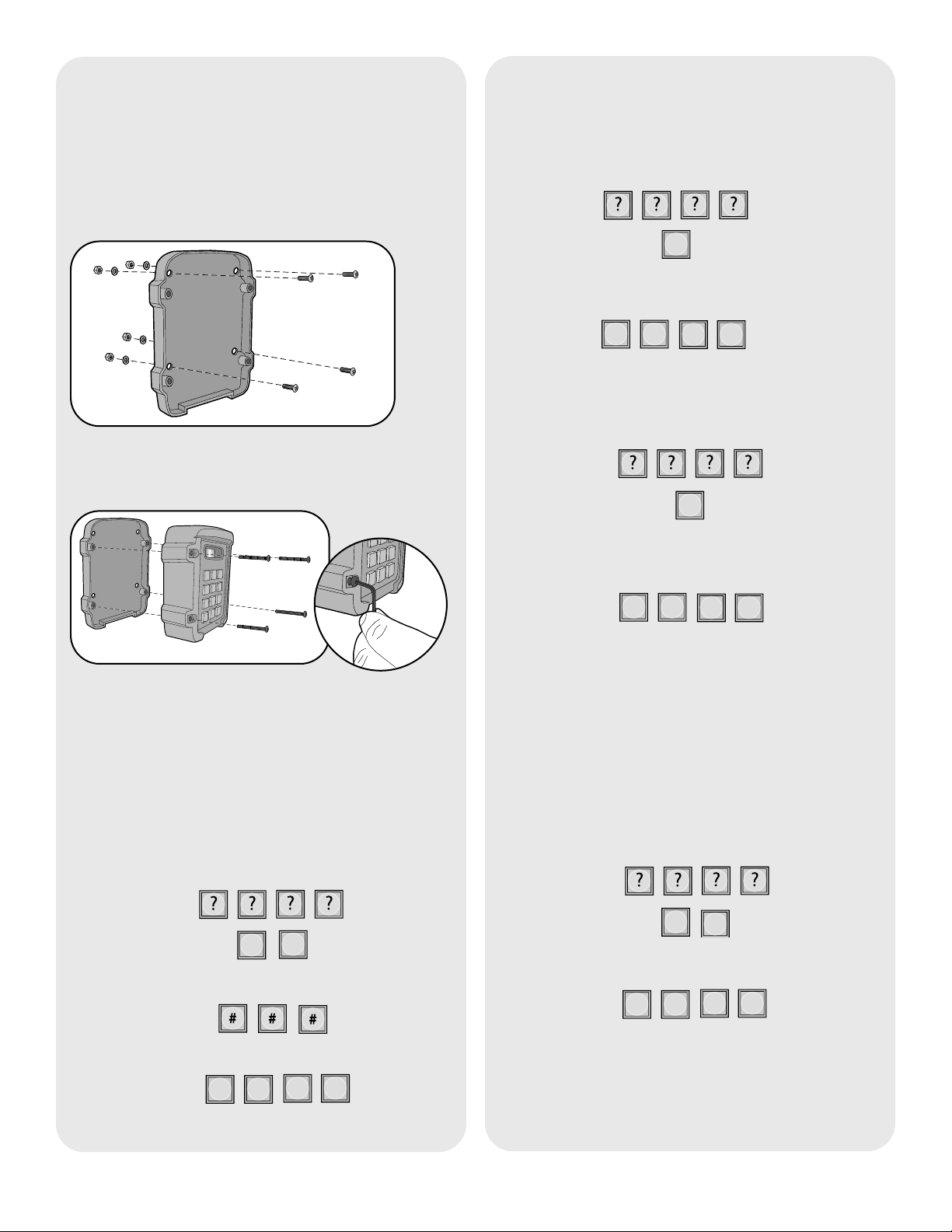

Mount Keypad

Step 1

Choose mounting location for Keypad. Remove the

back panel and attach it to a solid surface or post.

Mount the Keypad onto the back panel with screws.

Tighten screws with Allen wrench.

Step 2

It is recommended that Keypad be mounted to a

Gooseneck post or non-metallic surface. If it is

necessary to mount Keypad to a metal surface, use a

non-metallic spacer to move the Keypad away from

the metal surface.

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited,

except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-2806

www.liftmaster.com

To keep gate open during a party or activity so the gate

will not have to open with each guest, the Keypad can

be programmed to remain open until it is cycled close.

When the Keypad is in Party Mode the GCU or

ULTRX900R MUST be connected to an external

+12 Volt power supply.

Enter Master PIN Number on Keypad:

To close gate and exit Party Mode, cycle the gate by

entering a PIN Number or by pressing the button on a

remote or intercom.

Party Mode

The Keypad can be set to one of three channels to

prevent range-reducing interference from conflicting

radio transmitters. Any accessories programmed to the

Receiver will have to have memory cleared and be

reprogrammed.

Enter Master PIN Number on Keypad:

Enter one of the following channels:

OR OR

Alternate Channel Selections

“BEEP”

Default setting is Channel 2.

When it is dark, the panel will light when it detects

movement (up to 5') or when a button is pressed.

Enter Master PIN Number on Keypad:

OR OR

Enter one of the following brightness levels:

Default setting is 2.

Keypad Brightness

“BEEP”

The AA batteries (not provided) in the Keypad will

typically last up to 3 years depending on use. (Lithium

batteries recommended for colder environments.)

Battery

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Chamberlain Tastiera

Chamberlain

Chamberlain 747REV Manuale utente

Chamberlain

Chamberlain LiftMaster ELITE EL25 Manuale utente

Chamberlain

Chamberlain KPR2000 Guida utente

Chamberlain

Chamberlain EL Series Manuale utente

Chamberlain

Chamberlain Clicker KLIK2U Manuale utente

Chamberlain

Chamberlain 850EV Manuale utente

Chamberlain

Chamberlain LiftMaster Professional 387LM Manuale utente

Chamberlain

Chamberlain 747EV Manuale utente

Chamberlain

Chamberlain KPR2000 Manuale utente

Chamberlain

Chamberlain KPW5 Manuale utente

Chamberlain

Chamberlain KPR2000 Manuale utente

Chamberlain

Chamberlain LiftMaster Q Manuale utente

Chamberlain

Chamberlain LiftMaster TAC2C Manuale utente

Chamberlain

Chamberlain Min i-key 500 SN7000255 Istruzioni operative

Chamberlain

Chamberlain Clicker KLIK2U Manuale utente

Chamberlain

Chamberlain LiftMaster ELITE EL25 Manuale del proprietario

Chamberlain

Chamberlain Clicker KLIK2U Manuale utente

Chamberlain

Chamberlain 780EV Manuale utente

Chamberlain

Chamberlain Clicker KLIK2U Manuale utente

Chamberlain

Chamberlain 920GA Manuale utente

Chamberlain

Chamberlain LiftMaster Professional 387LM Manuale utente

Chamberlain

Chamberlain WKP5LM3 Manuale utente

Chamberlain

Chamberlain KPW250 Manuale utente

Chamberlain

Chamberlain LiftMaster TAC2C Istruzioni operative

Manuali Tastiera popolari di altre marche

BFT

BFT SELETTO Manuale utente

Micro Id

Micro Id MP7G3BL Manuale di istruzioni

WindowMaster

WindowMaster WLI 130 Manuale utente

ACT

ACT ACT PRO 1030 Manuale utente

Cardin

Cardin SSB Series Manuale utente

Harman Kardon

Harman Kardon KP 1 Manuale utente

CYP

CYP CR-KP1 Manuale utente

Aeware

Aeware k-35 Series Guida di riferimento

Aritech

Aritech CS-175 Series Manuale utente

GE NetworX NX-1600E Series Manuale utente

Lenze AC Tech

Lenze AC Tech MC SERIES Manuale utente

Burg Wächter

Burg Wächter secuENTRY 7711 Manuale utente

Aeware

Aeware in.k450 Manuale utente

Lenze

Lenze EPM-H410 Manuale utente

Toshiba

Toshiba RKP007Z Manuale utente

Gemini

Gemini GEM-DXK1 KEYPAD Manuale utente

Russound

Russound MDK-C5 Manuale operativo

Bosch

Bosch D1260 Series Manuale utente
