To prevent possible SERIOUS INJURY or DEATH from a moving gate or door:

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control

transmitters.

• Activate gate or door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel.

• ALWAYS keep gate or door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

Universal Remote Control

Read instructions thoroughly BEFORE beginning.

If using the Universal Remote Control with residential door openers, the remote control must be used only with

door openers manufactured after 1993 that utilize photoelectric sensors. The photoelectric sensors are always

located on or near the bottom of the door track.

STOP

MODEL KLIK3U

GETTING STARTED

The remote control can be programmed to activate up to two products, such as a garage door opener, gate operator, or

commercial door operator. The images throughout this manual are for reference only and your product may look different.

Button 2

Programmed separately from Button 1.

Garage Door Opener Commercial Door OperatorGate Operator

Button 1

Programmed separately from Button 2.

Program Button

Used for programming products with LEARN buttons.

Depending on your product, there is a button (LEARN button) or DIP switches used for programming. You will need to locate the

LEARN button or DIP switches on your product before you start programming.

DIP Switches

Used for programming products with DIP switches.

GARAGE DOOR OPENERS

The LEARN button or DIP switches are typically located on the back or

side panel of your garage door opener. Your LEARN button may have a

different name (SMART button, PROGRAM button, SET button, etc.). For

help locating your LEARN button or DIP switches refer to the Help

section in this manual or contact your garage door opener manufacturer.

COMMERCIAL DOOR OPERATORS

The LEARN button or DIP switches are typically located on the logic

board of your operator. Your LEARN button may have a different name

(RADIO button, XMITTER button, etc.). For help locating your LEARN

button or DIP switches contact your door operator manufacturer.

GATE OPERATORS

The LEARN button or DIP switches are typically located on the control

board of your operator. Your LEARN button may have a different name

(RADIO button, XMITTER button, etc.). For help locating your LEARN

button or DIP switches contact your gate operator manufacturer.

EXTERNAL RECEIVER

Some products do not

have a LEARN button or

DIP switches. In this

case, the LEARN button

or DIP switches will be

located in an external

receiver. The receiver will

be located on the product

or mounted nearby.

Follow the programming

instructions for an

external receiver.

GARAGE DOOR OPENERS

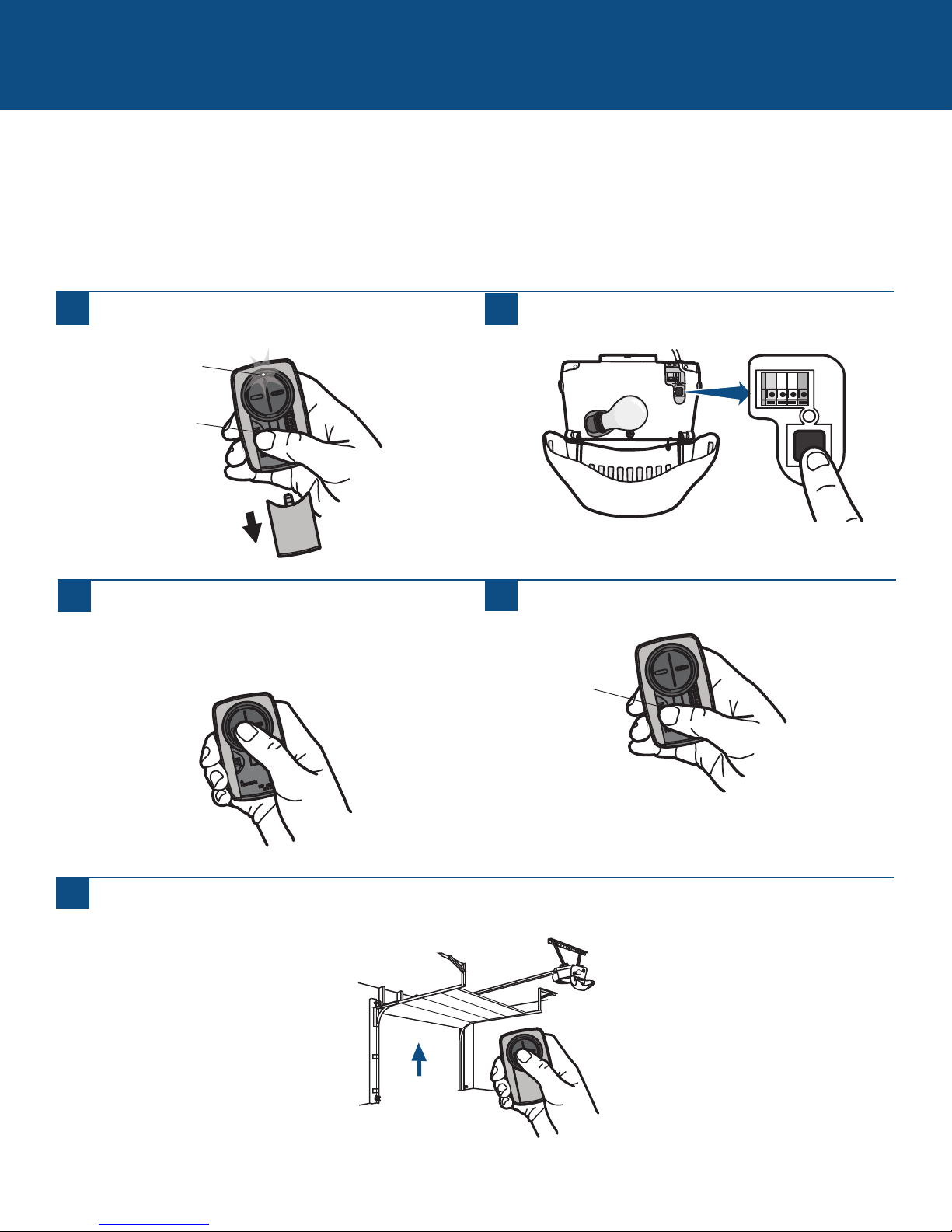

Programming to a Garage Door Opener with a LEARN Button

The LEARN button is typically located on the back or side panel of the garage door opener or an external receiver. For help

locating your LEARN button refer to the Help section in this manual or contact your garage door opener manufacturer.

If you have a Genie®Intellicode®2 garage door opener go to the next page.

The images throughout this manual are for reference only and your product may look different.

Program Button

1Press the program button on the remote control until

the LED turns on.

2Press and release the LEARN button* on your garage door

opener.

3Press and release the remote control button, the LED will

flash. When the LED stops flashing, continue to press and

release the button (maximum of 9 times) until your

garage door opener responds by clicking, blinking, or

activating.

4Press the program button on the remote control to save.

5Test the remote control by pressing the button. If the garage door opener does not activate, repeat the programming steps or

follow the alternative programming option.

Program Button

* Depending on your product, the LEARN button may have a different name (use

the button for programming remote controls).

LED

Programming to a Genie®Intellicode®2 Garage Door Opener

Before starting, you MUST have a Genie®Intellicode®2 remote control with at least one button already programmed to the garage

door opener.

The images throughout this manual are for reference only and your product may look different.

GARAGE DOOR OPENERS (continued)

1Press the program button on the Universal Remote

Control until the LED turns on.

2Select a button to program and press that button 5 times,

ensuring the LED stops flashing after each press.

3Press the program button on the Universal Remote

Control.

4On the garage door opener, press and hold the

Program/Set button until both the long and short LED

light up BLUE.

5Release the Program/Set button and only the round LED

will be lit in BLUE.

6Press and release the Program/Set button and the long

LED will flash PURPLE.

7On the Universal Remote Control, press and release the

same button you have already selected in step 2. Both

LEDs on the garage door opener will light up PURPLE.

On the Universal Remote Control, press and release the

same button again. Both LED’s on the garage door opener

will light up BLUE.

On the Genie®remote control, press and release the

button that is already programmed to the garage door

opener. Both LED’s will flash PURPLE.

9On the Universal Remote Control, press and release the

same button again. This will activate the garage door

opener and programming is complete.

If the door does not activate, repeat the steps.

Program Button

LED

COMMERCIAL DOOR OPERATORS

Programming to a Commercial Door Operator with a LEARN Button

The LEARN button is typically located on the logic board of the operator or an external receiver. For help locating your LEARN

button contact your commercial door operator manufacturer.

The images throughout this manual are for reference only and your product may look different.

1Press the program button on the remote control until

the LED turns on.

2Press and release the LEARN button* on your commercial

door operator.

3Press and release the remote control button, the LED will

flash. When the LED stops flashing, continue to press

and release the button until your commercial door

operator responds by clicking, blinking, or activating.

4Press the program button on the remote control to save.

5Test the remote control by pressing the button. If the commercial door operator does not activate, repeat the programming

steps or follow the alternative programming option.

LEARN Button*

* Depending on your product, the LEARN button may have a different name (use

the button for programming remote controls).

Program Button

LED

Programming to a Gate Operator with a LEARN Button

The LEARN button is typically located on the control board of the operator or an external receiver. For help locating your LEARN

button contact your gate operator manufacturer.

The images throughout this manual are for reference only and your product may look different.

GATE OPERATORS

1Press the program button on the remote control until

the LED turns on.

2Press and release the LEARN button* on your gate

operator.

3Press and release the remote control button, the LED will

flash. When the LED stops flashing, continue to press

and release the button until your gate operator responds

by clicking, blinking, or activating.

4Press the program button on the remote control to save.

5Test the remote control by pressing the button. If the gate operator does not activate, repeat the programming steps or follow

the alternative programming option.

Learn Button*

* Depending on your product, the LEARN button may have a different name (use

the button for programming remote controls).

Program Button

LED

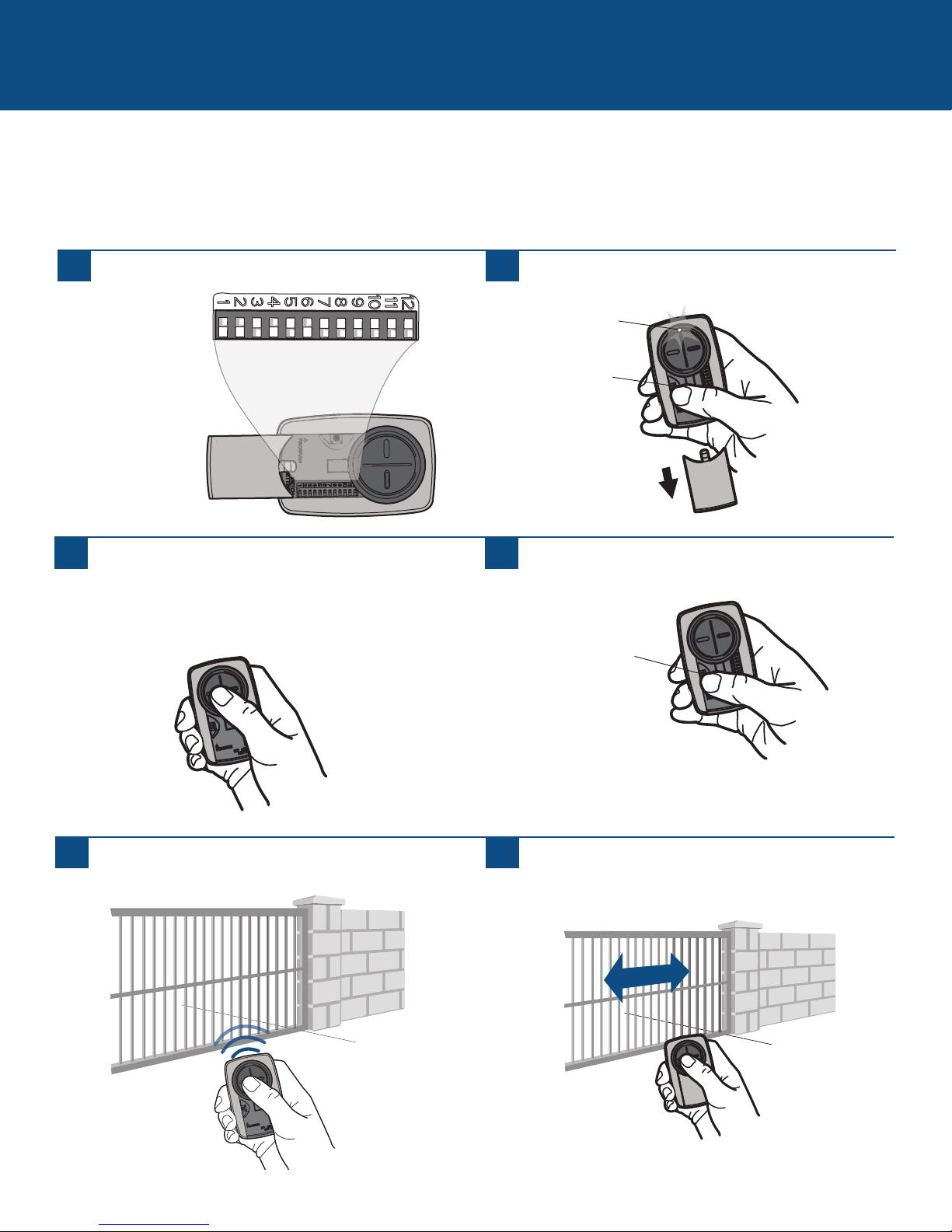

Programming to a GTO/Mighty Mule Gate Operator without a Remote Control

If you have an existing GTO remote control go to the next page.

The images throughout this manual are for reference only and your product may look different.

Set the remote control DIP switches 1-9 to any

combination.

GATE OPERATORS (continued)

1Press the program button on the remote control until

the LED turns on.

3Press and release the remote control button, the LED will

flash. When the LED stops flashing, continue to press

and release the button 20 times, ensuring the LED stops

flashing after each press. The code is accepted when the

gate operator is activated.

4Press the program button on the remote control to save.

5Program the remote control to the gate operator (refer to

the gate operator instructions).

6Test the remote control by pressing the button. If the gate

operator does not activate, repeat the programming steps.

Program Button

LED

Programming to a GTO/Mighty Mule Gate Operator with a Remote Control

GATE OPERATORS (continued)

INITIAL SETUP

If you don’t have an existing GTO remote control go to the previous page.

Before beginning, check the DIP switches on the GTO remote control. If any of the DIP switches are in the "0" position,

move them to either the "+" or "-" position and reprogram the GTO remote control to the gate operator (refer to the gate

operator instructions).

The images throughout this manual are for reference only and your product may look different.

2-BUTTON GTO REMOTE CONTROL

If the right button on the GTO remote control is programmed to

the gate operator, the GTO remote control will need to be

reprogrammed using the left button.

3-BUTTON GTO REMOTE CONTROL

If the middle button on the GTO remote control is programmed to

the gate operator, the GTO remote control will need to be

reprogrammed using either the left or right button.

STOP

NO DIP switches in the "0" position

1Match the Universal Remote Control DIP switches to the

GTO remote control DIP switches:

GTO “+” = Universal Remote Control “ON”

GTO “-” = Universal Remote Control “OFF”

22-BUTTON GTO REMOTE CONTROLS ONLY: Set the 9th

DIP switch on the Universal Remote Control to the “ON”

position.

3-BUTTON GTO REMOTE CONTROLS ONLY: Set the 9th

DIP switch on the Universal Remote Control to the “ON”

position if using the GTO left button or the “OFF” position

if using the GTO right button.

3Press the program button on the Universal Remote Control

until the LED turns on.

4Press and release the Universal Remote Control button,

the LED will flash. When the LED stops flashing, continue

to press and release the button 20 times, ensuring the

LED stops flashing after each press. The code is accepted

when the gate operator is activated.

5Press the program button on the Universal Remote Control

to save.

6Test the Universal Remote Control by pressing the button.

If the gate operator does not activate, repeat the

programming steps.

Program Button

LED

Programming to an External Receiver with DIP Switches

3 Position DIP Switch:

For Chamberlain remotes DO NOT use the “0” position, use “+” or “-”.

If you already have a 3-button remote, DIP switch #1 must be set to “-” if the

large button is to open the door. It may be necessary to reprogram original

remote controls.

EXTERNAL RECEIVERS

1Press the program button on the Universal Remote

Control until the LED turns on.

Match the DIP switches between the existing remote

control or external receiver and the Universal Remote

Control. Turn extra switches OFF.

2 Position DIP Switch:

If programming fails reverse DIP switches (OFF to ON and ON to OFF).

External

Receiver

DIP Switches DIP Switches

Existing Remote Universal

Remote

Control

Universal

Remote

Control

If using the Universal Remote Control with residential door openers, the remote control must be used only with door

openers manufactured after 1993 that utilize photoelectric sensors. The photoelectric sensors are always located on

or near the bottom of the door track.

The external receiver is typically located on the product or mounted near the product.

The images throughout this manual are for reference only and your product may look different.

Press and release the Universal Remote Control button,

the LED will flash. When the LED stops flashing,

continue to press and release the button until your

product responds by clicking, blinking, or activating.

4Press the program button on the Universal Remote

Control to save.

5Test the Universal Remote Control by pressing the button. If the product does not activate, repeat the programming steps or

follow the alternative programming option.

TIPS

STOP

Program Button

LED

Programming to an External Receiver with a LEARN Button

EXTERNAL RECEIVERS (continued)

1Press the program button on the remote control until

the LED turns on.

2Press and release the LEARN button* on the external

receiver.

3Press and release the remote control button, the LED will

flash. When the LED stops flashing, continue to press

and release the button until your product responds by

clicking, blinking, or activating.

4Press the program button on the remote control to save.

5Test the remote control by pressing the button. If the product does not activate, repeat the programming steps or follow the

alternative programming option.

Learn Button*

If using the Universal Remote Control with residential door openers, the remote control must be used only with door

openers manufactured after 1993 that utilize photoelectric sensors. The photoelectric sensors are always located on or

near the bottom of the door track.

The external receiver is typically located on the product or mounted near the product.

The images throughout this manual are for reference only and your product may look different.

* Depending on your product, the SMART/LEARN button may have a different

name (use the button for programming remote controls).

STOP

Program Button

LED

Altri manuali per KLIK3U

Indice

Altri manuali Chamberlain Telecomando

Chamberlain

Chamberlain KLIK3U-BK Manuale utente

Chamberlain

Chamberlain 4330E Manuale utente

Chamberlain

Chamberlain ARQ TM100 Manuale utente

Chamberlain

Chamberlain 750 Manuale utente

Chamberlain

Chamberlain 375UT Manuale utente

Chamberlain

Chamberlain LiftMaster Security+ 973-315LM Manuale utente

Chamberlain

Chamberlain PASSPORT CPT4 Manuale utente

Chamberlain

Chamberlain LiftMaster Professional 412HM Manuale utente

Chamberlain

Chamberlain CPTKX Manuale utente

Chamberlain

Chamberlain Power Drive Whisper Drive Security+ 953D Manuale utente

Chamberlain

Chamberlain 972MOM Moore-o-Matic Manuale utente

Chamberlain

Chamberlain 953EV Manuale utente

Chamberlain

Chamberlain 64LM Manuale utente

Chamberlain

Chamberlain 84330AML Manuale utente

Chamberlain

Chamberlain 825LM Manuale utente

Chamberlain

Chamberlain LiftMaster Security+ 372LM Manuale utente

Chamberlain

Chamberlain LiftMaster Security+ 973LM Manuale utente

Chamberlain

Chamberlain LiftMaster Security+ 370LM Manuale utente

Chamberlain

Chamberlain 953C Manuale utente

Chamberlain

Chamberlain LiftMaster 81LM Manuale utente

Chamberlain

Chamberlain 970 Series Manuale utente

Chamberlain

Chamberlain 4330EML Manuale utente

Chamberlain

Chamberlain LiftMaster Professional 312HM Manuale utente

Chamberlain

Chamberlain LiftMaster Security+ 971LM Manuale utente

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione
