Champion D-H1T Manuale utente

(1M) 10/06 rinted in U.S.A.

CH079

Door-type High Temperature

Extended Hood Gas Heated

Warewashing Machine

D-H1T GAS

D-H1T GAS DOOR-TYPE

STANDARD FEATURES

• Dual NSF listing as a dishwasher and pot,

pan, utensil washer

• Automatic tank fill

• Automatic drain valve

• Adjustable mode/time selector switch

• Door activated cycle start

• One gas heating system for boosting

the final rinse and tank heat

• Low-water tank heat protection

• 2-Hp pump motor

• Stainless steel pump impeller

• Door safety switch

• Interchangeable upper and lower spray arms

• Vented wash chamber design

• Detergent/chemical connection provisions

• Single point electrical connection (see chart)

SPECIFIER STATEMENT

Specified unit will be Champion Industries model

D-H1T door type extended hood, gas tank heat,

high temperature dishwashing machine.

Features include automatic tank fill, automatic drain

valve, 2 Hp drip-proof pump motor, gas tank heat,

interchangeable upper and lower spray arms, door

activated start cycle, dual NSF Certified as both

dishwasher and potwasher.

1 year parts and labor warranty.

OPTIONS & ACCESSORIES

Corner Model

Drain Tempering Kit

Vent Fan Control Switch

roject

Item No.

Quantity

Champion Industries, Inc.

. O. Box 4149, Winston-Salem, NC 27115

Tel: 336/661-1556 Fax: 336/661-1979

www.championindustries.com

Gas

Dual Certified!

Door-type Extended Hood

Gas Heated

High Temperature Dishwasher

D-H1T GAS DOOR-TYPE

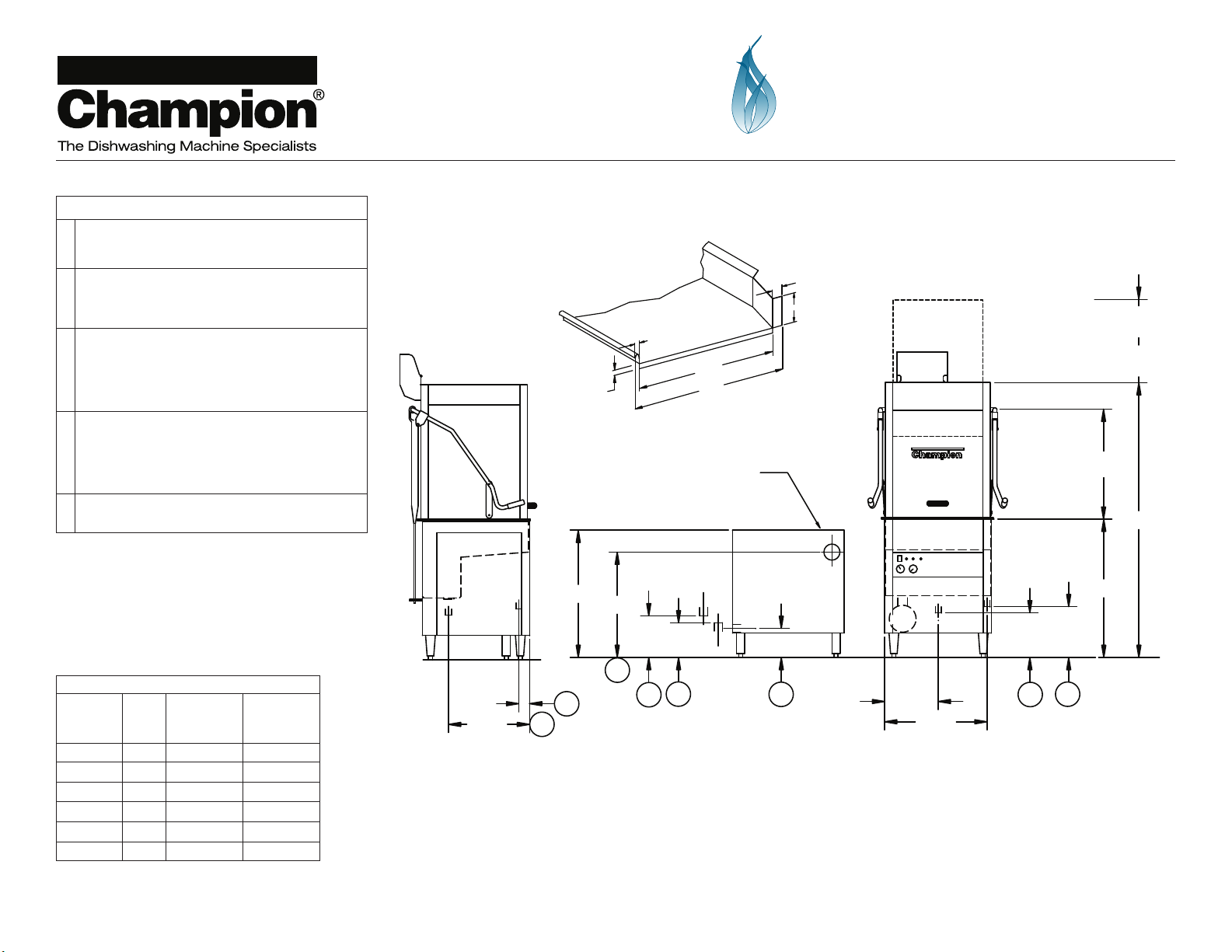

Dimensions shown in inches

2−5/8"

19−7/8"

2 HP 12−1/2"

67−1/2"

34"

27"

13−1/4"

25−1/4"

Clearance

92−1/2"

Door Removal

87"

Door Up

31−1/4" 10−1/4"

25−7/8"

8−1/2" 7−1/8"

2A 61B

*Hatco

Gas Booster

Mod. #PMG−100

8−7/8"

D tails, Dim nsions & Conn ctions

Front Vi w

Sid Vi w

Note: The booster and machine come fully interplumbed

complete with a blended phosphate water treatment

system, pressure regulating valve, water hammer

arrestor, ASME temperature and pressure relief valve,

drain valve, circulator pump, and temperature gauges

installed and ready for connection to your water supply.

Utiliti s

1Electrical

A. Machine Connection (See Box)

B. Booster connection requires 15 Amps @ 120/60/1

2Hot Water

3/4" NPT hot water 140°F for 40°F rise booster.

3/4" NPT hot water 110°F for 70°F rise booster.

Flow pressure 20-22 psi.

3Drain

A. 2" OD machine connection

B. 3/4" NPT relief valve to open drain

C. 1/2" NPT vent to open drain

D. 3/4" male threaded hose end

4Gas

40°F rise - 58,000 BTU/hr.

70°F rise - 105,000 BTU/hr.

PMG-60 requires 1/2" NPT.

PMG-100 requires 3/4" NPT.

5Gas Flue 4" OD exhaust

A. Rear of booster

ength between table connections: 25-3/4"

Shipping weight crated: 775 lbs.

1−1/

4" Roll

1−1

/8"

24−

1/4"

20−

7/8"

7−1/4

2−1/8

Typical Tabl Construction

* Booster shown is the PMG100. Contact factory

for PMG60 drawings & electrical information.

Machine Loa Amps Minimum Maximum

Supply Ckt. Overcurrent

Rate Con uctor Protective

Voltage Amps Ampacity Device

208/60/1 15 20 20

240/60/1 14 20 20

208/60/3 8 15 15

240/60/3 7 15 15

480/60/3 4 15 15

575/60/3 3 15 15

Gas

Door-type Extended Hood

Gas Heated

High Temperature Dishwasher

D-H1T GAS DOOR-TYPE

Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com

SPECIFICATIONS

Capacities

Wash tank US gal. 9

Dishwasher Mode:

NSF Rated Racks per hr. 49/29

Pot/Pan Washer Mode:

NSF Rated Racks per hr. 19/10

Motor horsepower

Water consumption

Gal. per rack US gal. 1.34

Gal. per hr. (max. use) US gal. 66

Temperature°F/°C

Wash 150/66

Rinse 180/82

Heating

Gas PMG60 (40°F rise) 58,000 BTU/hr

PMG100 (70°F rise) 105,000 BTU/hr

Time Cycle in Secon s

Dishwasher Mo e Pot/Pan Washer Mo e

Wash 44 96 Wash 156 336

Rinse 13 13 Rinse 13 13

Dwell 11 11 Dwell 11 11

Total 68 120 Total 180 360

Warning: Plumbing and electrical connection should be made by qualified

personnel who will observe all the applicable plumbing, sanitary and safety

codes and the National Electrical Code.

Warning: Gas burner intake air and exhaust venting required in accordance

with local codes. Exhaust must be vented outside.

Note: Specify vent location option on booster when ordering.

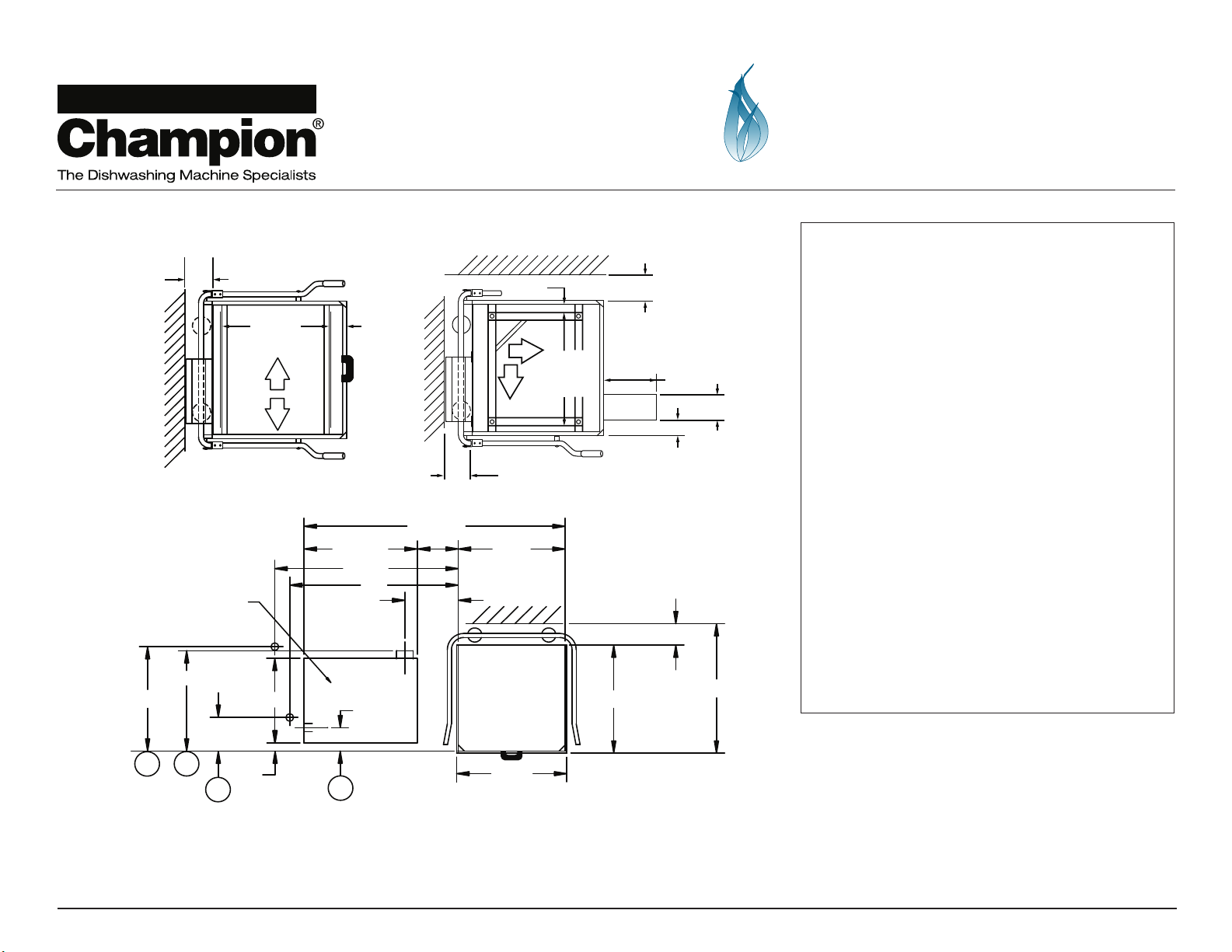

Dimensions shown in inches

Front

20-1/8"

Inside Tracks 2-7/8"

5-1/4" min

Straight-Through

Op ration

Corn r

Configuration

Plan Vi w

26−3/4"

10"

63−1/2"

27−1/2"

26−1/2"

13"

44−5/8"

5−3/4"

MIN. 5−1/4"

26"

41"

24−5/8"

25−5/8"

Gas Booster

61B

20−3/4"

8−1/4"

31−3/4"

Gas

5-1/4" Min.

20-1/8"

Inside

Tracks

2-7/8"

Front

5-1/4" Min.

3-1/4"

9-1/4"

Control

Cabinet

Door-type High Temperature

Extended Hood Gas Heated

Warewashing Machine

D-H1T GAS

D-H1T GAS DOOR-TYPE

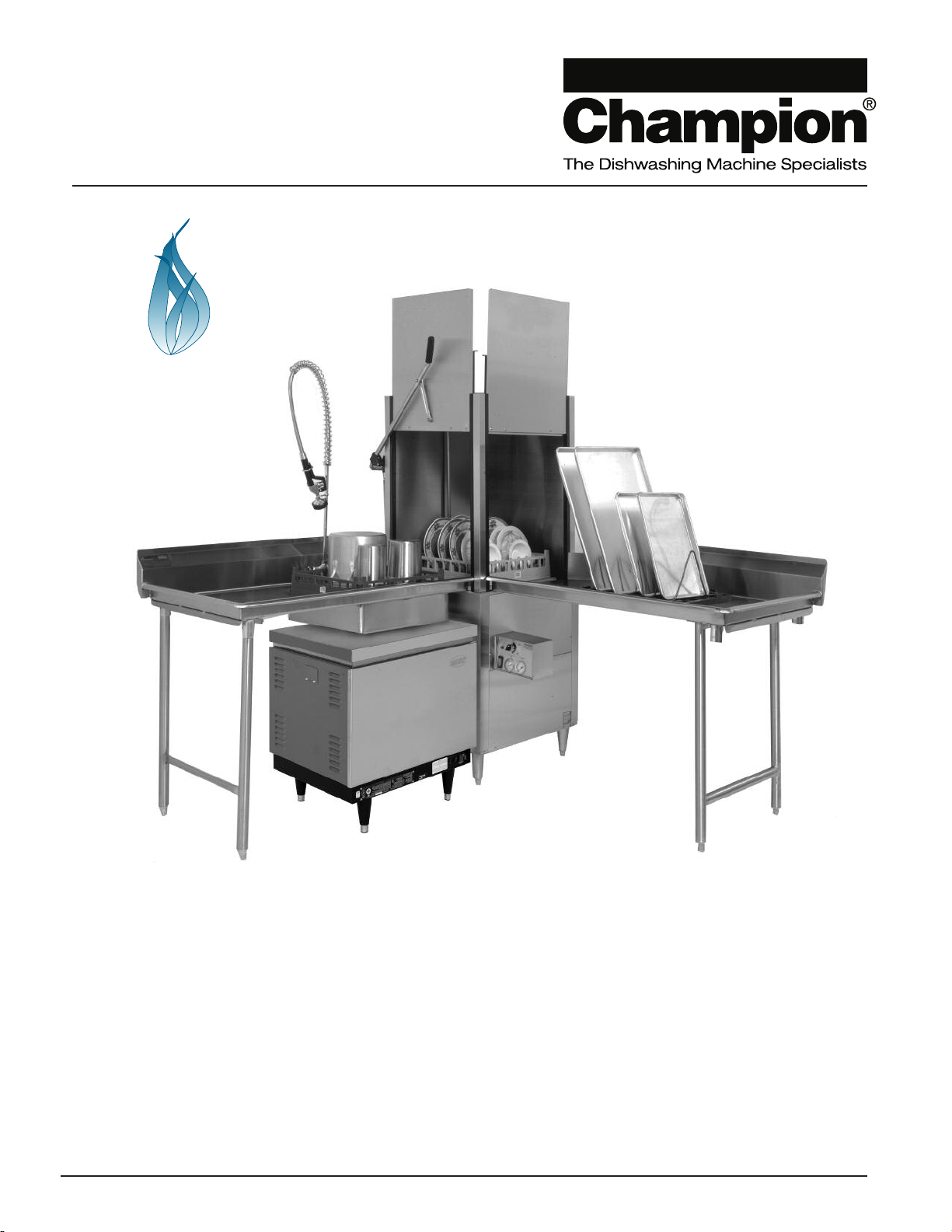

C rner C nfigurati n

D-H1T C rner Unit

Sh wing 90° M unted

C ntr l Panel

Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.

Champion Industries, Inc., . O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
