Channel Vision A0240 Manuale utente

A0240

40 Watt Stereo Amplifier

The A0240 is a 2-channel 40 Watt class D amplifier. It can be used to

power a small 1-room audio system or integrated with Channel Vision’s

A0302 to provide supplemental power to low power distributed audio

systems. It’s compact size makes it easy to hide and its versatile power

plug allows direct wall plug-in or tabletop operation using the detachable

power cable. With its easy installation and operation, the A0240 is perfect

for any audio system that just needs a little more power.

Features:

!40 Watts per channel

!Compact size

!Audio-sensing power shut off to conserve energy

!Easy installation

Accessories (sold separately)

Complementary Products (sold separately)

A0302... Speaker to Line-Level Converter

The A0302 can convert the speaker-leveloutput of an

audio amplifier to a line-level output that can be used to

drive A0240

In-wall and In-ceiling Speakers... Channel Vision offers

a full line of premium in-wall and in-ceiling speakers.

These speakers are perfect for whole-house music or

home theater applications.

VC-302... Impedance Matching Volume Control

The VC-302 is an impedance matching volume control

with an IR receiver knockout. The knockout allows

Channel Vision’s IR-2400 to be integrated with the

volume control for applications that require IR repeating.

The VC-302 comes with white, ivory, and almond knobs

and face plates to easily match other wall plates in the

room.

Amp-Link

Connect to Channel Vision’s A0302

Amp-Link Cable (included)

18”

L/R Line Level Inputs

Connect source output here

L/R Line Level Input Adjustments

Adjust to limit the maximum input level

Power LED

Lights when power is on

Signal LED

Lights when input signal is present

Speaker Outputs

Connect speaker wires here

Removable Power Plug

Allows direct plug in, or

can be removed and replaced

with the standard power cable.

Power Cable (included)

The A0240 is a 2-channel 40 Watt class D amplifier. It can be used to

power a small 1-room audio system or integrated with Channel Vision’s

A0302 to provide supplemental power to low power distributed audio

systems. It’s compact size makes it easy to hide and its versatile power

plug allows direct wall plug-in or tabletop operation using the detachable

power cable. With its easy installation and operation, the A0240 is perfect

for any audio system that just needs a little more power.

Features:

!40 Watts per channel

!Compact size

!Audio-sensing power shut off to conserve energy

!Easy installation

Accessories (sold separately)

Complementary Products (sold separately)

A0302... Speaker to Line-Level Converter

The A0302 can convert the speaker-leveloutput of an

audio amplifier to a line-level output that can be used to

drive A0240

In-wall and In-ceiling Speakers... Channel Vision offers

a full line of premium in-wall and in-ceiling speakers.

These speakers are perfect for whole-house music or

home theater applications.

VC-302... Impedance Matching Volume Control

The VC-302 is an impedance matching volume control

with an IR receiver knockout. The knockout allows

Channel Vision’s IR-2400 to be integrated with the

volume control for applications that require IR repeating.

The VC-302 comes with white, ivory, and almond knobs

and face plates to easily match other wall plates in the

room.

Amp-Link

Connect to Channel Vision’s A0302

Amp-Link Cable (included)

18”

L/R Line Level Inputs

Connect source output here

L/R Line Level Input Adjustments

Adjust to limit the maximum input level

Power LED

Lights when power is on

Signal LED

Lights when input signal is present

Speaker Outputs

Connect speaker wires here

Removable Power Plug

Allows direct plug in, or

can be removed and replaced

with the standard power cable.

Power Cable (included)

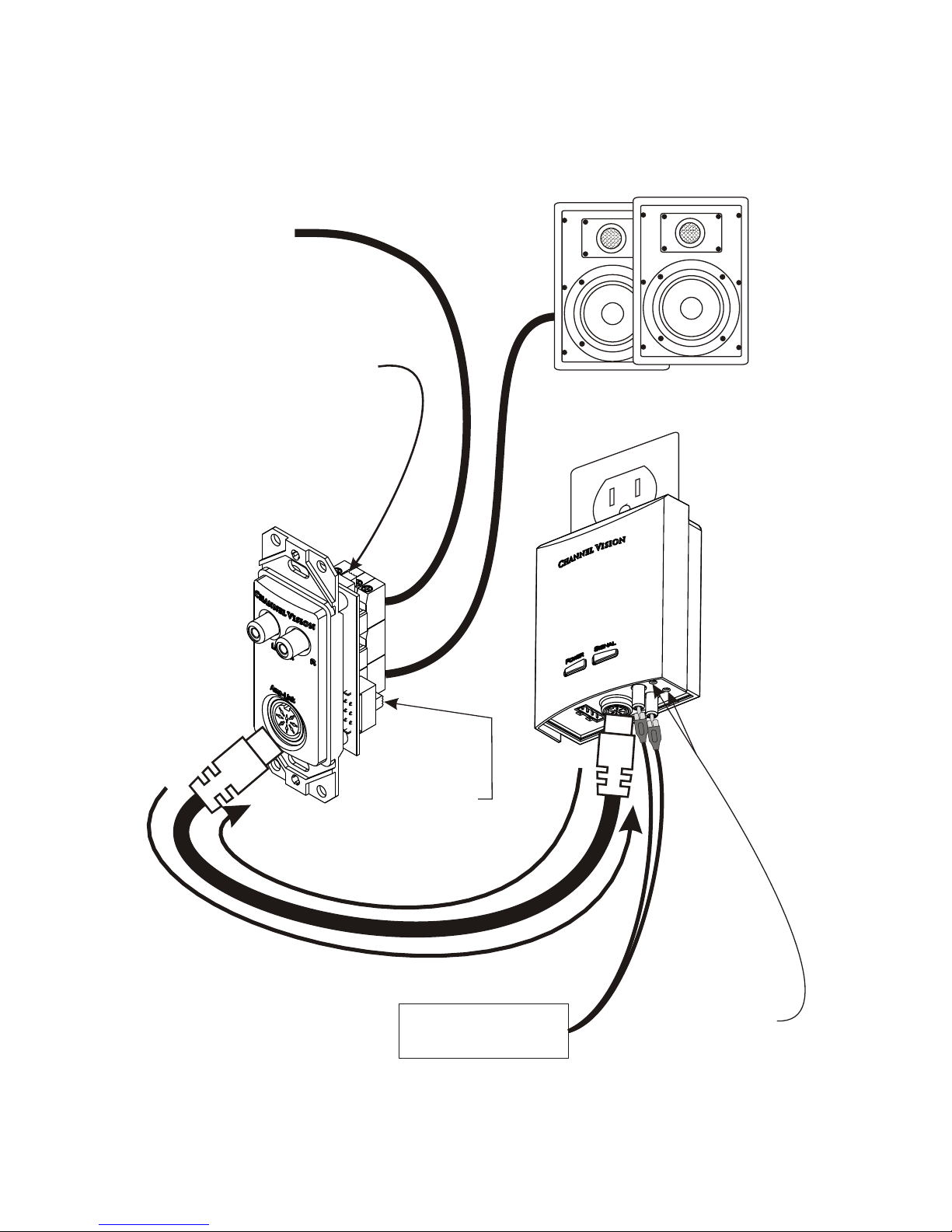

Using the A0240 as a local input amplifier

In addition to increasing power of a distributed audio system, the A0240 can

also be used to interrupt a the whole house audio source and amplify a local

source device.

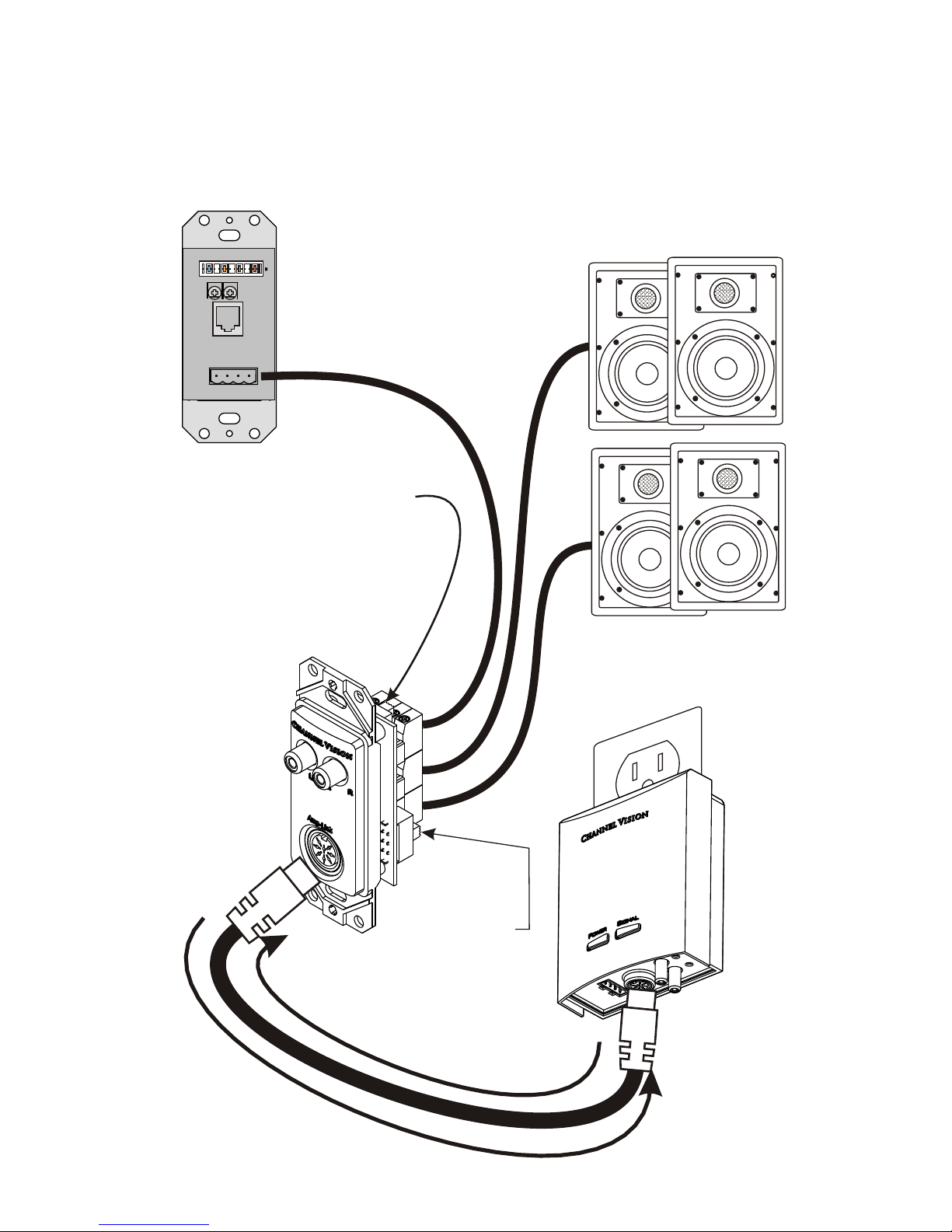

Using the A0240 with the A0302

The A0302 is the perfect complement to Channel Vision’s A0240 amplifier. It

can utilize the Amp-Link connection, which provides a clean way to interrupt

the speaker-level audio from a low-power system and output 35 Watts per

channel to the speakers. This is the perfect way to add power to low-power

distributed audio systems.

B-Speakers powered by

A0240 40Watt Amplifier

Speakers powered by

A0240 40Watt Amplifier

A-Speakers powered by

AB-124 keypad

Set switch to

“SPKRS IN”

Set switch to

“SPKRS IN”

AB-124 keypad

(rear view)

Whole-House

Audio System

Place switch in L/R mode.

Speaker level audio is

converted to line level to drive

the amp. Amplified audio is

returned to the A0302 through

the Amp-Link cable.

Note: Local source audio devices should have a variable audio output. Use

the volume control on the device to change the volume level in the

speakers. Portable music players and TVs are often used as local source

devices.

Place switch in L/R mode.

Speaker level audio is

converted to line level to drive

the amp. Amplified audio is

returned to the A0302 through

the Amp-Link cable.

A0240

Class D

amplifier

A0240

peaker Level O tput

S u

Speaker Level

utput

LinLevel Audio Input

ne e

LiL vel Audio Input

Adjust trim pots set the

local source input sensitivity

Local Source Audio

Using the A0240 as a local input amplifier

In addition to increasing power of a distributed audio system, the A0240 can

also be used to interrupt a the whole house audio source and amplify a local

source device.

Using the A0240 with the A0302

The A0302 is the perfect complement to Channel Vision’s A0240 amplifier. It

can utilize the Amp-Link connection, which provides a clean way to interrupt

the speaker-level audio from a low-power system and output 35 Watts per

channel to the speakers. This is the perfect way to add power to low-power

distributed audio systems.

B-Speakers powered by

A0240 40Watt Amplifier

Speakers powered by

A0240 40Watt Amplifier

A-Speakers powered by

AB-124 keypad

Set switch to

“SPKRS IN”

Set switch to

“SPKRS IN”

AB-124 keypad

(rear view)

Whole-House

Audio System

Place switch in L/R mode.

Speaker level audio is

converted to line level to drive

the amp. Amplified audio is

returned to the A0302 through

the Amp-Link cable.

Note: Local source audio devices should have a variable audio output. Use

the volume control on the device to change the volume level in the

speakers. Portable music players and TVs are often used as local source

devices.

Place switch in L/R mode.

Speaker level audio is

converted to line level to drive

the amp. Amplified audio is

returned to the A0302 through

the Amp-Link cable.

A0240

Class D

amplifier

A0240

pe t

S akerLevel Ou put

Speaker Leve l

Output

ne eLi L vel Audio Input

ne e

LiL vel Audio Input

Adjust trim pots set the

local source input sensitivity

Local Source Audio

Using the A0240 with the HP-300 and HP-350

The A0240 is the perfect amplifier to use with Channel Vision’s new HomePlug

audio devices. The HP-300 transmitter distributes your audio source through

your home’s electrical wiring and the HP-350 receiver outputs the audio to an

amplifier, such as the A0240.

Speaker Wire

A0240 Bottom View

A0240

HP-350

HP-300

Pin 8 Power +24VDC

Pin 6 Speaker L-

Pin 1 Speaker L+

Pin 4 Power Ground

Pin 2 Audio L+

Pin 7 Speaker R-

Shield Audio Ground

Pin 3 Speaker R+

Pin 5 Audio R+

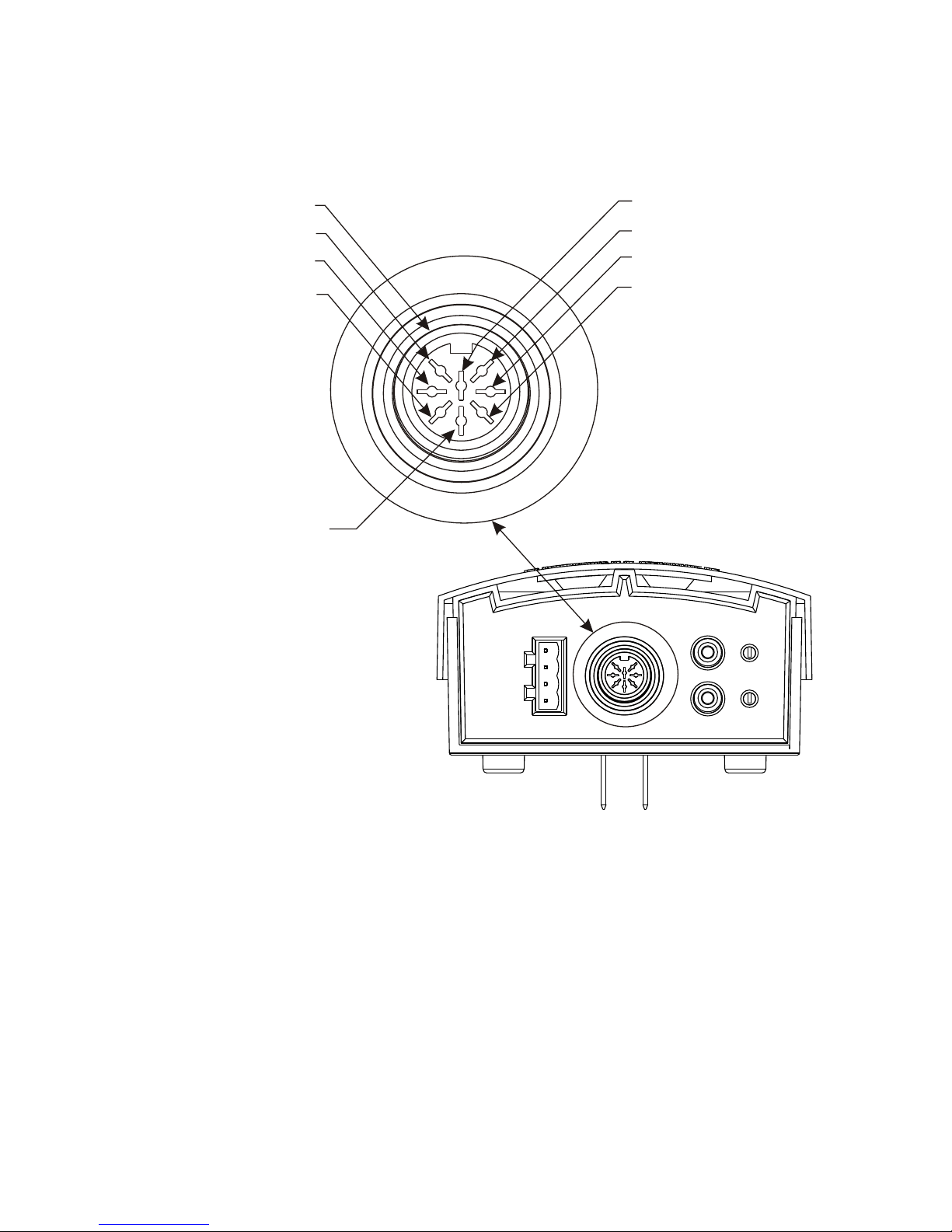

Amp-Link Pin Out

The A0240 provides a special Amp-Link connection that is intended to be used

with Channel Vision A0302 wall plate. The pin out is provided here for

reference.

Use the remote provided with the HP-350 to

adjust volume levels in the speakers.

VL +

L -VO

CH UM TE

hneC a n l

Viion

A0512

Receiver

Audio Source

Specifications: (typical at 25 degrees C)

Power input: 110 - 240VAC, 50/60Hz

Output power: 40 Watts/channel RMS into 6 ohms @ <4% THD

Frequency Response: 20-20kHz (+/-3dB)

Signal to Noise Ratio: >85dB

Input Sensitivity: 500mVRMS

Auto On Threshold: 10mVRMS

Specifications subject to change without notice

A-BUS is a registered trademark of LeisureTech Electronics Pty Ltd

Using the A0240 with the HP-300 and HP-350

The A0240 is the perfect amplifier to use with Channel Vision’s new HomePlug

audio devices. The HP-300 transmitter distributes your audio source through

your home’s electrical wiring and the HP-350 receiver outputs the audio to an

amplifier, such as the A0240.

Speaker Wire

A0240 Bottom View

A0240

HP-350

HP-300

Pin 8 Power +24VDC

Pin 6 Speaker L-

Pin 1 Speaker L+

Pin 4 Power Ground

Pin 2 Audio L+

Pin 7 Speaker R-

Shield Audio Ground

Pin 3 Speaker R+

Pin 5 Audio R+

Amp-Link Pin Out

The A0240 provides a special Amp-Link connection that is intended to be used

with Channel Vision A0302 wall plate. The pin out is provided here for

reference.

Use the remote provided with the HP-350 to

adjust volume levels in the speakers.

VOL +

VOL -

CHU

M TE

Channel

Vis oni

A0512

Receiver

Audio Source

Specifications: (typical at 25 degrees C)

Power input: 110 - 240VAC, 50/60Hz

Output power: 40 Watts/channel RMS into 6 ohms @ <4% THD

Frequency Response: 20-20kHz (+/-3dB)

Signal to Noise Ratio: >85dB

Input Sensitivity: 500mVRMS

Auto On Threshold: 10mVRMS

Specifications subject to change without notice

A-BUS is a registered trademark of LeisureTech Electronics Pty Ltd

Channel Vision Technology will repair or replace any defect in

material or workmanship which occurs during normal use of this

product with new or rebuilt parts, free of charge in the USA, for two

years from the date of original purchase. This is a no hassle warranty

with no mail in warranty card needed. This warranty does not cover

damages in shipment, failures caused by other products not supplied

by Channel Vision Technology, or failures due to accident, misuse,

abuse, or alteration of the equipment. This warranty is extended only

to the original purchaser, and a purchase receipt, invoice, or other

proof of original purchase date will be required before warranty

repairs are provided.

Mail in service can be obtained during the warranty period by calling

(800) 840-0288 toll free. A Return Authorization number must be

obtained in advance and can be marked on the outside of the shipping

carton.

This warranty gives you specific legal rights and you may have other

rights (which vary from state to state). If a problem with this product

develops during or after the warranty period, please contact Channel

Vision Technology, your dealer or any factory-authorized service

center.

500-201 rev A

ww w . c ha n n e l v i si o n . co m

234 Fischer Avenue, Costa Mesa, California 92626 USA

(714)424-6500 (800)840-0288 (714)424-6510 fax

email: [email protected]

Altri manuali Channel Vision Amplificatore

Channel Vision

Channel Vision A0240 Manuale utente

Channel Vision

Channel Vision Audio/Video Distribution Amplifier VDA-12 Manuale utente

Channel Vision

Channel Vision A0360 Manuale utente

Channel Vision

Channel Vision C-0314 Manuale utente

Channel Vision

Channel Vision A-BUS AB-114 Manuale utente

Channel Vision

Channel Vision A500 Manuale utente

Channel Vision

Channel Vision P-2014 Manuale utente

Channel Vision

Channel Vision A0240 Manuale utente

Channel Vision

Channel Vision CVT-10 PIA Manuale utente

Channel Vision

Channel Vision CVT-40BID Manuale utente

Channel Vision

Channel Vision ARIA A4623 Manuale utente

Channel Vision

Channel Vision Aria A1260 Manuale utente

Channel Vision

Channel Vision A0240 Manuale utente

Channel Vision

Channel Vision Aria A0350 Manuale utente

Channel Vision

Channel Vision CVT-15PIA Manuale

Channel Vision

Channel Vision A-BUS AB-202 Manuale utente

Channel Vision

Channel Vision A0240 Manuale utente

Channel Vision

Channel Vision C-0310 Manuale utente

Channel Vision

Channel Vision Aria A0351 Manuale utente

Channel Vision

Channel Vision Aria A0350 Manuale utente

Channel Vision

Channel Vision Central C-0315 Manuale utente

Channel Vision

Channel Vision CVT-38BID Manuale utente

Channel Vision

Channel Vision VDA-12 Manuale utente

Channel Vision

Channel Vision A0362 Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
