Channel Vision A0316 Manuale utente

A0316

iBus Wall-Dock for Distributed Audio

with RS-232 Control

2 3

Features:

Supports IR control: compatible with A0505 or Apple Remote

RS-232 interface for use with advanced control systems

Built-in IR receiver

Charges the iPod

Allows viewing of iPod videos on a TV

Mounts in a standard 2-gang box

Output Wall Plate

The A0316 is an on-wall iPod docking station that supports RS-232 and

IR control. The dock connector slides in and out to adjust for any iPod and

the non-skid pad helps to hold the music player in place. Its elegant and

contemporary design make the A0316 perfect for anyone who wants to

enjoy their music without defacing their wall.

Front/Top Front/Bottom

Wall Dock

Sliding Dock Platform

Slides up to conceal

the dock connector

Non-Skid Pad

Secures the iPod

Sliding Dock Lever

Slides the dock connector forward, providing

easy access to dock your iPod

RJ-45 & 110 Connectors

Connect to output wall plate via

CAT5 cable (only use one)

Composite Video Output

Outputs video signals from the iPod

Use RG59U coax or CAT5 and a video balun

(Suggested balun model B201 CAT5 video balun)

Slide Up

Hinged Dock Lid

Rotates down to

cover the dock

connector

Dock Connector

Connects to iPod

Audio Outputs

Connect to your

amplifier.

Installing the Trim Plate Accessory

Serial Connector

RS-232 interface

provides advanced

control and feedback.

Install Output

wall plate in j-box

Install Trim plate chassis

over output wall plate

Snap front cover

over chassis

Snap side flange on

to front cover

Snap trim

into place

IR Input

Connect an IR

receiver and use

the A0505 remote

to control your iPod.

RJ-45 & 110

Connectors

Receive signals

from the wall dock

via Category 5 or

Category 6 cable.

Back

Front

Made For:

iPod touch (2nd generation)

IPod touch (1st generation)

iPod classic

iPod video

iPod nano (5th generation)

iPod nano (4th generation)

iPod nano (3rd generation)

iPod nano (2nd generation)

iPod nano (1st generation)

iPod mini

iPod with dock connector

Compatibility

2 3

Features:

Supports IR control: compatible with A0505 or Apple Remote

RS-232 interface for use with advanced control systems

Built-in IR receiver

Charges the iPod

Allows viewing of iPod videos on a TV

Mounts in a standard 2-gang box

Output Wall Plate

The A0316 is an on-wall iPod docking station that supports RS-232 and

IR control. The dock connector slides in and out to adjust for any iPod and

the non-skid pad helps to hold the music player in place. It’s elegant and

contemporary design make the A0316 perfect for anyone who wants to

enjoy their music without defacing their wall.

Front/Top Front/Bottom

Wall Dock

Sliding Dock Platform

Slides up to conceal

the dock connector

Non-Skid Pad

Secures the iPod

Sliding Dock Lever

Slides the dock connector forward, providing

easy access to dock your iPod

RJ-45 & 110 Connectors

Connect to output wall plate via

CAT5 cable (only use one)

Composite Video Output

Outputs video signals from the iPod

Use RG59U coax or CAT5 and a video balun

(Suggested balun model B201 CAT5 video balun)

Slide Up

Hinged Dock Lid

Rotates down to

cover the dock

connector

Dock Connector

Connects to iPod

Audio Outputs

Connect to your

amplifier.

Installing the Trim Plate Accessory

Serial Connector

RS-232 interface

provides advanced

control and feedback.

Install Output

wall plate in j-box

Install Trim plate chassis

over output wall plate

Snap front cover

over chassis

Snap side flange on

to front cover

Snap trim

into place

IR Input

Connect an IR

receiver and use

the A0505 remote

to control your iPod.

RJ-45 & 110

Connectors

Receive signals

from the wall dock

via Category 5 or

Category 6 cable.

Back

Front

Made For:

iPod touch (2nd generation)

IPod touch (1st generation)

iPod classic

iPod video

iPod nano (5th generation)

iPod nano (4th generation)

iPod nano (3rd generation)

iPod nano (2nd generation)

iPod nano (1st generation)

iPod mini

iPod with dock connector

Compatibility

Basic Application

HDTV Plasma with speakers

Whole-House Audio System

IR receiver

(optional)

Serial Control Automation:

Control4 driver available from

Extravegetables.com

Pwr.

Note: An IR emitter output

from a whole-house IR system

can also be connected here.

As shown on the

following page.

A0505

Remote

A0505

Remote Control

CAT5 cable up to 350ft.

A0316 Wall Dock

A0316 Output Wall Plate

Front

Rear

Front

TV or Video Display

Video Output

The built-in IR receiver

allows the A0316 to be

controlled directly by

the A0505.

CHANNEL VISI O N

ZO EN

POWER

MUTE

CAMERA

CATV

MOD

VOL

MODEL

A0505

POWER

CN EL IS NHA N VIO

ZONE

POWER

MUTE

A ERAC M

ATVC

OM D

VOL

MODEL

A0505

POWER

115

66ControlControl 5544ControlControl 3322ControlControl 11

VIDEOR-AUDIO-L

OO55

VIDEOR-AUDIO-L

OO33

VIDEOR-AUDIO-L

OO11

22TT

VIDEOR-AUDIO-L

44® ®

UUS

SerialSerial

Link

IR EmittersIR Emitters

Warning:

To prevent fire or shock hazard do not expose this unit to

rain or moisture.

665544332211FOR HOME OR OFFICE USE FOR HOME OR OFFICE USE

Channel Vision A4623Channel Vision A4623

Tested To ComplyTested To Comply

With FCC StandardsWith FCC Standards

1234

Hi-Z

CAUTIONCAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

+ R - - L + + R - - L + + R - - L + + R - - L + + R - - L + + R - - L +

POWER

Input Voltage

50/60 Hz MAX 115W

230/115V ~

FUSEFUSE

T3.15AL/250V 115VAC

IR signals detected by the A0127

keypad will be repeated back to

the A4623. This allows control

of the input sources.

The single-gang trim plate can be

used to hold a single-gang keypad

next to the iPod dock in a 3-gang

junction box. See installation section

for details.

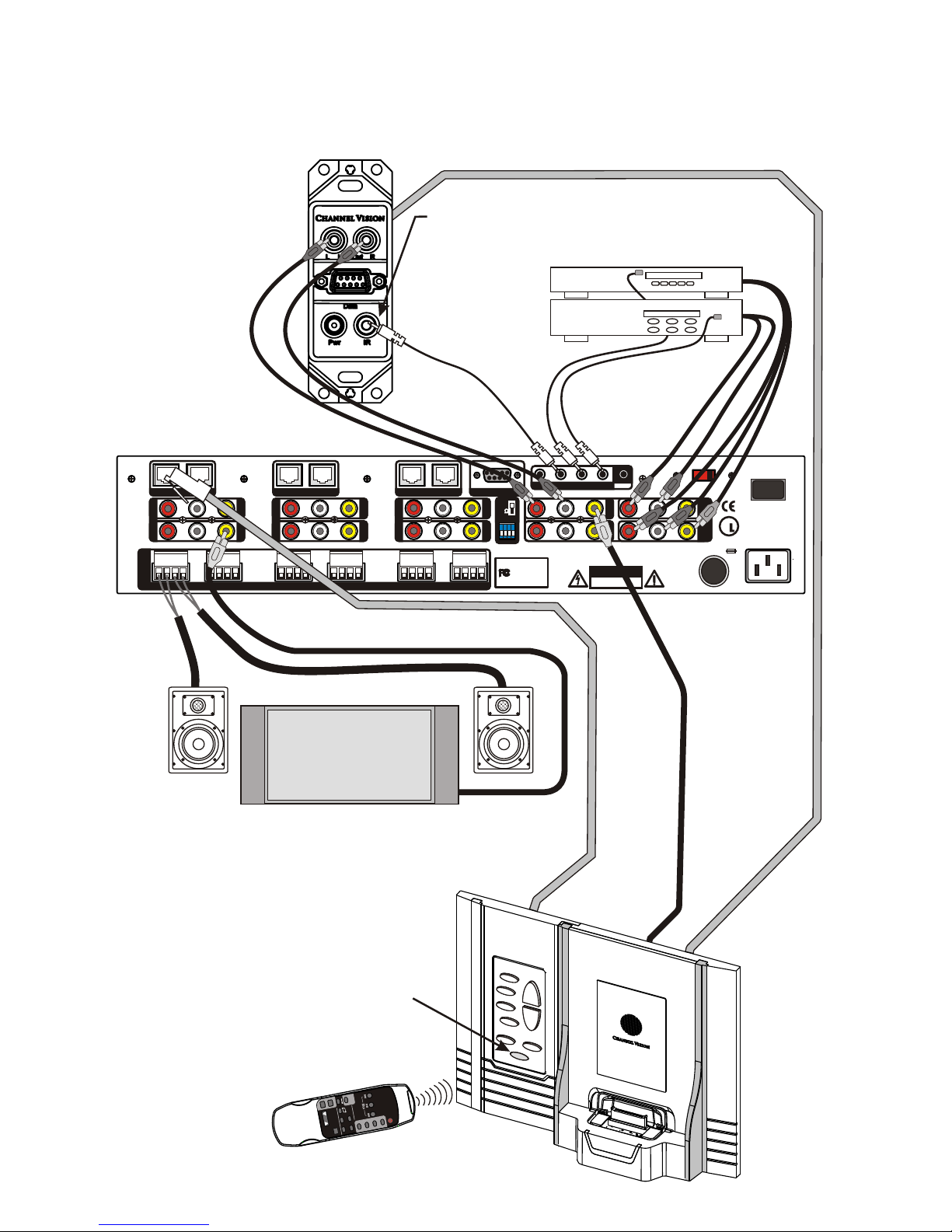

Sample Wiring Diagram:

When used with the A4623

DVD player

A4623 Rear Panel

CD player

Connect an IR emitter output into the

“IR in” of the A0316 output wall plate.

Power supply

not shown

RG59U

or RG6

IR-4180

RG59U

or RG6

CAT5

TV or Video Display

CHA NNE L VIS IO N

ZONE

POWER

MUTE

CAMERA

CATV

MOD

VOL

MODEL

A0505

POWER

Basic Application

HDTV Plasma with speakers

Whole-House Audio System

IR receiver

(optional)

Serial Control Automation:

Control4 driver available from

Extravegetables.com

Pwr.

Note: An IR emitter output

from a whole-house IR system

can also be connected here.

As shown on the

following page.

A0505

Remote

A0505

Remote Control

CAT5 cable up to 350ft.

A0316 Wall Dock

A0316 Output Wall Plate

Front

Rear

Front

TV or Video Display

Video Output

The built-in IR receiver

allows the A0316 to be

controlled directly by

the A0505.

CHANNEL IS I O N

Z EON

POWER

MU ET

C MERAA

C TA V

MOD

VOL

OD LM E

A0505

POWER

HA NNEL VC ISION

ZO E

POWER

TMU E

CAMERA

CATV

MOD

MODEL

A0505

POWER

115

66ControlControl 5544ControlControl 3322ControlControl 11

VIDEOR-AUDIO-L

OO55

VIDEOR-AUDIO-L

OO33

VIDEOR-AUDIO-L

OO11

22TT

VIDEOR-AUDIO-L

44® ®

UUS

SerialSerial

Link

IR EmittersIR Emitters

Warning:

To prevent fire or shock hazard do not expose this unit to

rain or moisture.

665544332211FOR HOME OR OFFICE USE FOR HOME OR OFFICE USE

Channel Vision A4623Channel Vision A4623

Tested To ComplyTested To Comply

With FCC StandardsWith FCC Standards

1234

Hi-Z

CAUTIONCAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

+ R - - L + + R - - L + + R - - L + + R - - L + + R - - L + + R - - L +

POWER

Input Voltage

50/60 Hz MAX 115W

230/115V ~

FUSEFUSE

T3.15AL/250V 115VAC

IR signals detected by the A0127

keypad will be repeated back to

the A4623. This allows control

of the input sources.

The single-gang trim plate can be

used to hold a single-gang keypad

next to the iPod dock in a 3-gang

junction box. See installation section

for details.

Sample Wiring Diagram:

When used with the A4623

DVD player

A4623 Rear Panel

CD player

Connect an IR emitter output into the

“IR in” of the A0316 output wall plate.

Power supply

not shown

RG59U

or RG6

IR-4180

RG59U

or RG6

CAT5

TV or Video Display

CHA N N E L VIS I O N

Z E

P WER

MUTE

AMC ERA

C V

MOD

VOL

M EOD L

05A05

POWER

Installing the Wall Dock

Installation Steps

1. Connect all wiring.

2. Attach main chassis to j-box using

the provided four 6-32 screws.

3. Feed the dock connector circuit

board through the opening in the

front cover.

4. Hang the front cover on the main

chassis from the two top tabs.

5. Secure the front cover with the

two small screws at the bottom.

6. Place the dock platform over

the slide rail and push

downward until the retention

snaps are engaged.

7. Slide the side protectors

into the slots on the main

chassis.

Completed Installation

Steps 3 & 4 complete

Steps 5 & 6 complete

Retention

Snap

Slide Rail

Installation Steps

1. Connect all wiring. Use the correct

installation tools: J-110 tool, or

1014 crimp tool.

2. Install keypad and single-gang

trim plate in the far left position

of the 3-gang junction box.

(See details on page 3)

3. Leave off the right side

flange and trim piece.

4. Install the iPod dock in the

left side of the 3-gang j-box.

It will overlap and snap into

the single gang trim plate.

(See page 5 for details)

In some installations it may be desirable to mount a single gang control

keypad next to the A0316. To accomplish this, the single gang trim plate

can be installed next to the A0316 in a 3-gang junction box.

Follow the steps below:

Completed Installation

See attachment

detail on previous page

Altri manuali per A0316

Altri manuali Channel Vision Stazione di attracco

Channel Vision

Channel Vision A0316 Manuale utente

Channel Vision

Channel Vision AB-313 Manuale utente

Channel Vision

Channel Vision A0602 Manuale utente

Channel Vision

Channel Vision A0318 Manuale utente

Channel Vision

Channel Vision A0317 Manuale utente

Channel Vision

Channel Vision P-3036 Manuale utente

Channel Vision

Channel Vision iBus A0312 Manuale utente

Channel Vision

Channel Vision IBUS A0315 Manuale utente

Channel Vision

Channel Vision AB-315 Manuale utente

Channel Vision

Channel Vision AB-318 Manuale utente

Channel Vision

Channel Vision A0602 Manuale utente

Channel Vision

Channel Vision iBus A0314 Manuale utente

Channel Vision

Channel Vision iBus AB-311 Manuale utente

Channel Vision

Channel Vision A0314D Manuale utente

Channel Vision

Channel Vision AB-315 Manuale utente

Channel Vision

Channel Vision AO320 Manuale utente

Channel Vision

Channel Vision IBUS A0315 Manuale utente

Channel Vision

Channel Vision iBus A0313 Manuale utente

Manuali Stazione di attracco popolari di altre marche

Sony

Sony Dream Machine XDR-DS12iP Manuale utente

Acer

Acer USB Type-C Dock II Manuale utente

ATEN

ATEN UC-2000 Manuale utente

Xcellon

Xcellon HDD-202 Manuale utente

Dok

Dok CR09 Manuale utente

Philips

Philips BTM630/12 Manuale utente

IOGear

IOGear Travel Pro GUD3C09 Manuale utente

RKI

RKI SDM-E2 Manuale utente

iHome

iHome iP15 Manuale utente

VITURE ONE

VITURE ONE MOBILE DOCK Manuale utente

Lindy

Lindy 42984 Manuale utente

CipherLab

CipherLab 8001 Manuale utente

Pyle

Pyle PIPDSP2 Manuale utente

Avol

Avol AS2350 Manuale utente

Datalogic

Datalogic JoyaTouch Manuale utente

Philips

Philips DC190/79 Manuale utente

Targus

Targus DOCK315EUZ Manuale utente

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manuale utente
