Evolution®Vertical Cable Managers
IIS-735511, 01/06/10, Rev. 2, CPI/J Garza
For international phone numbers, see our website or contact CPI Tech Support.
This drawing contains proprietary and confidential information and is protected by U.S. andinternational law. Unauthorized
reproduction, disclosure or use of the drawing or the information therein is expressly forbidden except as agreed to in writing
by Chatsworth Products, Inc.
Page 1 of 5

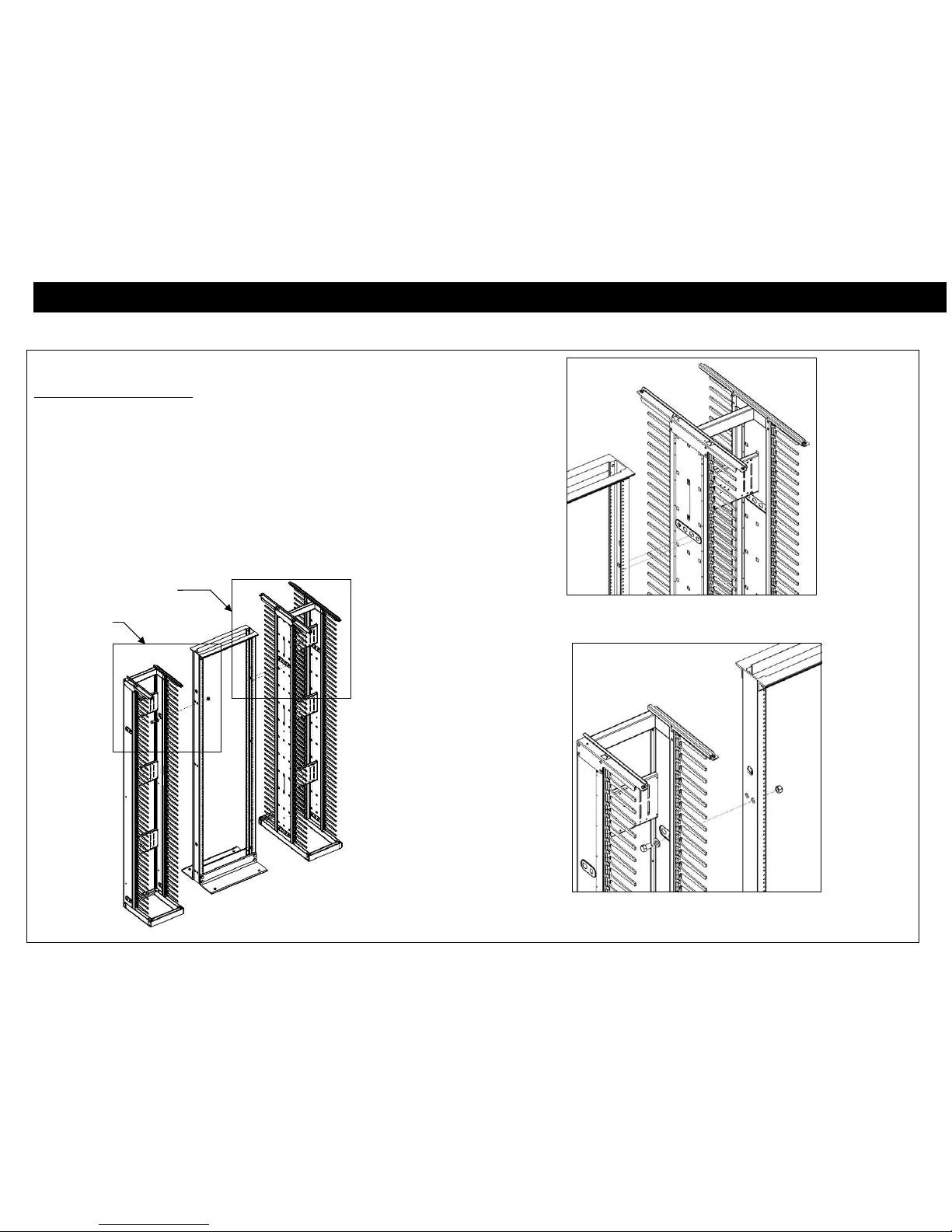

Installation Instructions
Safety Information
WARNING: Product is heavy. Use two people to lift.
WARNING: Do not lift product by plastic fingers.
WARNING: Product not designed for stand-alone use. Support
product properly until bolted to rack. Do not leave unsupported
product unattended.
WARNING: Make sure door pins engage completely when
installing door.
Intended Use
Install this vertical cable manager (VCM) only in a restricted service environment,
such as a data center. Use indoors only, in environmentally controlled areas; do
not use outdoors, in harsh environments or in air-handling spaces. Use this VCM
to house copper and fiber data communications cabling. Allow only qualified
service personnel to use this VCM.
Packaged Hardware
QTY DESCRIPTION
8 ½-20 x 1 Bolts
8 ½ Washers
8 ½-20 Hex Nuts
2 ¼-20 x ¾ Hex Cap Screws (not required for Evolution VCM)
2 ¼-20 Hex Nuts (not required for Evolution VCM)
