INSTALLING AND

REMOVING MEMORY IN

SANDBLAST TE2000XN-

28VM/56VM APPLIANCES

Check Point Copyright Notice

licensing restricting their use, copying, distribution, and decompilation. No part of this product or related

documentation may be reproduced in any form or by any means without prior written authorization of Check

Point. While every precaution has been taken in the preparation of this book, Check Point assumes no

responsibility for errors or omissions. This publication and features described herein are subject to change

without notice.

RESTRICTED RIGHTS LEGEND:

Use, duplication, or disclosure by the government is subject to restrictions as set forth in subparagraph (c)

(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and FAR

52.227-19.

TRADEMARKS:

Refer to the Copyright page for a list of our trademarks.

Refer to the Third Party copyright notices for a list of relevant copyrights and third-party licenses.

Important Information

Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances|3

Important Information

Latest Software

We recommend that you install the most recent software release to stay up-to-date with the

latest functional improvements, stability fixes, security enhancements and protection against

new and evolving attacks.

Certifications

For third party independent certification of Check Point products, see the Check Point

Certifications page.

Check Point Installing and Removing Memory in SandBlast TE2000XN-

28VM/56VM Appliances

For more about this release, see the home page.

Latest Version of this Document in English

Download the latest version of this document in PDF format.

Feedback

Check Point is engaged in a continuous effort to improve its documentation.

Please help us by sending your comments.

Revision History

Date Description

30 August 2021 First release of this document

Table of Contents

Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances|4

Table of Contents

SandBlast TE2000XN Appliances Installing and Removing Memory

Preparing the Appliance

About DIMM Sockets

DIMM Configuration

Removing DIMMs

Installing DIMMs

Verifying the Memory Configuration

SandBlast TE2000XN Appliances Installing and Removing Memory

Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances|5

SandBlast TE2000XN Appliances

Installing and Removing Memory

This document applies to TE2000XN-28VM and TE2000XN-56VM Appliances.

Important - We recommend that only experienced personnel install or remove hardware

components. Installing or removing components incorrectly can permanently damage

the appliance.

Preparing the Appliance

Before you start to remove and then install DIMMs, make sure that:

nThe appliance is shut down and you unplug the power cables.

nThe appliance is in a clean environment and on a level surface.

nYou can physically access and open the cover of the appliance.

nYou have the Check Point memory kit.

Important

nTo protect the appliance and the memory modules from electrostatic discharge, make sure that you

are properly grounded before you touch these components.

nFor more information, read the Health and Safety Information in the

SandBlast TE2000XN

Appliances Getting Started Guide

nWe recommend that you use the grounding wrist strap that is included in the memory kit. The

grounding plug on the rear of the appliance provides a chassis grounding point.

Memory Kit Contents

nQR code document - Installing and Removing Memory in Check Point TE2000XN Appliances

nMemory DIMMs

nESD grounding strap (anti-static)

To prepare the appliance:

1. Shut down the appliance from the Gaia Portal, CLI, or by pressing and releasing the power switch

quickly.

Note that pressing and holding the power switch is not recommended as it results in a forced and

immediate shut down.

2. Remove the power cords from the appliance.

3. Put on the ESD strap and attach the other end to a grounding point.

4. Loosen the appliance cover screws.

5. Remove the top cover from the appliance.

SandBlast TE2000XN Appliances Installing and Removing Memory

Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances|6

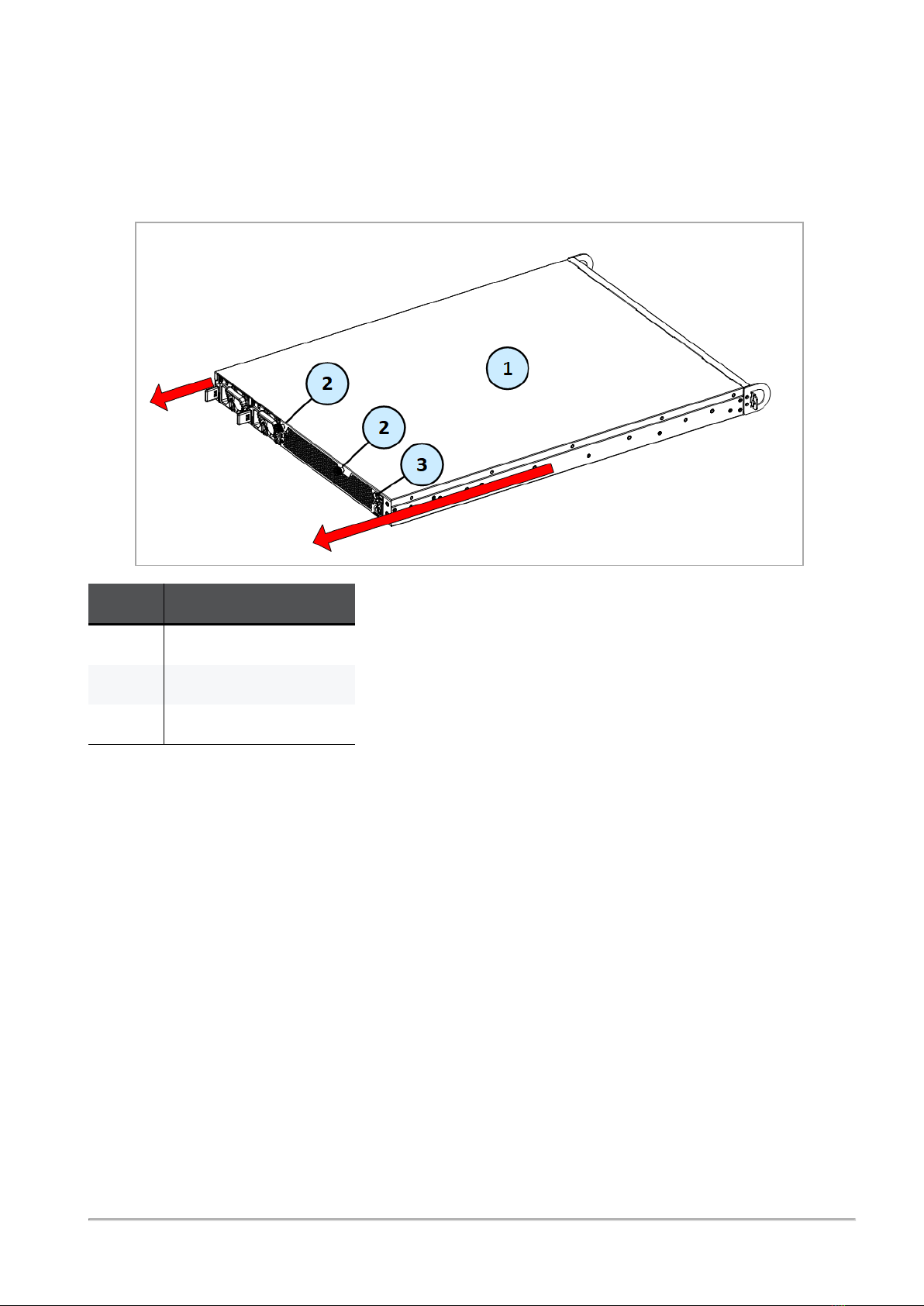

To remove the top cover:

1. Unscrew the cover screws (number 2 below).

2. Pull the top cover back in the direction of the arrows.

3. Pull the cover up to remove it completely.

Item Description

1 Appliance cover

2 Appliance cover screws

3 ESD grounding point

SandBlast TE2000XN Appliances Installing and Removing Memory

Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances|7

About DIMM Sockets

Item Description

1 Appliance front panel

2 Appliance rear panel

3 DIMM sockets

SandBlast TE2000XN Appliances Installing and Removing Memory

Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances|8

The memory sockets are colored blue. In the appliance configuration diagrams note that:

nThe view shown is always from the top

nThe front panel of the appliance is always at the bottom of the diagram

Item Description

Memory socket with DIMM installed

Memory socket without DIMM installed

DIMM Configuration

The TE2000XN appliance has a memory configuration of 128GB: 8 x 16GB.

If necessary, you can remove a faulty DIMMand replace it with a new one. Make sure to replace the new

DIMM in the same DIMMslot used by the faulty DIMM. DIMMs can only be placed in slots as shown in the

diagram.

SandBlast TE2000XN Appliances Installing and Removing Memory

Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances|9

Removing DIMMs

Important - The appliance contains sharp metal parts such as the heat sink fin and

bracket that can cause injury or damage the DIMMs.

Make sure that you prepare the appliance before you remove DIMMs. For more information, see

"Preparing

the Appliance" on page5

To remove DIMMs from the appliance:

1. Remove the power cords from the appliance.

2. Put on the ESD strap and attach the other end to a grounding point.

3. Press the two retaining clips outward.

SandBlast TE2000XN Appliances Installing and Removing Memory

Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances|10

4. Carefully pull the DIMM up.

Important - Only touch the rear corners of the DIMM. Pressing on the heat sink or

other DIMM components can damage the hardware.

If necessary, pull one end of the DIMM, then the other, to gradually release it from the contact pins.

Important - Make sure that there are no leftover parts inside the appliance.

5. Make sure the DIMMs are installed correctly.

a. Replace the appliance cover without tightening the appliance cover screws.

b. Connect the power cords to the appliance.

The appliance turns on.

6. Tighten the appliance cover screws to secure the cover on the appliance.
