ChefsTemp Quad XPro Manuale utente
ChefsTemp Quad XPro Alarm Thermometer
Operating Instruction
Alarm Thermometer
Quad XPro
Large LCD
display
Backlight
Magnetic
Back
°C/°F
Switchable
Preset
Temp
4 Probes
Remote Range
500 Feet/150M
Temperature
Alarm
Content
1.ChefsTemp Quad XPro Info Sheet…………………… 01
1.1 Overview …………………………………………… 01
1.2 Package Content ………………………………… 01
1.3 Product Specication……………………………… 02
1.4 Button and Interface Introduction ……………… 03
2. Operating Instruction ………………………………… 09
2.1 Getting Started …………………………………… 09
2.2 Main Unit Basic Setting …………………………… 10
2.3 Main Unit Temperature Setting…………………… 10
2.4 Receiver Setting …………………………………… 11
3. Temperature Alarm Function ………………………… 12
3.1 Main Unit …………………………………………… 12
3.2 Receiver …………………………………………… 12
4. Low-battery Reminder Mode ………………………… 13
4.1 Main Unit …………………………………………… 13
4.2 Receiver …………………………………………… 13
5. How to Sync Main Unit and Receiver Manually …… 14
6. Probe Ring Installation Instruction ………………… 14
7. Calibration Guide ……………………………………… 16
8. Use & Maintenance …………………………………… 17
9. Trouble Shooting ……………………………………… 18
10. Contact Us …………………………………………… 20
11. Chef-recommended Meat Temperature …………… 21
01
1. ChefsTemp Quad XPro Info Sheet
1.1 Overview
1.2 Package Content
Monitoring temperature from your yard or house has been made easier with ChefsTemp Quad XPro BBQ Alarm Thermometer.
The Quad XPro allows you to stay connected and track real-time cooking temperatures of your food with a transmission distance
up to 500 feet/150 meters (1m above the ground), ensuring that your food is at the right temperature and perfectly smoked every
time. If the temperature is over the high or low target settings, the Quad XPro will sound and send signals to the Receiver. It's
eective 4 channel splash proof casing, and RF remote function make it a cooking device you can't go without. Experience the
convenience of ChefsTemp Quad XPro, making your cooking process more seamless than ever before.
The Quad XPro can also be used for a wide range of cooking methods, including smoking, barbecuing, roasting, and more.
Achieving the right temperature is crucial to achieving outstanding results when it comes to smoking-making an eective remote
alarm thermometer an essential culinary tool for monitoring cooking temperature when cooking any kind of food.
ChefsTemp Quad XPro Main Unit x1
ChefsTemp Quad XPro Receiver x1
Stainless Steel Probe x3
Stainless Steel Ambient Probe x1
Probe Ring x16 (2 packs, 8 per pack)
Probe Clip x1
Hanging Lanyard x1
Instruction Manual x1
02
1.3 Product Specication
Display Size:
ChefsTemp Quad XPro Main Unit: 3.66Hx2.09W inches (93Hx53W mm)
ChefsTemp Quad XPro Receiver: 1.42Hx2.02W inches (36Hx51.3W mm)
Product Size:
ChefsTemp Quad XPro Main Unit: 5.94Hx3.74Wx1.18D inches (150.8Hx95Wx30D mm)
ChefsTemp Quad XPro Receiver: 2.44Hx3.84Wx1.4D inches (62Hx97.5Wx35.5D mm)
Probe Range: -58 to 572°F (-50 to 300°C)
Probe Cable Withstand Temperature: Max 700°F (370°C)
Transmission Distance: 500ft (150m) in rural areas (1m above the ground)
Accuracy:
±0.9°F (±0.5°C) from 32 to 212°F (0 to 100°C)
±1.8°F (±1.0°C) from 212 to 572°F (100 to 300°C)
±1.8°F (±1.0°C) from -58 to 32°F (-50 to 0°C)
Resolution: 0.1°F (°C)
Units: °C/°F switchable
Backlight: 20 seconds
Main Unit and Receiver Waterproof: IP66 splash-proof
Probe Waterproof: IPX7 water-proof
03
Operating Range: 32 to 122°F (0 to 50°C)
Main Unit and Receiver Power Supply: 2 AA size 1.5V batteries (not included)
The Main Unit can be powered by a Type-C cable (not included)
The Main Unit and Receiver include bracket and back-lit magnet
The Receiver has a hanging hole and vibration function
1.4 Button and Interface Introduction
Main Unit (Front)
04
Main Unit Screen
05
Main Unit (Back)
06
Receiver (Front)
07
Receiver Screen
08

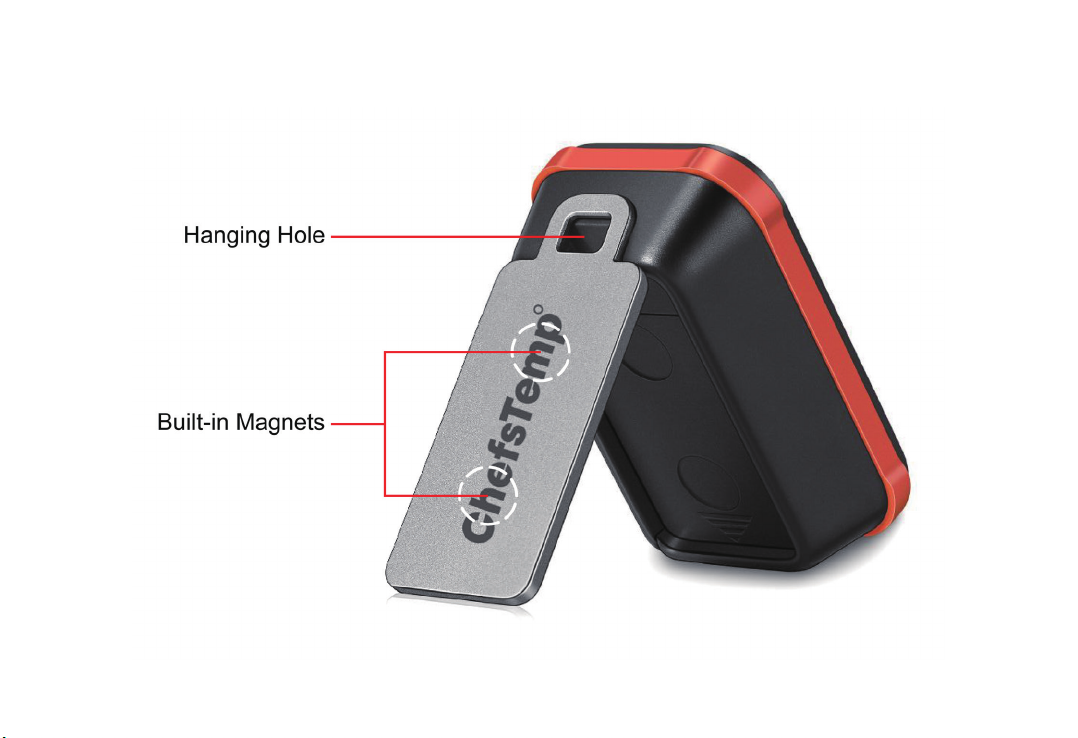

Receiver (Back)
