Chevrolet ACADIA - NAVIGATION SYSTEM 2008 Manuale utente

Overview ........................................................ 1-1

Overview .................................................. 1-2

Features and Controls ..................................... 2-1

Features and Controls ................................ 2-2

Navigation Audio System ................................ 3-1

Navigation Audio System ............................ 3-2

Voice Recognition ........................................... 4-1

Voice Recognition ...................................... 4-2

Index ................................................................ 1

2008 Acadia, Enclave, Equinox, Lucerne, OUTLOOK,

Torrent and VUE Navigation System M

GENERAL MOTORS, GM, the GM Emblem,

CHEVROLET, the CHEVROLET Emblem, BUICK,

the BUICK Emblem, GMC and the GMC Truck Emblem,

PONTIAC, the PONTIAC Emblem, and the names

EQUINOX, LUCERNE and TORRENT are registered

trademarks; the names ENCLAVE and ACADIA

are trademarks of General Motors Corporation.

SATURN, the SATURN Emblem and the name VUE

are registered trademarks; the name OUTLOOK

is a trademark of Saturn Corporation.

Litho in U.S.A.

Part No. 15255707 A First Printing

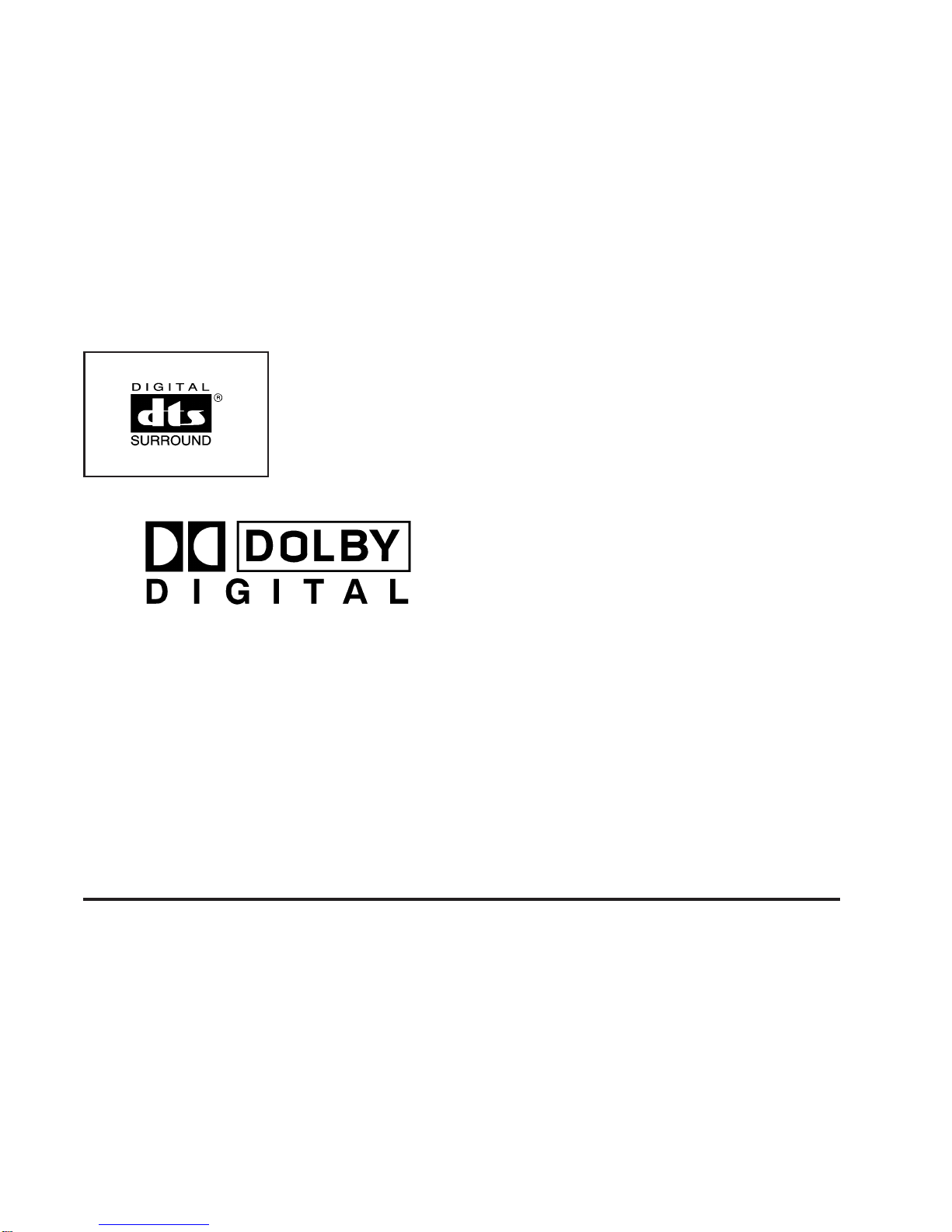

DTS and DTS Digital

Surround are registered

trademarks of Digital

Theater Systems, Inc.

Dolby

is manufactured under license from Dolby

Laboratories. Dolby

and the double-D symbol

are trademarks of Dolby

Laboratories.

The information in this manual supplements the owner

manual. This manual includes the latest information

available at the time it was printed. We reserve the right

to make changes in the product after that time without

notice. For vehicles ﬁrst sold in Canada, substitute

the name General Motors of Canada Limited for Buick

Motor Division, Chevrolet Motor Division, GMC, or

Pontiac Division whenever it appears in this manual.

Keep this manual with the owner manual in the vehicle,

so it will be there if it is needed. If the vehicle is sold,

leave this manual in the vehicle.

Canadian Owners

A French language copy of this manual can be obtained

from your dealer/retailer or from:

Helm, Incorporated

P.O. Box 07130

Detroit, MI 48207

Propriétaires Canadiens

On peut obtenir un exemplaire de ce guide en français

auprès de concessionnaire ou à l’adresse suivante:

Helm Incorporated

P.O. Box 07130

Detroit, MI 48207

iii

✍NOTES

Overview .........................................................1-2

Navigation System Overview ............................1-2 Getting Started ...............................................1-4

Cleaning the Video Screen .............................1-10

Section 1 Overview

1-1

Overview

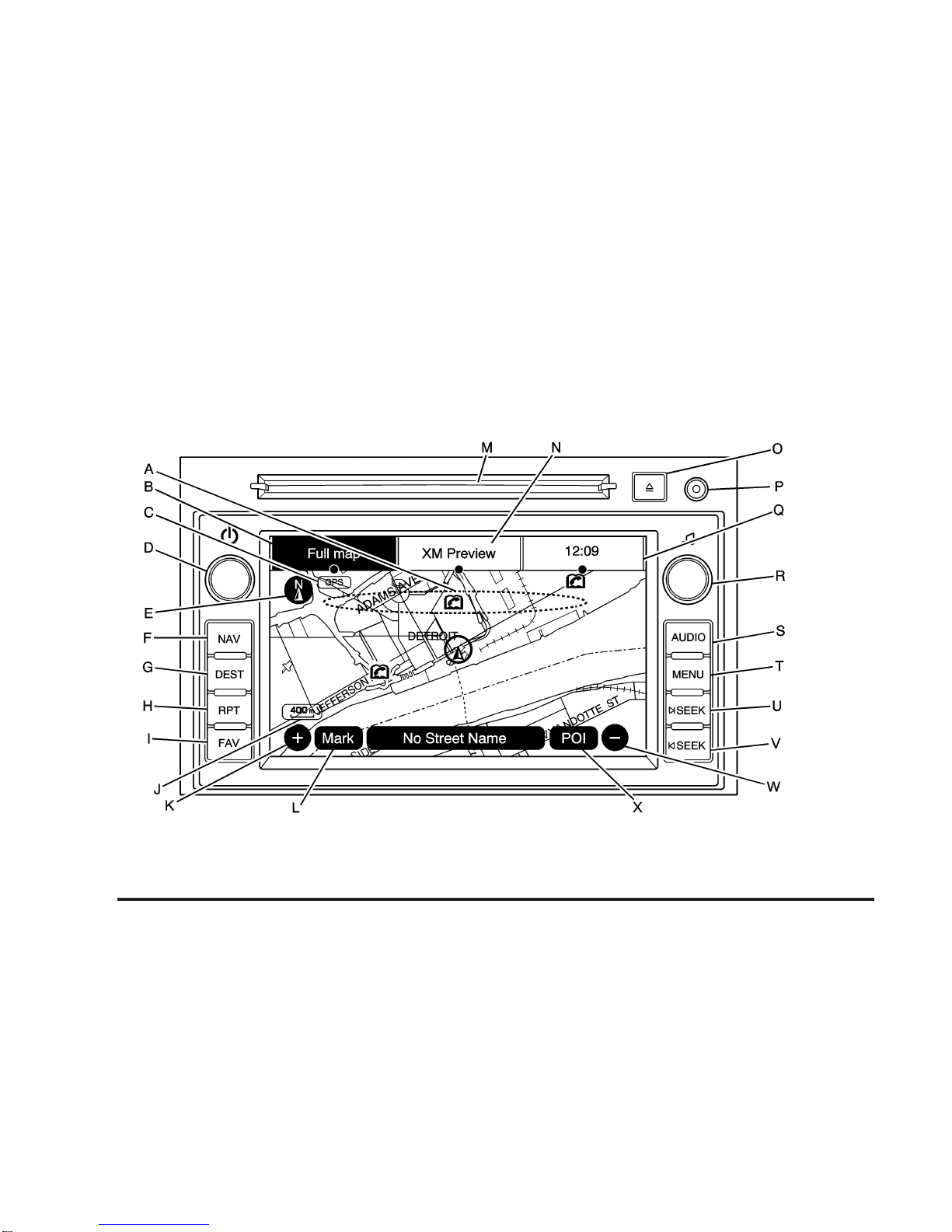

Navigation System Overview

Screen shown with Map Disc Inserted

1-2

A. Map DVD Slot. See “Installing the Map DVD” under

Maps on page 2-4 for more information.

B. FULL MAP Touch Screen Button. See “NAV” under

“Hard Keys” under Using the Navigation System

on page 2-2 for more information.

C. No GPS Symbol. See Symbols on page 2-7 for more

information.

D. O(Power/Volume) Knob. See Navigation Audio

System on page 3-2 for more information.

E. North Up/Heading Up Symbol. See Symbols on

page 2-7 for more information.

F. NAV (Navigation) Key. See “Hard Keys” under

Using the Navigation System on page 2-2 for more

information.

G. DEST (Destination) Key. See Destination on

page 2-14 for more information.

H. RPT (Repeat) Key. See “Hard Keys” under

Using the Navigation System on page 2-2 for

more information.

I. FAV (Favorite) Key. See “Storing Radio Station

Presets” Navigation Audio System on page 3-2 for

more information.

J. Map Scale. See “Map Scales” under Maps on

page 2-4 for more information.

K. 0(Zoom In) Touch Screen Button. See “Map

Scales” under Maps on page 2-4 for more

information.

L. Mark Touch Screen Button. See “Adding

Destinations to the Address Book” under

Destination on page 2-14 for more information.

M. CD/DVD Slot. See CD Player on page 3-10 or DVD

Player on page 3-18 for more information.

N. Source (AM, FM, XM, CD, etc.) Touch Screen

Button. See Navigation Audio System on page 3-2

for more information.

O. Z(CD/DVD Eject) Key. See “Hard Keys” under

Using the Navigation System on page 2-2 for

more information.

P. Auxiliary Jack. See Auxiliary Devices on page 3-24

for more information.

Q. Clock Touch Screen Button. See “Setting the Time”

under Conﬁgure Menu on page 2-27 for more

information.

R. f(Tune/Sound) Knob. See Navigation Audio

System on page 3-2 for more information.

S. AUDIO Key. See Navigation Audio System on

page 3-2 for more information.

1-3

T. MENU Key. See Conﬁgure Menu on page 2-27

for more information.

U. ¨SEEK Key (Next). See Navigation Audio

System on page 3-2 for more information.

V. ©SEEK Key (Previous). See Navigation Audio

System on page 3-2 for more information.

W. 1(Zoom Out) Touch Screen Button. See “Map

Scales” under Maps on page 2-4 for more

information.

X. POI (Point of Interest) Touch Screen Button.

See “Displaying Points of Interest (POI) on the

Map Screen” under Symbols on page 2-7 for

more information.

Getting Started

Before you begin to operate the navigation system,

read this manual thoroughly to become familiar with it

and to understand how the system works.

DVD Map Disc noise, when entering the vehicle and

turning the vehicle off, is normal system operation.

Keeping your mind on the drive is important for safe

driving. See “Defensive Driving” in the Index of

your vehicle’s owner manual for more information.

Get familiar with your vehicle’s navigation system so

you can use it with less effort and take full advantage

of its features. Your navigation system includes not

only navigation, but also audio functions. While

your vehicle is parked:

•Familiarize yourself with all of its controls: hard

keys on the faceplate and touch-sensitive screen

buttons.

•Familiarize yourself with its operation.

•Set up your audio by presetting your favorite stations,

setting the tone, and adjusting the speakers. Then,

when driving conditions permit, you can tune to your

favorite stations using the presets and steering wheel

controls, if the vehicle has them.

•Set up the navigation features that can only be

done before you begin driving, such as entering an

address or a preset destination.

Entering a destination or alphanumeric text requires

many steps, so you can only perform these operations

when the vehicle is in PARK (P). You will notice

that touch-sensitive screen buttons leading to the

alphanumeric keyboard are dimmed out while driving.

1-4

Other functions may also be locked out while driving

and they too will appear grayed out on the screen — but

all functions are available when parked. Some functions

can be performed while driving, as long as you can

do so without diverting too much of your attention from

your driving.

{CAUTION:

This system provides you with a far greater

access to audio stations and song listings.

Giving extended attention to entertainment

tasks while driving can cause a crash and you

or others can be injured or killed. Always keep

your eyes on the road and your mind on the

drive — avoid engaging in extended searching

while driving.

{CAUTION:

Looking at the moving map on the navigation

screen frequently or for too long while driving

can cause a crash and you or others can be

injured or killed. Keep your eyes and mind on

the road and avoid looking too long or too often

at the moving map on the navigation screen.

Use the voice guidance directions whenever

possible.

The navigation system allows you to:

•Plan a route with provided turn-by-turn route and

map guidance with voice prompts.

•Select a destination using various methods and

choices.

•Receive RDS broadcast announcements.

The information in the system may not always be

complete. Road conditions such as prohibited turns,

detours, and construction zones, change frequently.

It is important to consider whether you can follow the

directions given by the system for the current conditions.

1-5

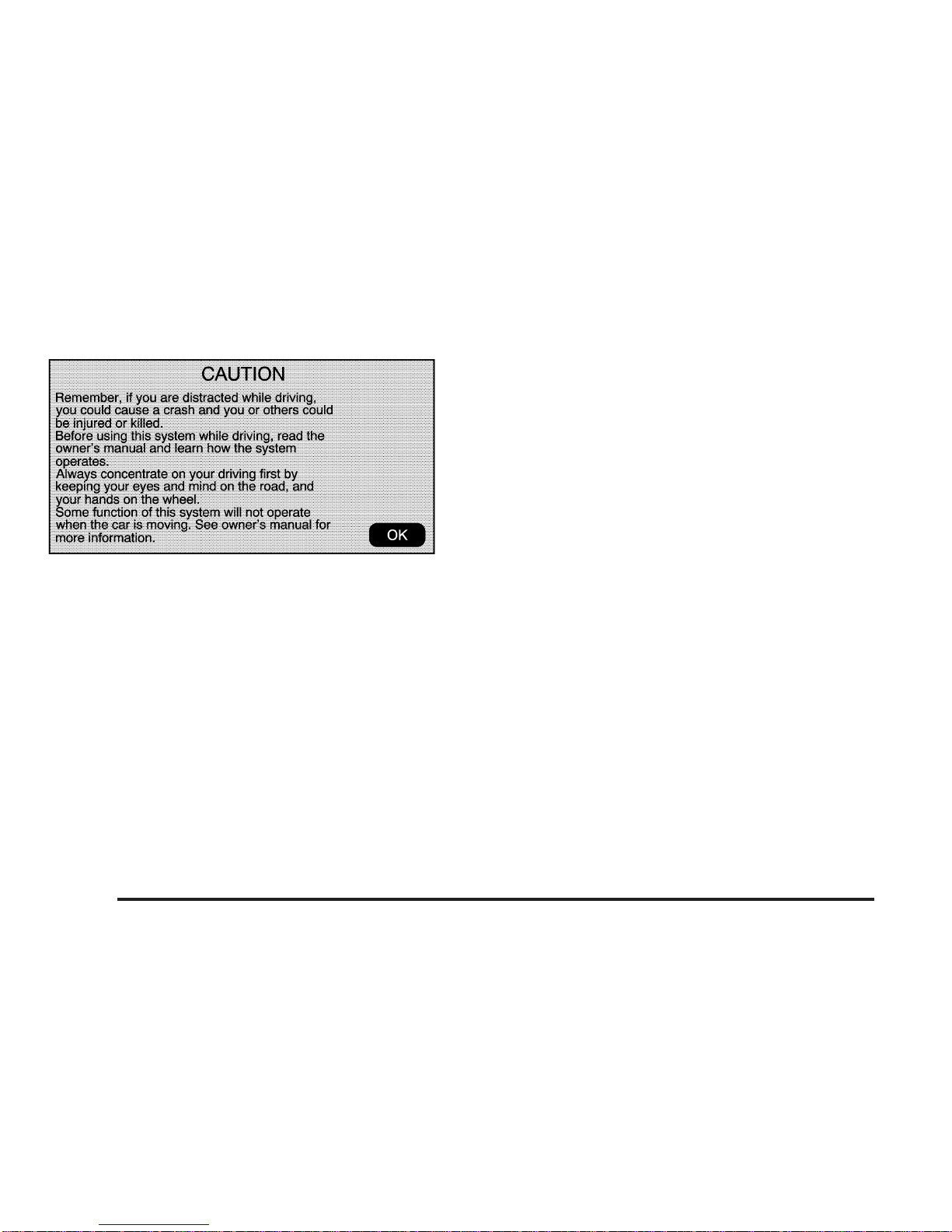

Every ﬁfty times the vehicle is started and the navigation

system is turned on, the Caution screen will appear.

After reading the caution, select OK to load the map

DVD information. If OK is not selected, all hard keys

except for NAV (Navigation) and DEST (Destination) can

be accessed. You can also press the NAV hard key to

have this Caution screen appear.

When getting started you may set the navigation system

to your preference or delete information you may have

entered using various options.

Language

For vehicles with a Driver Information Center (DIC),

see “DIC Vehicle Customization” in the Index of

your vehicle’s owner manual to change the language

of the navigation screens.

For vehicles without a Driver Information Center (DIC),

the radio can be used to change the language of

the navigation screens:

1. Press the O(power) knob to turn the system on.

2. Press the MENU hard key and select the Display

screen button.

3. Select the language; English, Francais, Espanol.

English/Metric Units

To change the navigation screens from English or metric,

see “DIC Operation and Displays” in the Index of your

vehicle’s owner manual.

Deleting Personal Information

This navigation system can record and store personal

information such as names and addresses. At times,

such as when you are disposing of your vehicle, you

may want to delete this information. See “Edit Address

Book — Edit/View” under Conﬁgure Menu on page 2-27

for deleting information from the address book.

1-6
