Thank you for choosing this wireless microphone system!

Our products are designed to last and for user friendly operation. Each system consists of:

1.a receiver

2.two handheld transmitters

3.a pair of antennas

4.an adaptor

5.an operation manual

For more details, please take a few moments to read this operating manual to have a thorough

understanding of the function and operation of both transmitter and receiver.

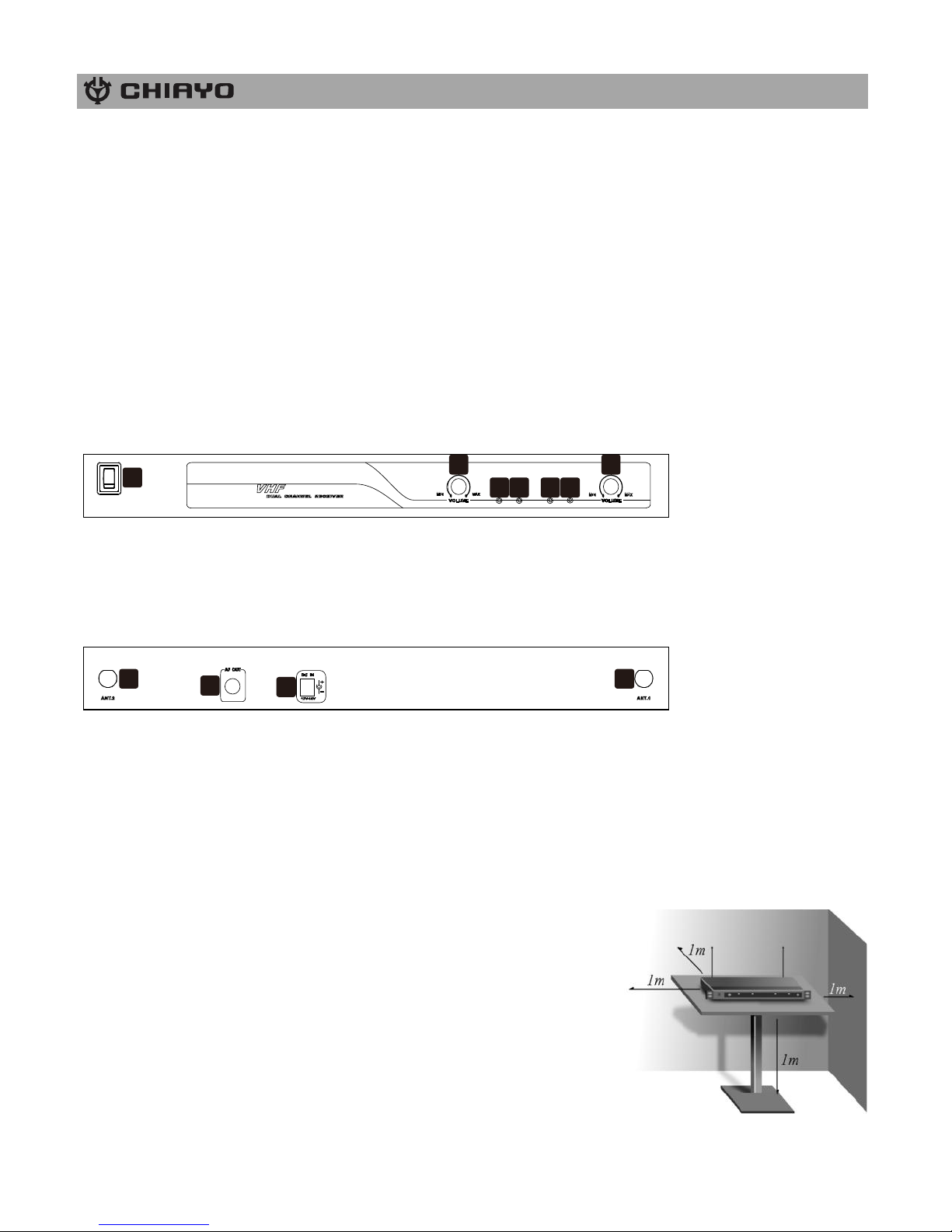

Parts and functions of receiver

Front panel

1.Power switch

2.CH1 Volume control

3.CH1 RF diversity A B indicator

4.CH1 AF indicator

5.CH2 RF diversity A B indicator

6.CH2 AF indicator

7.CH2 Volume control

Rear panel

1.Antenna B (fixed)

2.audio output

3.DC input

4.Antenna A (fixed)

Adjusting VOLUME level

Volume level can be adjusted by rotating the designated volume knob. Clockwise to increase

the volume and counterclockwise to decrease the volume.

Receiver installation

For best operation, the receiver should be at least 1m above

the ground and 1m away from a wall or metal surface to

minimize reflections. The transmitter should also be at least

1m away from a wall or metal surface to minimize reflections.

The transmitter should also be at least 1m away from the

receiver. Keep antennas away from noise source such as

motors, automobiles, neon light as well as large metal objects.

123 4 5 6 7

1234

ISO 9001｜ISO 14001｜OHSAS 18001

-2-

Handheld transmitter（Q-303）

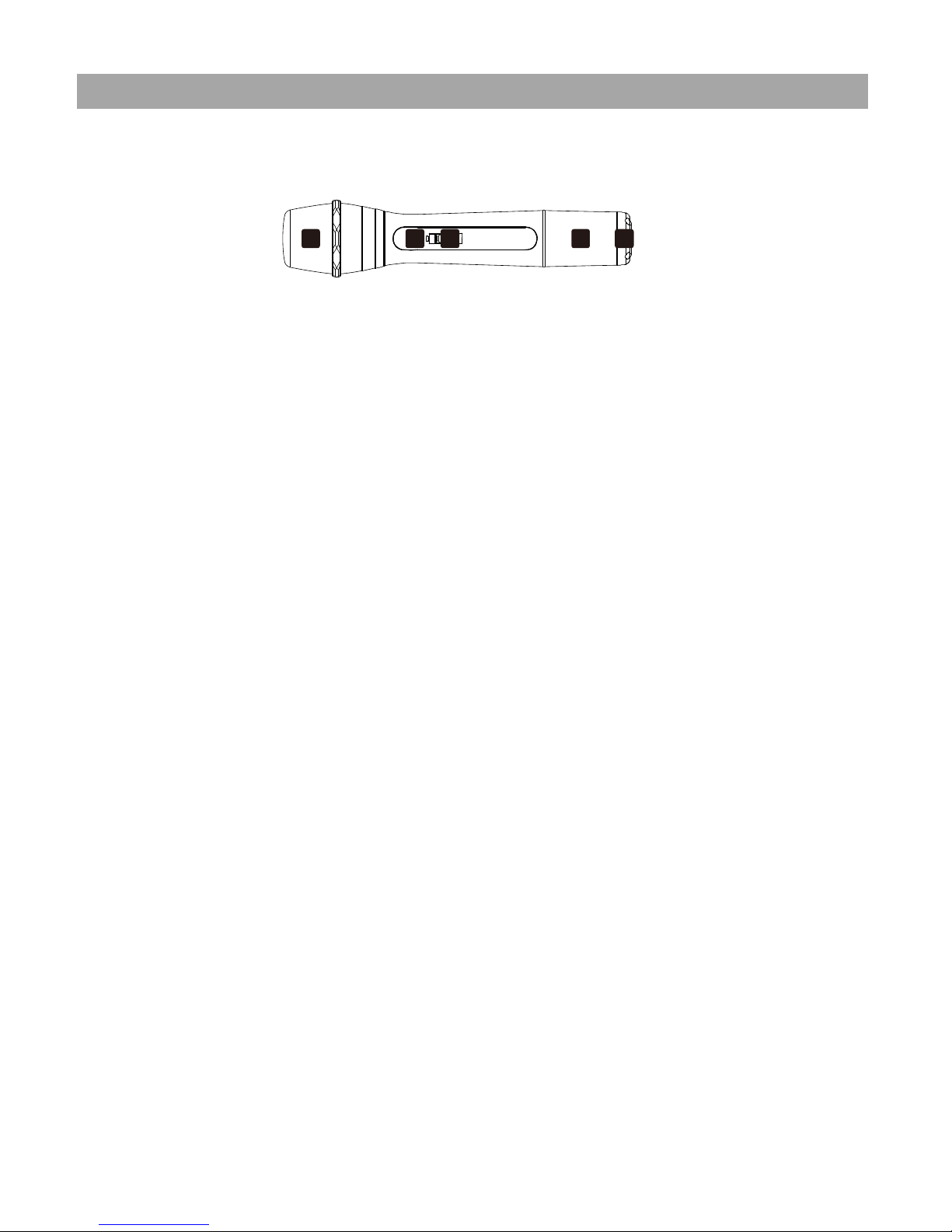

Parts and functions

1.Cartridge

2.Battery power LED

3.Power switch

4.Battery compartment

5.Color cap

Battery installation & indicator

This transmitter requires 2 x AA batteries to operate.

To install, remove the battery cover and slide the batteries into the battery compartment &

replace the battery cover.

Note: Batteries contain a corrosive acid that may leak and damage the transmitter when stored

for a long period. Batteries should be removed from the transmitter before storing without use

for more than 4 weeks.

When the transmitter is switched ON, a red LED will blink once to indicate the batteries

installed are in good condition. If the LED remains illuminated, it means the batteries are

weak and require replacement.

2 3 4 51
