CHIAYO ELECTRONICS CO.,LTD.

Operation manual

069 9

IR RF AF SYNCCHANNEL 1

MIN MAX MIN MAXIR RF AF SYNCCHANNEL 2

NDR-3120

DIVERSITY RECEIVER

SQ-6100 IrDA

UHF Handheld Microphone

SQ-6100 IrDA UHF Handheld Microphone

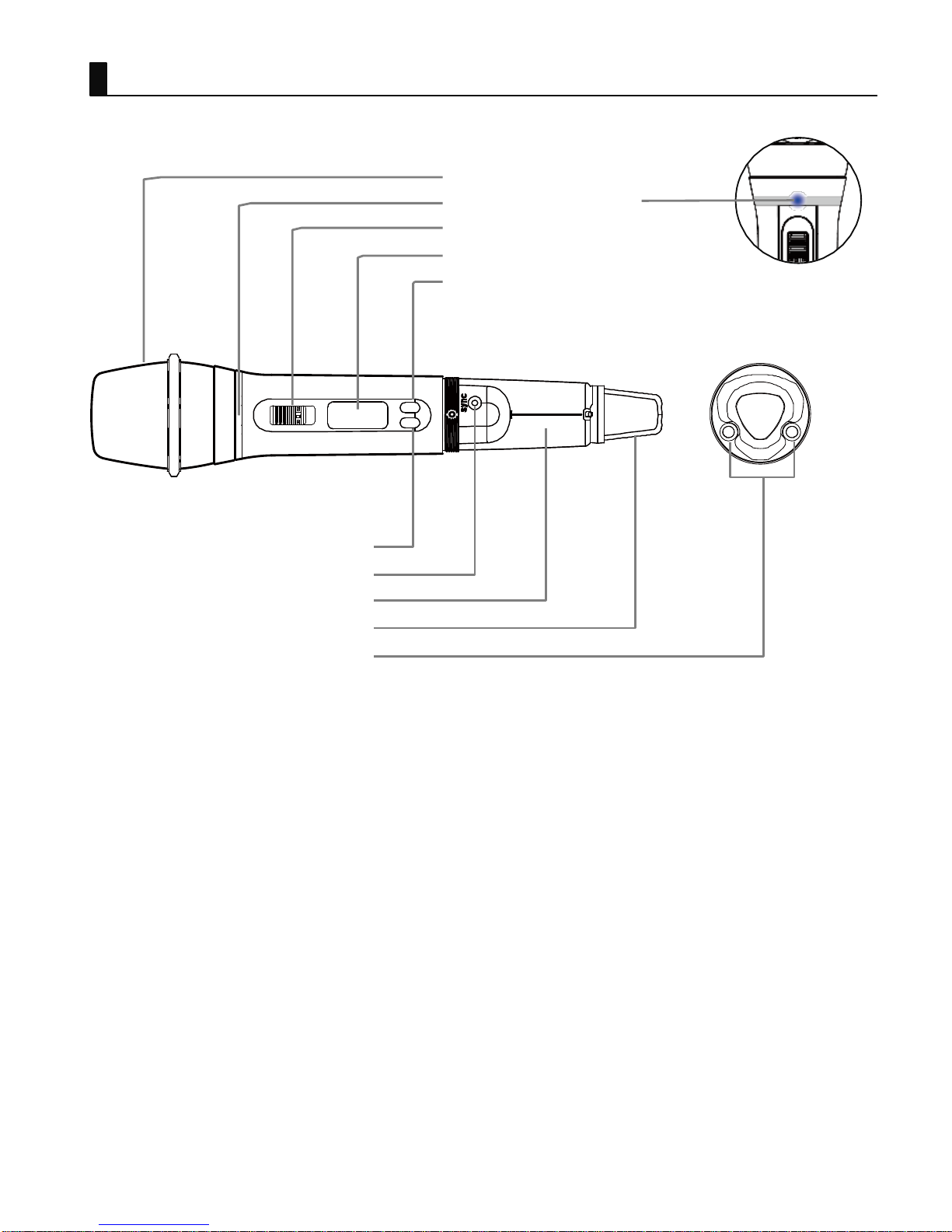

Parts and functions

Cartridge

Battery power LED

Power switch

LCD

Setting button

Menu button

IrDA synchronizing button

attery compartment

Color cap

Charging port

Instructions

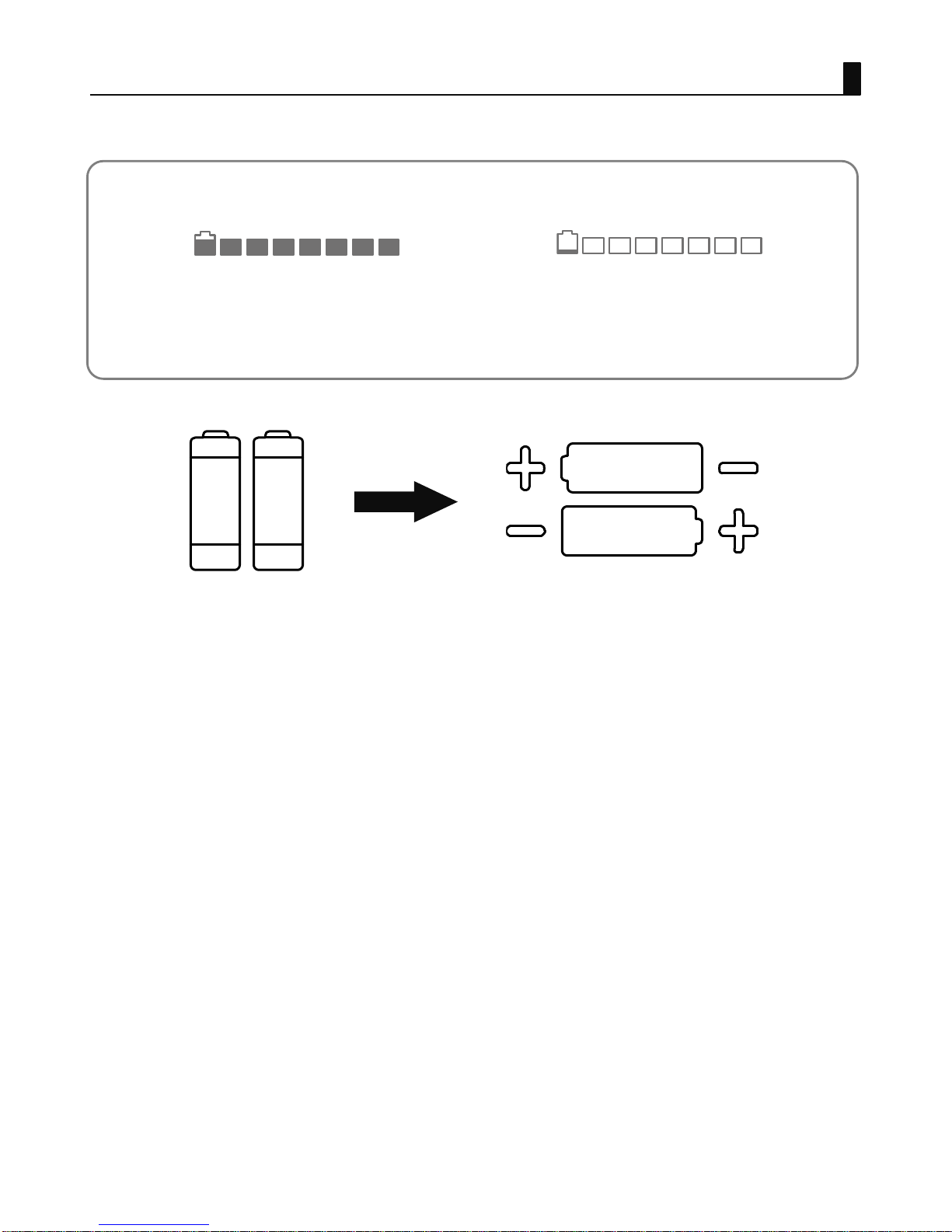

Battery installation & indicator

●►○

●

When the transmitter is switched

ON, a blue LED will blink once to

denote the batteries installed are

in good condition.

If the LED remains illuminated, it

means the batteries are weak and

require replacement.

This transmitter requires 2 x AA

batteries to operate.

To install, remove the battery cover

and slide the batteries into the

battery compartment & replace the

battery cover.

Note: Batteries contain a corrosive acid that may leak and damage the

transmitter when stored for a long period. Batteries should be removed

from the transmitter before storing without use for more than 4 weeks.

SQ-6100 IrDA UHF Handheld Microphone

Channel setting

1 Use MENU button to go to the CHANNEL｜FREQUENCY

page.

2 Press and hold the SET button for 3 seconds, then the upper-

right channel number will flash to allow changes to be made.

3 Press SET / MENU buttons to change the channel number. The

corresponding frequency will change accordingly.

4 3 seconds after selecting a channel, it will be automatically

saved.

Instructions

Channel synchronizing of the receiver and transmitter

Align infrared areas of the receiver and transmitter within 10~30cm.

Changing the receiver’s channel

Press the synchronizing

button of the transmitter.

The transmitter's LED will

grow to denote transmitting the

frequency to the receiver and

synchronizing the channels.

Changing the transmitter’s

channel Press the

synchronizing button of the

receiver and the receiver will

transmit the frequency to the

transmitter and synchronize the

channels The transmitter's LED

will grow to denote its channel

synchronized by the receiver.

If it doesn’t work check that you have the IR sensor panels aligned, that

they are facing each other, devices are within 10~30cm of each other, and

try again.

FREQSQ

630000

VOL

SET

30cm

FREQSQ

RF AF

001

630000

VOL

FREQSQ

RF AF

0 0 1

630000

VOL

SDR-6120

Wireless Receiver SET SYNCSET SYNC

STEP 2

STEP 1

STEP 2

STEP 1

10~30cm

SQ-6100 IrDA UHF Handheld Microphone

Battery type setting

1 Use MENU button to go to the BATTERY TYPE page.

2 Press and hold SET button for 3 seconds, then the cursorwill

flash to allow changes to be made.

3 Press SET button to select either NiMH (rechargeable battery)

or AKLN (alkaline battery).

4 3 seconds after selecting a battery type, it will be automatically

saved.

Instructions

CHIAYO ELECTRONICS CO.,LTD.

Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw

Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan

Tel: 886-2-27415741｜Fax: 886-2-27525242

Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan

Tel: 886-5-2711000｜Fax: 886-5-5767611
