ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

ELECTRIC DRILL BIT

AND CHISEL SHARPENER

SKU 91674 For technical questions, please call 1-800-444-3353. Page 2

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and as-

sembly diagram. Keep your invoice with this manual. Write the invoice number

on the inside of the front cover. Keep this manual and invoice in a safe and dry

place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock,fire,and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

Power 120 Volts, 50 Watts, 1726 RPM

Overall Dimensions 10” L x 6-1/4” W x 5-1/2” H

Work Table Dimensions 3-3/4” L x 2-1/4” W x 1-3/4” H

Sharpening Stone Size 3/4” H x 3-5/16” Dia.

Chisel Sharpening Capacity: At various angles from +/- 40o

Bit Sharpening Capacity: 3.6mm (9/16”), 4mm (5/32”), 4.3 mm,

4.6mm (11/64”), 5mm (3/16”), 5.3mm (13/64”), 5.6mm (7/32”), 6mm (15/64”),

6.5mm (1/4”), 7mm (17/64”), 7.5mm (19/64”), 8mm (5/16”), 8.5mm (21/64”),

9mm (11/32”), 9.5mm (3/8”),10mm (25/64”).

SKU 91674 For technical questions, please call 1-800-444-3353. Page 3

ELECTRICAL SAFETY

4. Grounded tools must be plugged into an outlet properly installed and

grounded in accordance with all codes and ordinances. Never remove the

grounding prong or modify the plug in any way. Do not use any adapter

plugs. Check with a qualified electrician if you are in doubt as to whether

the outlet is properly grounded. If the tools should electrically malfunction or

break down, grounding provides a low resistance path to carry electricity away

from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools

or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,

sharp edges, or moving parts. Replace damaged Power Cords immedi-

ately. Damaged Power Cords increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord

marked “W-A” or “W”. These extension cords are rated for outdoor use, and

reduce the risk of electric shock.

PERSONAL SAFETY

10. Stay alert. Watch what you are doing, and use common sense when oper-

ating a power tool. Do not use a power tool while tired or under the influ-

ence of drugs, alcohol, or medication. A moment of inattention while operat-

ing power tools may result in serious personal injury.

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

SKU 91674 For technical questions, please call 1-800-444-3353. Page 4

12. Avoid accidental starting. Be sure the Power Switch is off before plugging

in. Carrying power tools with your finger on the Power Switch, or plugging in

power tools with the Power Switch on, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

15. Use safety equipment. Always wear ANSI approved eye protection. Dust

mask, non-skid safety shoes, hard hat, or hearing protection must be used for

appropriate conditions.

TOOL USE AND CARE

16. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

17. Do not use the power tool if the Power Switch does not turn it on or off.

Any tool that cannot be controlled with the Power Switch is dangerous and must

be replaced.

18. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

19. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

20. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with a sharp cutting edge are less likely to bind and are easier

to control. Do not use a damaged tool. Tag damaged tools “Do not use”until

repaired.

21. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly main-

tained tools.

SKU 91674 For technical questions, please call 1-800-444-3353. Page 5

22. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool. SERVICE

23. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

24. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

GROUNDING

WARNING!

GROUNDEDTOOLS:TOOLS WITHTHREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of elec-

tric shock. (See Figure A, next page.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached

to an electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and

grounded in accordance with all codes and ordinances. The plug and outlet

should look like those in the following illustration. (See Figure A.)

Improperly connecting the grounding wire can result in the risk of electric shock.

Check with a qualified electrician if you are in doubt as to whether the outlet is

properly grounded. Do not modify the power cord plug provided with the tool.

Never remove the grounding prong from the plug. Do not use the tool if the

power cord or plug is damaged. If damaged, have it repaired by a service facility

before use. If the plug will not fit the outlet, have a proper outlet installed by a

qualified electrician.

SKU 91674 For technical questions, please call 1-800-444-3353. Page 6

FIGURE A

SYMBOLOGY

Double Insulated

CanadianStandards

Association

Underwriters

Laboratories,Inc.

Volts Alternating Current

Amperes

No Load Revolutions

per Minute (RPM)

noxxxx/min.

V ~

SKU 91674 For technical questions, please call 1-800-444-3353. Page 7

FIGURE B

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian

Standard Association, and the National Electrical Code. (See Figure B.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

EXTENSION CORDS

Grounded

tools require a three wire extension cord.

Double Insulated

tools

can use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a

serious drop in voltage, resulting in loss of power and possible tool damage.

(See Figure C, next page.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord.

For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figure C.)

4. When using more than one extension cord to make up the total length, make

sure each cord contains at least the minimum wire size required.

(See Figure C.)

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size.

(See Figure C.)

SKU 91674 For technical questions, please call 1-800-444-3353. Page 8

6. If you are using an extension cord outdoors, make sure it is marked with the

suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

electrician before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or

wet areas.

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 VOLT)

NAMEPLATE

AMPERES

(At Full Load) EXTENSION CORD LENGTH

25 FEET 50 FEET 75 FEET 100 FEET 150 FEET

0 - 2.0 18 18 16 16 16

2.1 - 3.4 18 18 16 14 14

3.5 - 5.0 18 18 16 14 12

5.1 - 7.0 18 16 14 12 12

7.1 - 12.0 18 14 12 10 -

12.1 - 16.0 14 12 10 - -

16.1 - 20.0 12 10 - - -

FIGURE C *Based on limiting the line voltage drop

to five volts at 150% of the rated amperes.

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on the Sharpener. These carry important infor-

mation. If unreadable or missing, contact Harbor FreightTools for a replacement.

2. Always wear ANSI approved safety impact eye goggles and heavy work gloves

when using the Sharpener. Using personal safety devices reduce the risk for

injury. Safety impact eye goggles and heavy work gloves are available from Har-

bor FreightTools.

3. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of ob-

structions,grease,oil, trash, and other debris. Do notuseapowertoolin areas near

flammable chemicals, dusts, and vapors. Do not use this product in a damp or wet

location.

SKU 91674 For technical questions, please call 1-800-444-3353. Page 9

4. Always keep the extension cord away from moving parts on the tool.

5. When holding a tool to be sharpened (ie. chisel), always maintain a firm grip

on the tool with both hands to resist starting torque.

7. Avoid unintentional starting. Make sure you are prepared to begin work before

turning on the Sharpener.

8. Do not force the Sharpener. This tool will do the work better and safer at the

speed and capacity for which it was designed.

9. Do not sharpen with liquids. This tool is designed for dry sharpening only.

10. Never leave the Sharpener unattended when it is plugged into an electrical

outlet. Turn off the tool, and unplug it from its electrical outlet before leaving.

11. Always unplug the Sharpener from its electrical outlet before performing any

inspection, maintenance, or cleaning procedures.

12. Be careful of Bits when sharpening. Bits will become very hot (and sharp)during

the sharpening process. Allow them to cool before touching or storing.

13. Sharpening head may become hot during use. This is a normal condition and

no cause for alarm. Be careful when handling.

14. This tool should only be used on a flat, sturdy surface, capable of supporting

the Sharpener, any tools or accessories used, and the pressure exerted dur-

ing use.

15. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities, contain chemicals known (to the State of Califor-

nia) to cause cancer, birth defects or other reproductive harm. Some examples of

these chemicals are: lead from lead-based paints, crystalline silica from bricks and

cement or other masonry products, arsenic and chromium from chemically treated

lumber. Your risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals:work in a well ventilated

area, and work with approved safety equipment, such as those dust masks that are

specially designed to filter out microscopic particles.

(California Health & Safety Code 25249.5, et seq.)

16. WARNING! People with pacemakers should consult their physician(s) before

using this product. Electromagnetic fields in close proximity to a heart pacemaker

could cause interference to or failure of the pacemaker.

SKU 91674 For technical questions, please call 1-800-444-3353. Page 10

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List on page 14

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

ASSEMBLY AND OPERATING INSTRUCTIONS

NOTE: For additional information regarding the parts listed in the following pages, refer

to the Assembly Diagram on page 15.

CAUTION: Always make sure the Power Cord (6) of the Sharpener is unplugged

from its electrical outlet

prior

to making any adjustments to the tool.

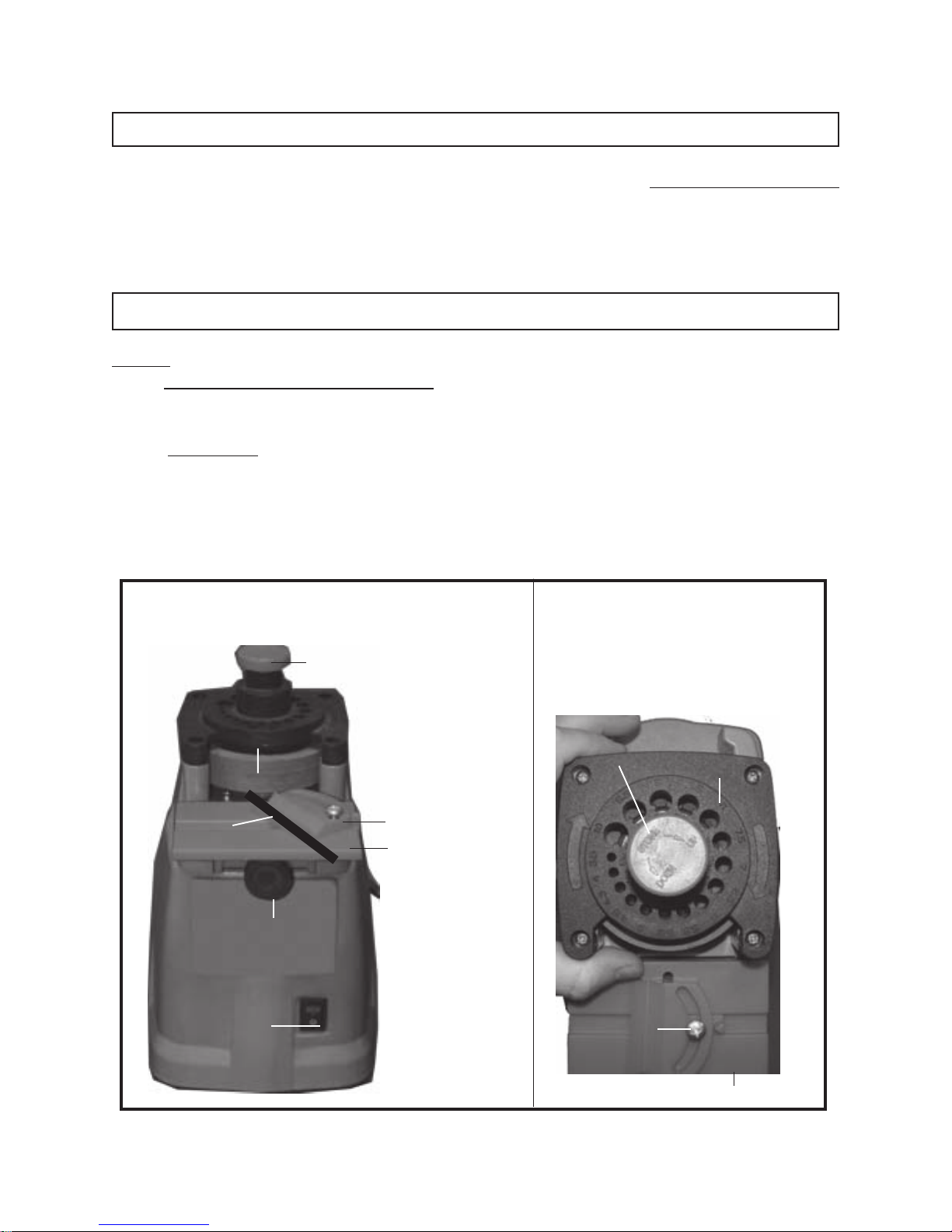

FIGURE 1 FIGURE 2

Knob(28)

AdjustingWheel(26)

Working Table (27)

Grinding Wheel (20)

Top View

AngleTable(30)

Angle Fence (30)

Screw (31)

Switch (5)

AdjustingScrew (26)

Number

Chisel Position

Indice

Altri manuali Chicago Electric Utensili elettrici

Chicago Electric

Chicago Electric 68012 Istruzioni per il montaggio

Chicago Electric

Chicago Electric Chicago 94560 Manuale utente

Chicago Electric

Chicago Electric 62866 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 62302 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 37793 Manuale di installazione

Chicago Electric

Chicago Electric 68821 Manuale utente

Chicago Electric

Chicago Electric 68221 Istruzioni per il montaggio

Chicago Electric

Chicago Electric Chicago Electric Power Tools 1600W Heavy Duty Heat... Istruzioni per il montaggio

Chicago Electric

Chicago Electric 67845 Manuale di installazione

Chicago Electric

Chicago Electric 67097 Manuale di installazione

Chicago Electric

Chicago Electric 42831 Manuale utente

Chicago Electric

Chicago Electric 67429 Manuale di installazione

Chicago Electric

Chicago Electric 99823 Manuale di installazione

Chicago Electric

Chicago Electric 90672 Manuale utente

Chicago Electric

Chicago Electric 68861 Manuale utente

Chicago Electric

Chicago Electric 57226 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 40208 Manuale utente

Chicago Electric

Chicago Electric 93213 Manuale di installazione

Chicago Electric

Chicago Electric 35778 Manuale utente

Chicago Electric

Chicago Electric 33710 Guida di riferimento rapido

Chicago Electric

Chicago Electric DEMOLITION HAMMER 93853 Manuale di installazione

Chicago Electric

Chicago Electric 61778 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 69946 Manuale utente

Chicago Electric

Chicago Electric 66508 Manuale utente

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
