Chicago Electric 47003 Manuale utente

14” HEAVY DUTY CUT-OFF SAW

Model 47003

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

ofthismanualoranyartwork contained herein maybe reproduced in any shape

or form without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, oper-

ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed in the following

pages may result in electric shock, fire, and/or serious injury.

SAVETHESE INSTRUCTIONS

SKU 47003 PAGE 2

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List on page 17

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

Item Description

Electrical Requirements 120V / 60 Hz / 15 AMPs Rated;

3 HP Peak / Single Phase;

3,750 No Load RPM;

3 Prong Electrical Plug;

14 Gauge Electrical Cord

Maximum Cut-Off Wheel Diameter 14”

Recommended

Cut-Off Wheel Types 14” Cut-Off Wheel for Metal (SKU #44814)

14” Cut-Off Wheel for Masonry (SKU #44815)

Arbor Size 1”

Base Dimensions 18” x 10-1/4”

Fence Dimensions 6-5/8” x 2-3/8”

Left/Right Miter Guide 0-45° Adjustable

Maximum Stock Height 4”

Maximum Stock Width 7-3/8”

Overall Dimensions 22-3/4” x 18-1/2” x 11”

Weight 26.8 Pounds

E105017

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

PERSONAL SAFETY

1. Stay alert. Watch what you are doing, and use common sense when oper-

ating a power tool. Do not use a power tool while tired or under the influ-

ence of drugs, alcohol, or medication. A moment of inattention while operat-

ing power tools may result in serious personal injury.

SKU 47003 PAGE 3

2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

3. Avoid accidental starting. Be sure the Power Switch is off before plugging

in. Carrying power tools with your finger on the Power Switch, or plugging in

power tools with the Power Switch on, invites accidents.

4. Remove adjusting keys or wrenches before turning the power tool on. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

6. Use safety equipment. Always wear ANSI approved safety glasses under a

full face shield, a dust mask/respirator, and hearing protection during use.

TOOL USE AND CARE

1. Use clamps or other practical ways to secure and support the workpiece to a

stable platform. Holding the work by hand is unstable and may lead to loss of

control. Onlywork ona workpiecethat is properly secured bytighteningthe Clamp-

ing Screw (4).

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite flammables.

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

WORK AREA

2. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

3. Do not use the power tool if the Power Switch does not turn it on or off.

Any tool that cannot be controlled with the Power Switch is dangerous and must

be replaced.

4. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

5. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

6. Maintain tools with care. Do not use a damaged tool. Tag damaged tools “Do

not use” until repaired.

7. Check for misalignment or binding of moving parts, breakage of parts,

cracking or breakage of the Cut-Off Wheel, and any other condition that

may affect the tool’s operation. If damaged, have the tool serviced before

using. Many accidents are caused by poorly maintained tools.

8. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SERVICE

1. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

2. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

SKU 47003 PAGE 4

1. Grounded tools must be plugged into an outlet properly installed and

grounded in accordance with all codes and ordinances. Never remove the

grounding prong or modify the plug in any way. Do not use any adapter

plugs. Check with a qualified electrician if you are in doubt as to whether

the outlet is properly grounded. If the tools should electrically malfunction or

ELECTRICAL SAFETY

break down, grounding provides a low resistance path to carry electricity away

from the user.

2. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

3. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

4. Do not expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

5. Do not abuse the Power Cord. Never use the Power Cord to carry the tool

or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,

sharp edges, or moving parts. Replace damaged Power Cords immedi-

ately. Damaged Power Cords increase the risk of electric shock.

6. When operating a power tool outside, use an outdoor extension cord

marked “W-A” or “W”. These extension cords are rated for outdoor use, and

reduce the risk of electric shock.

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool. Never remove the grounding prong from the plug. Do not use the

tool if the power cord or plug is damaged. If damaged, have it repaired by

a service facility before use. If the plug will not fit the outlet, have a proper

outlet installed by a qualified electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

SKU 47003 PAGE 5

resistance path to carry electricity away from the user, reducing the risk of elec-

tric shock. (See Figure A.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached

to an electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and

grounded in accordance with all codes and ordinances. The plug and outlet

should look like those in the following illustration. (See Figure A.)

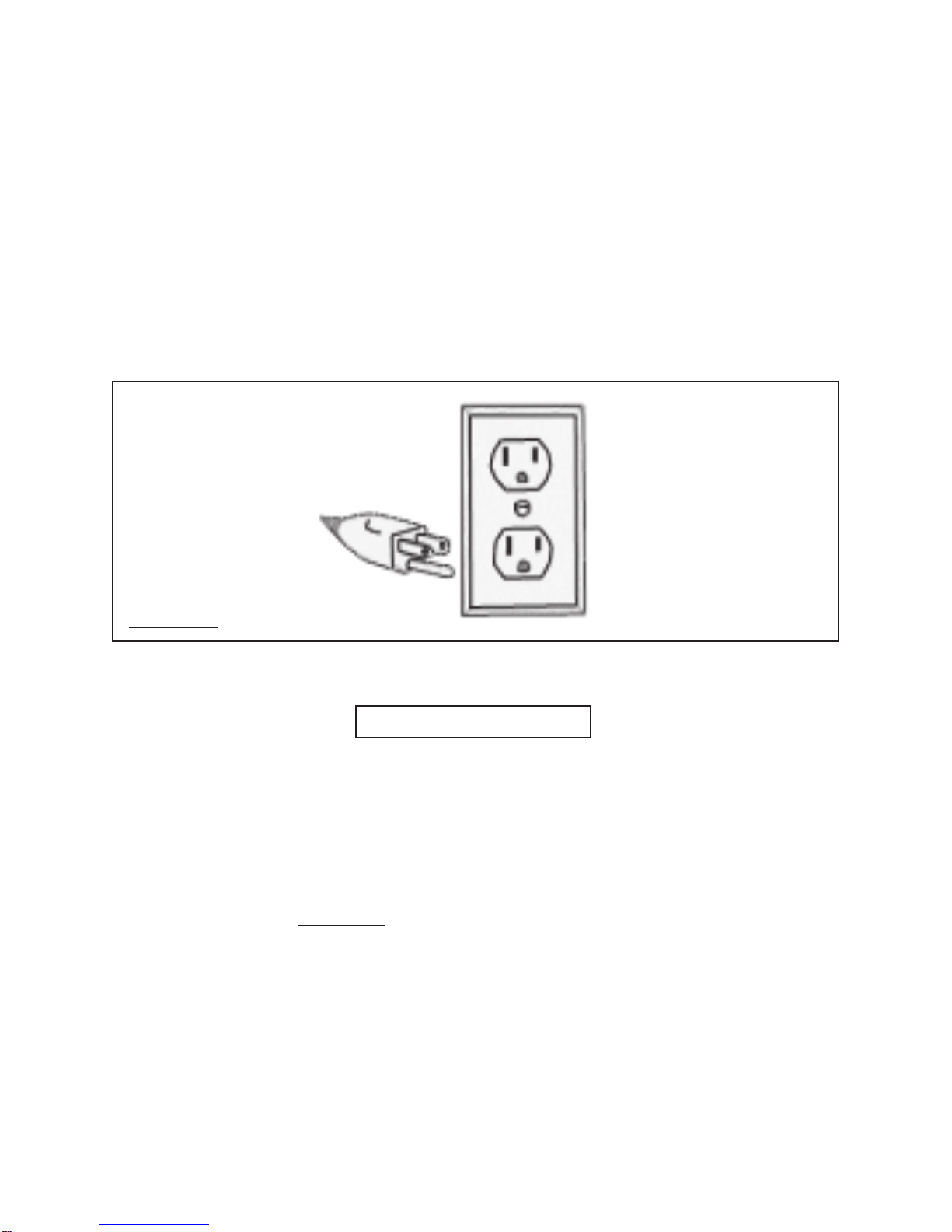

FIGURE A

EXTENSION CORDS

Grounded

tools require a three wire extension cord.

Double Insulated

tools

can use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a

serious drop in voltage, resulting in loss of power and possible tool damage.

(See Figure B, next page.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord.

For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figure B.)

4. When using more than one extension cord to make up the total length, make

sure each cord contains at least the minimum wire size required.

(See Figure B.)

SKU 47003 PAGE 6

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size.

(See Figure B.)

6. If you are using an extension cord outdoors, make sure it is marked with the

suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

electrician before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or

wet areas.

SKU 47003 PAGE 7

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 VOLT)

NAMEPLATE

AMPERES

(

At Full Load

)

EXTENSION CORD LENGTH

Feet 50

Feet 75

Feet 100

Feet 150

Feet

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 18 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

* Based on limiting the line voltage drop

to five volts at 150% of the rated amperes.

FIGURE B

SYMBOLOGY

V ~

xxxx/min.

FIGURE C no

Double Insulated

Canadian Standards

Association

Underwriters

Laboratories, Inc.

Volts Alternating

Current

Amperes

No Load Revolutions

Per Minute (RPM)

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on the Cut-Off Saw. These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a replace-

ment.

2. Keep hands and fingers away from cutting area and Cut-OffWheel. Keep

one hand on the Handle and your second hand on the motor housing. If

both hands are holding the saw, your hands and fingers cannot be cut by the

Cut-Off Wheel.

3. Do not reach under the Base of the Cut-Off Saw. The Swing Guard can not

protect you from the Cut-Off Wheel below the Base.

4. Check Swing Guard for proper closing before each use. Do not operate the

Saw if the Swing Guard does not move freely and close instantly. Never

clamp or tie the Swing Guard into the open position. If the Saw is acciden-

tally dropped, the Swing Guard may be bent. Raise the Swing Guard and make

sure it moves freely and does not touch the Cut-Off Wheel or any other part, in

all depths of cut.

5. The Swing Guard should be retracted manually only for special cuts such

as“Pocket Cuts”and “Compound Cuts.” Raise the Swing Guard only

enough to begin the cut. As soon as the Cut-OffWheel enters the material,

the Swing Guard must be released. For all other sawing, the Swing Guard

should be allowed to operate automatically.

6. The Saw is not to be used for any cutting operation in the locked down

position. The Saw should be in the locked down position only for carrying and

storage.

7. Always use Cut-OffWheels with a 14”Diameter, 1”round arbor hole, and

rated at a minimum of 4,000 RPM. Cut-OffWheels that do not match the mount-

ing hardware of the Saw or that are rated at less than the saw’s maximum RPM

may fly off the Saw or may run eccentrically, causing loss of control.

8. Never use damaged or incorrect Cut-OffWheel washers or bolts. The Cut-

Off Wheel’s washers and bolt were specially designed for your Saw, for optimum

performance and safety of operation.

9. Do not use the included Cut-Off Wheel to cut aluminum, copper, brass, or

other non-ferrous metals. The included Cut-Off Wheel is designed to cut only

ferrous (iron containing) metals such as steel alloys and cast iron. If using other

Cut-Off Wheels, only use them on materials that the manufacturer recommends.

SKU 47003 PAGE 8

SKU 47003 PAGE 9

10. To avoid accidental injury, always wear heavy duty work gloves and work

bib when changing a Cut-OffWheel.

11. Before using the Cut-Off Saw, make sure the Cut-OffWheel is properly

mounted on the Saw Spindle. Make sure the Cut-Off Wheel is balanced, and is

not cracked or bent.

12. The Cut-Off Wheel will become hot while cutting. Allow the Cut-Off Wheel to

completely cool before touching.

13. Allow the Cut-Off Wheel to spin up to full speed before feeding it into the

workpiece. When turning off the Saw, allow the Cut-Off Wheel to spin down

and stop on its own. Do not press against the Cut-Off Wheel to stop it.

14. Do not force the Cut-OffWheel into the workpiece when cutting. Apply

moderate pressure, allowing the Cut-Off Wheel to cut without being forced.

16. Industrial applications must follow OSHA requirements.

17. Always turn off the Cut-Off Saw and unplug the Power Cord from its electri-

cal outlet before changing accessories or performing any inspection, main-

tenance, or cleaning procedures.

18. Use the right tool or attachment for the right job. Do not attempt to force a

small tool or attachment to do the work of a larger industrial tool or attachment.

There are certain applications for which this product was designed. It will do the

job better and more safely at the rate for which it was intended. Do not modify

this product, and do not use this product for a purpose for which it was not in-

tended.

19. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities, contain chemicals known (to the State of Califor-

nia) to cause cancer, birth defects or other reproductive harm. Some examples of

these chemicals are: lead from lead-based paints, crystalline silica from bricks and

cement or other masonry products, arsenic and chromium from chemically treated

lumber. Your risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals:work in a well ventilated

area, and work with approved safety equipment, such as those dust masks that are

specially designed to filter out microscopic particles.

(California Health & Safety

Code 25249.5, et seq.)

20. Always locate the Cut-off Saw on a level, flat work surface capable of support-

ing the solid weight of the saw, workpiece and related tools.

20. WARNING! People with pacemakers should consult their physician(s)

before using this product. Operation of electrical equipment in close proximity to

a heart pacemaker could cause interference or failure of the pacemaker.

21. WARNING! The warnings, precautions, and instructions discussed in this

manual cannot cover all possible conditions and situations that may occur. The

operator must understand that common sense and caution are factors which

cannot be built into this product, but must be supplied by the operator.

SKU 47003 PAGE 10

ASSEMBLY AND OPERATING INSTRUCTIONS

NOTE: For additional references to the parts listed in the following pages, refer to the

Assembly Diagram on page 18.

To Remove Or Install A Cut-OffWheel:

1. WARNING! Prior to performing any assembly procedures, make sure

the Power Cord (65) of the Cut-Off Saw is unplugged from its electrical

outlet. Also, make sure the Cut-Off Wheel has completely cooled and wear

work gloves while replacing the Wheel.

2. Place the Cut-Off Saw in its fully raised position. To do so, turn the Swing Lock

Handle (81) clockwise while pushing down on the Handle (66, 71).

(See Figure D, next page.)

Indice

Altri manuali Chicago Electric Sega

Chicago Electric

Chicago Electric 91938 Manuale di installazione

Chicago Electric

Chicago Electric 62370 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 41453 Manuale del proprietario

Chicago Electric

Chicago Electric 42933 Manuale utente

Chicago Electric

Chicago Electric 96635 Manuale di installazione

Chicago Electric

Chicago Electric 98194 Manuale di installazione

Chicago Electric

Chicago Electric 42818 Manuale utente

Chicago Electric

Chicago Electric 47840 Manuale utente

Chicago Electric

Chicago Electric 04042 Manuale utente

Chicago Electric

Chicago Electric 96698 Manuale di installazione

Chicago Electric

Chicago Electric 42597 Manuale

Chicago Electric

Chicago Electric 46737 Manuale utente

Chicago Electric

Chicago Electric 56776 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 91995 Manuale di installazione

Chicago Electric

Chicago Electric 69067 Istruzioni per il montaggio

Chicago Electric

Chicago Electric Double Cut Saw 68316 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 65298 Manuale di installazione

Chicago Electric

Chicago Electric 67080 Manuale di installazione

Chicago Electric

Chicago Electric 91995 Manuale di installazione

Chicago Electric

Chicago Electric 69231 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 41168 Manuale del proprietario

Chicago Electric

Chicago Electric 90186 Manuale utente

Chicago Electric

Chicago Electric 46225 Manuale utente

Chicago Electric

Chicago Electric 66660 Manuale di installazione

Manuali Sega popolari di altre marche

RIDGID

RIDGID BS1400 Manuale utente

ATIKA

ATIKA BWS 400-2 Manuale utente

RGC

RGC FS20 Manuale utente

Makita

Makita M2300 Manuale utente

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuale utente

IMET Spa

IMET Spa SIRIO 370 AF-E Manuale utente

Optimum

Optimum OPTisaw CS 275 Manuale utente

Makita

Makita BPB180 Manuale utente

Stihl

Stihl MS 462 C-M Manuale utente

AEG

AEG TS 250 K Manuale utente

Meec tools

Meec tools 004665 Manuale utente

Makita

Makita LS1018L Manuale utente

Ryobi

Ryobi RCS1400 Manuale utente

DeWalt

DeWalt DCS391 Manuale utente

Sealey

Sealey SA72 Manuale utente

skilsaw

skilsaw SPT88 Istruzioni per il montaggio

Urrea

Urrea SI810 Dimensioni e guida di installazione

EINHELL

EINHELL BKG 210/1 Manuale utente
