Chicago Pneumatic CP8849 Manuale utente

People.

Passion.

Performance.

The first cordless ½″ impact

wrenches with 2 shut-off

positions going up to

850+ ft.lbs / 1150+ Nm.

CP8849 & CP8849-2

Cordless ½″ Impact Wrenches

4 options 850 ft.lbs / 1150 Nm

Short anvil Long anvil

HIGH DURABILITY

Brushless motor

Our expertise in air impact wrenches

combined with the convenience and

mobility of battery power

LONG RUNTIME &

EFFICIENCY

■Li-ion 4 or 6 Ah battery

■Fuel gauge

■Rubbers dampeners absorbing

impacts & shocks

*Tool only, without batteries nor charger

CP8849 / CP8849-2

Cordless ½″ Impact Wrenches

CONVENIENT

4 Front LED lights for

dark spaces

Bare Tool* Bare Tool

Part Number

Square

drive Free speed Max torque Break-away

torque Working torque Tool weight

w/o battery

Tool weight

with battery

Vibration

level - a (k)

Sound

level

Sound

power

Battery

type

Charging

time

in. RPM ft-Ibs. Nm ft-Ibs. Nm ft-Ibs. Nm lbs. kg lbs. kg (m/s²) dB(A) dB(A) Volt Ah mn

CP8849 894 108 8498 ½1900 2500 850 1150 1400 1900 50 – 740 68 – 1000 7. 9 0 3.59 6.08 2.76 16.8 (6.1) 88.7 99.7 20 4 or 6 90

CP8849-2 894 108 8499 ½1900 2500 850 1150 1400 1900 50 – 740 68 – 1000 8.05 3.65 6.08 2.76 16.8 (6.1) 88.7 99.7 20 4 or 6 90

Listed specifications are for reference only. Please check tool documentation.

Bare Tool* Length Height

excl. battery Width

in. mm in. mm in. mm

CP8849 10.0 255 8.85 225 3.46 85

CP8849-2 10.9 303 8.85 225 3.46 85

HIGH COMFORT

Soft thermo plastic

rubber grip

HIGH RESISTANCE

TO DROP

■5 bumpers all around

the tool

■1 in front of the clutch

housing

Limited

CP8849-2CP8849

Press to switch

Our CP8849 and CP8849-2 cordless impact wrenches offer:

DESIGNED FOR A VARIETY OF

APPLICATIONS FOR INSIDE OR OUTSIDE

WORKSHOPS (ROADSIDE ASSISTANCE)

General mechanics on light and

heavy vehicles

Tire changing operations on light vehicles

OPTIMUM USER FOCUSED PERFORMANCES

No more overtightening

The CP8849 series is ideal for passenger vehicles,

light truck, and SUV tire changing applications.

The controlled torque settings enable efficient

torque level control for each tire-change job, and

enable the user to quickly and easily snug bolts

without overtightening and damaging studs. The

operator must then use a torque wrench to torque

bolts to the manufacturer’s specifications.

MRO applications

4 settings in forward

2 shut-off positions

- Slow mode to approach without impacting (hand

tightening around ≈ 3.7 ft.lbs ≈ 4-5 Nm)

- Fast mode to tighten wheels close to manufacturer

recommended torque without overtightening (around ≈

50 ft.lbs ≈ 70 Nm)

2 other forward positions

- 50% of maximum torque  ≈ 425 ft.lbs / 580 Nm

- 100% of maximum torque  ≈ 850+ ft.lbs / 1150+ Nm

1 setting @ full power in reverse

≈ 850+ ft.lbs / 1150+ Nm

Passenger cars SUV Pick-up trucks

Bodyshop applications on light

and heavy vehicles

 Discover our entire product portfolio dedicated to tire changing

applications in our Tireshop brochure.

KITS

Over 110 years of experience

Since 1901 the Chicago Pneumatic (CP) name has represented reliability and

attention to customer needs, with construction, maintenance and production

tools and compressors designed for specific industrial applications. Today, CP

has a global reach, with local distributors around the world.

Our people start every single day with a passion to research, develop,

manufacture and deliver new products that are meant to meet your needs not

only today, but tomorrow as well.

ACCESSORIES SELECTION

CP8849 and CP8849-2 kits

are supplied with:

■One tool (CP8849 or CP8849-2)

■Two battery packs

(two x 4 Ah OR two x 6 Ah)

■One 20V charger

■One Chicago Pneumatic soft bag

■Tool Documentation:

■Conformity Certificate and

Safety warning

■Operator’s manual

■Exploded view and spare part list

Model Part number

CP8849 Pack 4.0Ah 894 108 8490

CP8849 Pack 6.0Ah 894 108 8492

CP8849 Pack 4.0Ah US 894 108 8491

CP8849 Pack 6.0Ah US 894 108 8493

CP8849-2 Pack 4.0Ah 894 108 8494

CP8849-2 Pack 6.0Ah 894 108 8495

CP8849-2 Pack 4.0Ah US 894 108 8496

CP8849-2 Pack 6.0Ah US 894 108 8497

Model Part number

20V/4.0AH LITHIUM ION 894 017 2261

20V/6.0AH LITHIUM ION 894 017 3636

BATTERIES CHARGERS

Model Part number Description

CP20CHE 20V EU 894 017 2262 20-Volt Charger EU

CP20CHU 20V US 894 017 2286 20-Volt Charger North-America

CP20CHA 20V AUS 894 017 2288 20-Volt Charger Australia

CP20CHK 20V UK 894 017 2287 20-Volt Charger UK

CP20CHO 20V KOR 894 017 4305 20-Volt Charger Korea

CP12-20CH DUAL EU 894 017 3638 12 & 20-Volt Charger Dual EU

CP12-20CH DUAL UK 894 017 4701 12 & 20-Volt Charger Dual UK

CP12-20CH DUAL AUS 894 017 4702 12 & 20-Volt Charger Dual Australia

The US pack comes with a US type plug and the Rest of the World pack will come with the

appropriate plug based on the country of origin of the order.

IMPACT WRENCHES GLOVES

Model Part number

GLOVE-LARGE 894 015 8618

GLOVE-X-LARGE 894 015 8619

GLOVE-XX-LARGE 894 017 1573

GLOVE-MEDIUM 894 017 1574

SOCKETS

Check out our large offer of ½″ impact sockets online via our

eCatalog, or via our socket brochure.

Safety Information

Printed Matter No. 8940175137

Date: 2019-05 Issue No. 05

Cordless impact wrenches

Valid from Serial No. 00001 to 99999

Model:

CP8849

CP8849-2

WARNING

To reduce risk of injury, everyone using, installing, repairing, main-

taining, changing accessories on, or working near this tool MUST

read and understand these instructions before performing any such

task.

DO NOT DISCARD - GIVE TO USER

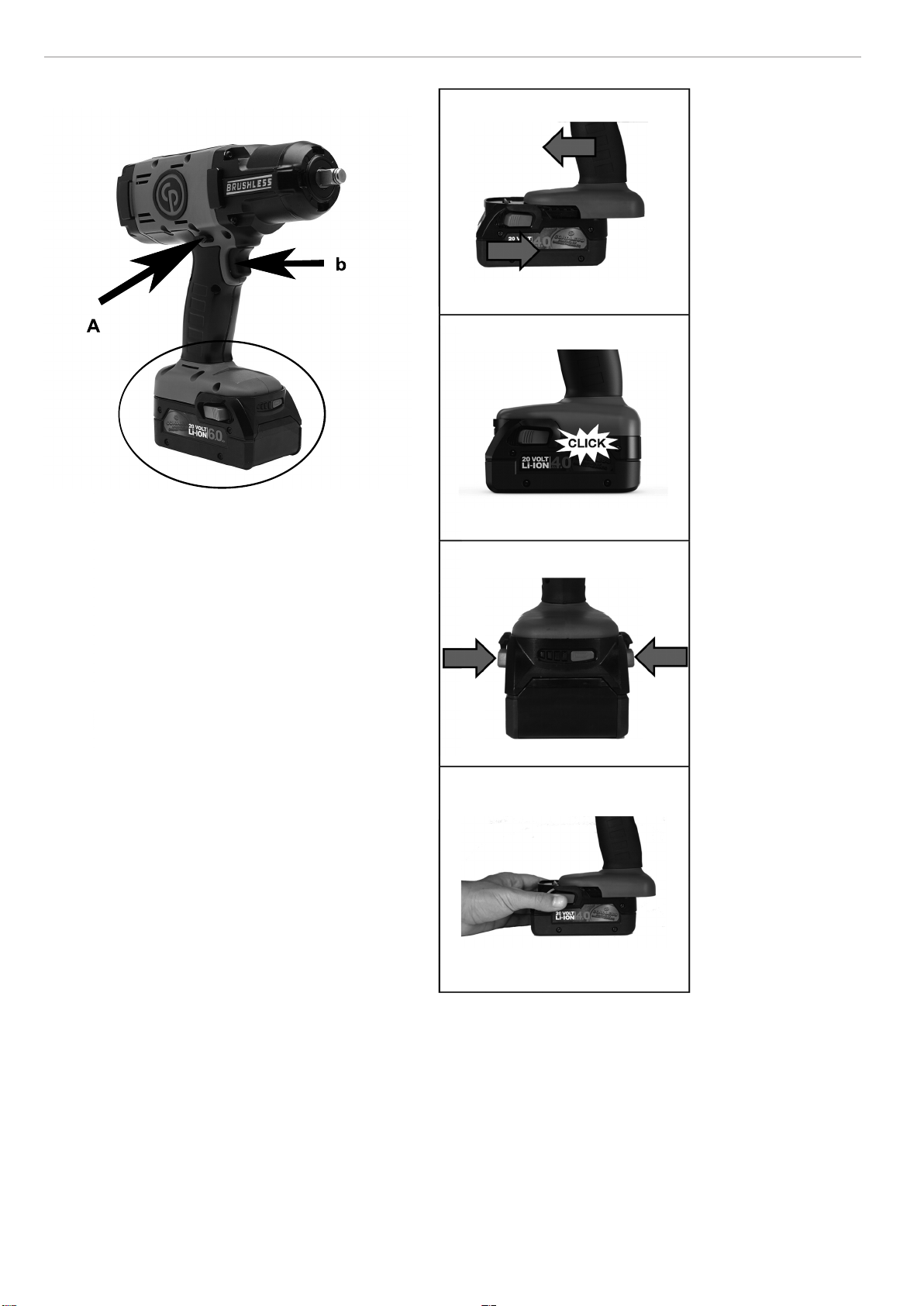

EN Cordless Impact Wrench

Cordless Impact Wrench EN

EN Cordless Impact Wrench

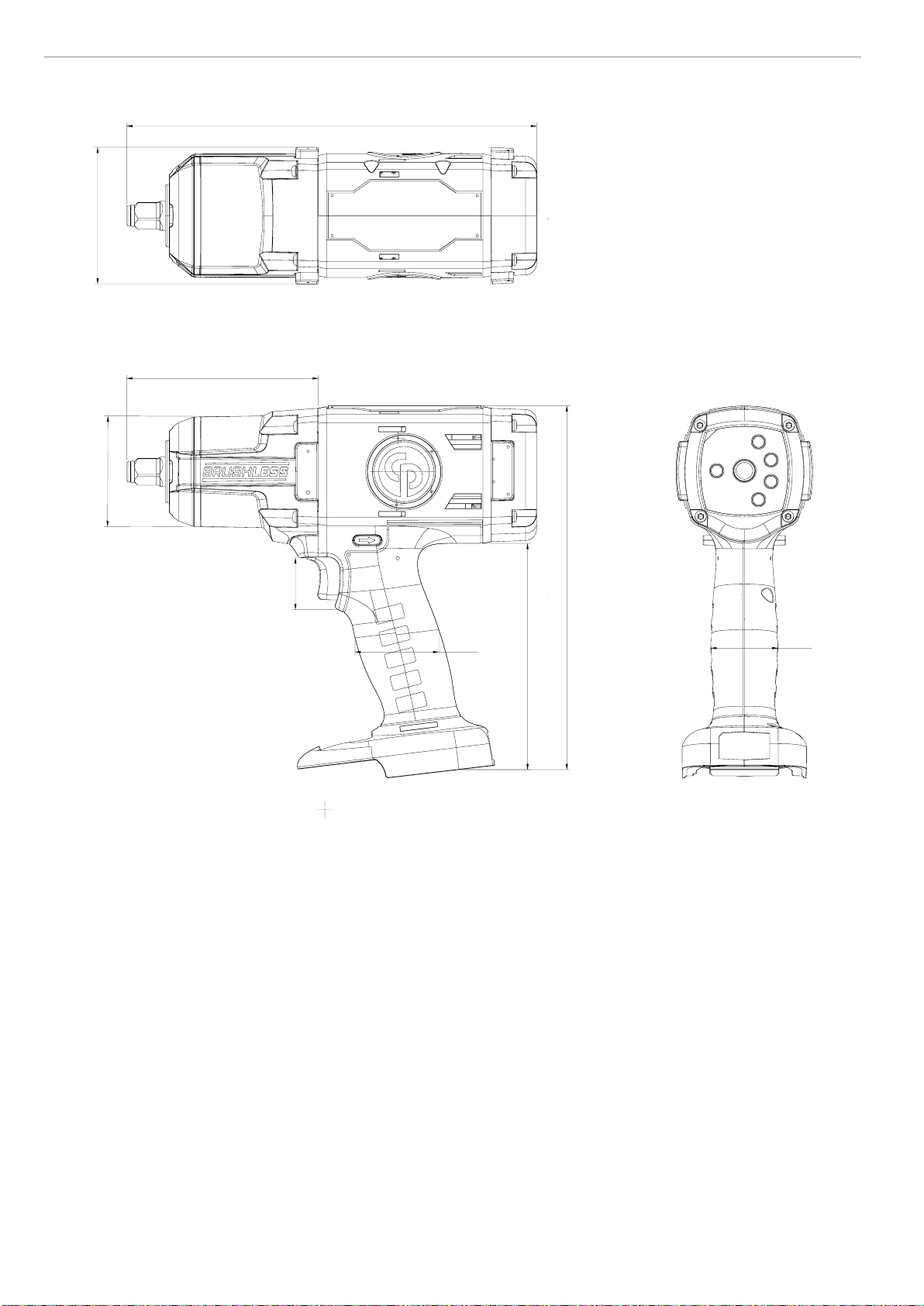

252 mm

9.92 in

84 mm

3.3 in.

117.8 mm

4.64 in.

84 mm

3.3 in.

31.85 mm

1.25 in.

51.5 mm

2 in.

139 mm

5.47 in.

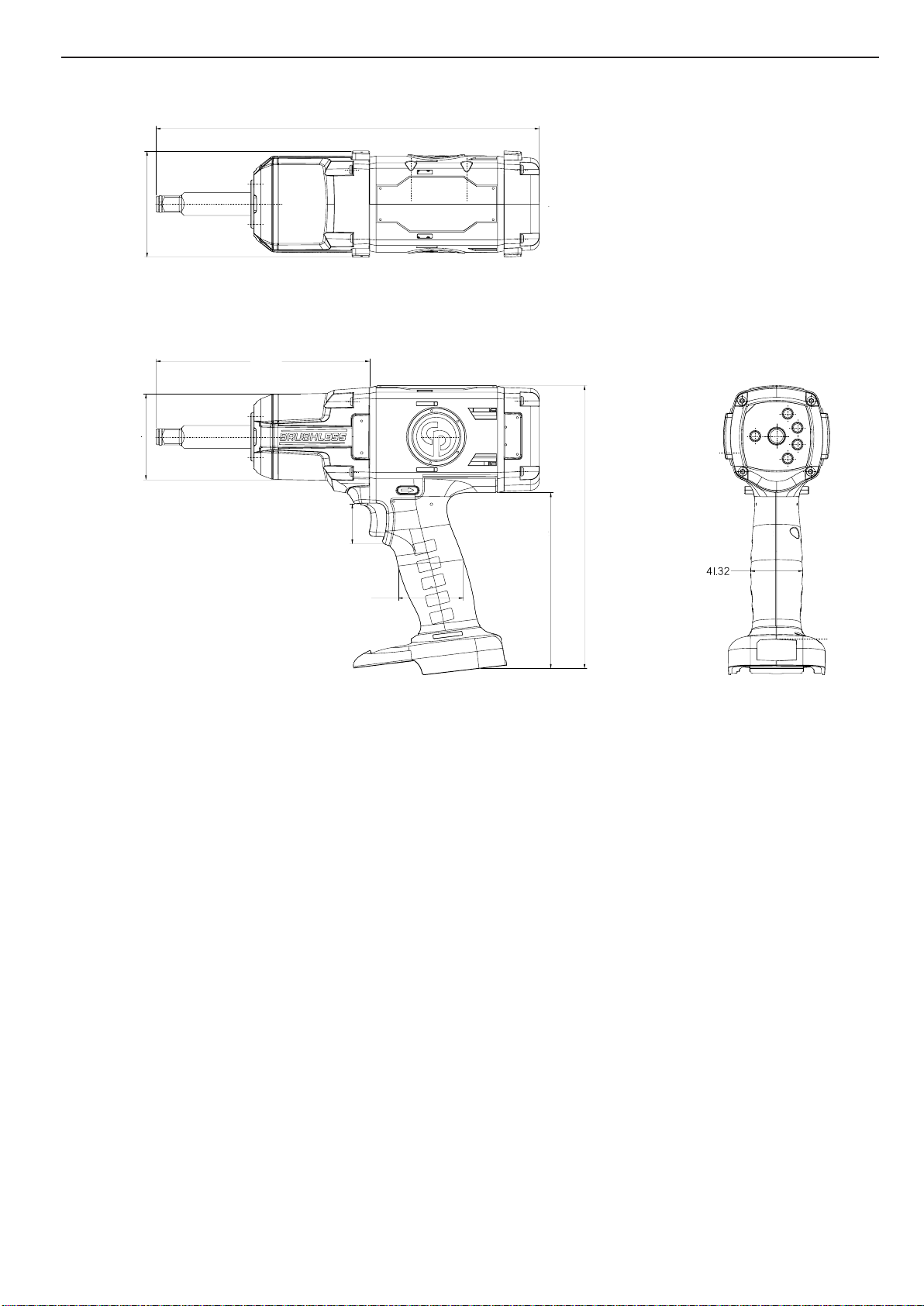

224 mm

8.8 in.

41 mm

1.62 in.

Cordless Impact Wrench EN

41 mm

1.62 in.

224 mm

8.8 in.

303 mm

12 in.

169 mm

4.65 in.

31.85 mm

1.25 in.

51.5 mm

2 in.

139 mm

5.47 in.

84 mm

3.3 in.

84 mm

3.3 in.

Cordless Impact Wrench

Safety Information

Technical data

Tool data

CP8849 CP8849-2

Recommended am- 10to 38°C 10 to 38°C

bient charging tem-

perature

ah = impact tightening of fasteners of the maximum capacity

of the tool.

Wear hearing protection.

Recommended bat- CP20XP CP20XP The vibration emission given in this information sheet has

tery types CP20XP60 CP20XP60 been measured in accordance with a standardized test given

Recommended

charger CP20CHE 20V EU CP20CHE 20V EU

CP20CHU 20V US CP20CHU 20V US in EN 60745 and may be used to compare one tool with an-

other. It may be used for a preliminary assessment of expo-

CP20CHA 20V

AUS

CP20CHK 20V

CP20CHKC 20V

Declarations

CP20CHA 20V

AUS

CP20CHK 20V

CP20CHKC 20V

sure.

The declared vibration emission level represents the main ap-

plications of the tool. However if the tool is used for different

applications, with different accessories or poorly maintained,

the vibration emission may differ. This may significantly in-

crease the exposure level over the total working period.

An estimation of the level of exposure to vibration should

also take account the times when the tool is switched off or

when it is running but not actually doing the job. This may

significantly reduce the exposure level over the total working

EU DECLARATION OF CONFORMITY

We, CHICAGO PNEUMATIC Tool Co. LLC, 1815 Club-

house Road, Rock Hill, SC 29730, declare under our sole re-

sponsibility that the product (with name, type and serial

number, see front page) is in conformity with the following

Directive(s):

Machinery (2006/42/EC), EMC(2014/30/EU), RoHs

(2011/65/EU)

Harmonized standards applied:

EN 62841-1:2015, EN 62841-2-2:2014, EN 55014-1:2017,

EN 55014-2:2015, EN50581-1:2012

period.

Identify additional safety measures to protect the operator

from the effects of vibration such as : maintain the tool and

the accessories, keep the hands warm, organization of work

patterns.

These declared values were obtained by laboratory type test-

ing in accordance with the stated standards and are suitable

for comparison with the declared values of other tools tested

in accordance with the same standards. These declared val-

ues are not adequate for use in risk assessments and values

measured in individual work places may be higher. The ac-

tual exposure values and risk of harm experienced by an indi-

vidual user are unique and depend upon the way the user

works, the workpiece and the workstation design, as well

upon the exposure time and the physical condition of the

user.

Free speed (rpm)

- Slow mode 0 - 600

0 - 600

Authorities can request relevant technical information from:

Pascal Roussy, R&D Manager, Ets Georges Renault, 38 rue

Bobby Sands

Saint-Herblain,

Pascal ROUSSY

Signature of issuer

- Fast mode 0 - 1200

0 - 1200

- 50% mode 0 - 1000

0 - 1000

- 100% mode (re- 0 - 1800

0 - 1800

verse and forward)

Date : 01/05/2018

Square drive ('') 1/2

1/2

Square drive (mm) 13 13 Noise and vibration

Max. torque (re-

850

verse) (ft.lb)

CP8849 &

Max. torque (re-

1150

CP8849-2

verse) (Nm)

Sound pressure level Lp (dB(A)) 101.5

Blows per minute

2300

Sound power level Lw (dB(A)) 112.5

Battery voltage (V)

Noise standard EN 62841

Weight (kg)

3.1

Noise uncertainty (dB(A)) 3

Weight (lb)

6.9

Vibration value (m/s²) (ah) 16.1

Ambient operating

-18°C to 50°C

Vibration uncertainty (K) (m/s²) 1.5

temperature

Vibration standard ISO-28927-2

Ambient storage

0 to 40°C

temperature

Altri manuali per CP8849

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Chicago Pneumatic Utensili elettrici

Chicago Pneumatic

Chicago Pneumatic CP835 Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP0456 Series Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP3109-13AC Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP 1230 SPDR Guida alla manutenzione e all'assistenza

Chicago Pneumatic

Chicago Pneumatic CP826 Manuale utente

Chicago Pneumatic

Chicago Pneumatic AF LF 1/4 Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP825C Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP7828 Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP8848-2 Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP 1210 Guida alla manutenzione e all'assistenza

Chicago Pneumatic

Chicago Pneumatic B20L Manuale utente

Chicago Pneumatic

Chicago Pneumatic RX 2 Guida alla manutenzione e all'assistenza

Chicago Pneumatic

Chicago Pneumatic Chicago Pneumatic CP8745 Manuale utente

Chicago Pneumatic

Chicago Pneumatic PT052-T7000-I10S Manuale utente

Chicago Pneumatic

Chicago Pneumatic MS 695 Guida alla manutenzione e all'assistenza

Chicago Pneumatic

Chicago Pneumatic CP749 Series Manuale utente

Chicago Pneumatic

Chicago Pneumatic MS 690 Guida alla manutenzione e all'assistenza

Chicago Pneumatic

Chicago Pneumatic CP 0006 Guida alla manutenzione e all'assistenza

Chicago Pneumatic

Chicago Pneumatic CP7600 C Series Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP7600C Series Manuale utente

Chicago Pneumatic

Chicago Pneumatic Red Hawk Guida alla manutenzione e all'assistenza

Chicago Pneumatic

Chicago Pneumatic CP826 Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP828 Series Manuale utente

Chicago Pneumatic

Chicago Pneumatic CP9286C Manuale utente

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
