Chipsee EPC-CM4-050 Manuale utente

Industrial PC

EPC/PPC-CM4-050

PN: CS12720RA4050

Content can change at anytime, check documentation website for latest information.

www.chipsee.com

Contents

3EPC/PPC-CM4-050

71. Product Overview

72. Ordering Options

82.1. Pi CM4 Module

82.2. Operating System

83. Specications

94. Power Input

105. Touch Screen

116. Connectivity

116.1. RS232/RS485/CAN

136.2. USB Connectors

146.3. LAN Connectors

146.4. WiFi & BT Module

156.5. Camera Connector

167. TF Card Slot

168. Audio Connectors

179. Boot DIP Switch

1810. Mounting Procedure

1810.1. CS12720RA4050E

1810.2. CS12720RA4050P

1911. Mechanical Specications

1911.1. CS12720RA4050E

1911.2. CS12720RA4050P

1912. 3D Model

2013. Disclaimer

2014. Technical Support

Chipsee IPC Page 2 of 20

EPC/PPC-CM4-050

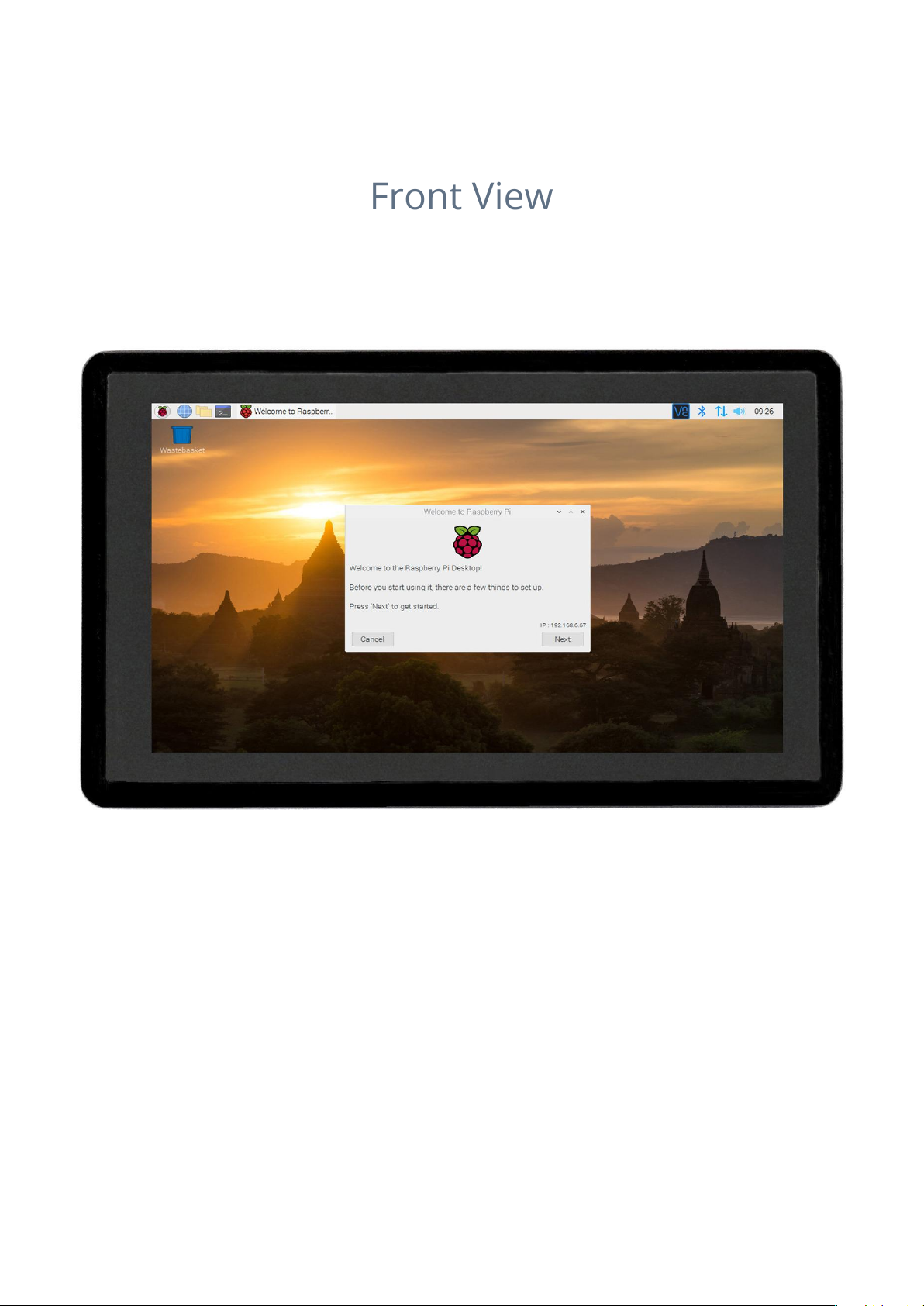

Front View

EPC/PPC-CM4-050

Chipsee IPC Page 3 of 20

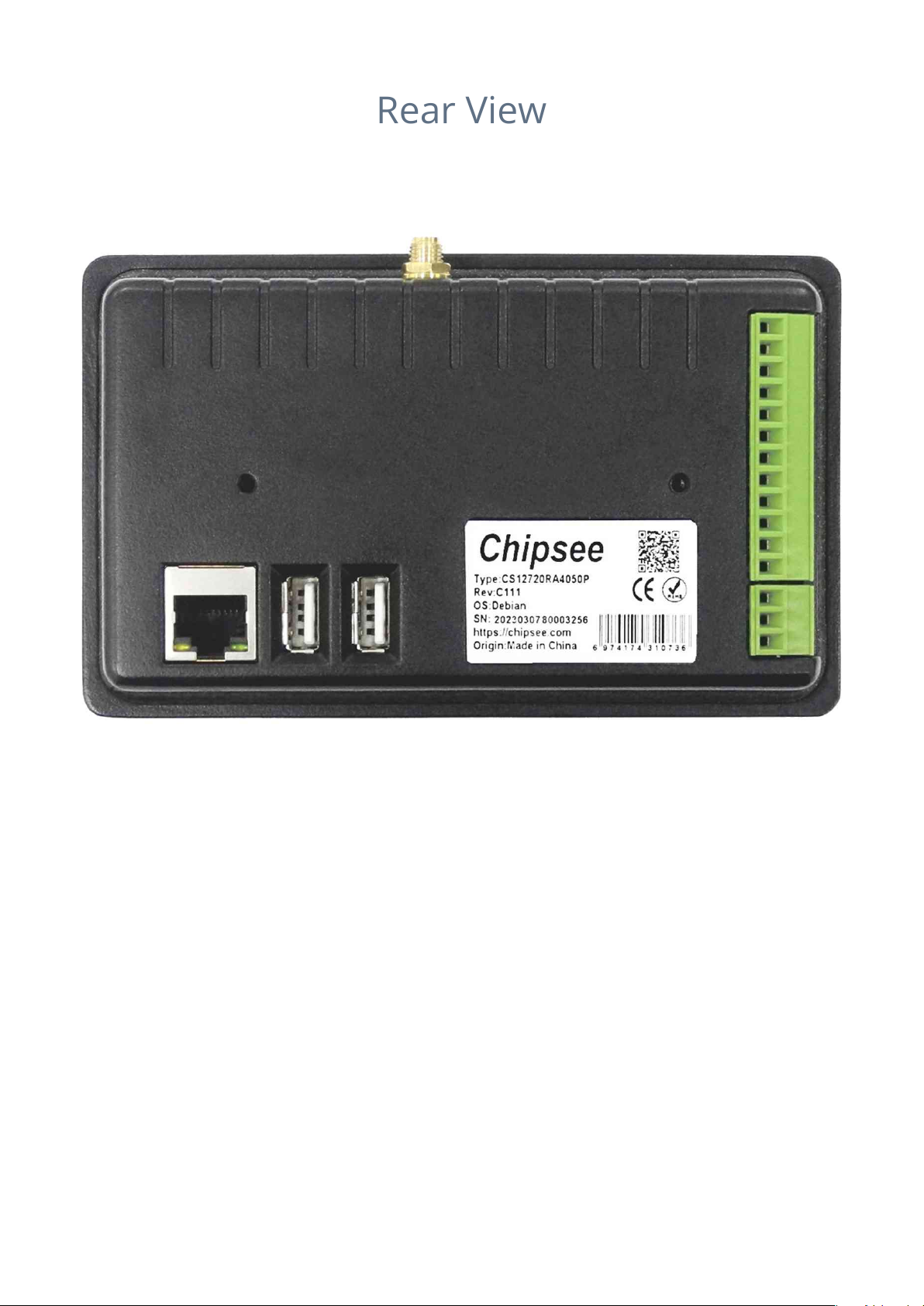

Rear View

EPC/PPC-CM4-050

Chipsee IPC Page 4 of 20

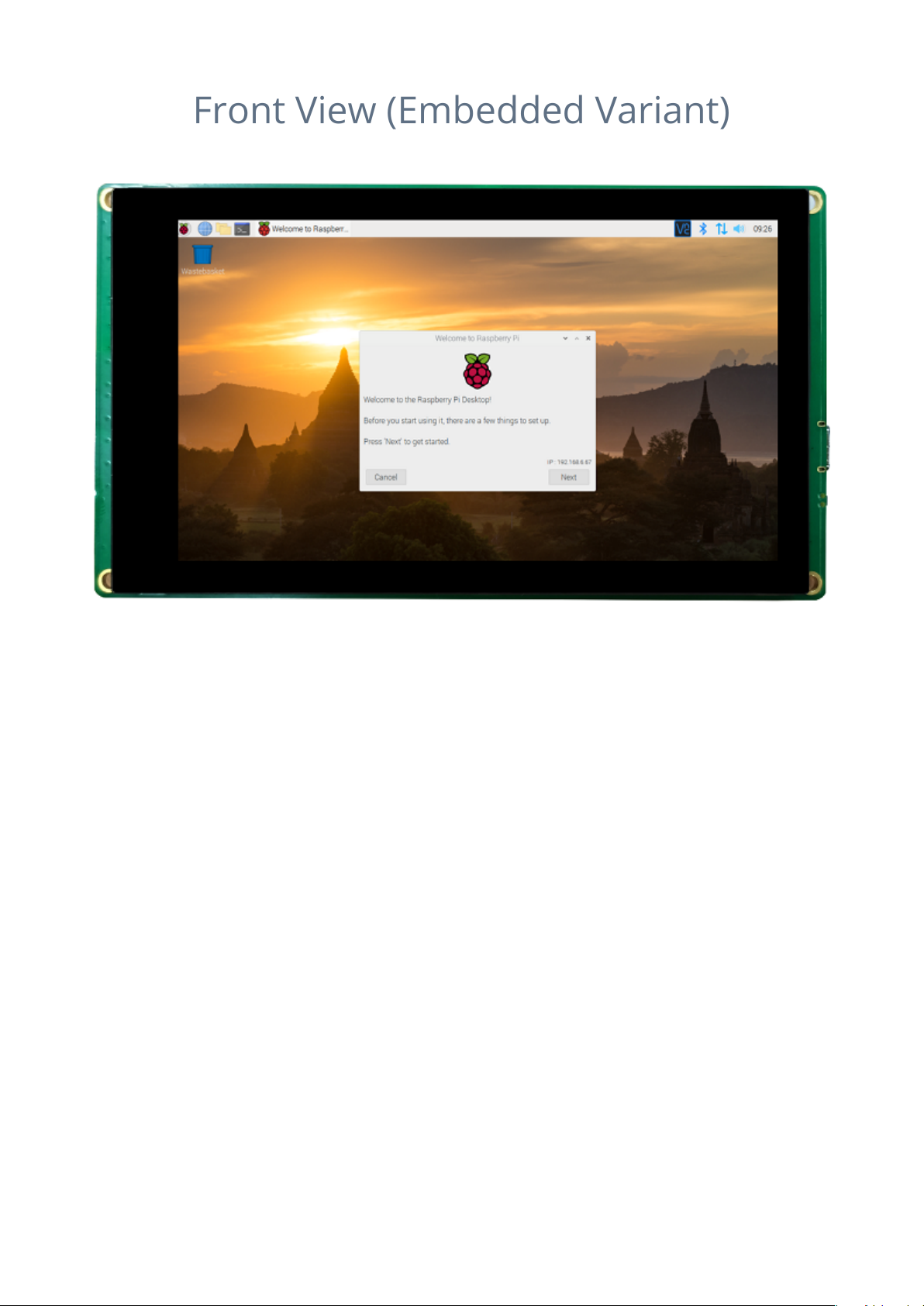

Front View (Embedded Variant)

EPC/PPC-CM4-050

Chipsee IPC Page 5 of 20

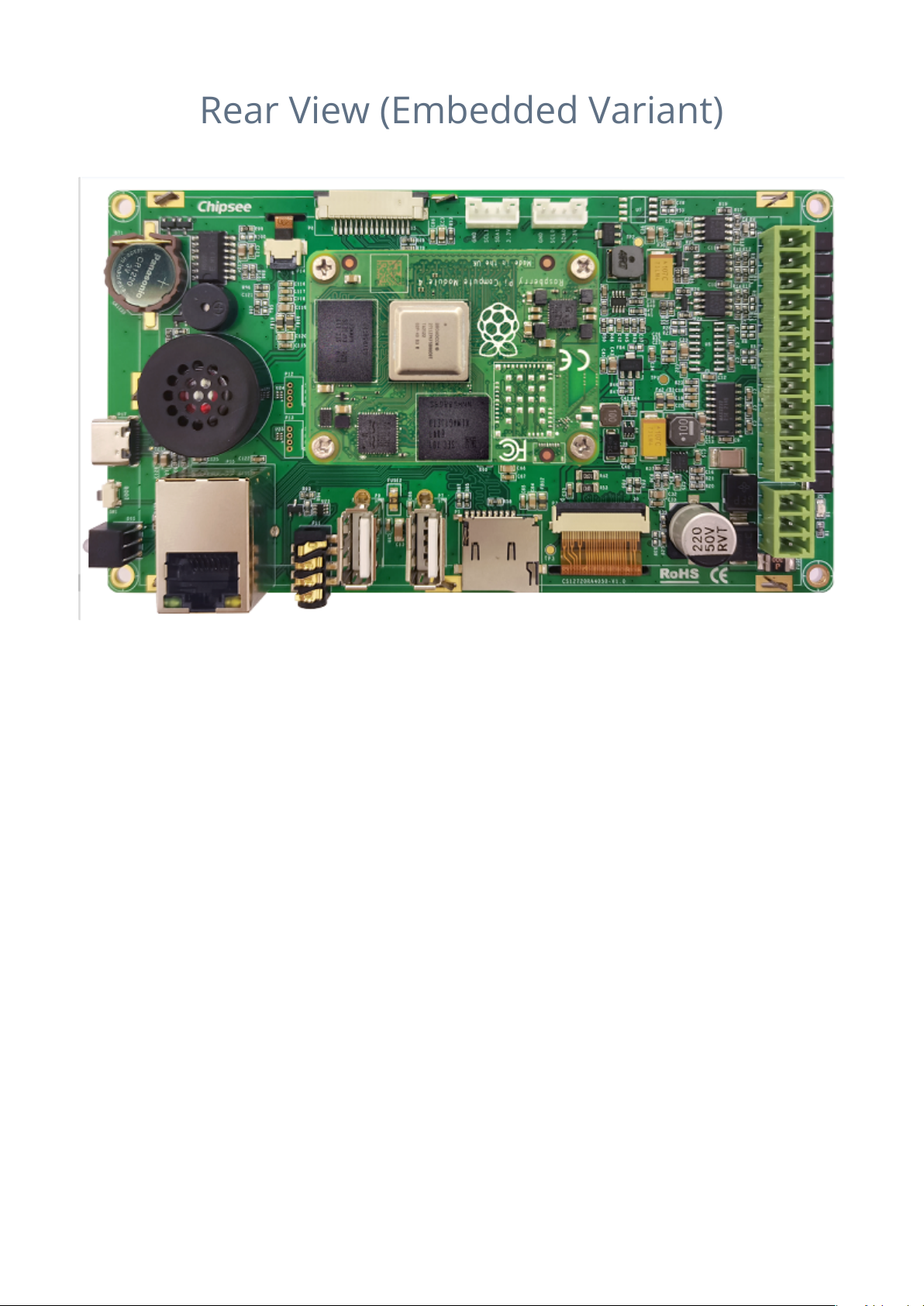

Rear View (Embedded Variant)

EPC/PPC-CM4-050

Chipsee IPC Page 6 of 20

Product Overview

The Cortex -A72 Raspberry Pi series EPC/PPC-CM4-050 (PN: CS12720RA4050) is a high-

quality industrial Pi PC. It features a 5” ve-point capacitive touch screen with a resolution of

1280 x 720 pixels and brightness of 400 cd/m .

Key Applications

Human Machine Interface HMI

Process Control

Process Monitoring

HMI

IIoT node

Environmental Monitoring

PLC

Automotive applications

ATM…

It is available both as an embedded solution and as a device hosed in a casing with bezels,

thus facilitating dierent installation options:

Installation on an industrial cabinet

Integration with the existing equipment

The EPC/PPC-CM4-050 industrial Pi PC is based around the powerful Raspberry Pi

Compute Module 4, powered by the Quad Cortex -A72 processor with a processor speed of

1.5GHz.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be

shipped with the pre-installed factory defaults if no extra requirements are specied. The

table in the Specications section provides information about the default options bundled

with the product.

® ®

•

Note

You can order EPC/PPC-CM4-050 from the ocial Chipsee Store or from your nearest distributor.



EPC/PPC-CM4-050 Product Overview

Chipsee IPC Page 7 of 20

Pi CM4 Module

The Pi Compute Module 4 appears in dierent versions depending on the size of the DDR4

and eMMC.

The EPC/PPC-CM4-050 industrial Pi PC does not include the CM4 Raspberry Pi module by

default. If you would like to purchase it with a CM4, you can select it at the Chipsee store

during the ordering process.

Operating System

This product comes with a pre-installed Debian OS. Chipsee software engineers have

created all the drivers, so every hardware feature is readily available for any standard

development tool.

If your project requires a dierent OS, please Contact us, and we’ll make a customized

version that suits your needs.

Specifications

The EPC/PPC-CM4-050 industrial Pi PC oers a broad range of performance and connectivity

options for scalable integration, providing expandability according to future needs. Some of

the key features are listed in the table below.

EPC/PPC-CM4-050

CPU Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz

Storage 1 TF Cards slots3

RAM Based on CM4

eMMC Based on CM4

Display 5” IPS LCD, 1280 x 720 resolution px, brightness 400 cd/m

Touch 5-point capacitive touch with 1mm Armored Glass

USB 2 x USB 2.0 Host, 1 x Type-C

LAN 1 x Channel Giga LAN

Audio 3.5mm Audio Out Connector, 2W Speaker Internal

Buzzer Onboard Buzzer, driven by GPIO

RTC Yes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not

included)

RS232 2 x RS232

RS485 2 x RS4851

CAN 1 x CAN-BUS

GPIO Not Supported

EPC/PPC-CM4-050 Pi® CM4 Module

Chipsee IPC Page 8 of 20

The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from

within the software.

The default product without the CM4 does not include a Wi-Fi/BT module. You can include a CM4 that has the

Wi-Fi/BT module at the Chipsee store during the ordering process.

Chipsee designed TF card slots for storage expansion, as the TF card for storage expansion use same pins with

WiFi, it can’t be used with WiFi at same time

Power Input

The EPC/PPC-CM4-050 industrial Pi PC can be powered by a wide range of input voltages:

From 9V to 36V DC. It is a 3 Pin, 3.81mm screw terminal connector. The polarity and the

pinout is clearly marked on the housing of the CS12720RA4050P version, as shown in the

gures below.

EPC/PPC-CM4-050

WiFi/BT Supported but depending on the CM4 selected2

HDMI Not Supported

3G/4G/LTE Not Supported

I2C Support I2C0 I2C1 for CS12720RA4050E

Camera Yes, not mounted by default

Power Input From 9V to 36V

Current at 12V 500mA Max

Power Consumption 6W Typical

Working

Temperature From 0°C to +60°C

OS Debian

Dimensions

CS12720RA4050E: 141.2 x 77.6 x 25.8mm

CS12720RA4050P: 139 x 85 x 28mm

Weight

CS12720RA4050E: 200g

CS12720RA4050P: 310g

Table 332 Key Features

Attention

Chipsee does not install a lithium battery by default, as we cannot ship products with batteries. We recommend you

buy it locally and install it by yourself. The lithium battery part number is CR1220. Please Contact us if you need help.



EPC/PPC-CM4-050 Power Input

Chipsee IPC Page 9 of 20

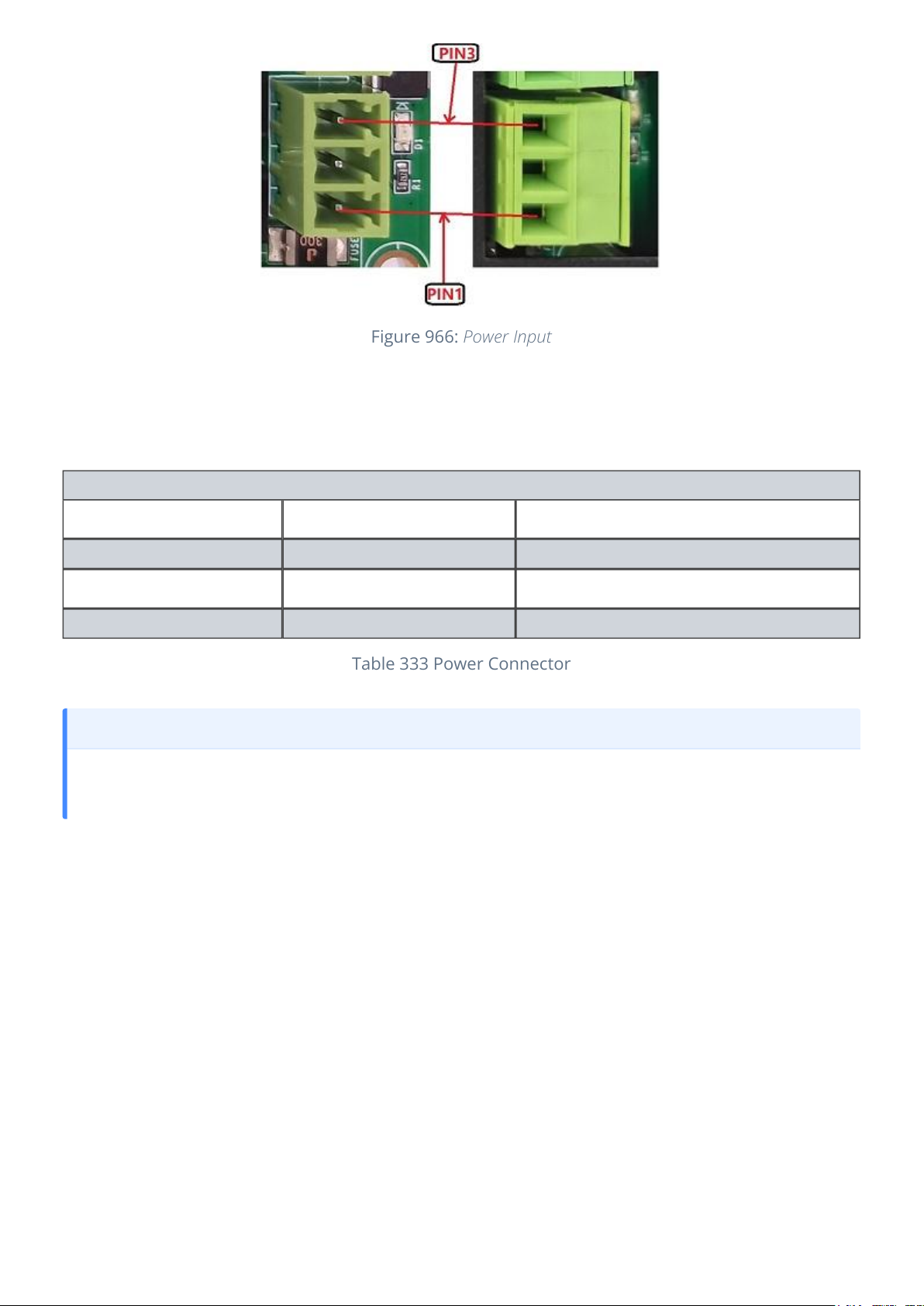

Figure 966: Power Input

Note that the “+” sign represents the positive power input, and it is printed both at the

casing and as a silk-screen on the board of the embedded version. The “-” terminal is

shorted to the ground.

Touch Screen

The EPC/PPC-CM4-050 industrial Pi PC uses a 5-point capacitive touch screen. However, the

Debian OS supports only One-Point touch.

The gure below shows the capacitive touch screen connected to the motherboard via the

FPC connector.

Power Input Denition

Pin Number Denition Description

Pin 1 Positive Input DC Power Positive Terminal

Pin 2 Negative Input DC Power Negative Terminal

Pin 3 Ground Power System Ground

Table 333 Power Connector

Note

The system ground “G” is connected to power negative “-” on board.

The central pin is positive.



EPC/PPC-CM4-050 Touch Screen

Chipsee IPC Page 10 of 20
