Christie LX501 Guida rapida

LX501/LX601i

User Manual-Technical Guide

020-000503-01

LX501/LX601i User Manual-Technical Guide 020-000503-01 Rev. 1 (03-2012)

Projector

LX501/LX601i

User Manual-Technical Guide

User's Manual (detailed) - Operating Guide Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

* 1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)

* 1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

* Supported except for HDMITM input.

Example of computer signal

NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a computer.

•

Some computers with multiple display screen modes may unavailable with this projector.

• Depending on the input signal, full-size display may unavailabel in some cases. Refer

to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA (1600x1200),

the signal will be converted to the projector’s panel resolution before being displayed.

The best display performance will be achieved if the resolutions of the input signal and

projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a composite

sync or a sync on G.

LX501/LX601i User Manual-Technical Guide 020-000503-01 Rev. 1 (03-2012)

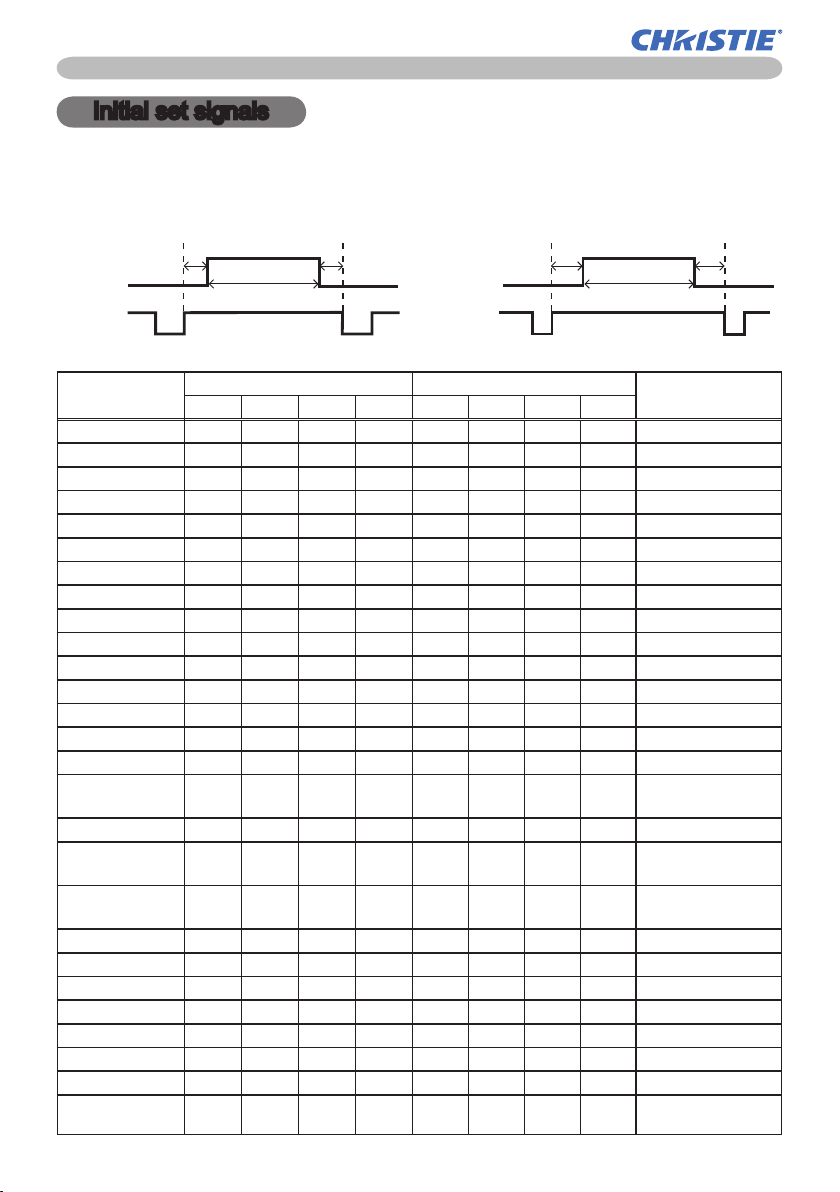

Initial set signals

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

Resolution

(H x V)

Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400 2.0 3.0 20.3 1.0 3 42 400 1 TEXT

640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)

640 x 480 1.3 4.1 20.3 0.8 3 28 480 9 VGA (72Hz)

640 x 480 2.0 3.8 20.3 0.5 3 16 480 1 VGA (75Hz)

640 x 480 1.6 2.2 17.8 1.6 3 25 480 1 VGA (85Hz)

800 x 600 2.0 3.6 22.2 0.7 2 22 600 1 SVGA (56Hz)

800 x 600 3.2 2.2 20.0 1.0 4 23 600 1 SVGA (60Hz)

800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)

800 x 600 1.6 3.2 16.2 0.3 3 21 600 1 SVGA (75Hz)

800 x 600 1.1 2.7 14.2 0.6 3 27 600 1 SVGA (85Hz)

832 x 624 1.1 3.9 14.5 0.6 3 39 624 1 Mac 16" mode

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3 XGA (60Hz)

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3 XGA (70Hz)

1024 x 768 1.2 2.2 13.0 0.2 3 28 768 1 XGA (75Hz)

1024 x 768 1.0 2.2 10.8 0.5 3 36 768 1 XGA (85Hz)

1152 x 864 1.2 2.4 10.7 0.6 3 32 864 1 1152 x 864

(75Hz)

1280 x 768 1.7 2.5 16.0 0.8 3 23 768 1 W-XGA (60Hz)

1280 x 800 1.6 2.4 15.3 0.8 3 24 800 1 1280 x 800

(60Hz)

1280 x 960 1.0 2.9 11.9 0.9 3 36 960 1 1280 x 960

(60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1 SXGA (60Hz)

1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1 SXGA (75Hz)

1280 x 1024 1.0 1.4 8.1 0.4 3 44 1024 1 SXGA (85Hz)

1400 x 1050 1.2 2.0 11.4 0.7 3 33 1050 1 SXGA+ (60Hz)

1440 x 900 1.4 2.2 13.5 0.8 6 25 900 3 WXGA+ (60Hz)

1680 x 1050 1.2 1.9 11.5 0.7 6 30 1050 3 WSXGA+ (60Hz)

1600 x 1200 1.2 1.9 9.9 0.4 3 46 1200 1 UXGA (60Hz)

1920 x 1200 0.208 0.519 12.47 0.312 6 26 1200 3 W-UXGA (60Hz)

Reduced Blanking

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Initial set signals

LX501/LX601i User Manual-Technical Guide 020-000503-01 Rev. 1 (03-2012)

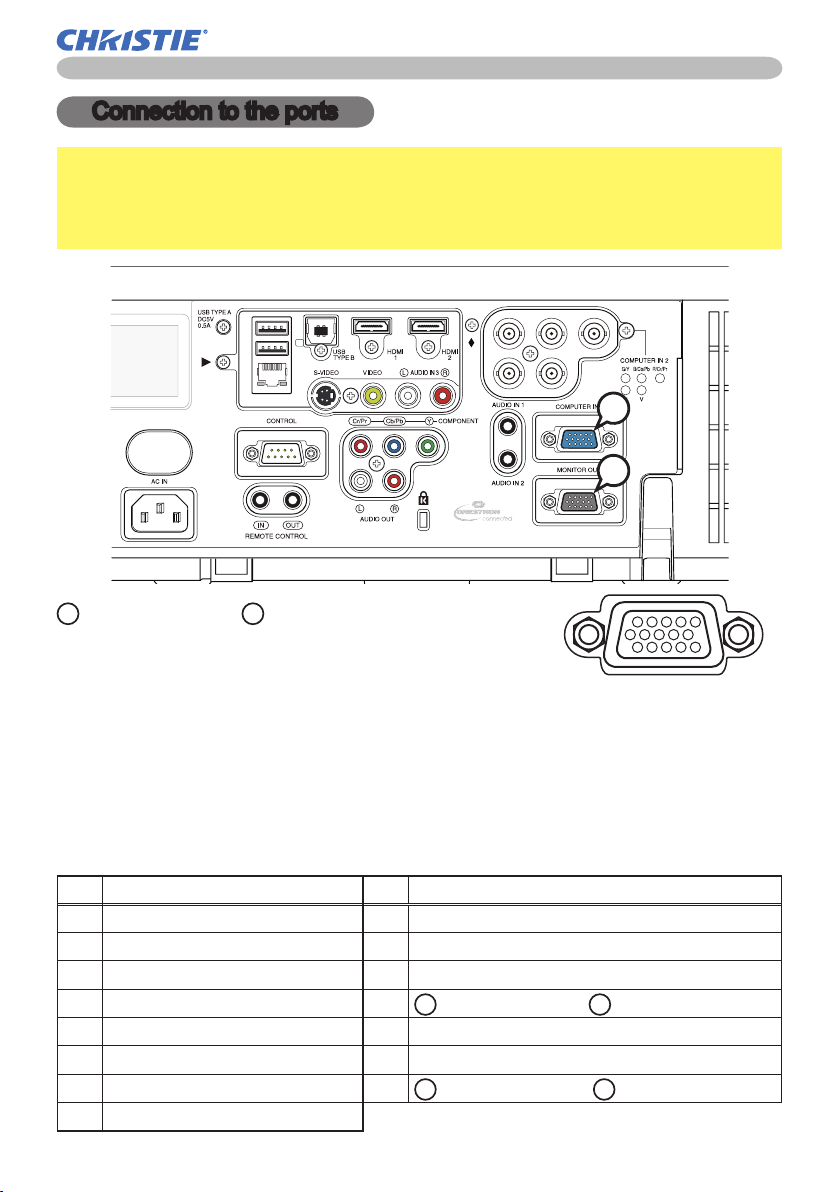

ACOMPUTER IN1, BMONITOR OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated

Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

Pin Signal Pin Signal

1 Video Red, Cr/Pr 9 (No connection)

2 Video Green, Y 10 Ground

3 Video Blue, Cb/Pb 11 (No connection)

4 (No connection) 12 A: SDA (DDC data) B: (No connection)

5 Ground 13 H. sync / Composite sync.

6 Ground Red, Ground Cr/Pr 14 V. sync.

7 Ground Green, Ground Y 15 A: SCL (DDC clock) B: (No connection)

8 Ground Blue, Ground Cb/Pb

Connection to the ports

①⑤④③②

⑥⑩⑨⑧⑦

⑪⑮⑭⑬⑫

Connection to the ports

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

►Only the signal that is input from the COMPUTER IN1 or IN2 can be output

from the MONITOR OUT port.

LX501/LX601i User Manual-Technical Guide 020-000503-01 Rev. 1 (03-2012)

Connection to the ports (continued)

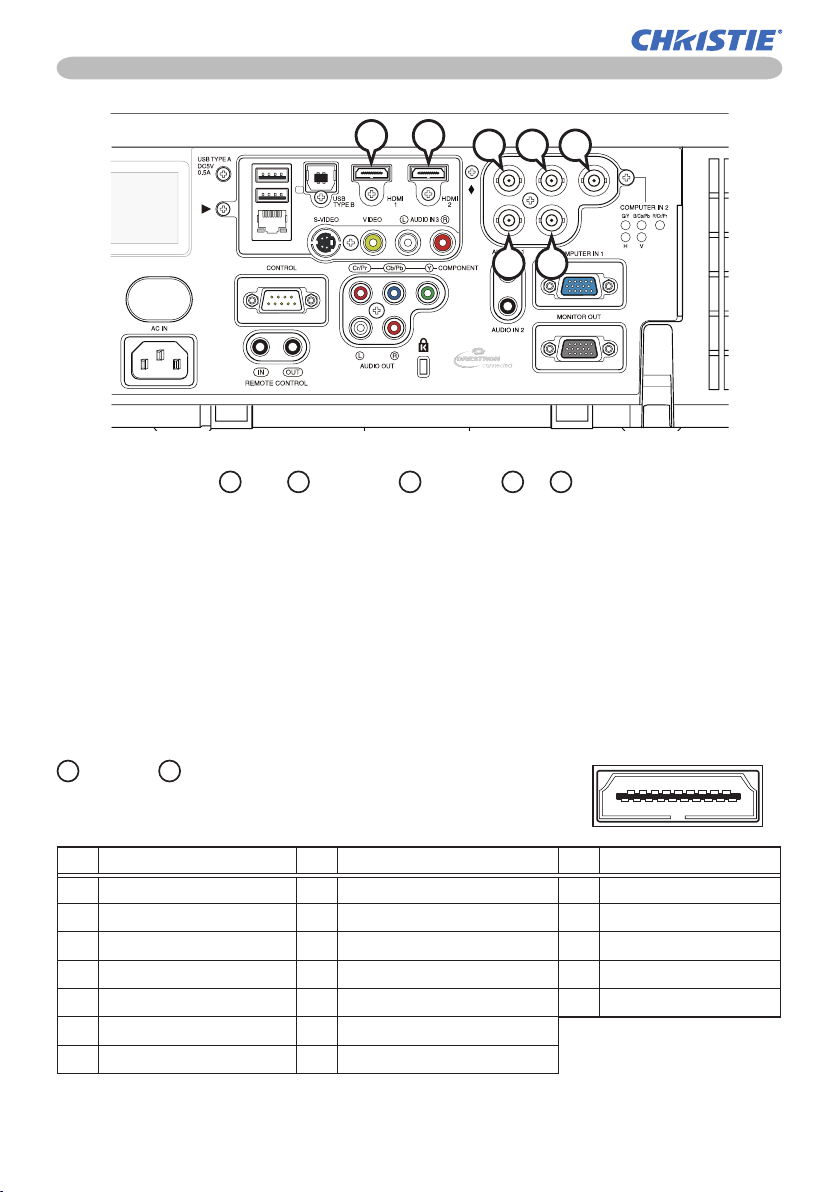

COMPUTER IN2 CG/Y, DB/Cb/Pb, ER/Cr/Pr, FH, GV

BNC jack x5

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated

Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

HHDMI 1, IHDMI 2

HDMITM connector

• Audio signal: Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin Signal Pin Signal Pin Signal

1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL

2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA

3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground

4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield

+5V Power

5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect

6 T.M.D.S. Data1 - 13 CEC

7 T.M.D.S. Data0 + 14 Reserved (N.C. on device)

①⑤

④

③

②⑥⑩

⑨

⑧

⑦⑪⑮

⑭

⑬

⑫

⑲

⑱

⑰

⑯

C ED

F G

LX501/LX601i User Manual-Technical Guide 020-000503-01 Rev. 1 (03-2012)

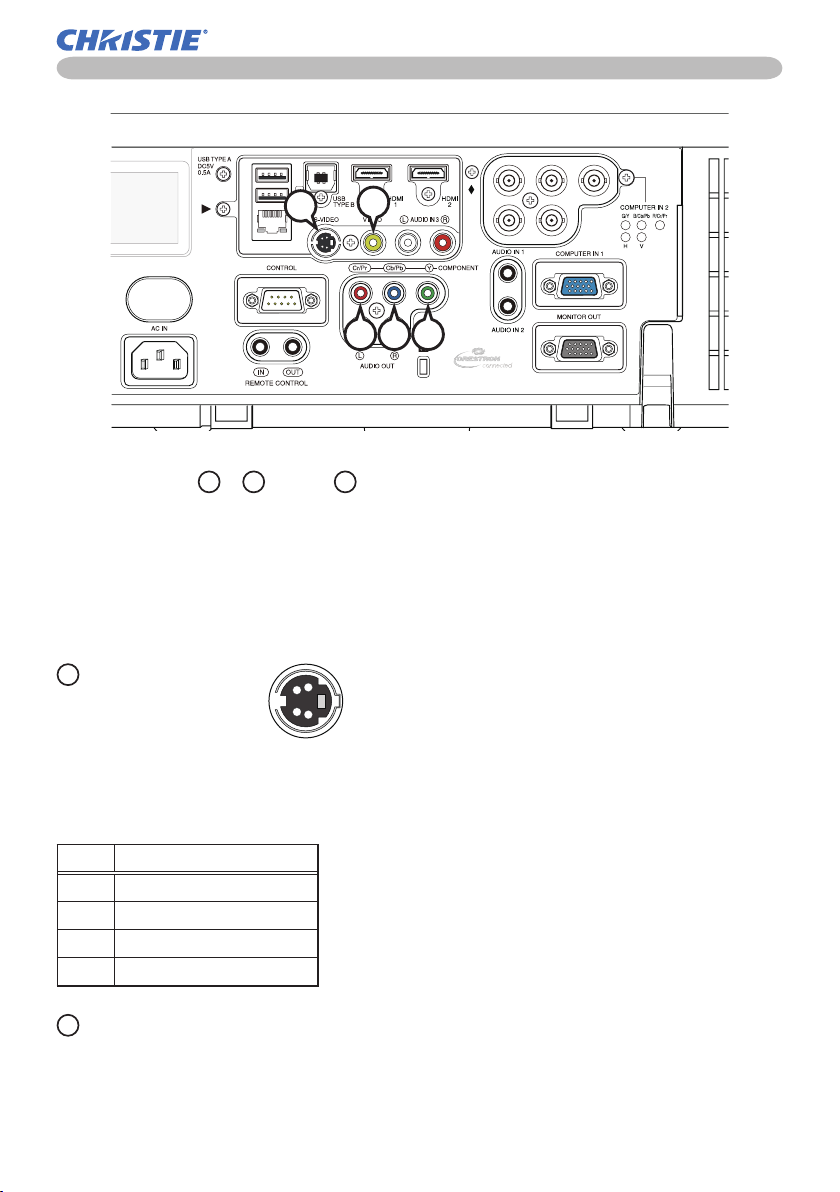

MS-VIDEO

Mini DIN 4pin jack

• S-video signal, Analog:

-Brightness signal with composite sync, 1.0±0.1Vp-p, 75Ω terminated

-Color signal, 0.286Vp-p (NTSC, burst), 75Ω terminated

0.300Vp-p (PAL/SECAM, burst) 75Ω terminated

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal

1 C (color signal)

2 Y (brightness signal)

3 Ground

4 Ground

Connection to the ports (continued)

NVIDEO

RCA jack

• Composite video signal, Analog, 1.0±0.1Vp-p, 75Ω terminator

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

COMPONENT JY, KCb/Pb, LCr/Pr

RCA jack x3

• Component video signal, Analog:

-Y with composite sync, 1.0±0.1Vp-p, 75Ω terminated

-Cb/Pb, 0.7±0.1Vp-p, 75Ω terminated

-Cr/Pr, 0.7±0.1Vp-p 75Ω terminated

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60

L JK

①

④③

②

LX501/LX601i User Manual-Technical Guide 020-000503-01 Rev. 1 (03-2012)

Connection to the ports (continued)

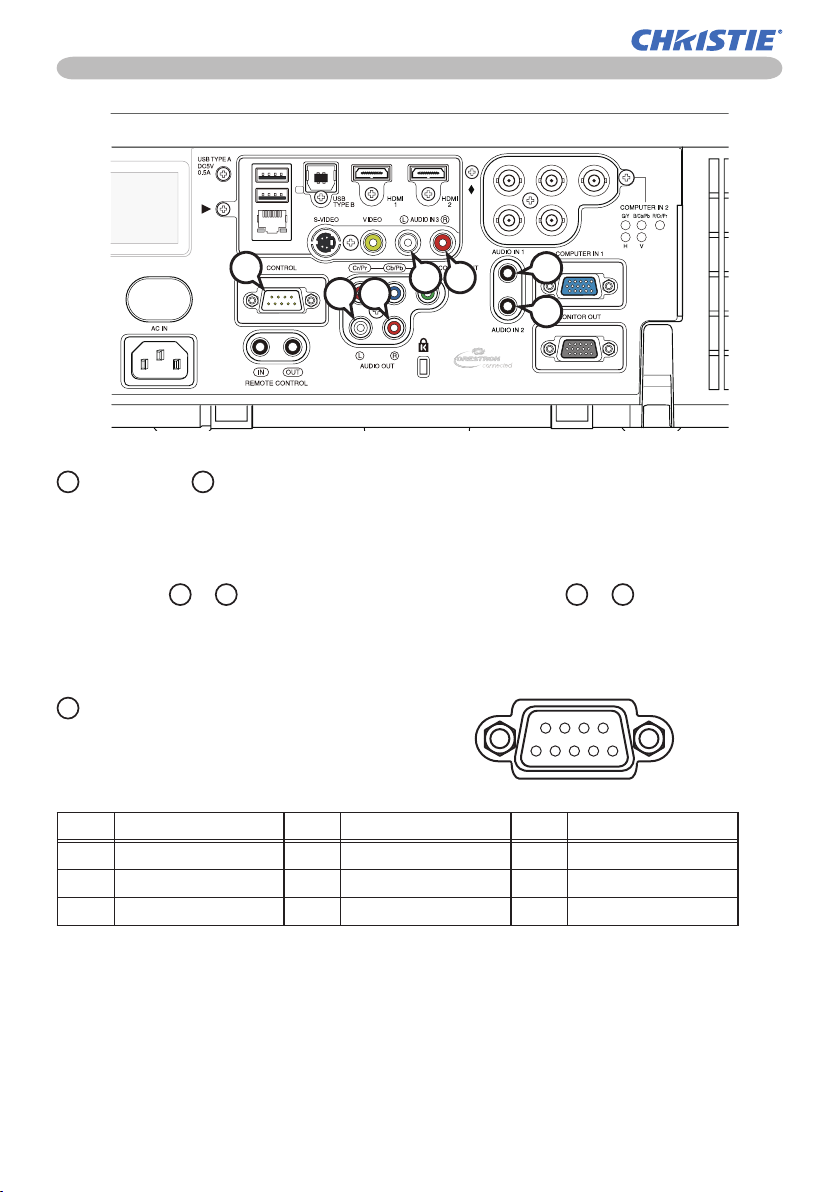

OAUDIO IN1, PAUDIO IN2

Ø3.5 stereo mini jack

•

Analog, 500 mVrms, 47kΩ input impedance

AUDIO IN3 QL, RR AUDIO OUT SL, TR

RCA jack x2 RCA jack x2

•

Analog, 500 mVrms, 47kΩ input impedance

•

Analog, 500 mVrms, 1kΩ output impedance

CONTROL

D-sub 9pin plug

* About the details of RS-232C communication,

please refer to the next section.

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

①②

⑥⑦⑧⑨

⑤④③

S T

LX501/LX601i User Manual-Technical Guide 020-000503-01 Rev. 1 (03-2012)

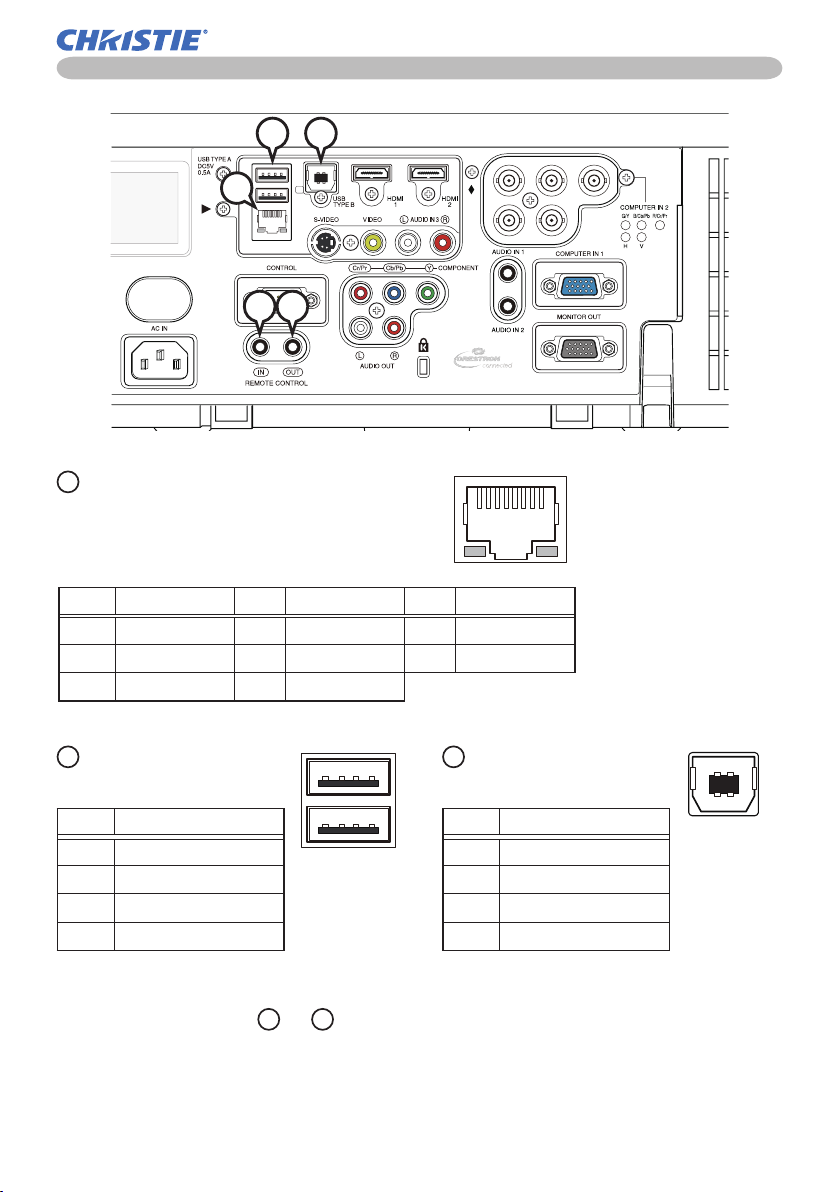

REMOTE CONTROL YIN, ZOUT

Ø3.5 stereo mini jack

Connection to the ports (continued)

USB

TYPE B

USB B type jack

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

LAN

RJ-45 jack

* About the details of network communication,

please refer to the Network Guide.

Pin Signal Pin Signal Pin Signal

1 TX+ 4- 7-

2 TX- 5 - 8-

3 RX+ 6 RX-

WUSB TYPE A

USB A type jack x2

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

①

④③

②

①⑤

④

③

②⑥⑧

⑦

①④③②

LX501/LX601i User Manual-Technical Guide 020-000503-01 Rev. 1 (03-2012)

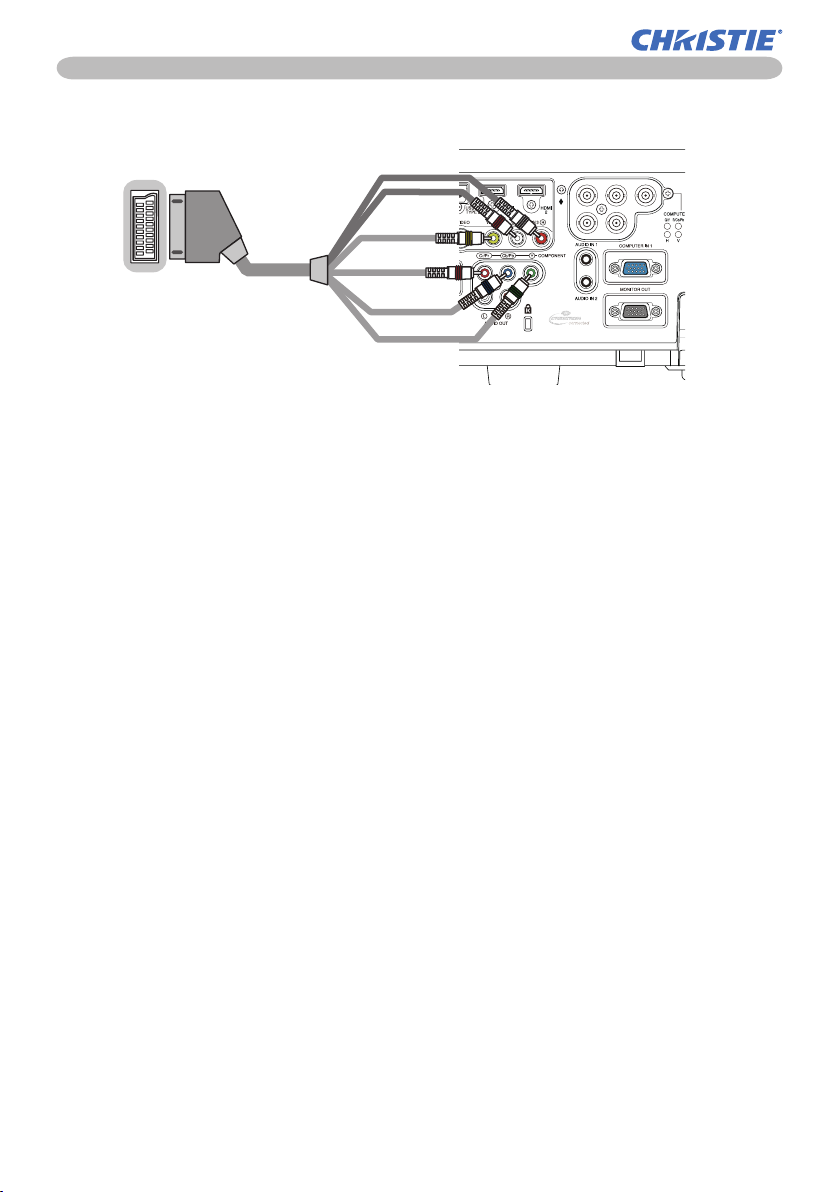

To input SCART RGB signal;

ex.

Video

Audio L

Audio R

Connection to the ports (continued)

To input SCART RGB signal to the projector, use a SCART to RCA cable.

Connect the plugs refer to above ex. For more reference, please consult your

dealer.

SCART

connector

(jack)

SCART cable

(plug)

RCA plugs
