LAMP REPLACEMENT

When the life of Projection Lamp of this projector draws to an end, LAMP REPLACEMENT indicator lights yellow. When a

projected image becomes dark or the color of an image becomes unnatural, replacement of Projection Lamp is required.

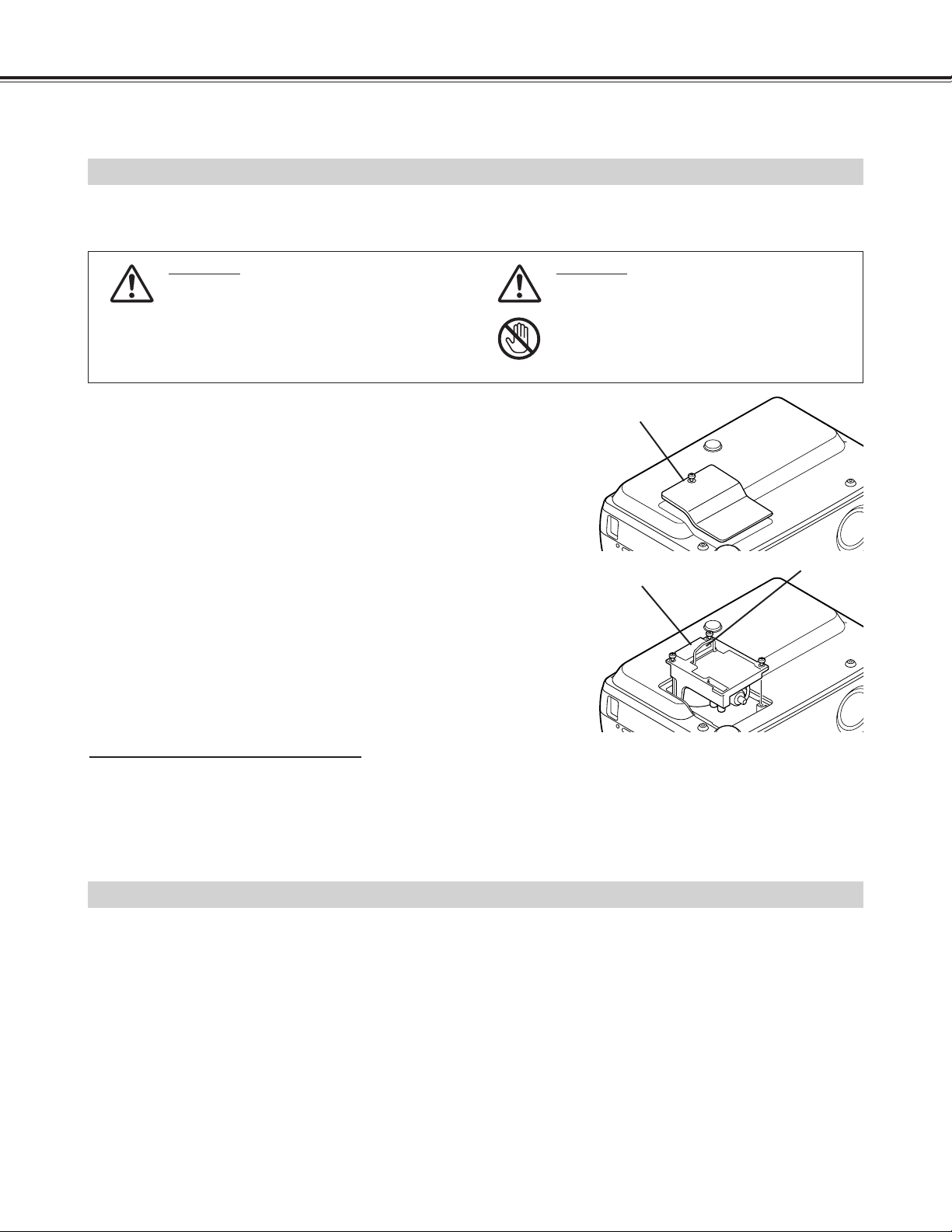

Turn off the projector and disconnect AC plug. Allow the

projector to cool for at least 45 minutes.

Remove 3 screws with a screwdriver and pull out Lamp

Assembly by grasping Handle.

Replace Lamp Assembly with a new one and tighten 3 screws

back. Make sure the Lamp Assembly is set properly. Replace

Lamp Cover and tighten a screw.

Remove a screw with a screwdriver to remove Lamp Cover.

Connect AC Power Cord to the projector and turn it on.

Follow these steps to replace the lamp assembly.

Reset Lamp Replace Counter (refer to the section “Lamp

Replace Counter”below).

LAMP

ASSEMBLY

HANDLE

LAMP COVER

NOTE : Do not reset Lamp Replace Counter when Projection

Lamp is not replaced.

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through your dealer. When ordering Projection Lamp, give the following

information to the dealer.

●Model No. of your projector : 38-VIV003-01

●Replacement Lamp Type No. :03-000648-01P

LAMP REPLACE COUNTER: RESETTING and READING

Be sure to reset Lamp Replace Counter when Lamp Assembly is replaced. When Lamp Replace Counter is reset, LAMP

REPLACE Indicator stops lighting.

Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to

move the red frame pointer to SETTING Menu icon (refer to page 35, 36).

Press POINT DOWN button to move the red frame pointer to “Lamp counter reset”and then press SELECT button.

The message "Lamp replace counter reset?" is displayed. Move the pointer to [Yes] and then press SELECT button.

Do not reset Lamp Replace Counter except after Projection Lamp is replaced.

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

CAUTION

Do not drop a lamp assembly or touch a glass

bulb! The glass can shatter and may cause

injury.

CAUTION

For continued safety, replace with a lamp

assembly of the same type.

Allow a projector to cool for at least 45

minutes before you open Lamp Cover. The

inside of the projector can become very hot.

To check lamp hours, hold the UP button for 20 seconds. The LAMP COUNTER will appear on screen briefly, displaying the

number of lamp hours logged thus far.

AIR FILTER CARE AND CLEANING

AIR FILTER

Pull up and remove

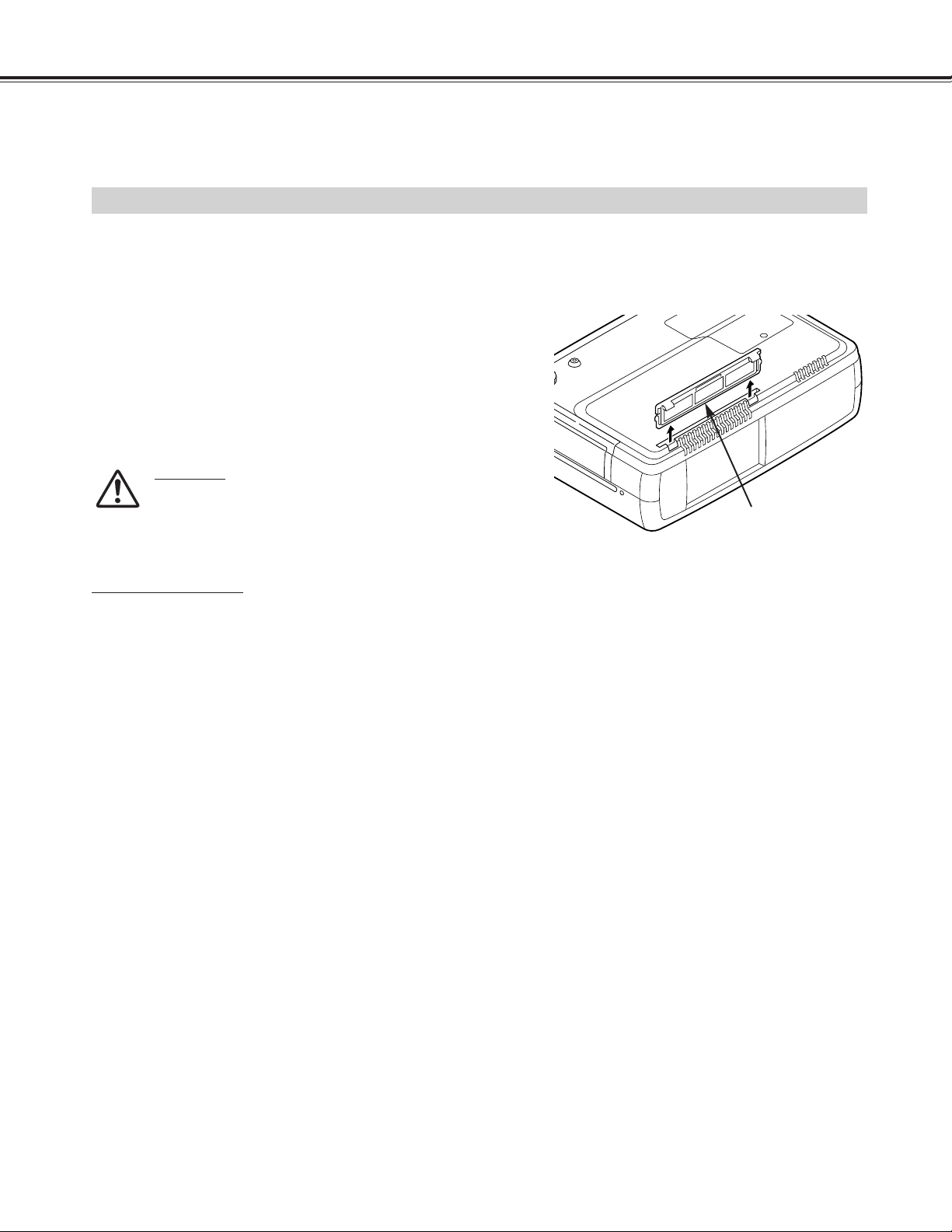

Turn off the projector, and disconnect AC power cord from the

AC outlet.

Turn the projector upside down and remove Air Filter by pulling

the latches upward.

Removable Air Filter prevents dust from accumulating on the surface of Projection Lens and Projection Mirror. Should Air

Filter become clogged with dust particles, it will reduce Cooling Fans’effectiveness and may result in internal heat build up

and adversely affect the life of the projector. Clean Air Filter at least every 250 hours following the steps below:

Clean Air Filter with a brush or wash out dust and particles.

Replace the Air Filter properly. Make sure the Air Filter is fully

inserted.

CAUTION

Do not operate the projector with Air Filter removed. Dust

may accumulate on LCD Panel and Projection Mirror

degrading picture quality.

Do not put small parts into Air Intake Vents. It may result in

malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments

may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on the lens, liquid crystal panels, or optical elements

inside the projector. This condition may degrade the quality of the projected image.

When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

for cleaning every

250 hours.

REPLACEMENT AIR FILTERS: 10-A6102926125
