Christopher Ward C60 Apex Limited Edition Guida utente
C60 Apex Limited Edition
Owner’s Handbook
1
Time on your side
Your Christopher Ward watch has been designed in Britain
and engineered in Switzerland by highly talented craftspeople.
This ensures not only accurate and precise timekeeping, but also
brings a real pride of ownership that only watches of the highest
quality standards can hope to deliver.
You have made an investment, a good one, and the aim of this
manual is to help you make the most of that investment in what
we hope will be a lifetime of ownership.
Chris, Mike and Peter
(Co-founders)
1
2222
3
C60 Apex Limited Edition
On July 2, 2014, the Christopher Ward team descended upon London’s
Charlotte Street Hotel to unleash a development that would send
shockwaves rippling throughout the Swiss watch industry.
That development was Calibre SH21, CW’s in-house chronometer
complete with 120-hour power reserve. Not only a feat of engineering,
it doubled as proof that a small British watchmaker could innovate
just as much as brands far larger, older and wealthier. Five years
on from when CW’s three co-founders dropping that particular
horological depth charge, the new C60 Apex Limited Edition is the
ultimate celebration of Calibre SH21’s half-decade anniversary.
The second CW Apex release, this 100-piece Limited Edition marks the
rst time the series’ architectural aesthetic has appeared in dive form.
Thanks to our partners at Swiss skeletonised watch experts Armin
Strom, both its front and back have been stripped away to allow as
much of SH21 to be admired as possible; with an anodised orange
rotor and detailed bridge present, such engineering prowess means
the Apex also marks the debut of an exhibition caseback in a C60
(although it still remains water resistant to 300m). A power reserve
indicator on the Apex’s dial also enables its wearer to track what
remains of the 120 hours of power stored within SH21’s twin barrels
once fully wound.
A technical colossus, the C60 Apex Limited Edition shows just what
Christopher Ward’s Anglo-Swiss can accomplish when working
together to create the best watch possible at this level. But then
again for a model whose title refers to the pinnacle of achievement,
what else would you expect?
3
4
Features
• Swiss made
• Limited edition of 100 pieces
• 33 jewel self-winding chronometer
with power reserve complication
• 120 hour power reserve
• Hour, minute, central seconds, date
• Skeletonised bridge and decorated barrels,
with anodised aluminium and tungsten
rotor
• Brushed and polished marine-grade
stainless steel case
• Unidirectional ZrO2ceramic bezel
• Integrated automatic helium release valve
• Anti-reective at sapphire crystal
• Semi-open dial with circular brushed
Ruthenium ring, engraved Ruthenium plate
and orange anodised aluminium bridge
• Bevelled matte blue outer ring with white
minute markers
• Blue power reserve indicator ring with
orange numerals and circular brushed
rhodium outer ring
• Altimeter-inspired date wheel
• Super-LumiNova Grade®X1 GL C1 hands,
indexes and bezel
• Top-brushed indexes with diamond
polished facets
• Sandblasted and polished hands
• Signature Trident counterbalance on
seconds hand
• Exhibition backplate with unique engraved
serial number
4
5
Technical Information
Calibre SH21 – automatic with power reserve complication
Case 316L stainless steel
Diameter 42mm
Height 16.35mm
Lug to lug 54mm
Weight 99g
Water resistance 30 ATM (300 metres)
Vibrations 28,800 per hour (4Hz)
Timing tolerance -4/+6 seconds per day
Strap width 22mm
5
6
12 3
How to operate your C60 Apex Limited Edition
PLEASE NOTE: Date correction should not be carried out between 20.00 hr and 02.00 hr
as the watch gearing will already be aligning itself to change the date. The crown should
always be pushed in after adjustment, and it is best to do so from position 3to avoid
advancing beyond the desired date.
6
The crown should sit ush to the case (position 1) in order to maintain
water resistance.
• To re-power the watch after a period of non-use, simply wind the
crown in a clockwise direction. Take care not to overwind the crown
past the point of resistance as it will damage the movement.
• For rapid date correction pull gently into position 2and turn in
an anti-clockwise direction.
• For setting the time pull gently into position 3and turn
anti-clockwise to advance the time. For precise time setting it
is recommended to pass beyond the desired minute and to set
the hand backwards. Push the crown back to position 1.
Setting the time and date 1. Manual winding
2. Date setting
3.Time setting
777
8
Straps and bracelets
As you would expect, we place as much
emphasis on the quality of our straps and
bracelets as we do our watches. We only
use the nest materials in our straps,
with quick-release pins also included for
your convenience.
The following guidelines explain how easy
it is to use, adjust and replace your
Christopher Ward strap or bracelet.
How to operate your C65 Trident Diver SH21
1. Locate the quick-release pin (or pins)
on your strap (A) or bracelet (B).
Pull the pin(s) inwards to detach.
2. To reattach your strap (C) or bracelet (D),
pull the pin(s) inwards, and align the
spring bars so that they click securely into
the lug holes on each side.
Using the quick-release pins on your strap/bracelet
A B C D
8
9

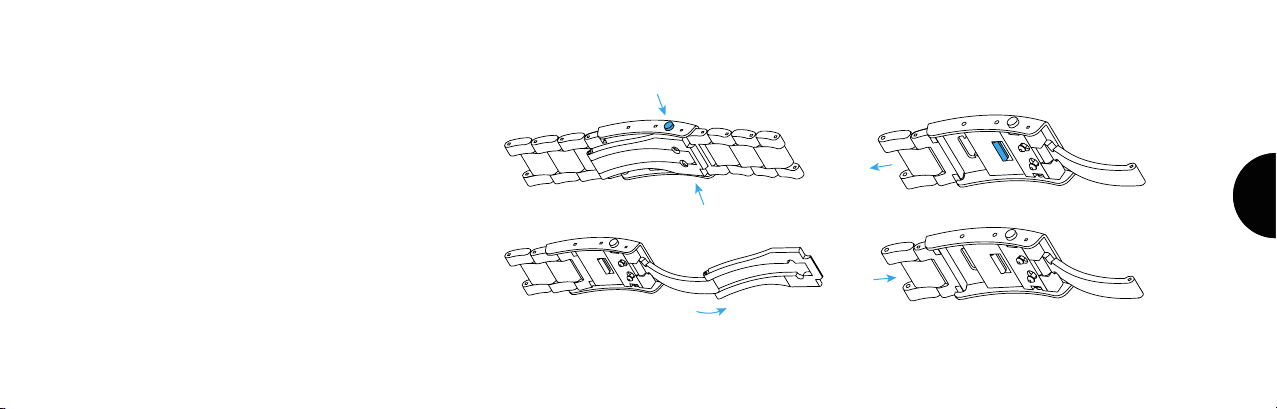

1. Press buttons to release
2. Pull open the clasp
3.There are ve micro adjustment positions,
which allows for a maximum extension of
8.4mm. To extend, pull the lever to unlock
and simultaneously pull on the bracelet
into the desired position.
4.To shorten, simply push the bracelet back
into the clasp.
How to use the micro adjustment on your braceletHow to use the micro adjustment on your bracelet
1.
2.
3.
4.
9
