1.0 INSTALLATION

2 R599741 - Blackwing Two Quick Start guide

1.0 INSTALLATION

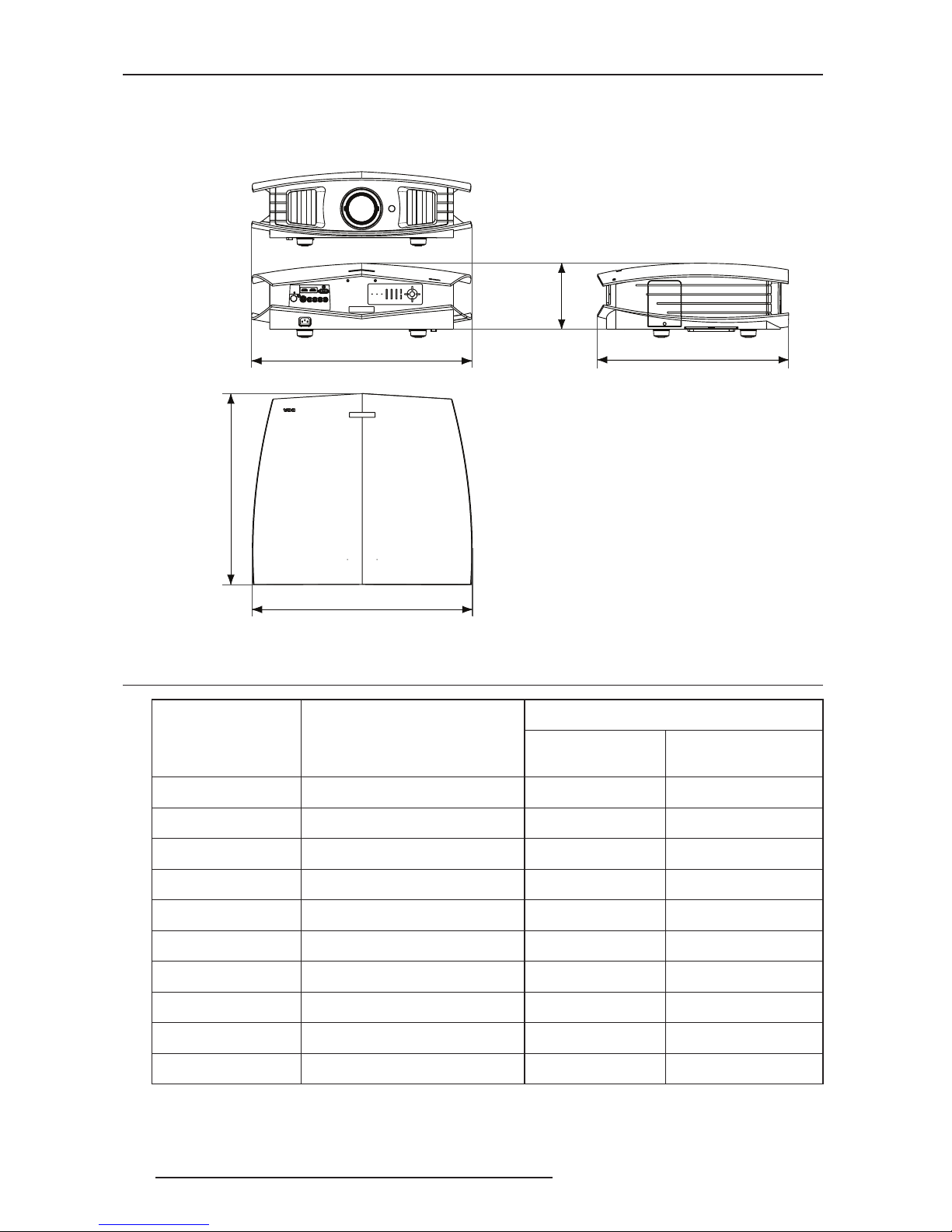

Projector Dimensions

1.1 Projection distance and offset settings

•The projection screen sizes and projecting distances in the table above are provided only as a guide. Please use

them as reference during installation.

• Use a projection image of 16:9 aspect ratio for setup adjustment.

Projection Screen Size

Diagonal size

(Aspect Ratio 16:9)

Projection Screen Size

Base xHeight

(Aspect Ratio 16:9)

Blackwing Two

Projecting Distance

minimum - maximum

Maximum Shift

up or down - left or right

50" (1270 mm) 43,6" (1107 mm) x24,5" (623 mm) 1518 mm - 3050 mm 498 mm - 376 mm

83" (2108 mm) 72,3" (1837 mm) x40,7" (1034 mm) 2519 mm - 5062 mm 827 mm - 625 mm

92" (2337 mm) 80,2" (2037 mm) x45,1" (1146 mm) 2792 mm - 5611 mm 917 mm - 692 mm

100" (2540 mm) 87,2" (2214 mm) x49,0" (1245 mm) 3035 mm - 6099 mm 996 mm - 753 mm

110" (2794 mm) 95,9" (2435 mm) x53,9" (1370 mm) 3339 mm - 6709 mm 1096 mm - 828 mm

138" (3505 mm) 120,3" (3055 mm) x67,7" (1718 mm) 4188 mm - 8417 mm 1375 mm - 1039 mm

150" (3810 mm) 130,7" (3321 mm) x73,5" (1868 mm) 4553 mm - 9149 mm 1494 mm - 1129 mm

180" (4572 mm) 156,9" (3985 mm) x88,2" (2241 mm) 5463 mm - 10978 mm 1793 mm - 1355 mm

200" (5080 mm) 174,3" (4428 mm) x98,1" (2491 mm) 6070 mm -12198 mm 1992 mm - 1505 mm

250" (6350 mm) 218" (5535 mm) x122,6" (3113 mm) 7588 mm - 15248 mm 2491 mm - 1882 mm

585 mm

23.0’’

505 mm

19.9’’

585 mm

23.0’’

175 mm 6.9’’

505 mm

19.9’’

1.0 INSTALLATION

R599741 - Blackwing Two Quick Start guide 3

• Maximum Shift setting:

The vertical and horizontal adjustments feature a vertical shift level between -80% and 80% of the screen height.

The horizontal shift level is between -34% and 34% of screen base.

By example, a 100” (2,54 meters) diagonal size screen, has a screen Base of B=87.2” (2,214 meters), and a screen

Height of H=49” (1.245 meters).

The maximum vertical shift is 0.80x49”=39.2” (0,99 meter) from the center of the screen.

The maximum horizontal shift is 0.34x87.2”=29.7” (0,75 meter) from the center of the screen.

Offset Dials

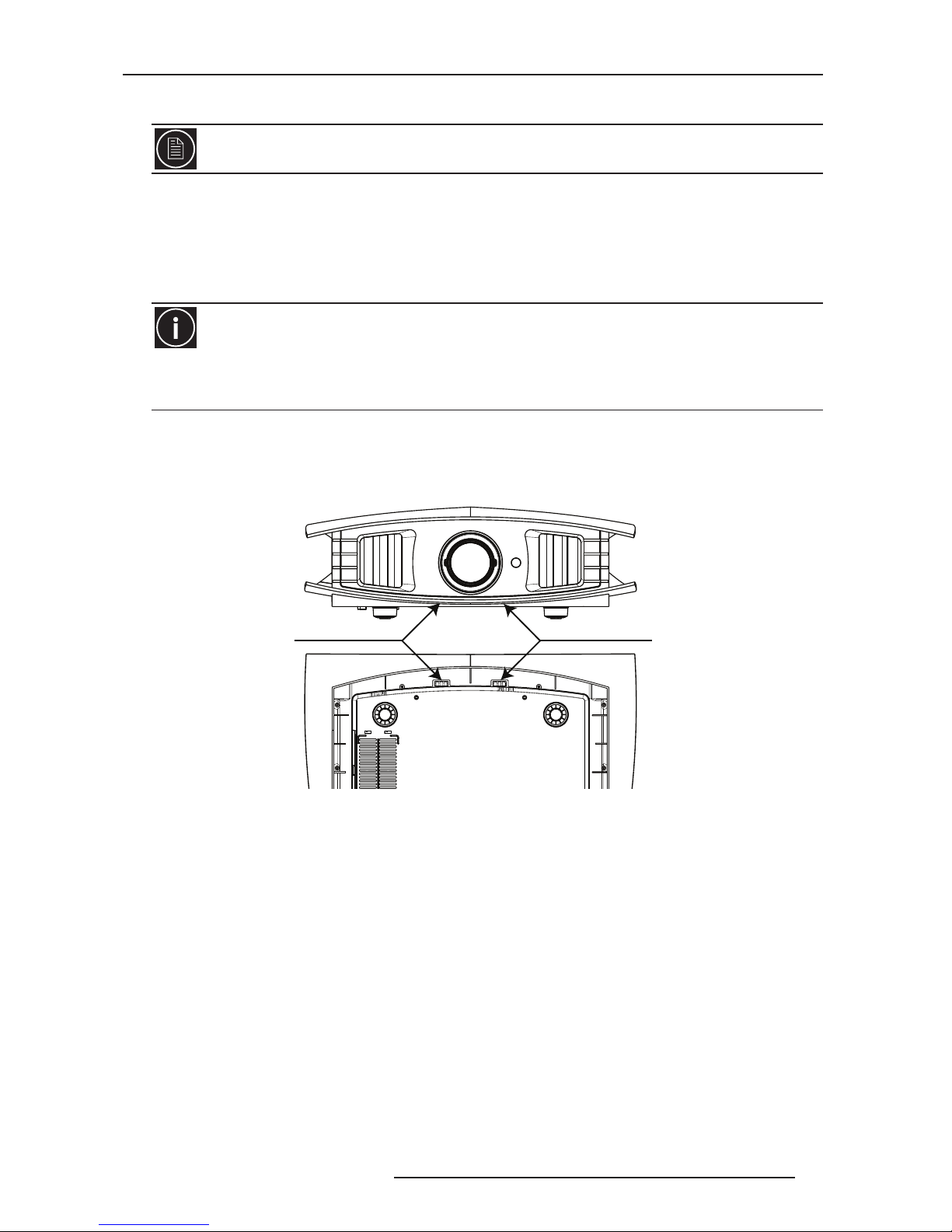

The Blackwing Two projector has two dials to align vertically and horizontally the picture to the screen. Refer to the

picture below to locate the dials.

The Vertical and Horizontal shift dials are located at the bottom of the unit.

This unit comes with a vertical and horizontal shift to suit most installations. Due to mechanical limitation,

you cannot set the projected picture to an offset of both 80% vertically and 34% horizontally.

IMPORTANT

Modifying the vertical and horizontal position should slightly modify the color alignment. The color alignement is not

visible from standard viewing distance. To perfectly align the primary colors, browse into the projector menu to

”Image Menu“ ⇒⇒

⇒⇒ ”Pixel Adjust“ and adjust the color alignment to obtain the best picture.

Vertical Shift Dial

(-80% to +80%)

Horizontal Shift Dial

(-34% to +34%)

2.0 POWER ON AND STANDBY MODE

4 R599741 - Blackwing Two Quick Start guide

2.0 POWER ON AND STANDBY MODE

The projector is in Standby Mode when plugging the Main Power cord, the Standby/ON Led is light red.

2.1 Connecting the Power Cord

• Before plugging in the Power Cord, ensure that all devices have been

connected.

• Connect the power cord to the Main Power input terminal of the projector.

2.2 Optical Lens Cushions

The projector comes with a buffer material that cushions the optical lens to

protect it during transport. Before the ﬁrst startup, remove the buffer

material. Do not throw away the material, retain for future use. When

transporting this unit for repair or during house moving, attach and ﬁx the

buffer material on the top and bottom of the lens as described in the picture

below.

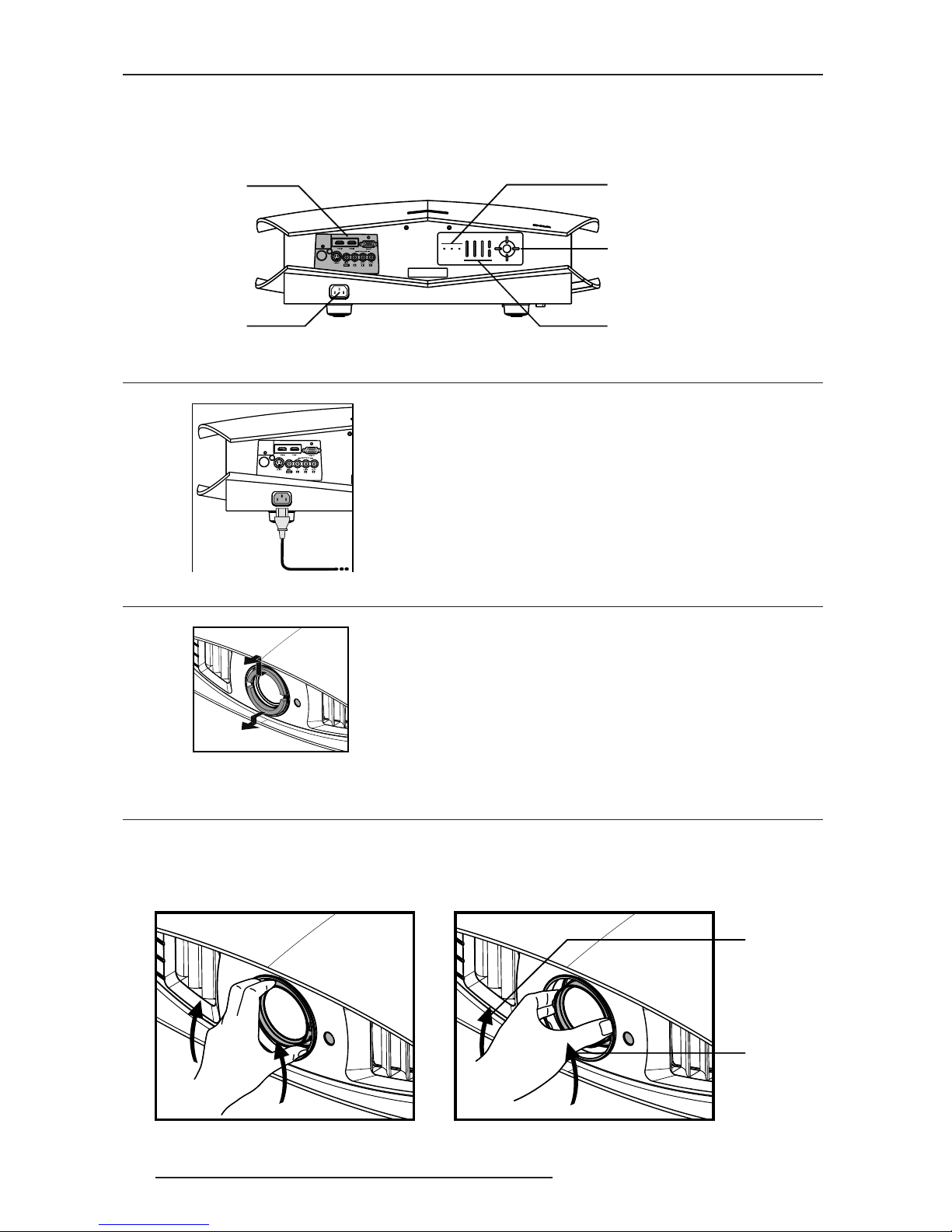

2.3 Focus and Zoom Adjust

Adjust the Focus and Zoom

The focus and zoom can be set manually directly to the lens. Refer to the projection distance table to make sure that

you can focus correctly the picture at the screen from a given projection distance.

Focus Adjust Zoom Adjust

Operating LEDs

Operating buttons

Navigation buttons

Input Panel

Main Power

Remove the optical lens Cushions

Zoom In

Zoom Ou

3.0 REMOTE CONTROL UNIT (RCU)

R599741 - Blackwing Two Quick Start guide 5

3.0 REMOTE CONTROL UNIT (RCU)

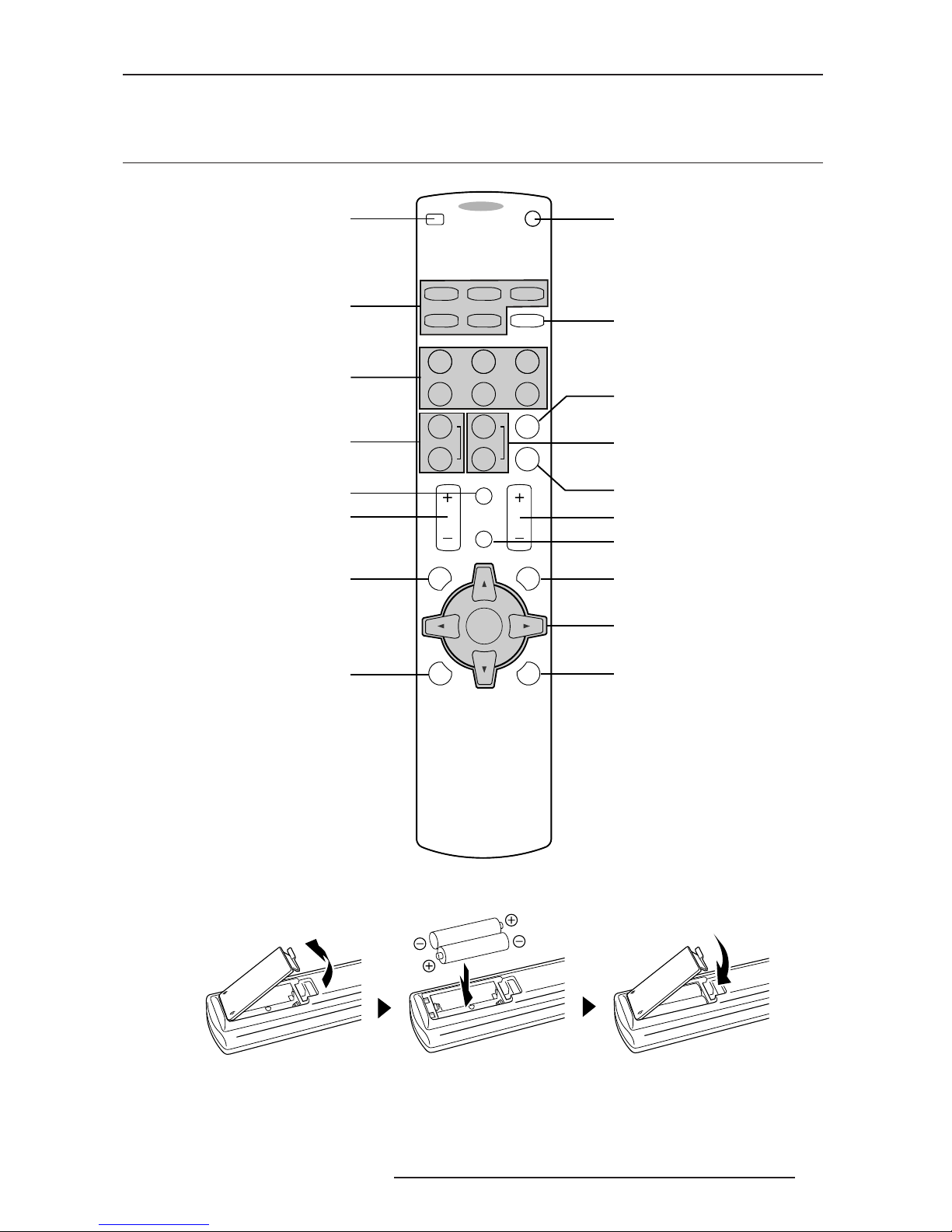

3.1 General view

Loading batteries

• Refer to the Blackwing Two User Manual for details (R599740).

LIGHTTEST

EXIT

SHARP

USER

COLOR

TEMP

GAMMA

USER

COLOR

USER

CONTRAST BRIGHT

HIDE

INFO

ENTER

CINEMA NATURAL DYNAMIC

HDMI 1 HDMI 2

S-VIDEO

COMP

VIDEO ASPECT

OFF ........ OPERATE ......... ON

Power OFF button

Select Active Input

Image profile switch

Color Adjust buttons

Display Information

Contrast Adjust buttons

Display Menu

Test Pattern button

Power ON button

Screen Aspect Ratio

Gamma setting button

Sharpness Adjust buttons

Color Temperature button

Brightness Adjust buttons

Hide Display

Exit to previous menu

Navigation buttons

Backlight button

3.0 REMOTE CONTROL UNIT (RCU)

6 R599741 - Blackwing Two Quick Start guide

3.2 Special features

The Remote Control Unit (RCU) features in addition to the navigation buttons (Display button, Exit to previous menu

and Up/Down/Left/Right buttons), special function buttons that give quick access to the most frequently used

functions. They are also accessible in the On Screen Display Menu (OSD Menu)

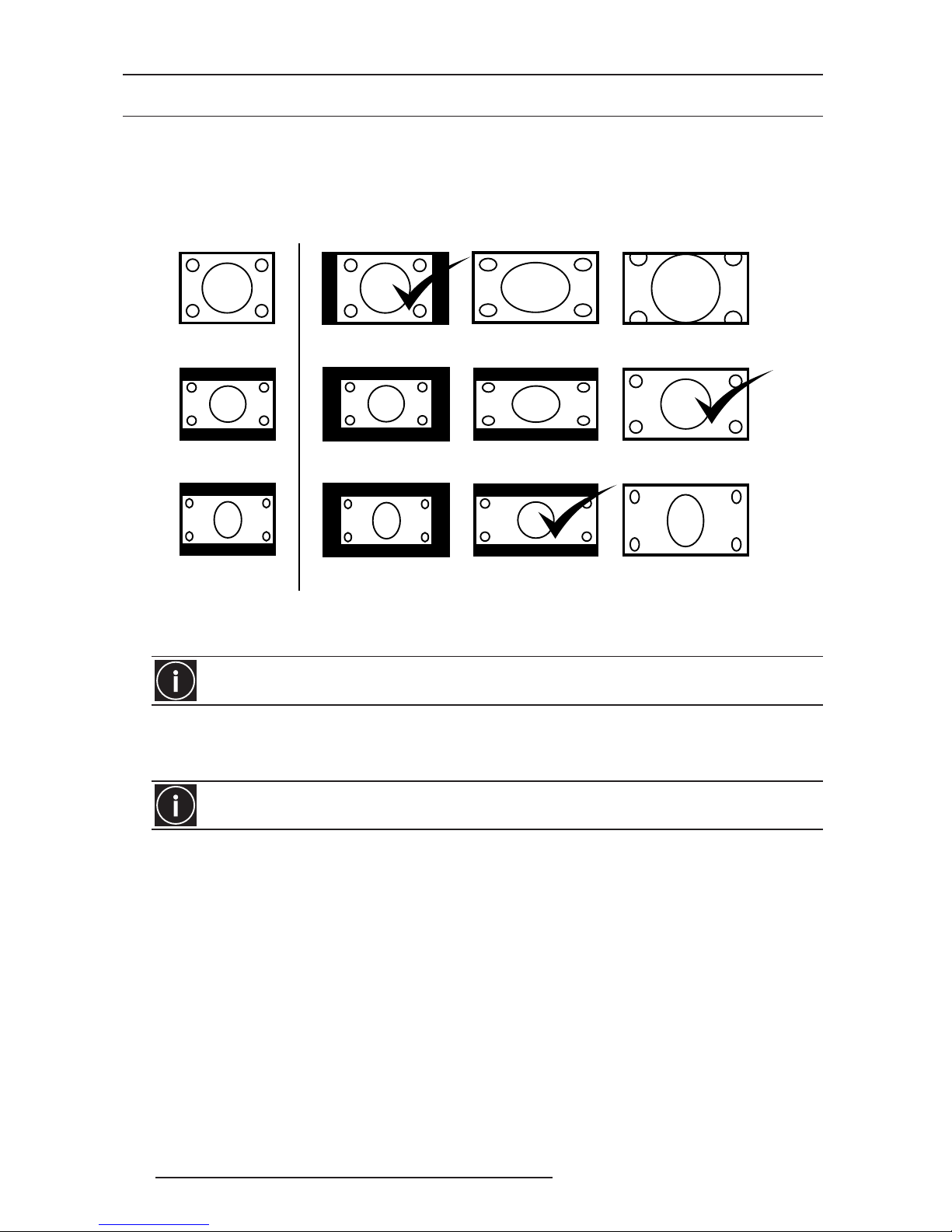

•Screen Aspect Ratio: changes the aspect ratio of the picture to the screen. Select the Aspect Ratio to your

convenience, depending on the format of the signal.

Screen Aspect Ratio

•Hide Display: Upon pressing this button, the picture is temporarily hidden and the Standby/ON LED blinks

Green on the projector. Press again the Hide Display button to display the picture.

• Backlight button: illuminates the RCU buttons.

The Screen Aspect Ratio cannot be changed for High-deﬁnition signals (ﬁxed to HDTV 16:9).

When the picture is hidden, the projector cannot be switch to Standby Mode. Press the Hide Display button

again for normal operation.

SDTV 4:3

(full frame) 4:3 16:9 Zoom

SDTV 4:3

(with black bands) 4:3 16:9 Zoom

VIDEO SOURCE ASPECT RATIO

SDTV 4:3

compatible 16:9

(stretched picture)

4:3 16:9 Zoom

4.0 CONNECTIONS AND SUPPORTED FORMATS

R599741 - Blackwing Two Quick Start guide 7

4.0 CONNECTIONS AND SUPPORTED FORMATS

The Blackwing Two can be connected to any compatible devices. The available inputs are:

• 2x HDMI revision 1.2 with HDCP

• 1x S-Video (or Composite)

•1x Video

• 1x Component (YCbCr, YPbPr or RGB or SCART)

The RS-232C terminal can be used for automation or software updates.

During the connection, make sure that the unit is powered OFF. (Disconnect the projector from the main power).

For audio output, connect your audio video source to an ampliﬁer.

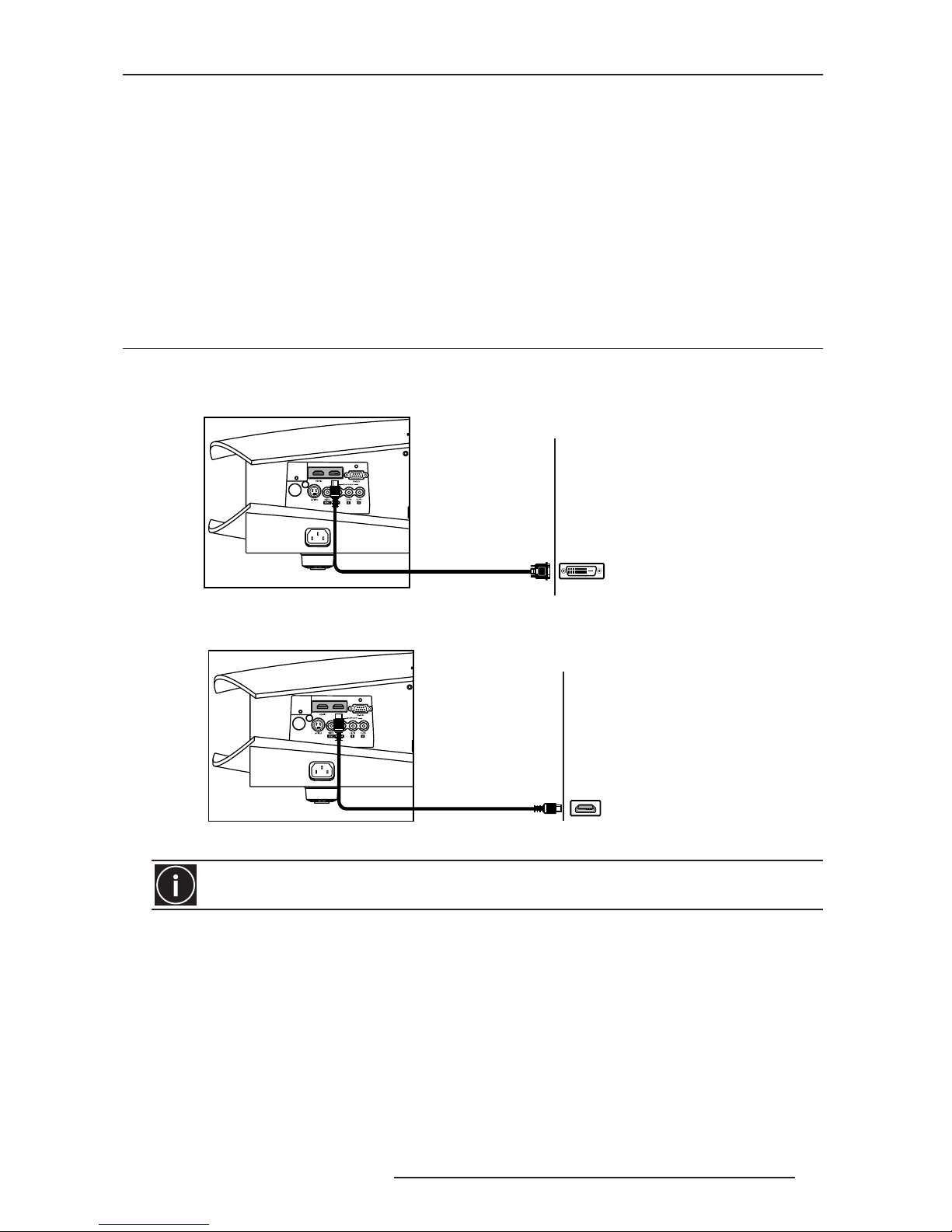

4.1 Connecting a device with Digital Output

The two HDMI inputs fully support HDMI 1.2 revision and are compatible with HDCP protection. You can connect

this unit to a HDMI 1.3 video source conﬁgured to output a signal coded up to 24 color bits per pixel.

Connecting a device with DVI-D Output

Supported Formats: 480i/p, 576i/p, 720p50/60, 1080i50/60, 1080p24/50/60.

Connecting to a device with HDMI Output

Supported Formats: 480i/p, 576i/p, 720p50/60, 1080i50/60, 1080p24/50/60.

Make sure to use a good quality cable, especially when the distance between the different devices are

longer than 5 meters. If it is the case, the use of a split system or optical ﬁber cable is highly recommended.

DVI-D to HDMI cable

DVI-D output

Audio Video Source:

DVD-Player

HD-DVD Player

HDTV receiver

Computer with DVI output

Digital Game Console

HDMI to HDMI cable HDMI output

Audio Video Source:

DVD-Player

HD-DVD Player

HDTV receiver

HD-Multimedia Box

Computer with HDMI output

Game Console

4.0 CONNECTIONS AND SUPPORTED FORMATS

8 R599741 - Blackwing Two Quick Start guide

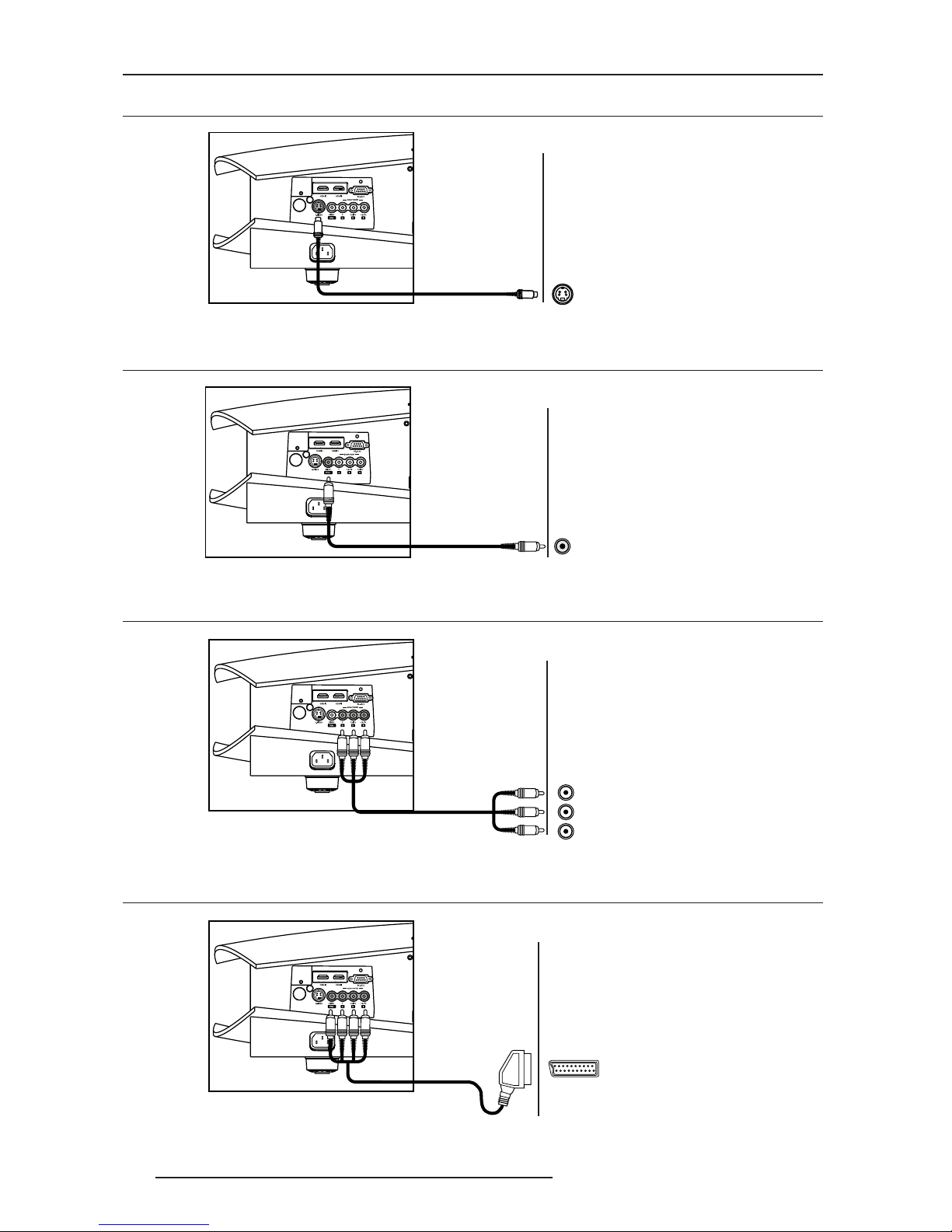

4.2 Connecting a device with S-Video Output

Supported Formats: PAL, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43.

4.3 Connecting a device with Video Output

Supported Formats: PAL, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43.

4.4 Connecting a device with Component Output

Supported Formats: 480i/p, 576i/p, 720p50/60, 1080i50/60. (1080p is not available for Component)

4.5 Connecting a device with SCART Output (European market)

Supported Formats: PAL, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43.

Audio Video Source:

DVD-Player

Multimedia Box

DVB-T Television receiver

Game Console (SD output)

Video Camera

S-Video output

Digital Camera

Audio Video Source:

DVD-Player

Multimedia Box

DVB-T Television receiver

Game Console (SD output)

Video Camera

Video output

Digital Camera

Audio Video Source:

DVD-Player

HDTV receiver

Game Console (SD or HD)

DVB-T Television receiver

Multimedia Box

Cr/Pr - Red

Cb/Pb - Blue

Y - Green

Analog Camera

SCART output

Audio Video Source:

European DVD-Player

DVB-T Television recevier

Game Console

Multimedia Box

4.0 CONNECTIONS AND SUPPORTED FORMATS

R599741 - Blackwing Two Quick Start guide 9

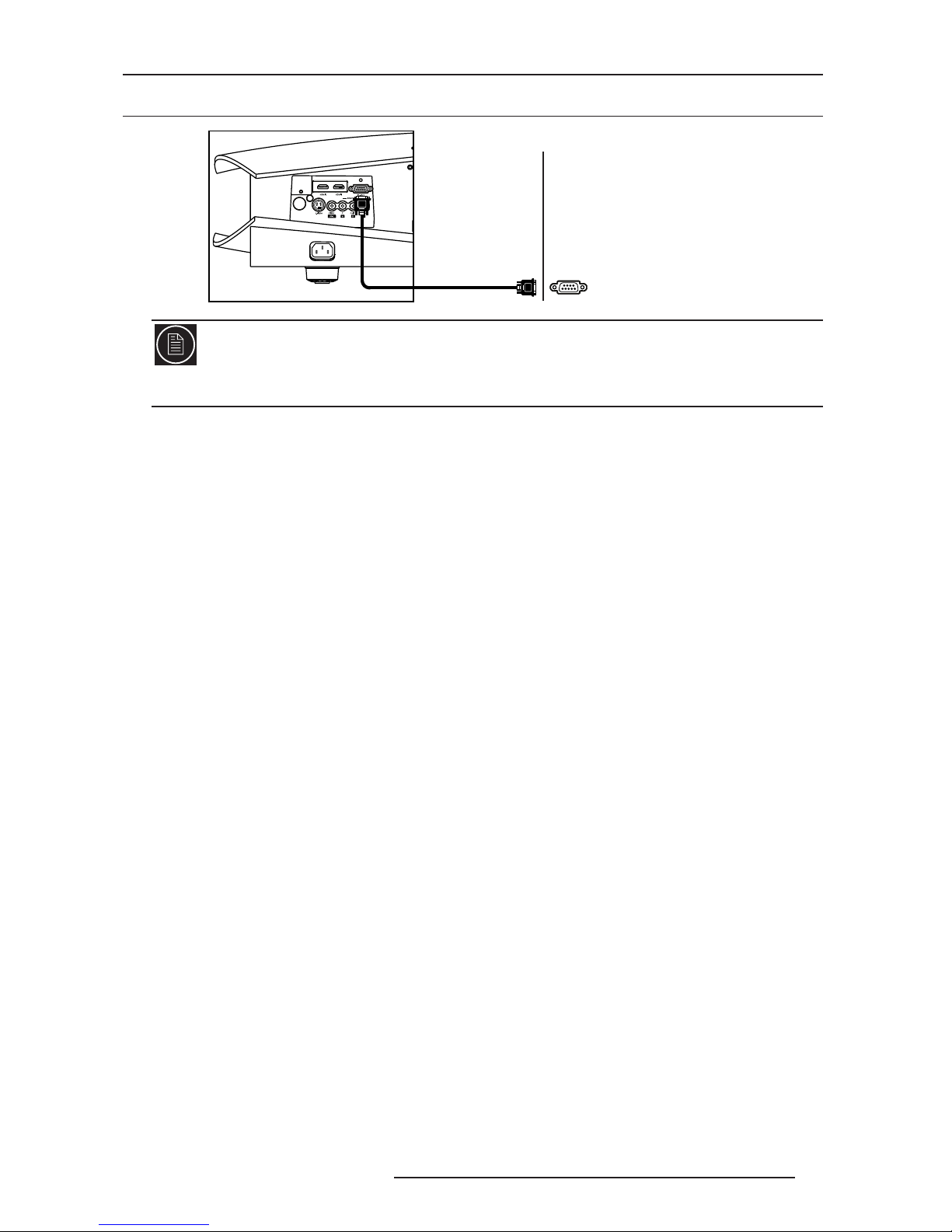

4.6 Automation and control port: RS-232 Input.

*USING RS-232C WITH ACOMPUTER

The RS-232 Control and Automation may require speciﬁc software and tools. See “RS-232C input”, page 38 of the

User Manual (R599740) for more details on RS-232C cabling and protocol.

Automation Device

Control Device

Computer with RS-232*

RS-232 output

5.0 PICTURE SETTING

10 R599741 - Blackwing Two Quick Start guide

5.0 PICTURE SETTING

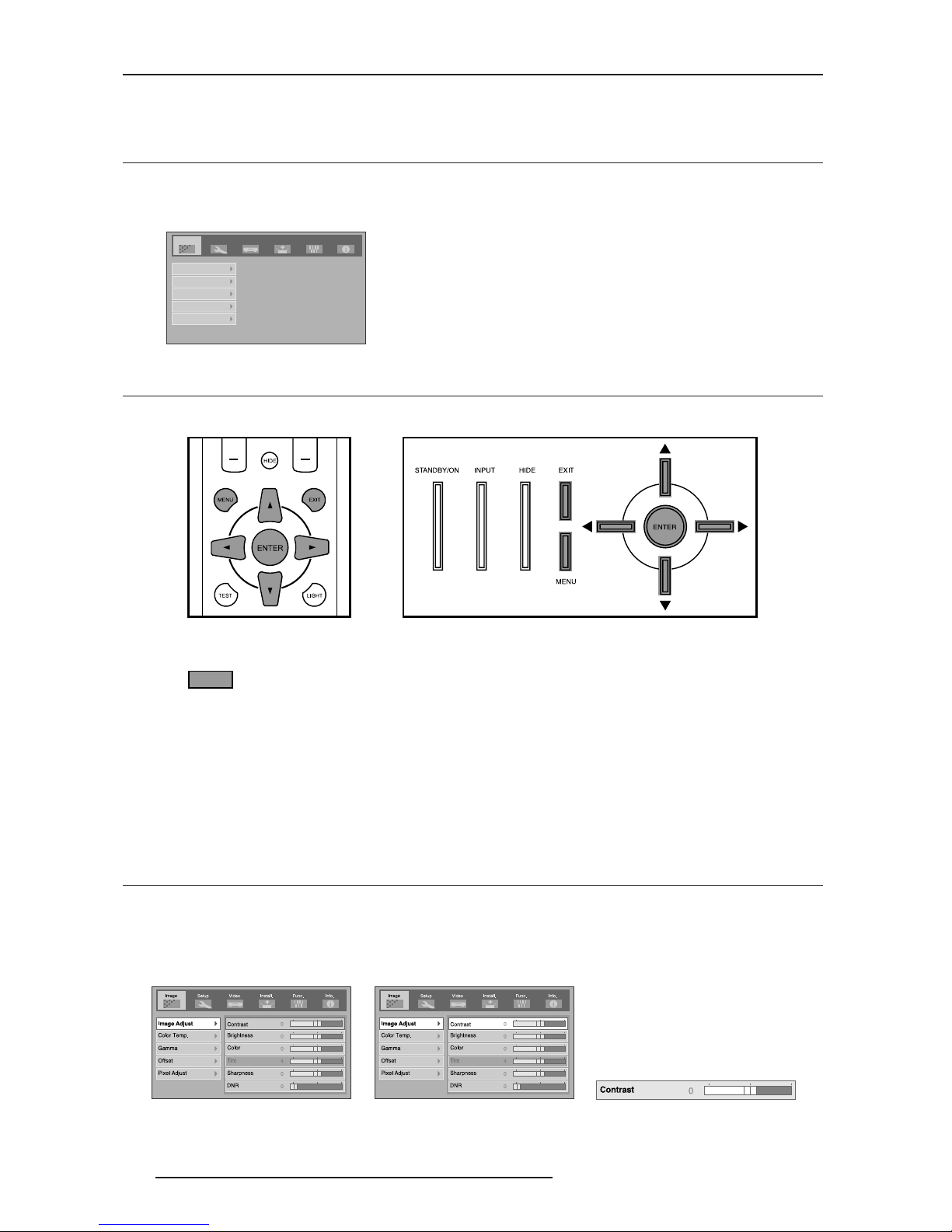

5.1 How to activate the Menu Structure

• Press the [MENU] on the RCU or Digital Control Panel located at the rear side of the projector.

• The main menu will be displayed, then select the desired tab using the navigation keys.

5.2 How to select an Item and make an Adjustment

• Use the [UP] or [DOWN] keys to highlight the desired Menu

• Press [ENTER] to select

If the selected item has adjustment values, use the [LEFT] and [RIGHT] to change the value.

If the selected item has a sub menu, this sub menu will open. (Input Adjust, Offset, etc.)

•Use the [EXIT] key to return to the previous menu, or to clear the menu screen when the main menu is

displayed.

5.3 Image Menu

Contrast

The contrast function is used to adjust the contrast between the light and dark areas of the displayed image. A

correct contrast setting is important for good image reproduction. Adjust the Contrast value between -30 and +30.

Setup

Image Video Install.Func. Info.

Image Adjust

Color Temp.

Gamma

Offset

Pixel Adjust

Navigation Keys

Remote Control Unit Digital Control Panel

Enter Image Adjust Menu Select Contrast tab Set a Value between -30 and +30

Indice

Altri manuali Cineversum Proiettore

Cineversum

Cineversum R599740 Manuale utente

Cineversum

Cineversum Force One 3D Manuale utente

Cineversum

Cineversum Black Wing MK 20II R599800 Manuale utente

Cineversum

Cineversum Black Wind Four R599782 Manuale utente

Cineversum

Cineversum R599870 Manuale utente

Cineversum

Cineversum BlackWing R9010084 Manuale utente

Cineversum

Cineversum Black Wing MK 2014 R599840 Manuale utente

Cineversum

Cineversum Black Wing R599760 Manuale utente

Cineversum

Cineversum BlackWingtwo Manuale utente

Cineversum

Cineversum MK 2013 Manuale utente

Cineversum

Cineversum Black Wing Two Manuale utente

Cineversum

Cineversum Force 4K Guida per l'amministratore

Cineversum

Cineversum Black Wing One Manuale utente

Cineversum

Cineversum Black Wings MK 2012 Manuale utente

Cineversum

Cineversum LV-XG6K Manuale utente

Cineversum

Cineversum blackwing mk 2016 r599860 Manuale utente

Cineversum

Cineversum LV-WU6K Manuale utente

Cineversum

Cineversum Blackwing MK2018 Manuale utente

Cineversum

Cineversum THEATRE Concept Manuale per l'uso e la cura

Cineversum

Cineversum BlackWing MK 2019 Manuale utente

Cineversum

Cineversum Blackwing Essential MK2019 Series Manuale utente

Cineversum

Cineversum CV30 UST-HD Manuale utente

Cineversum

Cineversum Black Wing MK2017 Manuale utente

Cineversum

Cineversum Force one Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
