Cino Fuzzyscan Manuale utente

BARCODE SCANNER

FUZZYSCAN FAMILY

Quick Start Guide

Getting Familiar with Your FuzzyScan

Thank you for choosing Cino FuzzyScan Bar Code Scanner. All FuzzyScan

scanners deliver world-class performance for a broad range of applications to

unleash your productivity.

In order to fulfill your various requirements, the options of Vibrator, PDF

Readability and Disinfectant-ready Housing are available upon request.

For more details, please visit our website or contact your supplier.

This document provides an easy reference for installation and operation

purpose. The complete documentation is available at www.cino.com.tw.

F700/L700 Series F600/L600 Series

F500 Series F400 Series

Power Indicator Scan Window

Status Indicator Beeper

Trigger Cable Release Hole

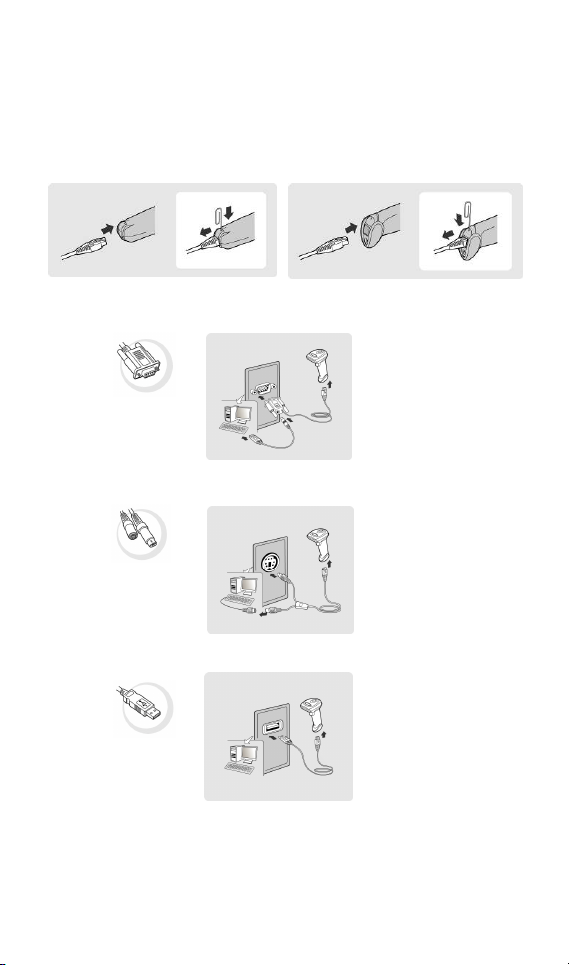

Connecting to Your Host

FuzzyScan scanners support USB, PS/2(DOS/V) Keyboard Wedge and

RS-232 Serial interfaces. Please choose your desired interface cable, then

plug it into the cable interface port of the scanner and connect it to the host. If

you would like to remove the cable, please straighten one end of a paper clip,

then insert it into the cable release hole to pull out the cable.

S232 Serial

PS/2(DOS/V) Keyboard Wedge

USB HID & USB COM

USB HID (Human Interface Device)

The scanner works as a generic USB keyboard.

USB COM Port Emulation

The scanner works as a legacy RS232 serial device. Please note that you

have to install the USB Virtual COM software driver before using.

Using Accessories

You can enhance productivity of your workforce by using various accessories

to fulfill a wide variety of application demand.

Universal Holder

The stylish Universal Holder is designed for storing your scanner when not in

use. It serves to protect the scanner from lens-scratched or falling. Moreover,

its artistic-design enhances the entire value of the scanner.

Hand-free SmartStand

SmartStand is specifically designed for hand-free applications to maximize

user’s comfort and productivity. You can adjust the scanner holder to desired

position for optimized scanning. But please note that the SmartStand is not

applicable for F400 series scanner.

Thanks to the auto-sense design, the scanner is capable of switching

between presentation scanning and hand-held scanning automatically while

working with SmartStand. But please note that this feature is not available for

F400 and F500 series scanners.

In presentation mode, the barcode may not be detected by the scanner in an

environment with very dim ambient lighting. You can select higher sensitivity

level through the setting of Presentation Sensitivity to increase scanner’s

sensitivity.

Level 3

Level 1 Level 6

Level 4

Level 2 Level 7

Level 5

◆

Operation Modes

Both Fseries Linear Imager and Lseries Laser Imager are available in

FuzzyScan family. Both series support different operation mode which are

listed below for reference.

The F series supports nine operation modes, including trigger, presentation,

alternative, level, flash, force, toggle, diagnostic and low power modes. The L

series supports five operation modes, including trigger, presentation,

alternative, level and low power modes.

Trigger Mode

When trigger mode is selected, the scanner goes into standby state after

scanning the bar code. You must press the trigger switch to turn on the light

source of the scanner before scanning the bar code.

Presentation Mode

When presentation mode is selected, the scanner will turn on the light source

and start scanning operation automatically if it detects an image similar to a

bar code. In case the scanner can’t detect a bar code, it will turn off the light

source when the preset light source on time is up.

Alternative Mode

When alternative mode is selected, the scanner keeps the light source on till

the preset light source on time is up. After the scanner turns off the light

source, you must press the trigger switch to turn on the light source again.

After each good read, the timer counter of light source on time is reset. You

do not have to press the trigger frequently, it is very convenient for multiple

scanning.

Level Mode

When level mode is selected, the scanner continues to turn on the light

source till a bar code is decoded or preset light source on time is up. When a

bar code is decoded successfully, the scanner turns off the light source

immediately. After the scanner turns off the light source, you must press the

trigger switch to turn on the light source again. If there is no scanning

operation performed during the preset light source on time, the scanner will

turn off the light source after the preset light source on time is up.

Flash Mode

When flash mode is selected, the scanner flashes the light source without

having to press the trigger switch. If the scanner detects an image which is

similar to a bar code, it forces on the light source automatically and scans the

bar code.

Force Mode

When force mode is selected, the light source of the scanner is forced on for

continued operation without having to press the trigger switch. This mode is

convenient for high speed bar code reading.

Toggle Mode

When toggle mode is selected, you must press the trigger switch to turn on

the light source of the scanner to start scanning operation. The scanner

keeps the light source on until you press the trigger switch again. This mode

is very similar to alternative mode but without the preset light source on time

concern.

Diagnostic Mode

When diagnostic mode is selected, the light source of the scanner is forced

on without regard for other programmable parameters, such as reread delay,

redundancy, and so on.

Low Power Mode

When low power mode is selected, the scanner goes into idle state after

scanning the bar code. You must press the trigger switch to wake up the

scanner for operation.

Keyboard Interface Quick Set

- ecord Suffix -

None

RETURN

◆

TAB

SPACE

ENTER

- Keyboard Layout -

USA

◆

France

Germany

United Kingdom-UK

Canadian French

Spain (Spanish)

Spain (Latin America)

Nertherlands

Japan

Sweden/Finland

Serial Interface Quick Set

- ecord Suffix -

None TAB

◆

SPACE

CRLF

- Baud ate –

115.2K BPS 4800 BPS

19.2K BPS

57.6K BPS 2400 BPS

9600 BPS

◆

38.4 BPS 1200 BPS

- Data Frame -

8, None, 1

◆

7, None, 2

8, None, 2

8, Odd, 1 7, Odd, 2

7, Odd, 1

8, Even, 1 7, Even, 2

7, Even, 1

8, Space, 1 7, Space, 2

7, Space, 1

8, Mark, 1 7, Mark, 2

7, Mark, 1

System Commands

System Information

Master Default

PowerTool Host Link

User Default

Factory Default

Save User Default

Host Interface Quick Set

RS232 Serial

Keyboard Replacement

PS/2 (DOS/V) KBW Standard Mode

PS/2 (DOS/V) KBW Turbo Mode

USB HID Standard Mode

◆

USB HID Turbo Mode

USB Com Port Emulation

System Commands

PROGRAM

(Enter Programming Mode)

END

(Exit Programming Mode)

Option Codes

5 F

FIN (Finish)
