Maintaining the Power System in the Cisco cBR

Chassis

•Removing the AC Power Connections from the Cisco cBR Chassis, page 1

•Removing the DC Power Connections from the Cisco cBR Chassis, page 2

•Removing the Power Module from the Cisco cBR Chassis, page 4

•Removing the FPEM from the Cisco cBR Chassis, page 7

•Removing the Power Cassette Module from the Cisco cBR Chassis, page 9

Removing the AC Power Connections from the Cisco cBR

Chassis

The chassis ground connection must always be made first and disconnected last.Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

Before You Begin

Required Tools and Equipment

Cisco Converged Broadband Routers Hardware Installation Guide

•#2 Phillips screwdriver

Step 1 Power down the AC FPEM using the power switch.

Step 2 Power down the AC circuit or power source to which the AC power cord is connected.

Step 3 Loosen the Phillips-head screw on the cable retaining bracket using a #2 Phillips screwdriver.

Step 4 Unplug the AC power cord from the receptacle on the AC FPEM.

Figure 1: Removing AC Power Cord from the AC FPEM

AC power cord2Screw on the cable retaining bracket1

Step 5 Repeat Step 2, on page 2 to Step 4, on page 2 for each AC power connection.

Removing the DC Power Connections from the Cisco cBR

Chassis

The terminal block covers are an integral part of the safety design of the product. Do not operate the unit

without the covers installed. Statement 1077

Warning

When you install the unit, the ground connection must always be made first and disconnected last.

Statement 1046

Warning

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the DC Power Connections from the Cisco cBR Chassis

Before performing any of the following procedures, ensure that power is removed from the DC circuit.

Statement 1003

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

Before You Begin

Required Tools and Equipment

•Torque wrench

•7/16" hex socket

Step 1 Power down the DC FPEM using the power switch.

Step 2 Power down the circuit or power supply to which the positive and negative lead cables are connected.

Step 3 Remove the terminal block cover on the terminal block, from which you need to disconnect power, by pushing down

on the bottom tab then pivoting the bottom out.

Step 4 Loosen the 1/4-20 terminal bolts using a torque wrench and 7/16" hex socket and remove them. Disconnect the positive

lead cable.

Step 5 Loosen the 1/4-20 terminal bolts using a torque wrench and 7/16" hex socket and remove them. Disconnect the negative

lead cable.

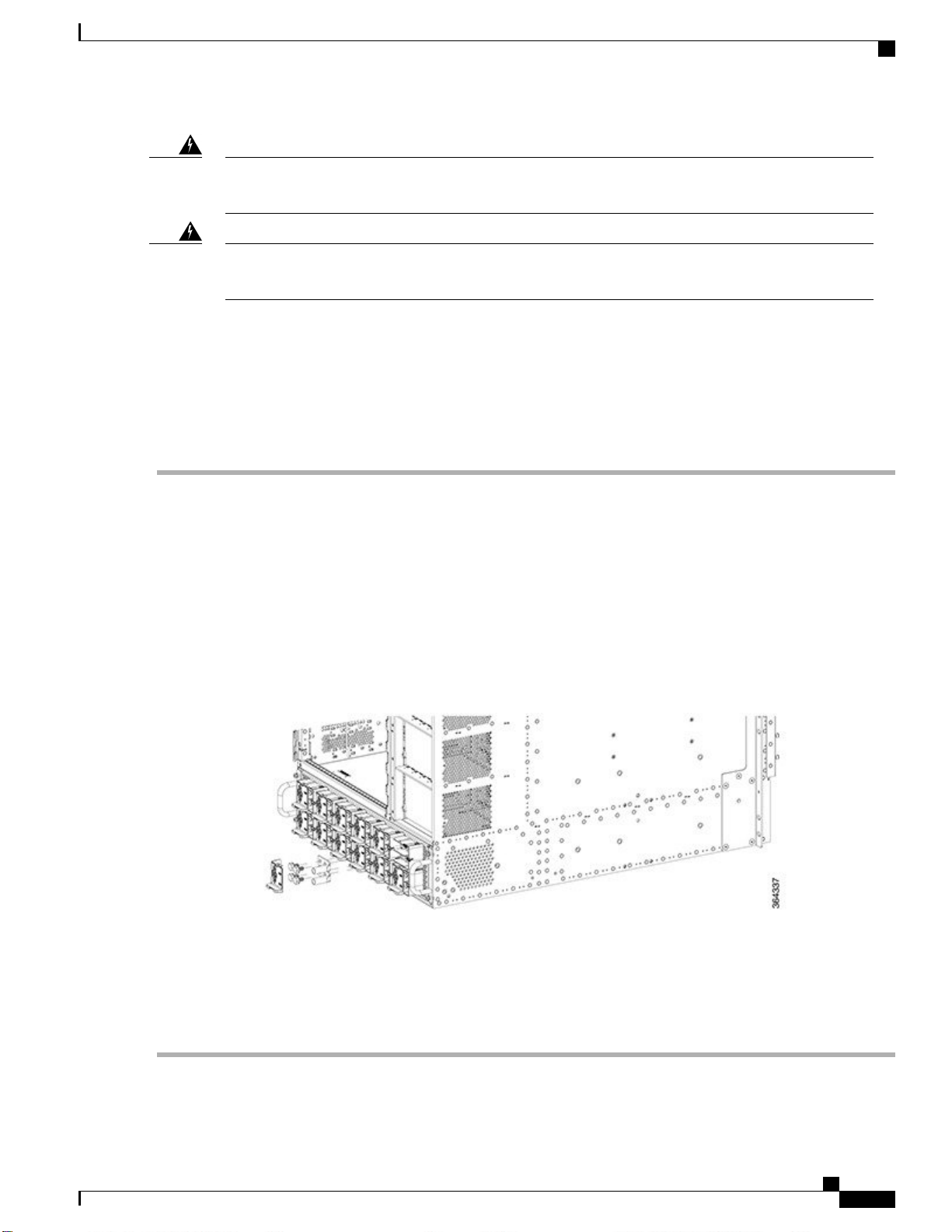

Figure 2: Removing the DC Power Connection from the DC FPEM

Step 6 Repeat Step 2, on page 3 and Step 5, on page 3 to disconnect each terminal block connection.

Step 7 Insert the 1/4-20 terminal bolts and secure them using a torque wrench and 7/16" hex socket with a torque of 45-50 in-lb

(5.08-5.65 Nm).

Step 8 Reinstall the terminal block covers by clipping them on the top edge of the terminal block housing and then rotating

them down until they snap into place.

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the DC Power Connections from the Cisco cBR Chassis

Removing the Power Module from the Cisco cBR Chassis

Before You Begin

•Attach an ESD-preventive wrist strap to your wrist and connect the other end to the grounding lug

connected to the chassis.

•Be aware of the weight and size of the equipment. Handle it with care.

Restrictions

•For the DC-powered Cisco cBR with N+1 redundancy, ensure that the chassis has at least five operational

DC Power Modules for the chassis to be functional.

•For the AC-powered Cisco cBR with N+1 redundancy, ensure that the chassis has at least four operational

AC Power Modules for the chassis to be functional.

•For the AC-powered Cisco cBR with 1+1 redundancy, ensure that the chassis has six operational AC

Power Modules for the chassis to be functional.

Required Tools and Equipment

•ESD-preventive wrist strap

•3/16" flat-blade torque screwdriver

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the Power Module from the Cisco cBR Chassis

•Antistatic bag

Step 1 Loosen the two screws on the front power entry bezel using a 3/16" flat-blade torque screwdriver. Remove the front

power entry bezel from the chassis.

Figure 3: Removing the Front Power Entry Bezel from the Chassis

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the Power Module from the Cisco cBR Chassis

Step 2 Loosen the screw on the Power Module using a 3/16" flat-blade torque screwdriver.

Step 3 Pull the handle down to disengage the Power Module from the chassis.

Step 4 Slide the Power Module out of its bay with one hand while supporting the base of the module with your other hand.

Figure 4: Removing the Power Module

Step 5 Place the removed Power Module in an antistatic bag.

What to Do Next

•Replace the Power Module (if required).

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the Power Module from the Cisco cBR Chassis

•Position the front power entry bezel on the chassis. Insert and tighten the two screws using a 3/16"

flat-blade torque screwdriver with a torque of 5-7 in-lb (0.56-0.79 Nm) to secure the bezel.

Removing the FPEM from the Cisco cBR Chassis

Before You Begin

•For an AC-powered Cisco cBR chassis, remove the AC power connections.

For an DC-powered Cisco cBR chassis, remove the DC power connections.

•Attach an ESD-preventive wrist strap to your wrist and connect the other end to the grounding lug

connected to the chassis.

•Remove the Power Modules.

•If you are replacing the entire power system, remove the Power Cassette Module.

•Be aware of the weight and size of the equipment. Handle it with care.

Required Tools and Equipment

•ESD-preventive wrist strap

•T10 Torx screwdriver

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the FPEM from the Cisco cBR Chassis

•Antistatic bag

Step 1 Loosen and remove the four #6-32 Torx-head screws on the mounting flanges of the FPEM using a T10 Torx screwdriver.

Figure 5: Removing the FPEM from the Chassis

Step 2 Slide the FPEM out of the chassis using the handles on either side applying even pressure to both handles.

Step 3 Place the removed FPEM in an antistatic bag.

What to Do Next

Replace the FPEM (if required).

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the FPEM from the Cisco cBR Chassis

Removing the Power Cassette Module from the Cisco cBR

Chassis

Before You Begin

•Remove the Power Modules.

•Be aware of the weight and size of the equipment. Handle it with care.

Required Tools and Equipment

•3/16" flat-blade torque screwdriver

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the Power Cassette Module from the Cisco cBR Chassis

•T10 Torx screwdriver

Step 1 Loosen the two screws on the front power entry bezel using a 3/16" flat-blade torque screwdriver. Remove the bezel

from the chassis.

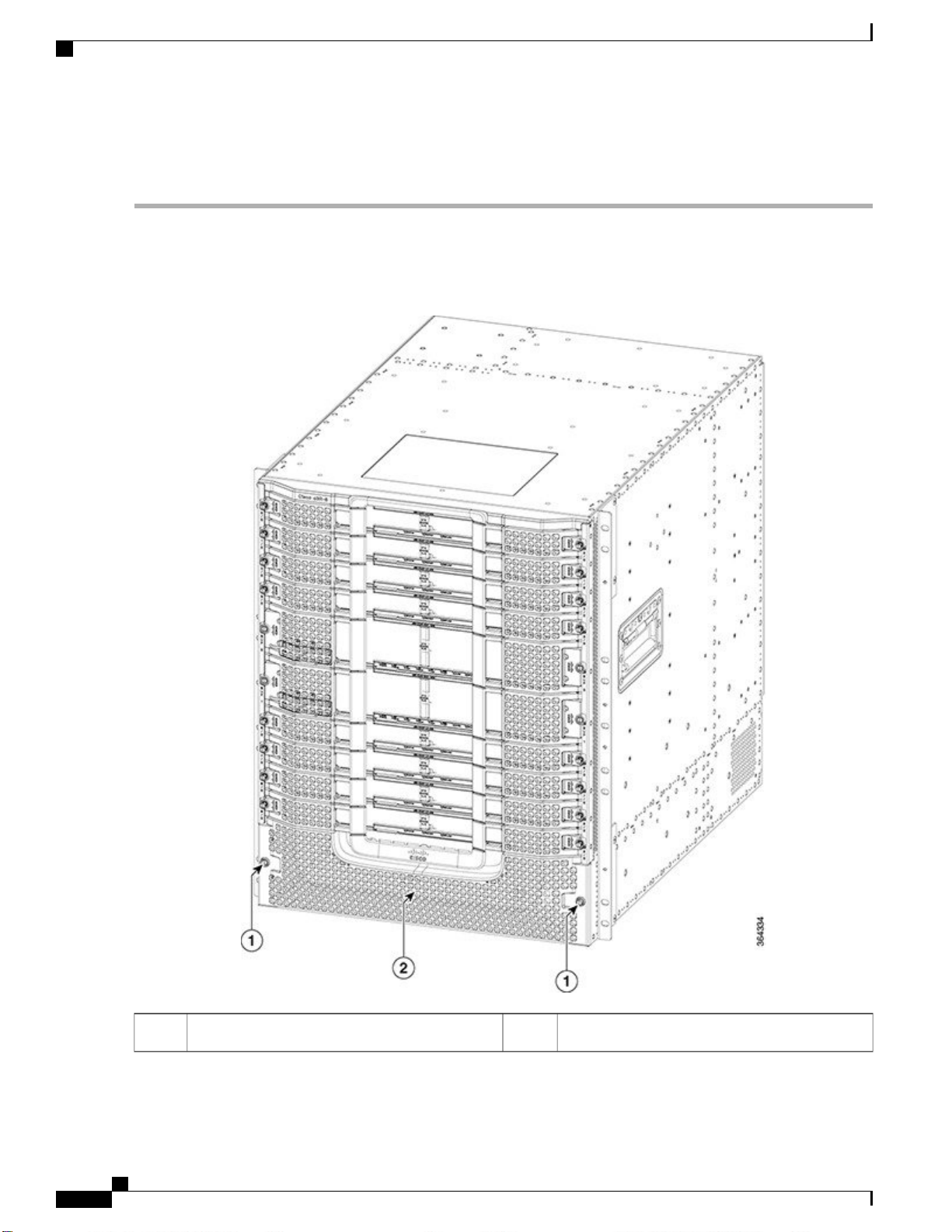

Figure 6: Removing the Front Power Entry Bezel from the Chassis

Front power entry bezel2Screw1

Cisco Converged Broadband Routers Hardware Installation Guide

Maintaining the Power System in the Cisco cBR Chassis

Removing the Power Cassette Module from the Cisco cBR Chassis
