IX5000 Field-Replaceable Units and Country-
and Region-Specific Power Connectors
Created: December 10, 2014
Revised: June 2, 2017
This chapter describes the procedures you take to replace the field-replaceable units (FRUs) for the
Cisco TelePresence System IX5000 and includes the following sections:
•Finding the System Serial Number, page 2
•List of Field-Replaceable Units, page 3
•Replacing the Camera—Part Number CTS-5K-CAM-CLSTR=, page 14
•Replacing a Display—Part Number CTS-5K-70-G1=, page 18
•Replacing a Codec—Part Number CTS-5K-ENCODER= or CTS-5K-HOSTCPU=, page 36
•Replacing a Microphone (Mic) Bar—Part Number CTS-5K-MIC=, page 40
2
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Finding the System Serial Number
Finding the System Serial Number
You might need the serial number of your IX5000 to order FRUs. The serial number is located on the
pillar of the lower left display frame, underneath the compliance label. It is in the arrowed area shown
in white in Figure 1.
Figure 1 Serial Number Label Location
3
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
List of Field-Replaceable Units
Pull away the lower fascia to see it as shown in Figure 2.
Figure 2 Compliance Label and Serial Number Location
List of Field-Replaceable Units
Table 1 provides you with a list of the FRUs for the Cisco TelePresence System IX5000.
Table 1 List of Field-Replaceable Units
FRU Name Description Diagram Reference
CAB-DV10-4M= 4 meter flat grey Ethernet cable for Touch 10
CTS-5K-70-G1= 70-inch Display
CTS-5K-AMP-PWR= Subwoofer amplifier power supply
CTS-5K-AMP-SUBWFR= Subwoofer amplifier
4
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
List of Field-Replaceable Units
CTS-5K-BZL-KIT= Vertical bezel extrusions and horizontal display trim
CTS-5K-CAM-CLSTR= Camera
CTS-5K-CAM-HS= Camera lens hood (camera cover)
CTS-5K-CAM-TOOL= Camera targets
CTS-5K-CBL-70DSP= CTS-IX5000 Cable kit for main the main displays1H1, H2, H3, D20, D19, D23
CTS-5K-CBL-CODEC= CTS-IX5000 Cable kit for the Encoder/Decoder
codec1
USB1, iPass, D24
CTS-5K-CBL-CUP= Presentation cable cup
CTS-5K-CBL-EP= CTS-IX5000 Cable Kit for speaker, lights and camera1L1, L2, L3, L4, L5, L6, DP1
CTS-5K-CBL-HOST= CTS-IX5000 Cable kit for the Host CPU1DP2, DP3, AX1, D22
CTS-5K-CBL-R1-AC= CTS-IX5000 Cable kit, front row AC cables1
CTS-5K-CBL-R1-LAP= CTS-IX5000 Cable kit, front row table Ethernet
Lapconns1
CX1, C1-C6
CTS-5K-CBL-R1-MIC= CTS-IX5000 Cable kit, front row table audio1A1-A6
CTS-5K-CBL-R1-SW= CTS-IX5000 Cable kit, front row table switch1EX1
CTS-5K-CBL-R2-AC= CTS-IX5000 Cable kit, back row AC cables1
CTS-5K-CBL-R2-LAP= CTS-IX5000 Cable kit, back row table Ethernet
Lapconns1
CX2, C7-C18
CTS-5K-CBL-R2-MIC= CTS-IX5000 Cable kit, back row table audio1AX2, AX3, A7-A18
CTS-5K-CBL-R2-SW= CTS-IX5000 Cable kit, back row switches1EX2, EX3
CTS-5K-CBL-RTR= Presentation cable with three-headed
connector—includes cable and cable retractor
L7, L8
CTS-5K-CBL-RUN= Cable runner assembly (includes cable runner and
cable runner cover)
CTS-5K-CBL-RUN-A= 42-inch data display bracket and cable runner kit
CTS-5K-CBL-SUBW= CTS-IX5000 Cable Kit for the Subwoofer1USB2, A28, A29, D21
CTS-5K-DISP42= 42-inch data display
CTS-5K-ENCODER-CH= Encoder/Decoder codec—China only
CTS-5K-ENCODER++= CTS-IX5000 TAA Encoder / Decoder for US only
CTS-5K-ENCODER= Encoder/Decoder codec—all countries except China
CTS-5K-EP-HW-KIT= Endpoint hardware kit
CTS-5K-EP-PDU= Endpoint Power Distribution Unit (PDU)
CTS-5K-FAB-PNL-B= Outer leg panels
CTS-5K-FAB-PNL-EP= Endpoint PET plastic panels (includes left, right,
center top, and center bottom PET panels)
CTS-5K-FAB-PNL-F= Front row outer leg panels
CTS-5K-FASCIA-KIT= Top and bottom fascia
CTS-5K-HOSTCPU-CH= Host CPU codec—China only
Table 1 List of Field-Replaceable Units (continued)
FRU Name Description Diagram Reference
5
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
List of Field-Replaceable Units
CTS-5K-HOSTCPU= Host CPU codec—all countries except China
CTS-5K-HW-BR-KIT= 2nd row table hardware kit
CTS-5K-HW-FR-KIT= Front row table hardware kit
CTS-5K-LED-KIT= Light panel kit (includes left, center, and right light
panels)
CTS-5K-LEGS-BACK= 2nd row table legs
CTS-5K-LEGS-FRNT= Front row table legs
CTS-5K-LPS-MECH= Mechnical Kit for optional Ethernet switch (located in
endpoint structure)
CTS-5K-MECH-FRAME= Endpoint display frames (includes upper and lower
display frames)
CTS-5K-MIC-TA= Turnaround microphone (for 2nd row table)
CTS-5K-MIC= Microphone (mic) bar
CTS-5K-MTL-BR-KIT= 2nd row cable management assemblies (the sheet
metal sections that go between the table legs)
CTS-5K-MTL-FR-KIT= CTS-IX5000 front row table cable management
assembly
CTS-5K-MUTE-BTN= Mute button IX5000
Seismic bracket kit
CTS-5K-SHTML-MISC= Miscellaneous sheetmetal kit
CTS-5K-SPKR= Speaker
CTS-5K-SUBWOOFER= Subwoofer
CTS-5K-TBL-H-18S= Front and second row tabletop set, hickory
CTS-5K-TBL-H-6S= Front row tabletop set, hickory
CTS-5K-TBL-M-18S= Front and second row tabletop set, maple
CTS-5K-TBL-M-6S= Front row tabletop set, maple
CTS-5K-TBL-PDU= Table PDU
CTS-5K-TBL-W-18S= Front and second row tabletop set, walnut
CTS-5K-TBL-W-6S= Front row tabletop set, walnut
CTS-5K-TDM= TDM for microphone (mic) bars
CTS-5K-THERM-PNLS= Thermoformed panels (includes center, right, and left
upper cabinets, and lower left and right cabinets)
CTS-5K-WHTBD-TOOL= Whiteboard alignment targets
CTS-CTRL-DV10= Touch 10 device
WS-C2960C-8PC-L Replacement switch for the Touch 10 switches in the
table (Catalyst 3560C Switch 8 FE PoE, 2 x Dual
Uplink, IP Base)
Table 1 List of Field-Replaceable Units (continued)
FRU Name Description Diagram Reference
6
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Region-and Country-Specific Power and Table Leg Connectors
Region-and Country-Specific Power and Table Leg
Connectors
Table 2 provides you with a list of the region- and country-specific power cables that plug the IX5000
system.
1. For a complete list of the contents of each cable kit, see the “IX5000 and IX5200 Parts List Sorted by Carton” document at
http://www.cisco.com/c/en/us/td/docs/telepresence/ix5000/carton_contents/ix5000_carton_and_parts_list.html and search for the cable kit FRU name,
removing the equal sign. For example, for a complete list of the cables in the Encoder/Decoder cable kit, open the Parts List Sorted by Carton document
and search for CTS-5K-CBL-CODEC.
Table 2 Region- and Country-Specific Power Cables and Table Leg Laptop Power Connectivity
Power Cord ID Description
PWR-CORD10-AP= TelePresence 10 Power Cord - Asia Pacific
PWR-CORD10-AR= TelePresence 10 Power Cord - Argentina
PWR-CORD10-AU= TelePresence 10 Power Cord - Australia
7
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Region-and Country-Specific Power and Table Leg Connectors
PWR-CORD10-BZ= TelePresence 10 Power Cord - Brazil
PWR-CORD10-CE= TelePresence 10 Power Cord - Central Europe
PWR-CORD10-CN= TelePresence 10 Power Cord - China
PWR-CORD10-ID= TelePresence 10 Power Cord - India, UAE, South Africa
Table 2 Region- and Country-Specific Power Cables and Table Leg Laptop Power Connectivity
Power Cord ID Description
8
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Region-and Country-Specific Power and Table Leg Connectors

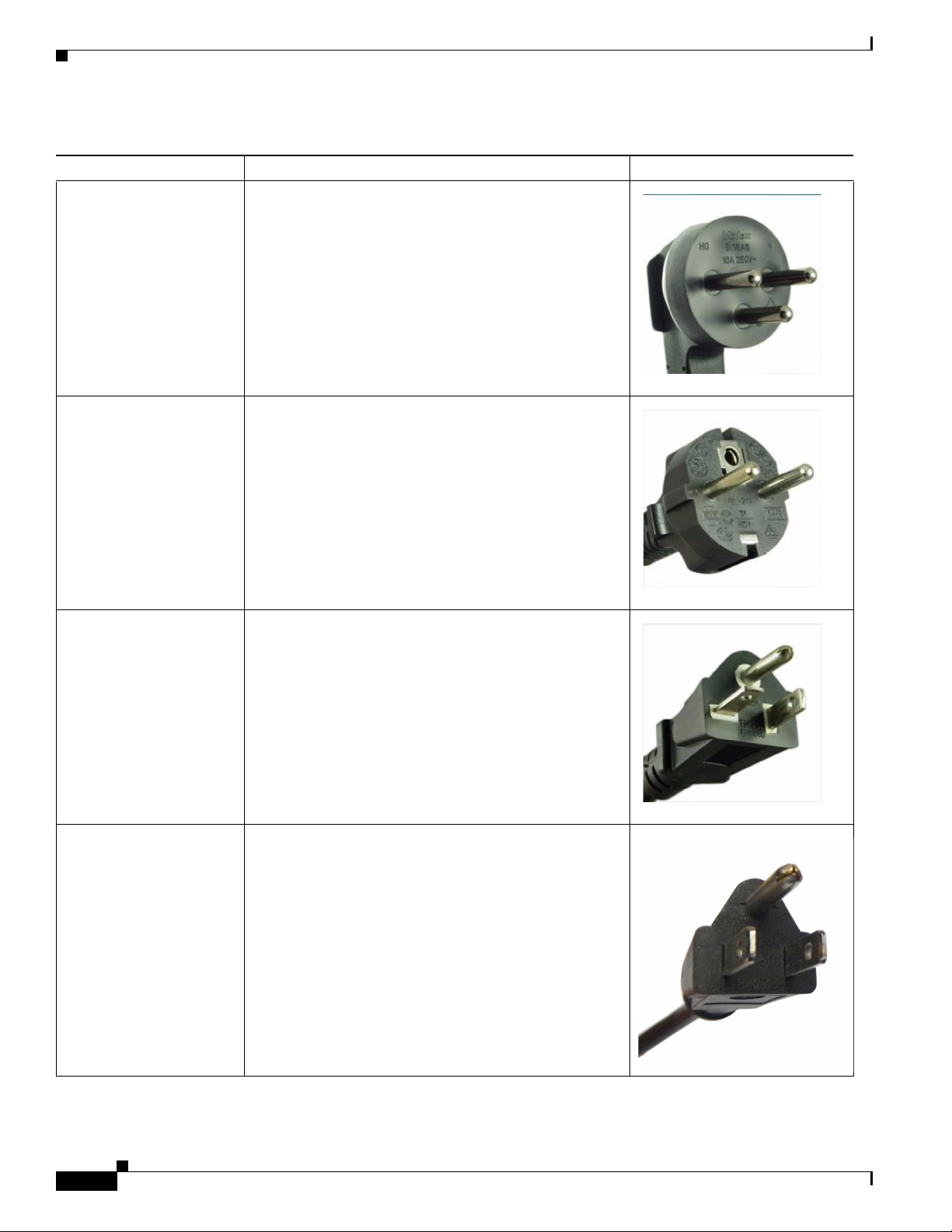

PWR-CORD10-ISR= TelePresence 10 Power Cord - Israel
PWR-CORD10-ITA= TelePresence 10 Power Cord - Italy
PWR-CORD10-JP= TelePresence 10 Power Cord - Japan
PWR-CORD-NA= TelePresence 10 Power Cord - North America
Table 2 Region- and Country-Specific Power Cables and Table Leg Laptop Power Connectivity
Power Cord ID Description
9
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Region-and Country-Specific Power and Table Leg Connectors

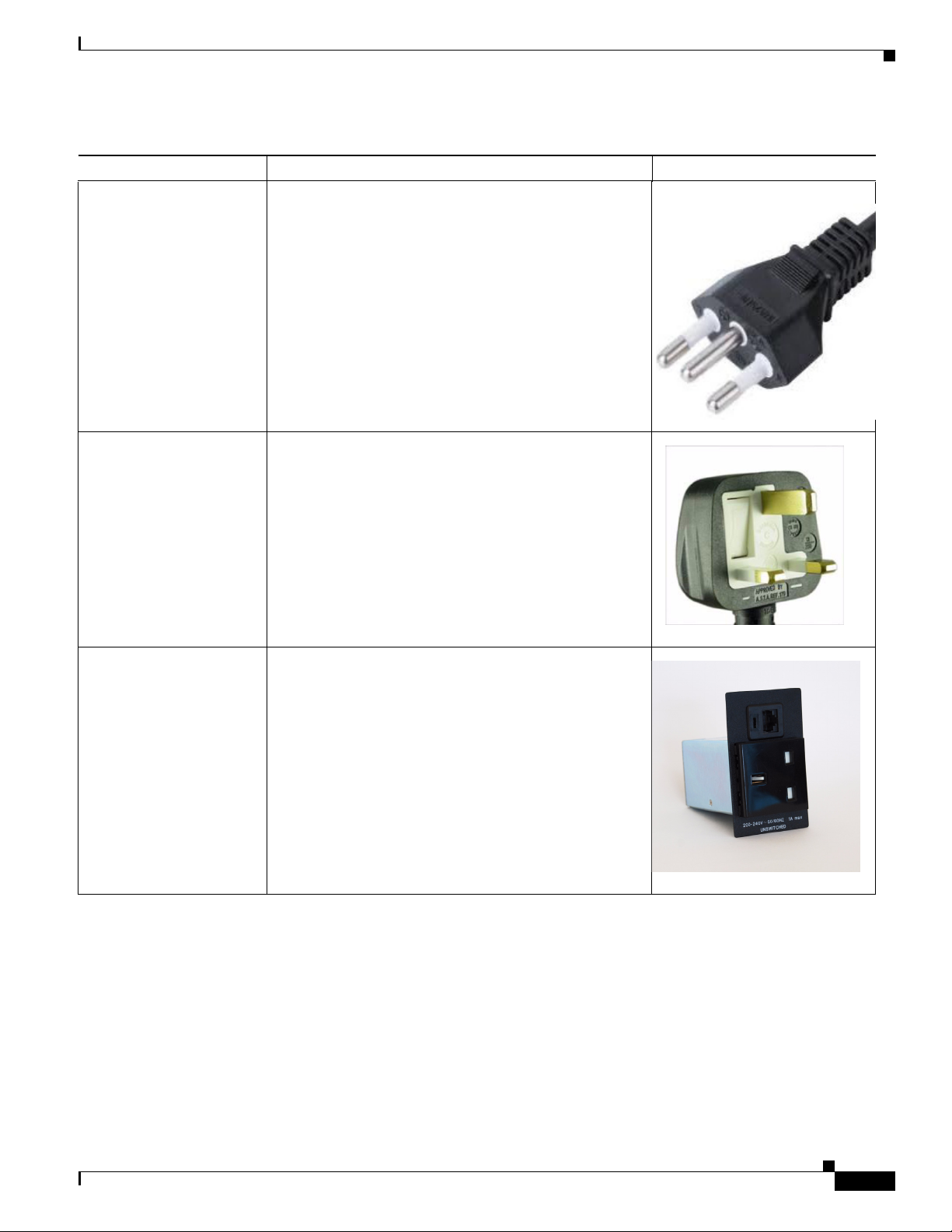

PWR-CORD10-SWI= TelePresence 10 Power Cord - Switzerland
PWR-CORD10-UK= TelePresence 10 Power Cord - United Kingdom
CTS-LAPCONN-AP= TelePresence Laptop Connectivity - Asia Pacific
Table 2 Region- and Country-Specific Power Cables and Table Leg Laptop Power Connectivity
Power Cord ID Description
10
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Region-and Country-Specific Power and Table Leg Connectors
CTS-LAPCONN-AR= TelePresence Laptop Connectivity - Argentina
CTS-LAPCONN-AU= TelePresence Laptop Connectivity - Australia
CTS-LAPCONN-BZ= TelePresence Laptop Connectivity - Brazil
Table 2 Region- and Country-Specific Power Cables and Table Leg Laptop Power Connectivity
Power Cord ID Description
