Data Sheet

Model D-PCG1000 PowerKEY CAS Gateway

The Model D-PCG1000 PowerKEY®Conditional Access System Gateway (PCG)

performs real-time PowerKEY entitlement control message (ECM) generation and

distribution. The PCG operates within the DVB®Simulcrypt headend reference model.

The PCG acts as an Entitlement Control Message Generator (ECMG) that uses the

standard ECMG-to-Simulcrypt Synchronizer (SCS) interface. Optionally, the PCG can

also perform Event Information Scheduler (EIS) functions using the EIS-to-SCS interface.

By using these standard interfaces, the PCG can be integrated with headend equipment from

multiple vendors. Using the PCG allows you to run PowerKEY Conditional Access along with other

conditional access systems in a mixed environment.

The Digital Network Control System (DNCS) configures the PCG and manages sessions on the

PCG in much the same way as on QAM devices. However, unlike the QAM devices, a single PCG

device can provide ECM generation for 1000 digital broadcast sessions.

The PCG is a PC-based product (preloaded with Red Hat Linux OS.) A 1U rack-mounted PC is

used, appropriate to a cable headend environment. Two Ethernet connections are available.

Figure 1. Model D-PCG1000 PowerKEY CAS Gateway (image may vary from actual product and specification)

Features

●Creates Integrated PowerKEY Conditional Access ECMs

●Complies with the Simulcrypt 3.0 Interface

●Supports 1000 Broadcast Sessions at a 4- to 15-second cryptocycle

●Reports all DVB ECMG-to-SCS and EIS-to-SCS errors using alarms to the DNCS. An alarm

is generated if the SCS stops requesting new ECMs

●Contains two 10/100/1000BASE-T network interfaces for remote provisioning, control,

status monitoring, and alarms

Data Sheet

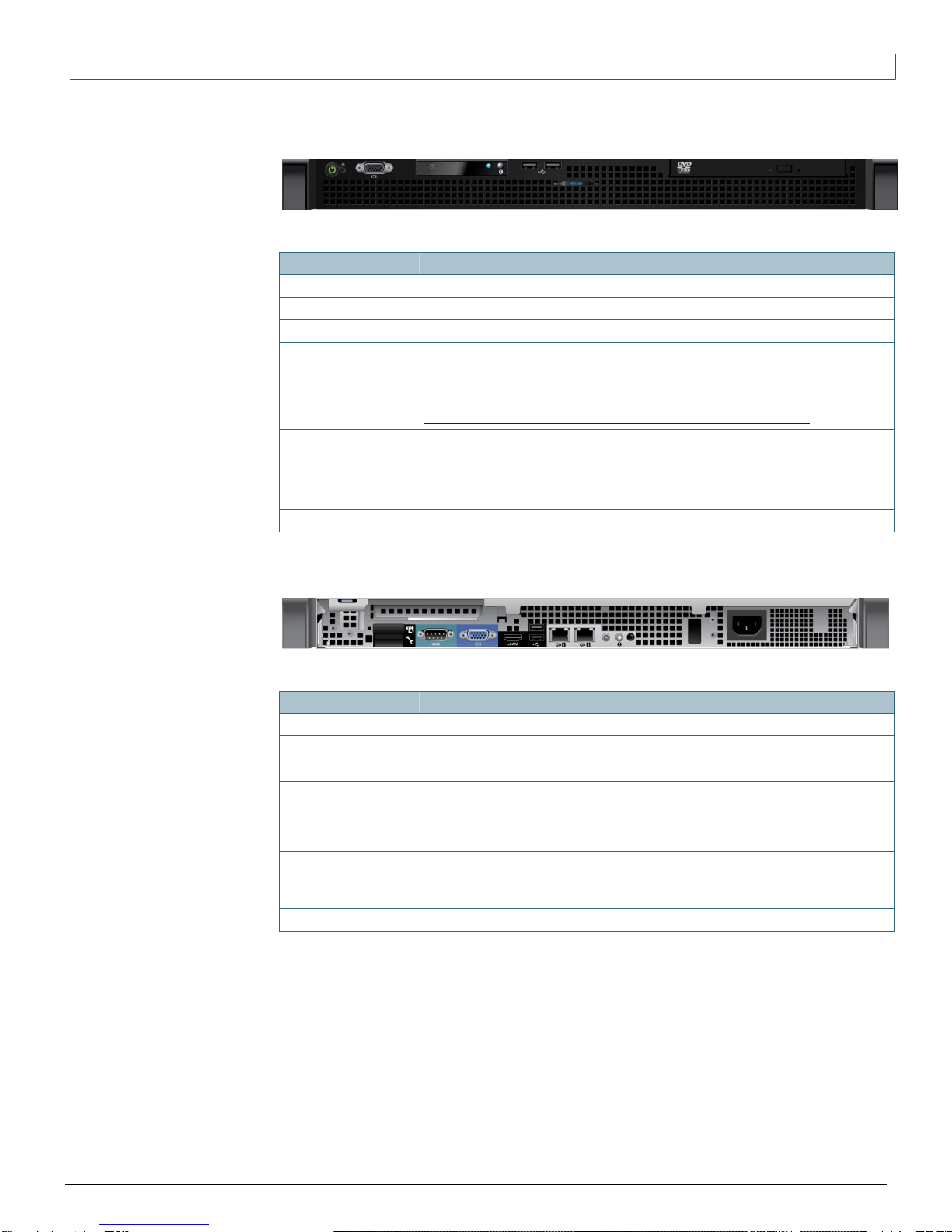

Figure 2. Model D-PCG1000 PowerKEY CAS Gateway Front Panel with Bezel Removed (image may vary

from actual product and specification)

Table 1. Front Panel Features

Feature

Description

Power Button

On/Off button

Restart Switch

System restart

Video Connector

Monitor connection

Hard Drive Activity LED

Hard drive access indication

Diagnostic Indicators (4)

Four diagnostic indicators; display error codes during system startup*

*For details about system diagnostics refer to the online document, Dell™ PowerEdge™ R210

Systems Hardware Owner’s Manual, which is located at:

http://support.dell.com/support/edocs/systems/per210/en/HOM/HTML/index.htm

System Status Indicator

Status indicator (blue light = normal operation; amber light = system needs attention)

System Identification

Button

System ID light. Push to illuminate light on both front and rear panels

USB 2.0 Connectors (2)

Peripheral device connection

Optical Drive (optional)

Optional CD/DVD drive

Figure 3. Model D-PCG1000 PowerKEY CAS Gateway Back Panel (image may vary from actual product

and specification)

Table 2. Back Panel Features

Feature

Description

Serial Port Connector

Serial I/O connection

Video Connector

Monitor connection

eSATA Connector

eSATA storage device connection

USB 2.0 Connectors (2)

Peripheral device connection

Ethernet Connectors (2)

Network connections:

1 = eth0

2 = eth1

System Status Indicator

Status indicator (blue light = normal operation; amber light = system needs attention)

System Identification

Button

System ID light. Push to illuminate light on both front and rear panels

Power Connector

AC power cord connection

Data Sheet

Product Specifications

Table 3. Product Specifications

Specification

Value

PowerKEY Specifications

ECM Generation

Supports 1000 broadcast sessions at a 4- to 15-second cryptocycle

PowerKEY ECM/EMM

Handling

As per PowerKEY Book 1 Specifications

MSK/ISK Decryption Rate

Up to 10 per second (RSA 1024-bit private operation)

Maximum Session Set-Up

Rate

10 sessions/second

ECMG-to-SCS Interface

●Per DVB Simulcrypt specification (ETSI TS 103 197: Digital Video Broadcasting, Headend

implementation of DVB SimulCrypt)

●Multiple SCS connections allowed supporting distributed SCS and redundancy

●SCS IP address configurable using the DNCS

EIS to SCS Interface

Per DVS-278 specification (SCTE DVS/278: Head-end Implementation of OpenCAS)

PowerKEY Conditional

Access System

Secures digital services using symmetric encryption algorithm for content protection and strong

authentication and digital signature for entitlement delivery

Connector Specifications

Ports (Back Panel)

●Two 10/100/1000BASE-T network interfaces

●One Serial I/O port

●Two USB 2.0 ports

●One VGA video port

●One eSATA port

Electrical Specifications

Powering

100 VAC to 240 VAC 50/60 Hz

Power Consumption

250 W

Electrostatic Shock

No damage from five discharges of 15 KV IEC electrostatic discharge model [150 Pico-Farad

(pF) + 150 ohm] to all exposed connections

RFI/EMI Emission

●FCC part 15 sub part B class A

●EN50083-2

Environmental Specifications

Temperature Range

50º to 95ºF (10º to 35ºC)

Cooling

Self-contained fans provide sufficient cooling to operate in a 19-in. (483 mm) rack without the

need for a 1 RU spacer between units

Storage Temperature

40º to 149ºF (-40º to +65ºC)

Operating Humidity

20% to 80% non-condensing

Mechanical Specifications

Dimensions (WxHxD)

●One rack unit

●17 in. x 1.68 in. x 15.5 in. (431 mm x 42.6 mm x 393.7 mm)

Data Sheet

Ordering Information

Table 4. Ordering Information

Contact your Sales Representative for product availability in your area.

Description

Part Number

Model D-PCG1000 PowerKEY Conditional Access System Gateway (PCG)

4019240

Service and Support

Using the Cisco Lifecycle Services approach, Cisco and its partners provide a broad portfolio of

end-to-end services and support that can help increase your network's business value and return

on investment. This approach defines the minimum set of activities needed by technology and by

network complexity to help you successfully deploy and operate Cisco technologies and optimize

their performance throughout the lifecycle of your network.

For More Information

To learn more about this product, contact your local account representative.

To subscribe to receive end-of-life/end-of-sale information, go to

http://www.cisco.com/cgi-bin/Support/FieldNoticeTool/field-notice.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and

other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks.

DVB is a registered trademark of the DVB Project.

Other third party trademarks mentioned are the property of their respective owners.

The use of the word partner does not imply a partnership relationship between Cisco and any other company.

(1009R)

Specifications and product availability are subject to change without notice.

Cisco Systems, Inc.

800 722-2009 or 678 277-1120 Part Number 7011535 Rev B

www.cisco.com January 2011
